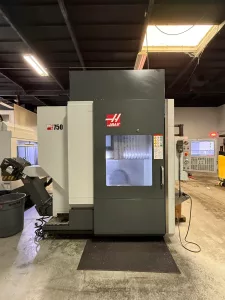

Used Haas UMC-750

The Haas UMC-750 is a 5-axis universal machining center built around a 30″ x 20″ x 20″ work envelope and an integrated two-axis trunnion table, so a part can be machined on five sides in a single setup. It is the most common UMC on the used market, and there is a wide range of features and options available to configure each machine to a shop’s work.

UMC Series: UMC-500 | UMC-750

1-2 of 2

2017 Haas UMC-750SS

CNC Vertical Machining Center

Ref # 8079079

Activate Price

Request a Quote Add to Cart

Compare
2019 Haas UMC-750

CNC Vertical Machining Center

Ref # 8079020

Activate Price

Request a Quote Add to Cart

Compare

1-2 of 2

What a standard Haas UMC-750 comes equipped with

30″ x 20″ x 20″ Travels (X, Y, Z)
Integrated 2-Axis Trunnion Table
19.7″ x 24.8″ Platter
600 lb Max Weight on Platter
B-Axis Tilt +110° to -35°
C-Axis Rotation 360°
8,100 RPM Inline Direct-Drive Spindle
30 HP Vector Drive
CAT 40 Taper
40+1 Side-Mount Tool Changer
1,200 IPM Rapids
650 IPM Max Cutting Feedrate
Chip Conveyor
Haas CNC Control

Available upgrades for the UMC-750 CNC models

A user may upgrade from standard features and specifications including:

12,000 RPM or 15,000 RPM Spindle
50-Pocket Side-Mount Tool Changer
Through-Spindle Coolant (300 psi or 1,000 psi)
Wireless Intuitive Probing System (WIPS)
High-Speed Machining
Programmable Coolant Nozzle
Remote Jog Handle
Rigid Tapping
BT 40 taper in place of CAT 40, and many more!

Does the UMC-750 have different models?

In addition to customizing features and specs, Haas Automation offers UMC models built with some of the upgraded features referenced above:

Haas UMC-750SS is the Super Speed version, with a 15,000 RPM spindle and faster rapids for higher-speed work.
Haas UMC-500 is the smaller machine in the range, with 24″ x 16″ x 16″ travels and a 15.7″ platter.
Haas UMC-1000 is the larger machine, for parts that will not fit a 750.

When considering a used Haas UMC-750, the spindle speed, the size of the tool changer and whether the machine carries through-spindle coolant are the specifications that most often separate two otherwise similar machines.

Popular Haas Models:

VF Series:

UMC Series:

ST Series:

EC Series:

Specifications, from the machines we have handled

X-Axis Travel	30" (21 of 22), 20" (1 of 22)
Y-Axis Travel	20" (21 of 22), 22" (1 of 22)
Z-Axis Travel	20" (22 of 22)
Spindle Speed	12,000 RPM (13 of 22), 15,000 RPM (7 of 22), 8,100 RPM (2 of 22)
Spindle Taper	CAT 40 (19 of 22), BT 40 (2 of 22)
Spindle Motor	30 HP (6 of 22)
Tool Magazine Capacity	40 ATC (17 of 22), 30 ATC (4 of 22), 50 ATC (1 of 22)
Control	Haas CNC (20 of 22), Haas NextGen (1 of 22), Haas (1 of 22)

X-Axis Travel

30" (21 of 22), 20" (1 of 22)

Y-Axis Travel

20" (21 of 22), 22" (1 of 22)

Z-Axis Travel

20" (22 of 22)

Spindle Speed

12,000 RPM (13 of 22), 15,000 RPM (7 of 22), 8,100 RPM (2 of 22)

Spindle Taper

CAT 40 (19 of 22), BT 40 (2 of 22)

Spindle Motor

30 HP (6 of 22)

Tool Magazine Capacity

40 ATC (17 of 22), 30 ATC (4 of 22), 50 ATC (1 of 22)

Control

Haas CNC (20 of 22), Haas NextGen (1 of 22), Haas (1 of 22)

What we have listed Haas UMC-750 machines at

Across 43 Haas UMC-750 machines we have listed with a published price, the middle half ran from $79,990 to $139,750, with a median of $99,500. A quarter were listed below that band and a quarter above it. These are the prices we asked, not what any machine changed hands for — condition, hours, tooling and control generation move a machine within it. Ask us where a specific one sits.

Questions buyers ask

How much does a used Haas UMC-750 cost?

Across 43 Haas UMC-750 machines KD Machinery has listed with a published price, the middle half ran from $79,990 to $139,750, with a median of $99,500. A quarter were listed below that band and a quarter above it. These are the prices we asked, not what any machine changed hands for — condition, hours, tooling and control generation move a machine within it.

Which Haas UMC-750 variant is most common?

Of the 22 Haas UMC-750 machines KD Machinery has handled, the most common variants are UMC-750 (16), UMC-750SS (6). That is our own record of what has actually come through, not a catalog of everything the manufacturer built.

Where to buy a used Haas UMC-750

KD Machinery buys, sells and brokers used machinery nationwide. We have 2 used Haas UMC-750 available now, listed on this page. We have handled 22 of them, built between 2013 and 2021.

Our office is in Scottsdale, Arizona, but the machines are not. They sit wherever the seller is, across the United States, and most buyers are looking at one in another state or across the country. We arrange inspection and rigging wherever a machine stands.

Call 480.922.1674, email customerservice@kdmachinery.com, or use the quote form on any machine above. We will tell you where a specific one sits on price, what condition it is in, and can put you in touch with an inspector near it.
