Used Haas DT-1

1-1 of 1

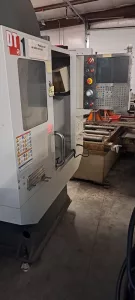

2013 Haas DT-1

CNC Vertical Machining Center

Ref # 8078462

Activate Price

Request a Quote Add to Cart

Compare

1-1 of 1

What a standard Haas DT-1 comes equipped with

20″ x 16″ x 15.5″ Travels (X, Y, Z)
BT-30 Taper Inline Direct-Drive Spindle
20-Pocket Side-Mount Tool Changer
15 HP Vector Drive
2,400 IPM Rapids
Rigid Tapping to 5,000 RPM
45-Gallon Flood Coolant System
Chip Auger
Haas CNC Control

Available upgrades for the DT-1 CNC models

A user may upgrade from standard features and specifications including:

Through-Spindle Coolant (300 psi)
Fourth Axis, wired or with a rotary table fitted
Wireless Intuitive Probing System (WIPS)
High-Speed Machining
Programmable Coolant Nozzle
Automatic Door
Pallet Changer for unattended running, and many more!

Does the DT-1 have different models?

In addition to customizing features and specs, Haas Automation offers other machines in the drill and tap range:

Haas DT-2 is the longer machine in the same 30-taper format, with 28″ of X travel in place of 20″.
Haas DM-1 and DM-2 are the drill and mill machines, built on the same design but with a 40-taper spindle and an 18-pocket tool changer for heavier cutting.
Haas VF-2 is the 40-taper vertical machining center at a similar footprint. It takes heavier cuts, and it will not change tools anywhere near as fast.

When considering a used Haas DT-1, spindle speed is the specification to read, because Haas raised it during the machine’s production life. The machines we have handled, built between 2010 and 2020, run at 15,000, 12,000 and 10,000 RPM, and the split is close enough that two DT-1s of similar year and similar asking price can be a third apart on spindle speed. On a drill and tap machine that is most of what you are buying.

Popular Haas Models:

VF Series:

UMC Series:

ST Series:

EC Series:

Specifications, from the machines we have handled

X-Axis Travel	20" (8 of 8)
Y-Axis Travel	16" (8 of 8)
Z-Axis Travel	15.5" (8 of 8)
Spindle Speed	15,000 RPM (4 of 8), 10,000 RPM (3 of 8), 12,000 RPM (1 of 8)
Spindle Taper	BT 30 (8 of 8)
Spindle Motor	15 HP (4 of 8)
Tool Magazine Capacity	20 ATC (8 of 8)
Control	Haas CNC (7 of 8), Haas Cold Fire 2 (1 of 8)
Power Requirement	195-260V 3 Phase (1 of 8), 220/3/60 (1 of 8)

X-Axis Travel

20" (8 of 8)

Y-Axis Travel

16" (8 of 8)

Z-Axis Travel

15.5" (8 of 8)

Spindle Speed

15,000 RPM (4 of 8), 10,000 RPM (3 of 8), 12,000 RPM (1 of 8)

Spindle Taper

BT 30 (8 of 8)

Spindle Motor

15 HP (4 of 8)

Tool Magazine Capacity

20 ATC (8 of 8)

Control

Haas CNC (7 of 8), Haas Cold Fire 2 (1 of 8)

Power Requirement

195-260V 3 Phase (1 of 8), 220/3/60 (1 of 8)

What we have listed Haas DT-1 machines at

Across 15 Haas DT-1 machines we have listed with a published price, the middle half ran from $27,750 to $39,750, with a median of $29,900. A quarter were listed below that band and a quarter above it. These are the prices we asked, not what any machine changed hands for — condition, hours, tooling and control generation move a machine within it. Ask us where a specific one sits.

Questions buyers ask

How much does a used Haas DT-1 cost?

Across 15 Haas DT-1 machines KD Machinery has listed with a published price, the middle half ran from $27,750 to $39,750, with a median of $29,900. A quarter were listed below that band and a quarter above it. These are the prices we asked, not what any machine changed hands for — condition, hours, tooling and control generation move a machine within it.

Where to buy a used Haas DT-1

KD Machinery buys, sells and brokers used machinery nationwide. We have 1 used Haas DT-1 available now, listed on this page. We have handled 8 of them, built between 2010 and 2020.

Our office is in Scottsdale, Arizona, but the machines are not. They sit wherever the seller is, across the United States, and most buyers are looking at one in another state or across the country. We arrange inspection and rigging wherever a machine stands.

Call 480.922.1674, email customerservice@kdmachinery.com, or use the quote form on any machine above. We will tell you where a specific one sits on price, what condition it is in, and can put you in touch with an inspector near it.
