Used Haas TL-2

1-1 of 1

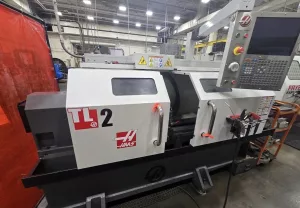

2015 Haas TL-2

CNC Lathe

Ref # 8078943

Activate Price

Request a Quote Add to Cart

Compare

1-1 of 1

What a standard Haas TL-2 comes equipped with

16″ Swing
48″ Between Centers
16″ Max Turning Diameter
3″ Bar Capacity
A2-5 Spindle Nose
8″ Three-Jaw Chuck
2,000 RPM Spindle
Manual Handwheels
Flood Coolant System
Haas CNC Control

Available upgrades for the TL-2 CNC models

A user may upgrade from standard features and specifications including:

10″ or 12″ Chuck in place of the standard 8″
A2-6 Spindle Nose in place of A2-5
Manual or Programmable Tailstock
Four-Position Tool Post or Turret
Automatic Tool Presetter
Rigid Tapping
Steady Rest
Chip Conveyor, and many more!

Does the TL-2 have different models?

In addition to customizing features and specs, Haas Automation builds other machines around the same toolroom design:

Haas TL-1 is the shorter machine in the same family, with 30″ between centers in place of 48″, and a 2″ bar capacity in place of 3″.
Haas TL-2P is the production toolroom lathe, built with a 6.5″ chuck for repeat work rather than one-off toolroom jobs.
Haas ST series are the full production turret lathes, which is where a shop usually goes once it has outgrown hand-loading a toolroom machine.

When considering a used Haas TL-2, length is what separates it from a TL-1, but workholding is what separates two otherwise similar TL-2s. The optional 10″ chuck is on more of the machines we have handled than the standard 8″ is, and whether a tailstock and a four-position tool post came with the machine changes what it can do without an operator standing at it.

Popular Haas Models:

VF Series:

UMC Series:

ST Series:

EC Series:

Specifications, from the machines we have handled

Chuck Size	10" (5 of 8), 8" (3 of 8)
Bar Capacity	3" (6 of 8), 2" (2 of 8)
Swing	16" (3 of 8), 20" (2 of 8), 19" (2 of 8)
Turning Diameter	16" (6 of 8), 20" (2 of 8)
Distance Between Centers	48" (8 of 8)
X-Axis Travel	8" (2 of 8)
Z-Axis Travel	48" (2 of 8)
Spindle Speed	2,000 RPM (5 of 8), 1,800 RPM (3 of 8)
Spindle Motor	10 HP (1 of 8), 12 HP (1 of 8)
Turret	Tool Post (2 of 8), 4 Station (1 of 8), 5 Post (1 of 8)
Control	Haas CNC (6 of 8), Haas CNC Control (1 of 8)
Power Requirement	220/3/60 (1 of 8)

Chuck Size

10" (5 of 8), 8" (3 of 8)

Bar Capacity

3" (6 of 8), 2" (2 of 8)

Swing

16" (3 of 8), 20" (2 of 8), 19" (2 of 8)

Turning Diameter

16" (6 of 8), 20" (2 of 8)

Distance Between Centers

48" (8 of 8)

X-Axis Travel

8" (2 of 8)

Z-Axis Travel

48" (2 of 8)

Spindle Speed

2,000 RPM (5 of 8), 1,800 RPM (3 of 8)

Spindle Motor

10 HP (1 of 8), 12 HP (1 of 8)

Turret

Tool Post (2 of 8), 4 Station (1 of 8), 5 Post (1 of 8)

Control

Haas CNC (6 of 8), Haas CNC Control (1 of 8)

Power Requirement

220/3/60 (1 of 8)

What we have listed Haas TL-2 machines at

Across 14 Haas TL-2 machines we have listed with a published price, the middle half ran from $25,500 to $32,900, with a median of $28,500. A quarter were listed below that band and a quarter above it. These are the prices we asked, not what any machine changed hands for — condition, hours, tooling and control generation move a machine within it. Ask us where a specific one sits.

Questions buyers ask

How much does a used Haas TL-2 cost?

Across 14 Haas TL-2 machines KD Machinery has listed with a published price, the middle half ran from $25,500 to $32,900, with a median of $28,500. A quarter were listed below that band and a quarter above it. These are the prices we asked, not what any machine changed hands for — condition, hours, tooling and control generation move a machine within it.

Where to buy a used Haas TL-2

KD Machinery buys, sells and brokers used machinery nationwide. We have 1 used Haas TL-2 available now, listed on this page. We have handled 8 of them, built between 2004 and 2017.

Our office is in Scottsdale, Arizona, but the machines are not. They sit wherever the seller is, across the United States, and most buyers are looking at one in another state or across the country. We arrange inspection and rigging wherever a machine stands.

Call 480.922.1674, email customerservice@kdmachinery.com, or use the quote form on any machine above. We will tell you where a specific one sits on price, what condition it is in, and can put you in touch with an inspector near it.
