Year |
2015 |
|---|---|
Make |
Haas |
Model |
TL-2 |
Description |
CNC Lathe |
Reference # |
8078943 |
Price |
Activate Pricing |

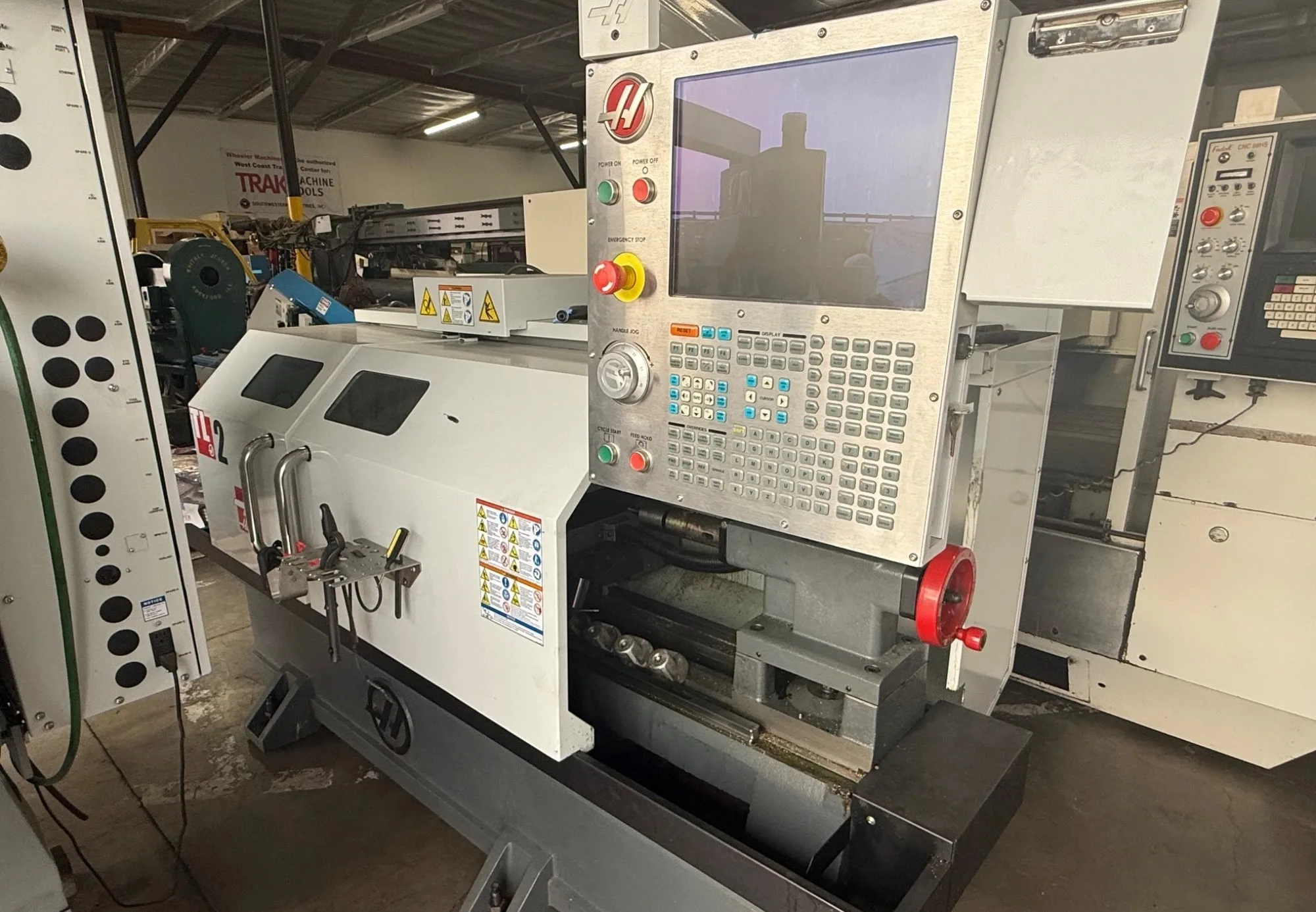

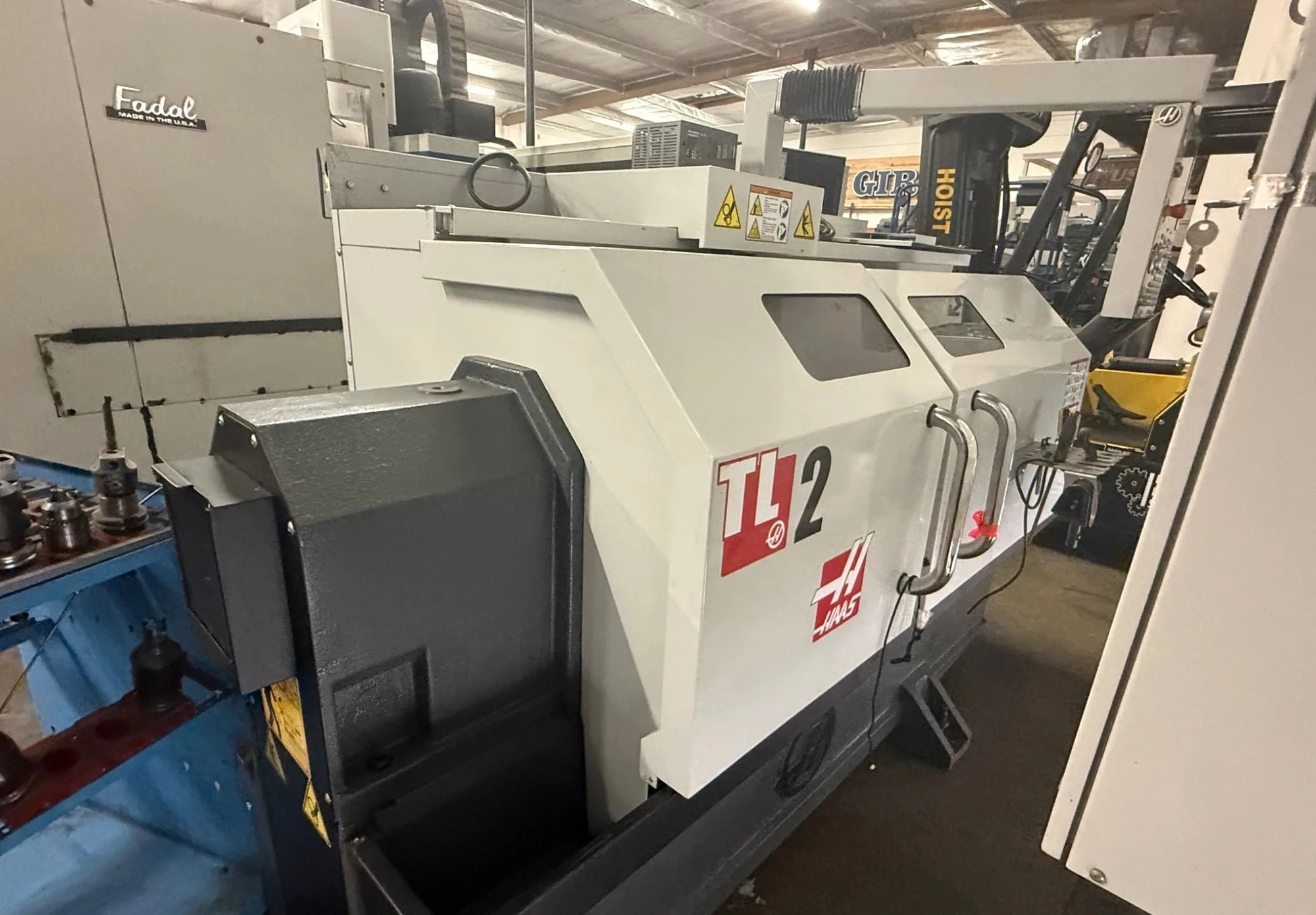

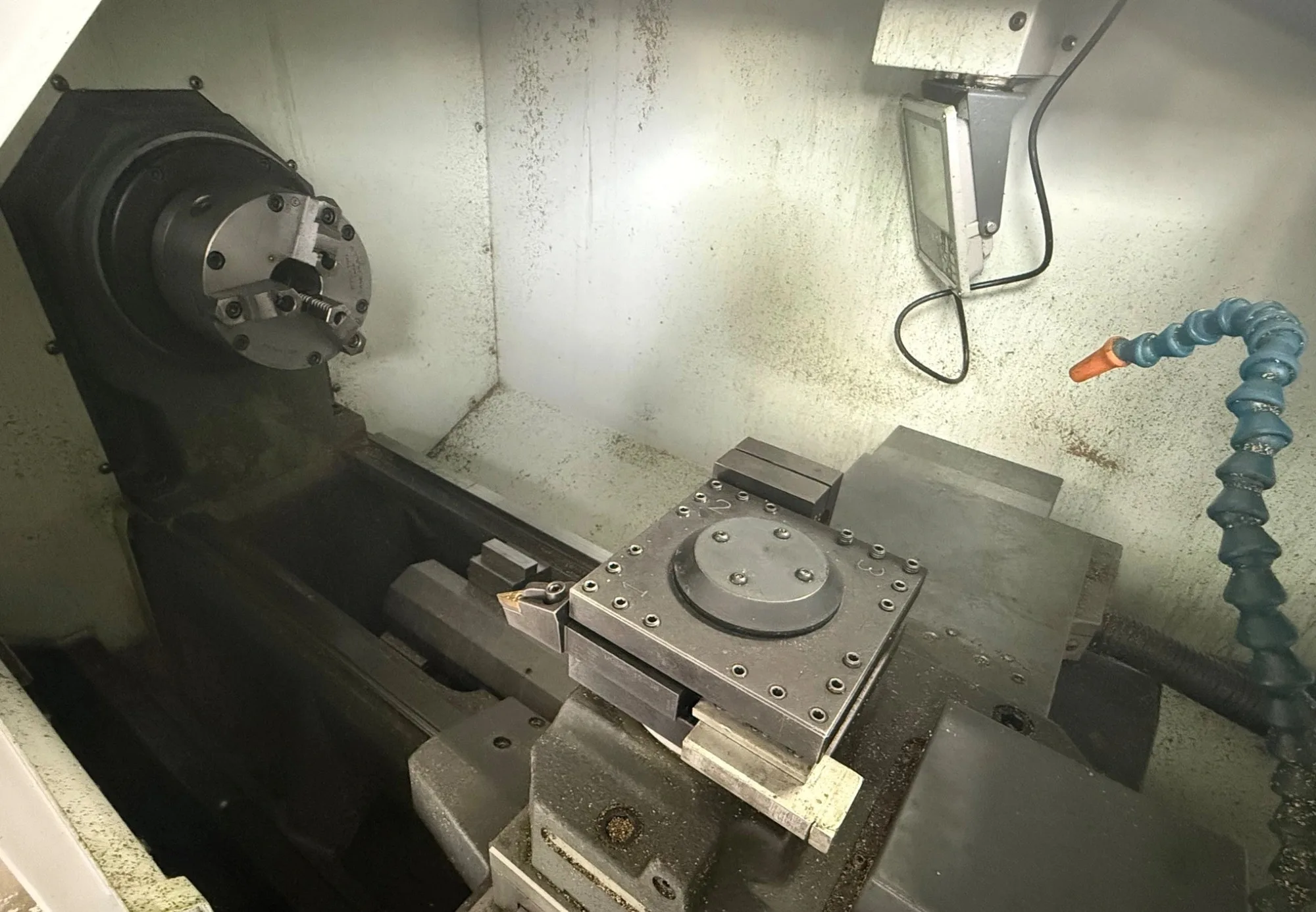

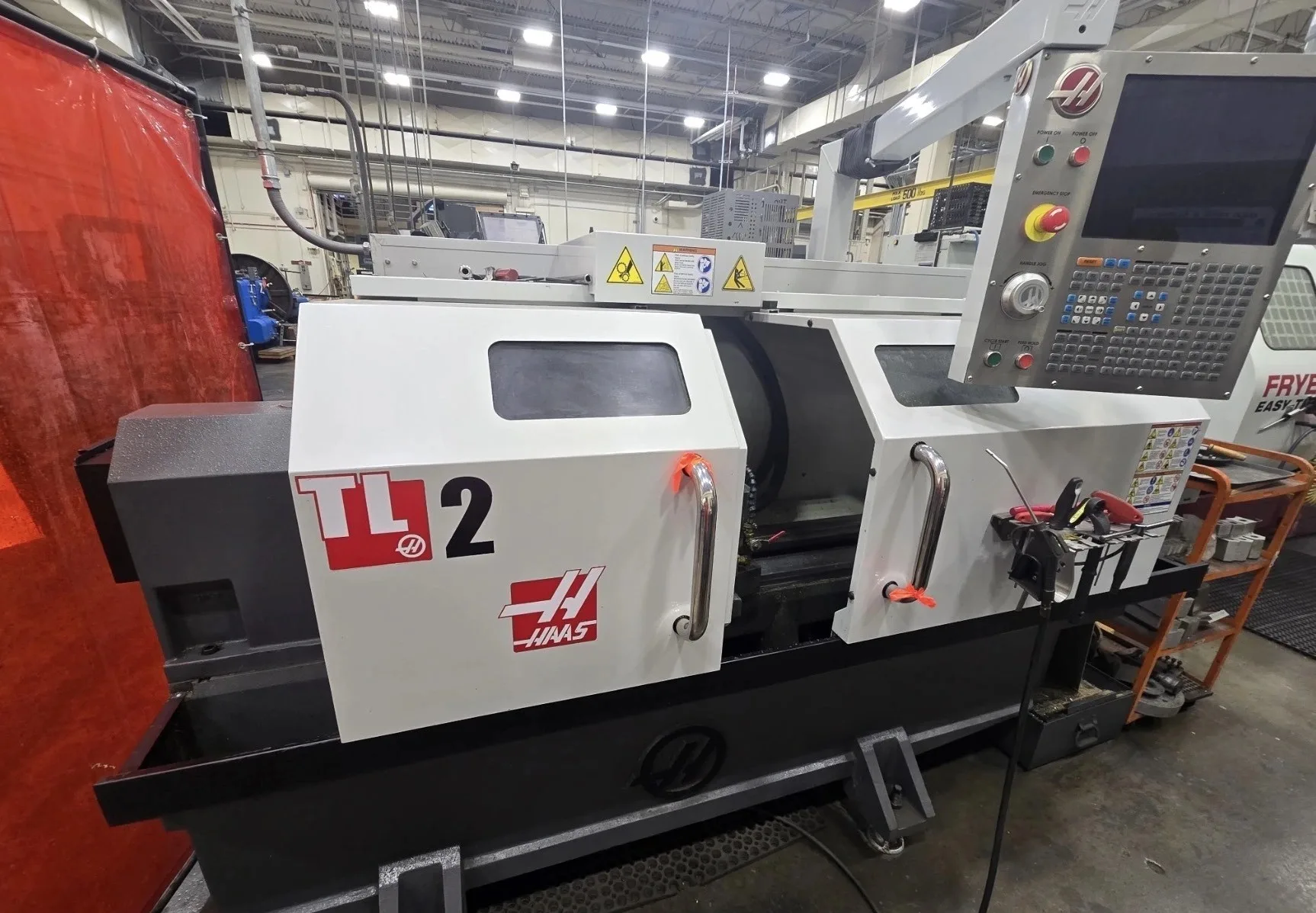

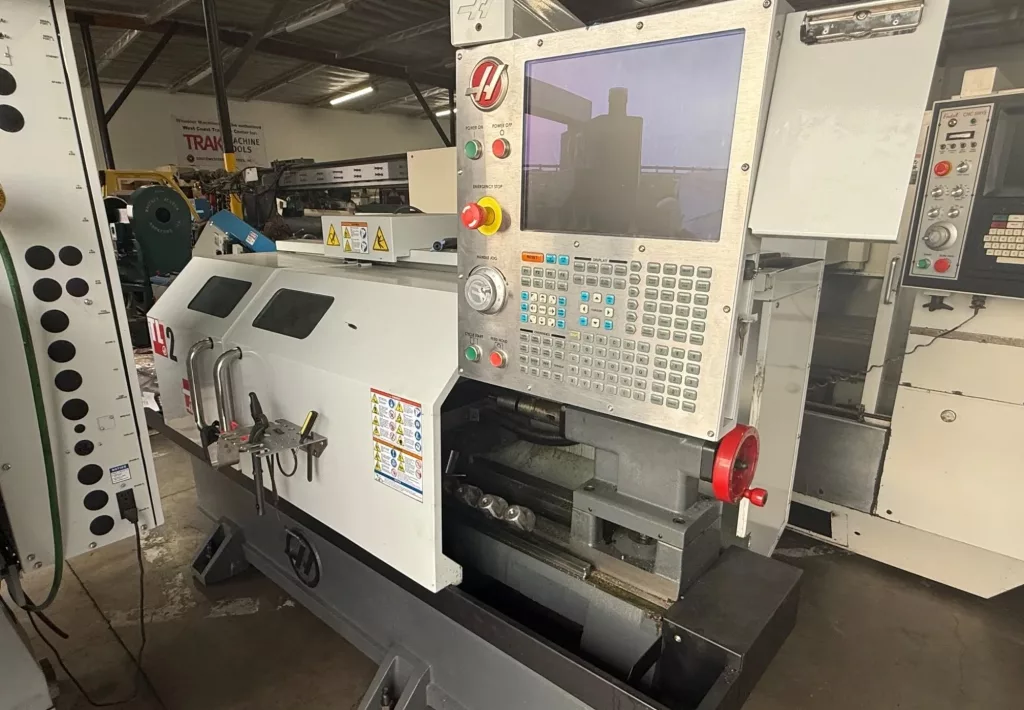

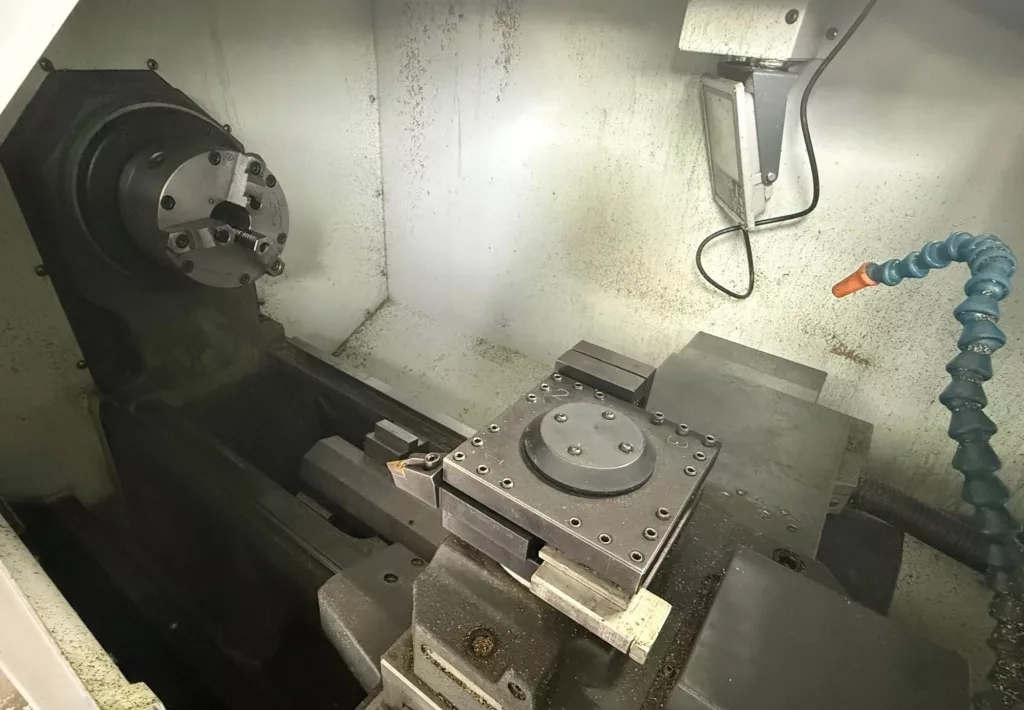

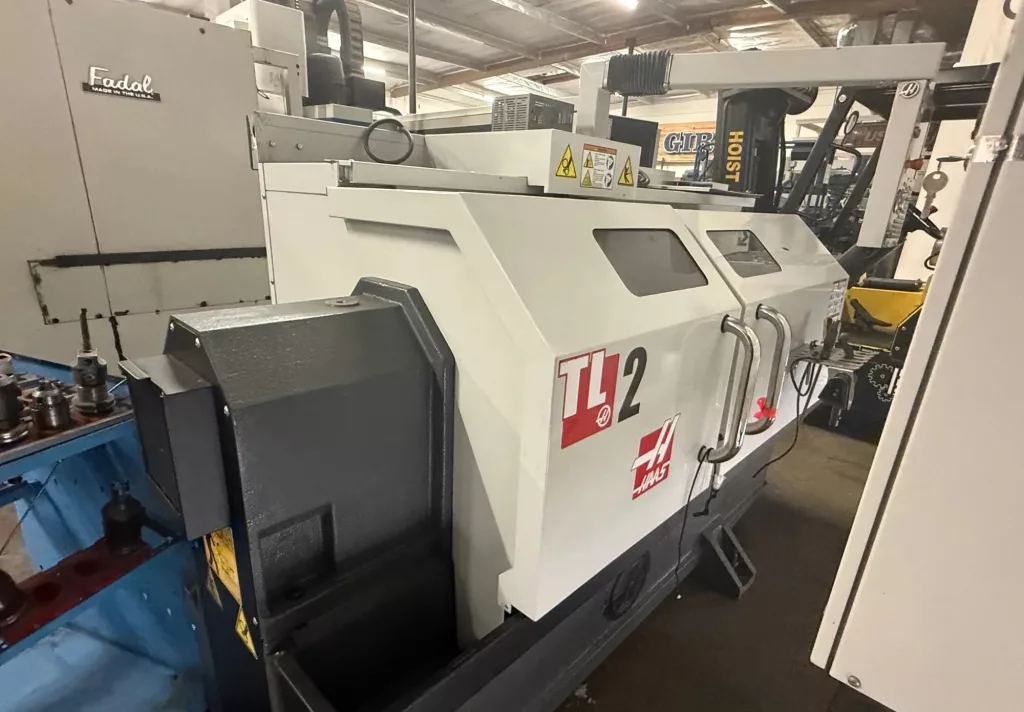

Used Haas TL-2 (2015) CNC Lathe for Sale. This toolroom lathe runs a Haas CNC Control with a 10 HP spindle motor rated to 2,000 RPM and 108 ft-lbf of torque at 355 RPM, on an A2-5 spindle nose. It carries an 8″ chuck with 2″ bar capacity, 16″ swing and 16″ maximum turning diameter, with 48″ between centers and 48″ maximum turning length. Travels measure 8″ in X and 48″ in Z, both with 450 IPM rapids. Equipped with a full sheet metal enclosure, tailstock and a 4-position turret, single turret station. Approximate machine weight is 5,900 LBS. The machine can be seen under power for an inspection. See our other used CNC lathes and used Haas machines, then Activate Pricing or use the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2" |
| Swing |
16" |
| Turning Diameter |
16" |
| Spindle Speed |
2,000 RPM |
| Distance Between Centers |
48" |
| Spindle Motor |
10 HP |
| X-Axis Travel |
8" |
| Z-Axis Travel |
48" |
| Rapid Feed on Z Axis |
450 IPM |
| Rapid Feed on X Axis |
450 IPM |
| Turret Stations |
4 Station |
| Max Turning Diameter |
16" |
| Max Turning Length |
48" |
| Main Spindle Nose |
A2-5 |
| Spindle Torque |
108 ft-lbf @ 355 rpm |
| Control |
Haas CNC Control |
| Approx Machine Weight |
5,900 LBS |
Features
|
Full Sheet Metal Enclosure |
Tailstock |
