Year |
2017 |
|---|---|
Make |
Haas |
Model |
UMC-750SS |
Description |
CNC Vertical Machining Center |
Reference # |
8079079 |
Price |
Activate Pricing |

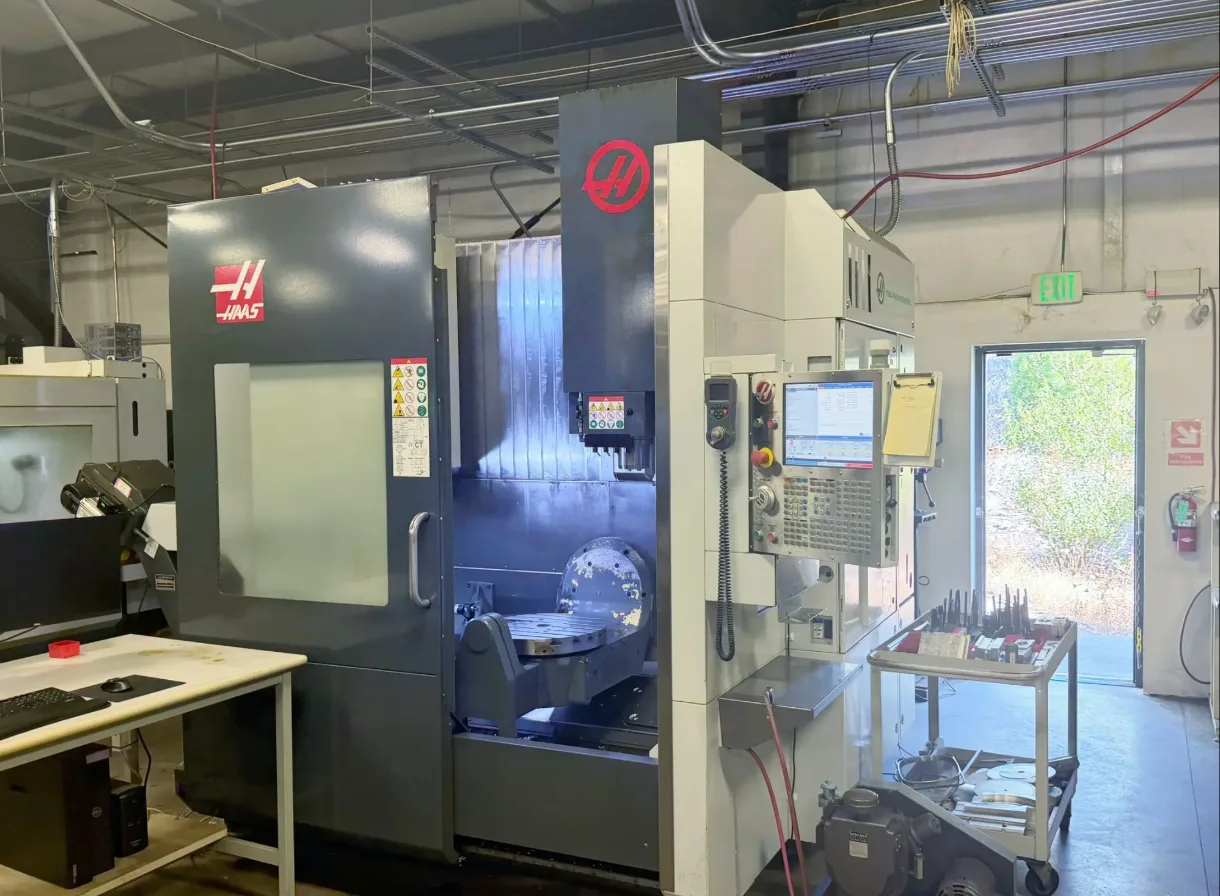

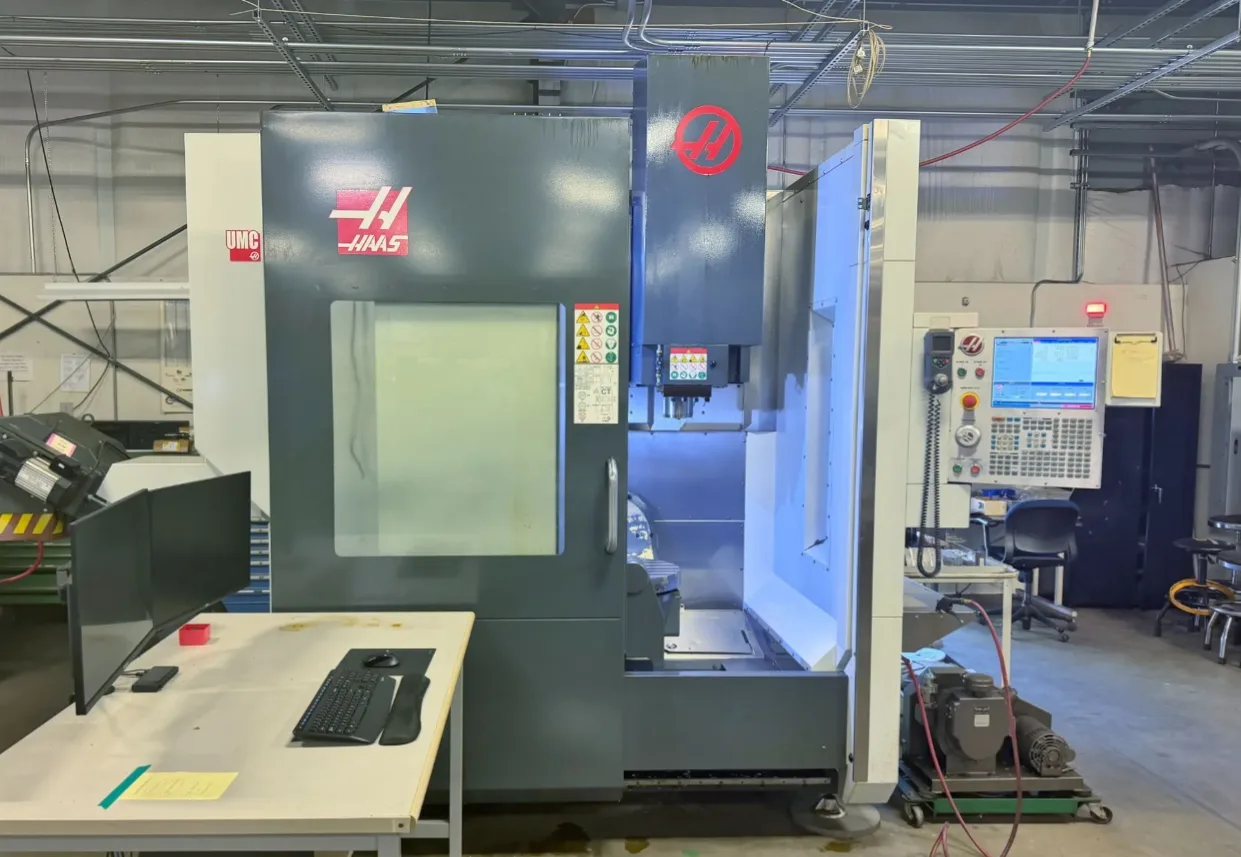

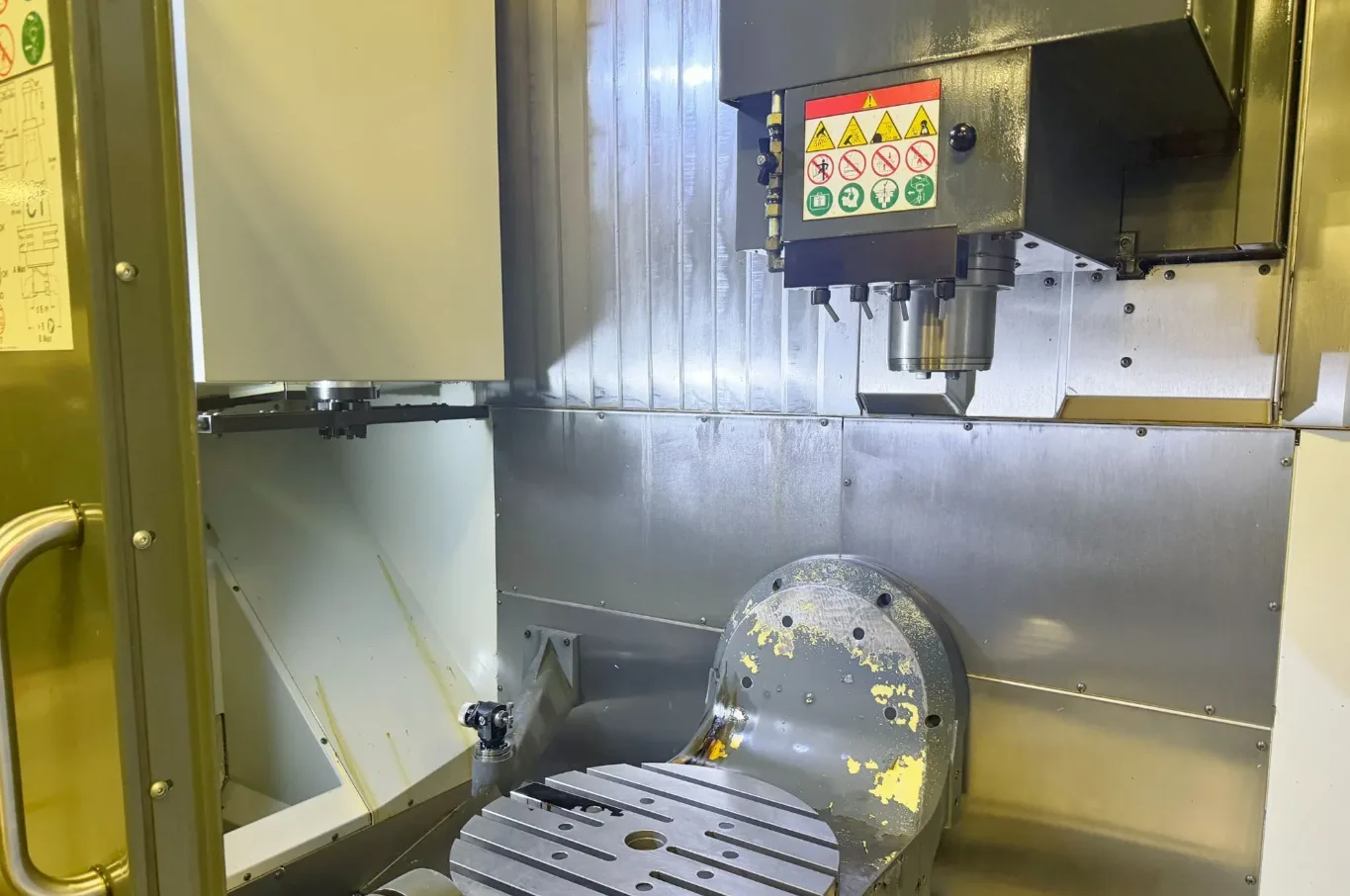

Used Haas UMC-750SS (2017) CNC Vertical Machining Center for Sale. This machine offers 30″ of X-axis travel, 20″ of Y-axis travel and 20″ of Z-axis travel, with a 5th axis trunnion table, a 40-station ATC and a CAT 40 spindle taper. The 30 HP spindle turns to 15,000 RPM under the Haas NextGen control, and a chip conveyor handles chip removal. Equipped with high pressure through spindle coolant (1000 PSI), a wireless intuitive probing system (WIPS) by Renishaw, dynamic work offsets and tool center point control, high speed machining, rigid tapping, spindle orientation, coordinate rotation and scaling, visual part programming (VPS editing), a remote jog handle, Haas Connect remote monitoring, second home position, through tool air blast, media display M code, 32 GB of memory, a USB port and Ethernet. The machine can be seen under power for an inspection. Browse our other used CNC vertical machining centers and additional used Haas machines. Activate Pricing or use the Inquire Now button to request a quote.
Specifications
| X-Axis Travel |
30" |
|---|---|
| Y-Axis Travel |
20" |
| Z-Axis Travel |
20" |
| Tool Magazine Capacity |
40 ATC |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |
| Control |
Haas NextGen |
| Additional Axis |
5th Axis Trunnion Table |
| Spindle Motor |
30 HP |
Features
|
Haas Connect: Remote Monitoring |
High Pressure Through Spindle Coolant (1000 PSI) |
|
Visual Part Programming System (VPS Editing) |
Chip Conveyor |
|
Coordinate Rotation and Scaling |
High Speed Machining |
|
Media Display M Code |
Remote Jog Handle |
|
Rigid Tapping |
Second Home Position |
|
Spindle Orientation |
32 GB Memory |
|
USB Port |
Wireless Intuitive Probing System (WIPS) - Renishaw |
|
Through Tool Air Blast |
Dynamic Work Offsets and Tool Center Point Control |
|
Ethernet |
