Year |
2014 |
|---|---|
Make |
Toyoda |
Model |
WELE UA-2090 |
Description |
CNC Vertical Machining Center |
Reference # |
8077684 |
Price |
Activate Pricing |

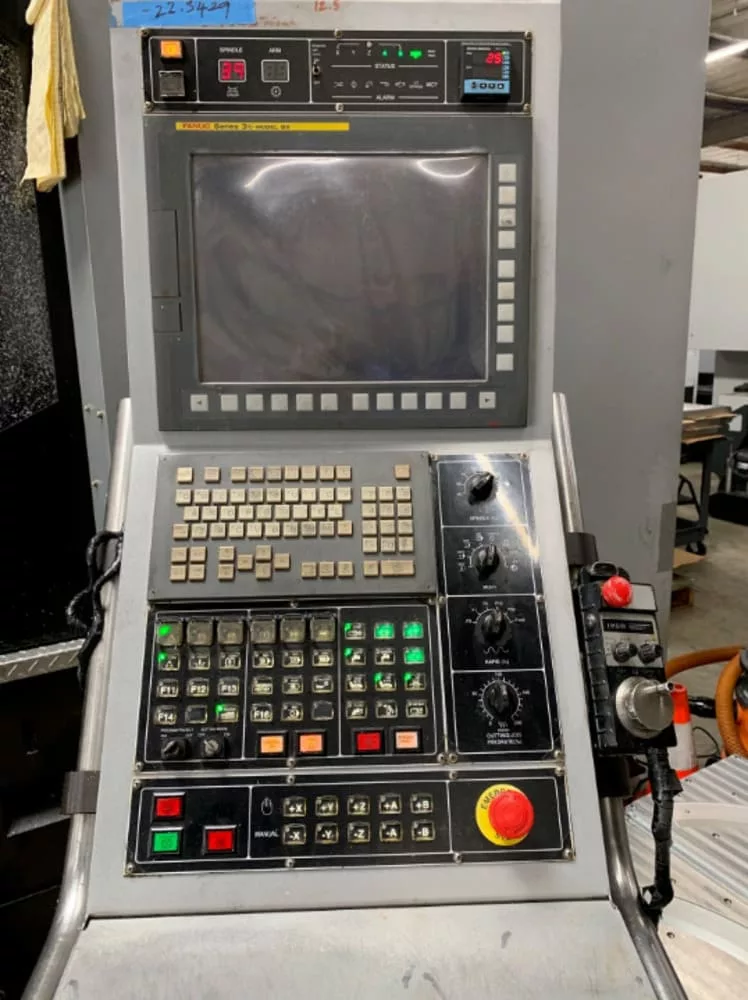

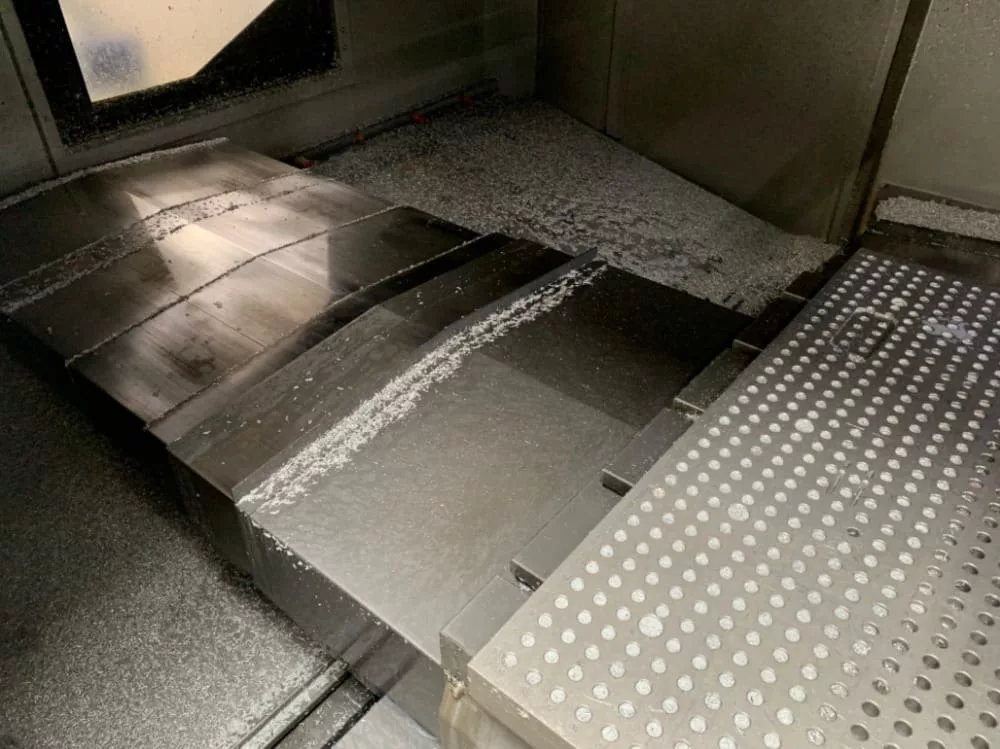

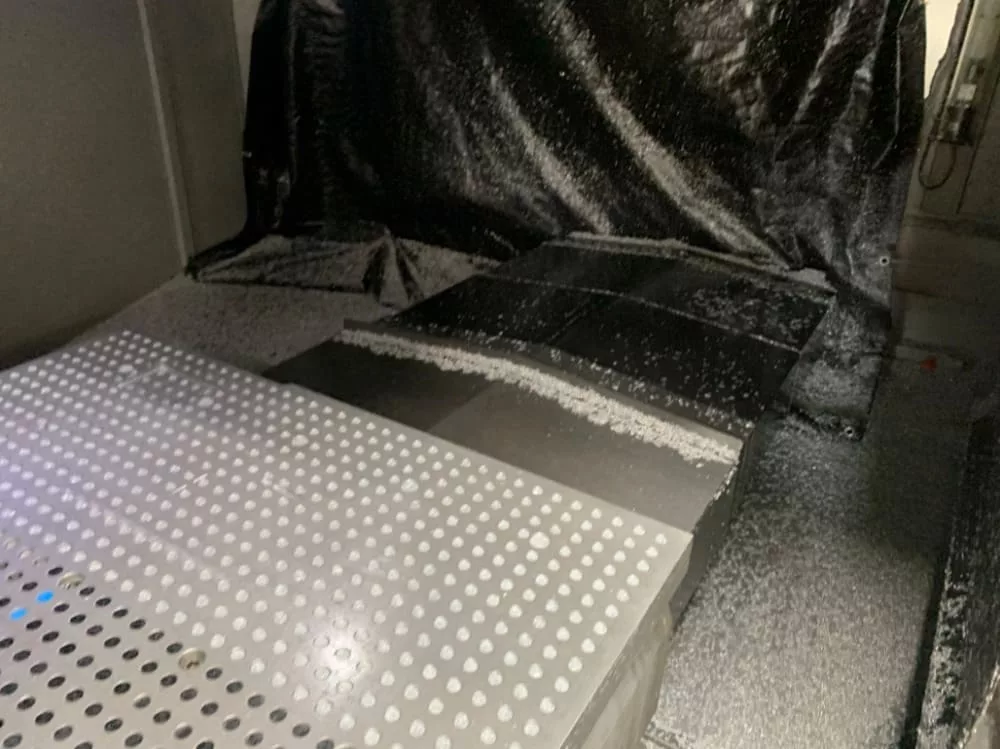

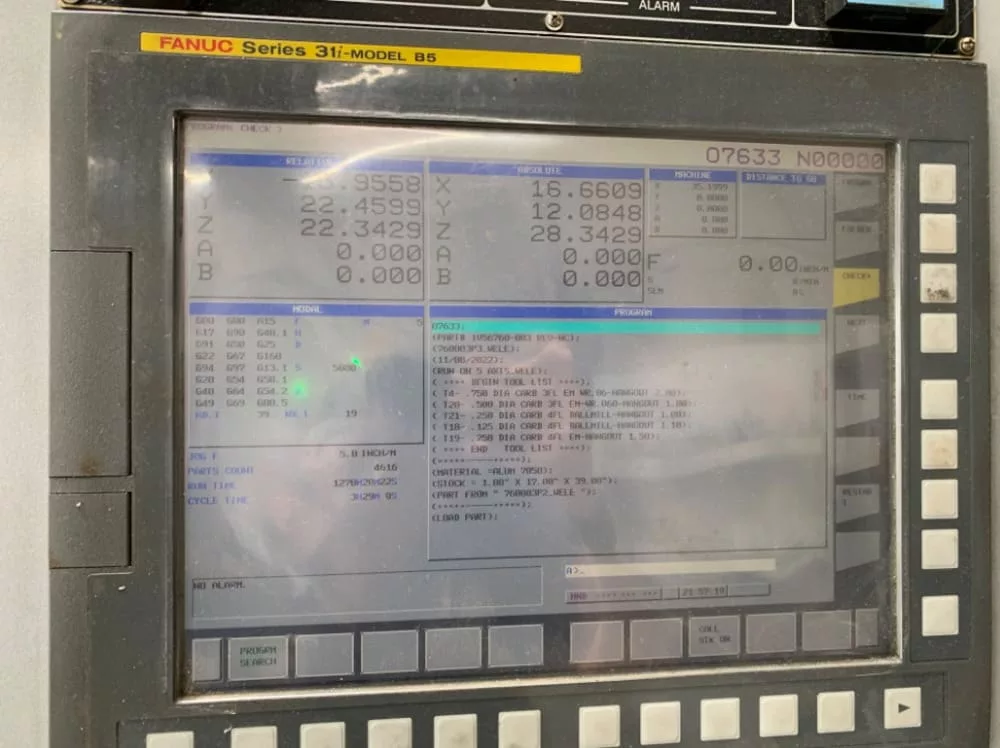

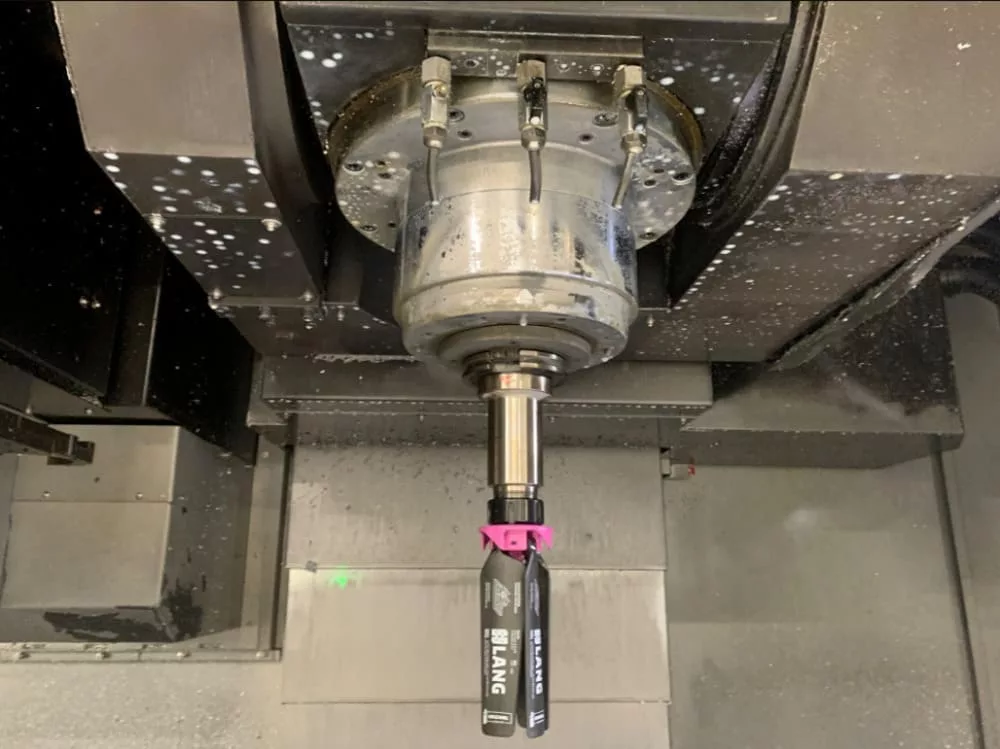

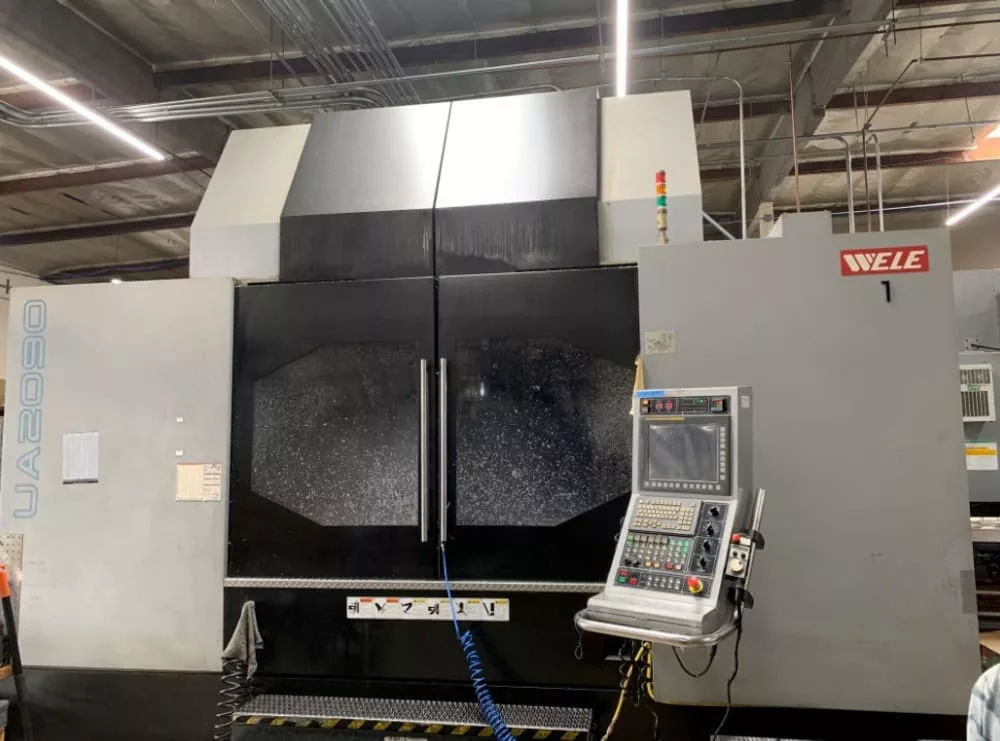

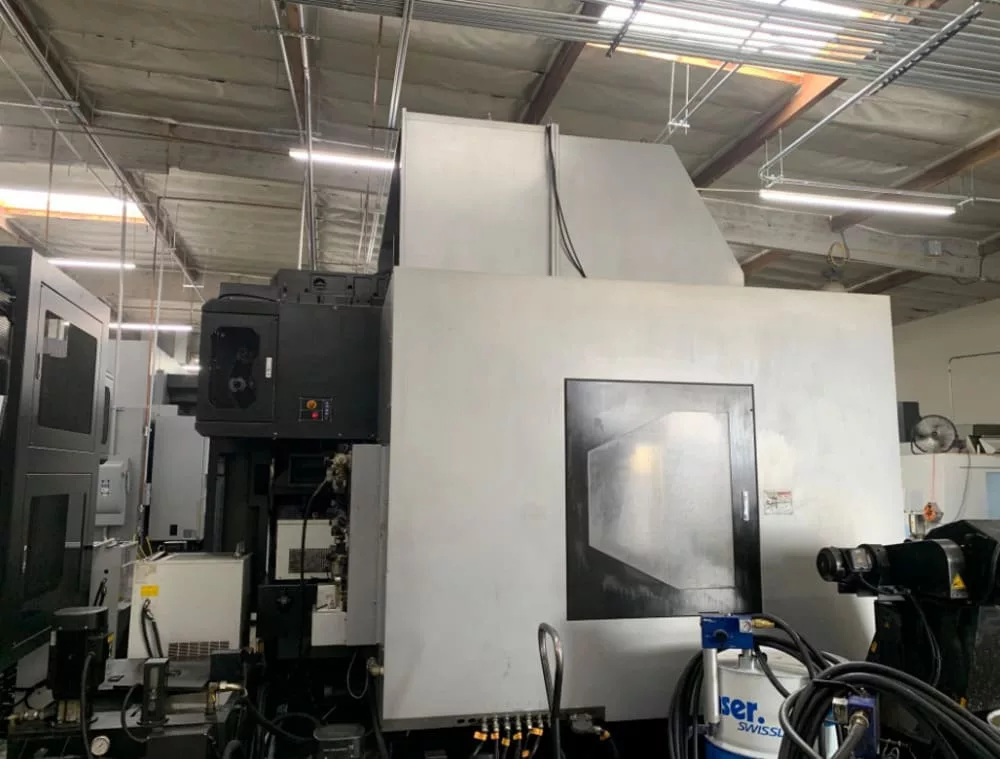

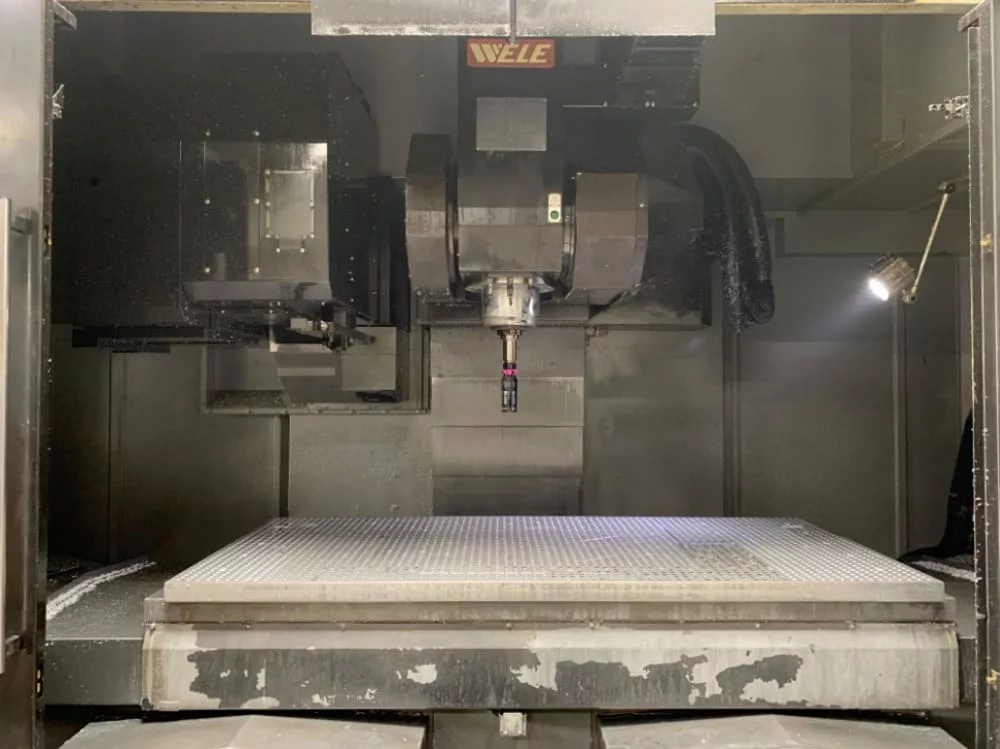

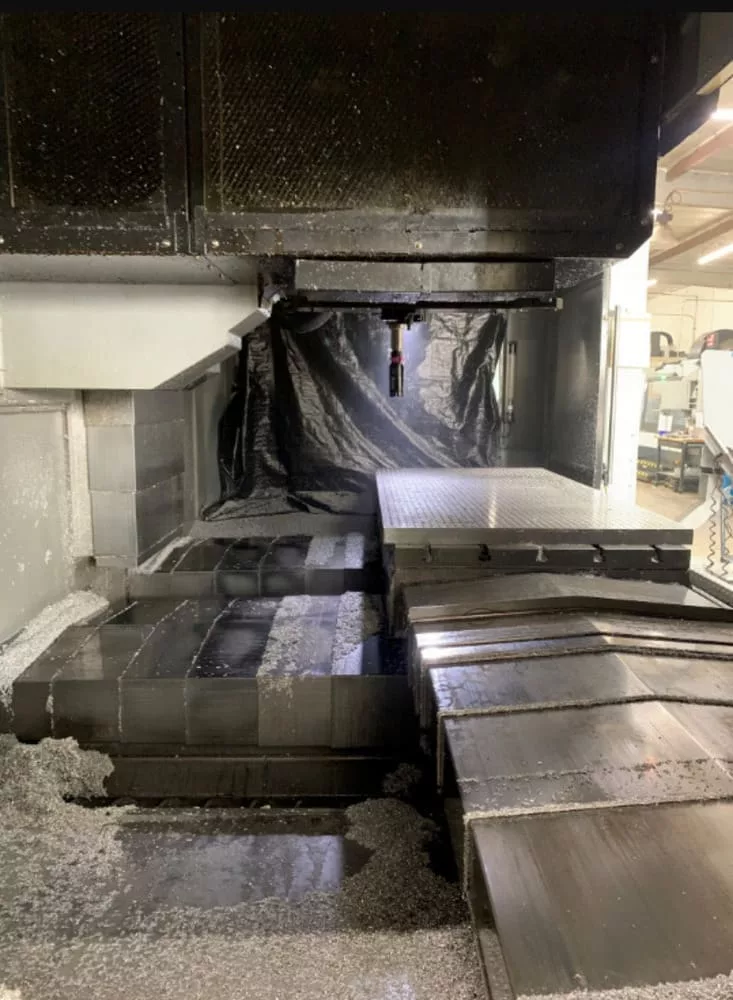

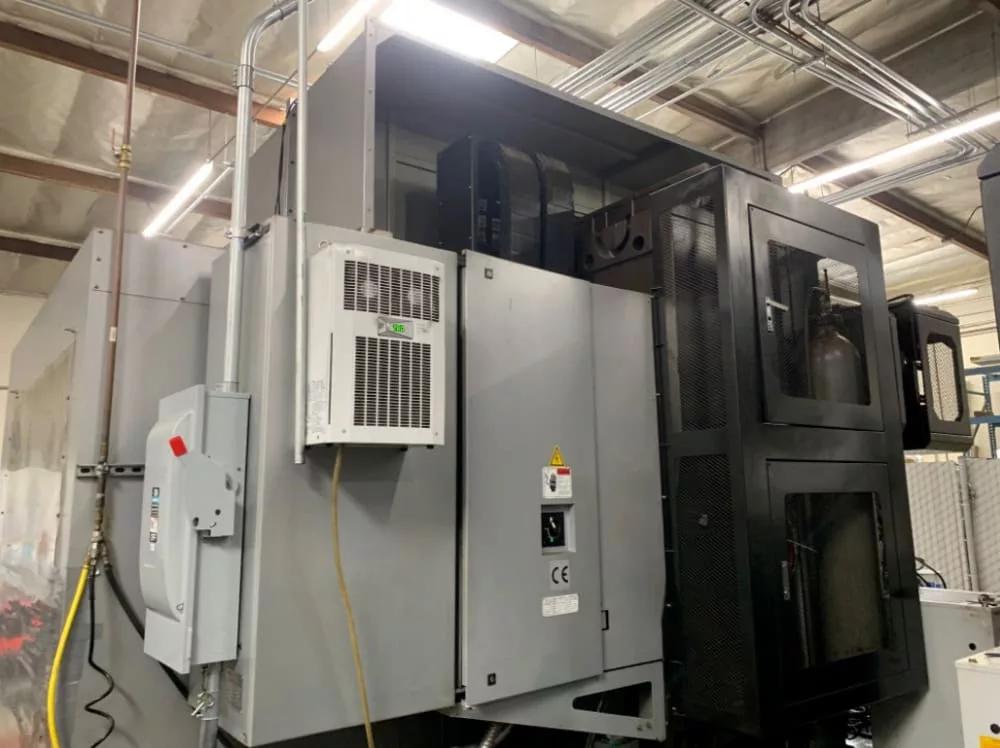

Used Toyoda WELE UA-2090 (2014) CNC Vertical Machining Center for Sale. This bridge-style machine offers 78.7″ of X-axis travel, 35.4″ in Y, and 27.5″ in Z, with an 84.6″ x 35.4″ table and a maximum cutting feedrate of 394 IPM. The 40 HP spindle runs to 12,000 RPM with an HSK 63A taper, served by a 48-tool ATC and a Fanuc 31i B5 control. It is 5-axis and 5th-axis ready, and includes magnetic scales on X/Y/Z, magnetic rotary encoders on the A/B axes, MPG remote handwheel, RS-232 interface, chip conveyor, standard coolant system, bed flushing, work light, heat exchanger, roof enclosure guarding, and finish and alarm lamp. Machine weight is 46,297 lbs; overall dimensions are 209″ x 130″ x 157″. It can be seen under power for an inspection. See more CNC vertical machining centers or additional Toyoda machines. Activate Pricing or Request a Quote.
Specifications
| X-Axis Travel |
78.7" |
|---|---|
| Y-Axis Travel |
35.4" |
| Z-Axis Travel |
27.5" |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
HSK 63A |
| Spindle Motor |
40 HP |
| Tool Magazine Capacity |
48 ATC |

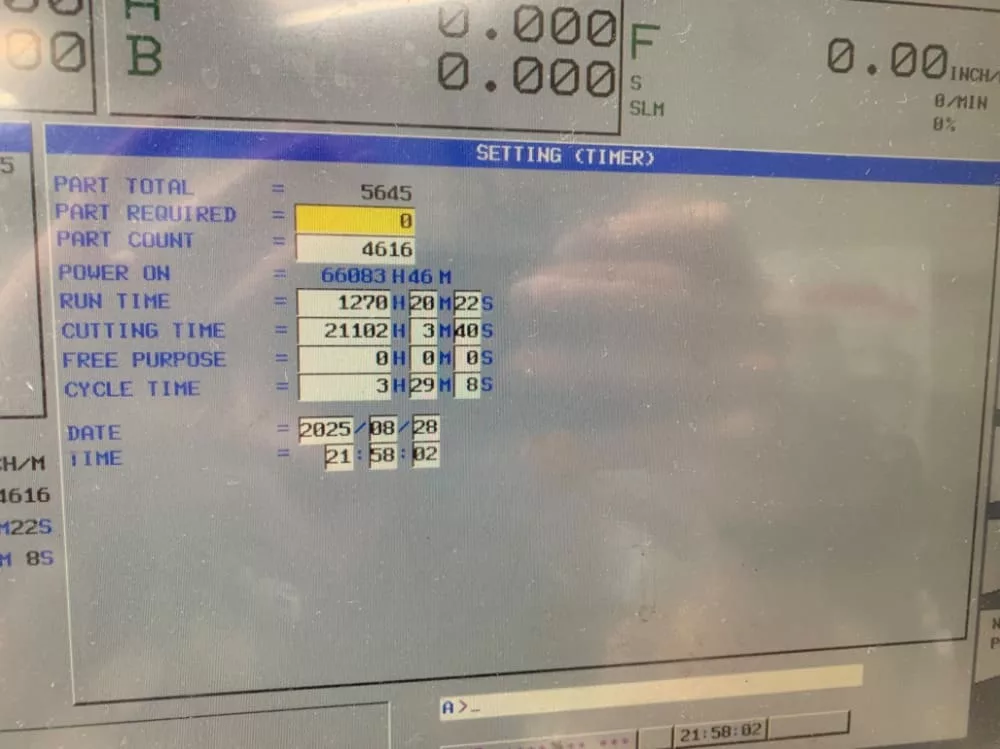

| Control |
Fanuc 31i B5 |

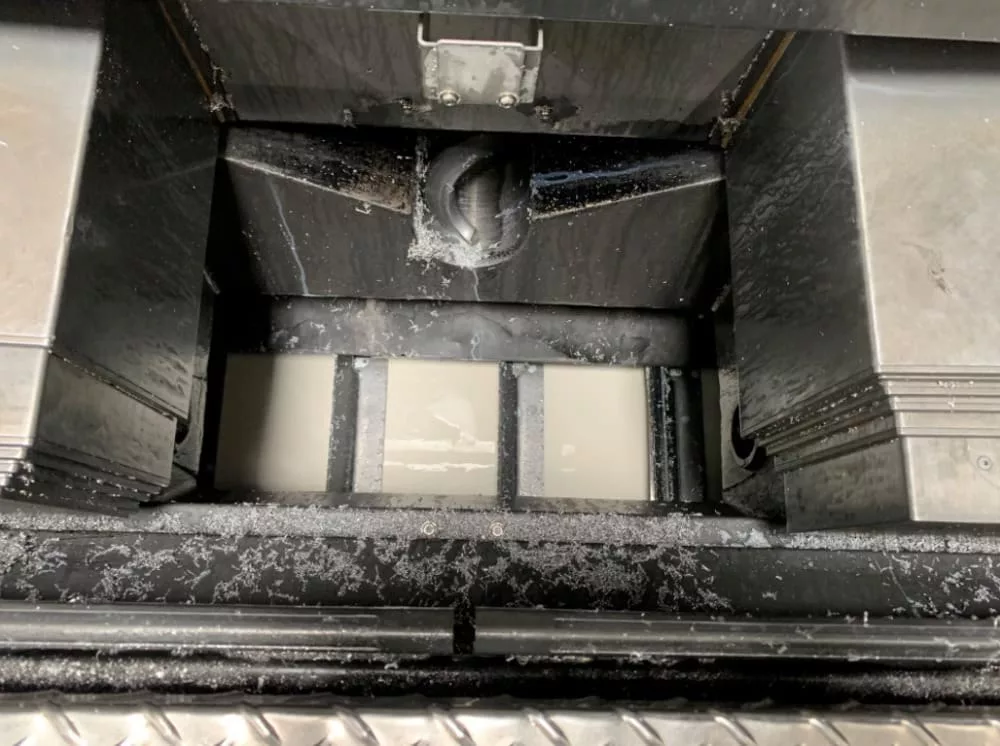

| Chip Removal |
Chip Conveyor |
| Additional Axis |
5th Axis Ready |
| Coolant |
Standard Coolant System |
| Max Cutting Feedrate |
394 IPM |

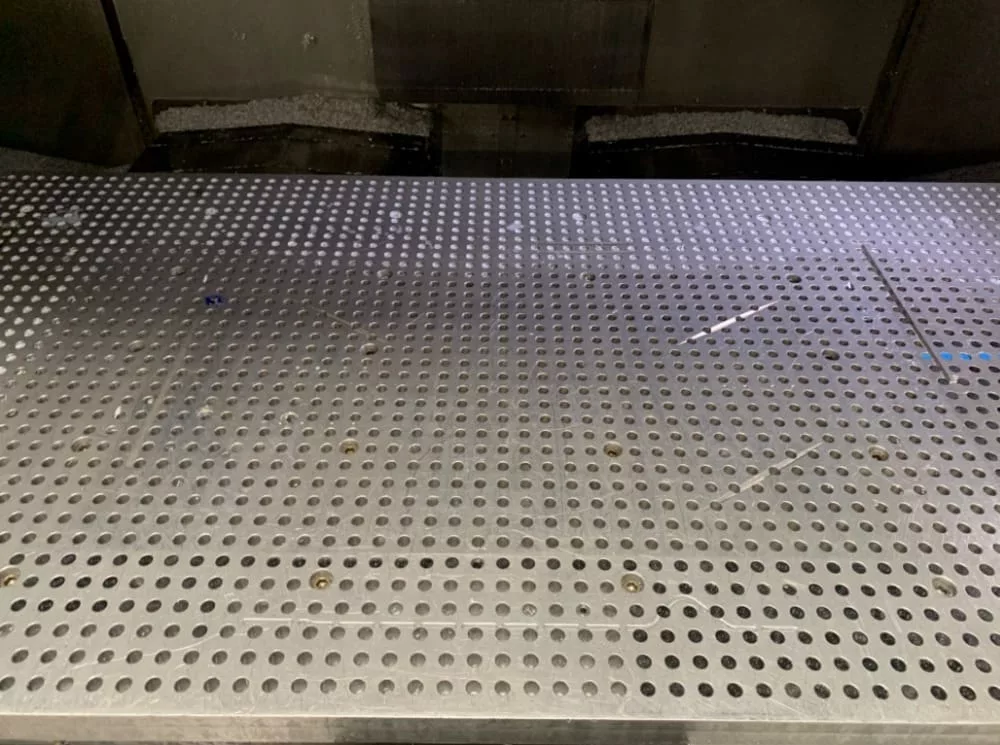

| Table Size |
84.6" x 35.4" |
| Dimensions |
209" x 130" x 157" |
| Weight |
46,297 Lbs |
Features
|
Finish and Alarm Lamp |
Magnetic Rotary Encoder of A/B-Axes |
|
Magnetic Scale on X/Y/Z-Axes |
MPG Remote Handwheel |
|

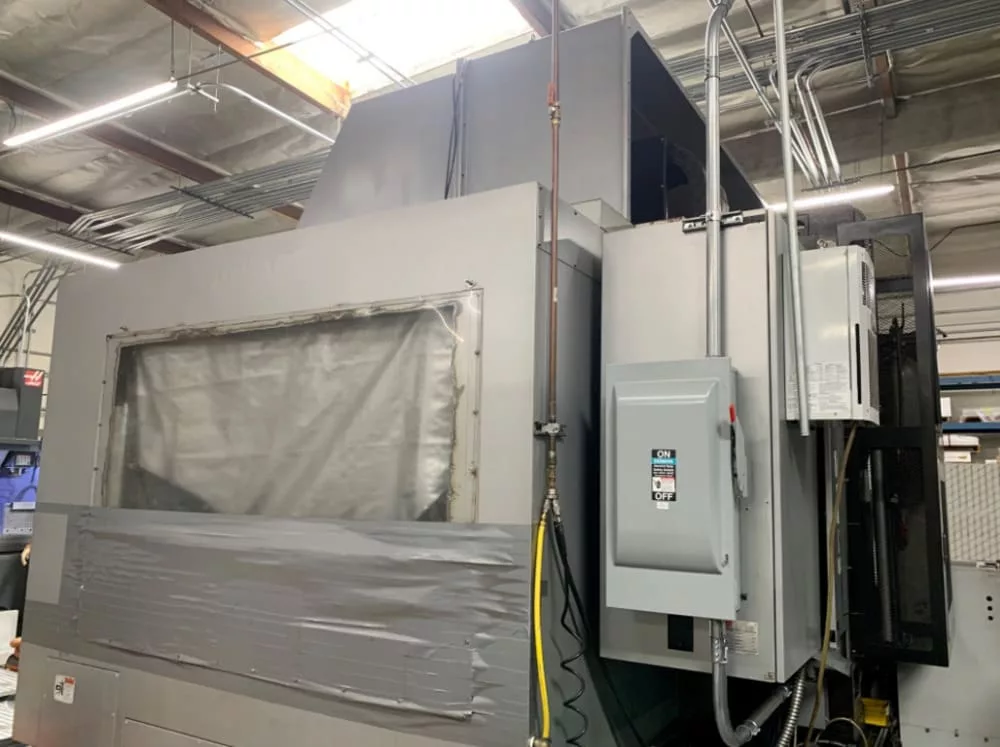

Roof Enclosure Guarding System |
RS-232 Interface |
|
Bed Flushing |
Work Light |
|
5 Axis |
Heat Exchanger |
