Year |
2005 |
|---|---|
Make |
Haas |
Model |
VF-7B/40 |
Description |
CNC Vertical Machining Center |
Reference # |
8078895 |
Price |
Activate Pricing |

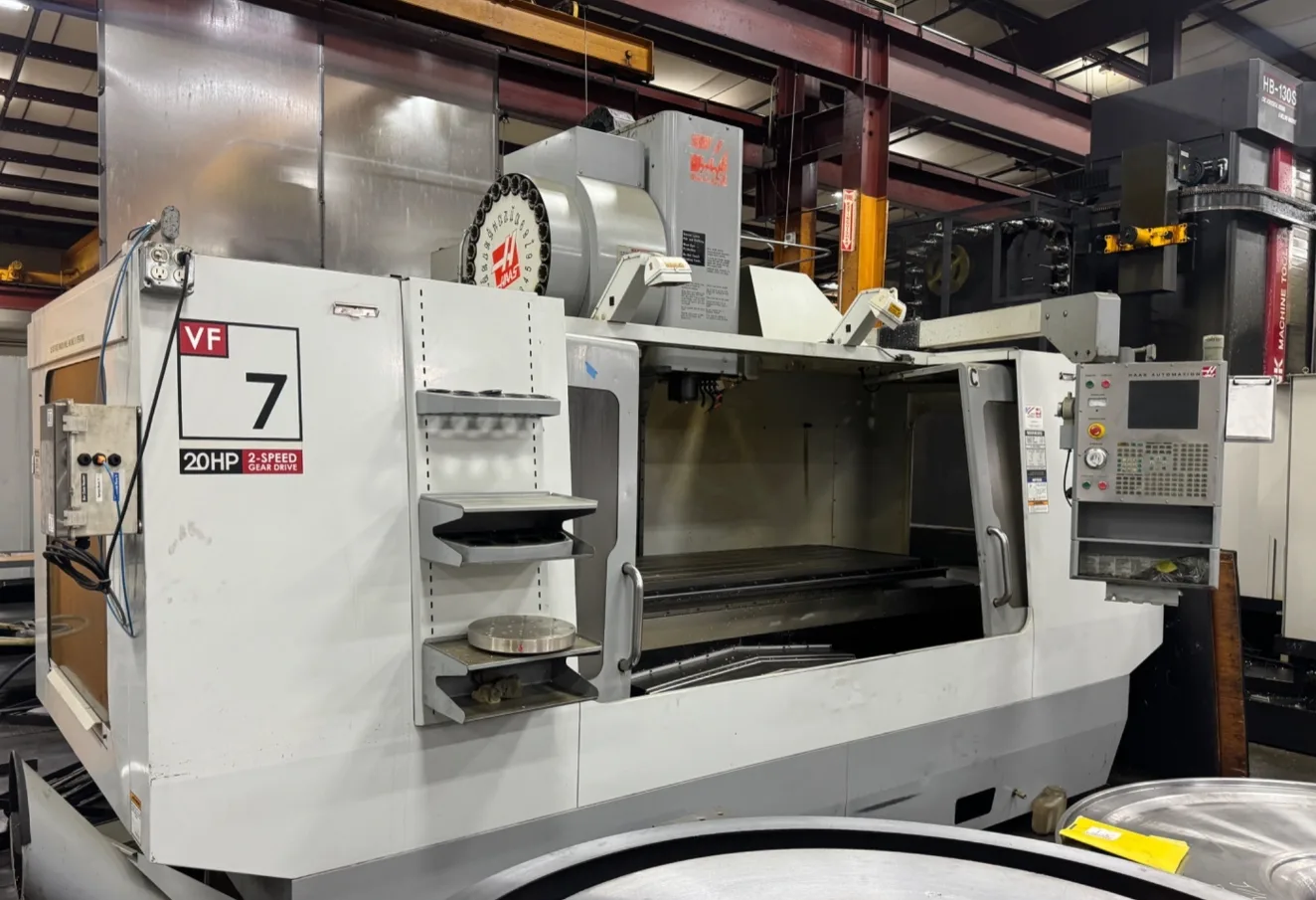

Used Haas VF-7B/40 (2005) CNC Vertical Machining Center for Sale. This machine offers 84″ of X-axis travel, 32″ in Y and 30″ in Z, with a spindle to table distance of 4″ to 34″ and a maximum table load of 4,000 lbs. The 20 HP spindle runs to 7,500 RPM with a CAT 40 taper, served by a 24-station ATC and the Haas CNC control. Rapid traverse rates are 400 ipm in X and 600 ipm in Y and Z. Equipped with chip auger, standard flood coolant, and 4th axis ready provisions. Power requirement is 208-230V/3 ph/50-60Hz. Approximate dimensions are 214″L x 102″W x 129″H at roughly 25,600 lbs. Available for inspection under power. See more CNC vertical machining centers or other Haas equipment. Activate Pricing or use the Inquire Now button.
Specifications
| X-Axis Travel |
84" |
|---|---|
| Y-Axis Travel |
32" |
| Z-Axis Travel |
30" |
| Spindle Speed |
7,500 RPM |
| Spindle Taper |
CAT 40 |
| Spindle Motor |
20 HP |

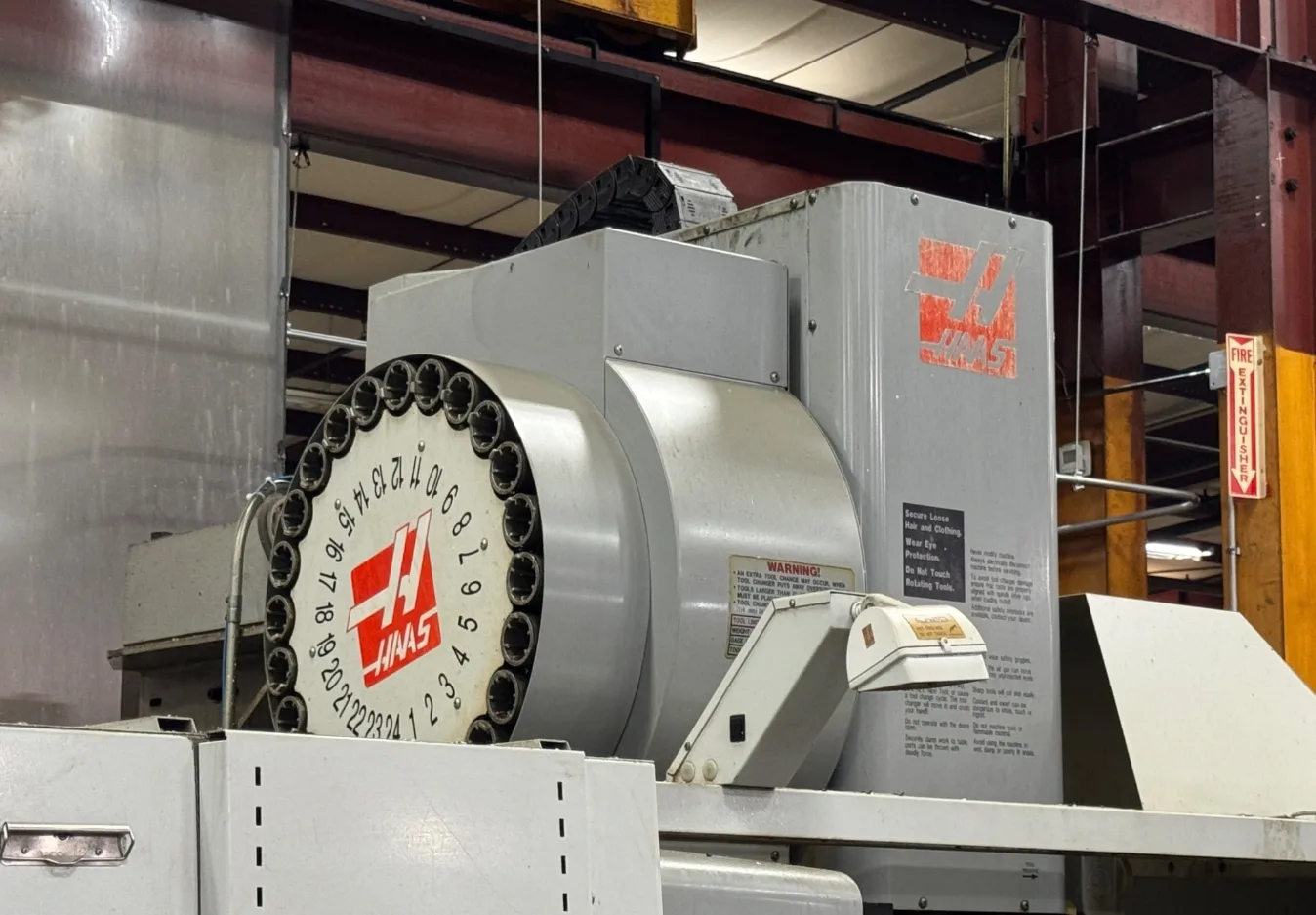

| Tool Magazine Capacity |
24 ATC |

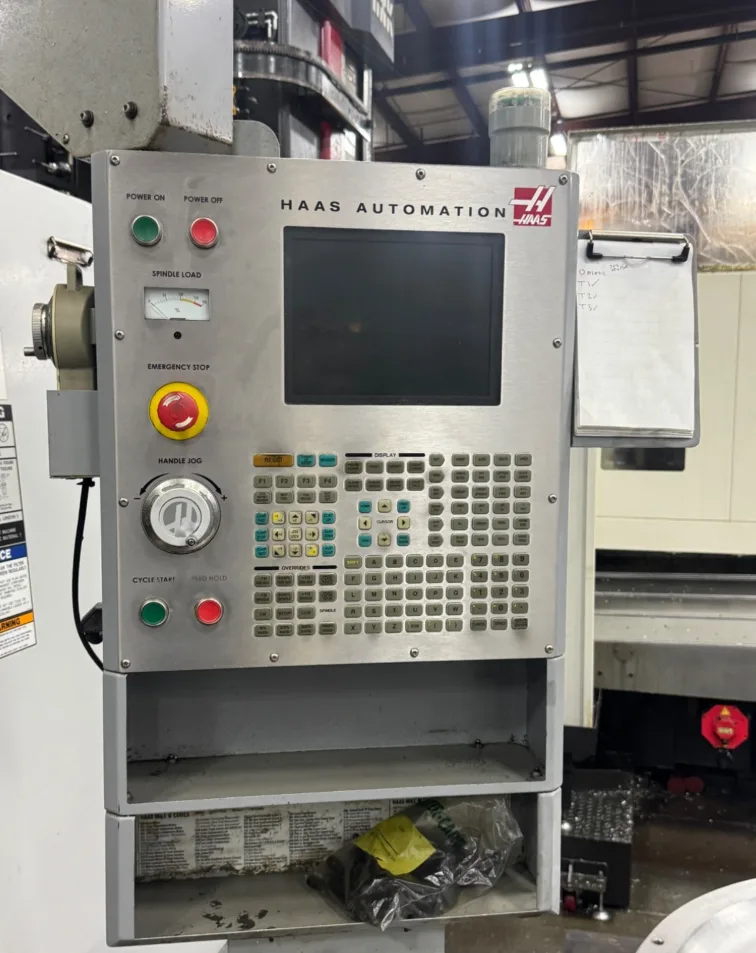

| Control |
Haas CNC |
| Chip Removal |
Chip Auger |
| Additional Axis |
4th Axis Ready |
| Coolant |
Standard Flood |

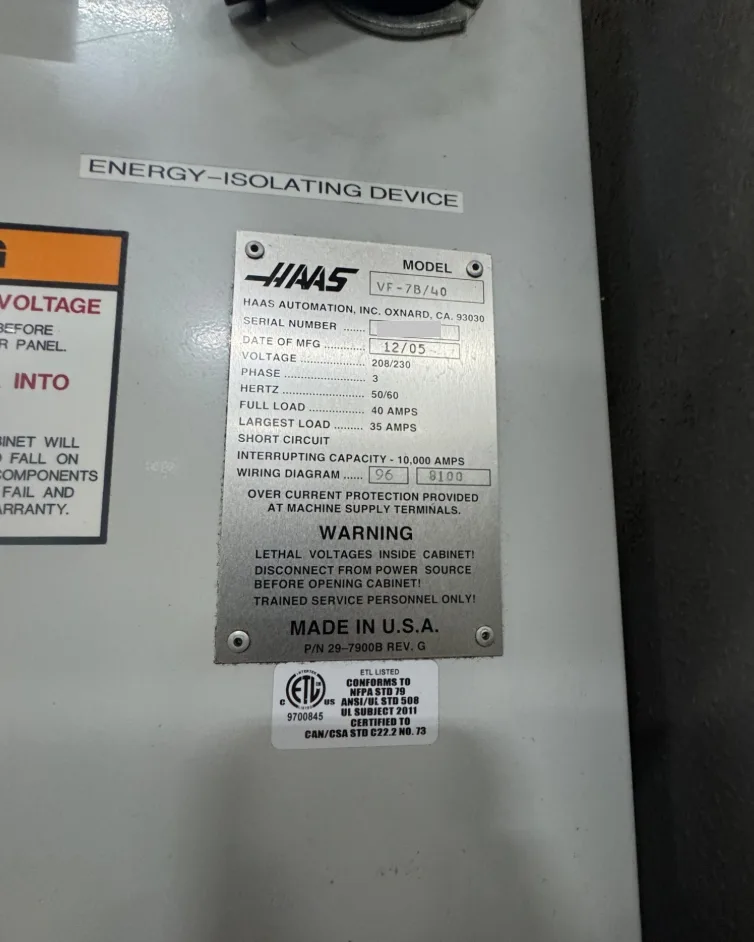

| Power Requirement |
208-230V/ 3 ph/ 50-60Hz |
| Spindle to Table Distance |
4" - 34" |
| Rapid Traverse Rate |
400 ipm / 600 ipm / 600 ipm |
| Max Table Load |
4,000 lbs |
| Approx Dimensions |
214"L x102"W x 129"Ht. |
| Approx Machine Weight |
25,600 lbs |
