Used Haas Mini Mill

1-1 of 1

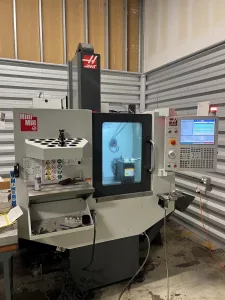

2023 Haas Mini Mill

CNC Vertical Machining Center

Ref # 8078628

Activate Price

Request a Quote Add to Cart

Compare

1-1 of 1

Specifications, from the machines we have handled

X-Axis Travel	16" (22 of 23), 20" (1 of 23)
Y-Axis Travel	12" (19 of 23), 14" (3 of 23), 16" (1 of 23)
Z-Axis Travel	10" (19 of 23), 15" (3 of 23), 14" (1 of 23)
Spindle Speed	6,000 RPM (19 of 23), 10,000 RPM (3 of 23), 8,000 RPM (1 of 23)
Spindle Taper	CAT 40 (23 of 23)
Spindle Motor	7.5 HP (8 of 23), 10 HP (2 of 23)
Tool Magazine Capacity	10 ATC (20 of 23), 20 ATC (3 of 23)
Control	Haas CNC (22 of 23)
Power Requirement	220V/3ph (1 of 23), 1PH or 3PH (1 of 23)

X-Axis Travel

16" (22 of 23), 20" (1 of 23)

Y-Axis Travel

12" (19 of 23), 14" (3 of 23), 16" (1 of 23)

Z-Axis Travel

10" (19 of 23), 15" (3 of 23), 14" (1 of 23)

Spindle Speed

6,000 RPM (19 of 23), 10,000 RPM (3 of 23), 8,000 RPM (1 of 23)

Spindle Taper

CAT 40 (23 of 23)

Spindle Motor

7.5 HP (8 of 23), 10 HP (2 of 23)

Tool Magazine Capacity

10 ATC (20 of 23), 20 ATC (3 of 23)

Control

Haas CNC (22 of 23)

Power Requirement

220V/3ph (1 of 23), 1PH or 3PH (1 of 23)

What we have listed Haas Mini Mill machines at

Across 47 Haas Mini Mill machines we have listed with a published price, the range ran from $7,750 to $59,990. These are the prices we asked, not what any machine changed hands for — condition, hours, tooling and control generation move a machine within that band. Ask us where a specific one sits.

Before you buy

Which one fits the work?

Two things decide it: your budget, and the size of the parts you are making.

A VF is the machine for production runs. A Mini Mill suits smaller parts. A TM is an entry-level machine, or the one for a single job run.

Getting one inspected

We always strongly recommend an inspection before you buy. KD does not perform it ourselves — the inspection is done by you, by a third-party technician, or by the OEM.

We have a network of 3rd party techs whom we can recommend. Most buyers are looking at a machine in another state or across the country, and sending a tech who is already nearby saves the travel time and cost of going to see it yourself.

An inspection on a machining centre goes through the major components: the tool changer, the guides, the way covers, drawbar pressure, motion in all axes, and the spindle running at both low and high rpm.

Spindle hours are worth confirming rather than taking from a listing, because an hours meter can be reset. A high-hour machine that has been maintained regularly is a lot better than a lower-hour machine that has been neglected.

Buy the options from the factory

We would not recommend buying a machine and adding options later. It is very expensive to do so if it did not come out of the factory with those options.

A 4th or 5th axis is the exception, and the only option worth adding afterwards. Everything else is either not easy to do, not possible at all, or would simply cost more than it is worth.

Clear title

KD runs lien searches on every transaction so that our buyers can have peace of mind that they are purchasing an asset that does not have any active liens on it. We take this very seriously and are willing to pass up a deal if the seller won't cooperate on getting active liens cleared.
