Make |
ASC |
|---|---|
Model |
36" Wide R-Panel |
Description |
Roll Forming Line with Reel and Cut-Off |
Reference # |
8075679 |
Price |
Activate Pricing |

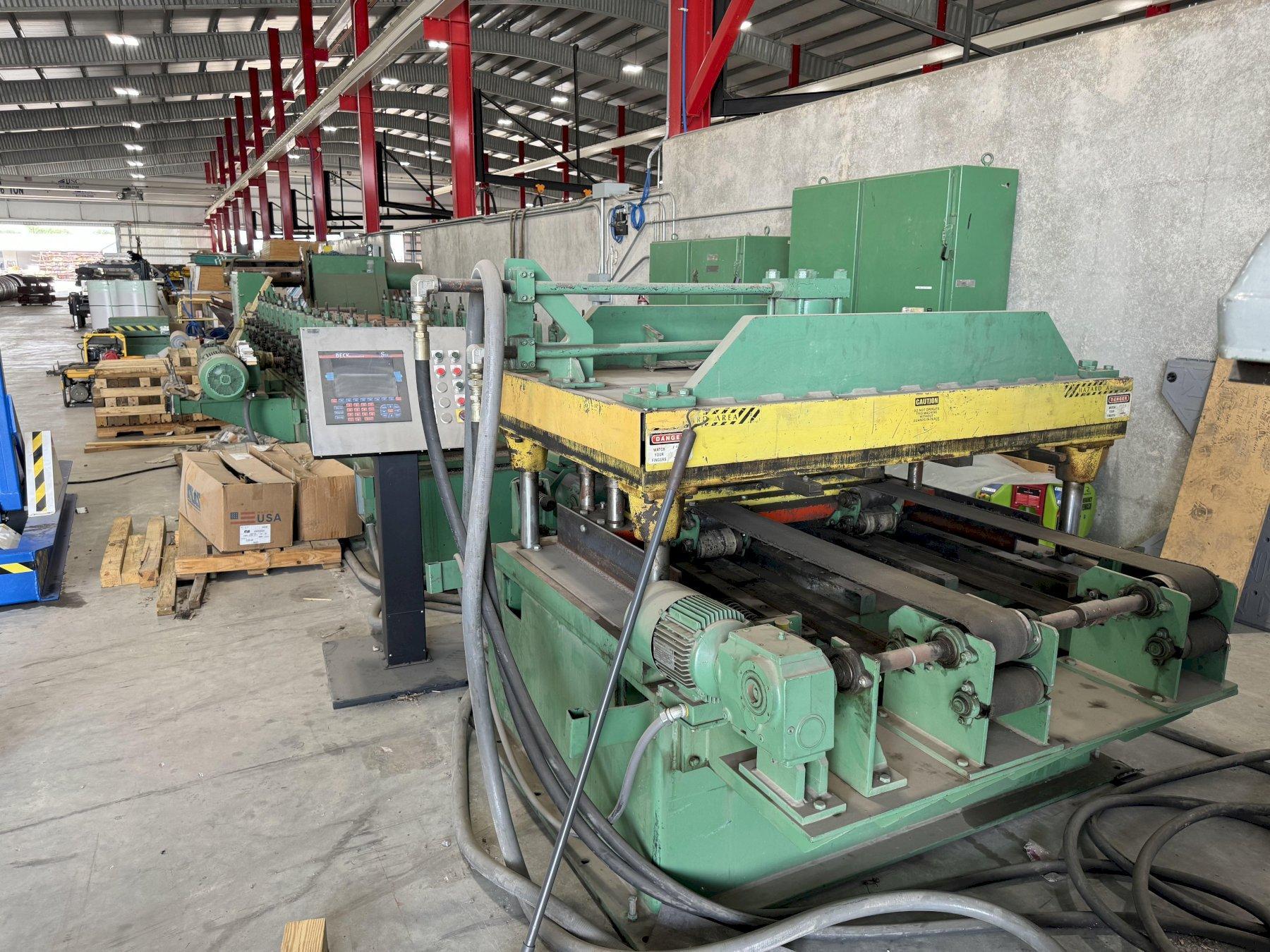

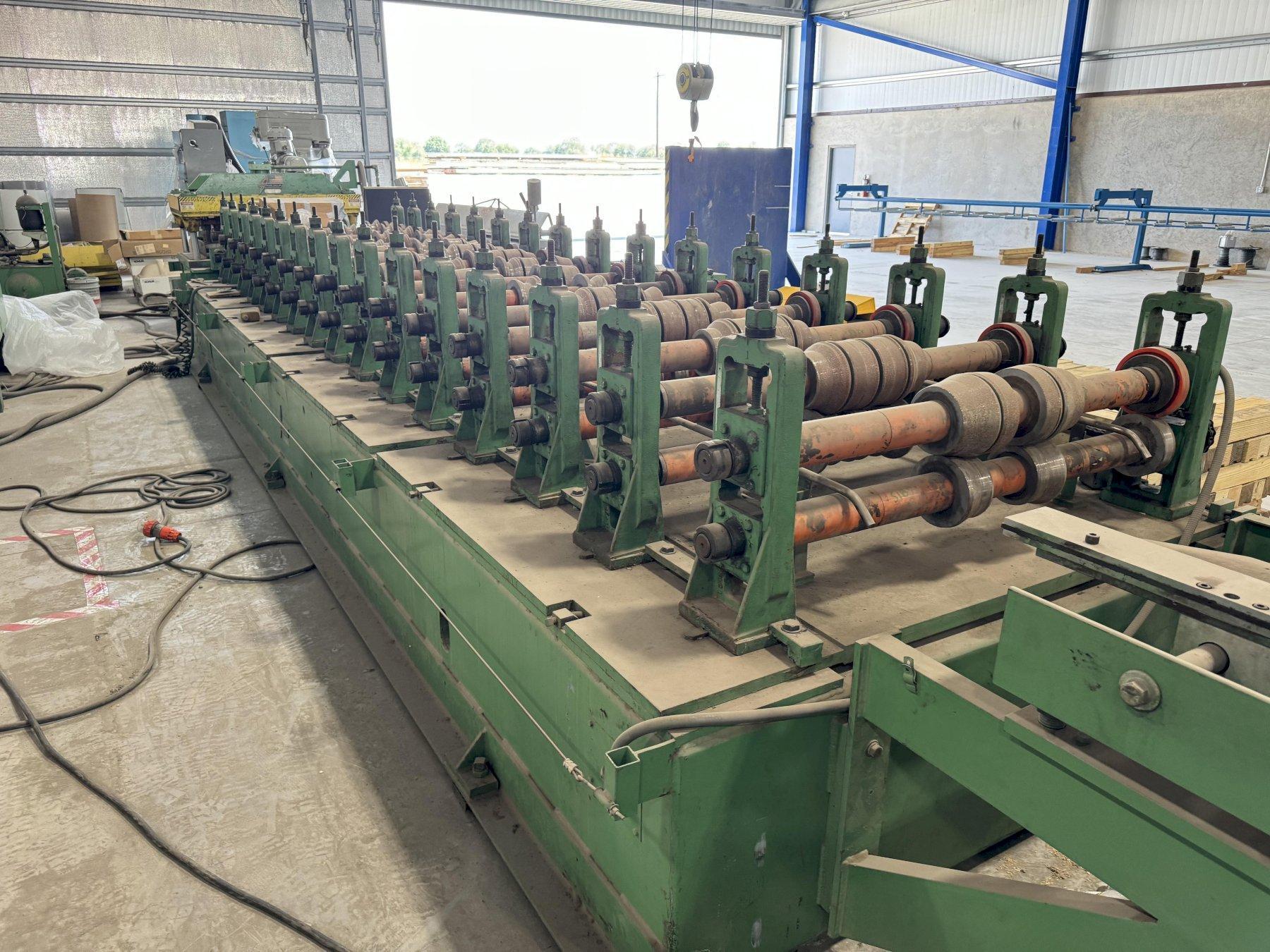

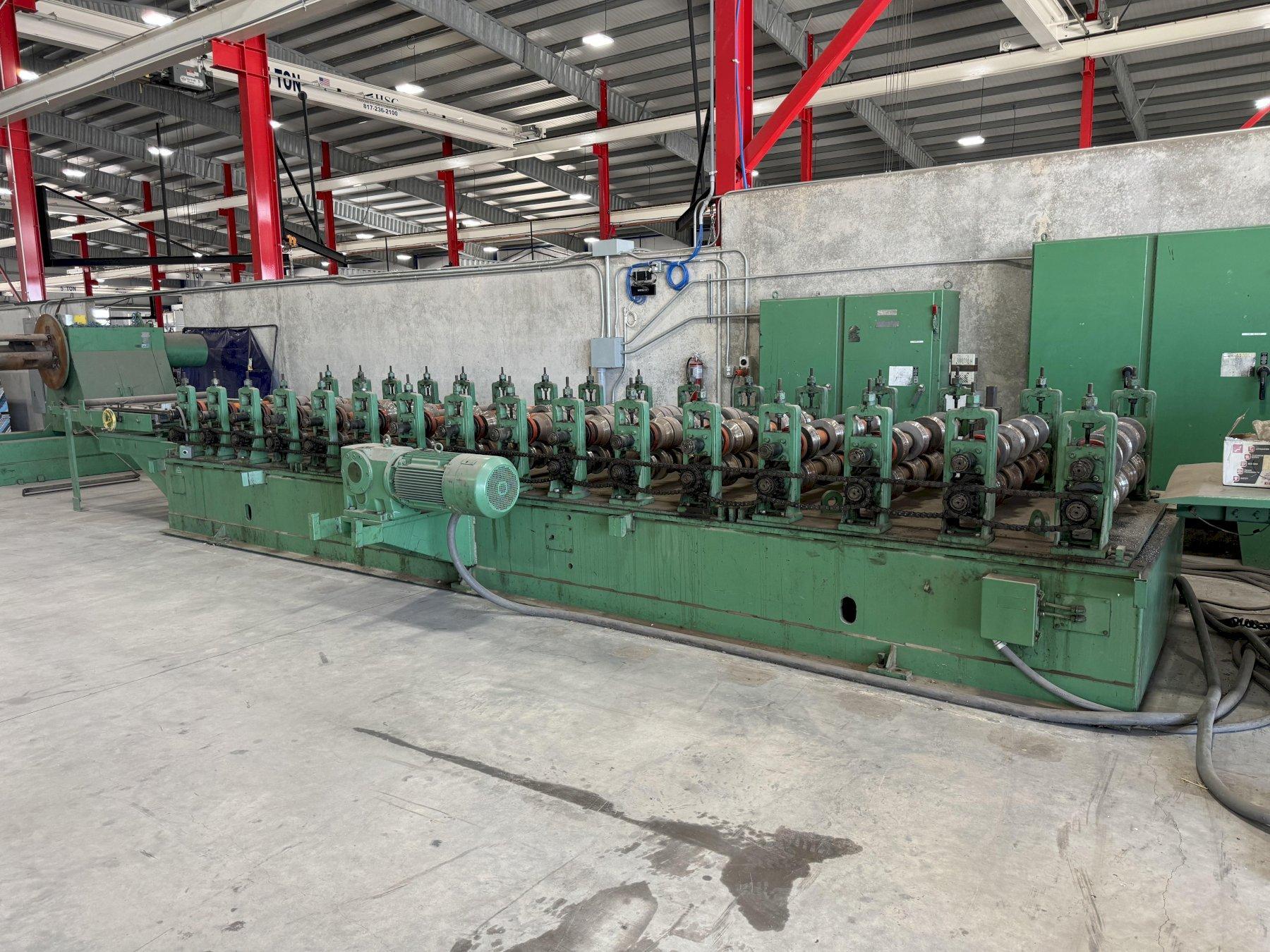

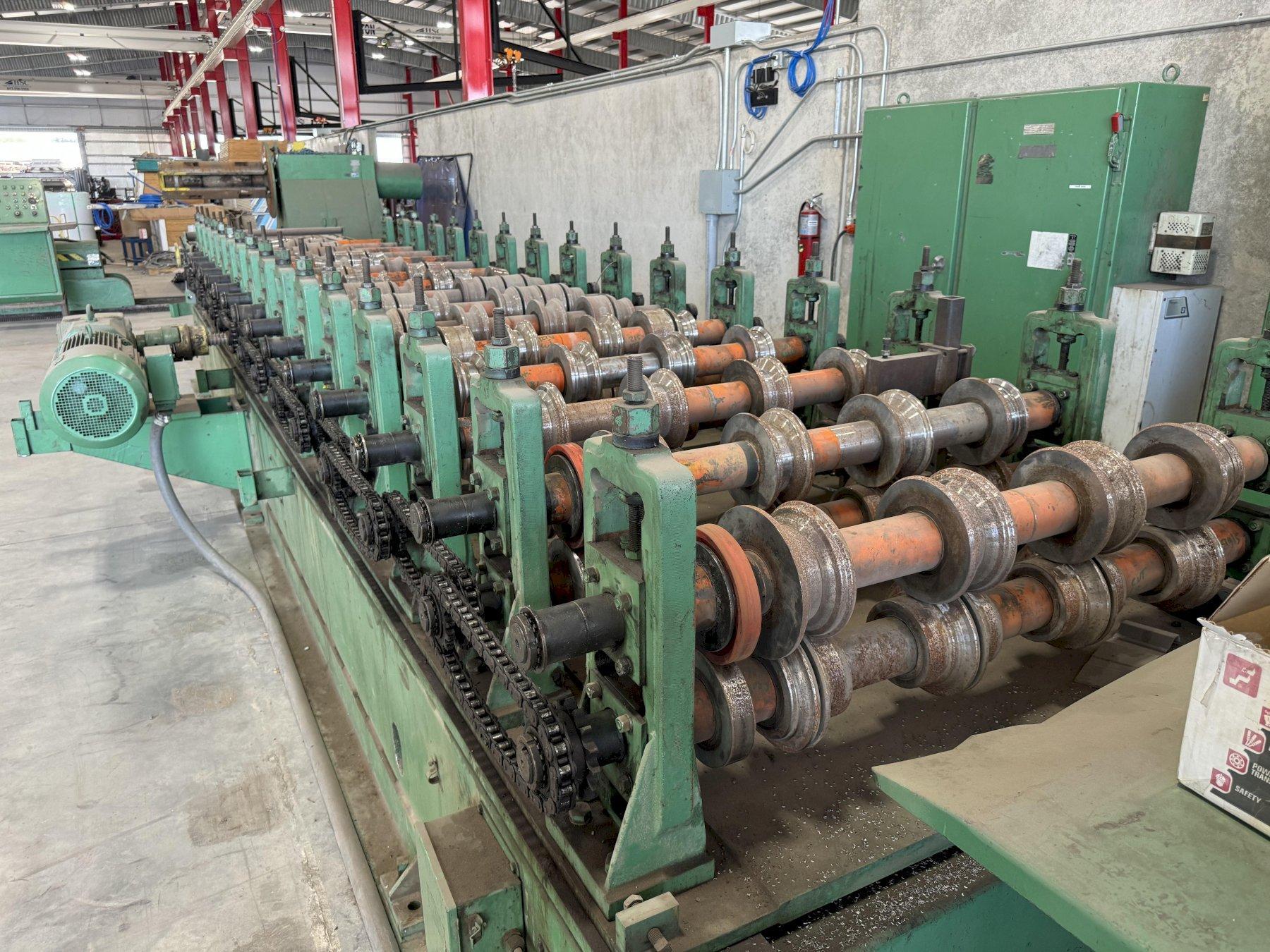

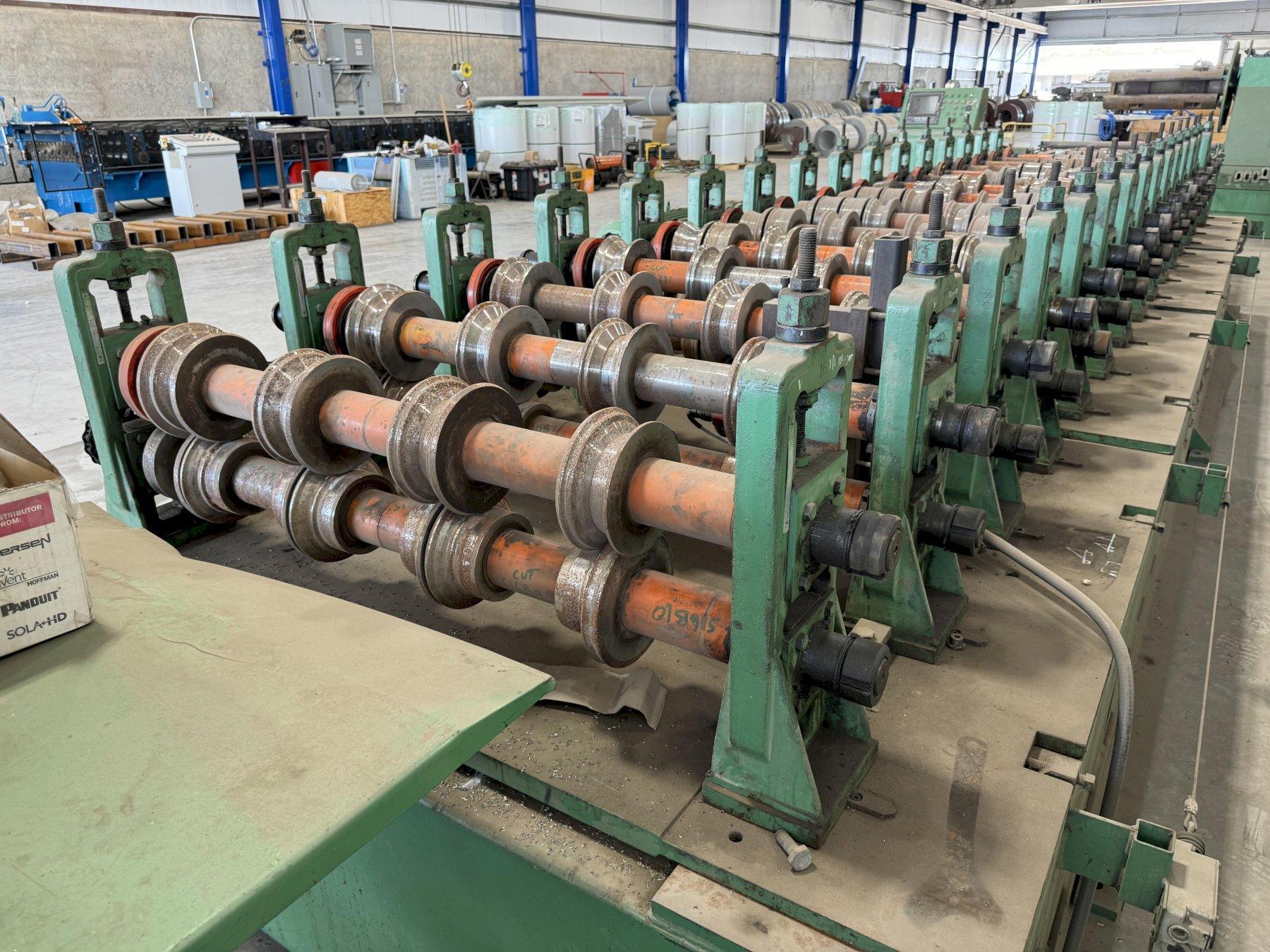

Used ASC 36″ Wide R-Panel Roll Former for Sale. This ASC roll forming line runs 36″ wide R-Panel through 16 stands on 4″ arbors, with 50″ tooling rollspace and 18″ horizontal centers. The roll former is driven by a 40 HP motor at a variable line speed up to 200 FPM. An adjustable entry guide and disc brake are included at the entry, and cutting is handled by an ASC hydraulic 4-post cut-off press with 20-ton capacity and flying die. Coil handling consists of a power-driven uncoiler with hydraulic expansion and a powered coil car, both rated for 20,000 lbs and 48″ coil width. Control is by Beck S-II programmable automation. The line can be seen under power for an inspection. Use Activate Pricing or Request a Quote for details.
Specifications
| ASC Roll Forming Line |
36" Wide R-Panel, Adjustable Entry Guide and Disc Brake |
|---|---|

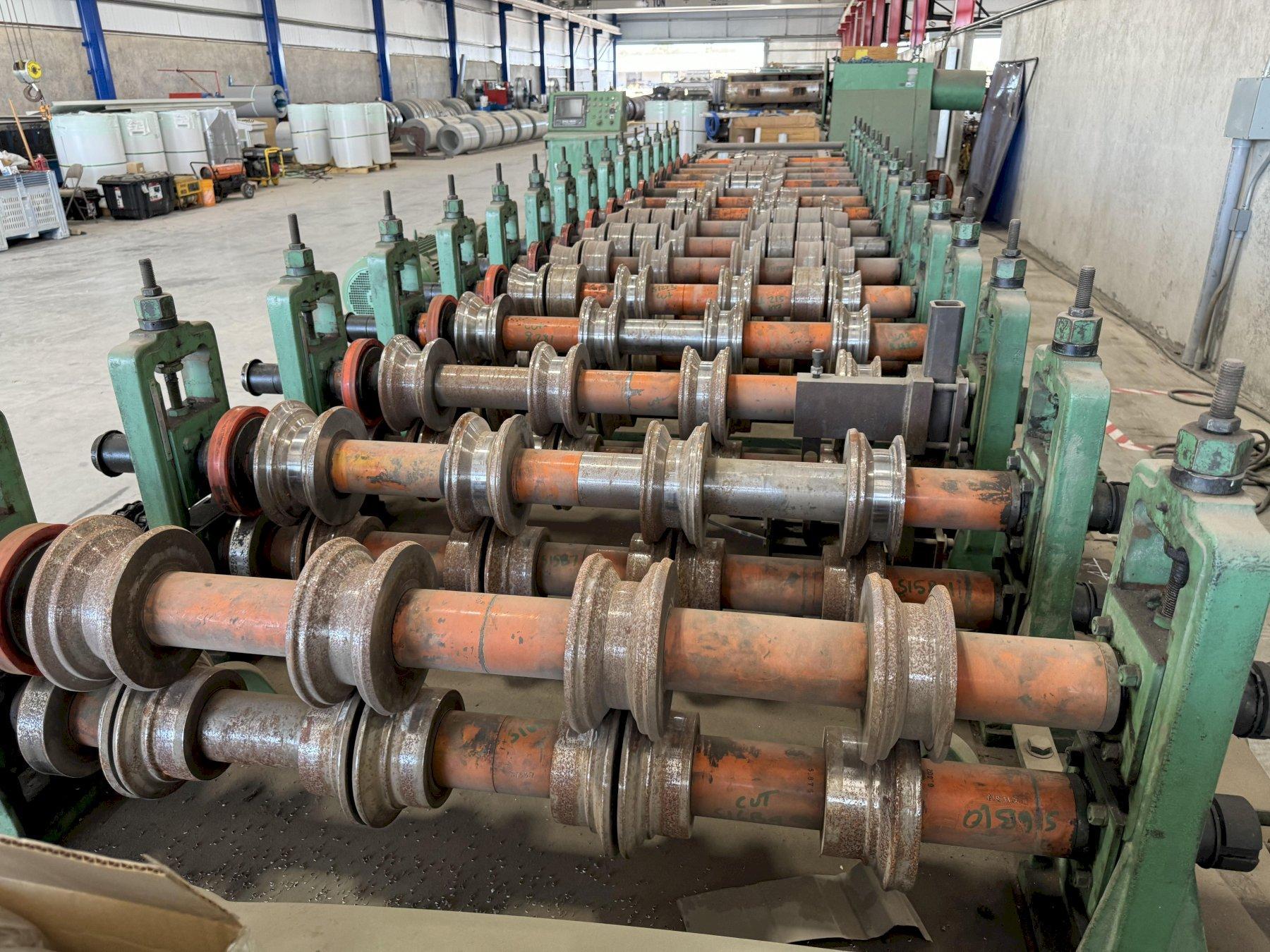

| Number of Stands |
16 |
| Arbor Diameter |
4" |
| Tooling Rollspace |
50" |
| Horizontal Centers |
18" |
| Line Speed (Variable) |
200 FPM (Max) |
| ASC Roll Former Motor |
40 HP |

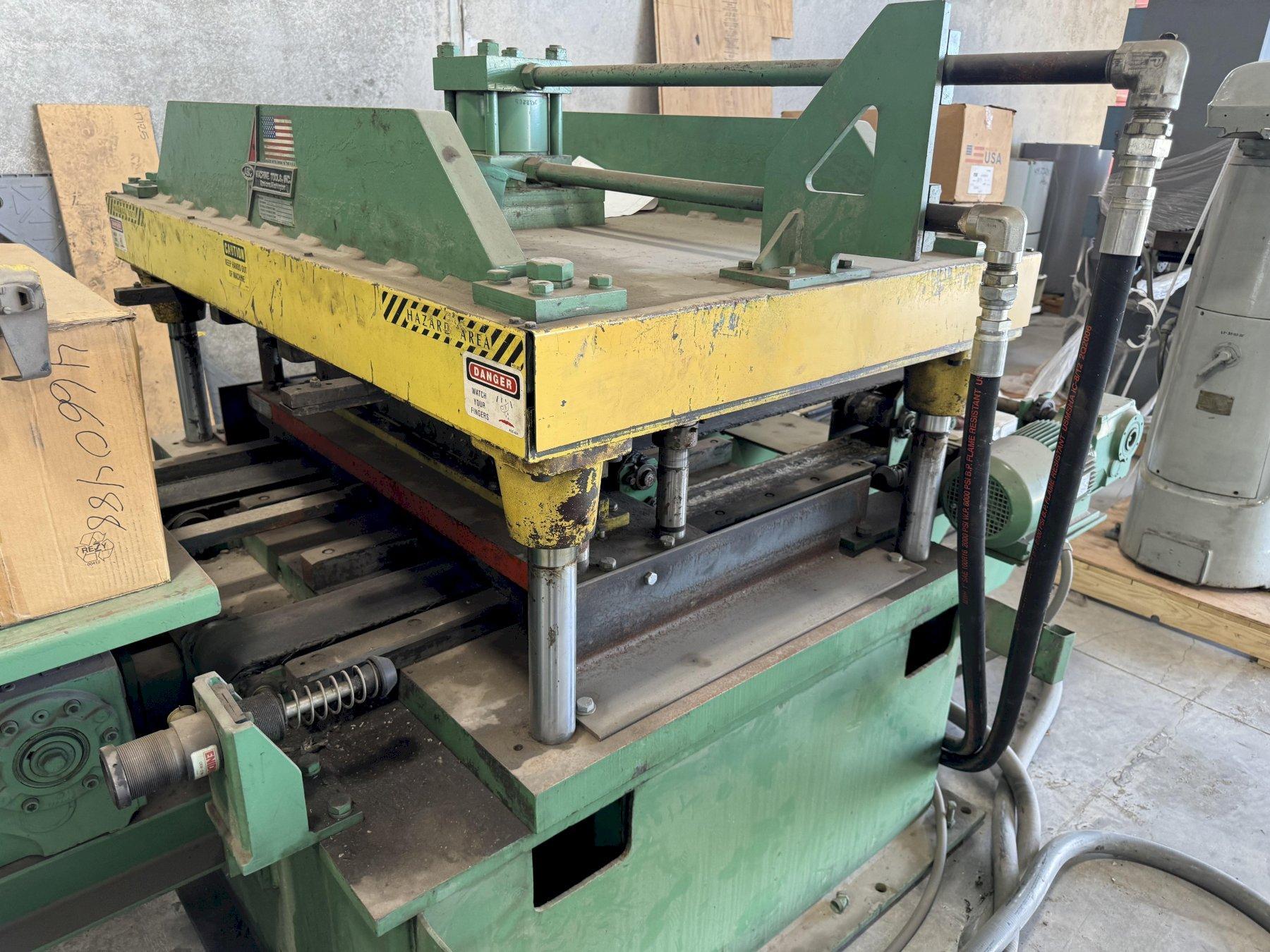

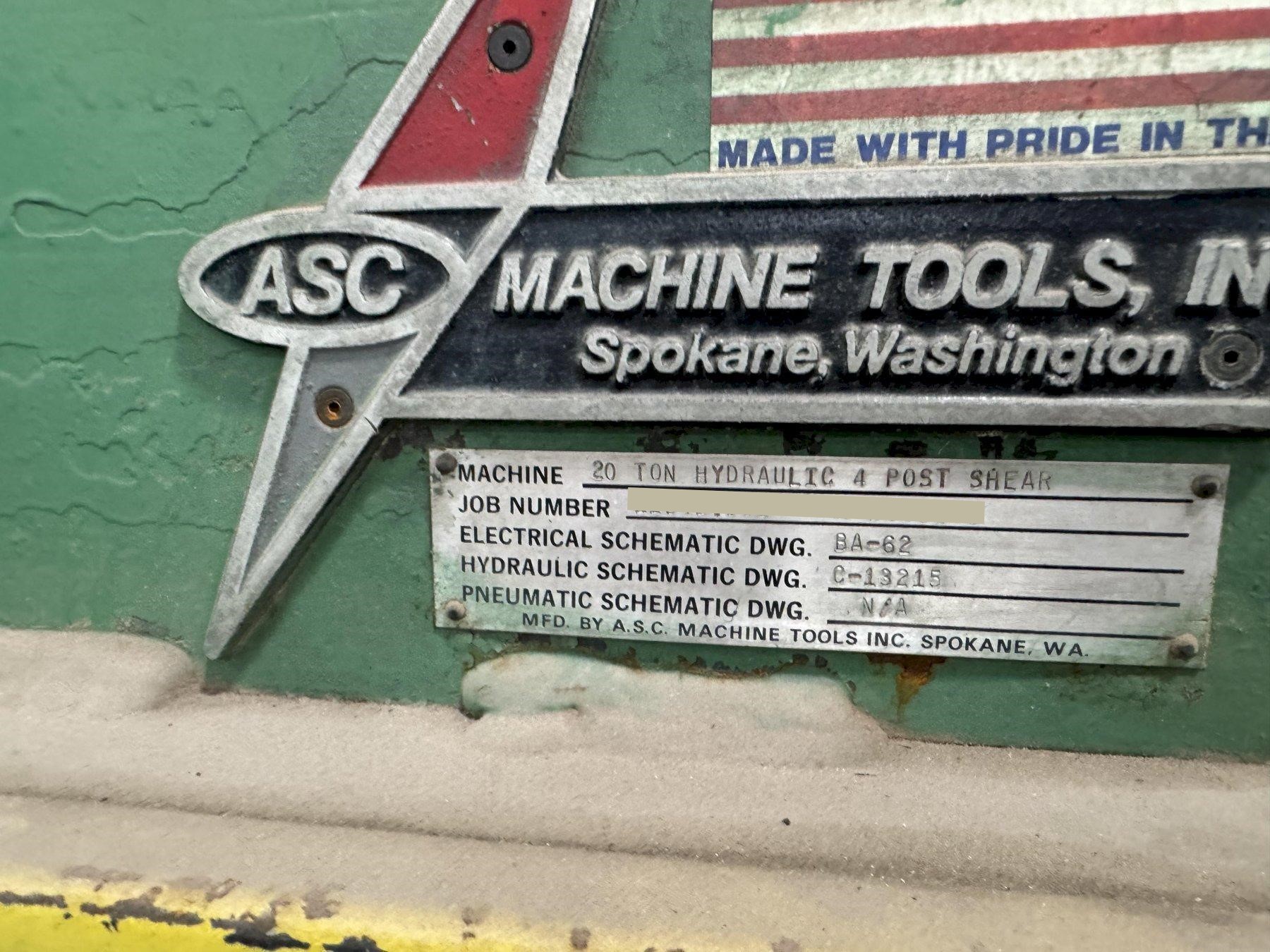

| ASC Hydraulic 4-Post Cut-Off Press |
20-Ton Capacity, Flying Die |
| Uncoiler and Coil Car Capacity |
20,000 Lbs |
| Uncoiler and Coil Car Coil Width |
48" |

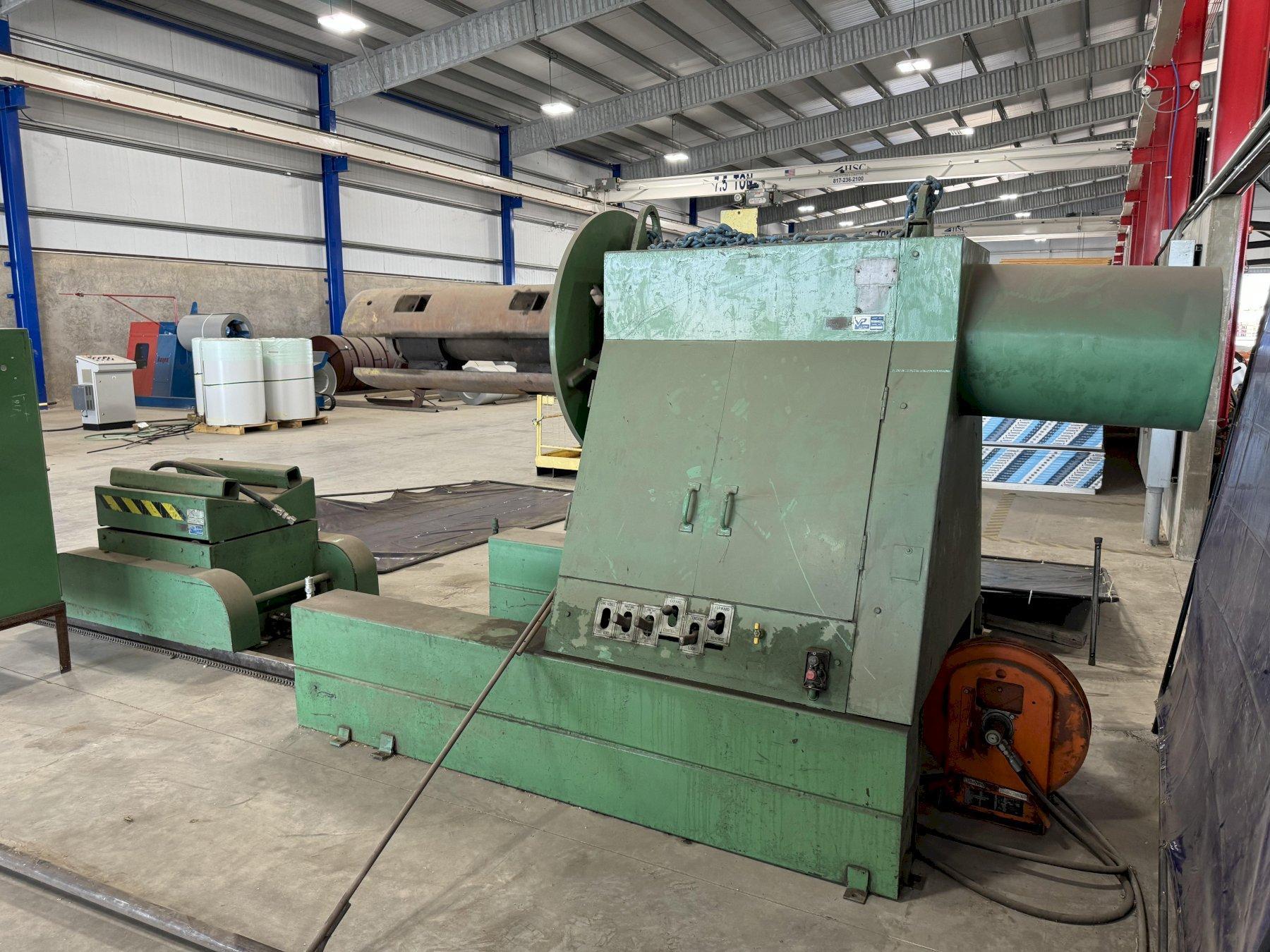

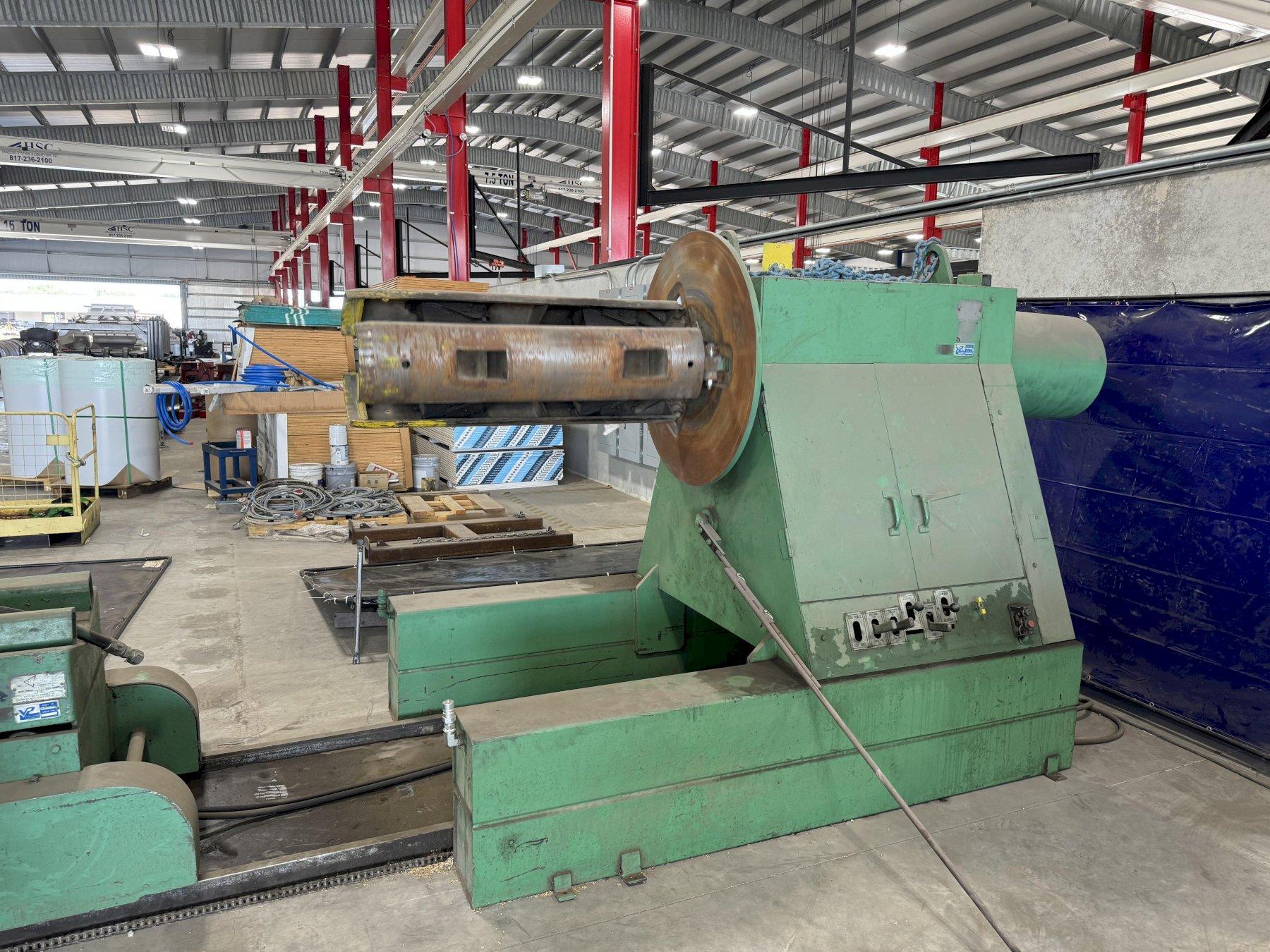

| Uncoiler |
Power-Driven, Hydraulic Expansion, Powered Coil Car |

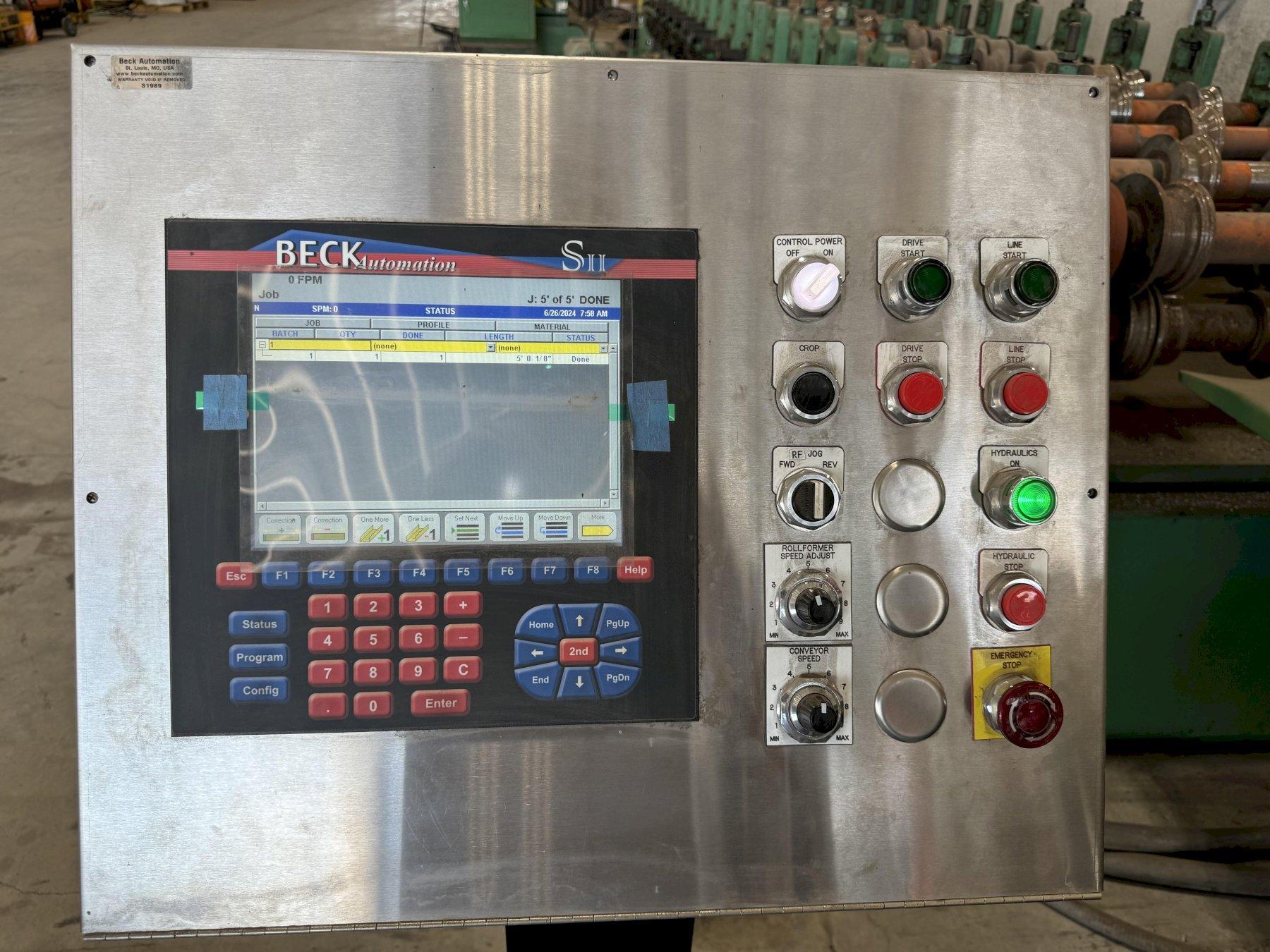

| Control |

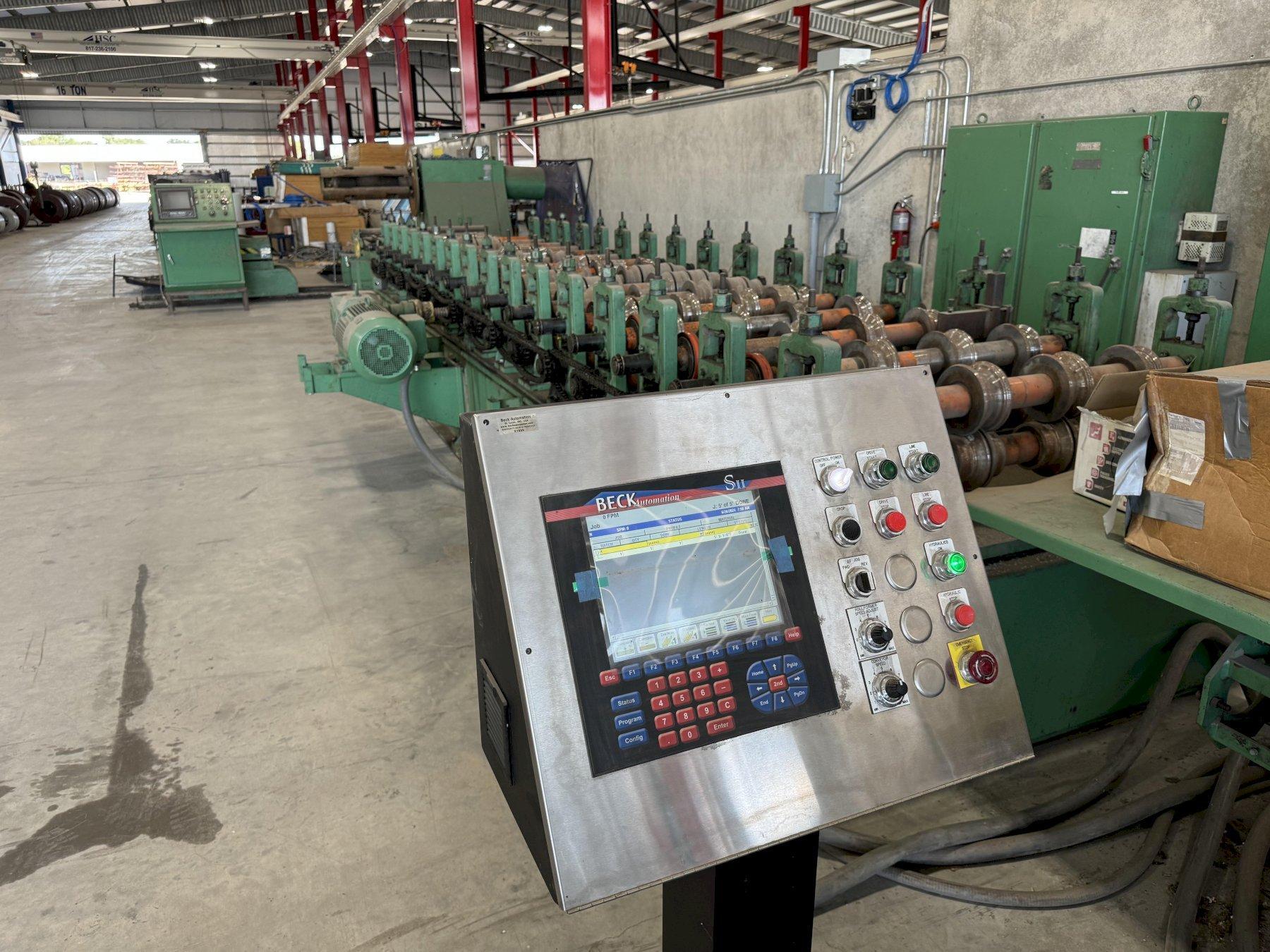

Beck S-II Programmable |
Features
|
ASC Hydraulic 4-Post Cut-Off Press |
Beck Automation Controls |
|
Uncoiler and Coil Car |
