Year |
2024 |
|---|---|
Make |
Knudson |
Model |
KFD 2025G1 |
Description |
Stud and Track Roll Former |
Reference # |
8078677 |
Price |
$199,999 |

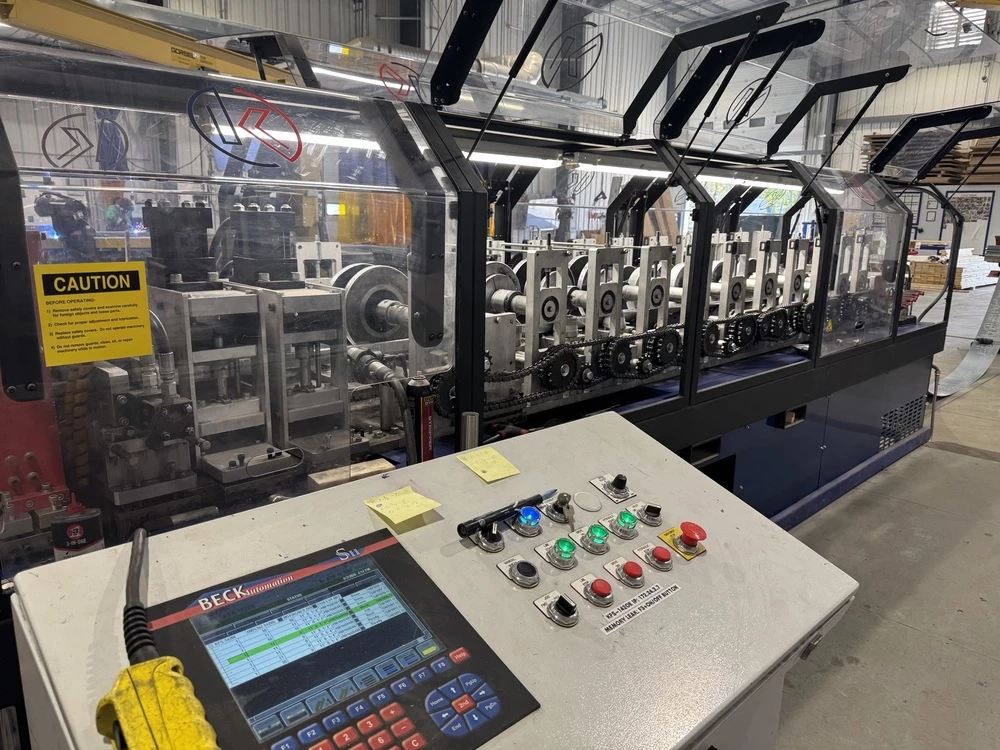

Used Knudson KFD 2025G1 (2024) Roll Former for Sale. This machine runs stud and track web sizes of 1.63″, 2.50″, 3.63″, 4″ and 6″, with stud flanges at 1.25″ and track flanges from 0.75″ minimum to 1.50″ maximum. Maximum profile depth is 1.50″, and both stud and track flange faces are knurled. Material thickness ranges from 0.018″ to 0.035″ (25 to 20 Ga) in Grade 50 up to 65-ksi yield, galvanized up to G120, painted or bare. Strip width runs 2″ to 17″ with a 41″ pass line height. Equipped with 1 adjustment station, 1 pull-out station, 10 roll forming stations, Beck Automation SII Multi-Press Controller, exit-end cut-off, oversized standard track profiles and a stop-to-cut system. Available to be seen under power for inspection. See more used roll formers, Activate Pricing, or Request a Quote. This machine is located in Canada.
Specifications
| Stud/Track Web Sizes |
1.63" / 2.50" / 3.63" / 4" / 6" |
|---|---|
| Stud Flange Sizes |
1.25" |
| Track Flange Sizes |
0.75" (Min) to 1.50" (Max) |
| Max Profile Depth |
1.50" |
| Knurled Flange Faces |
Stud and Track |
| Material Thickness |
0.018" to 0.035" (25 to 20 Ga) |
| Material Strength |
Grade 50 – Up to 65-ksi Yield Strength |
| Material Finish |
Galvanized (Up to G120)/Painted/Bare |
| Min Strip Width |
2" |
| Max Strip Width |
17" |
| Pass Line Height |
41" |
Features
|
1 Adjustment Stations |
1 Pull-Out Station |
|

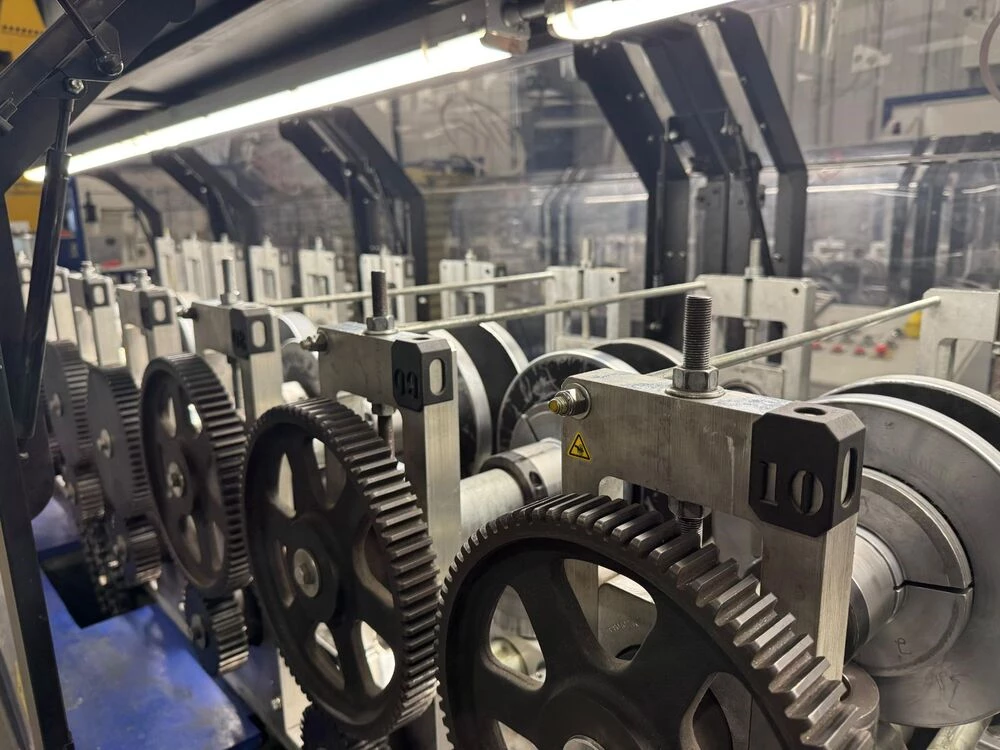

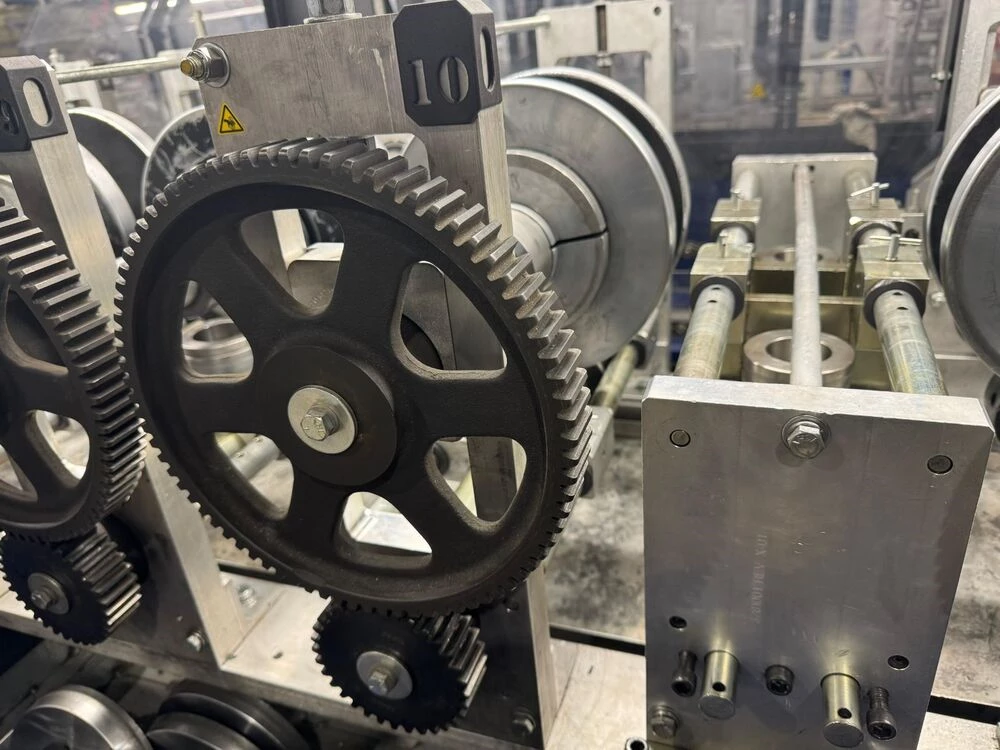

10 Roll Forming Stations |
Beck Automation SII Multi-Press Controller |
|

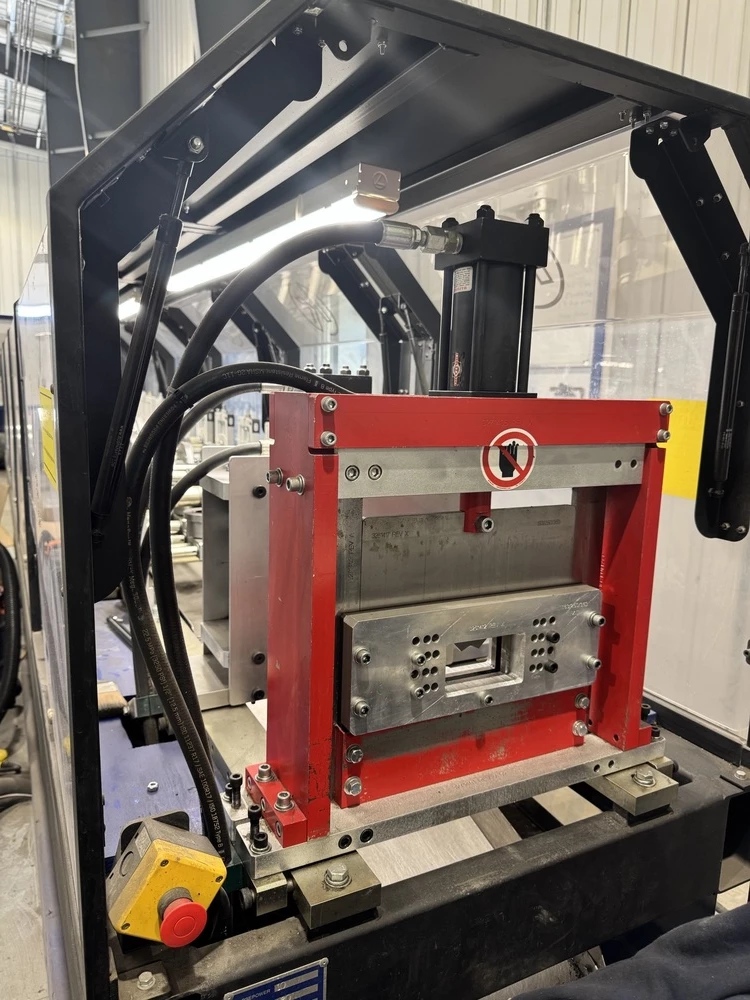

Exit-End Cut-Off |
Oversized (Standard) Track Profiles |
|
Stop-to-Cut System |
