Make |
|
|---|---|
Model |
Hi-Rib 36" 7.2 Type |
Description |
Panel Rafted Rollformer Line with Uncoiler and Flying Cutoff Shear |
Reference # |
8078553 |
Price |
Activate Pricing |

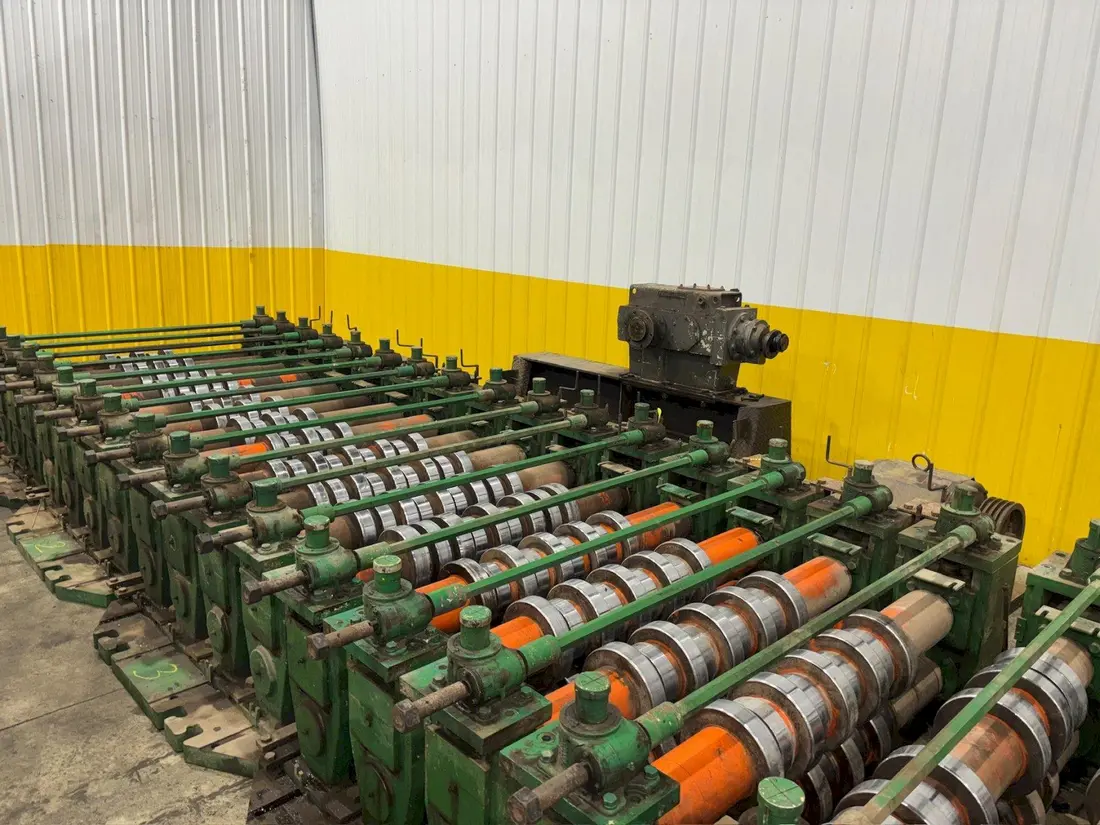

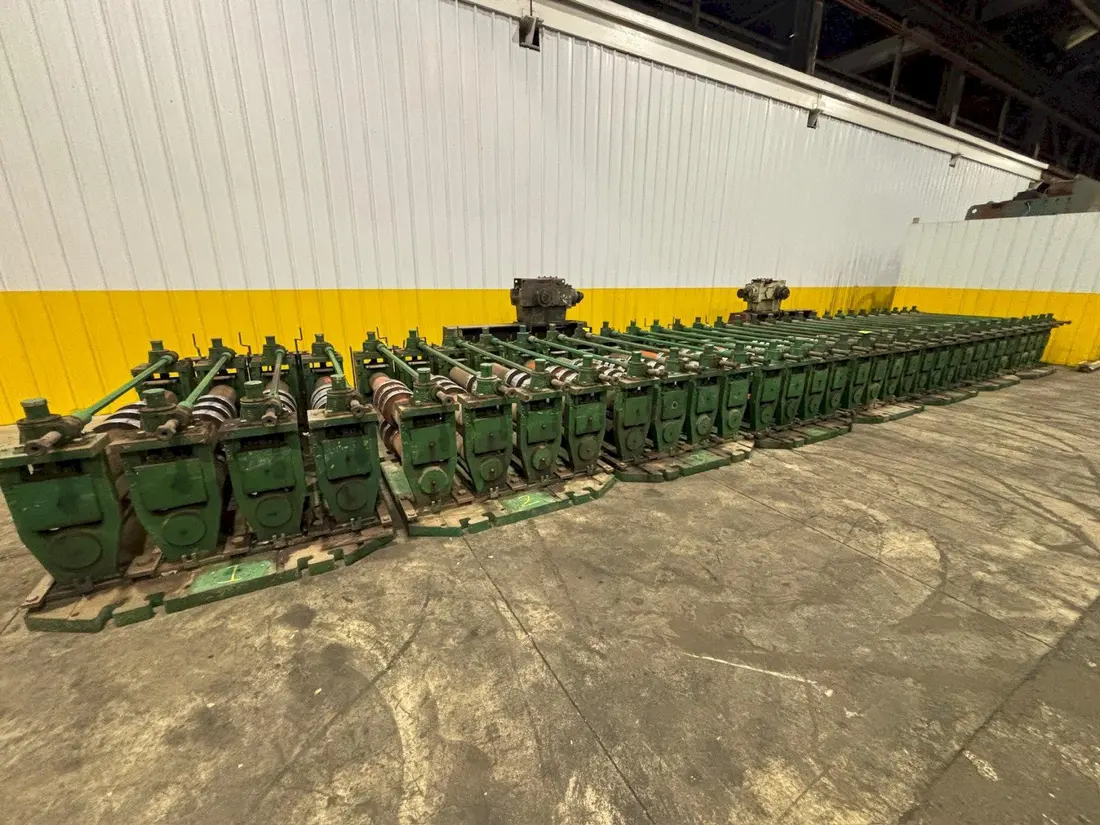

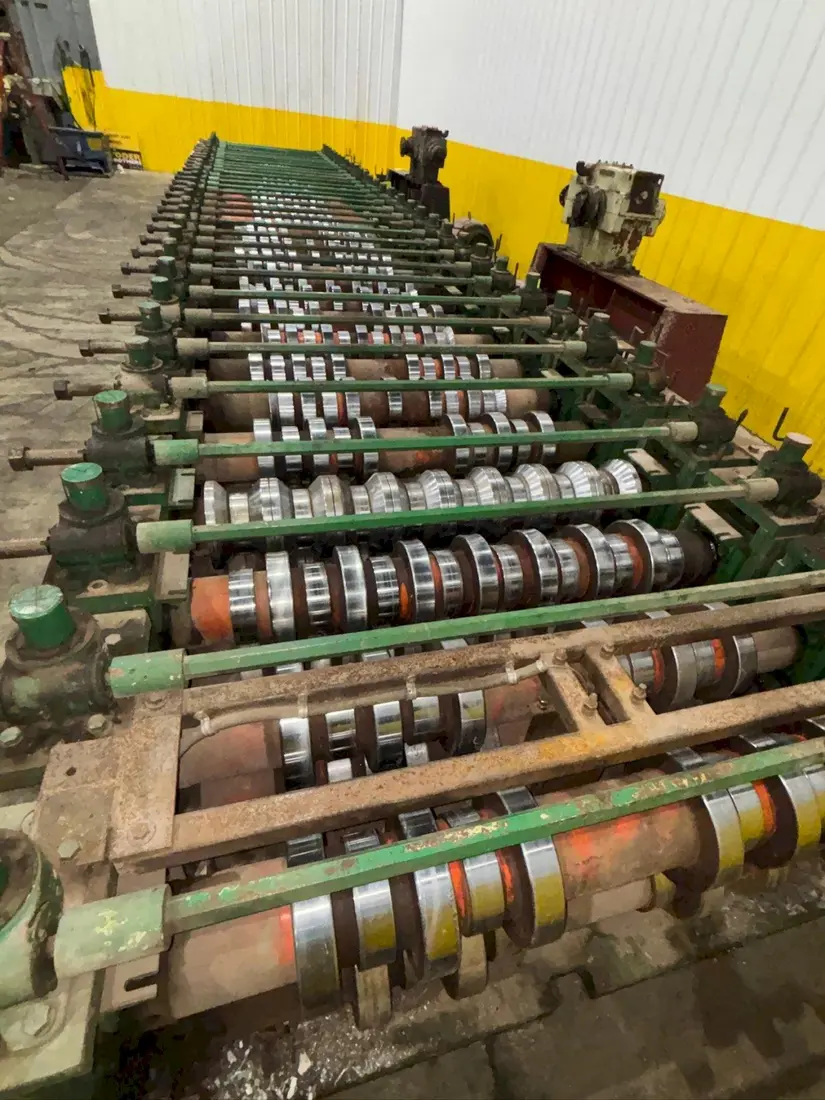

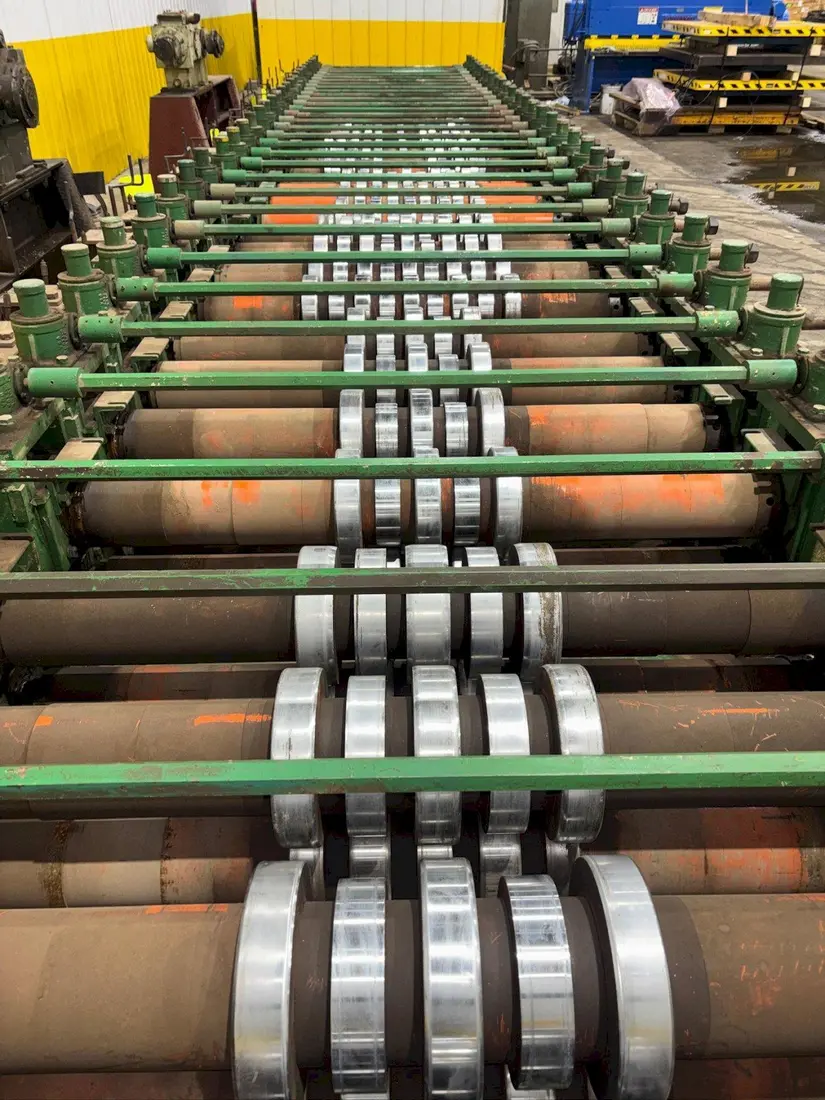

Hi-Rib 36″ 7.2 Type Rollformer
Specifications
| Uncoiler Coil Capacity |
20,000 Lbs |
|---|---|
| Max Coil Width |
48" |
| Max Coil O.D |
60" |
| Coil I.D |
14" - 20" |
| Uncoiler Drive Motor |
3 HP |
| Autoquip Coil Car Capacity |
18,000 Lbs |

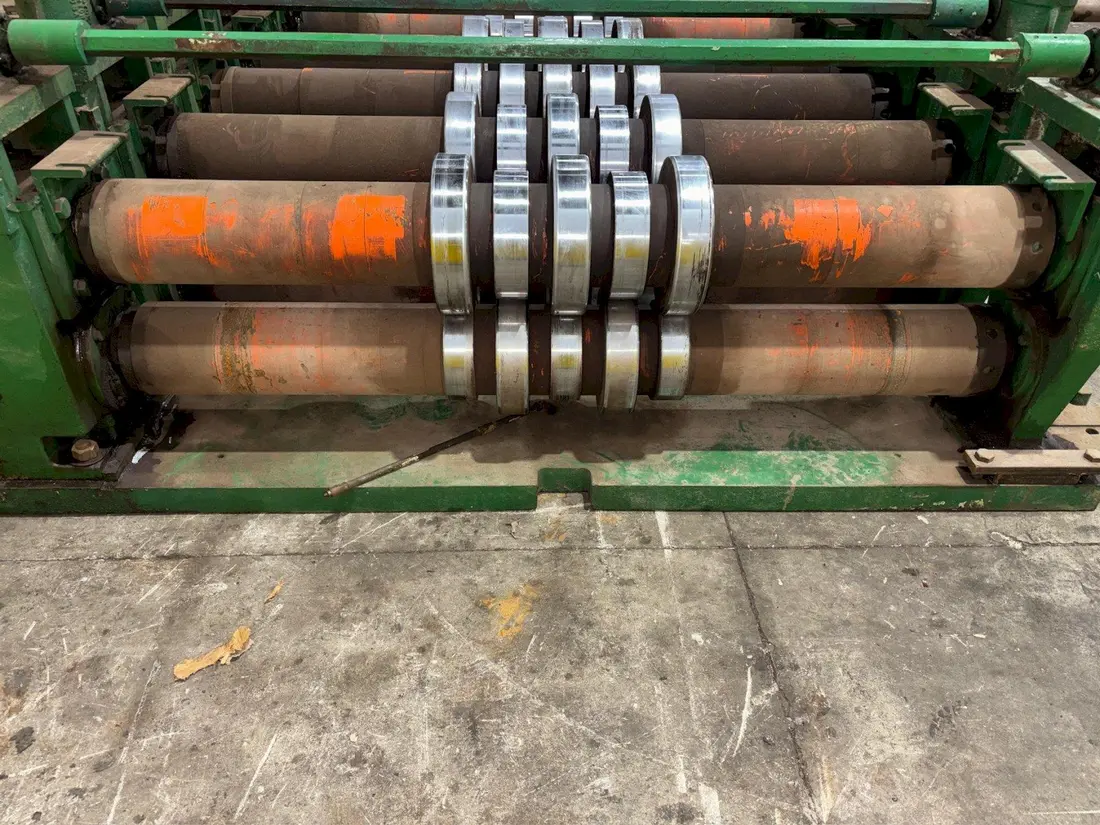

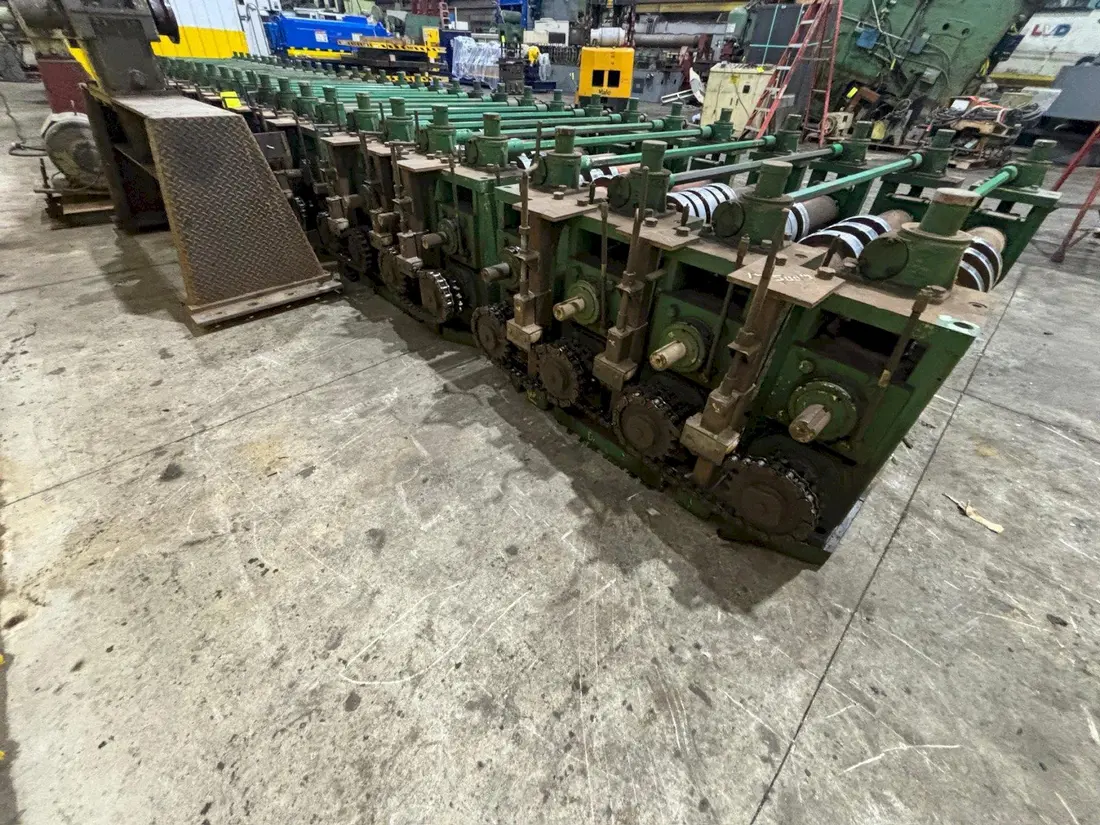

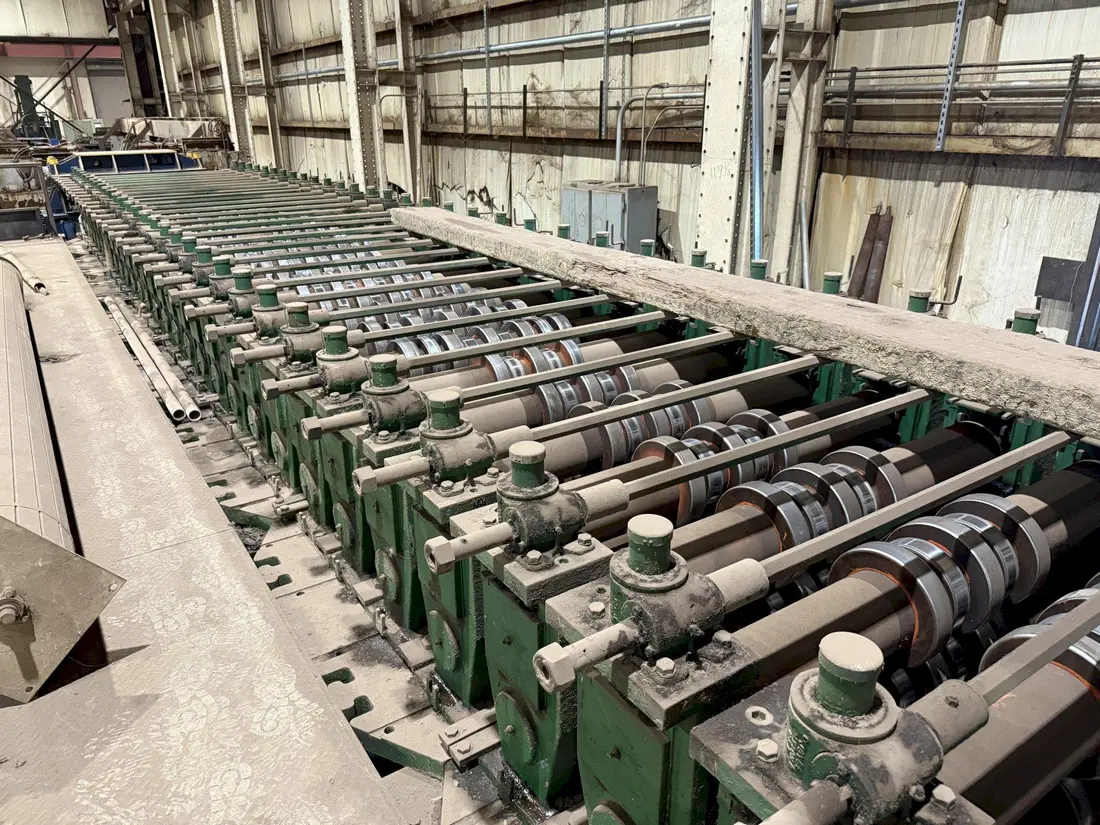

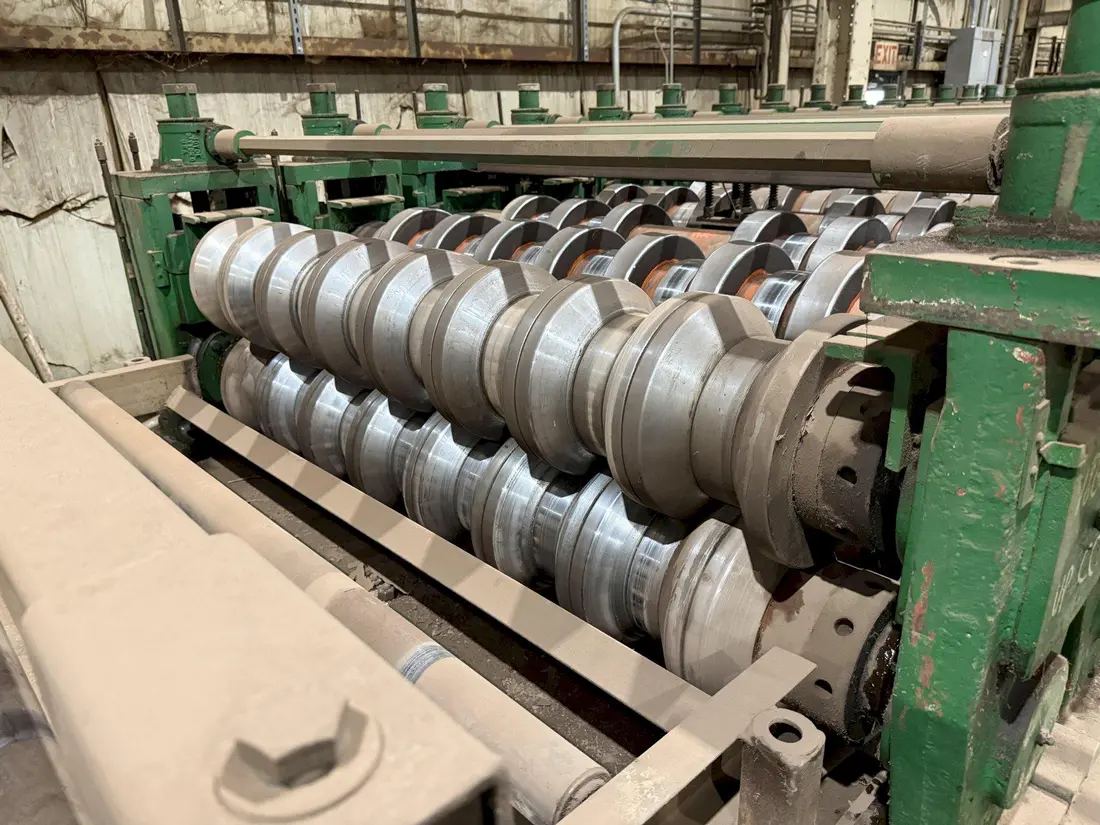

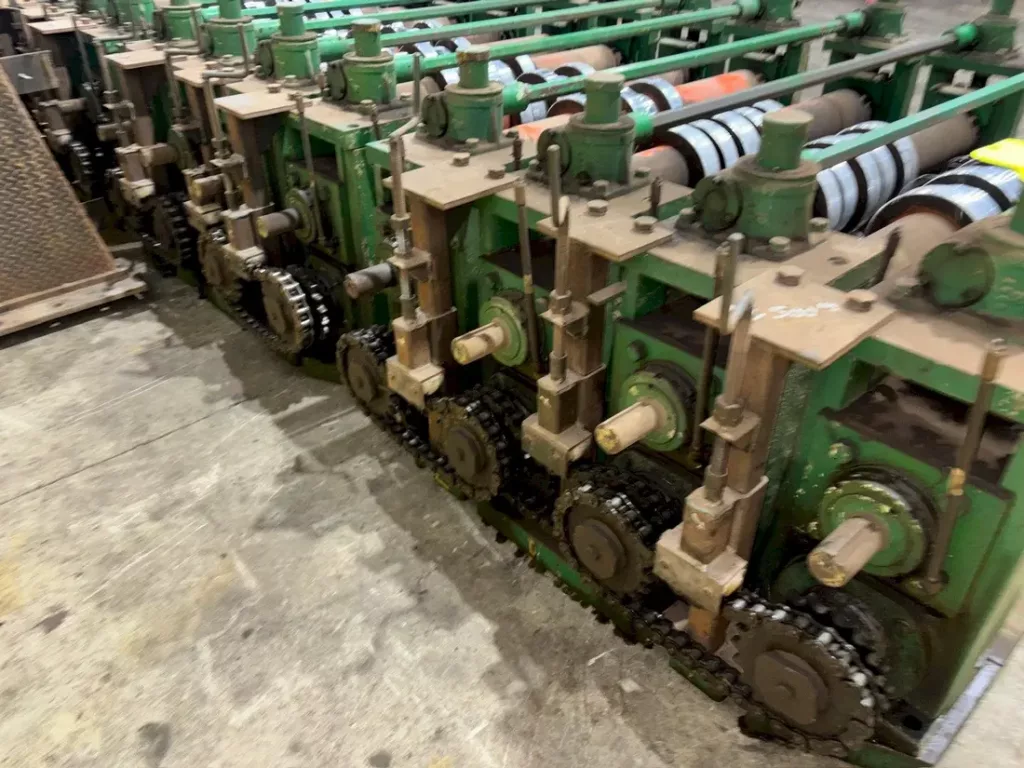

| Rollformer |

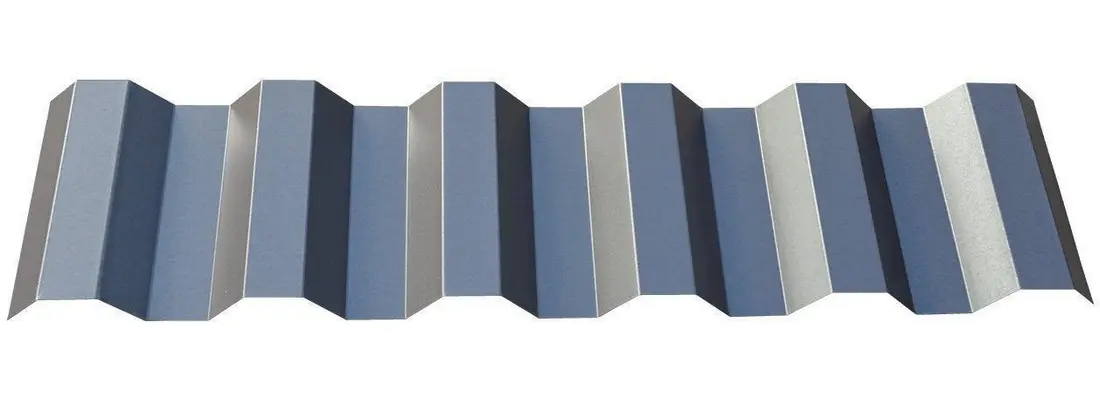

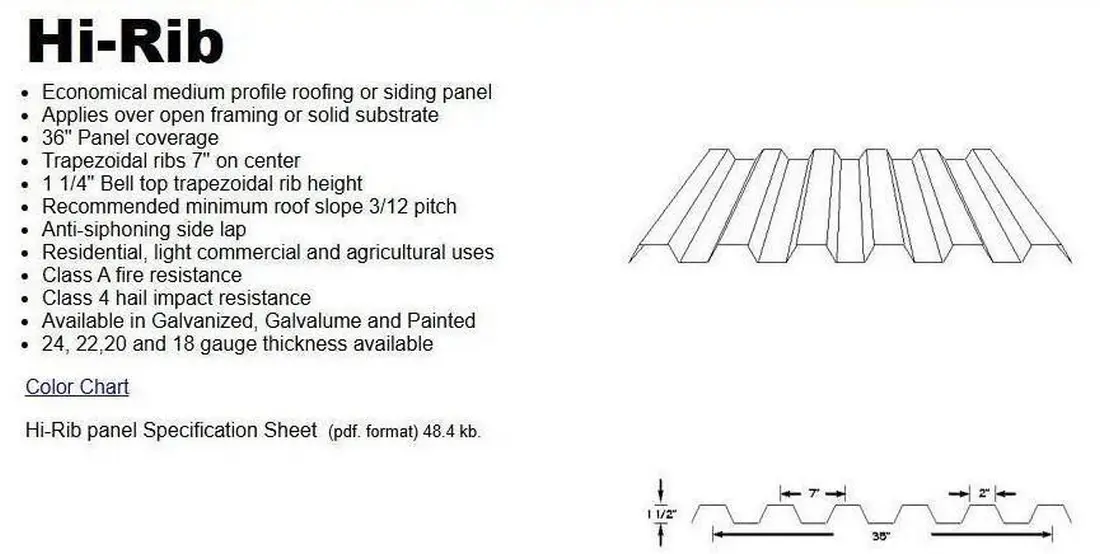

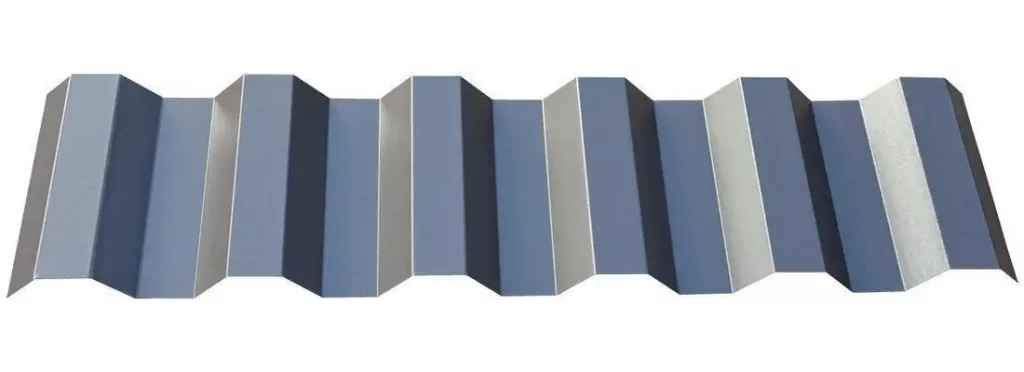

Hi-Rib Panel |
| Panel Thickness Capacity |
18 to 24 Gauge |
| Number of Passes |
32 |

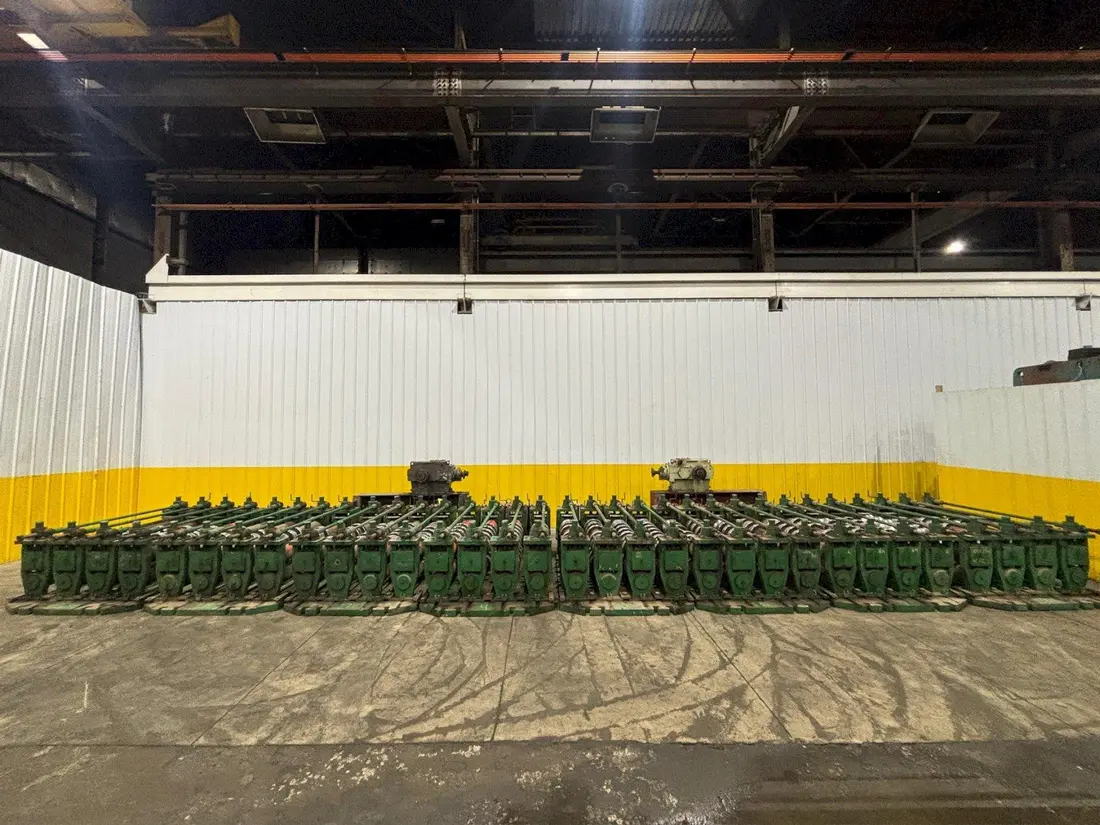

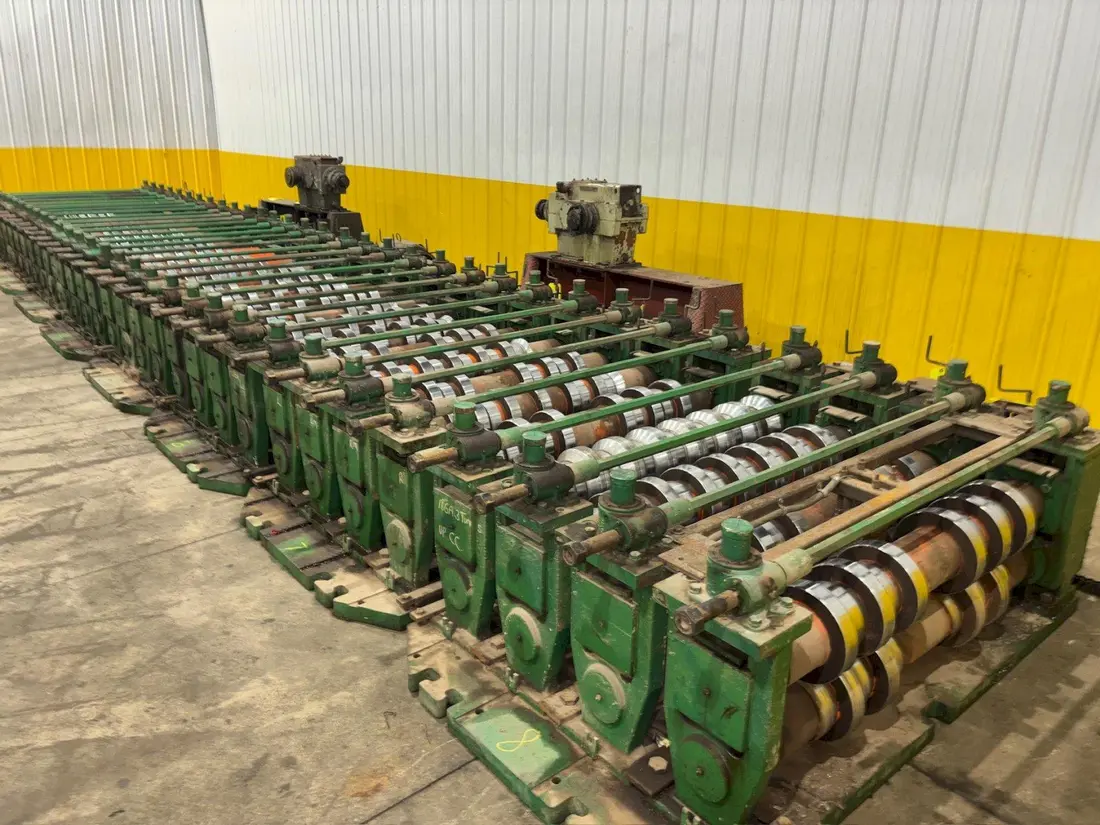

| Number of Rafts |
8 (4 Passes per Raft) |
| Roll Spacing |
44" |
| Horizontal Centers |
15" |

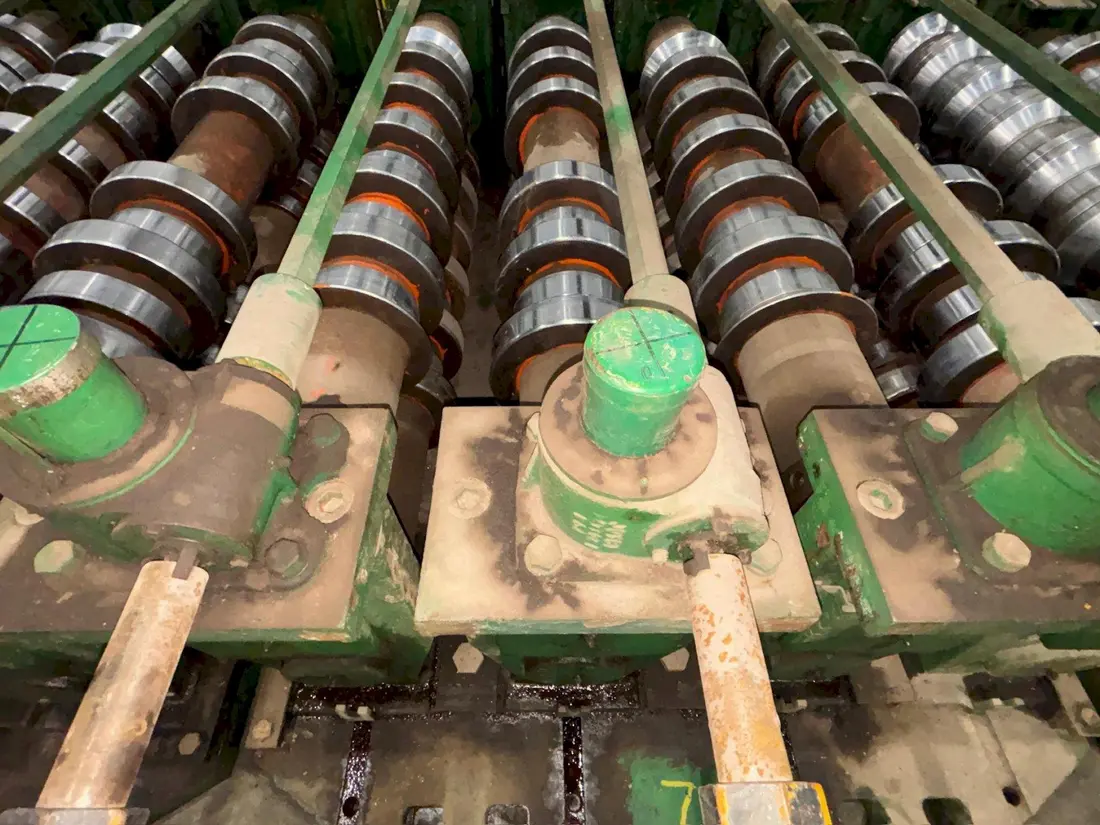

| Vertical Adjustment |
7" - 10" |
| Base to Bottom of Spindle |
8" |
| Direction |
Right to Left |

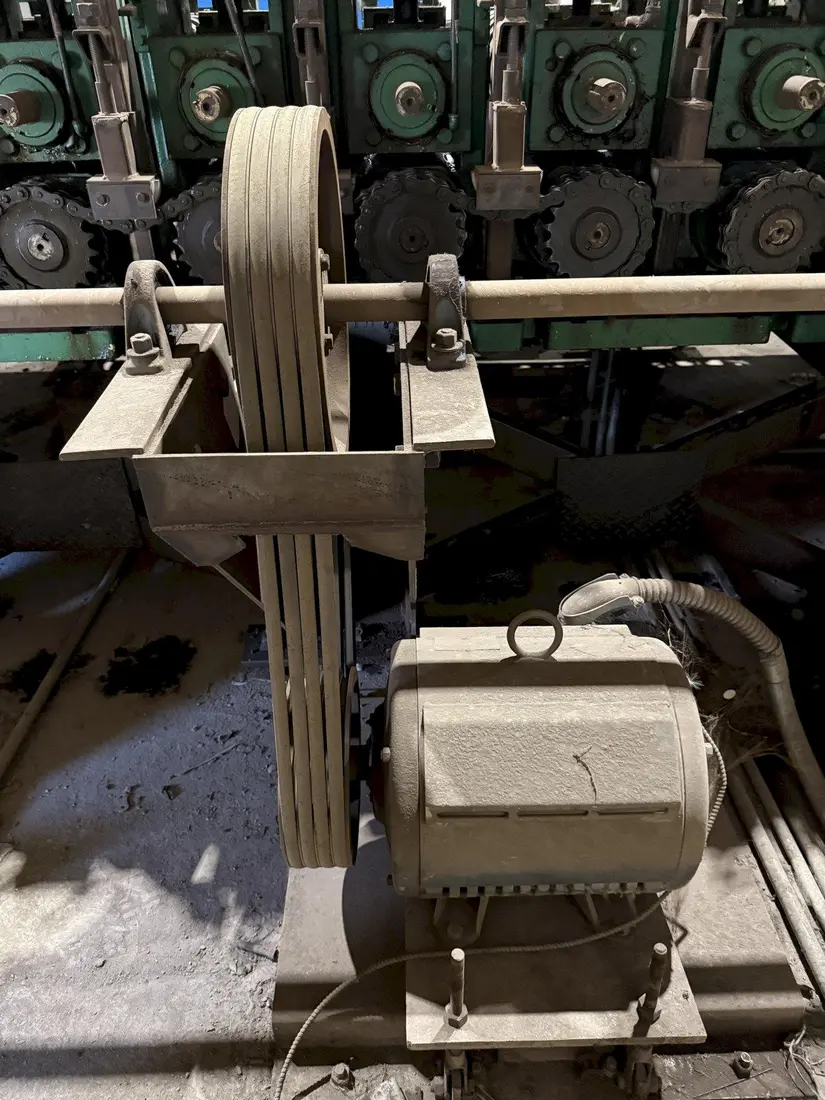

| Rollformer Motor |
60 HP |
| Stamco Press Coil Capacity |
30 thru 12 Gauge |
| Stamco Motor |
15 HP |
Features
|

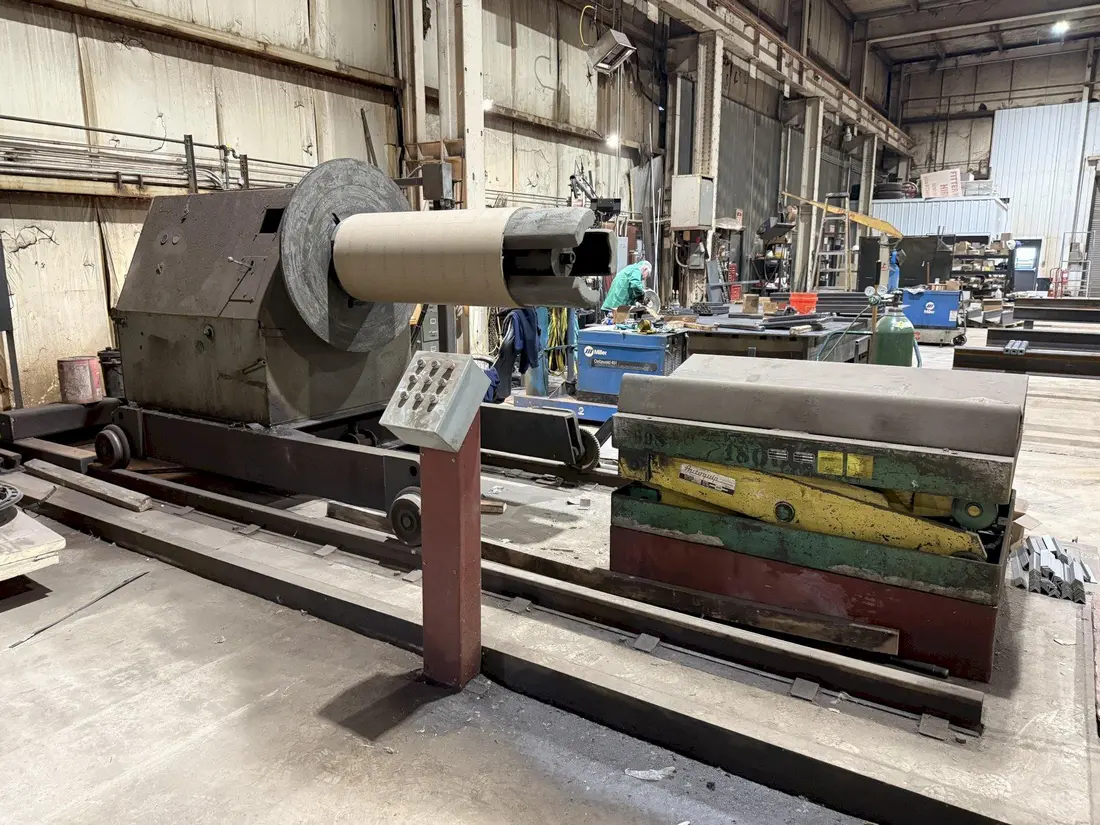

American Uncoiler Model 10 |
Autoquip Coil Car Model 24K18 |
|
Durant Controller Series 5884 |
Fabricated Steel Base |
|

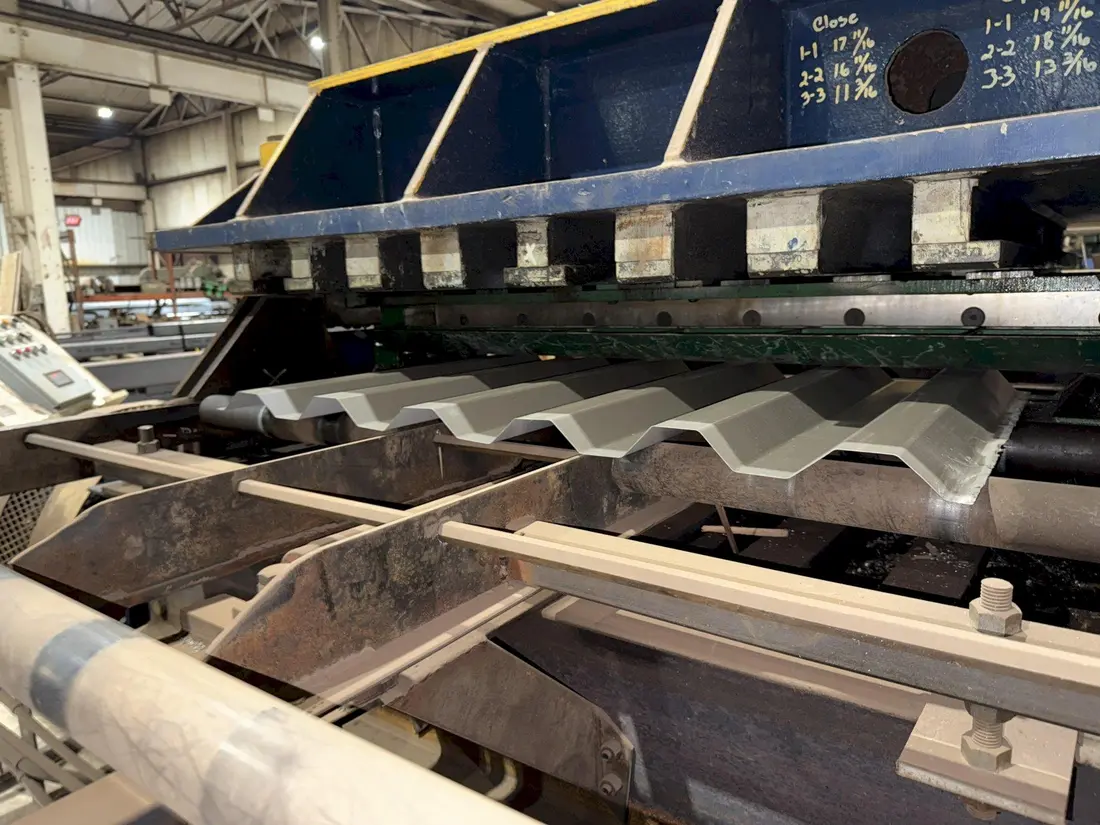

Flying Cut Off Die |
Operator Control Station for Uncoiler |
|

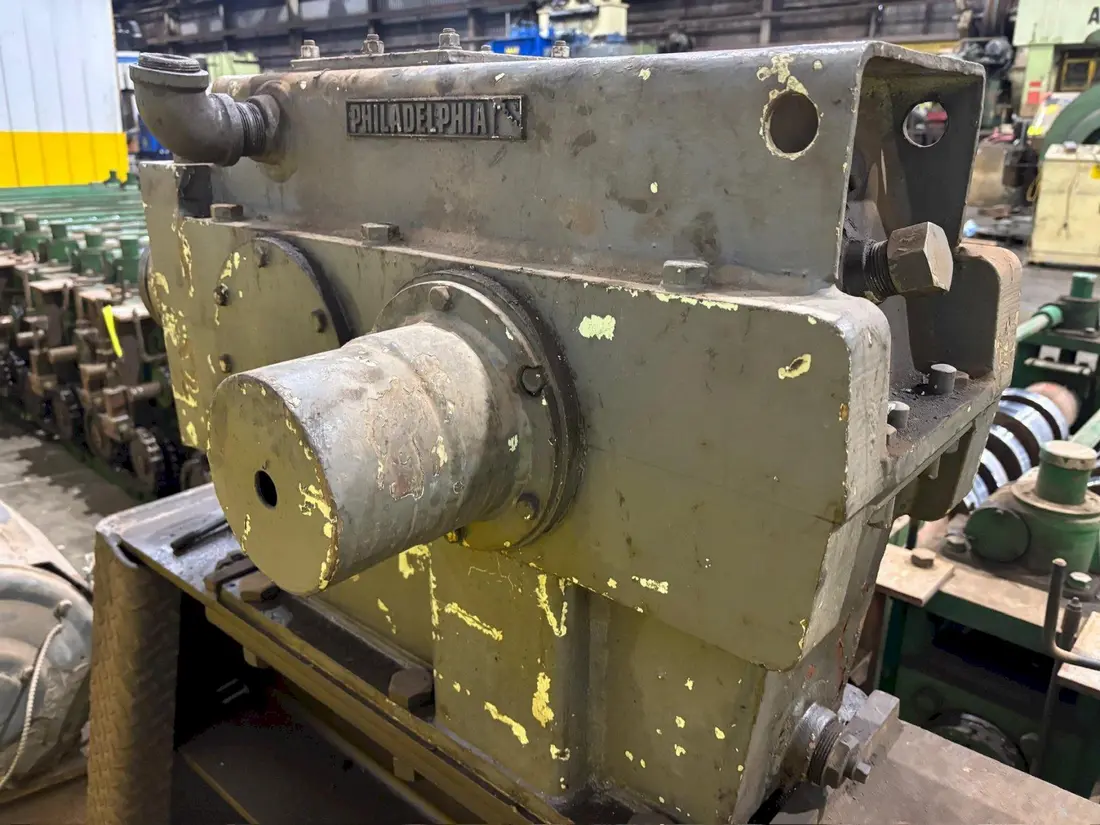

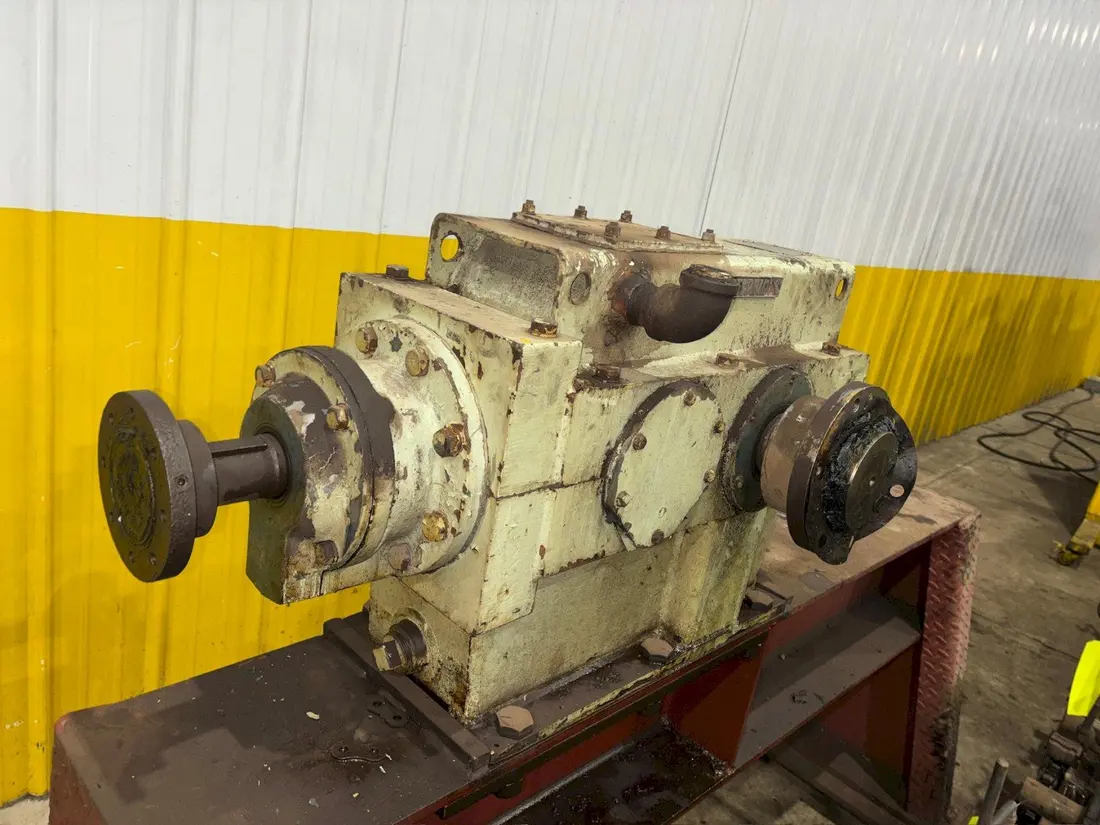

Philadelphia Gear Reducers |
Powered Traversing on Uncoiler |
|
Rotary Dial Counter |

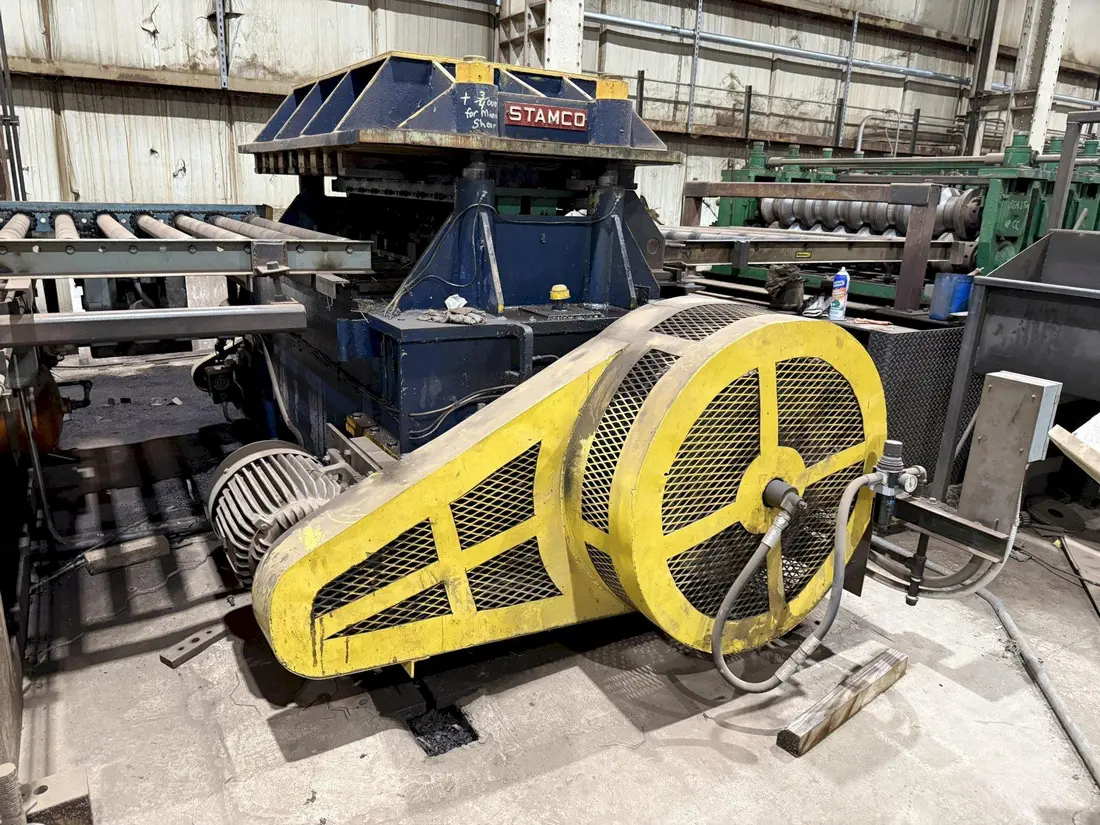

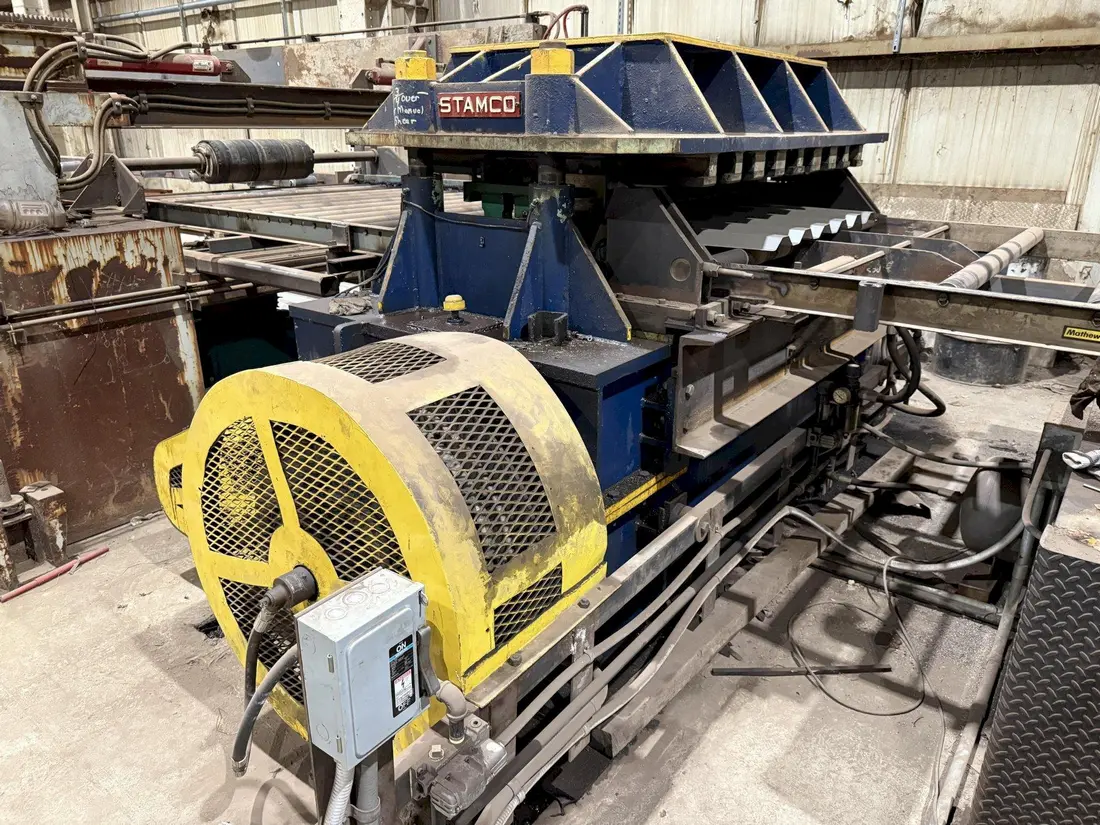

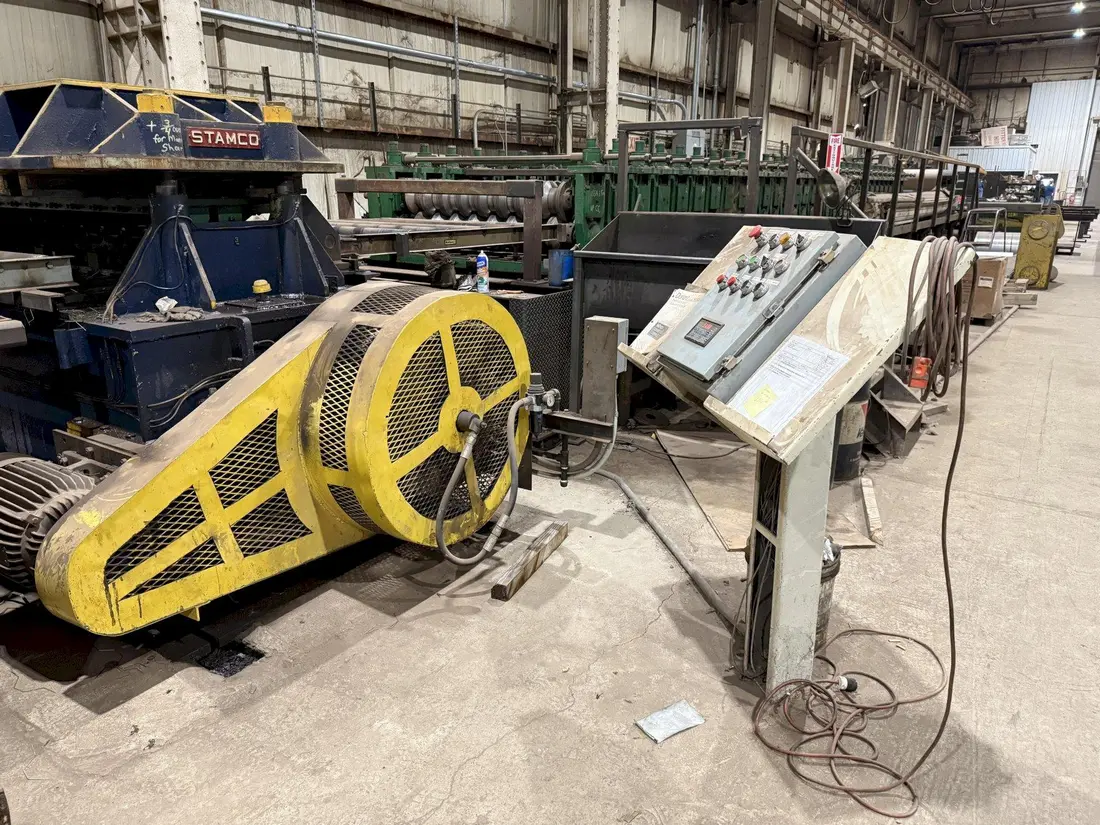

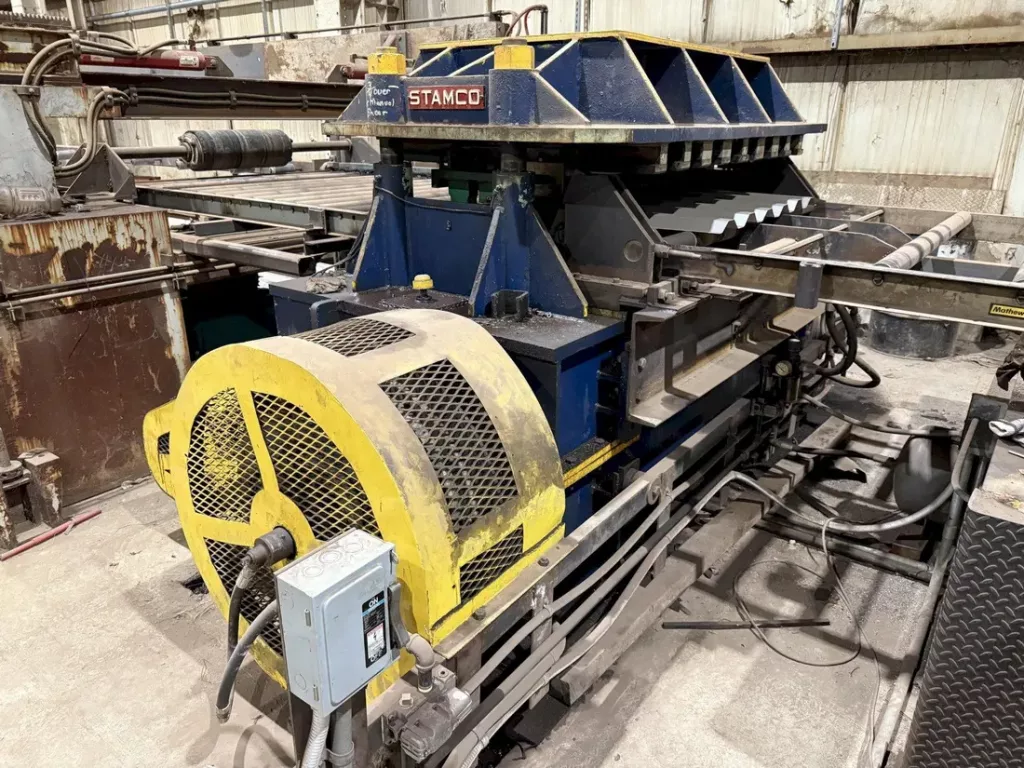

Stamco Cut Off Press Model 3607 |
|
Chain Driven |
Air Clutch |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
