Year |
1996 |
|---|---|
Make |
Kane and Roach |
Model |
2ST CRFM |
Description |
Roll Former |
Reference # |
8073221 |
Price |
Activate Pricing |

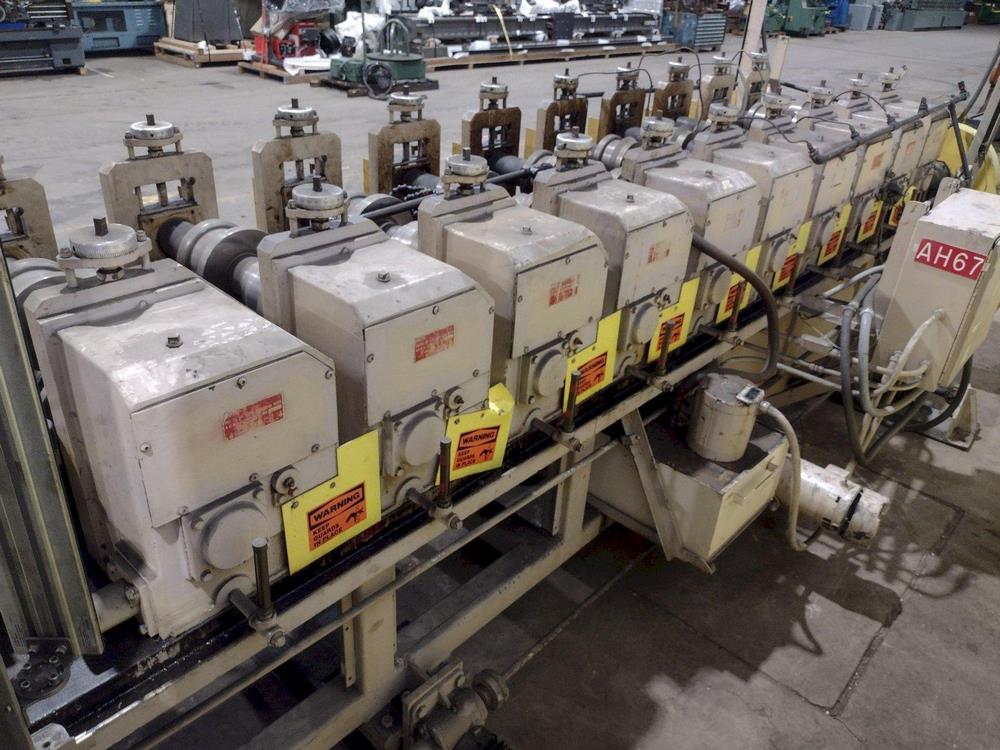

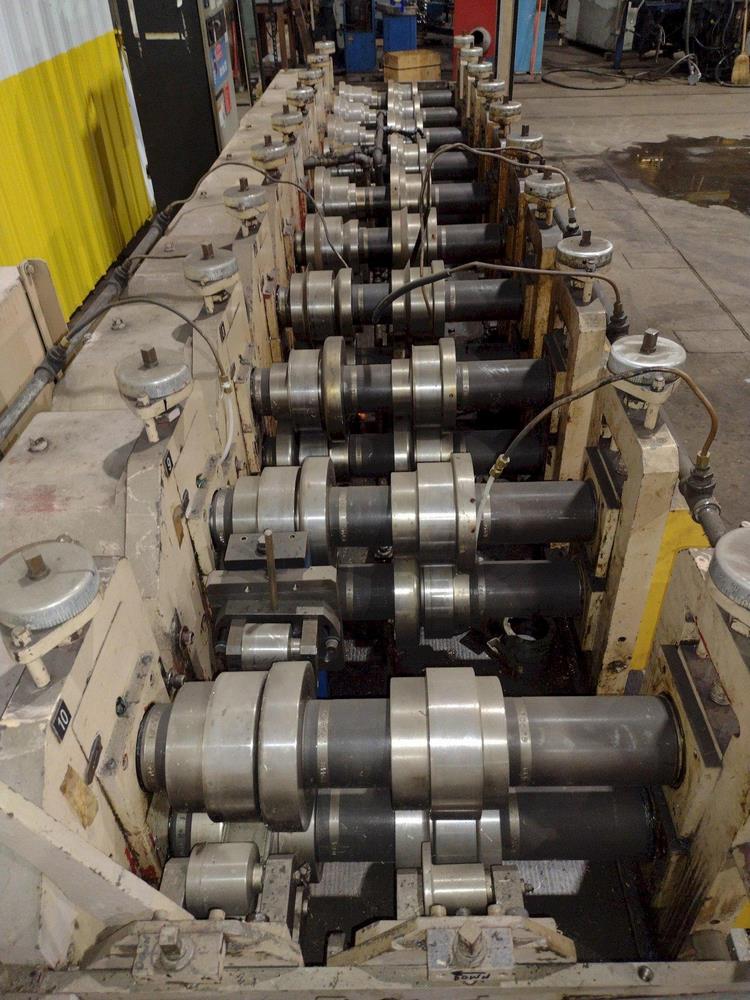

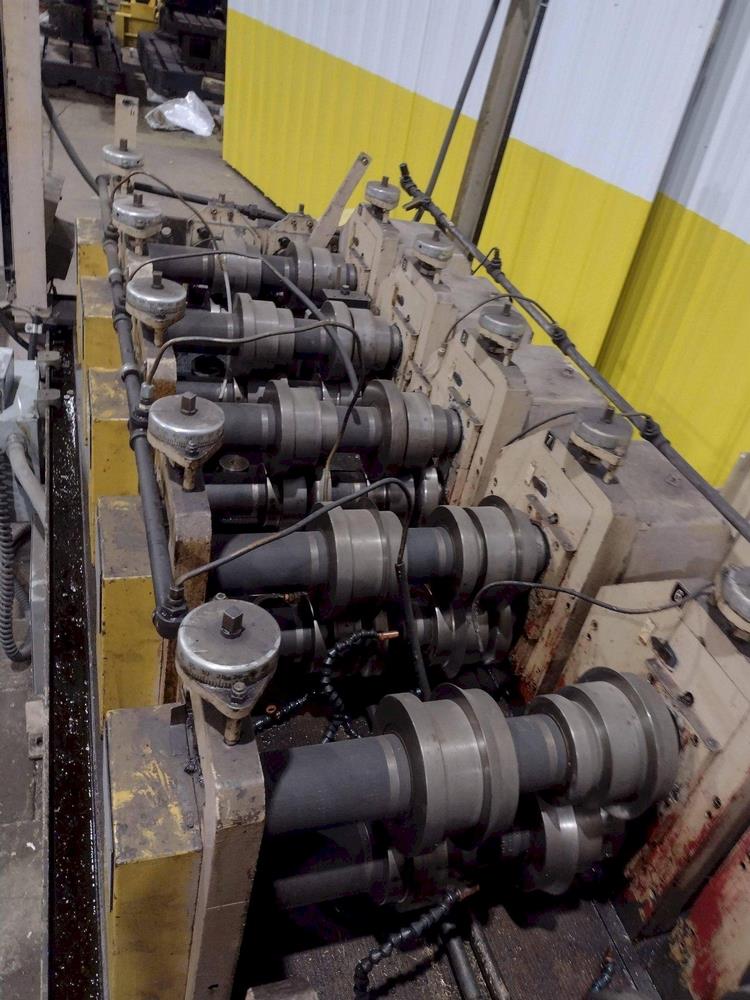

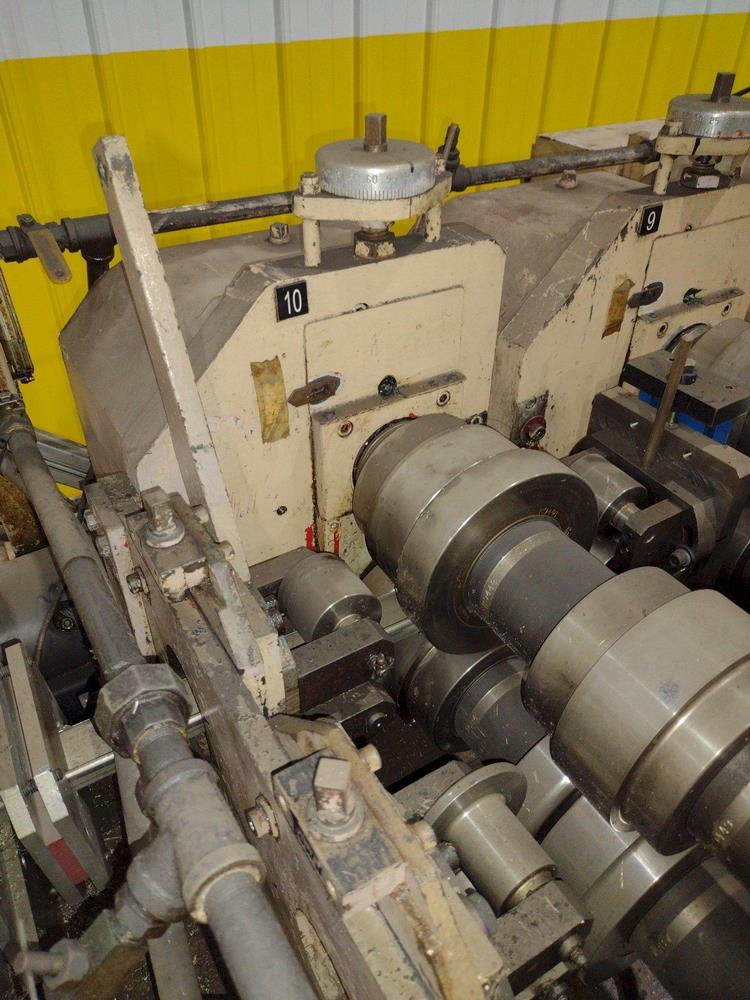

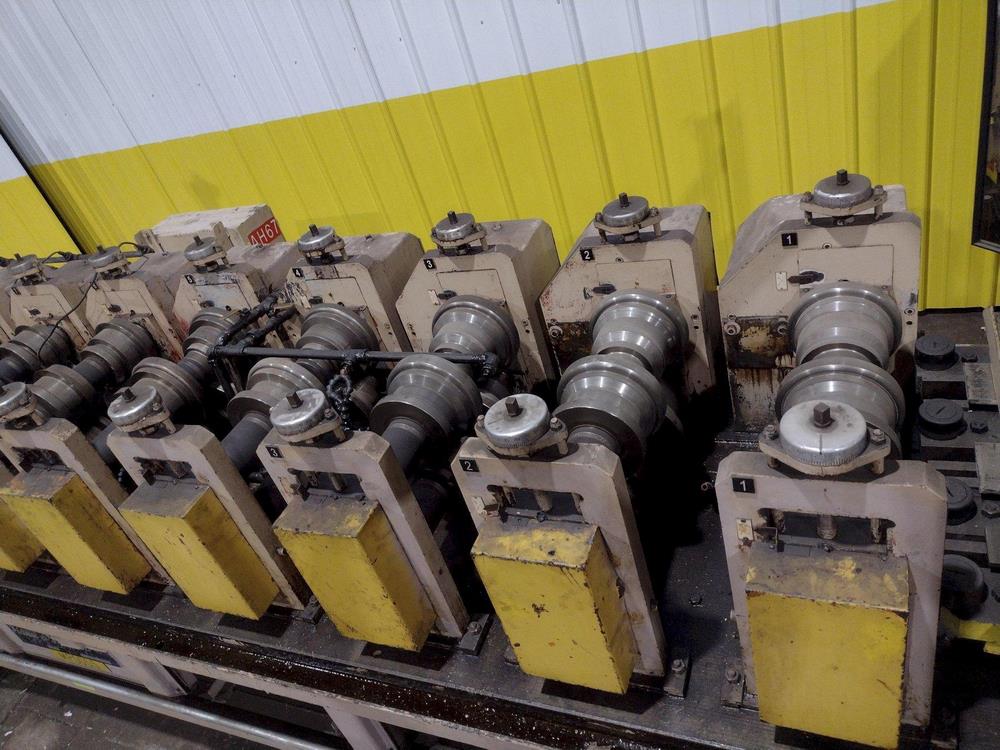

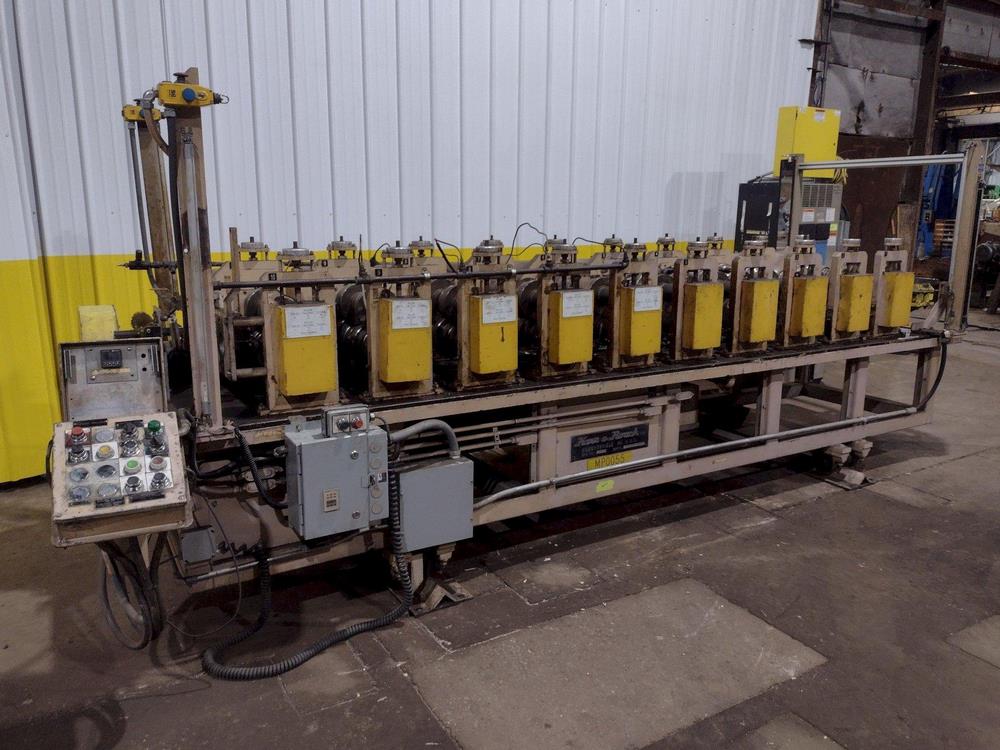

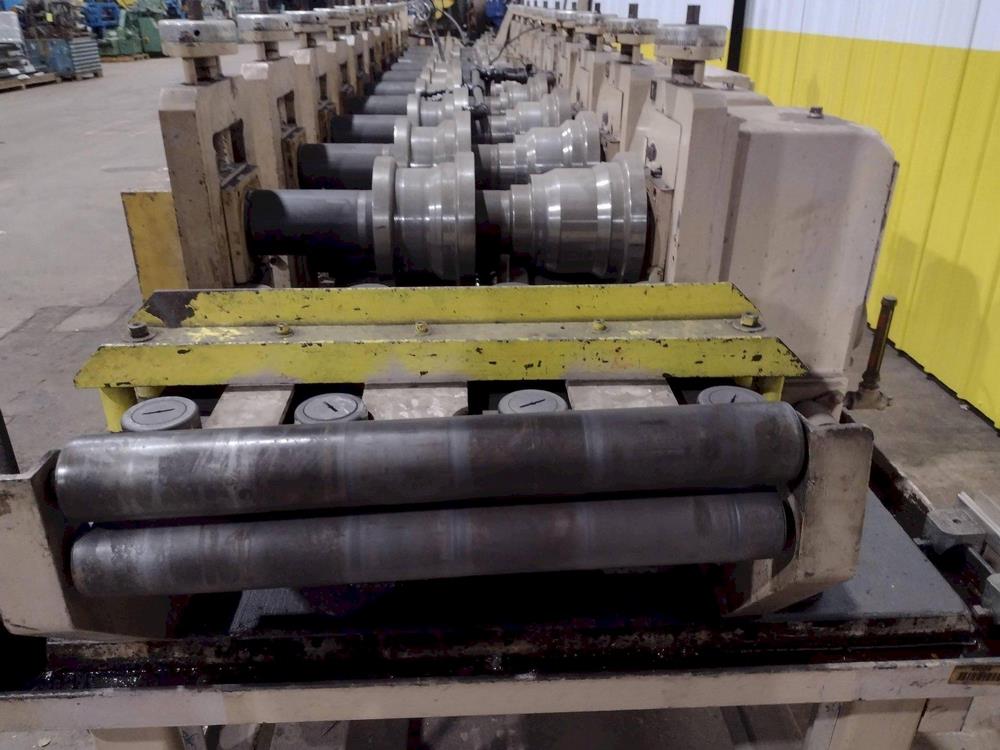

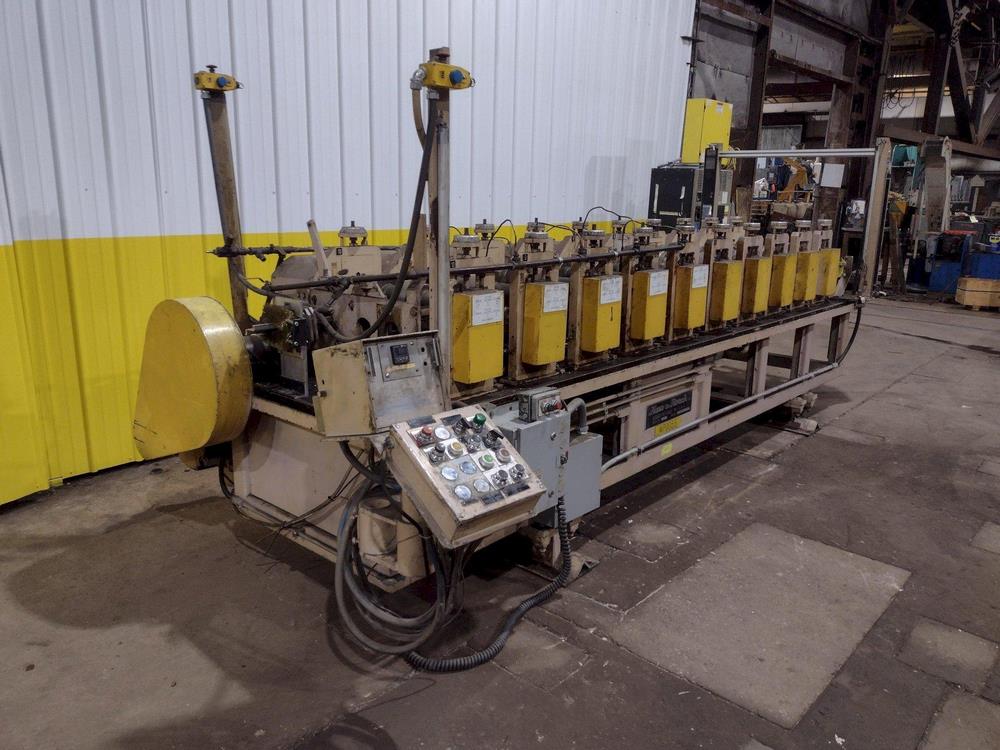

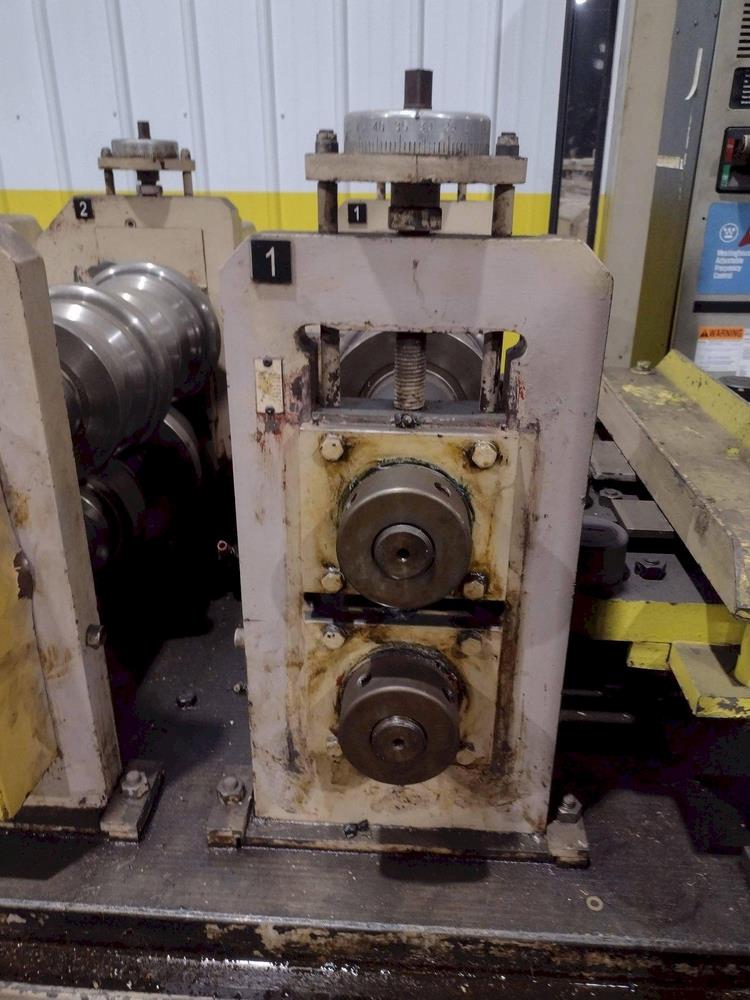

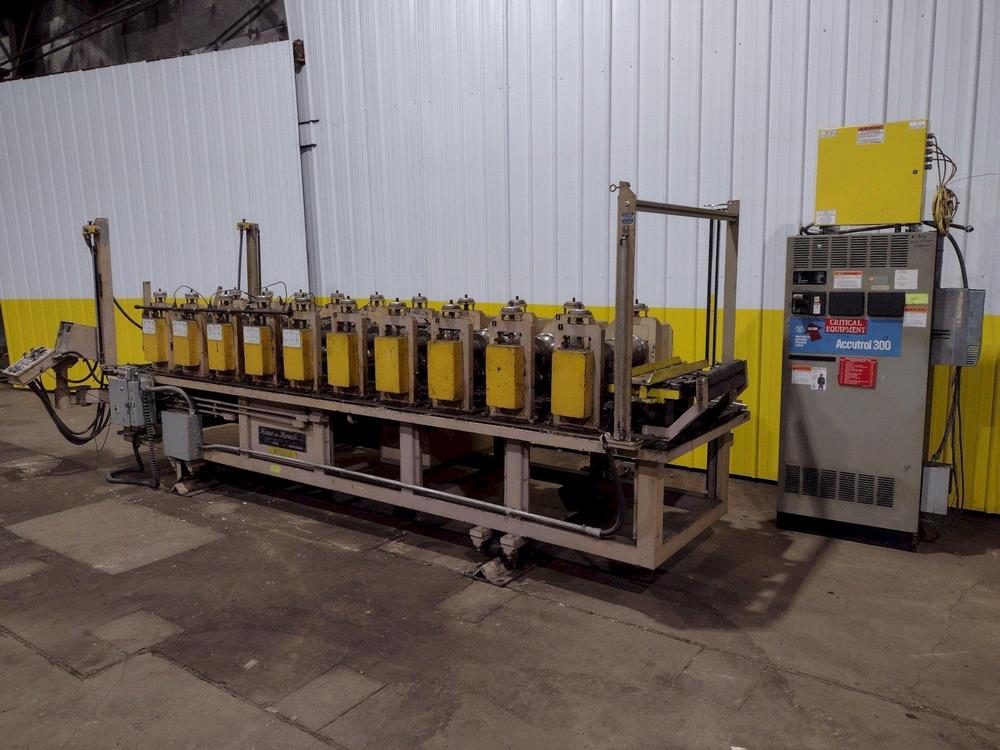

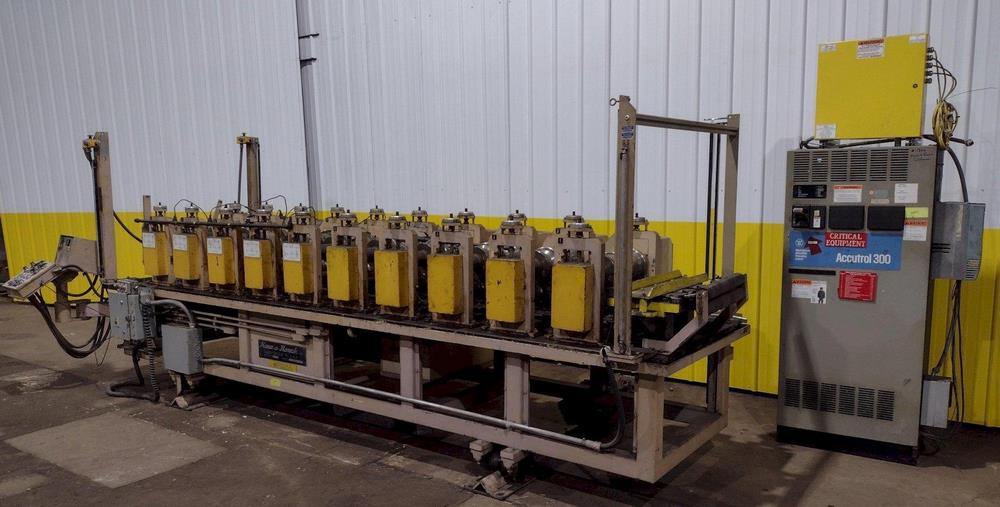

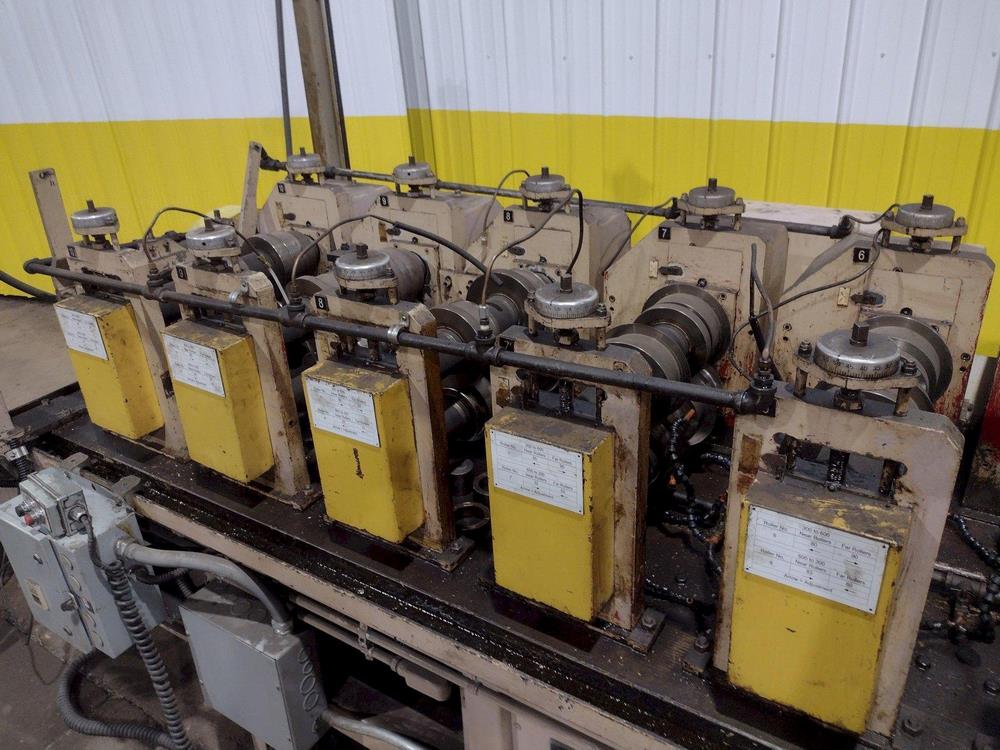

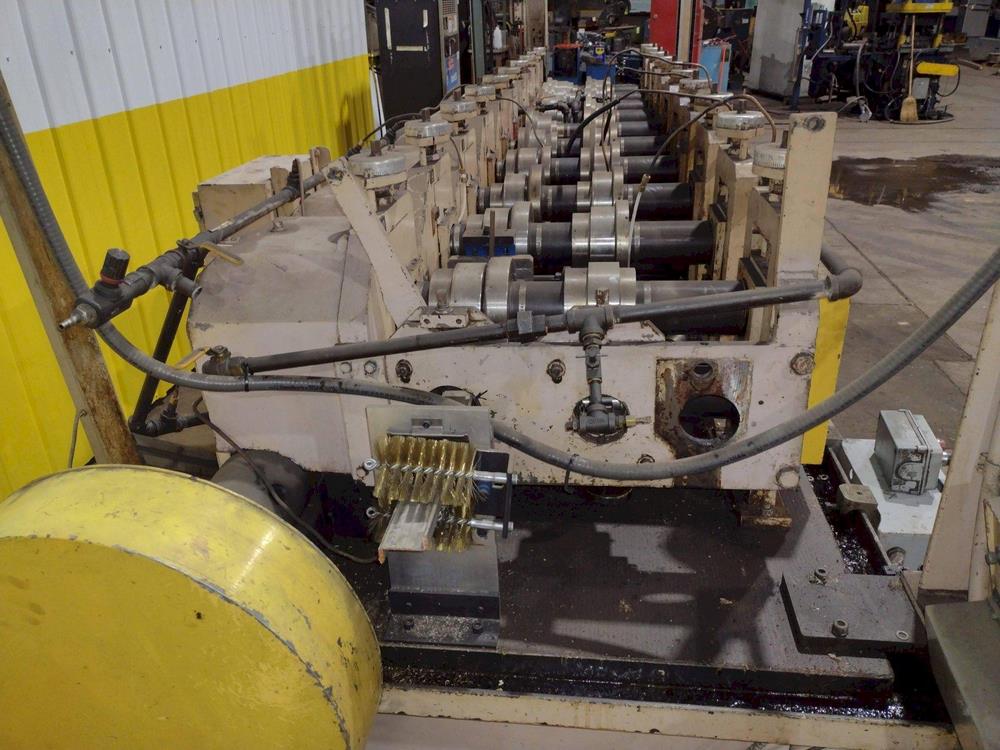

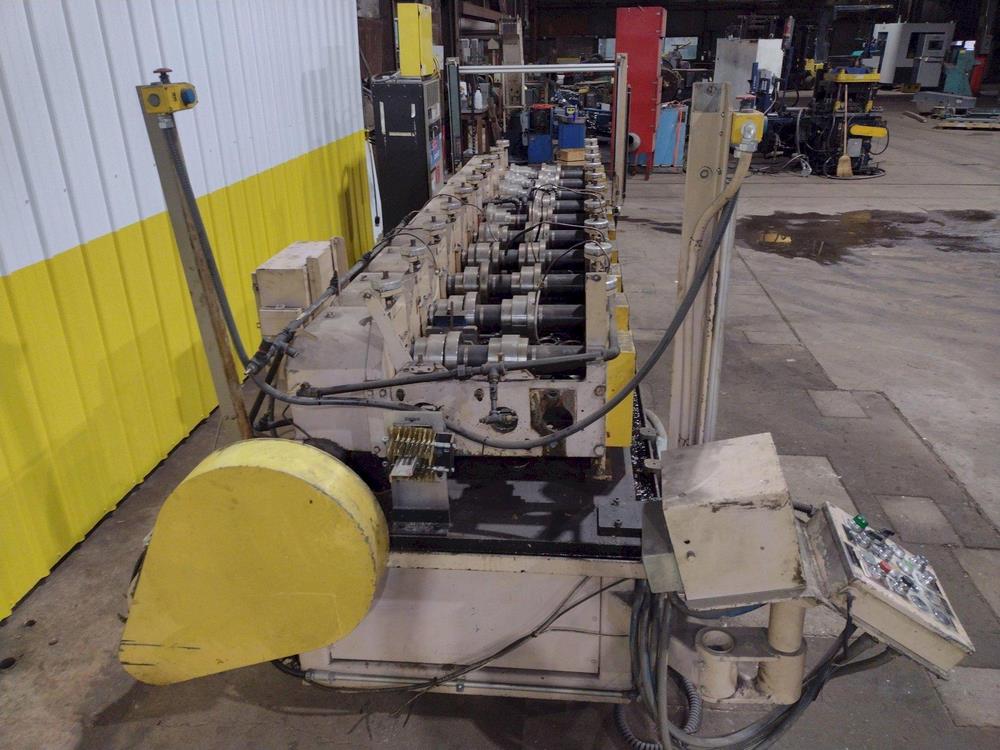

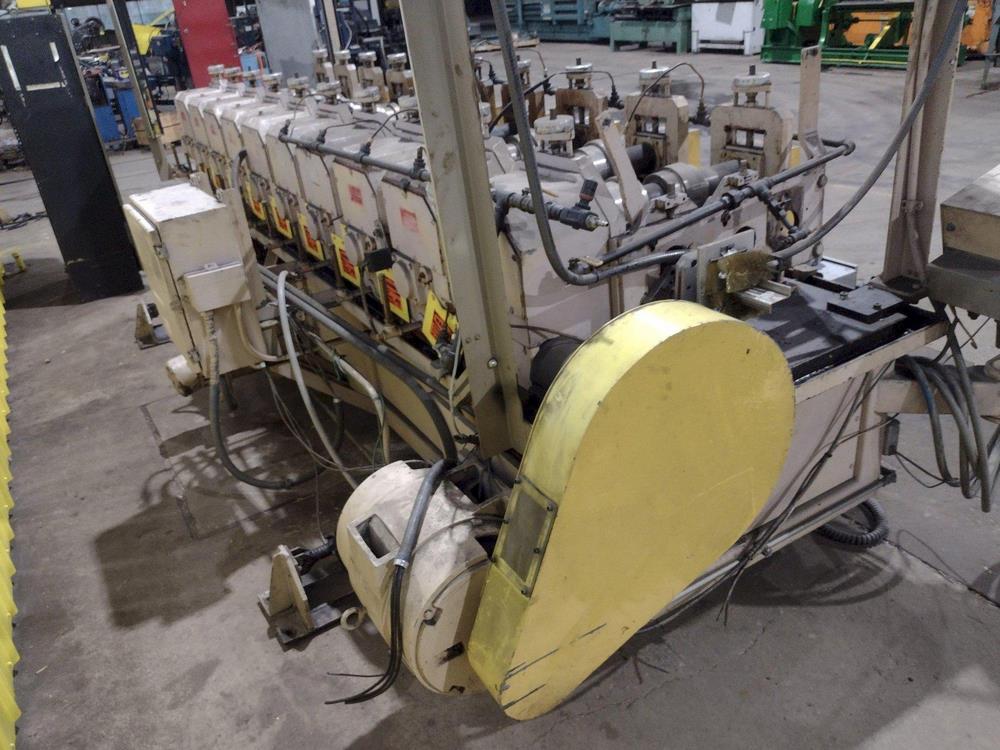

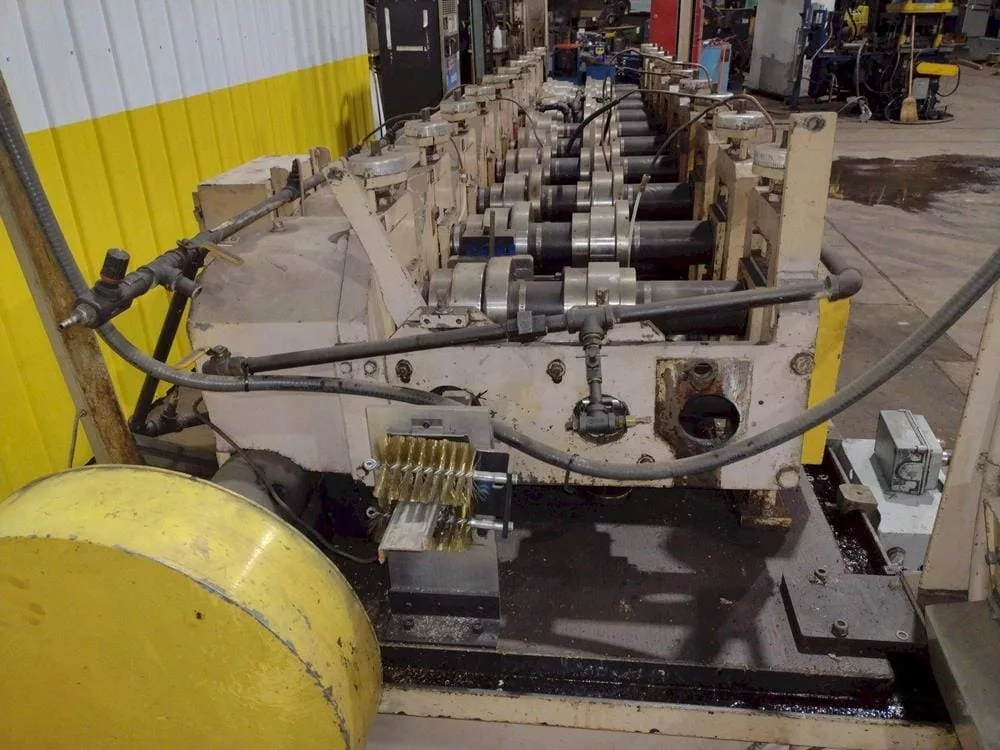

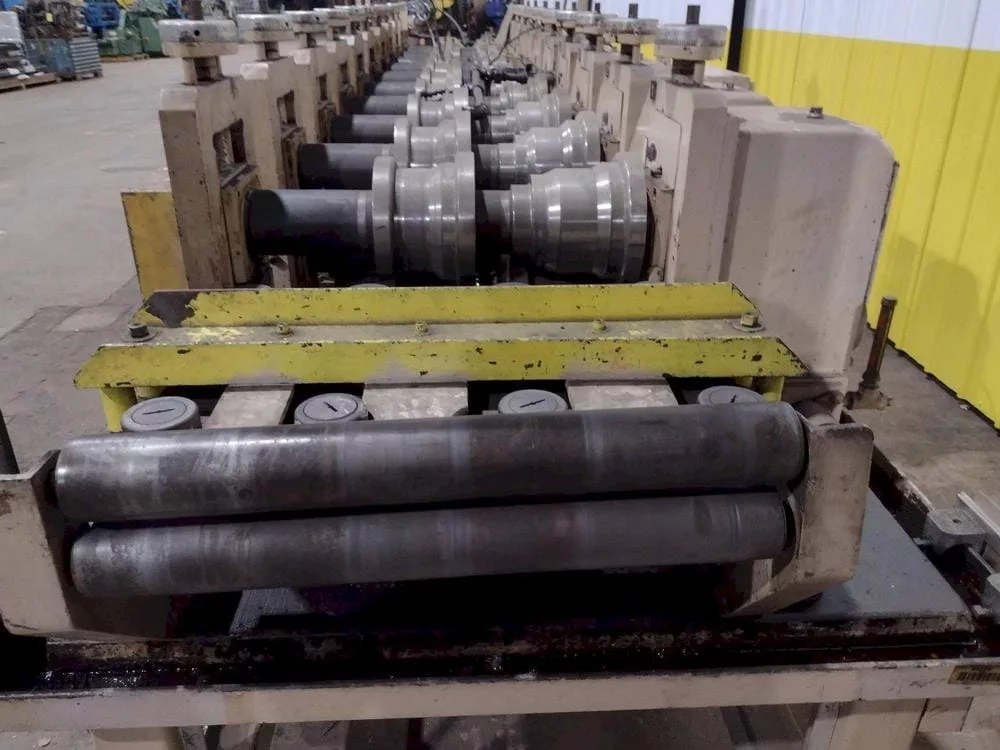

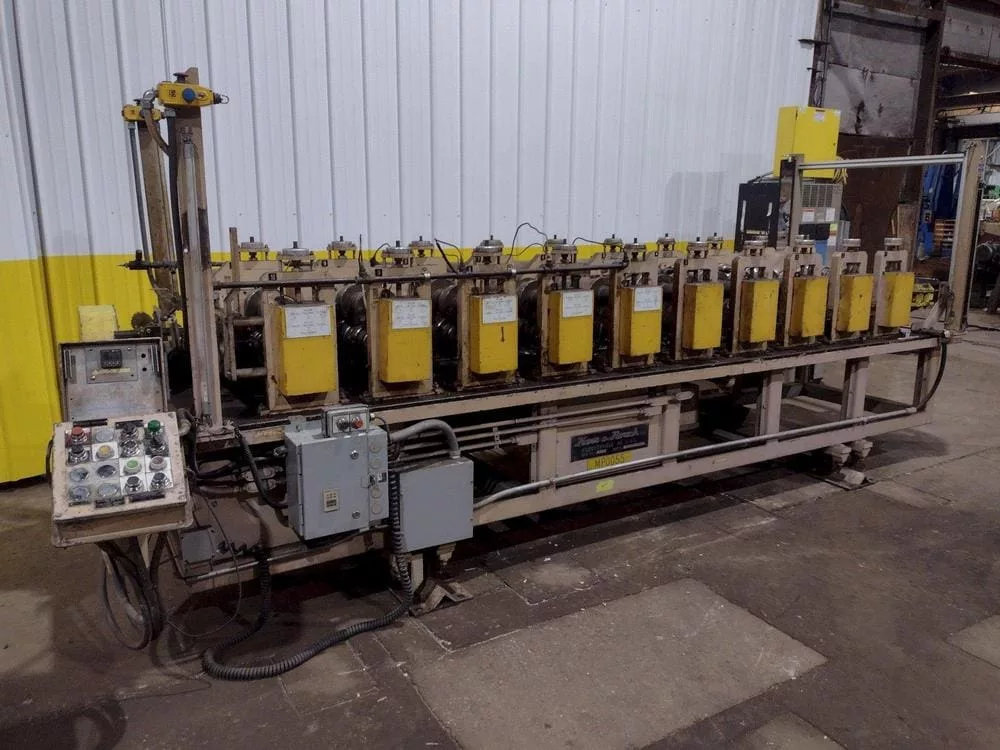

Used Kane and Roach 2ST CRFM (1996) Roll Former for Sale. This machine has 10 drive housings with 2.5″ shaft diameter and 21.375″ roll space. Vertical shaft centers run 5″ to 7.5″, with horizontal shaft centers at 15″. Keyway width is 0.360″ and keyway depth is 0.198″. Centerline of the bottom shaft to the top of the base measures 9.25″, and the top of the base sits 30″ off the floor. Drive is a 25 HP AC motor. Equipped with right to left direction of travel and equal roll shaft ratios, bottom to top. The machine can be seen under power for an inspection by appointment. See more equipment in our used roll formers category, use Activate Pricing, or Request a Quote for full details. This machine is located in Ohio.
Specifications
| Drive Housings |
10 |
|---|---|
| Shaft Diameter |
2.5" |
| Roll Space |
21.375" |
| Vertical Shaft Centers |
5"-7.5" |
| Horizontal Shaft Centers |
15" |
| Keyway Width |
0.360" |
| Keyway Depth |
0.198" |
| Centerline Bottom Shaft To Top Base |
9.25" |
| Top Of Base To Floor |
30" |
| AC Motor |
25 HP |
Features
|
Right to Left Direction of Travel |
Equal Roll Shaft Ratios (Bottom To Top) |
