Year |
2016 |
|---|---|
Make |
Krauss Maffei |
Model |
300-1000CX |
Description |
330 Ton 13.6 oz Shot Size Injection Molding Machine |
Reference # |
8072351 |
Price |
$99,500 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

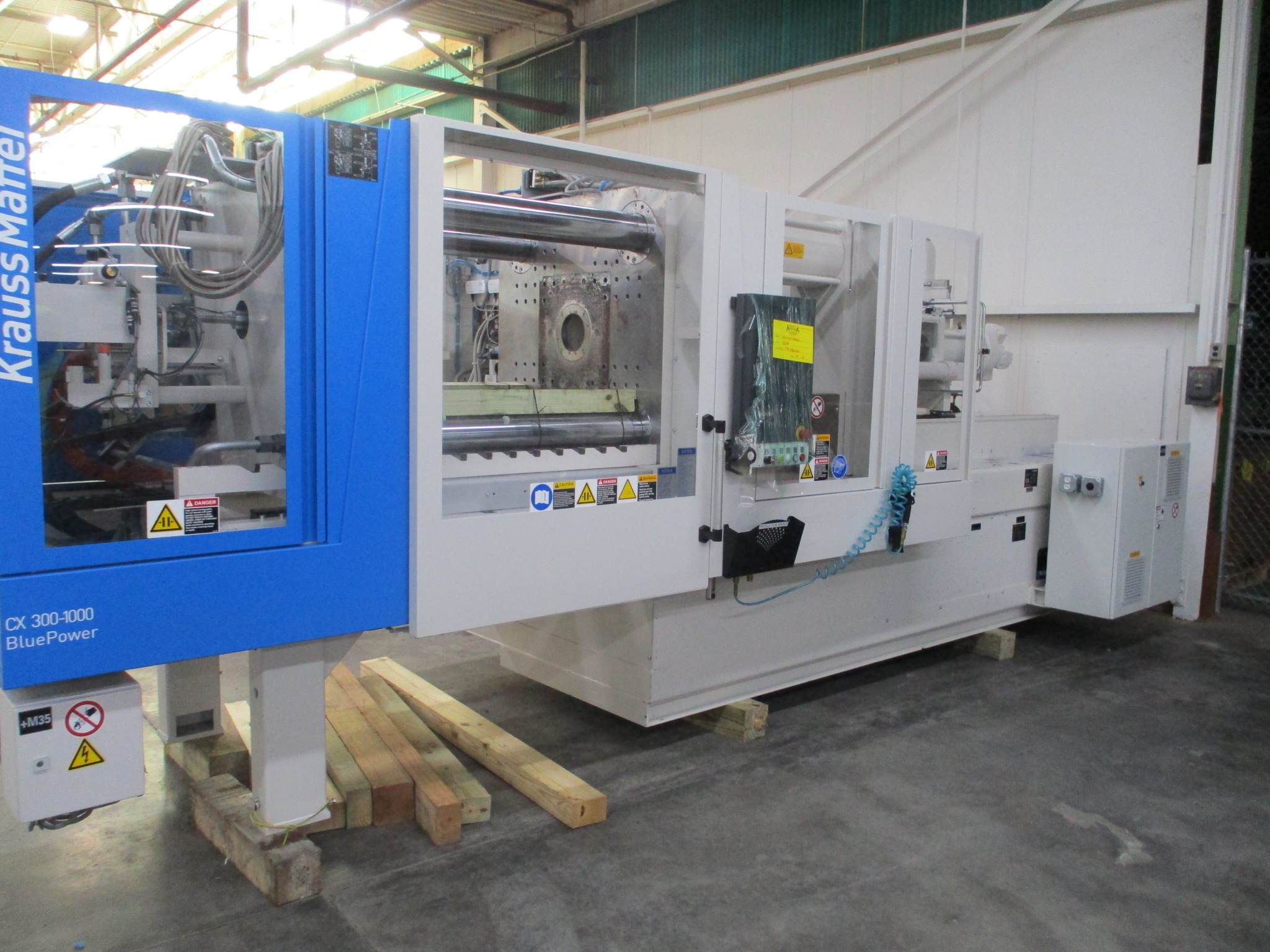

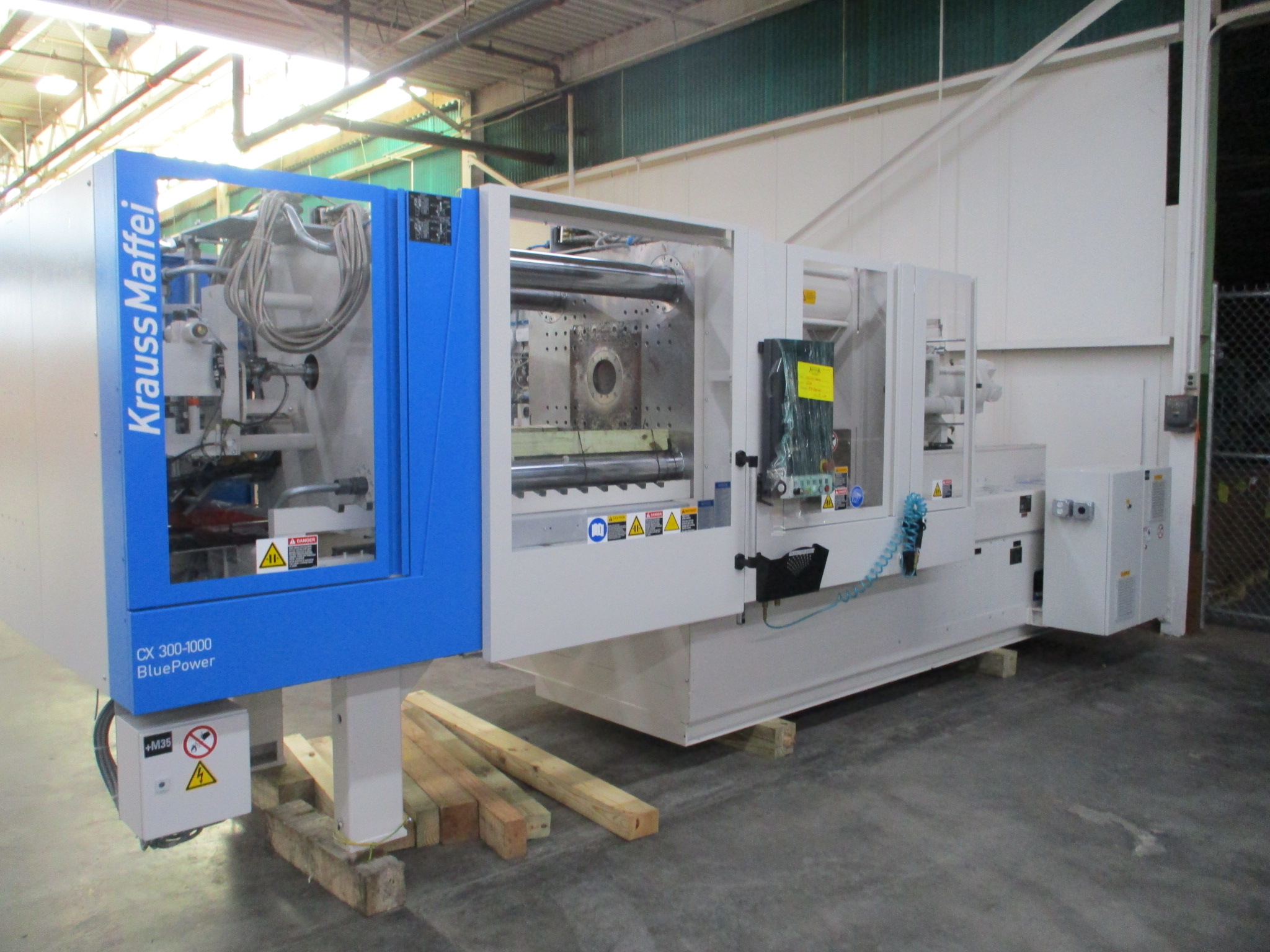

Used Krauss Maffei 300-1000CX (2016) Injection Molding Machine for Sale. This pre-owned Krauss Maffei plastic injection molding machine is located in Georgia. If you have any questions regarding this Krauss Maffei Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
330 Ton |
|---|---|
| Shot Size |
13.6 oz |
| Mold Opening Force |
19 Ton |
| Travel Opening Force (Movable Platen) |
9.7 Ton |
| Travel Closing Force (Movable Platen) |
7.6 Ton |
| Platen Size |
39.20" x 41.37" |
| Platen Size (Extended Horizontal) |
42.36" x 41.37" |
| Platen Size (Wide Platen Option) |
46.30" x 44.92" |
| Tie Bar Spacing |
24.82" x 24.82" |
| Tie Bar Spacing (Extended Horizontal) |
27.97" x 24.82" |
| Tie Bar Spacing (Wide Platen Option) |
31.91" x 28.37" |
| Mold Opening Stroke |
32.31" |
| Min Mold Height |
13" |
| Min. Mold Height (Extended) |
18.91" |
| Max Daylight |
45.31" |
| Max. Daylight (Extended) |
51.22" |
| Ejector Stroke |
7.88" |
| Ejector Force (Forward/Backward) |
6.5 / 3.2 Ton |

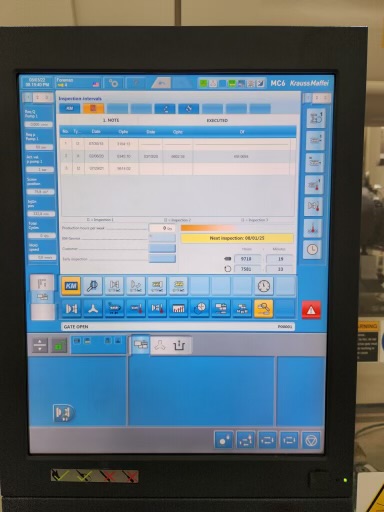

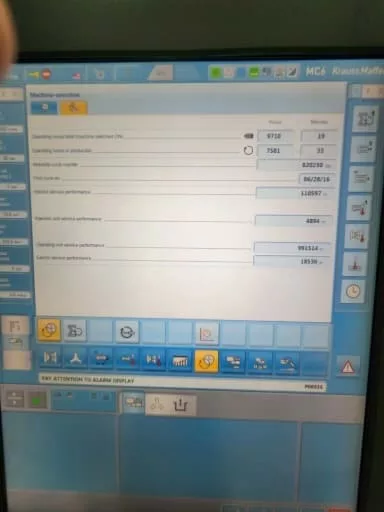

| Control |
MC6 |

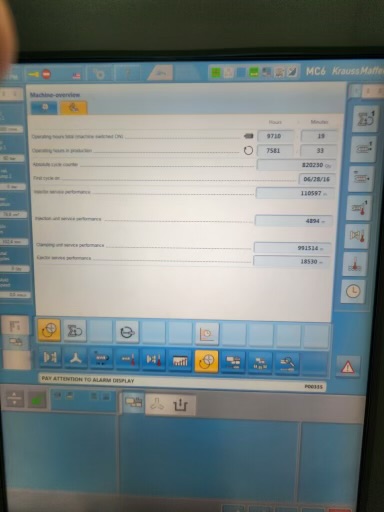

| Hours |
7,581 |
| Machine Dimensions |
256" x 87" x 91" |
| Machine Weight |
31,967 Lbs |
| Note |

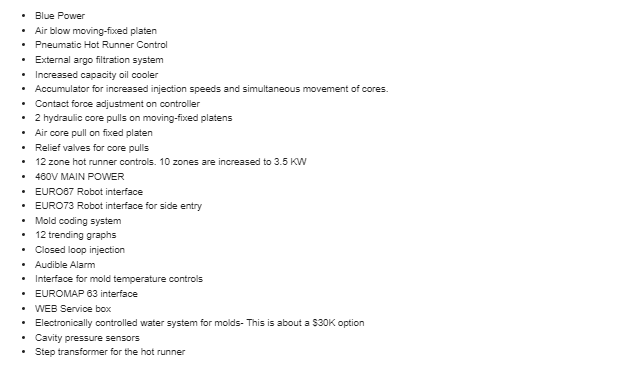

Lots of Features - See Photo |
Features
|
Pneumatic Hot Runner Control |
Low Hours |
|
Air Core Pull on Fixed Platen |
Blue Power |
|
EURO67 Robot Interface |
EURO73 Robot Interface for Side Entry |
