Year |
2013 |
|---|---|
Make |
Battenfeld |
Model |
HM110/525 |
Description |
120 Ton 6.19 oz Shot Size Injection Molding Machine |
Reference # |
8075780 |
Price |
Activate Pricing |

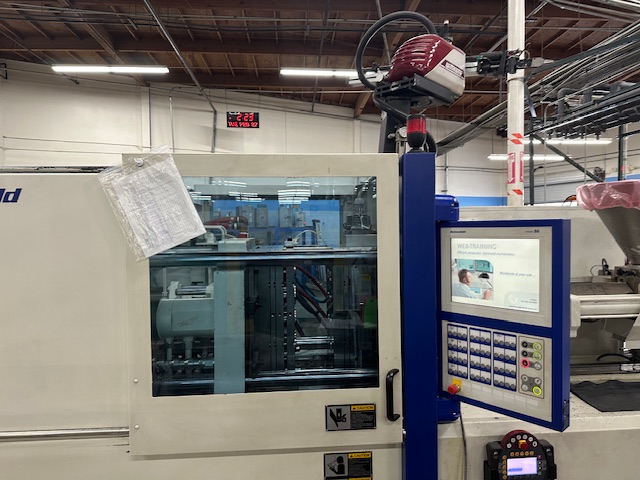

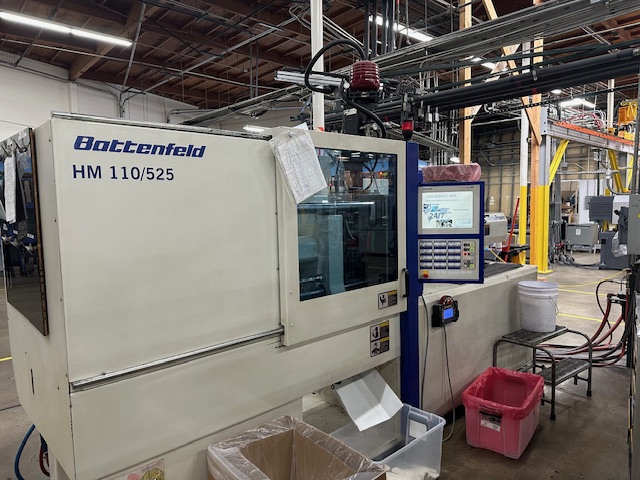

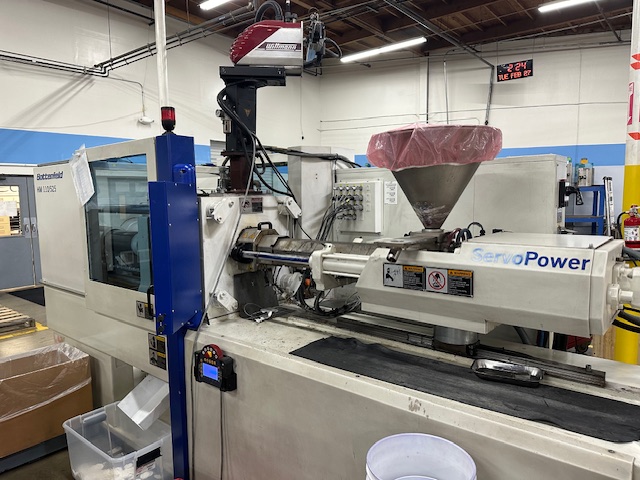

Used Battenfeld HM110/525 (2013) Injection Molding Machine for Sale. This machine has a 120 ton clamping capacity and a 6.19 shot size, with tie bar spacing of 18.50″ x 15.53″ and a maximum daylight of 30.51″. Minimum and maximum mold height is listed at 10.83″. Machine control is Unilog B6. Equipped with ejector, Wittmann W702 robot, core pull and valve gate. The machine can be seen under power for an inspection, so you can verify operation and control function before committing. See it and similar units listed under our used plastic injection molding machines category. Use Activate Pricing to view current pricing on this listing, and Request a Quote for further details or to arrange an inspection.
Specifications
| Capacity |
120 Ton |
|---|---|
| Shot Size |
6.19 |
| Tie Bar Spacing |
18.50” x 15.53" |
| Max Daylight |
30.51” |
| Min /Max Mold Height |
10.83” |
| Control |
Unilog B6 |
Features
|
Ejector |
Wittmann W702 Robot |
|
Core Pull |
Valve Gate |
