Year |
2012 |
|---|---|
Make |
Arburg |
Model |
Allrounder 470S 1100-170 |
Description |
120 Ton 2.7 oz Shot Size Injection Molding Machine |
Reference # |
8079276 |
Price |
Activate Pricing |

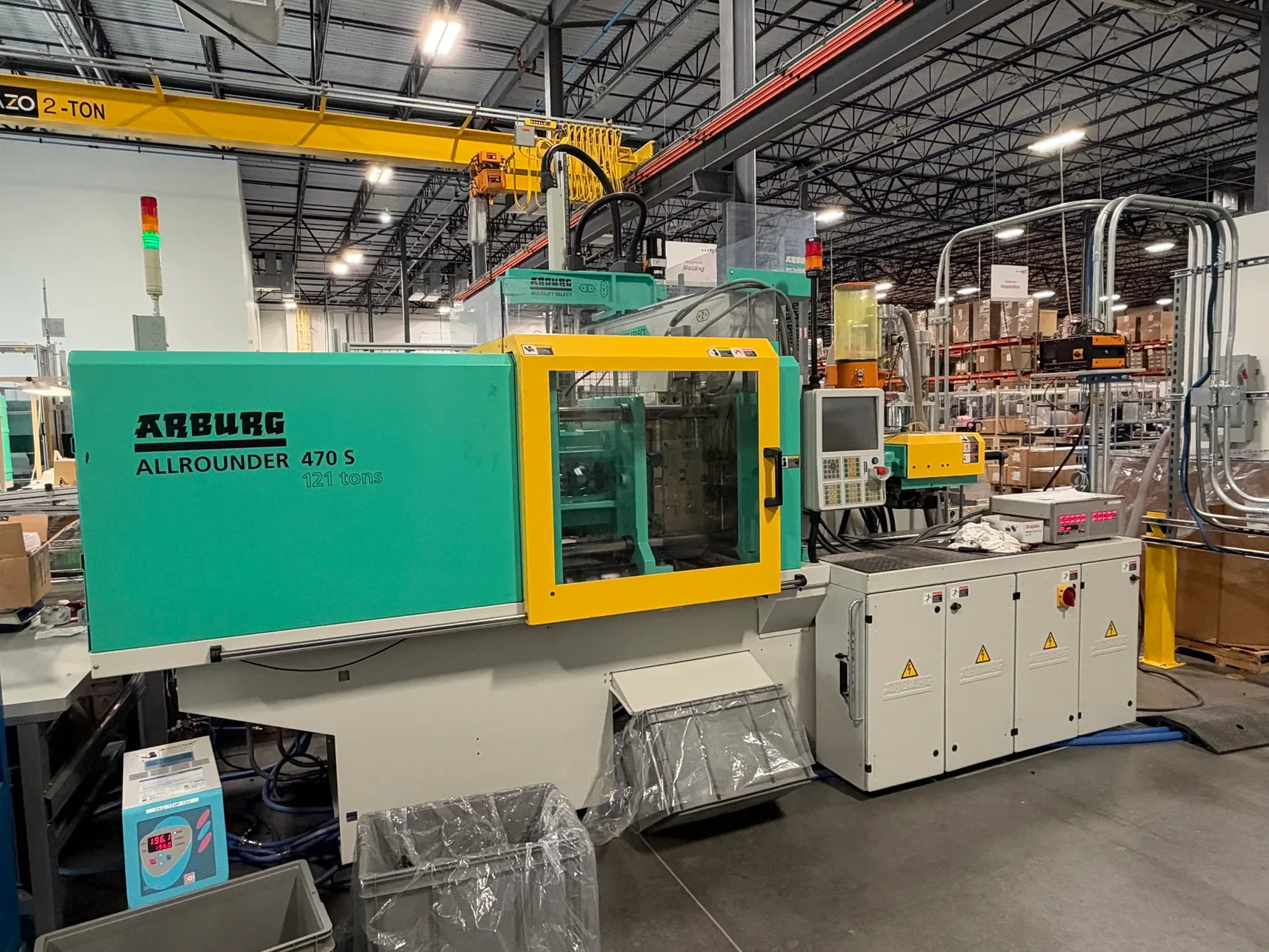

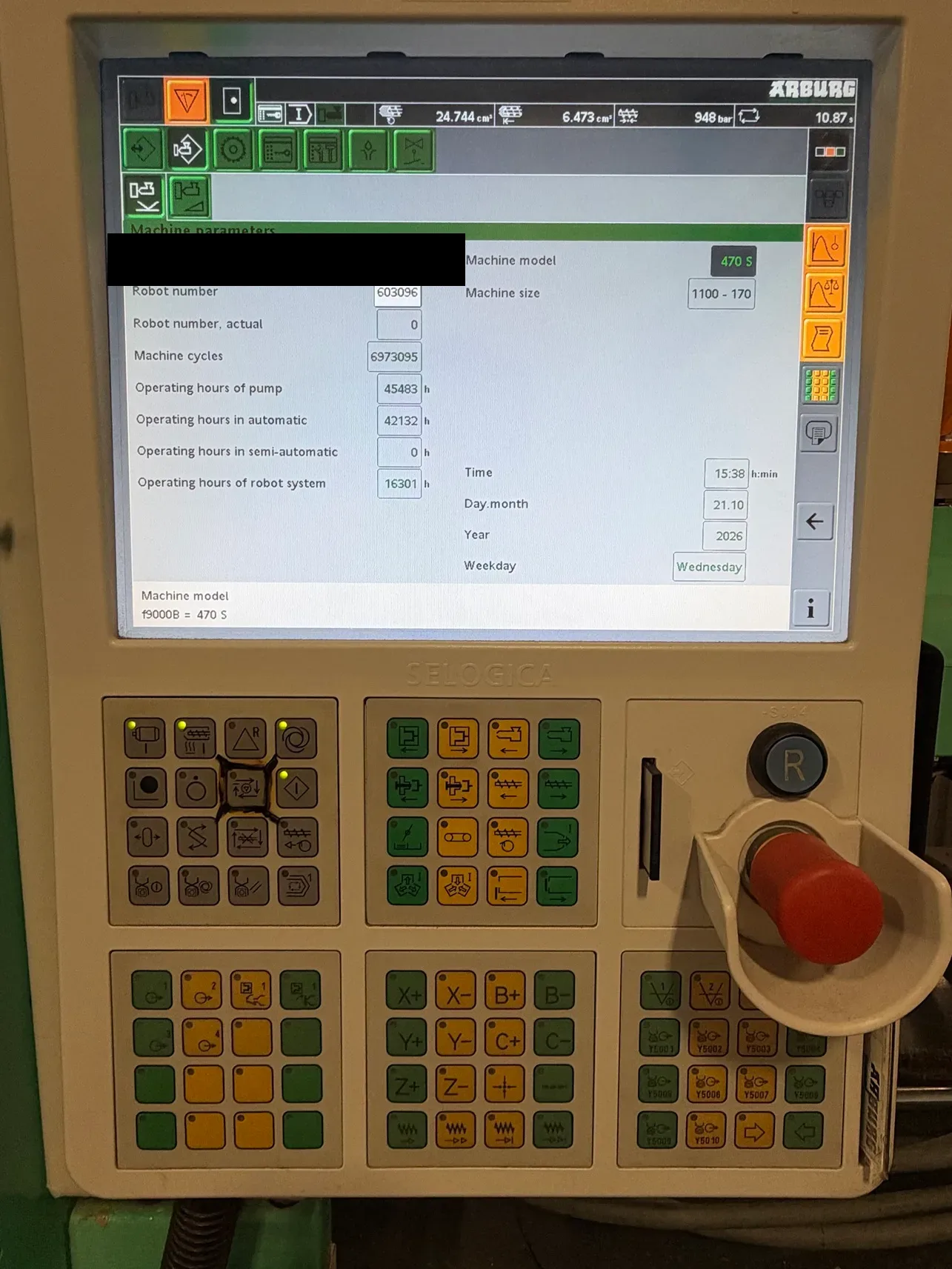

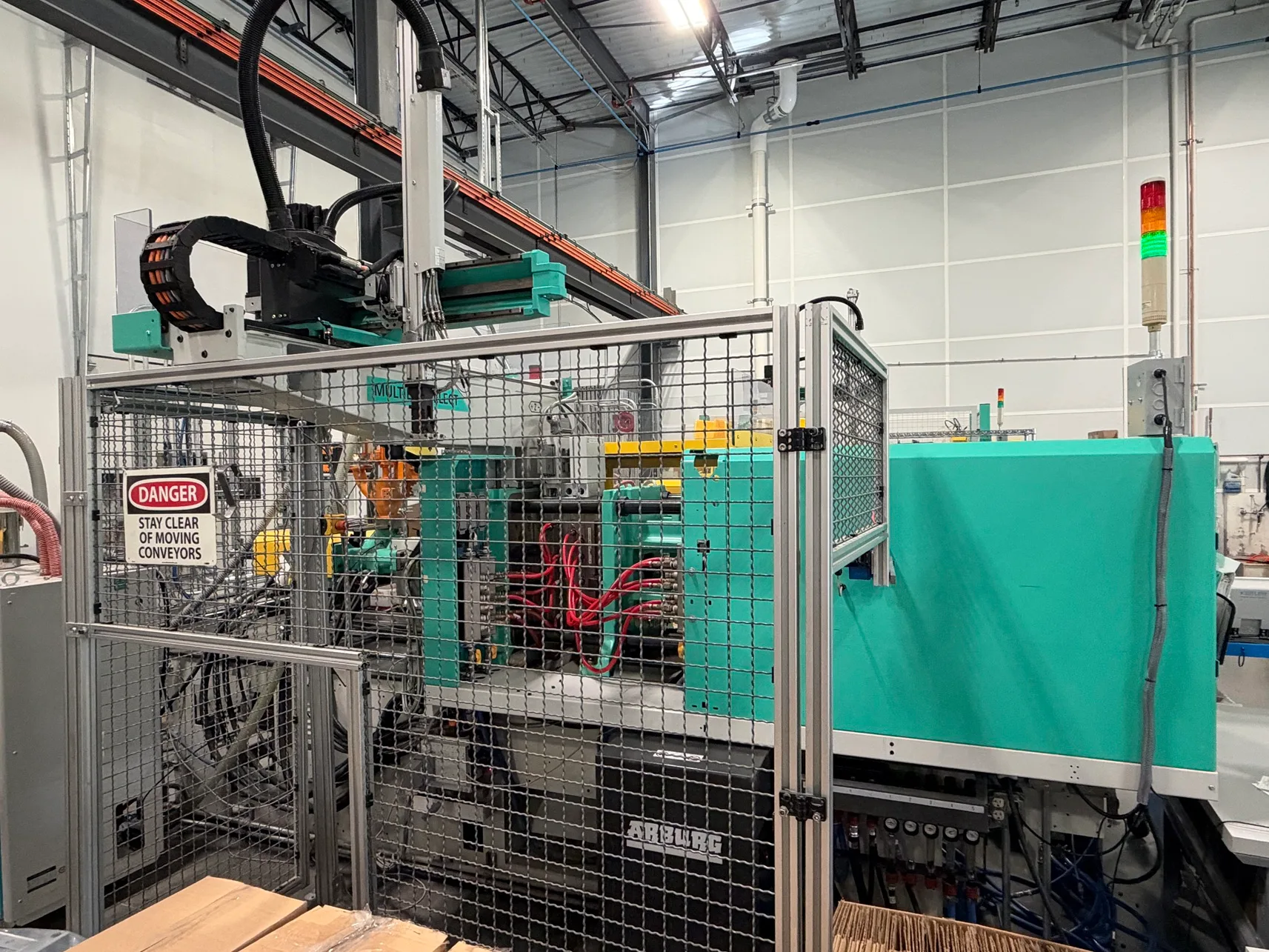

Used Arburg Allrounder 470S 1100-170 (2012) Injection Molding Machine for Sale. This machine offers 120 ton clamping capacity with a 2.7 oz shot size and runs on a Selogica control at 460V. Platen size is 25″ x 25″ with 18.5″ x 18.5″ tie bar spacing, 33.4″ maximum daylight, and a minimum/maximum mold height of 9.84″/19.6″. Equipped with core pull, hydraulic knockout, and a robot interface, and an Arburg Multilift Select robot is included. The press is under power and can be seen running for an inspection. It is listed alongside our other used plastic injection molding machines and additional used Arburg machines. Activate Pricing to view the current asking price, or use the Inquire Now button to reach us with your questions.
Specifications
| Capacity |
120 Ton |
|---|---|
| Shot Size |
2.7 oz |
| Platen Size |
25" x 25" |
| Tie Bar Spacing |
18.5" x 18.5" |
| Max Daylight |
33.4" |
| Min /Max Mold Height |
9.84"/19.6" |
| Control |
Selogica |
| Power Requirement |
460V |
Features
|
Arburg Multilift Select Robot Included |
Core Pull |
|
Hydraulic Knockout |
Robot Interface |
|
Under Power |
