Year

2019

Make

JSW

Model

J450ADS-1400H

Description

495 Ton 53.4 oz / 0.5 oz Shot Size

Reference #

8079214

Price

Activate Pricing

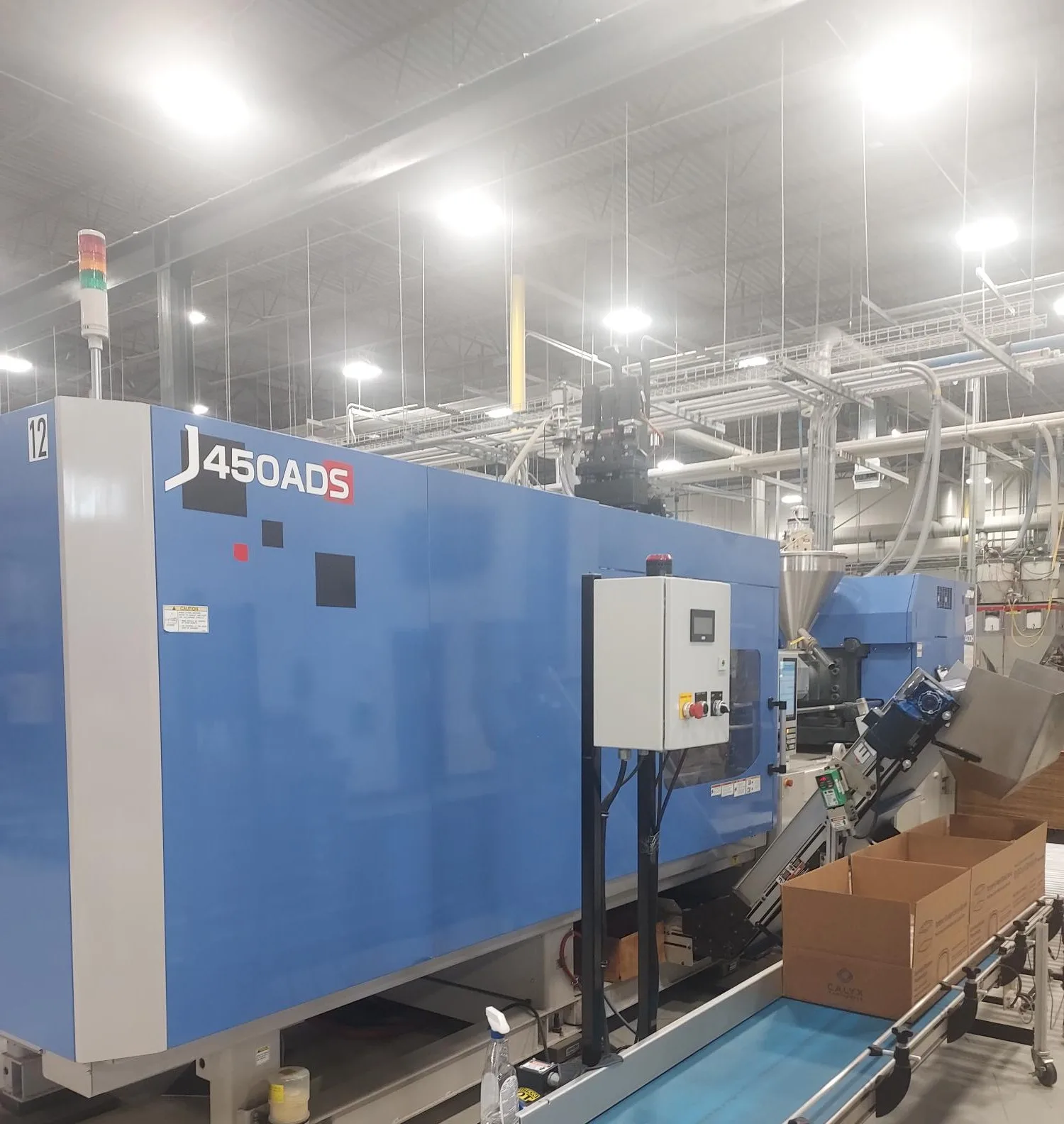

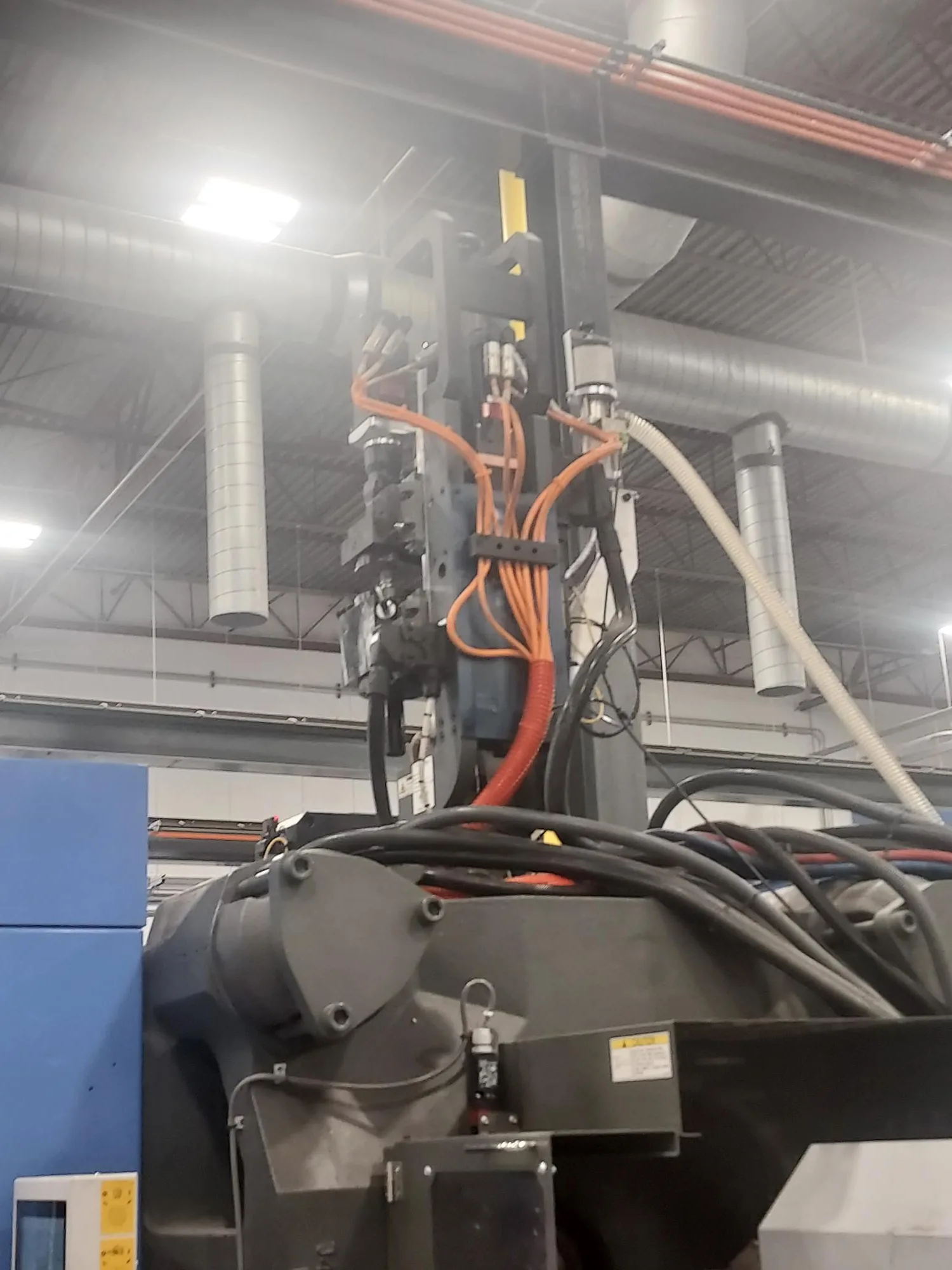

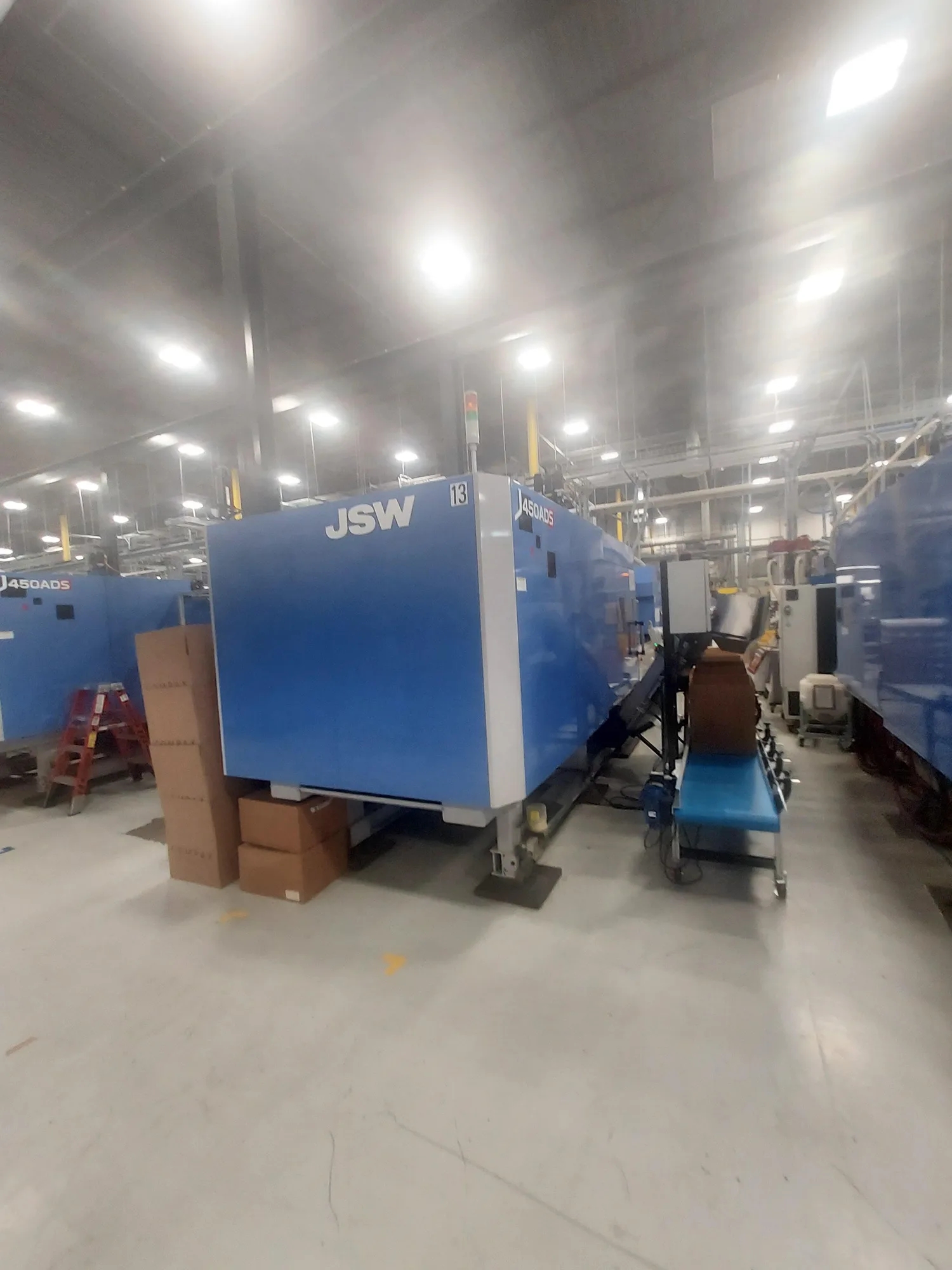

Used JSW J450ADS-1400H (2019) Injection Molding Machine for Sale. This two-shot press offers 495 ton clamping capacity, a 53.4 oz shot size with a 0.5 oz second shot, and tie bar spacing of 35.43″ x 31.89″. Platens measure 51.18″ x 47.64″, with max daylight of 66.93″, mold height from 13.78″ to 35.43″, 31.5″ clamp stroke and 7.09″ ejector stroke. Control is Syscom 5000i. Equipped with hydraulic knockout and an MGS rotary platen, with only 16k and 17k hours showing. Machine dimensions are 27′ x 6.9′ x 7.25′ at 49,163 lbs. Two machines are available, priced per machine, and both can be seen under power for inspection. See our other used plastic injection molding machines, then Activate Pricing or use the Inquire Now button.

Specifications

Capacity

495 Ton

Shot Size

53.4 oz

Second Shot Size

0.5 oz

Tie Bar Spacing

35.43" x 31.89"

Platen Size

51.18" x 47.64"

Max Daylight

66.93"

Min /Max Mold Height

13.78"/35.43"

Clamp Stroke

31.5"

Ejector Stroke

7.09"

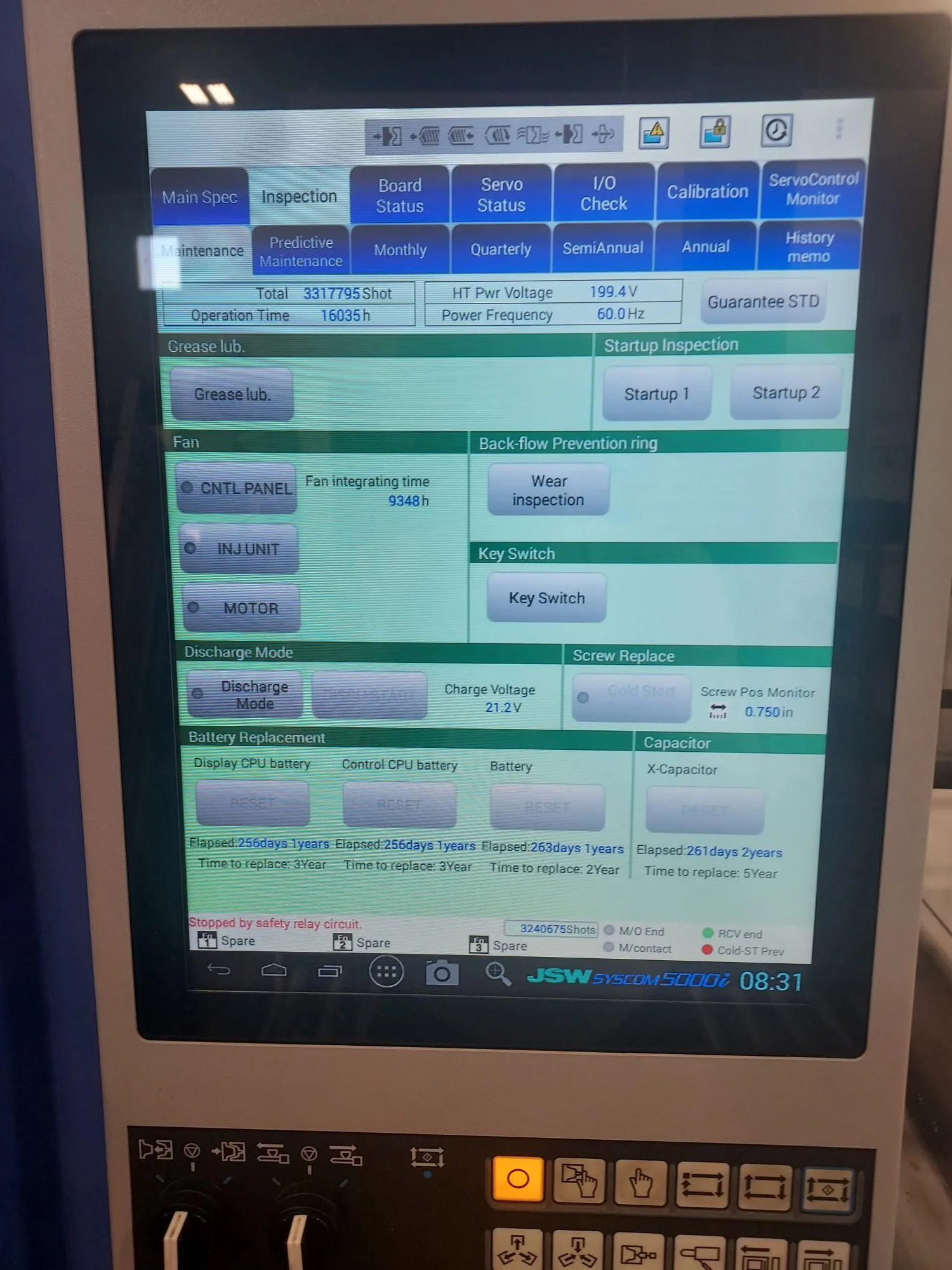

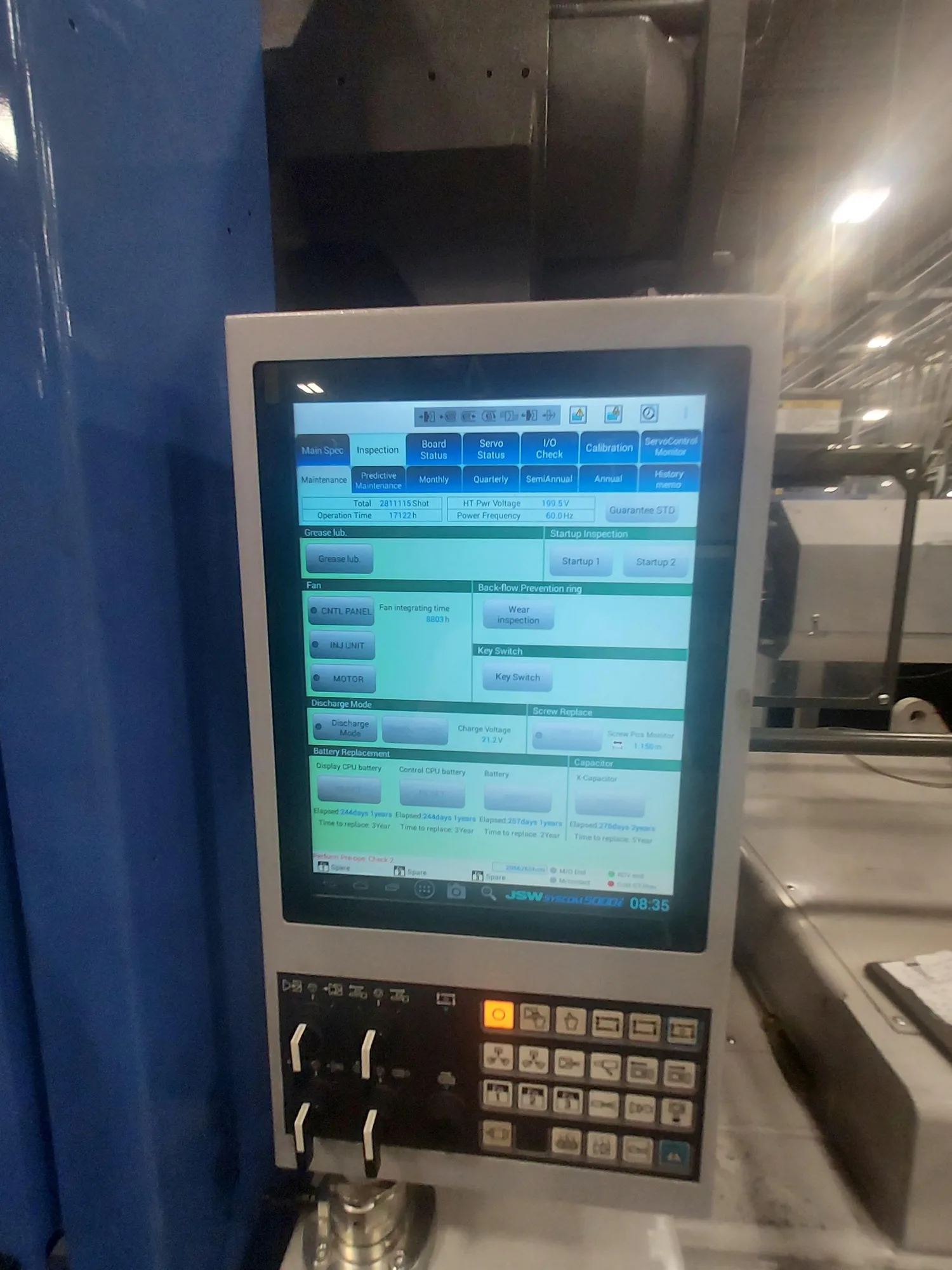

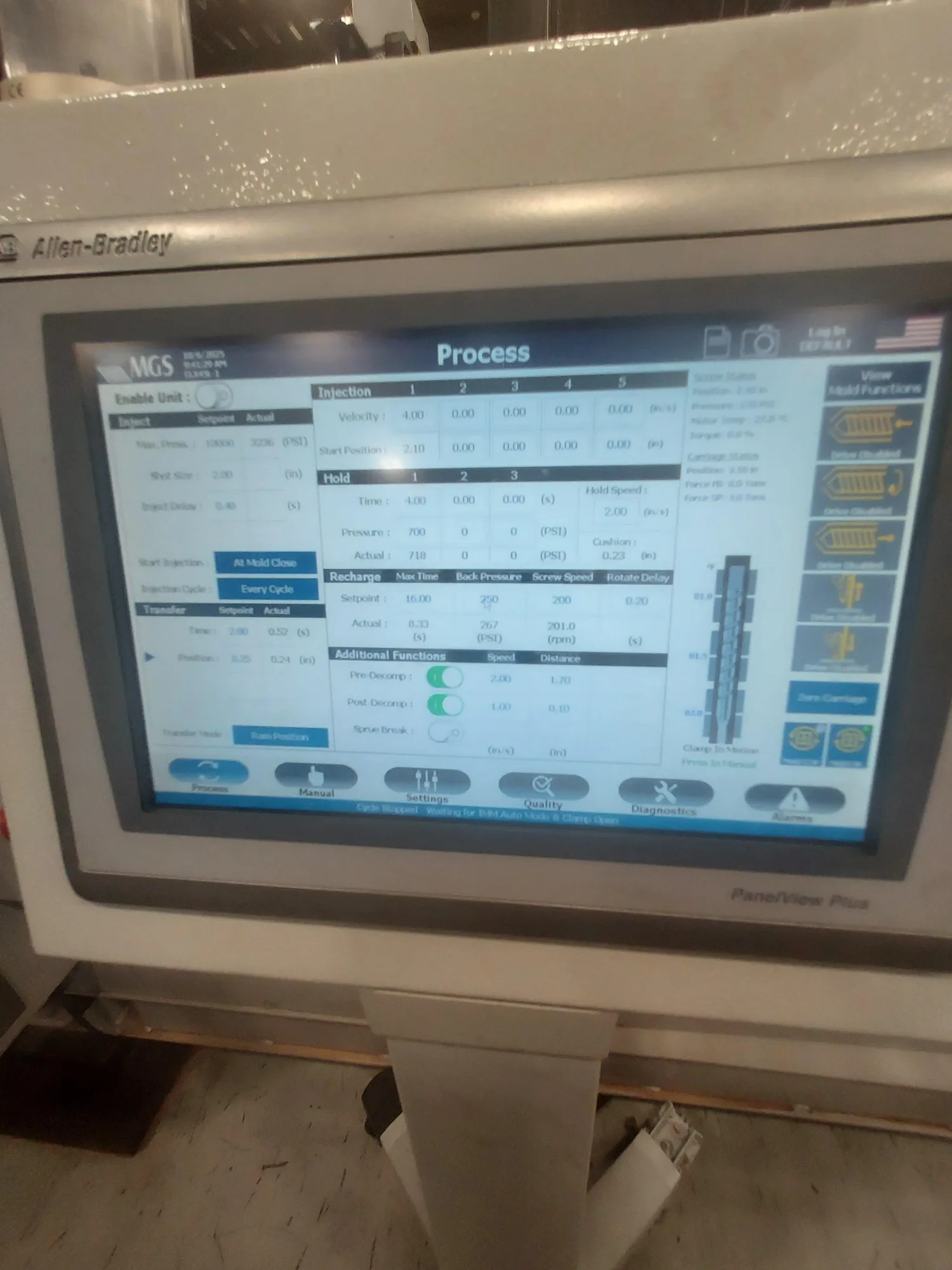

Control

SYSCOM 5000i

Machine Dimensions

27' x 6.9' x 7.25'

Machine Weight

49,163 Lbs

Note

(2) Machines Available, Price Per Machine

Features

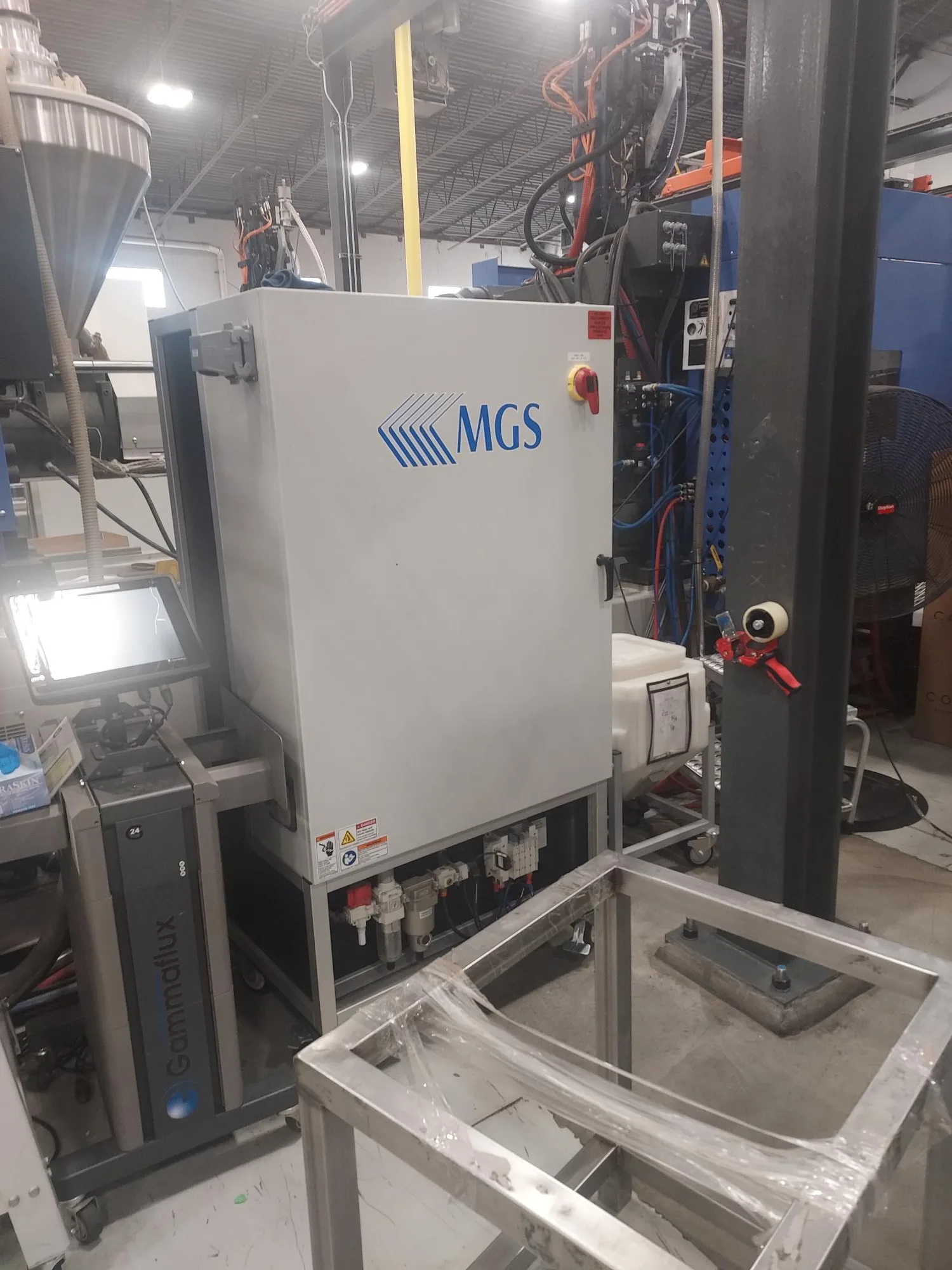

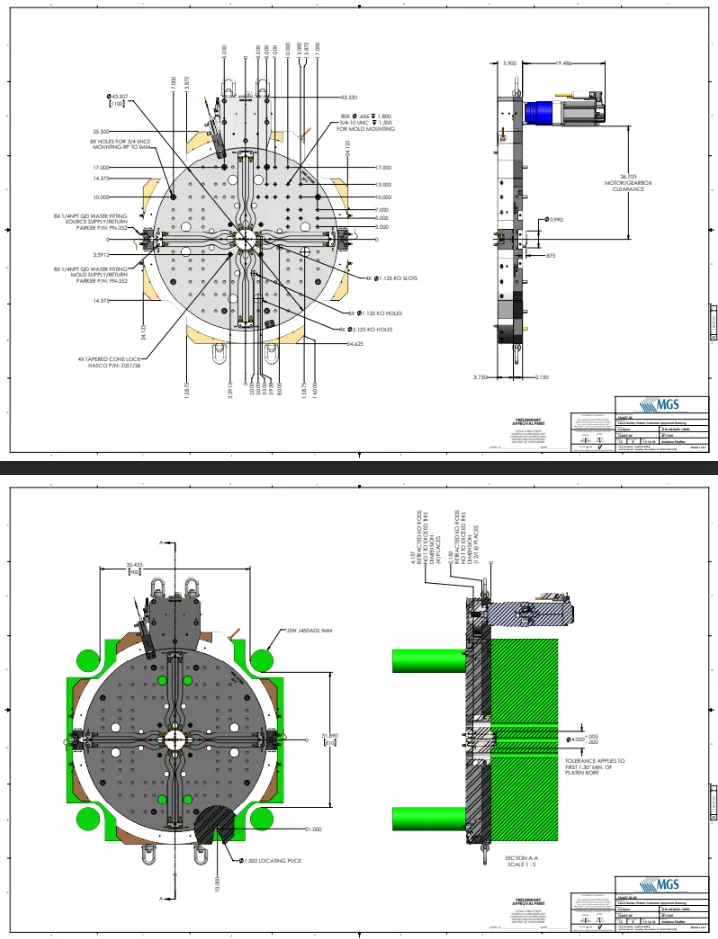

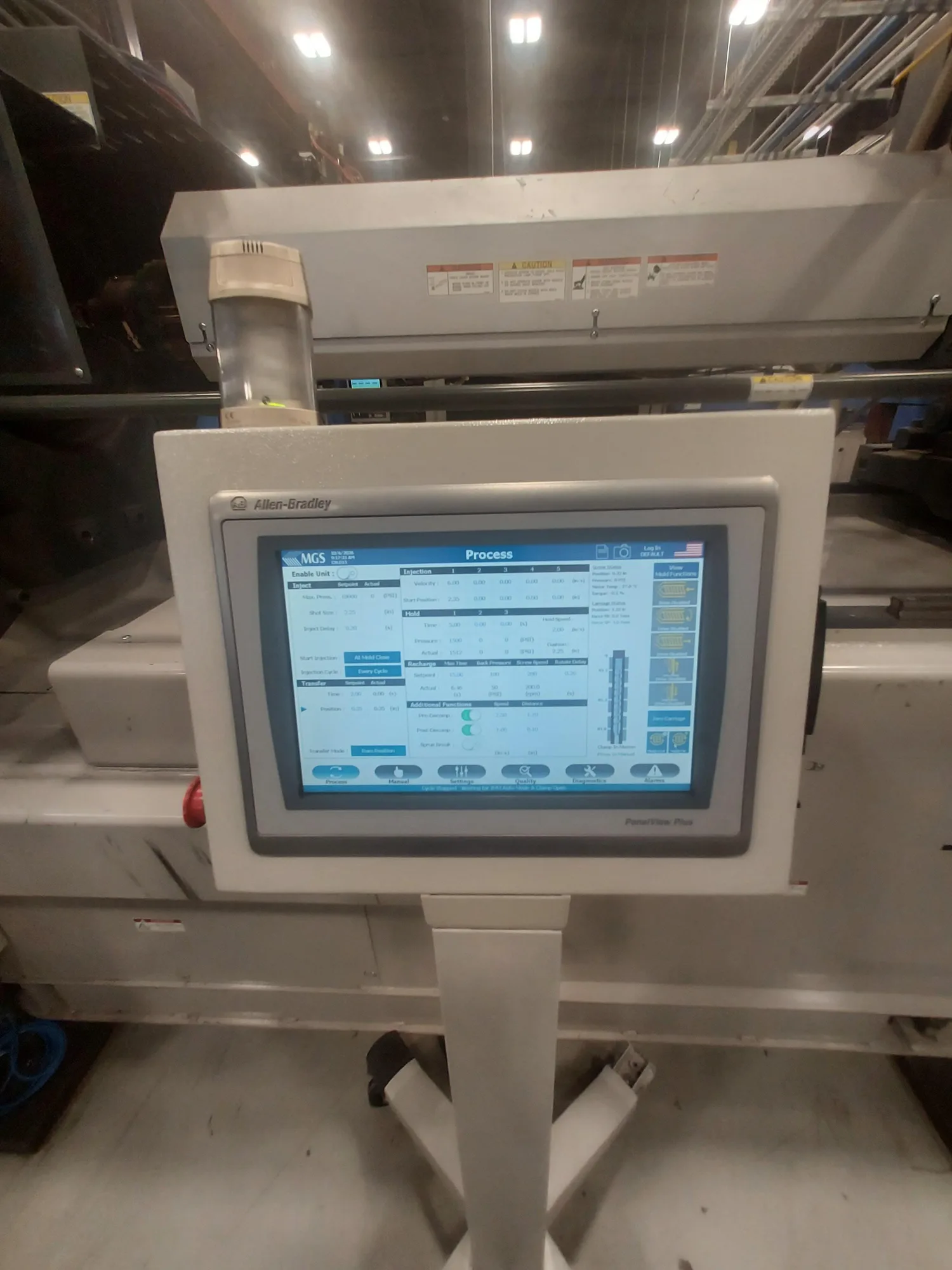

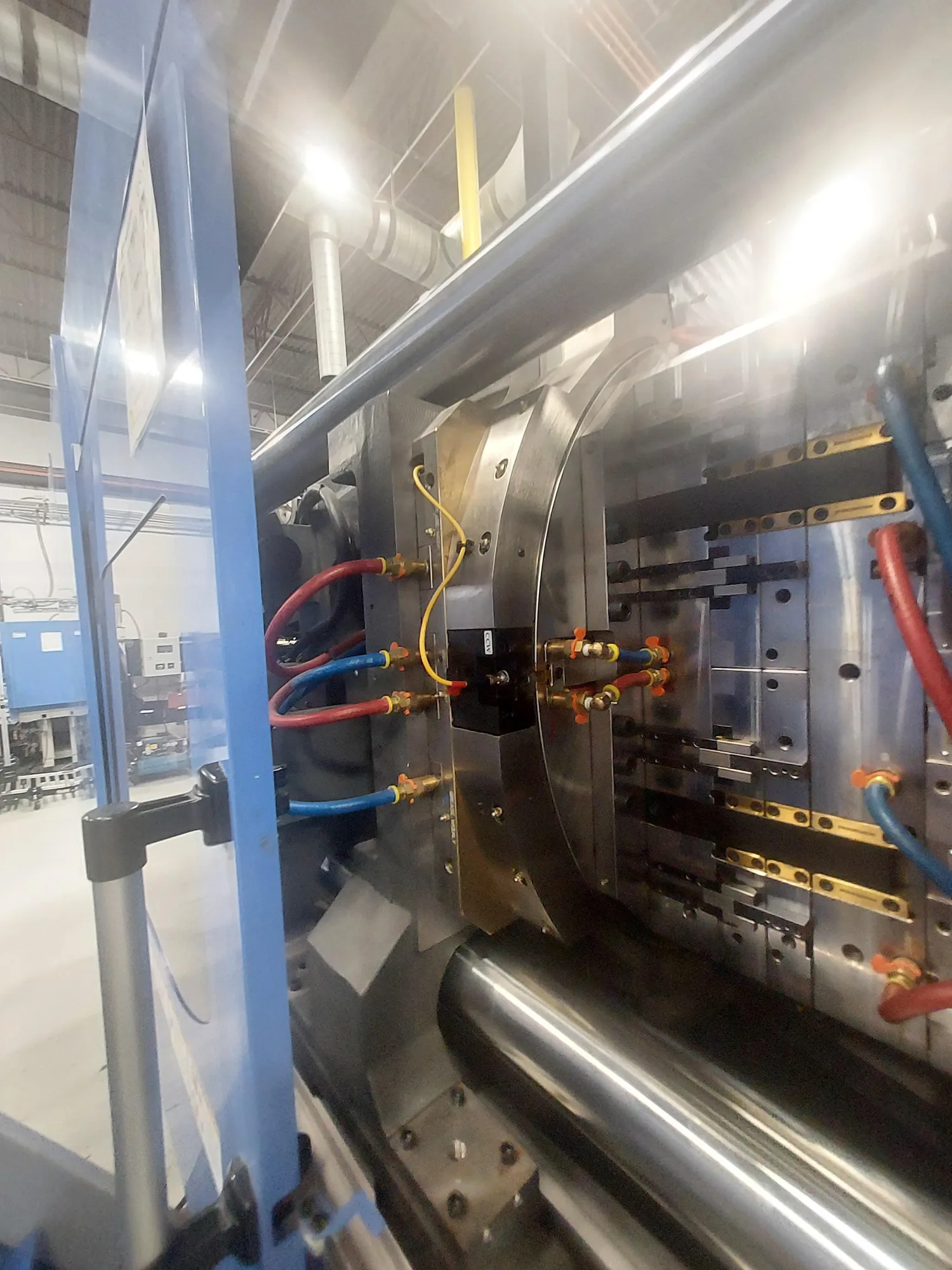

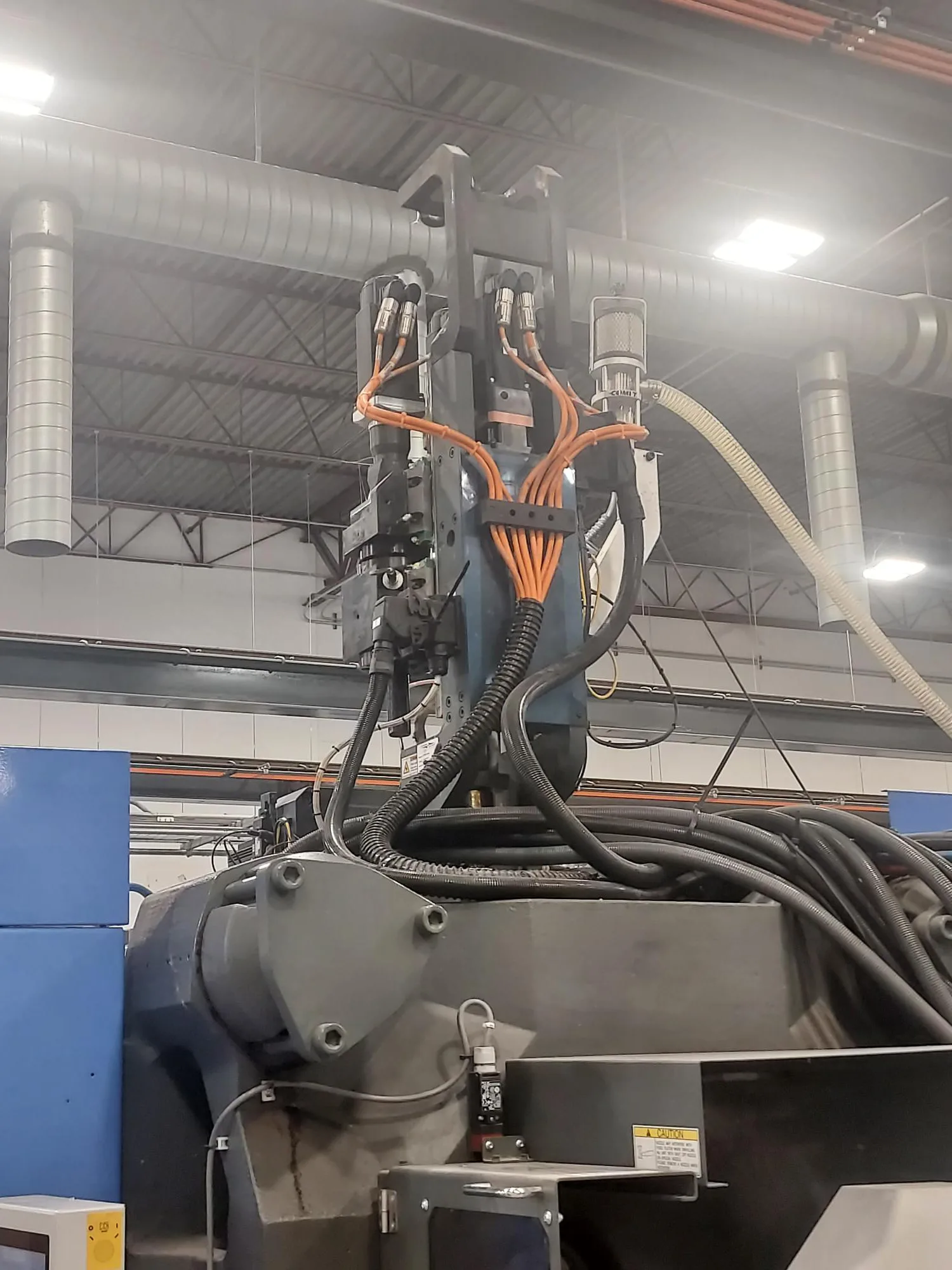

MGS Rotary Platen

Only 16k And 17k Hours

Hydraulic Knockout

Under Power

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
