Year |
1999 |
|---|---|
Make |
Van Dorn |
Model |
170HT |
Description |
170 Ton 10.9 oz Injection Molding Machine |
Reference # |
8078509 |
Price |
Activate Pricing |

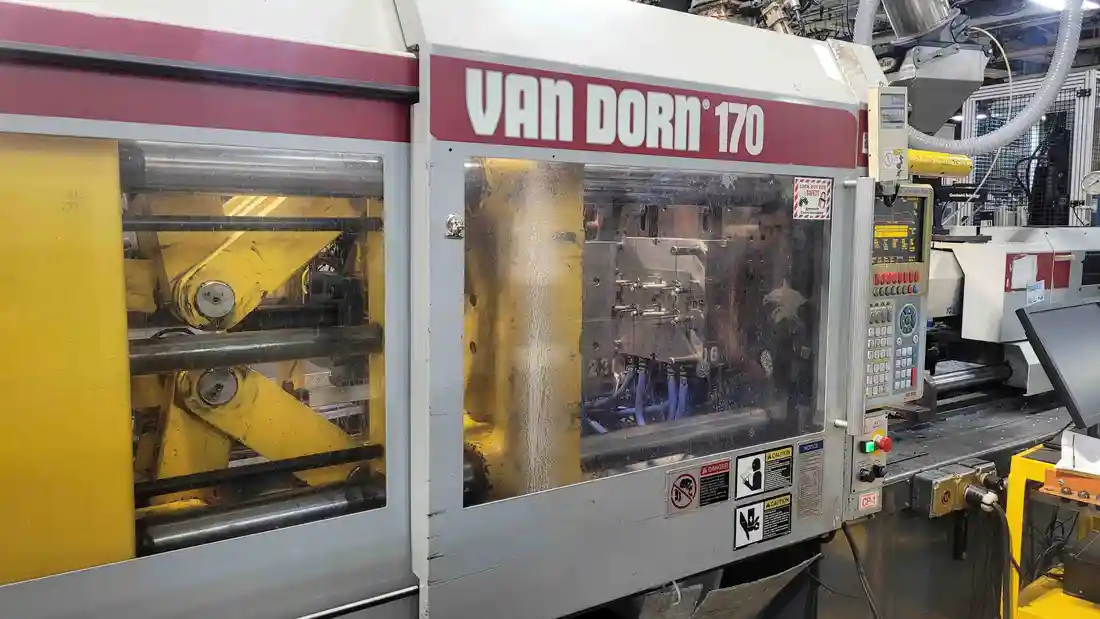

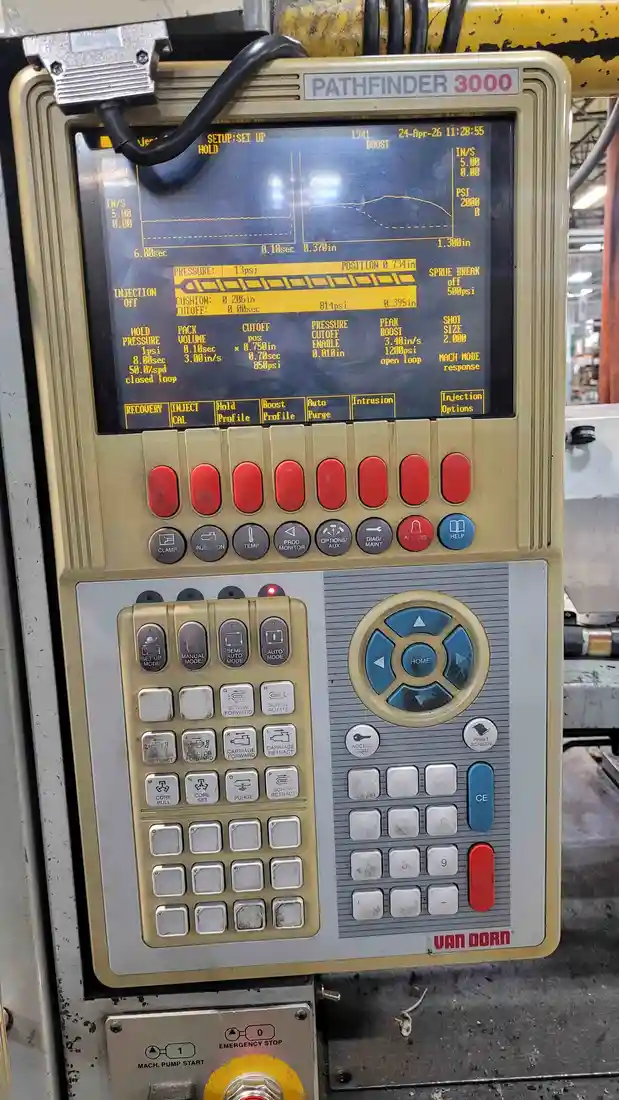

Used Van Dorn 170HT (1999) Injection Molding Machine for Sale. This 170 ton press has a 10.9 oz shot size, 20″ x 20″ tie bar spacing, and 29″ x 29″ platens, with 35″ maximum daylight and a 6″ to 18″ minimum/maximum mold height. Ejector stroke is 4″, and the machine runs a Pathfinder 3000 Control on 460V power. It is equipped with core pull, hydraulic knockout, and a robot interface. Overall dimensions are 19′ x 5′ x 7′ with a weight of 16,800 lbs. The machine is under power and can be seen running for an inspection. See more injection molding machines or other Van Dorn equipment in stock. Activate Pricing to view the figure, or Request a Quote for details.
Specifications
| Capacity |
170 Ton |
|---|---|
| Shot Size |
10.9 oz |
| Tie Bar Spacing |
20" x 20" |
| Platen Size |
29" x 29" |
| Max Daylight |
35" |
| Min /Max Mold Height |
6"/18" |
| Control |
Pathfinder 3000 Control |
| Ejector Stroke |
4" |
| Power Requirement |
460V |
| Dimensions |
19' x 5' x 7' |
| Weight |
16,800 Lbs |
Features
|
Core Pull |
Hydraulic Knockout |
|
Robot Interface |
Under Power |
