Year |
2006 |
|---|---|
Make |
Van Dorn |
Model |
650HT-4300 |
Description |
650 Ton 89.6 oz Shot Size Injection Molding Machine |
Reference # |
8078751 |
Price |
Activate Pricing |

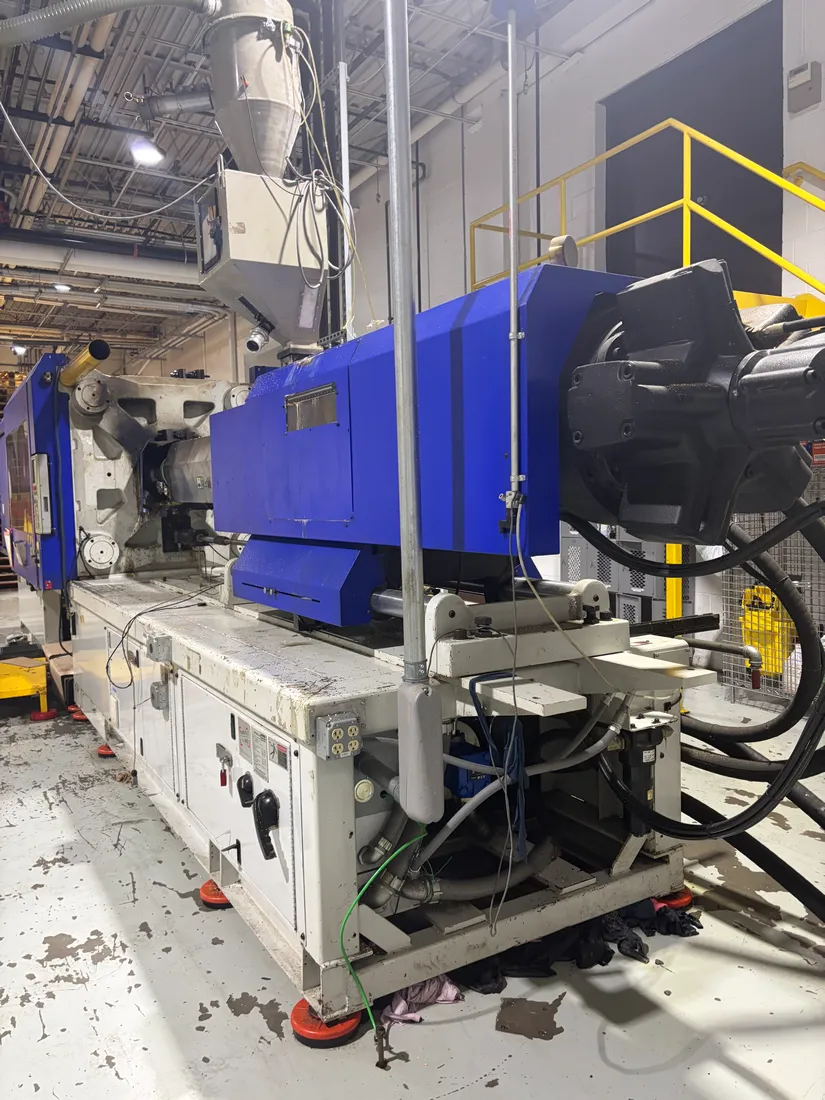

Used Van Dorn 650HT-4300 (2006) Injection Molding Machine for Sale. This machine offers 650 ton clamping capacity with an 89.6 oz shot size, tie bar spacing of 36″ x 36″, and platen size of 53″ x 53″. Maximum daylight is 69.5″, with minimum and maximum mold heights of 12″ and 34″, and a clamp stroke of 35.5″. Control is a Pathfinder 5000. Overall dimensions are 35’5″ L x 7’8″ W x 8’3″ H. Equipped with core pull and hydraulic knockout. The machine is under power and can be seen running for an inspection. See more injection molding machines or browse our Van Dorn inventory. Activate Pricing to view the figure, or Request a Quote and we will follow up with details. This machine is located in Michigan.
Specifications
| Capacity |
650 Ton |
|---|---|
| Shot Size |
89.6 oz |
| Tie Bar Spacing |
36" x 36" |
| Platen Size |
53" x 53" |
| Max Daylight |
69.5" |
| Min /Max Mold Height |
12"/34" |
| Clamp Stroke |
35.5" |
| Control |
Pathfinder 5000 |
| Dimensions |
35'5" L X 7'8" W X 8'3" H |
Features
|
Core Pull |
Hydraulic Knockout |
|
Under Power |
