Year |
2001 |
|---|---|
Make |
Van Dorn |
Model |
400HT1920 |
Description |
400 Ton 42.5 oz Injection Molding Machine |
Reference # |
8078881 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

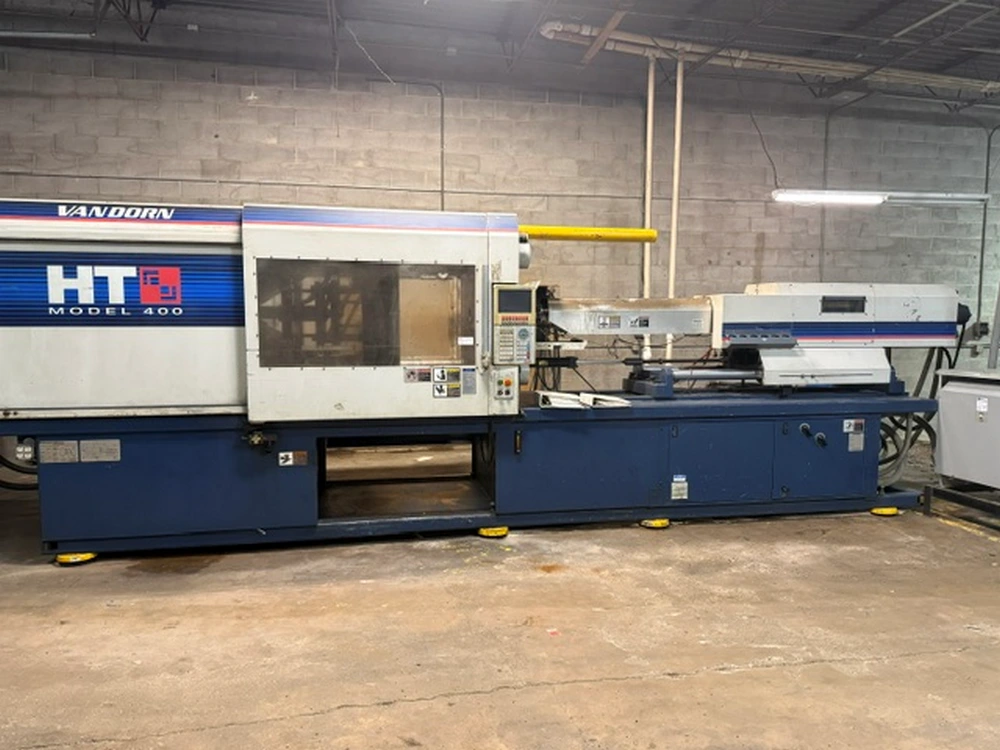

Used Van Dorn 400HT1920 (2001) Injection Molding Machine for Sale. This 400 ton machine has a 42.5 oz shot size, tie bar spacing of 28″ x 28″, and platen size of 42″ x 42″. Clamp stroke is 26″ with 54″ maximum daylight and a 6″ ejector stroke. Control is a Pathfinder 5000, and the machine is equipped with core pull. It is under power and can be run and inspected before purchase. Additional plastic injection molding machines are listed in our inventory, along with other Van Dorn equipment. Use Activate Pricing to see the current figure on this listing, or Request a Quote and we will follow up with details and further specifications. This machine is located in Michigan.
Specifications
| Capacity |
400 Ton |
|---|---|
| Shot Size |
42.5 oz |
| Tie Bar Spacing |
28" x 28" |
| Platen Size |
42" x 42" |
| Clamp Stroke |
26" |
| Max Daylight |
54" |
| Ejector Stroke |
6" |
| Control |
Pathfinder 5000 |
Features
|
Core Pull |
Under Power |
