Year |
2012 |
|---|---|
Make |
Amada |
Model |
EMK 3610NT |
Description |

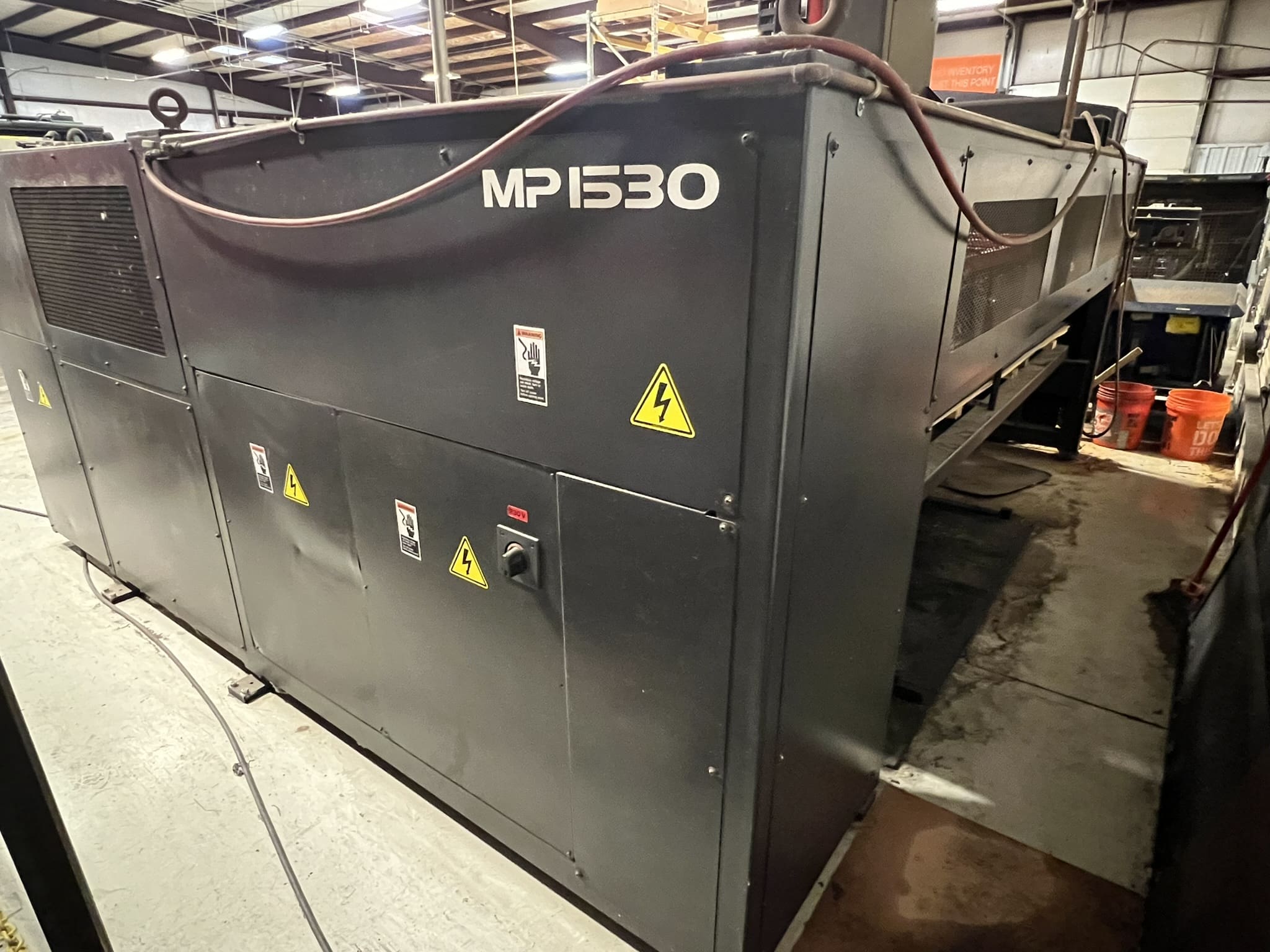

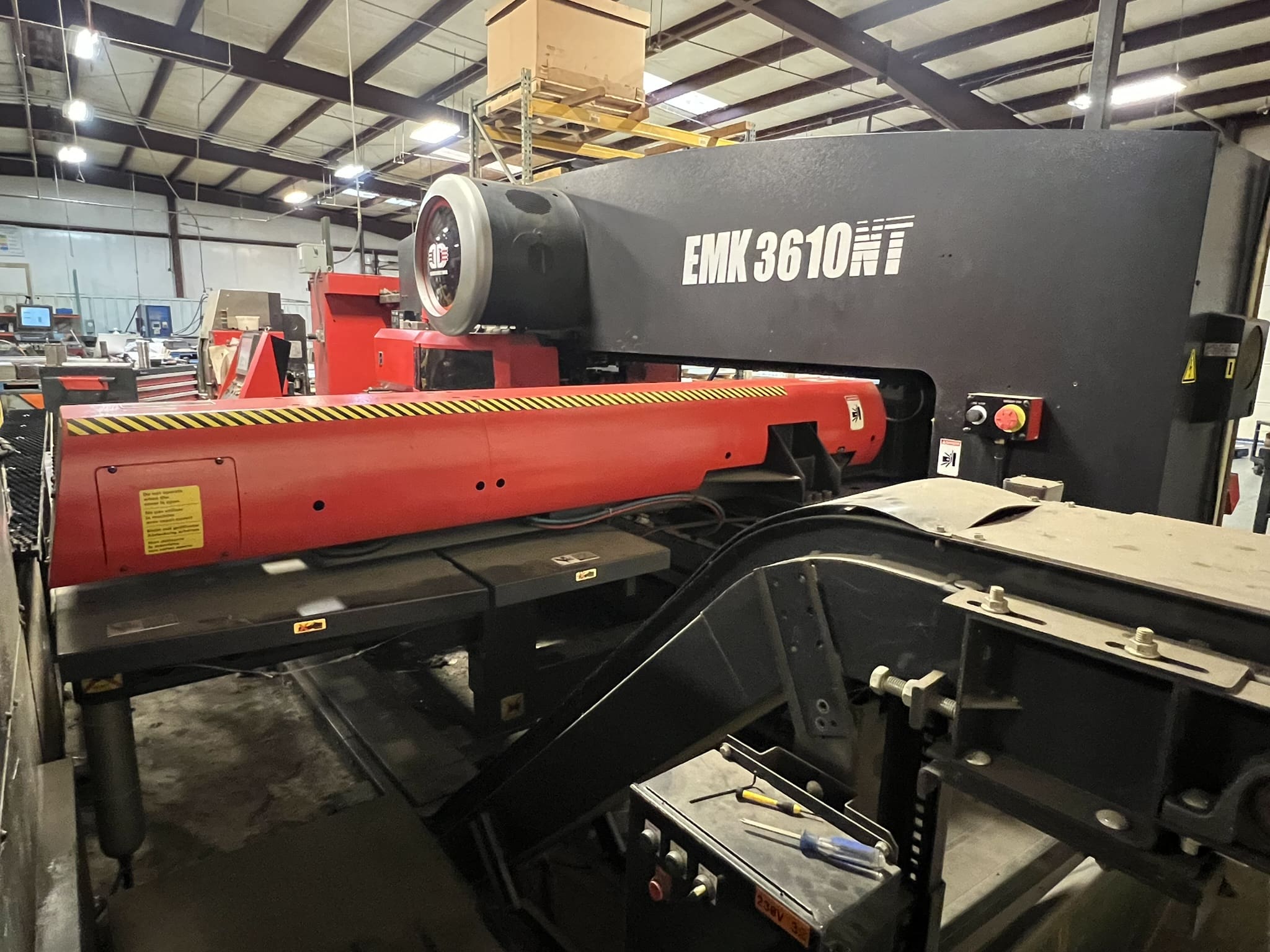

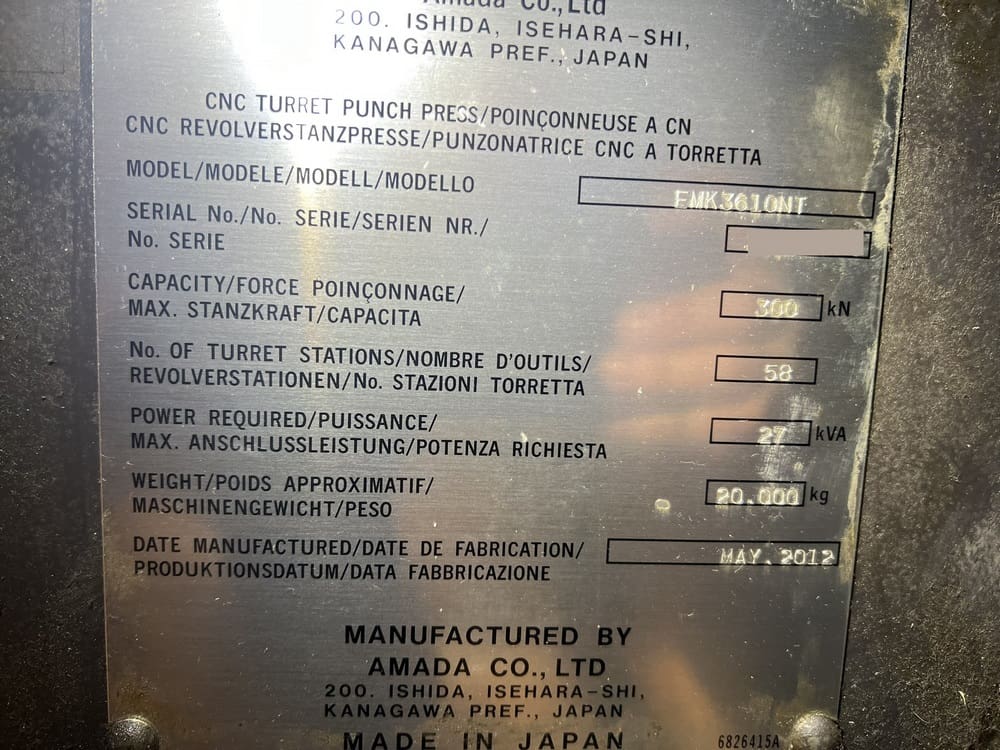

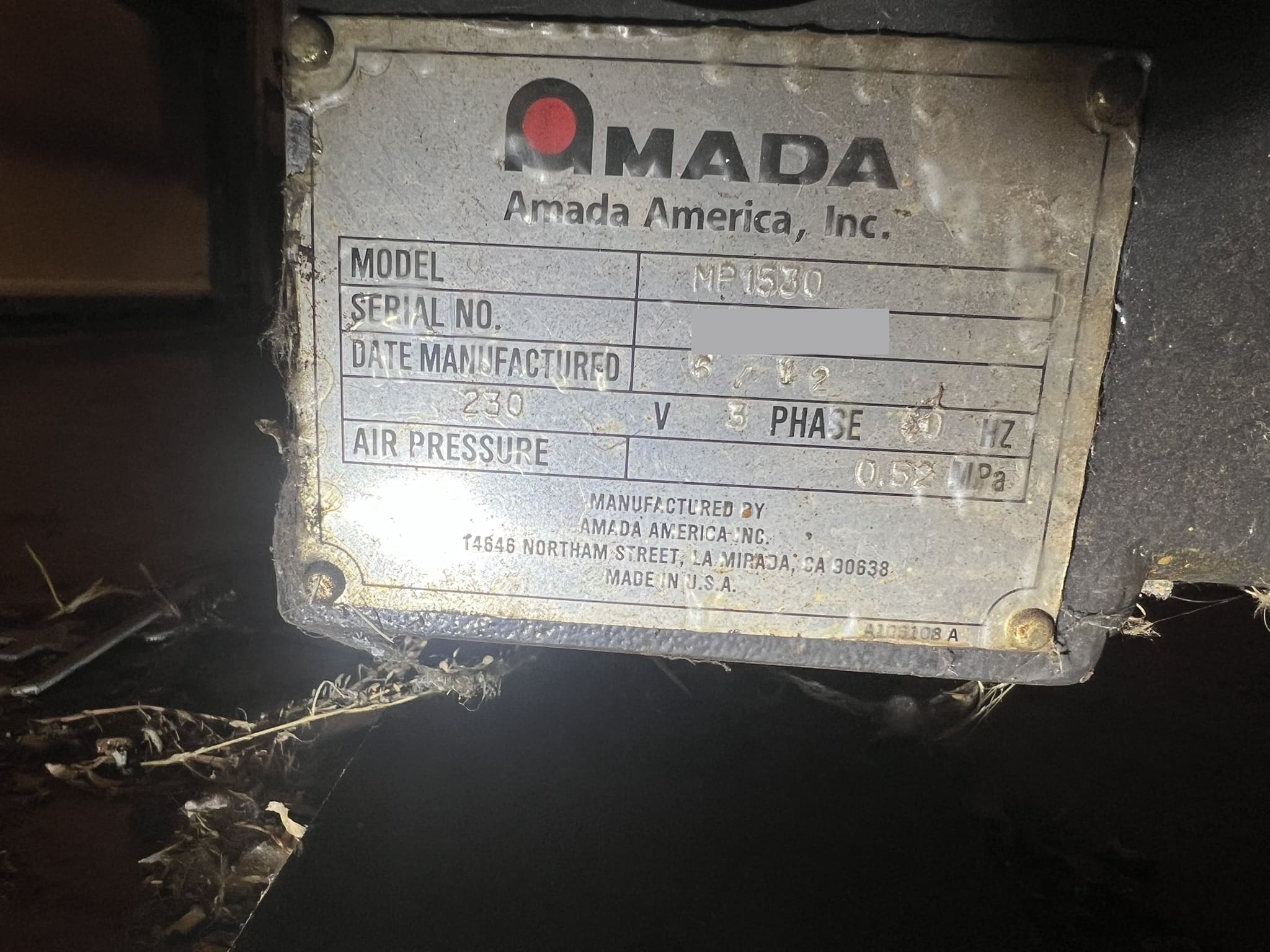

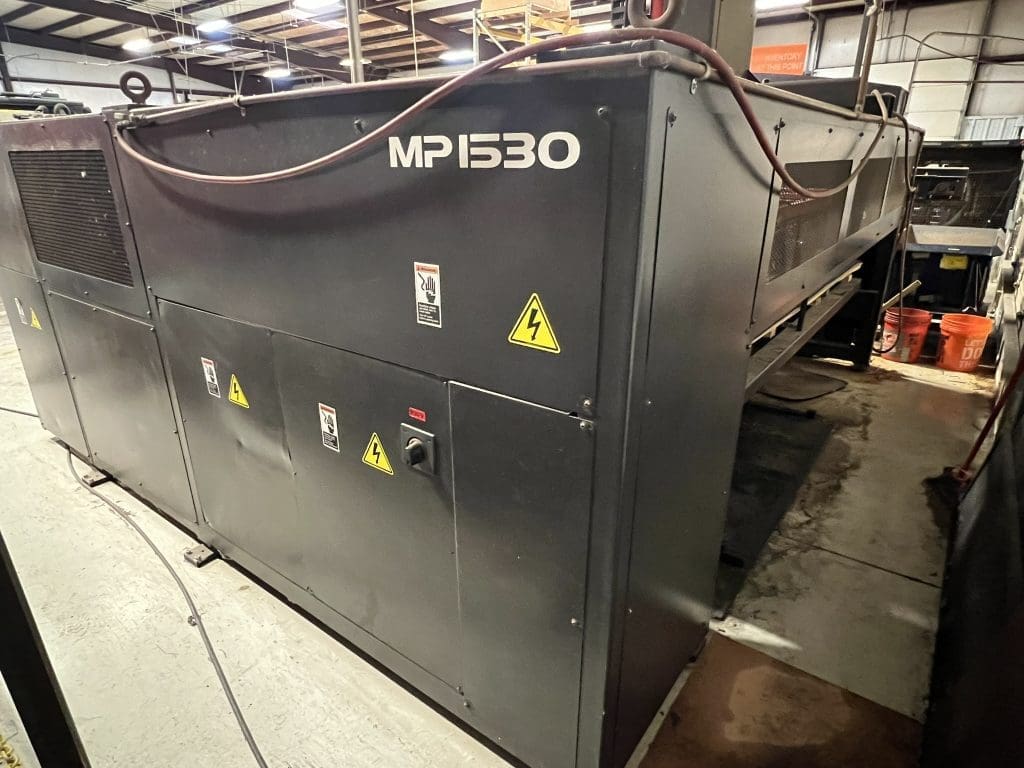

33 Ton Turret Punch with MP1530 Load/Unload |
Reference # |
8074383 |
Price |
$199,990 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

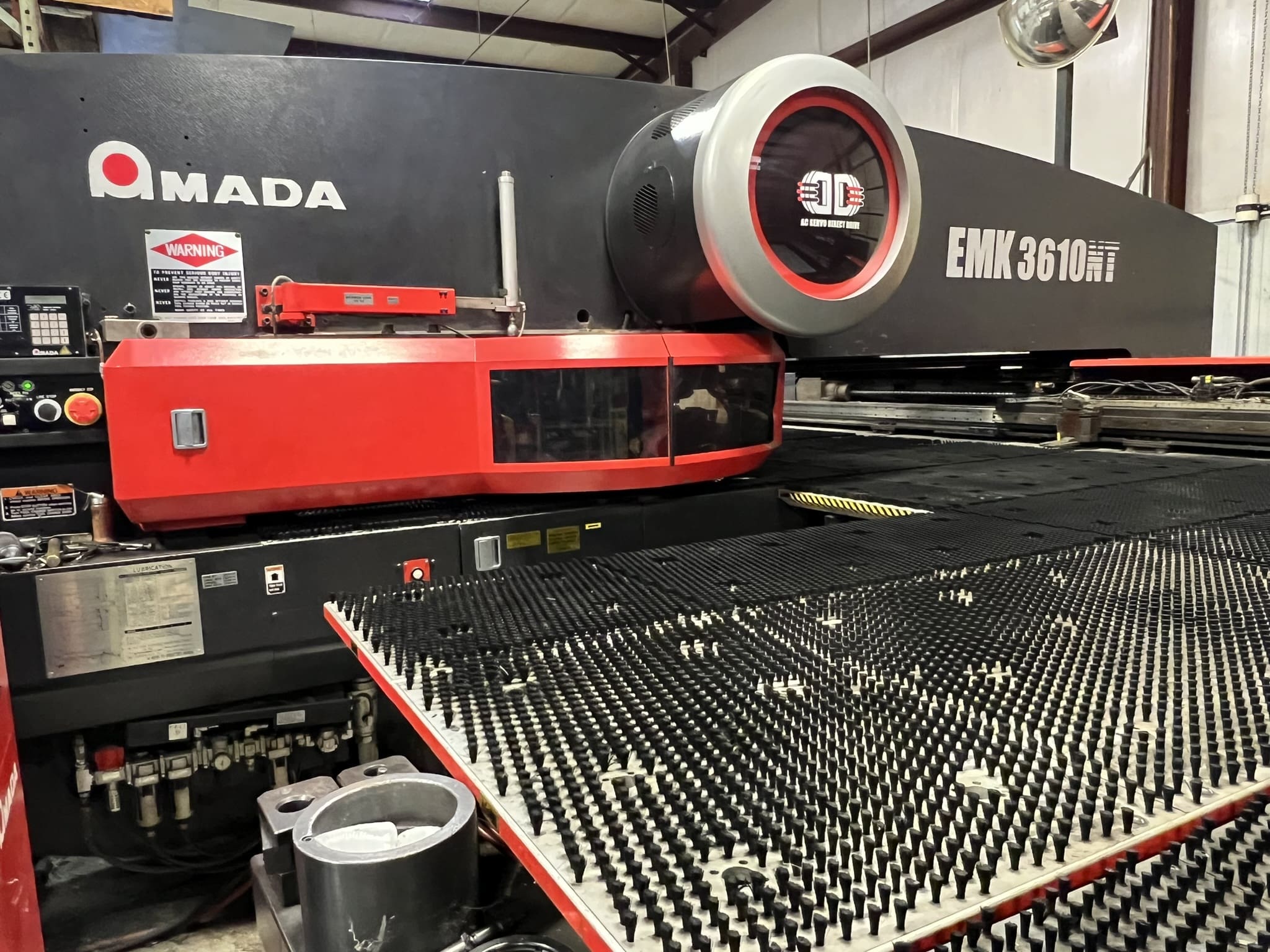

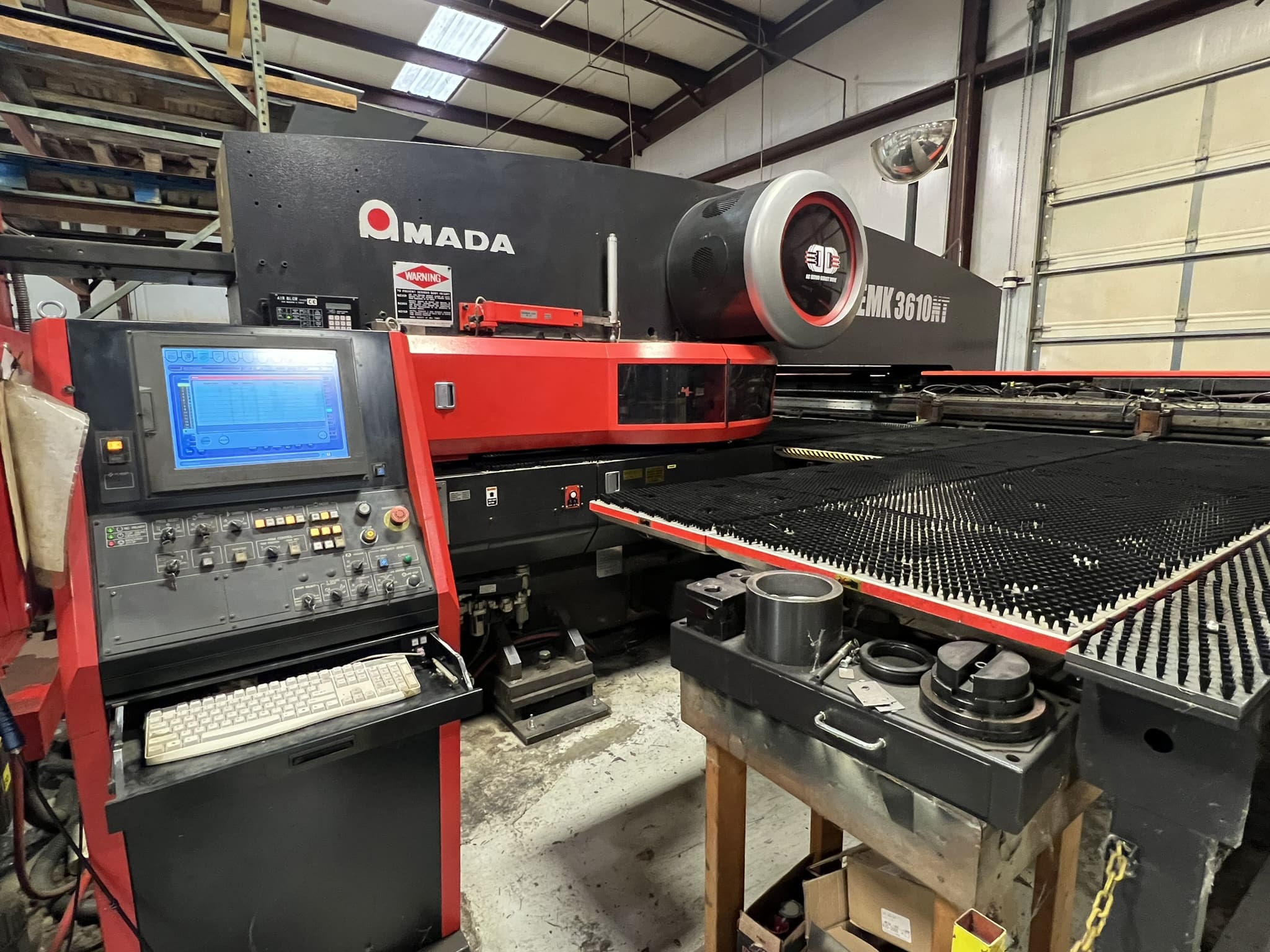

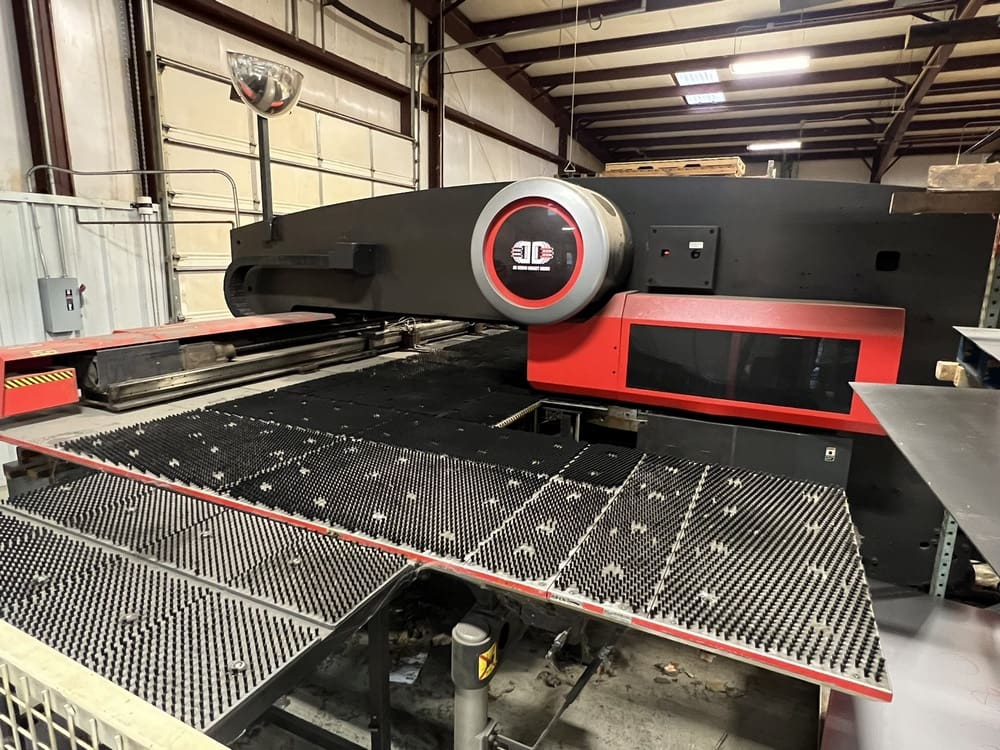

Used Amada EMK 3610NT (2012) Turret Punch for Sale. This pre-owned Amada turret punch is located in Texas. If you have any questions regarding this Amada Turret Punch, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
33 Ton |
|---|---|
| Sheet Width |
60" |
| Sheet Length |
100" |
| Turret Stations |
58 Station, 4 A/I (2 X 11/4″ And 2 X 41/2″) |
| Throat Depth |
60" |
| Feed Clearance |
.984" |
| HPM |
500 HPM (0.197″ Stroke & 1″ Pitch) 780 SPM (0.197″ Stroke & 0.039″ Pitch) 1800 SPM (0.055″ Pitch Marking) |
| Slide Type Die Holder |
Standard |
| Axis Speed: |
X-Axis: 3950″/Min. Y-Axis: 3150″/Min. |
| Slide Type Die Holder/Brush Table |
Standard |
| Material |
Mild Steel, Stainless Steel, Aluminum |
| Material Thickness Range |
0.24 Gauge – 1/4″ |
| Control |

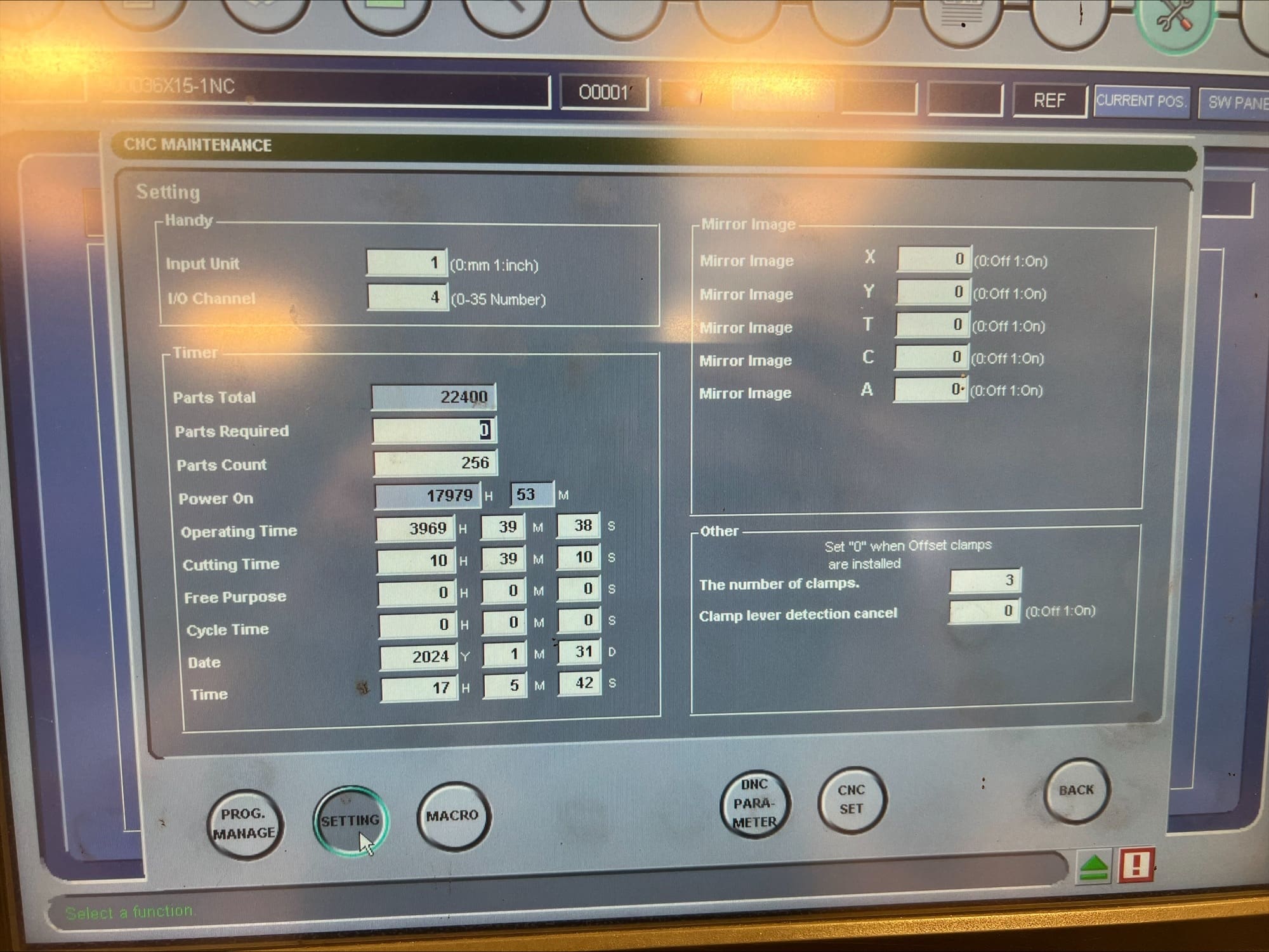

AMNC-F (Fanuc) Controller |
| Loading Height |
Maximum Is 10.25″ Including Skid Height Of 4″ |
| Material Cart Weight Capacity |
5,500 Lbs |
| Material Separation |
Edge Lifter, Magnetic Separator, Air Knife |
| Pallet |
2 Pallets (Raw Materials and Finished Parts) |
| Electrical Requirements |
230v/460v – 3 Phase |
| Electrical Supply Capacity |
10 Kva (Not Including NCT Machine) |
| Air Requirements |
75 PSI, 31.8 CFM |
| Overall Dimensions |
201″ X 163″ X 105″ |
| Note |
Machine Sold w/o Loader |
