Year |
2004 |
|---|---|
Make |
Murata |
Model |
Motorum-2044EZ |
Description |
22 Ton Turret Punch |
Reference # |
8076090 |
Price |
Activate Pricing |

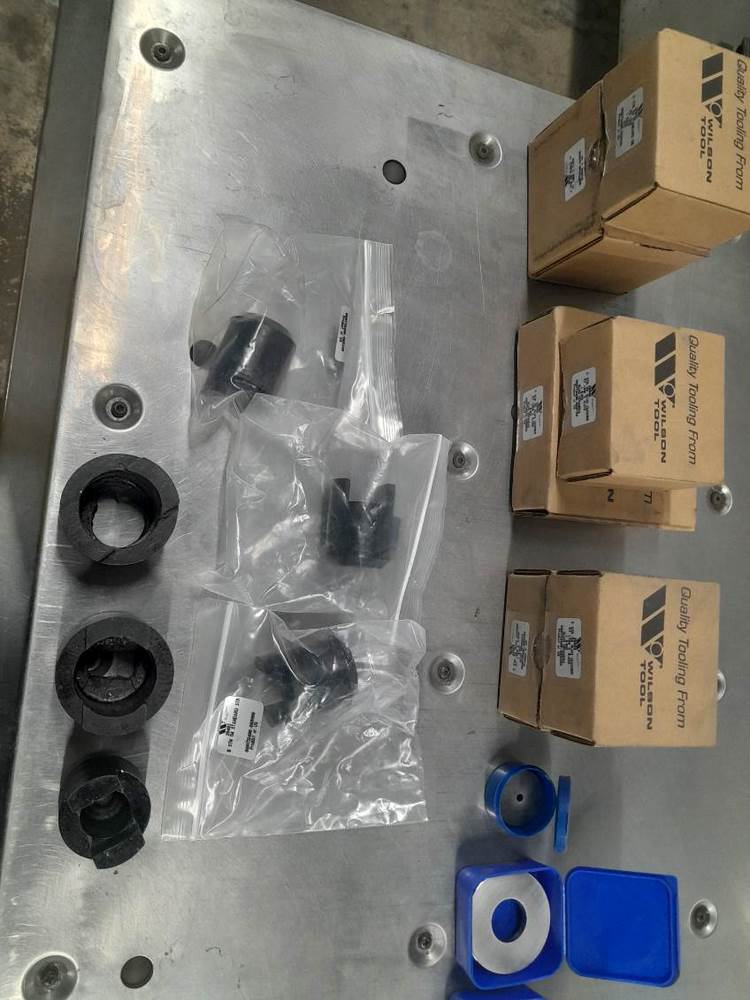

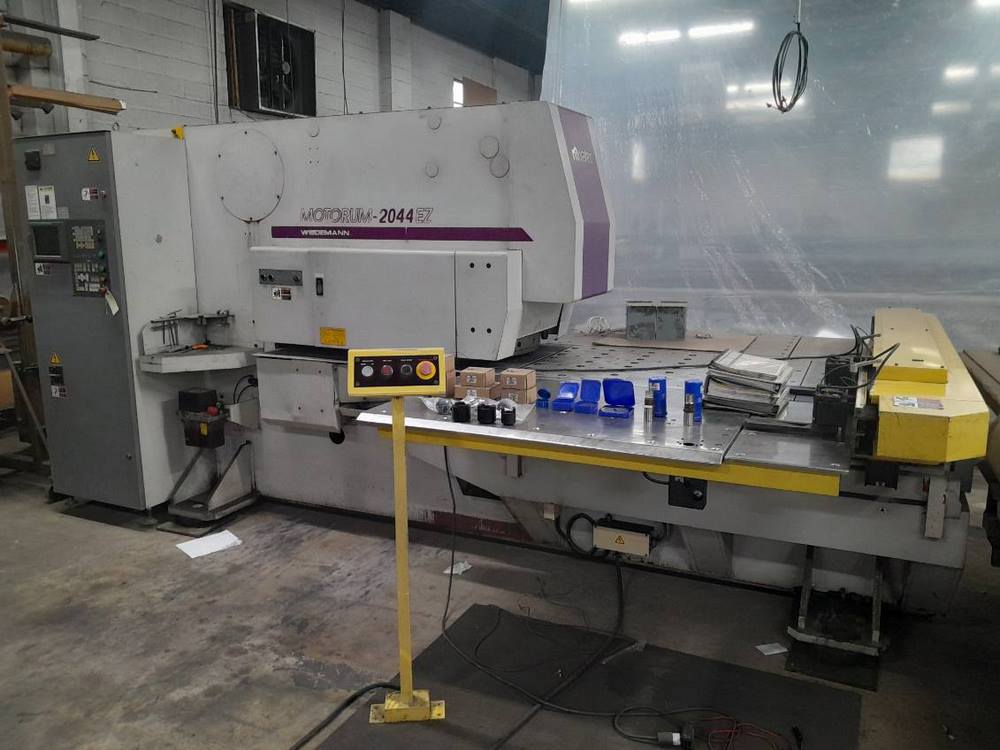

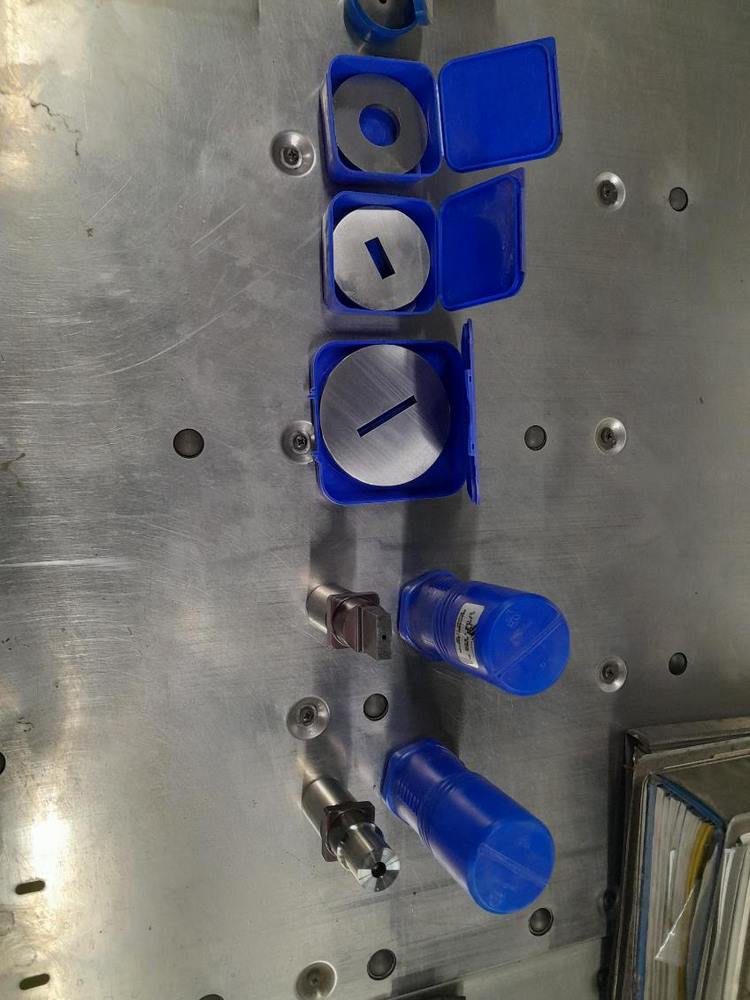

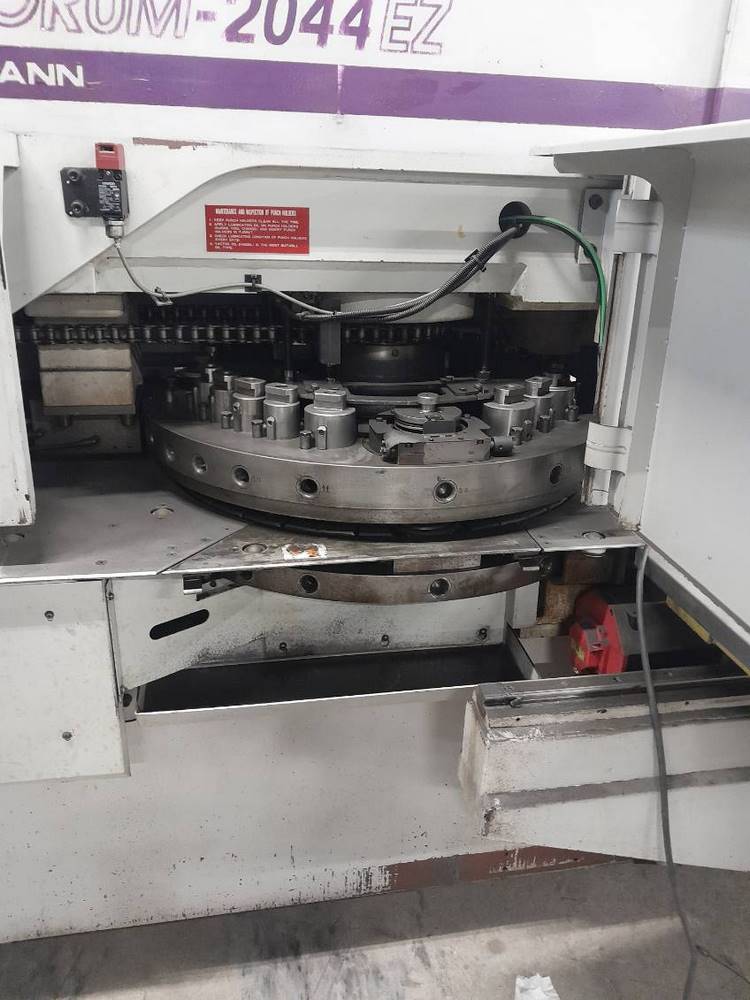

Used Murata Motorum-2044EZ (2004) Turret Punch for Sale. This CNC turret punch is rated at 22 ton capacity with 22 turret stations and 114 type of turret tooling. Sheet width and sheet length are both 4.1′, with a maximum sheet size without repositioning of 49.21″ x 49.21″ and a throat depth of 51.18″. Maximum sheet thickness is 1/4″, maximum sheet weight is 231 lbs, and maximum hole diameter is 3.5″. Hit rates are 220 HPM at .984″ pitch and 600 HPM at .39″ pitch, with X-axis speed of 2,953 IPM and Y-axis speed of 3,543 IPM. The machine can be seen under power for an inspection. See more listings in our used turret punches category, Activate Pricing, or Request a Quote.
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
4.1' |
| Sheet Length |
4.1' |
| Turret Stations |
22 |
| Throat Depth |
51.18" |

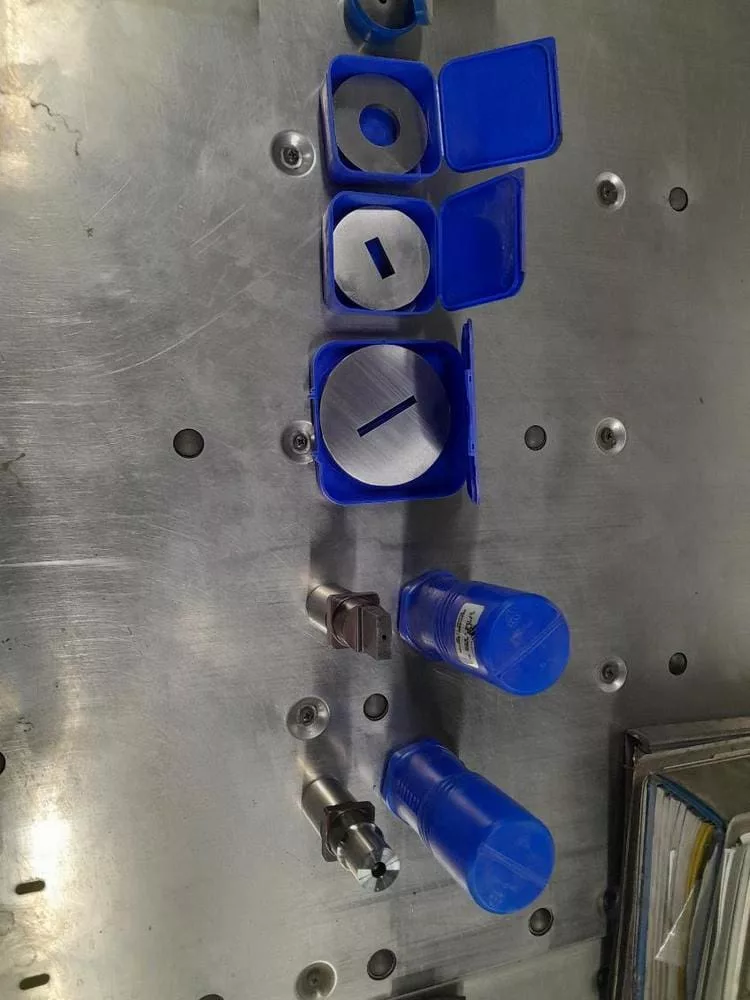

| Type of Turret Tooling |
114 |
| Max Sheet Size (Without Repositioning) |
49.21" x 49.21" |
| Max Sheet Thickness |
1/4" |
| Max Sheet Weight |
231 Lbs |
| Hits Rate @ .984" Pitch |
220 HPM |
| Hits Rate @ .39" Pitch |
600 HPM |
| Max Hole Diameter |
3.5" |
| X-Axis Speed |
2,953 IPM |
| Y-Axis Speed |
3,543 IPM |
