Year |
2019 |
|---|---|
Make |
Boschert |
Model |
Digital 500 EL |
Description |
28 Ton Turret Punch |
Reference # |
8077484 |
Price |
Activate Pricing |

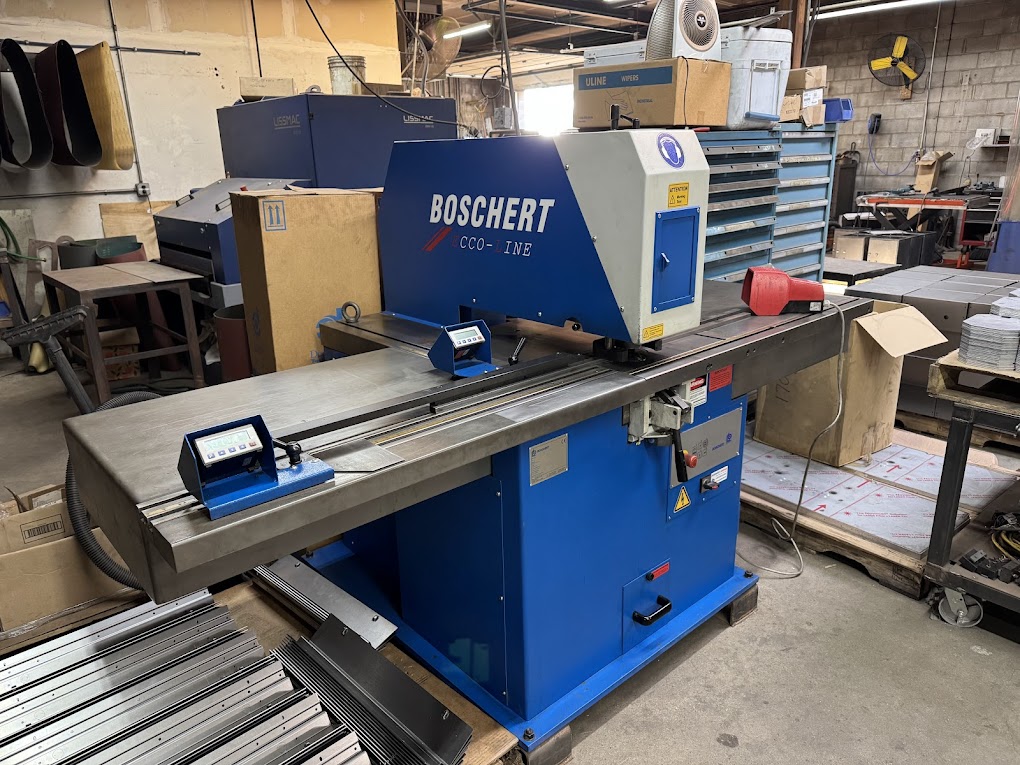

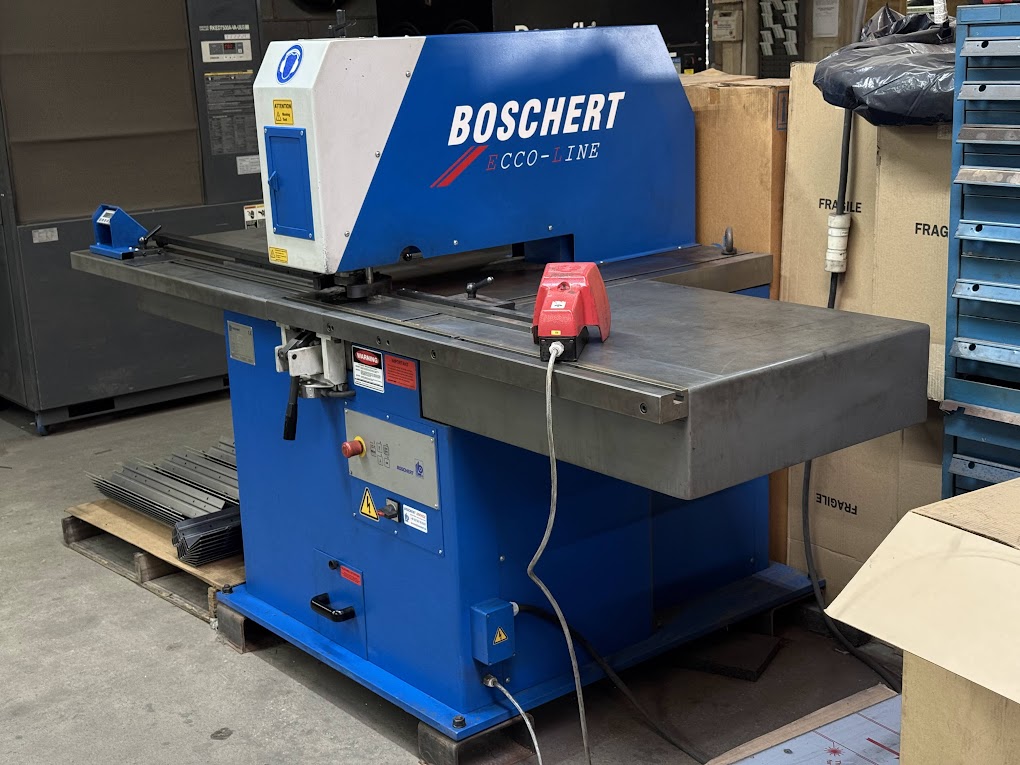

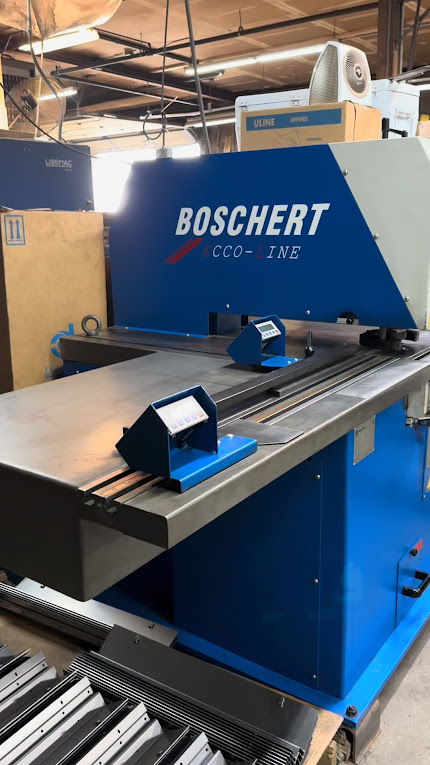

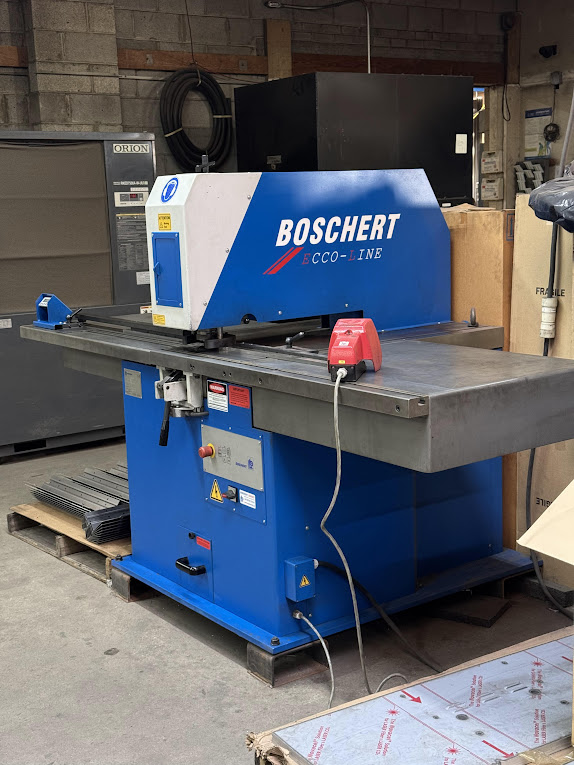

Used Boschert Digital 500 EL (2019) Turret Punch for Sale. This single station punch is rated at 28 ton capacity, handling sheet up to 0.24″ thick with a max punch diameter of 4.13″. Throat depth is 19.7″, with a working area of 47.2″ / 22.4″ on the X/Y-axis and a 19.7″ x 39.4″ work table. Ram stroke height adjusts from 0″ to 1.57″, and the machine runs up to 180 SPM. Press drive power is 6.7 HP on 400V-3ph-50Hz. Equipped with a free-standing PC-based network CNC control, brush table design, energy-saving design levels, high speed punching, increased turret feed clearance, and the Power Vacuum Slug Pull System (patent pending) for slug pull protection. Available to be seen under power for inspection. Use Activate Pricing or Request a Quote, and view more used turret punches.
Specifications
| Capacity |
28 Ton |
|---|---|
| Max Sheet Thickness |
0.24″ |
| Max Punch Diameter |
4.13″ |
| Stroke Ram Height |
0″ To 1.57″ Adjustable |
| Throat Depth |
19.7″ |
| Working Area X/Y-Axis |
47.2″ / 22.4" |
| Max Strokes Per Minute |
180 SPM |
| Turret Stations |
Single Station |
| Work Table Dimensions |
19.7" x 39.4" |
| Press Drive Power |
6.7 HP |

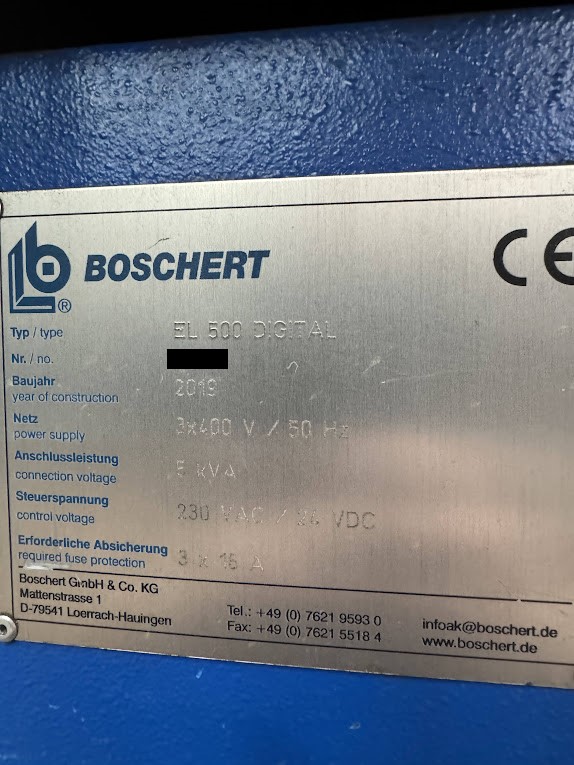

| Power Requirement |
400V-3ph-50Hz |
Features
|
Brush Table Design |
Energy-Saving Design Levels |
|
Free-Standing PC-Based Network CNC Control |
High Productivity with Slug Pull Protection |
|
High Speed Punching |
Increased Turret Feed Clearance |
|
Power Vacuum Slug Pull System (Patent Pending) Virtually Eliminates Slug Pull Concerns |
Vacuum-Powered Slug Pull Protection System |
