Year |
2014 |
|---|---|
Make |
Amada |
Model |
EMLK 3610NT |
Description |
CNC Laser/Punch Combo |
Reference # |
8078392 |
Price |
Activate Pricing |

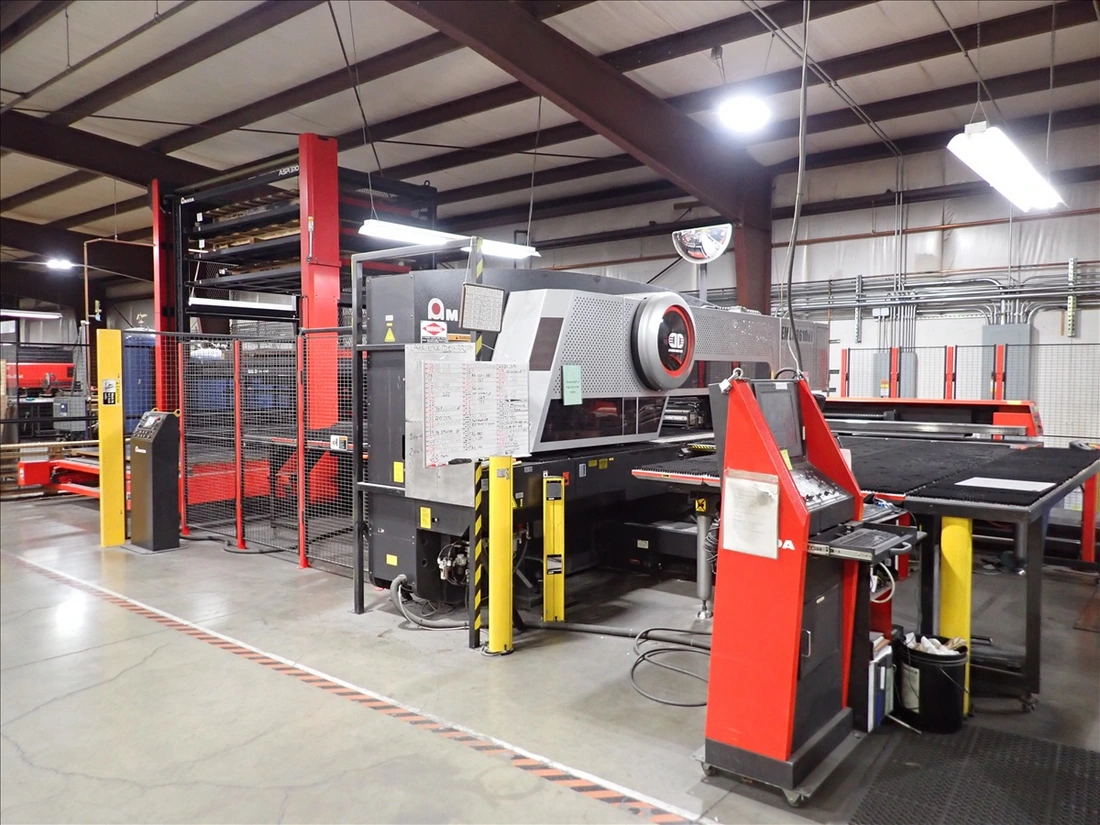

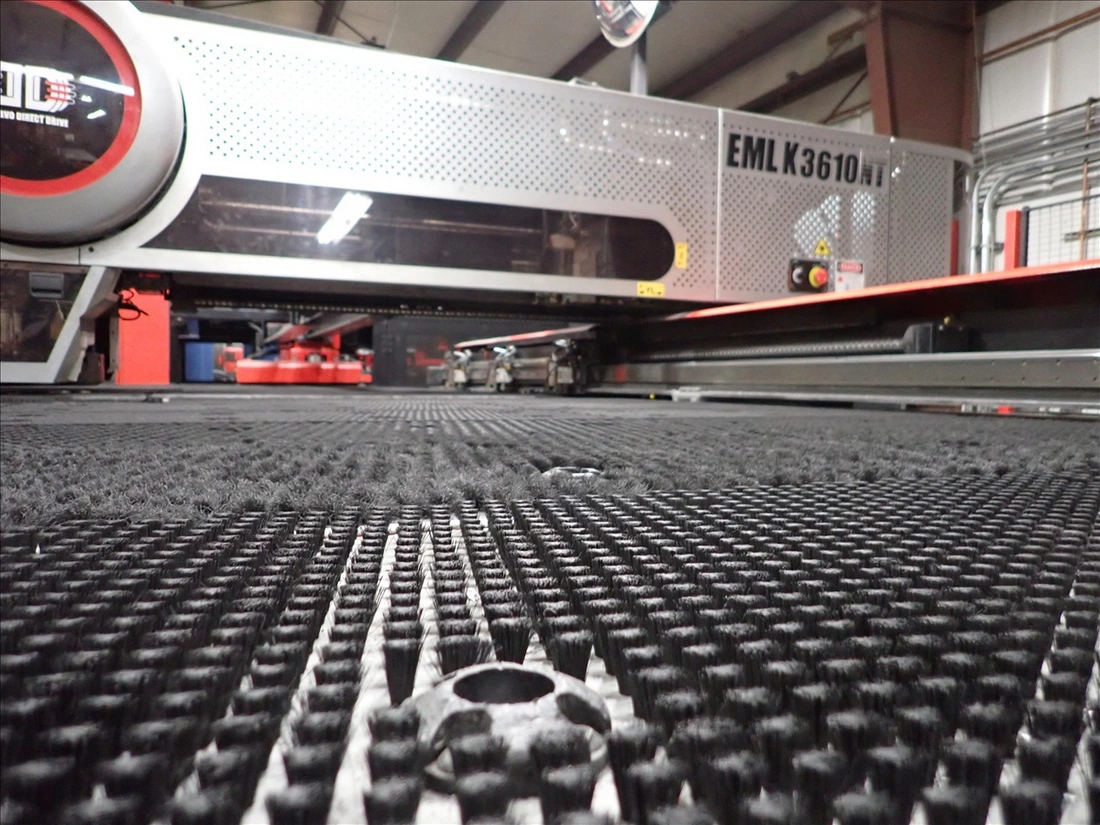

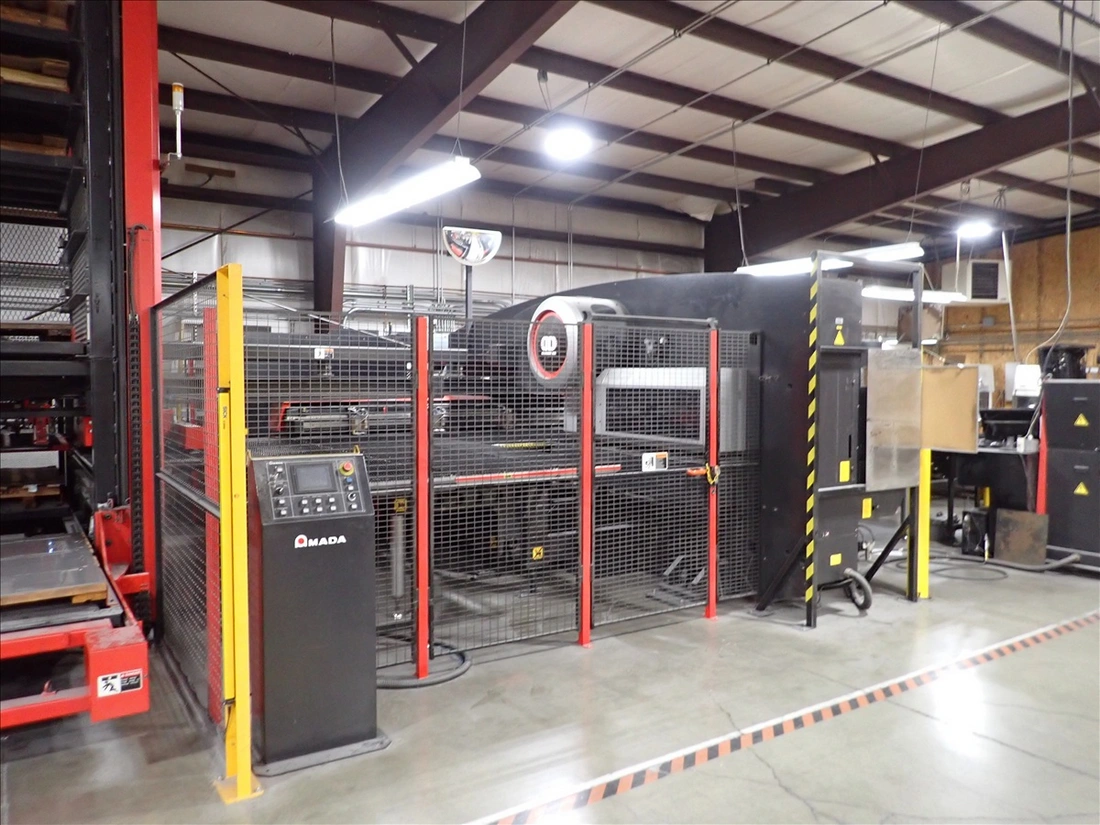

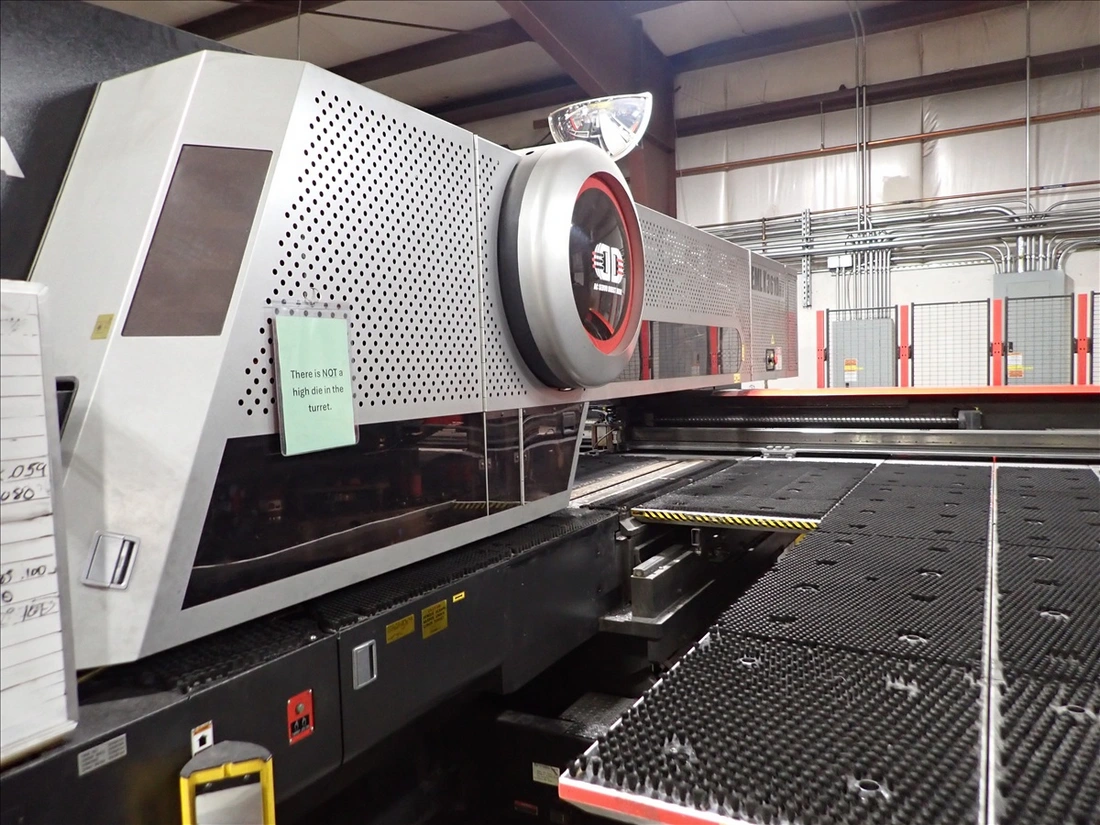

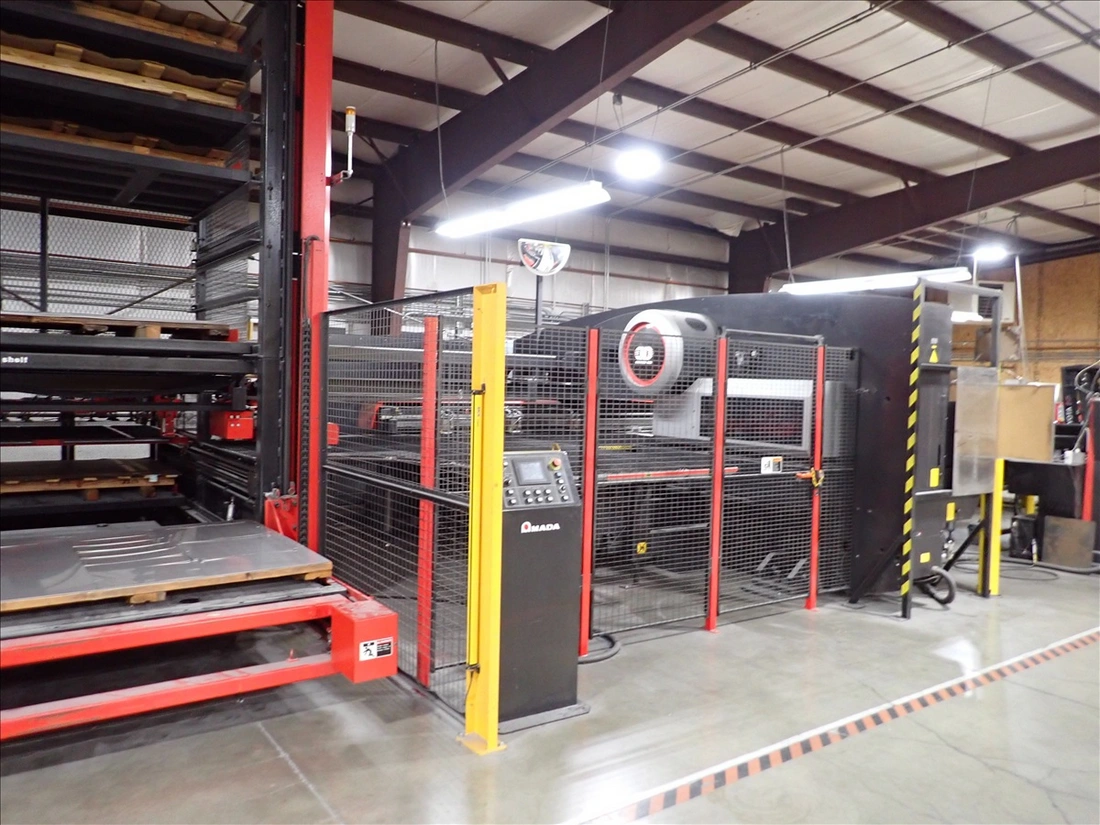

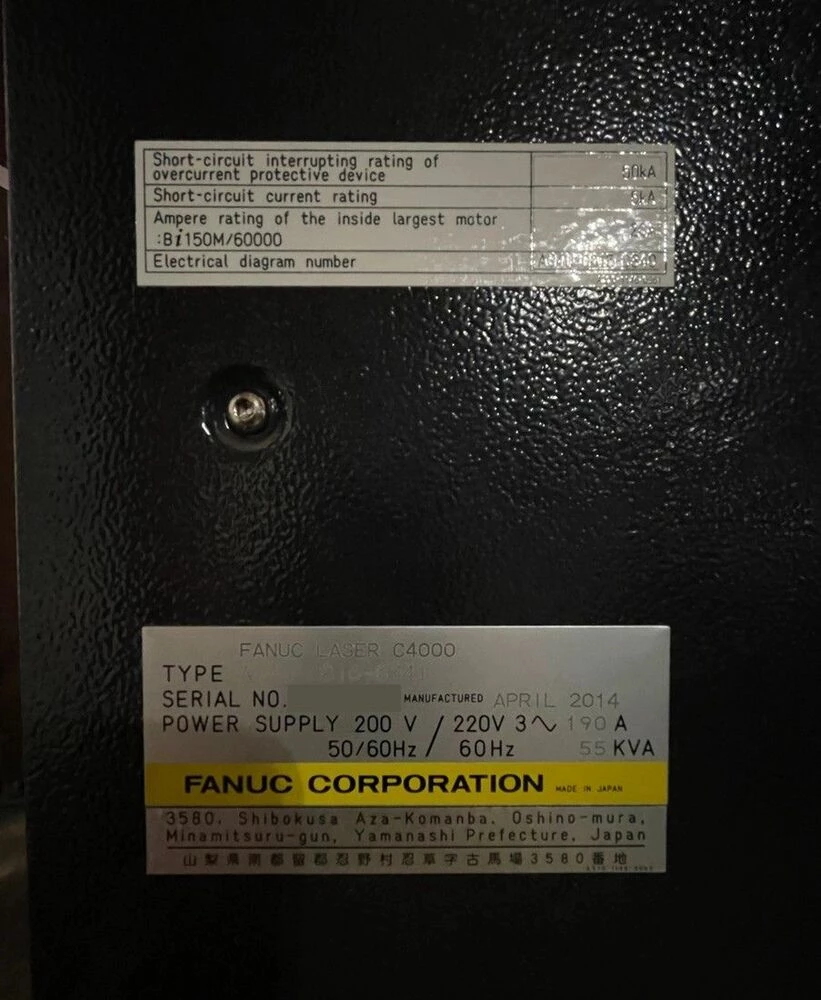

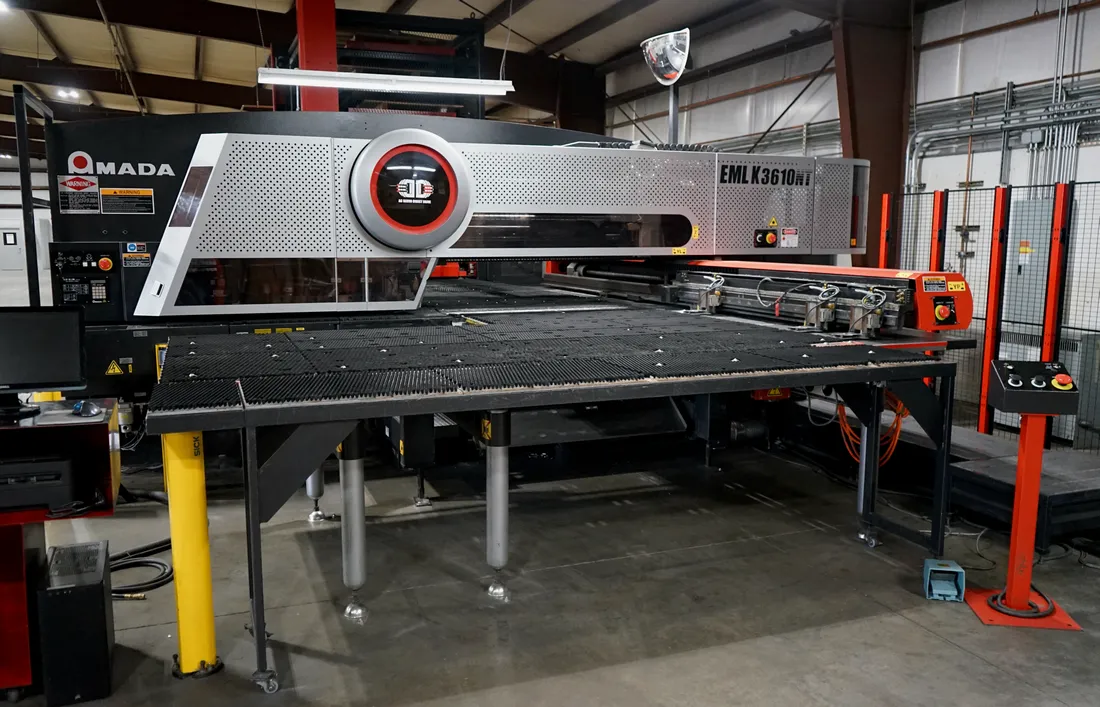

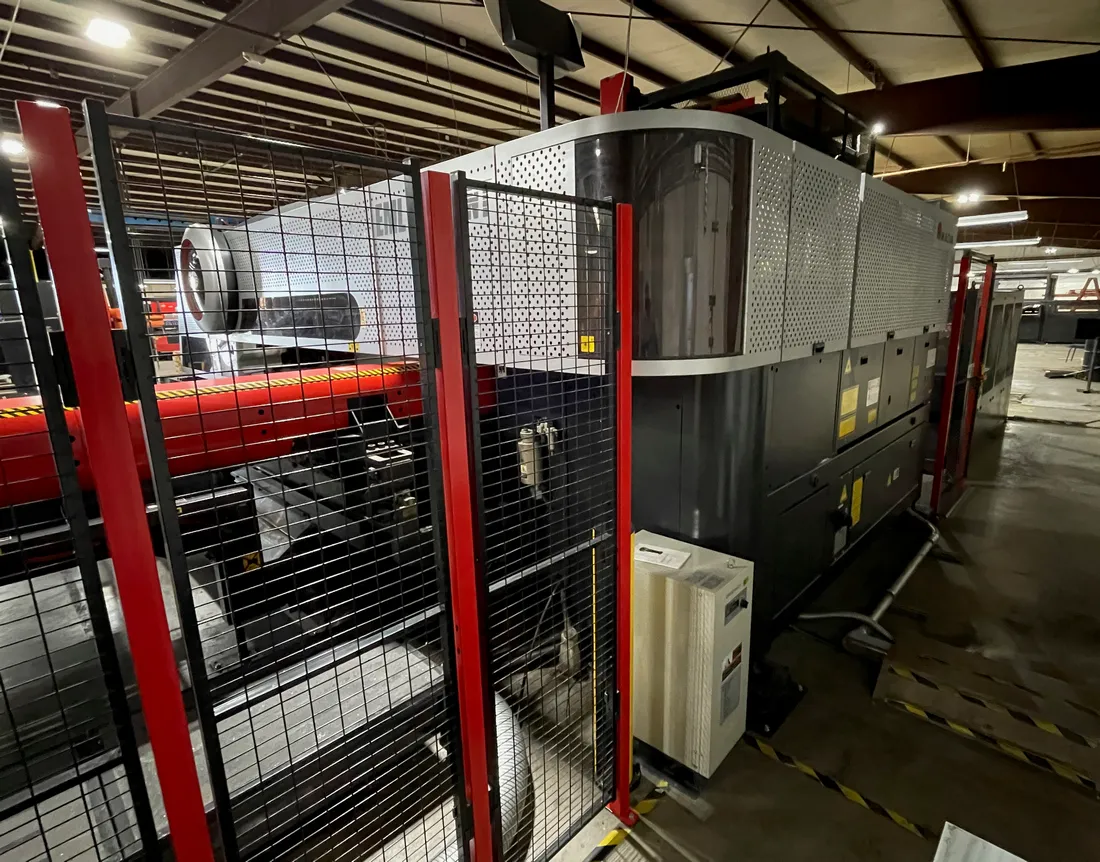

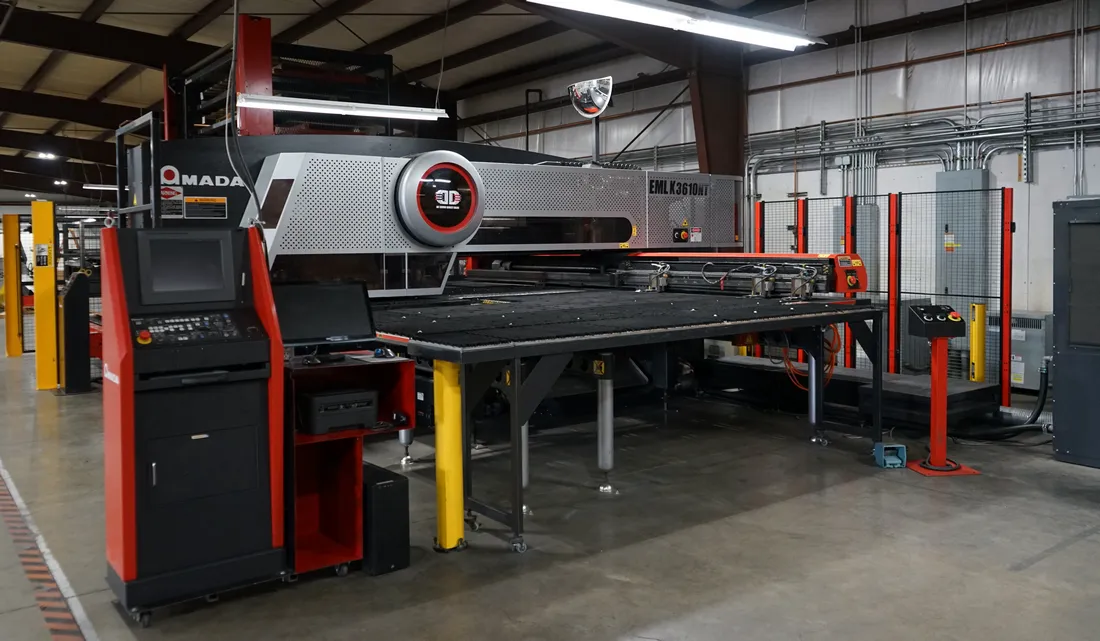

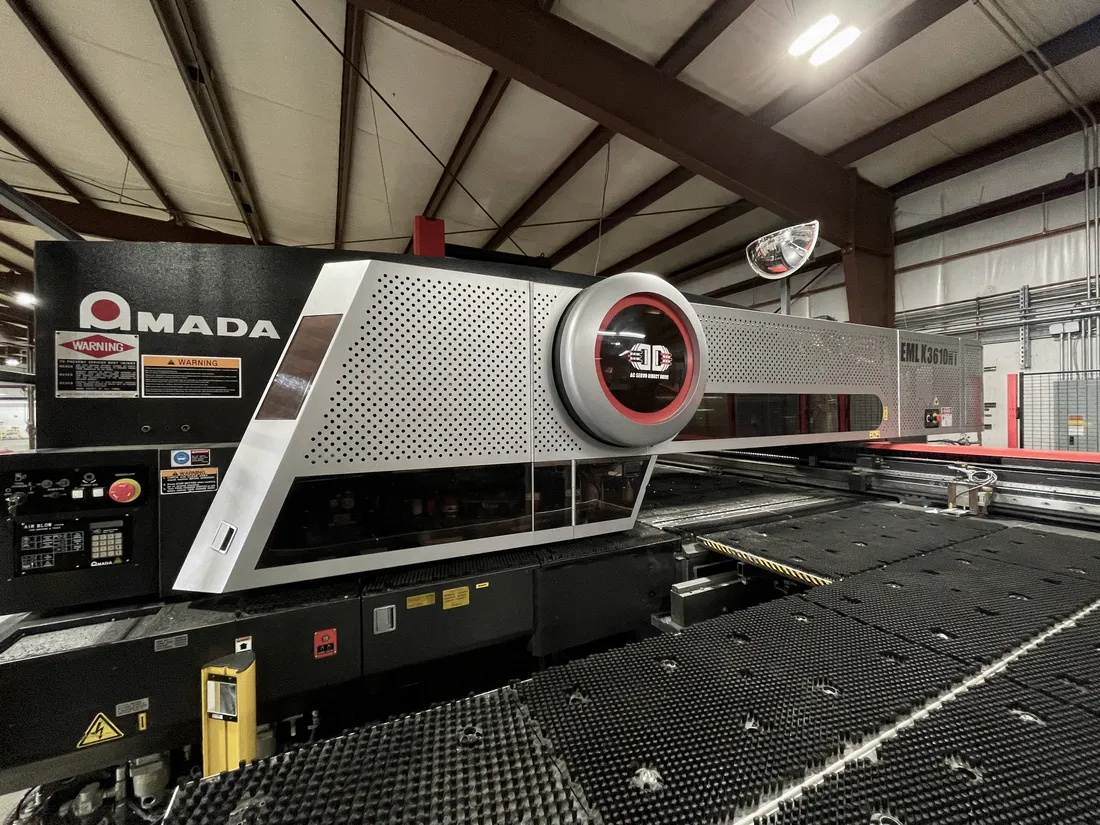

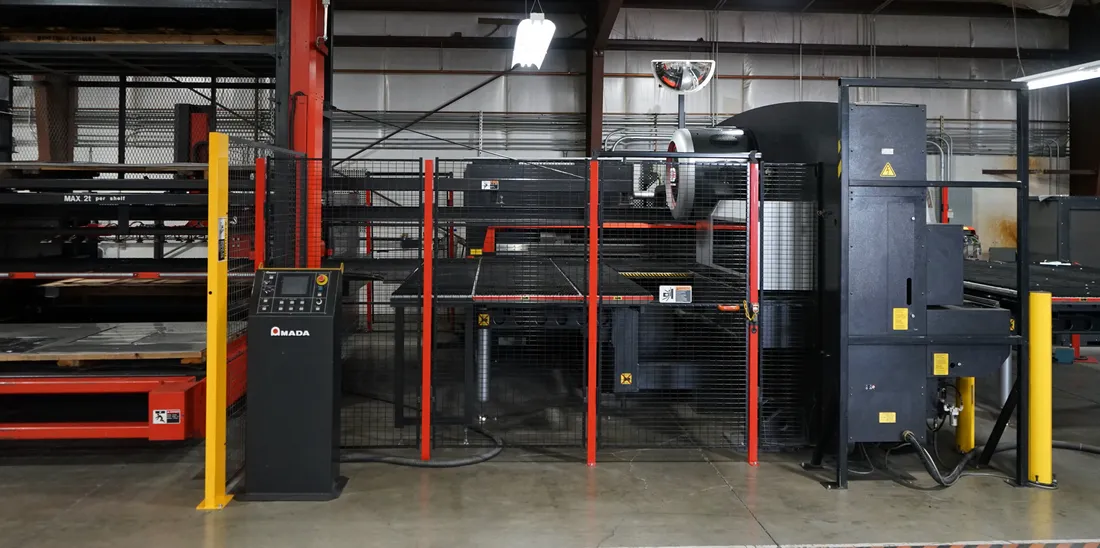

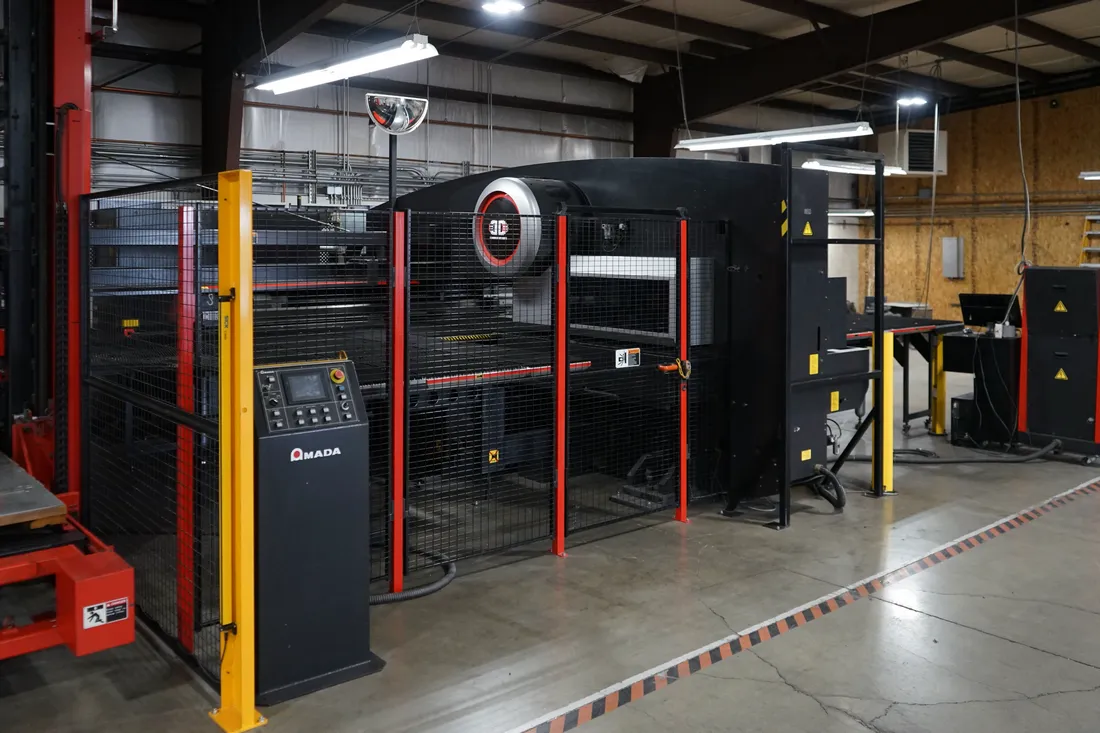

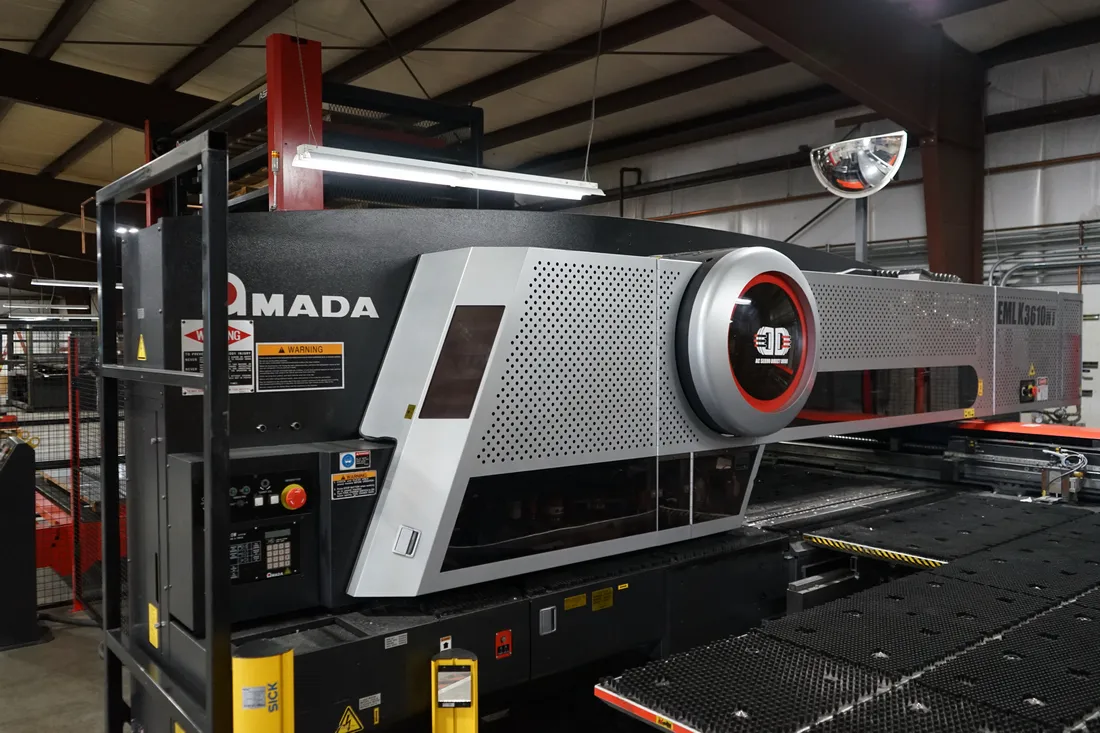

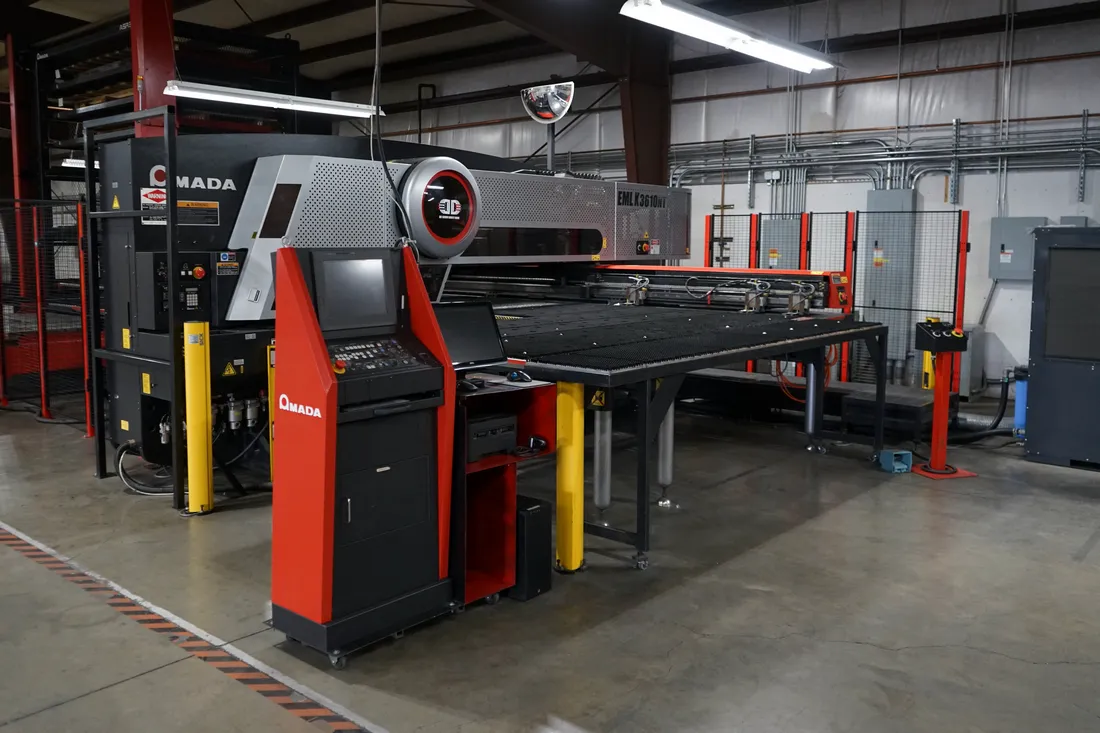

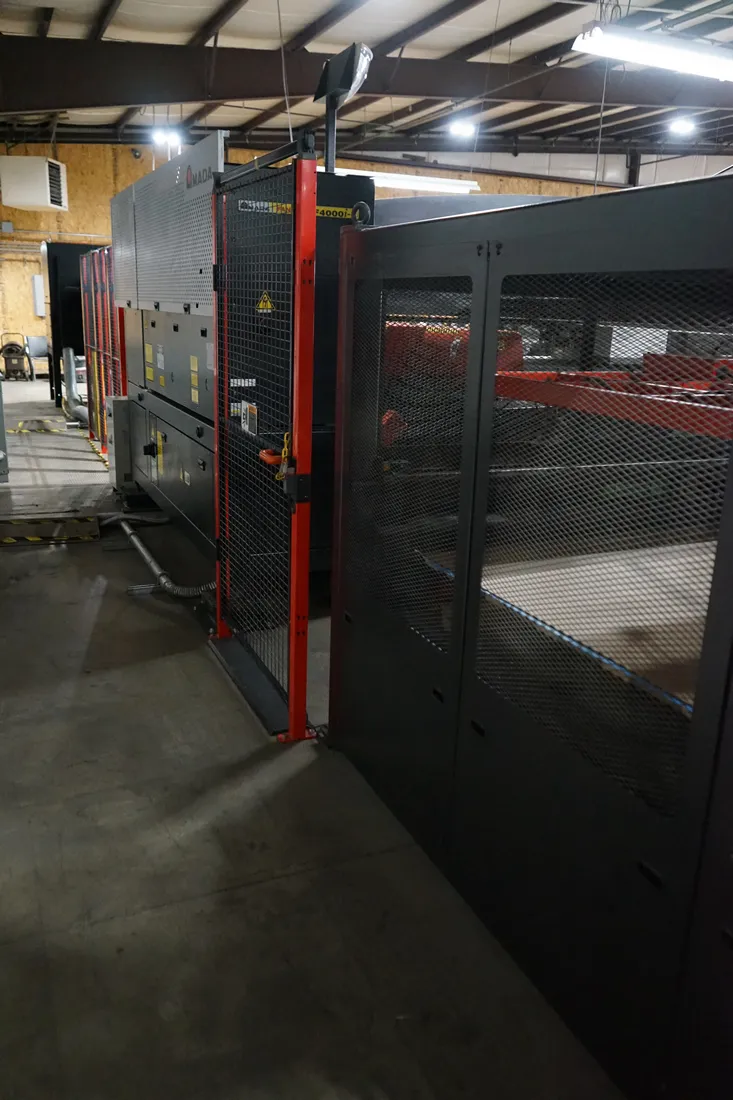

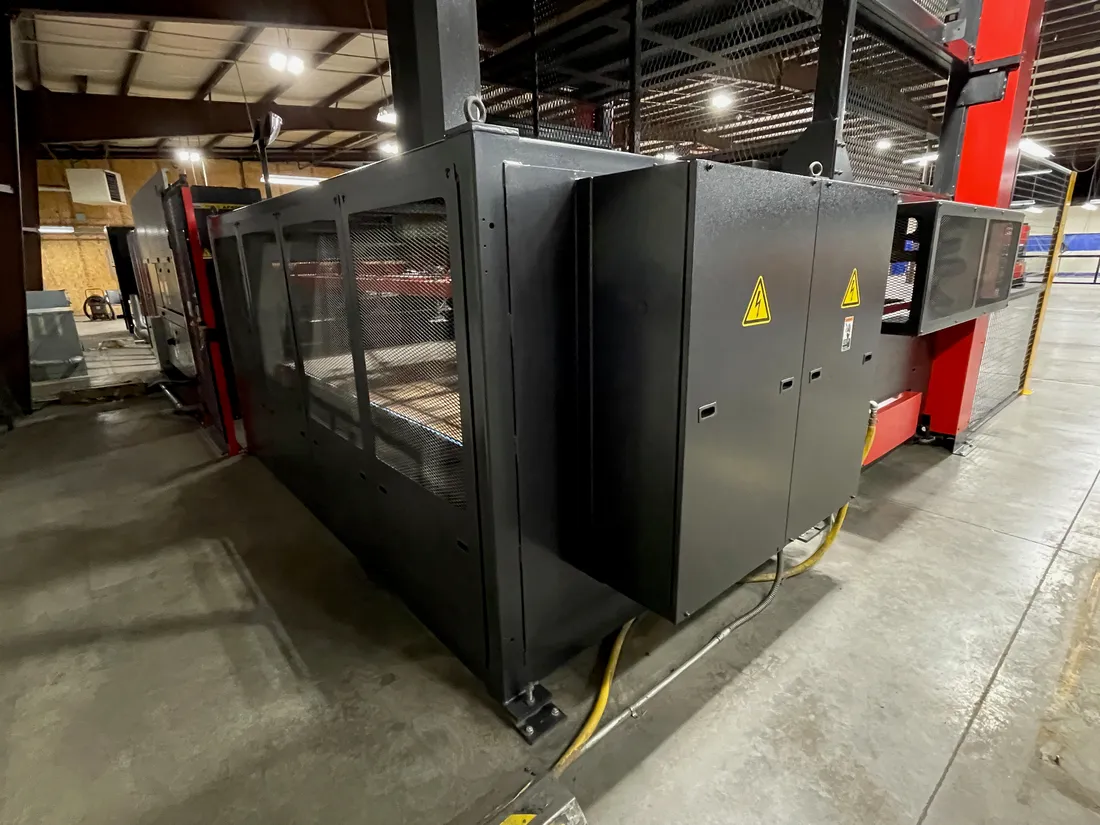

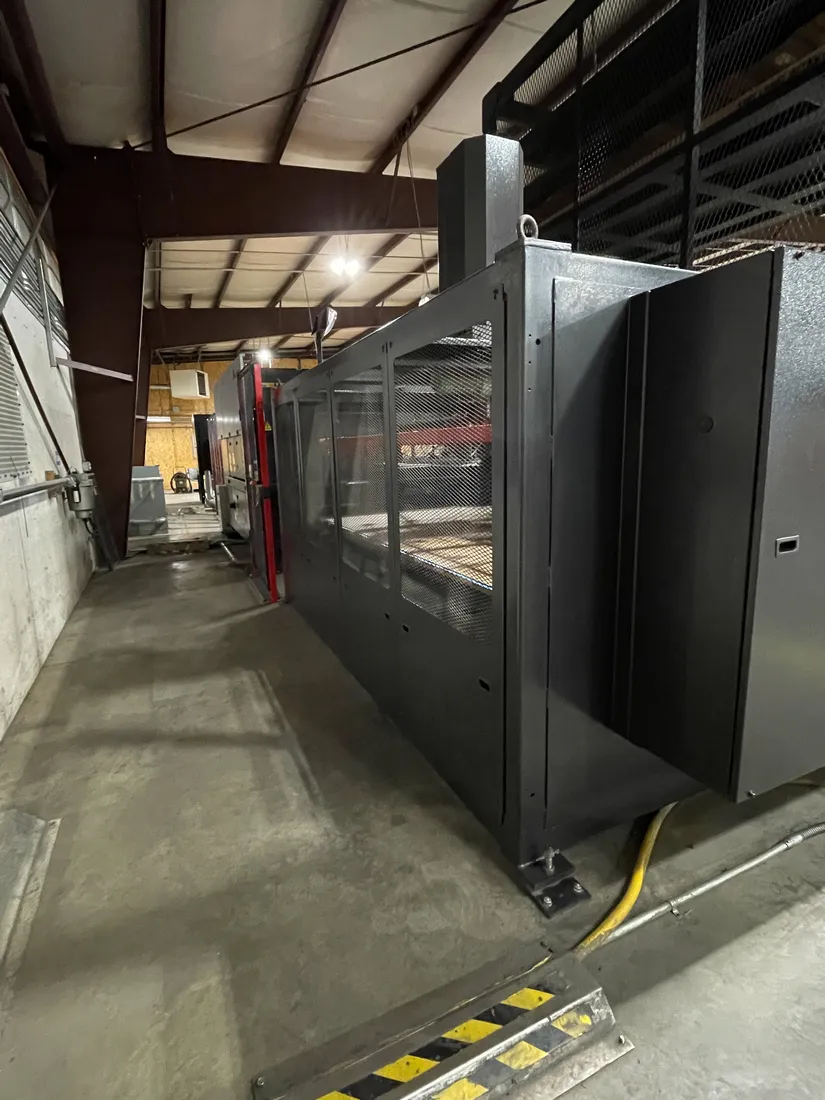

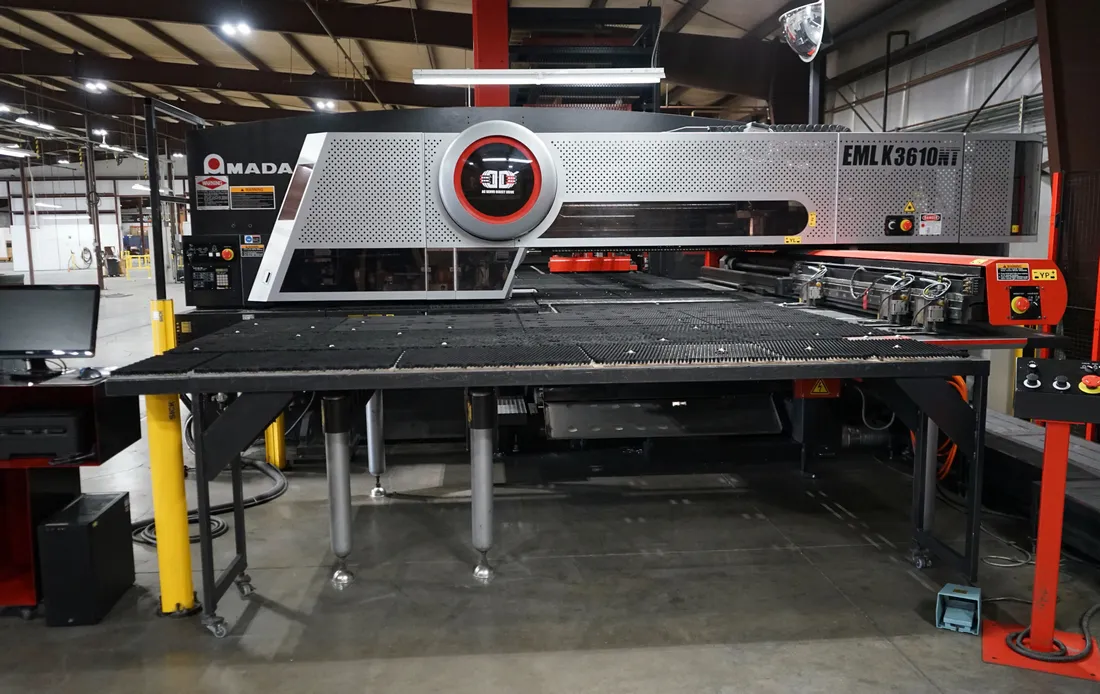

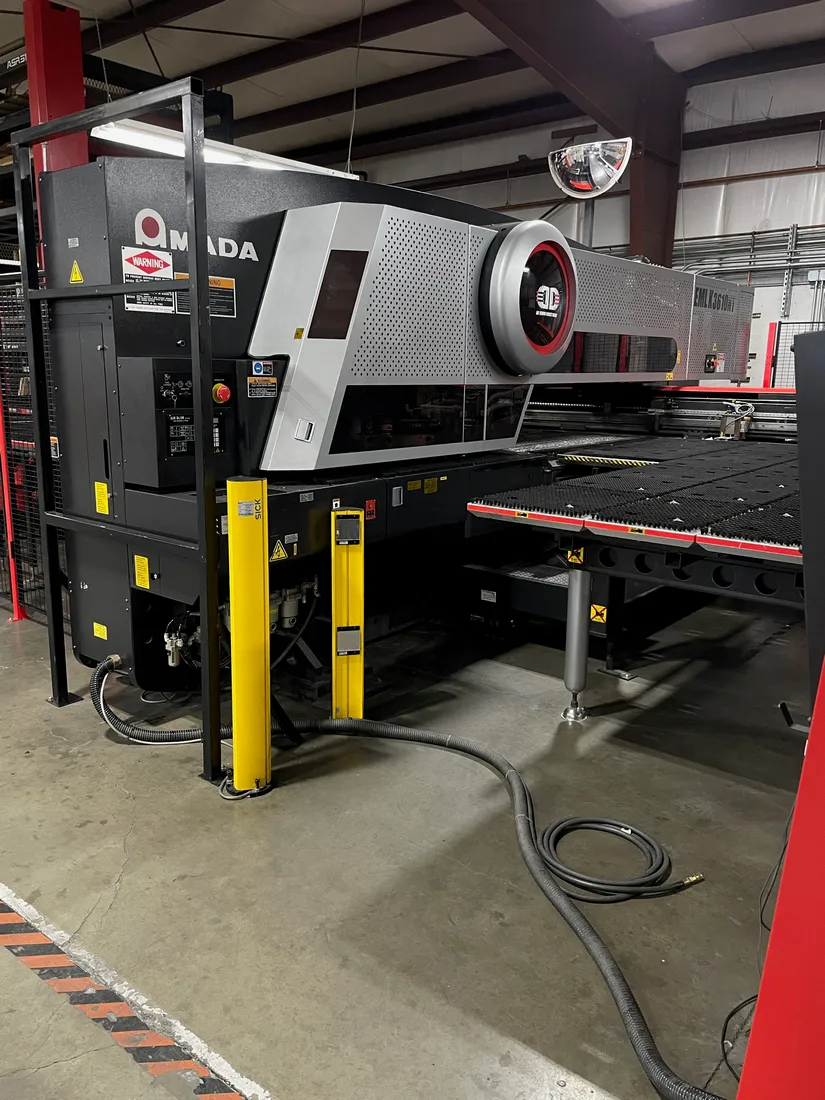

Used Amada EMLK 3610NT (2014) Turret Punch for Sale. This punch/laser combination machine is rated at 33 tons with an AF-4000E 4KW laser and 4,000 max wattage, handling a max sheet size of 5′ x 10′ and max work weight of 330 lbs. Maximum thickness is .25″ in mild steel, stainless, and aluminum. Control is AMNC PC on a Windows operating system. Max cutting speed (X/Y) is 780 IPM, with a hit rate of 1800 HPM in high speed marking and 400 HPM on 1″ moves. Positioning accuracy is +/- .0012″/39.37″, repeatability +/- .00027″, punching accuracy +/- .004″. Machine weight is 66,139 lbs. Motion axes X/Y/TL/Z/B/T/C, 58-station 4A/I King Turret, Z axis sensor HS-2003. Available to see under power for inspection. See more used turret punches and Amada equipment, Activate Pricing, or Request a Quote. This machine is located in Canada.
Specifications
| Max Wattage |
4,000 |
|---|---|
| Tonnage |
33 Tons |
| Max Sheet Size |
5' x 10' |

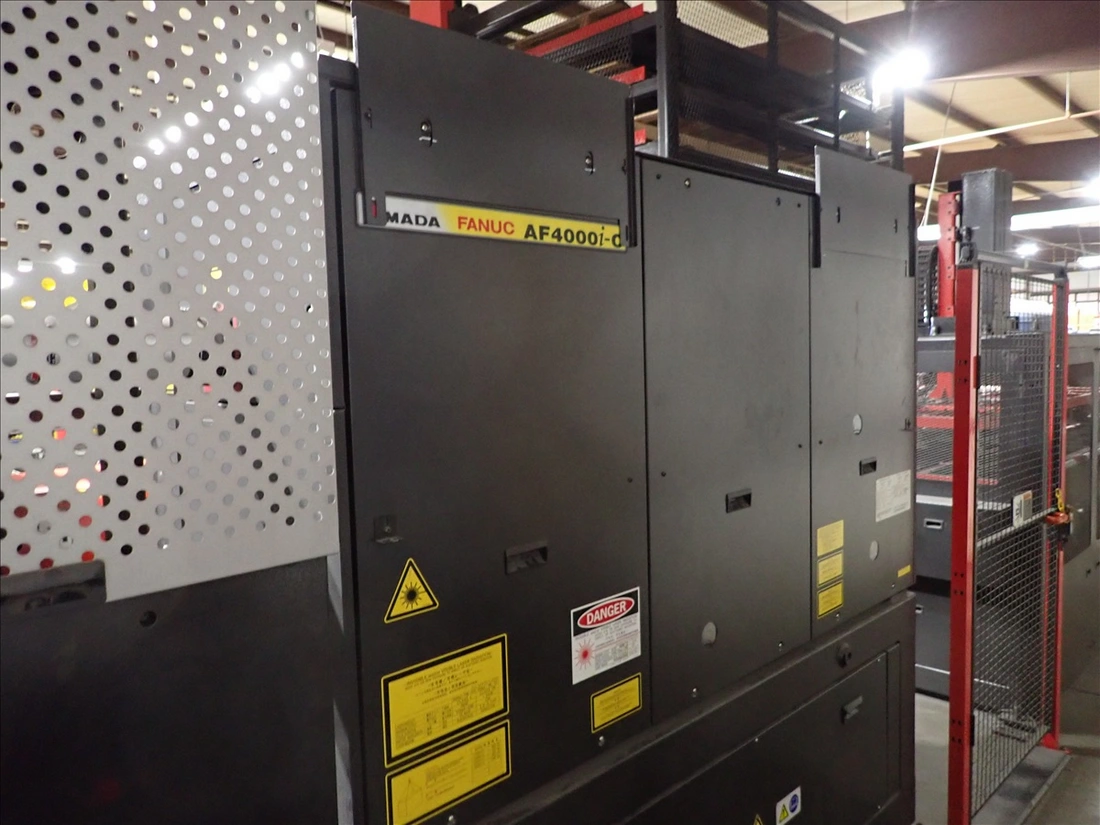

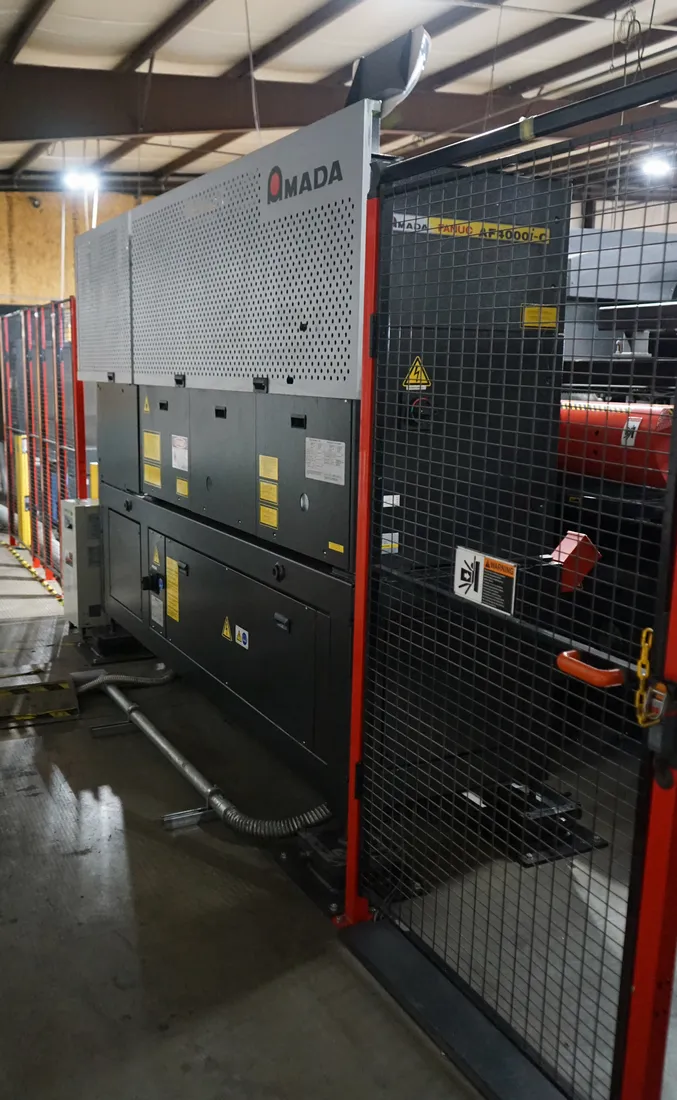

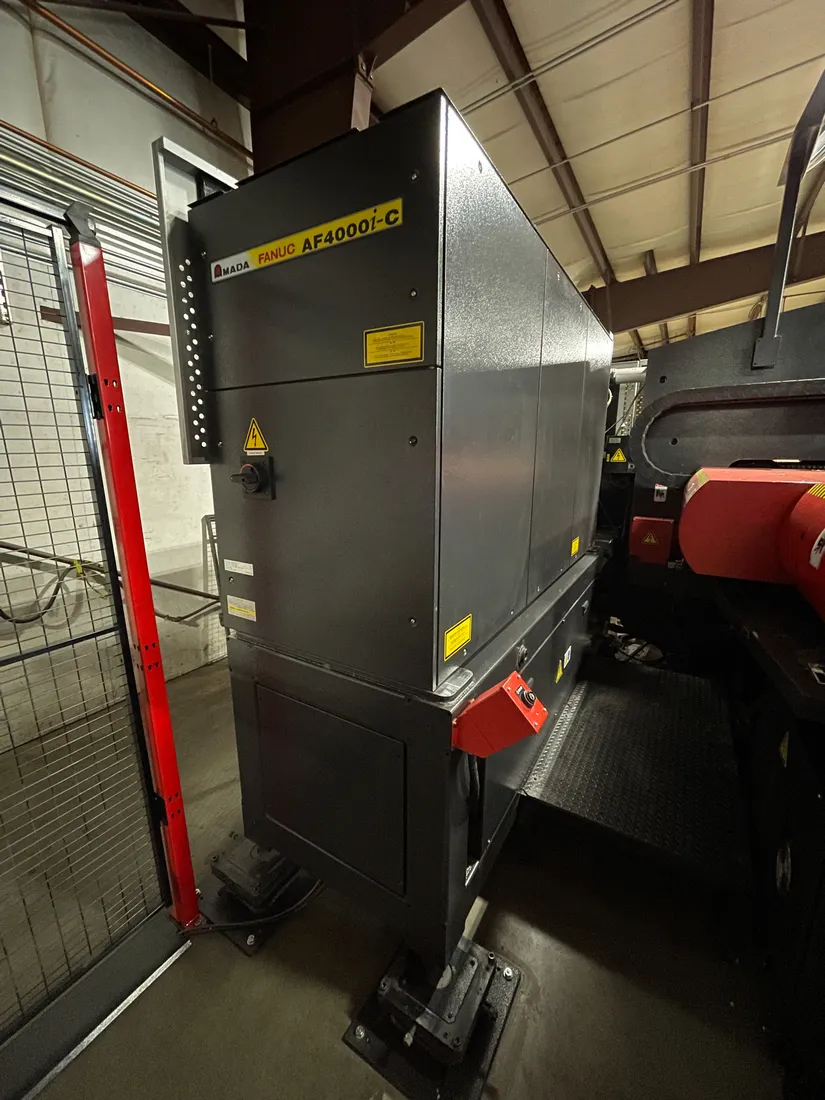

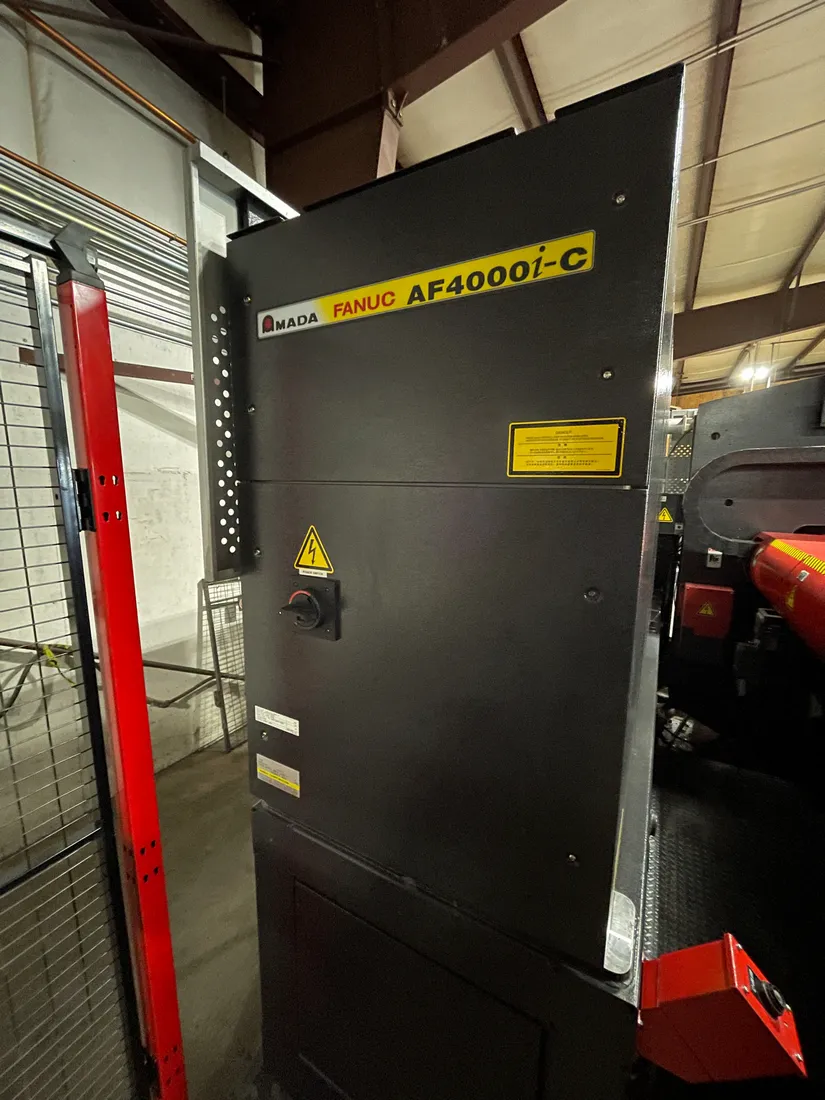

| Laser |

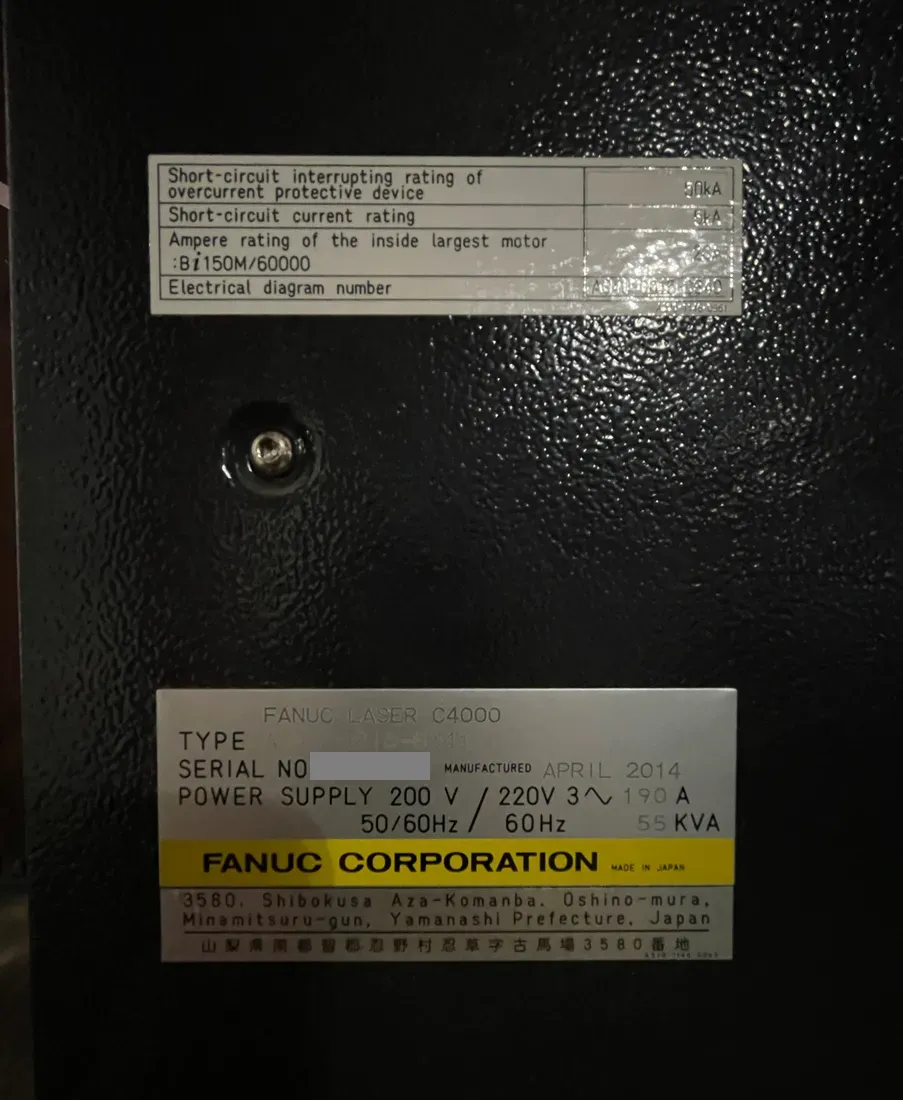

AF-4000E (4KW) |
| Maximum Thickness Mild Steel |
.25" |
| Maximum Thickness Stainless |
.25" |
| Maximum Thickness Aluminum |
.25" |

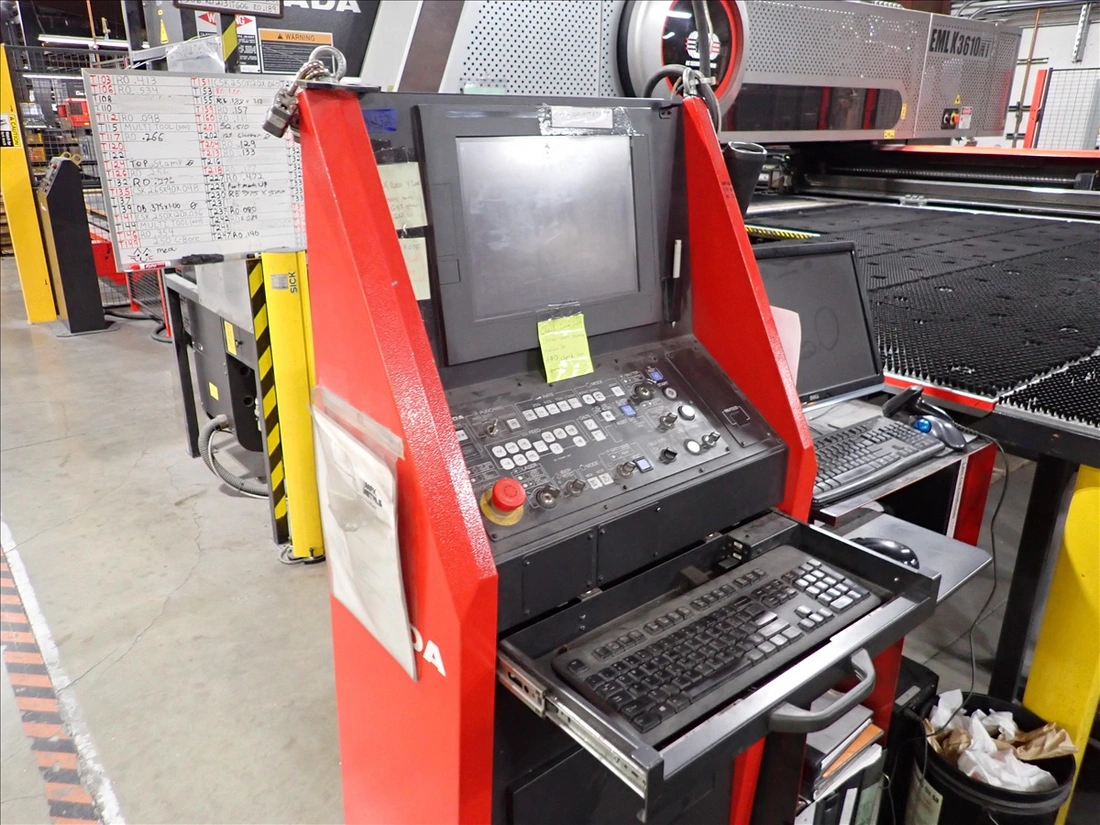

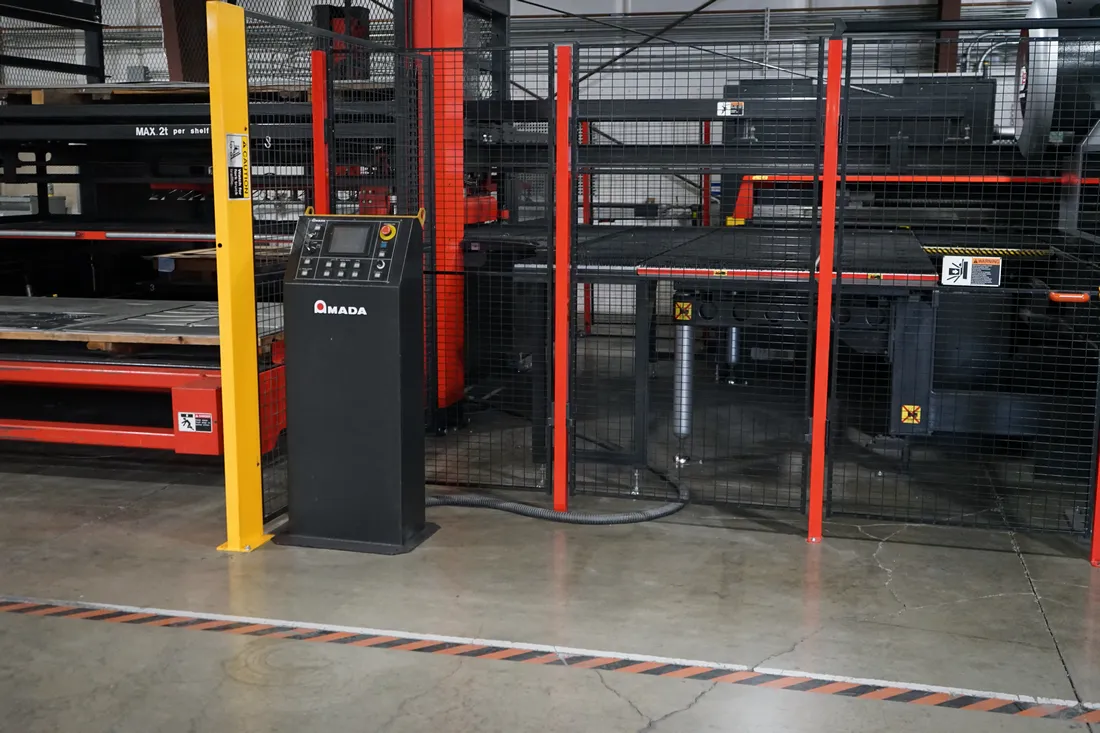

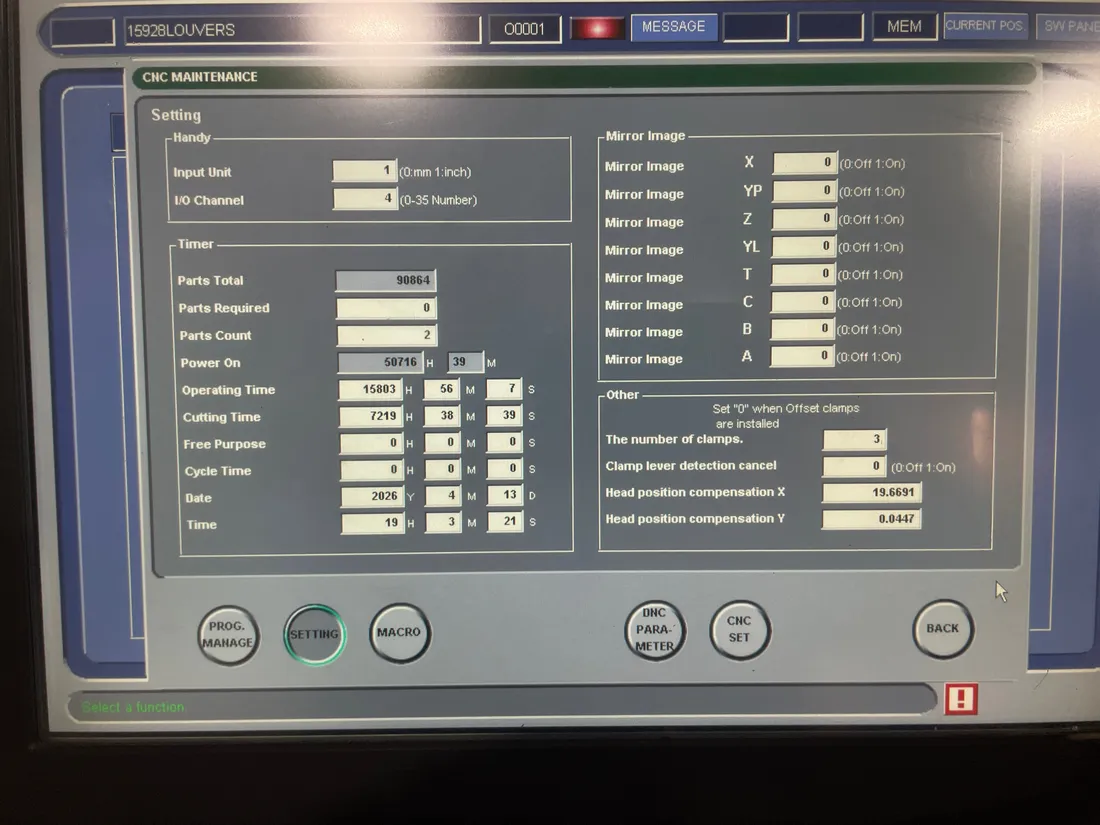

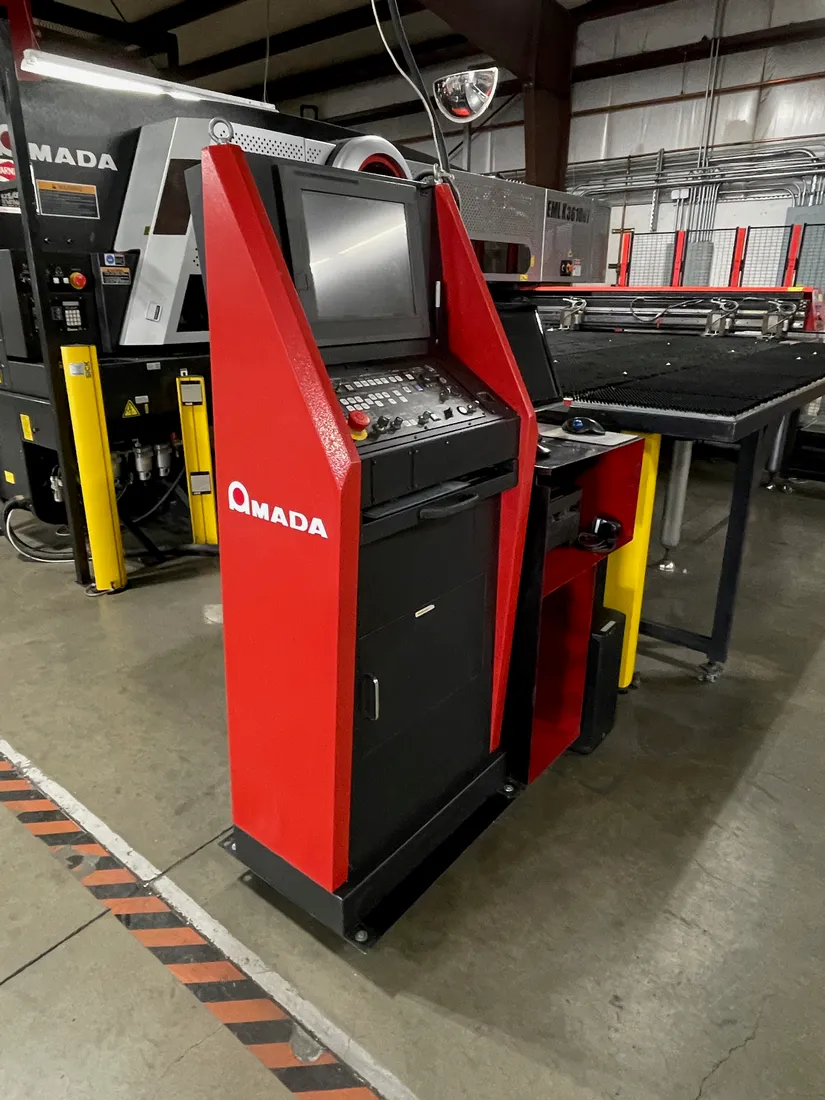

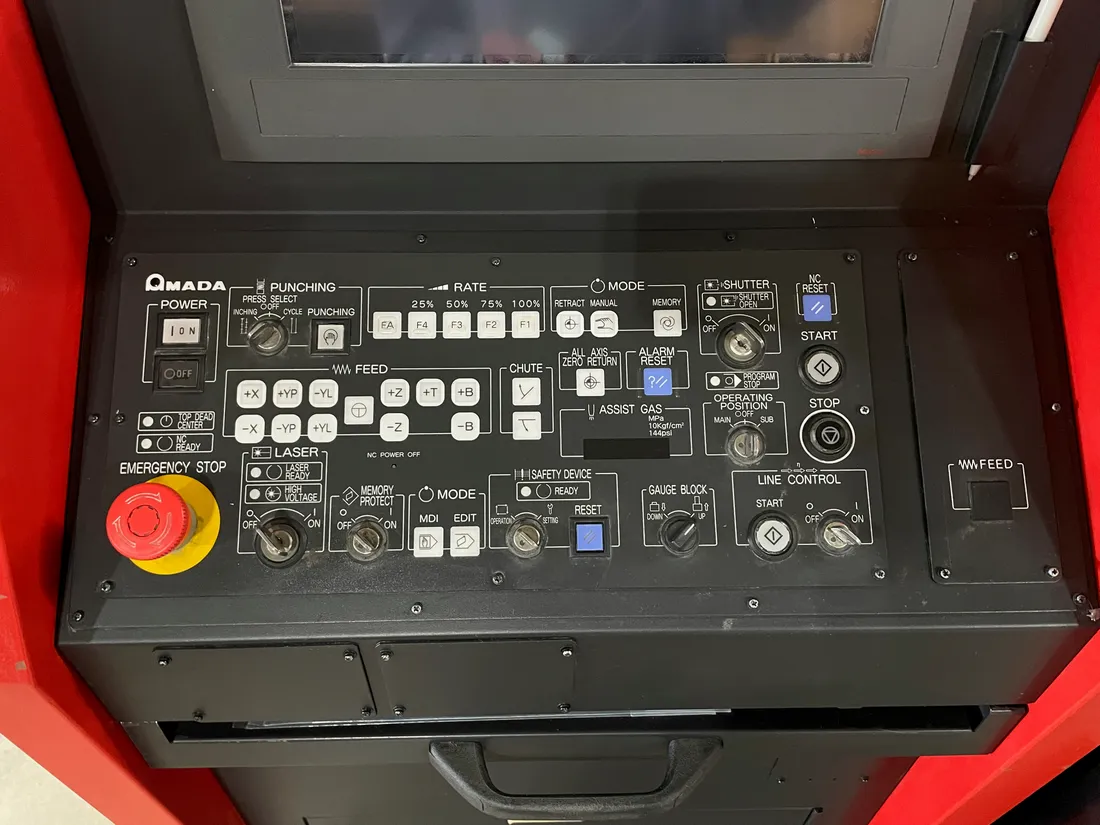

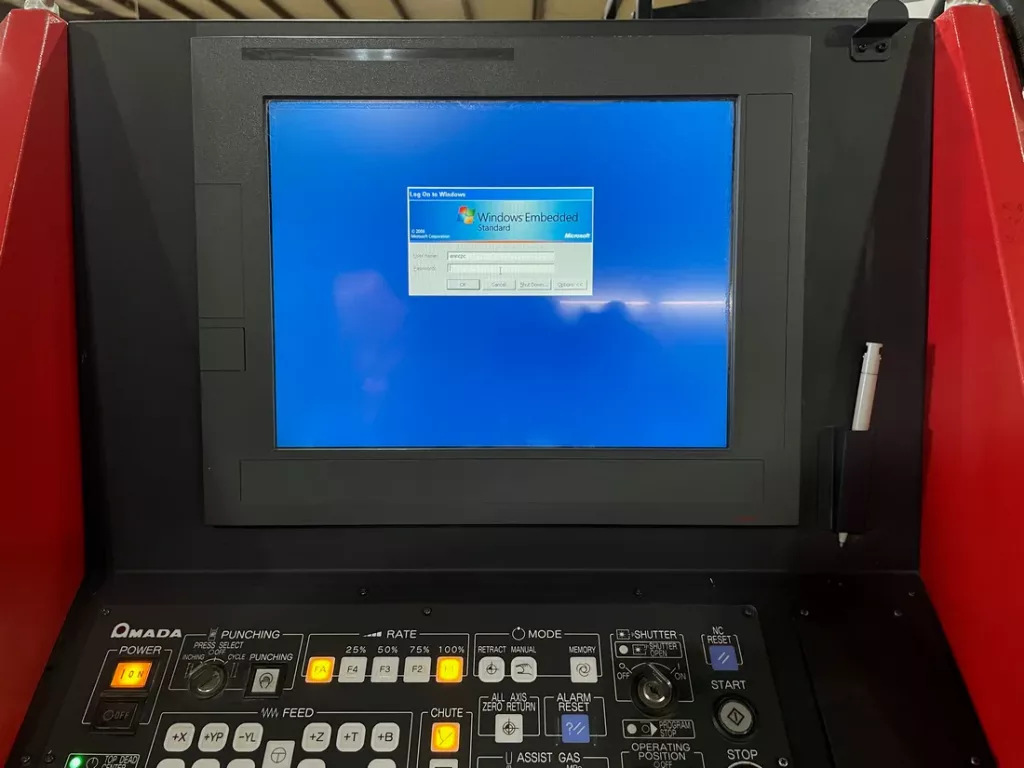

| Control |

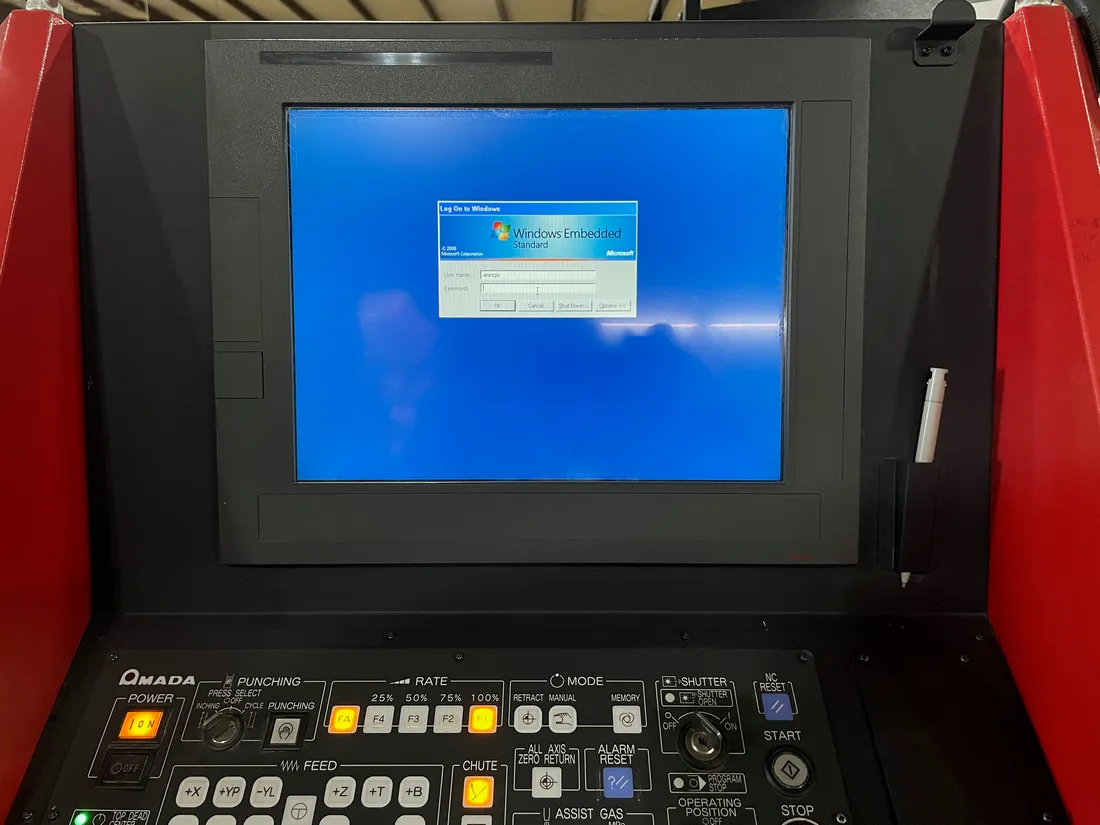

AMNC PC (Windows Operating System) |
| Max Cutting Speed (X/Y) |
780 IPM |
| Hit Rate |
1800 HPM (High Speed Marking), 400 HPM on 1” Moves |
| Positioning Accuracy |
+/- .0012" / 39.37" |
| Repeatability |
+/- .00027" |
| Punching Accuracy |
+/- .004" |
| Max Work Weight |
330 Lbs |
| Machine Weight |
66,139 Lbs |
Features
|

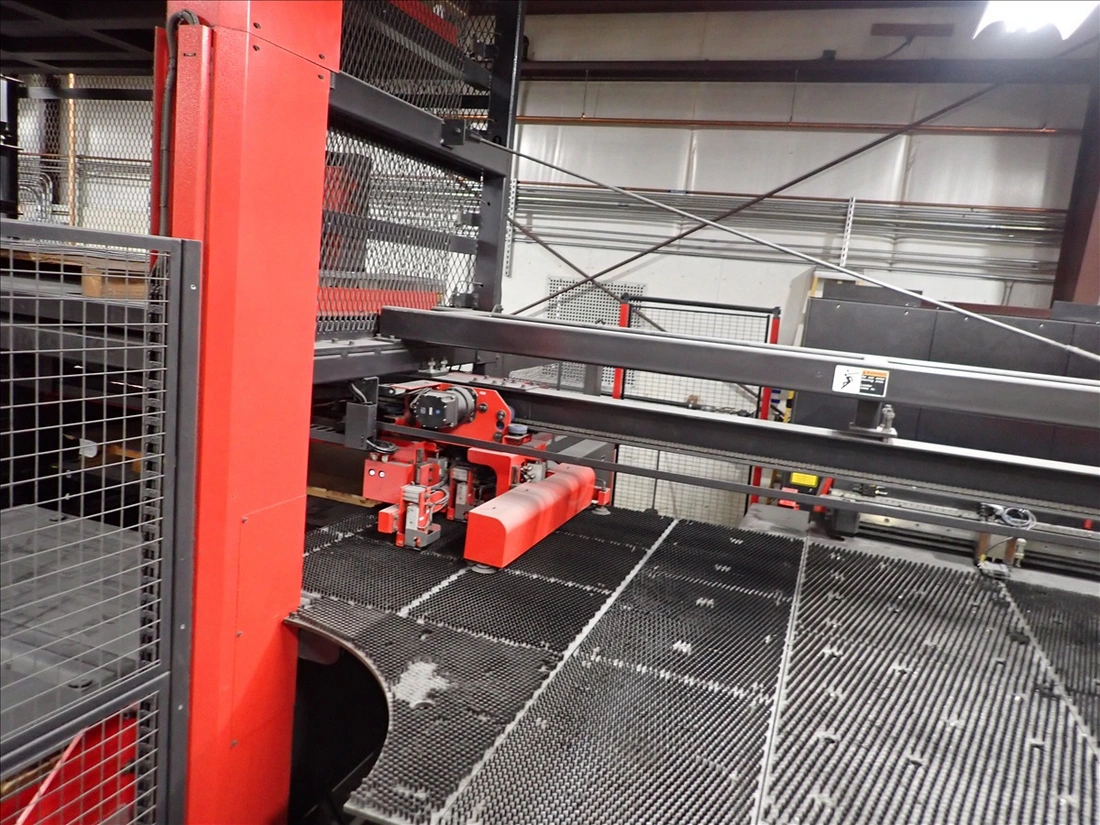

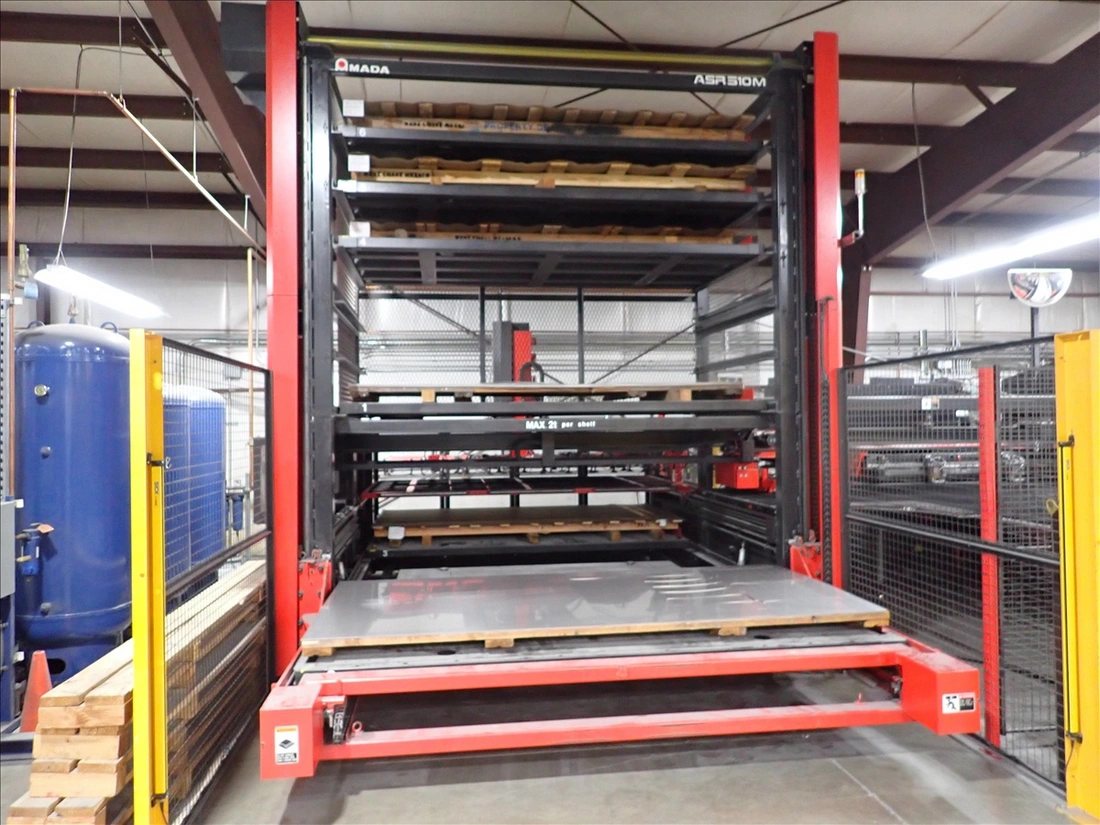

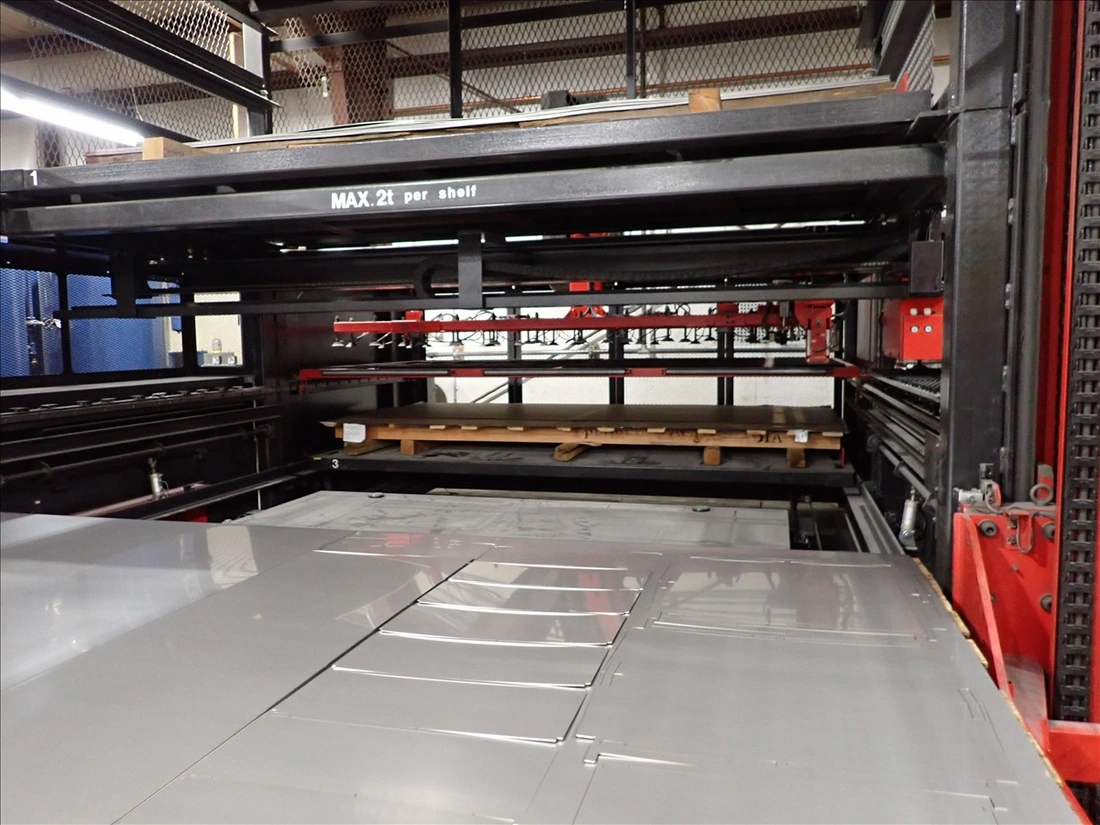

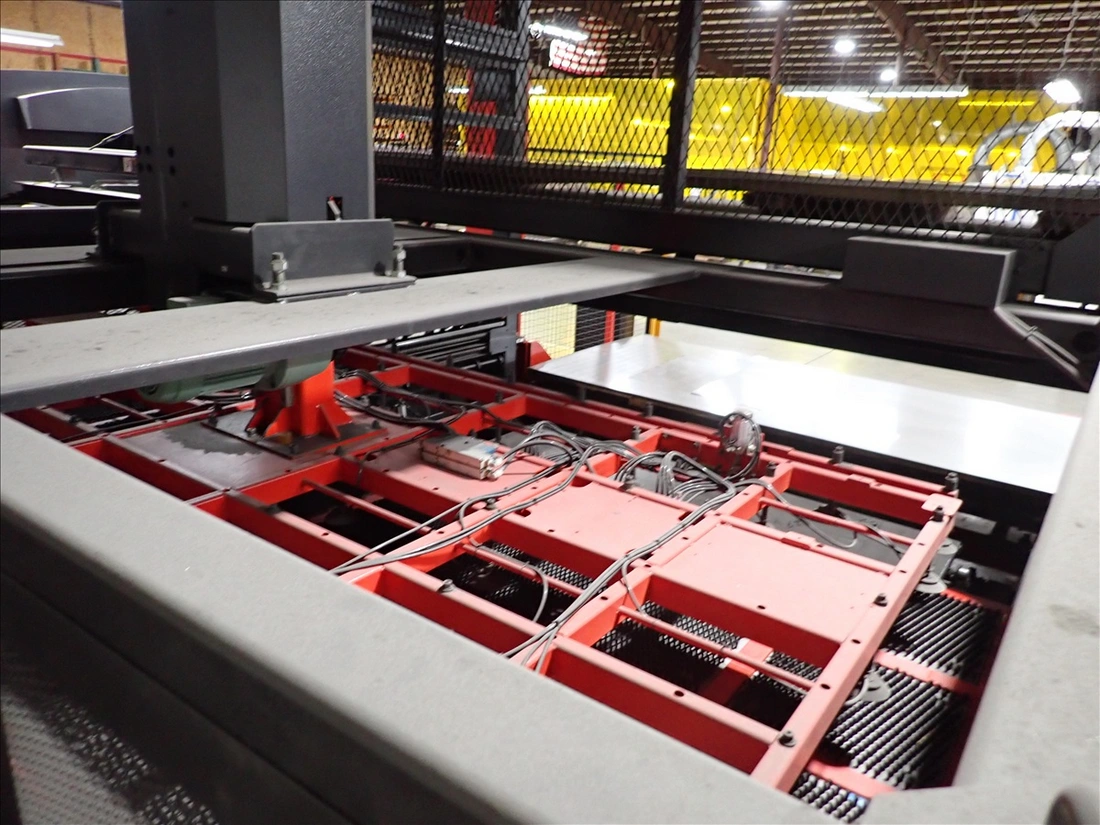

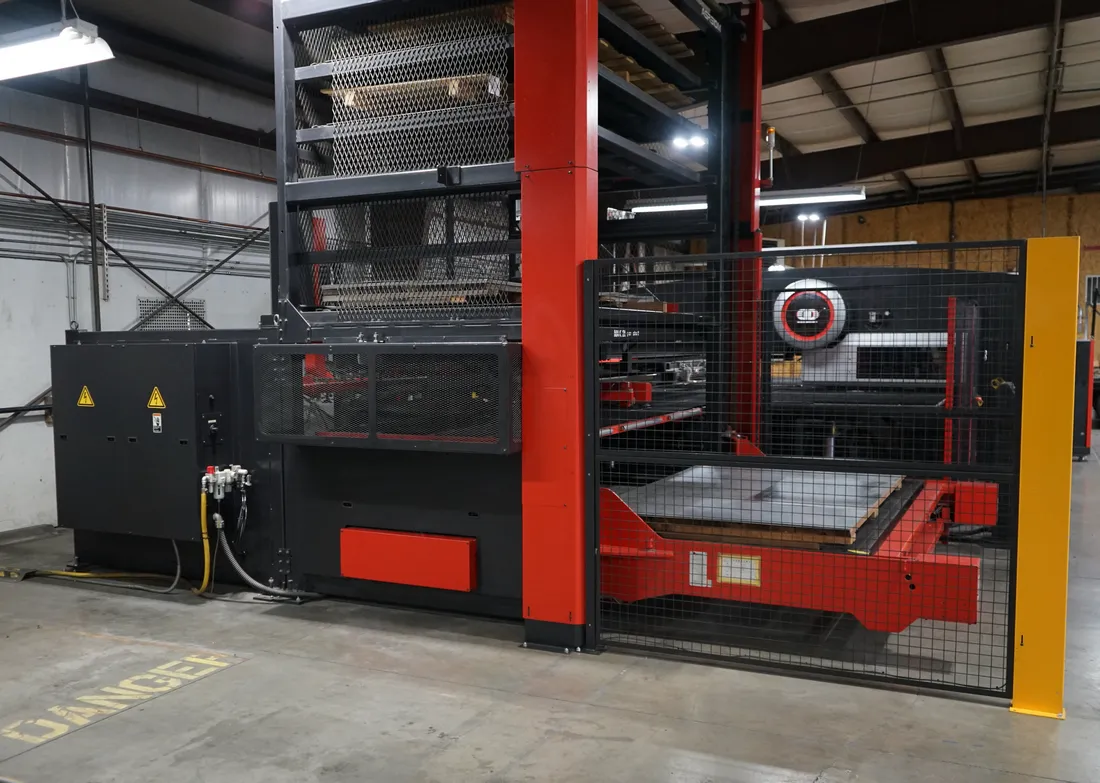

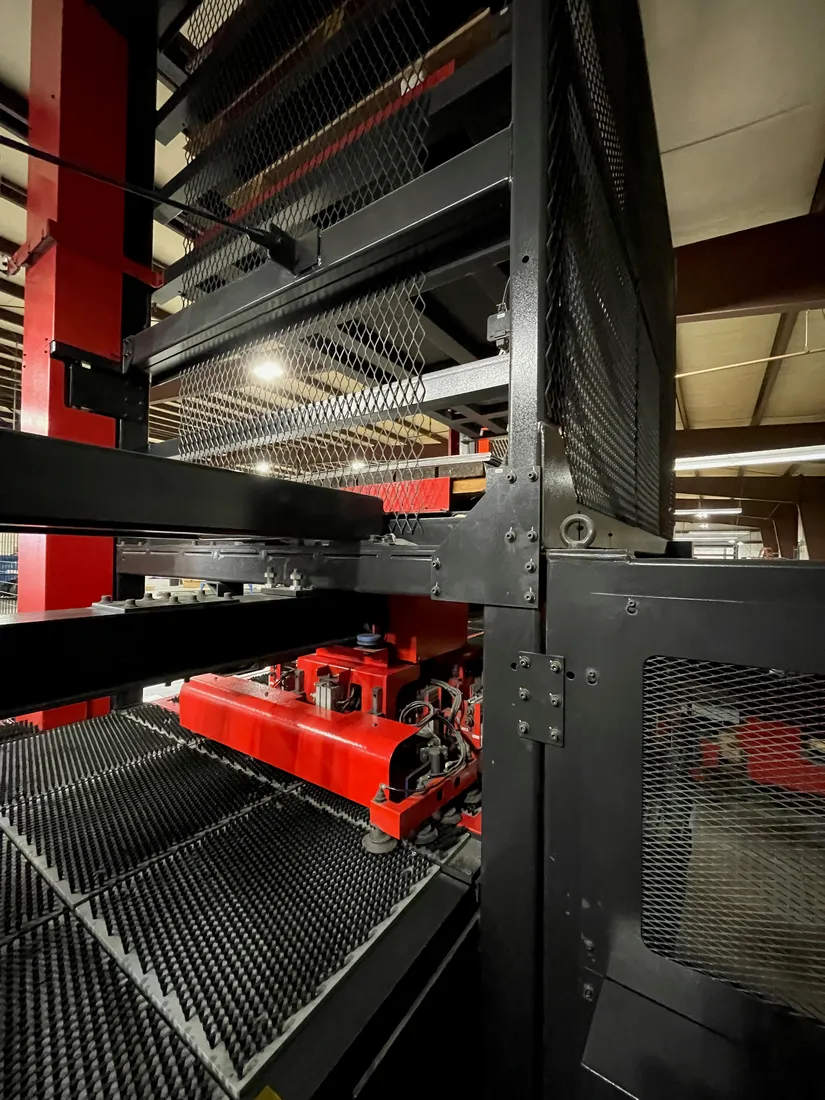

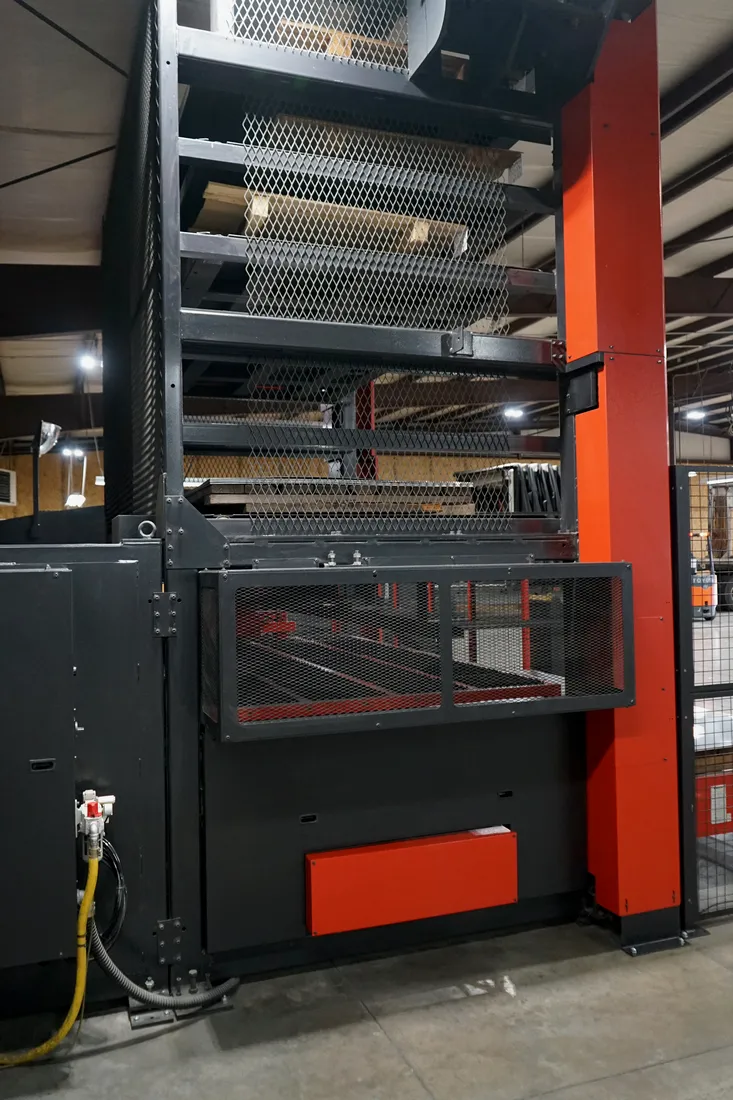

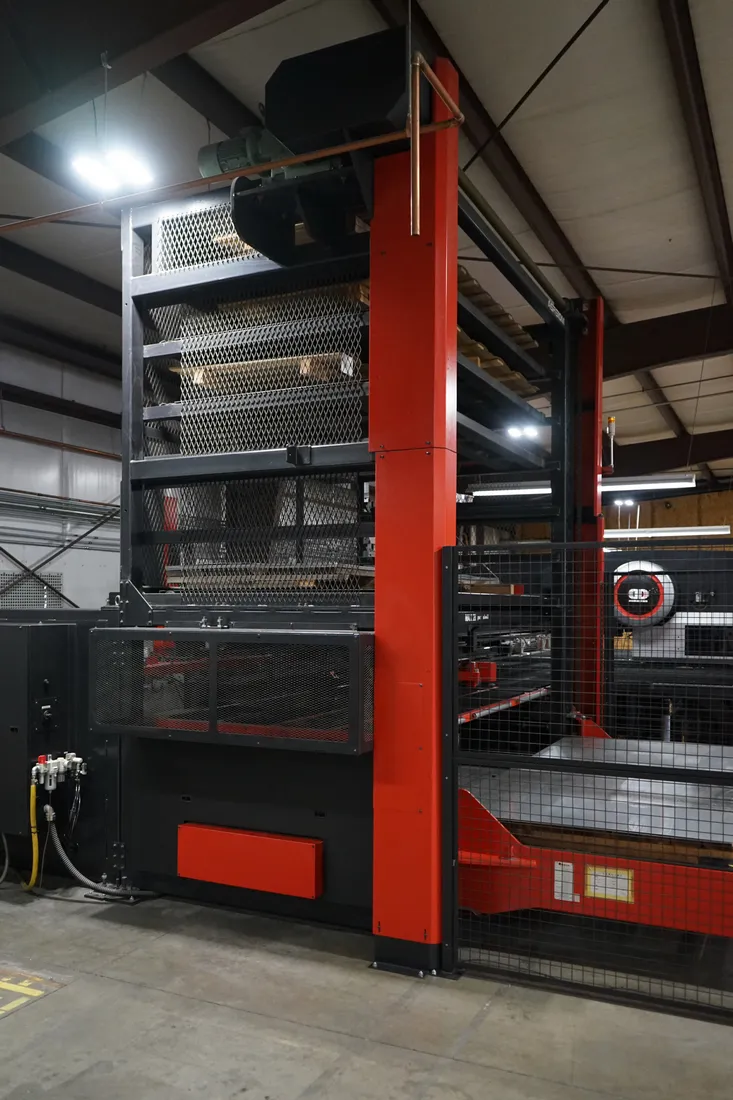

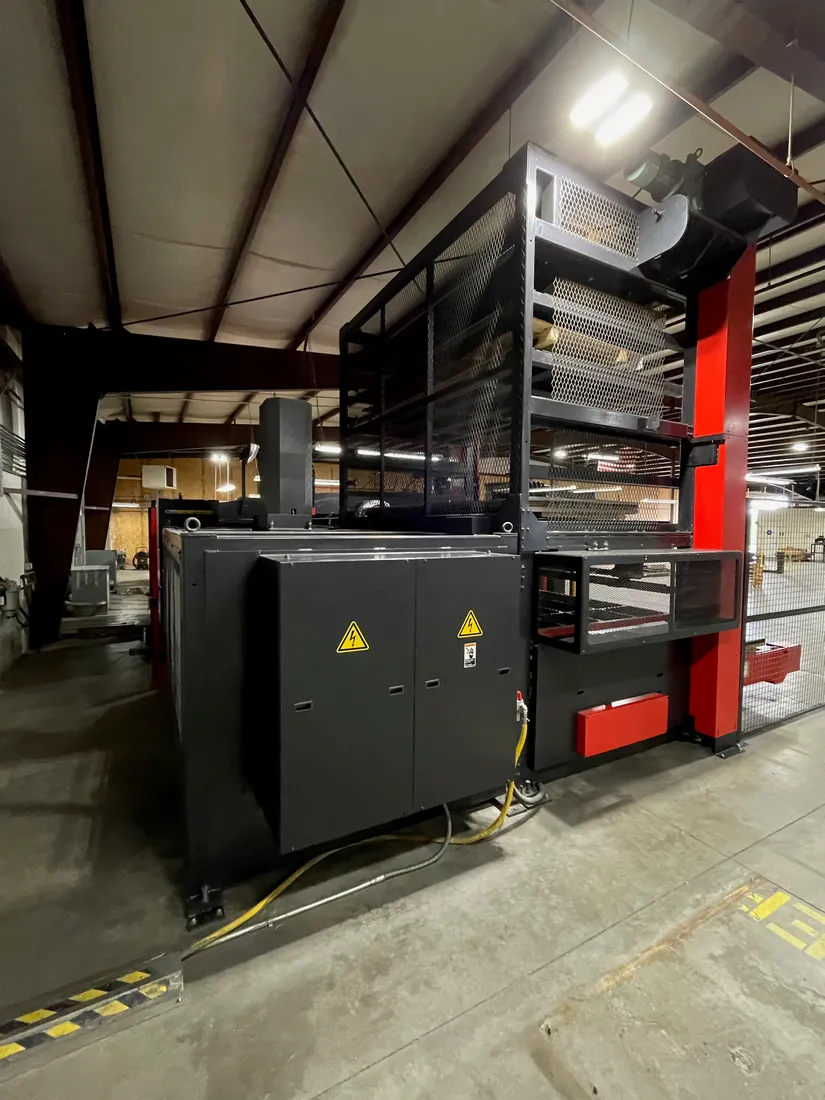

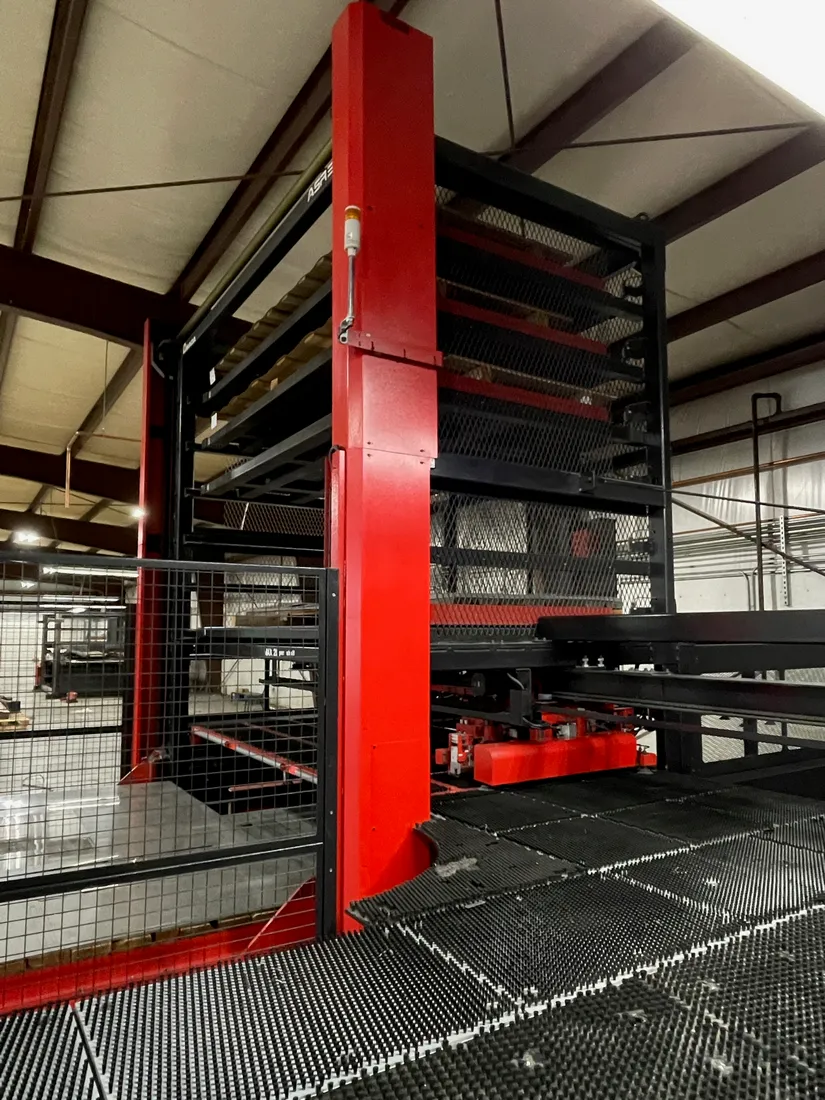

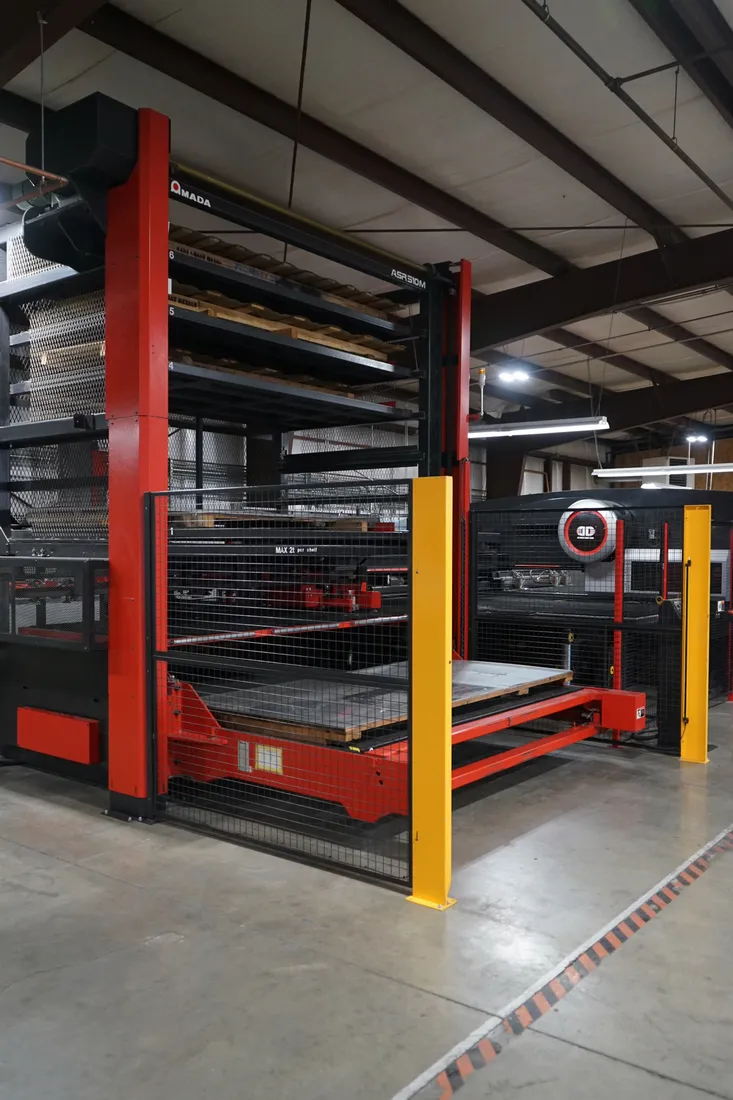

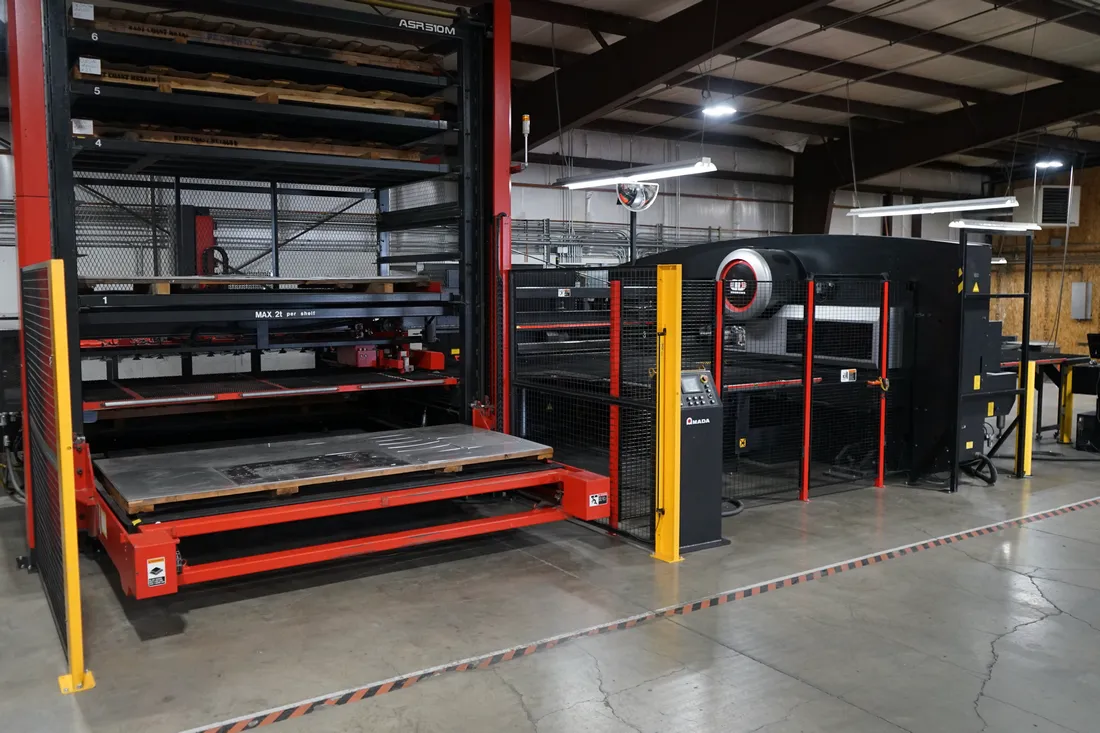

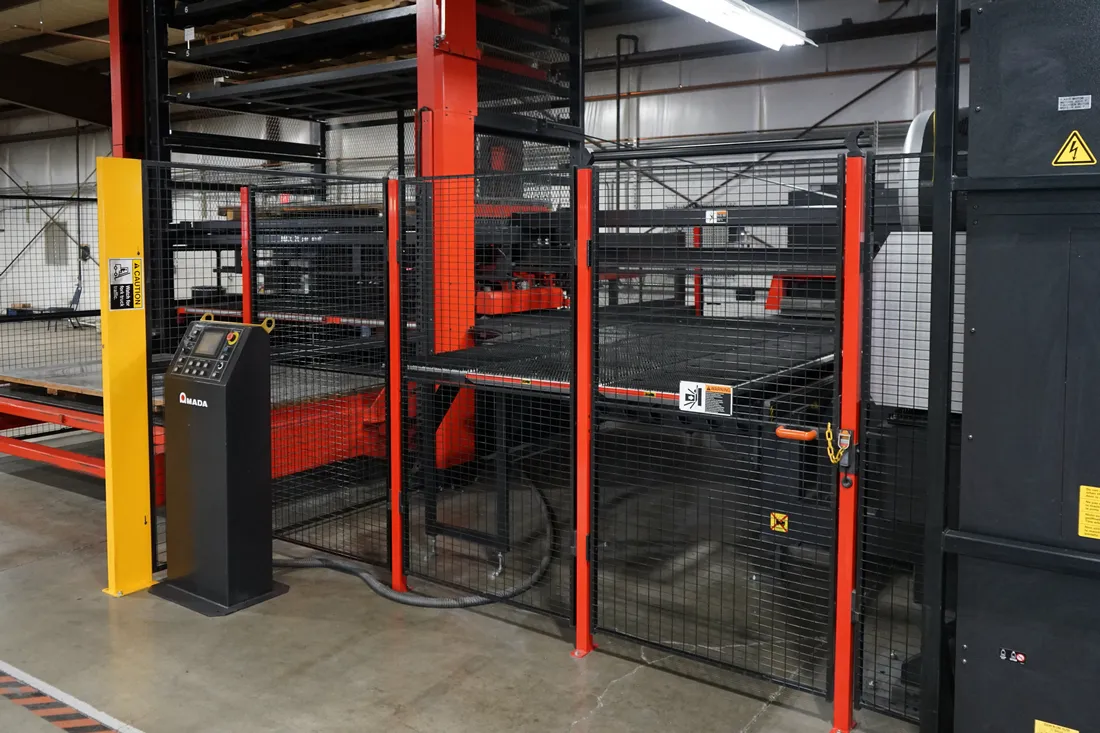

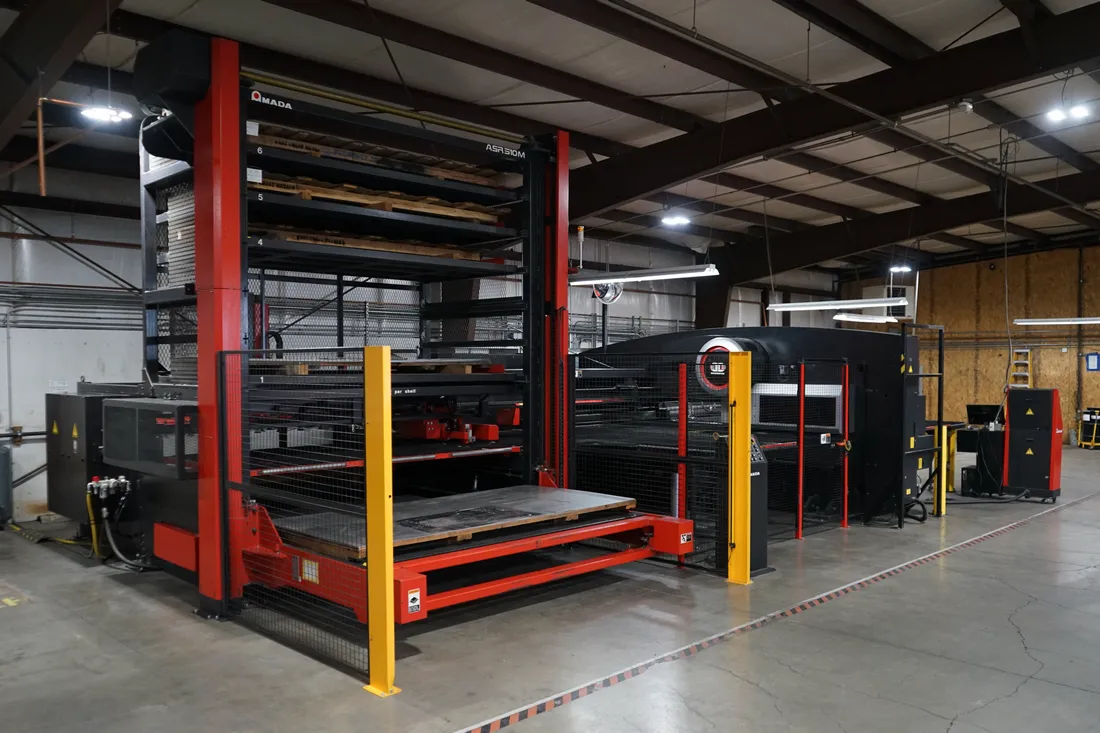

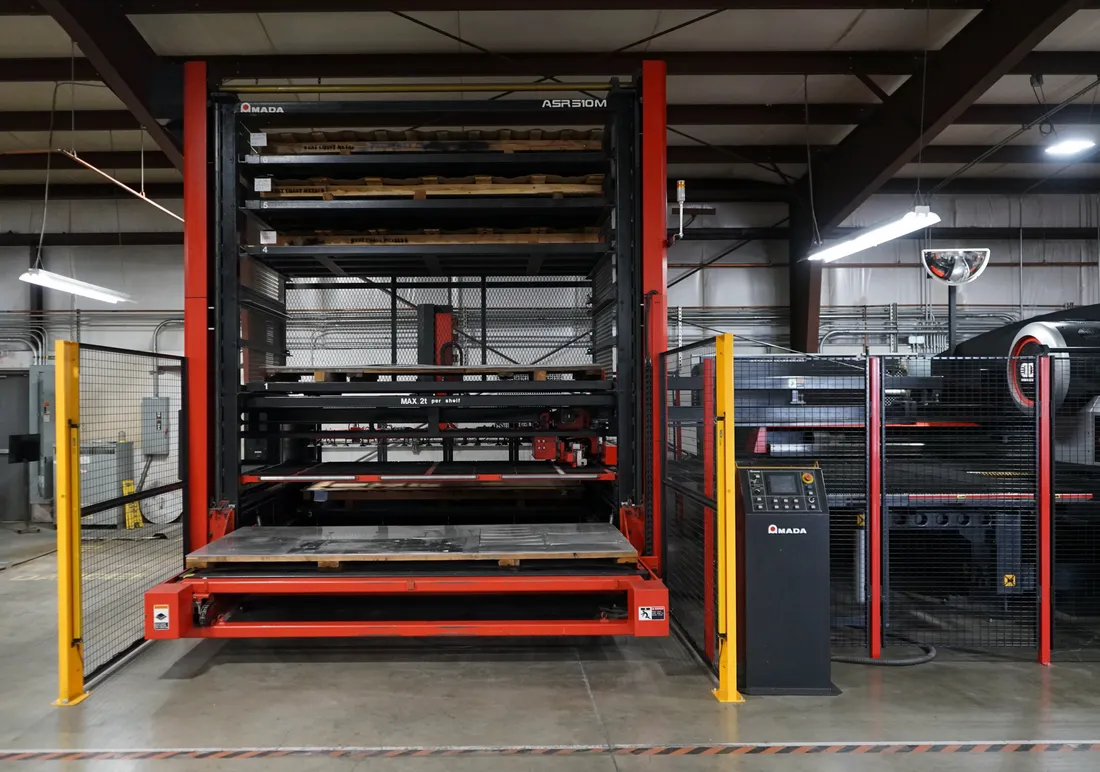

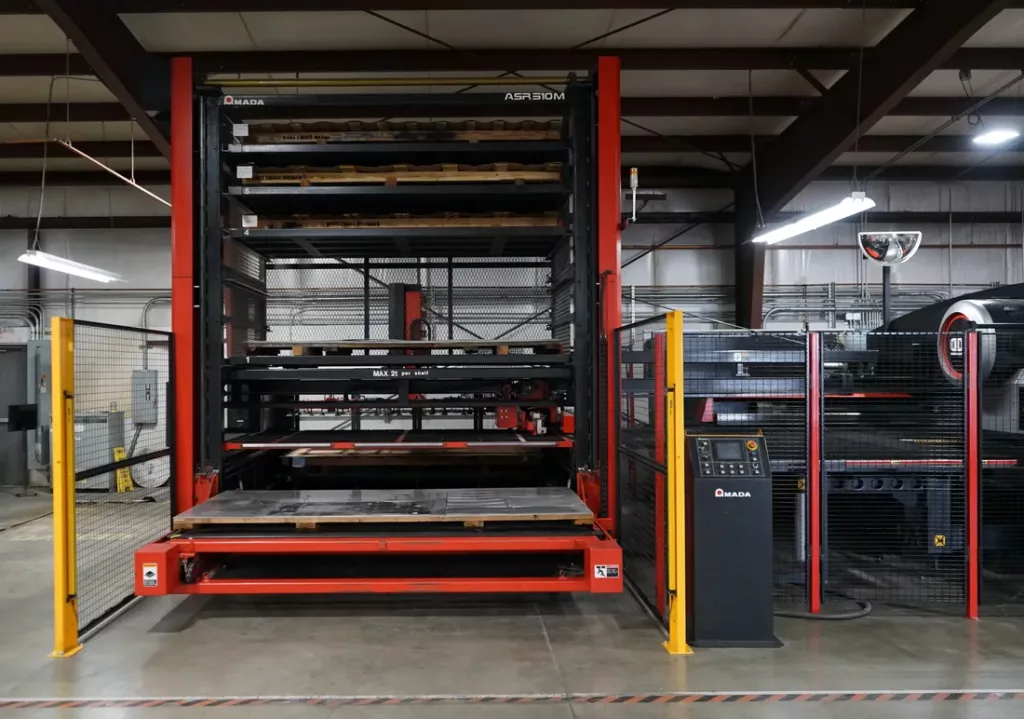

Loading Tower Included |
Motion Axis X / Y / TL / Z / B / T / C |
|

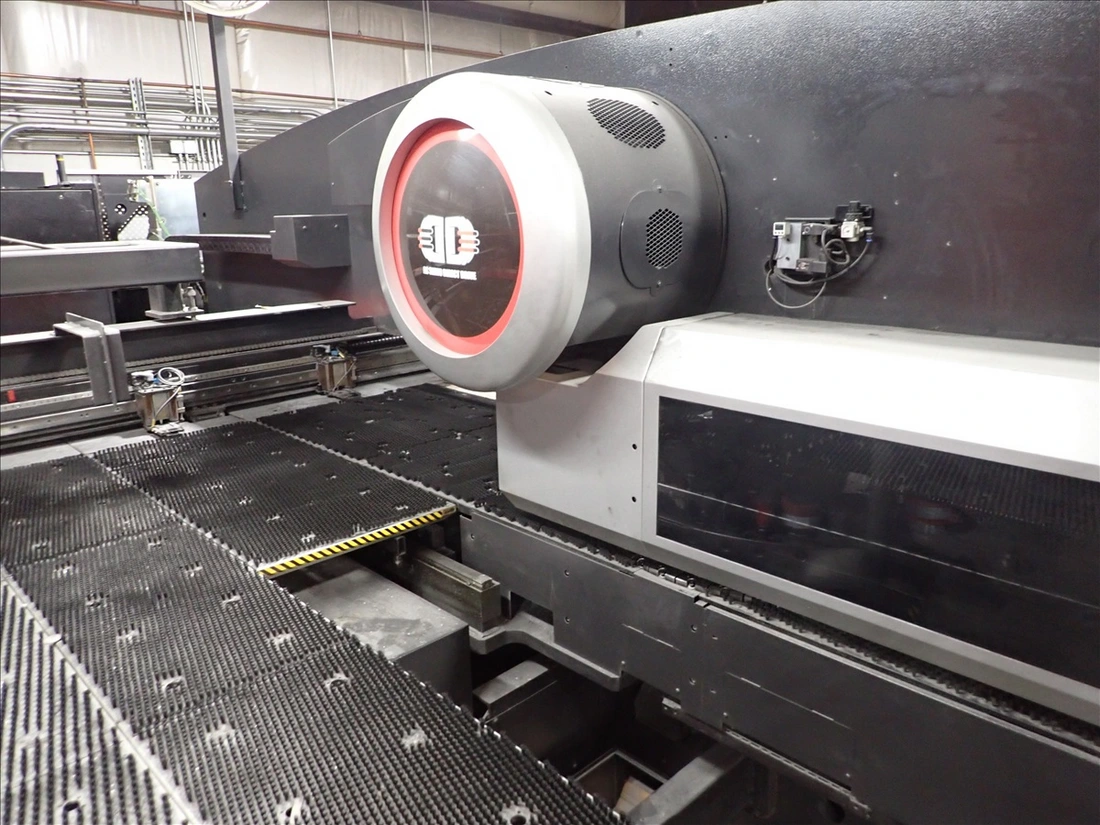

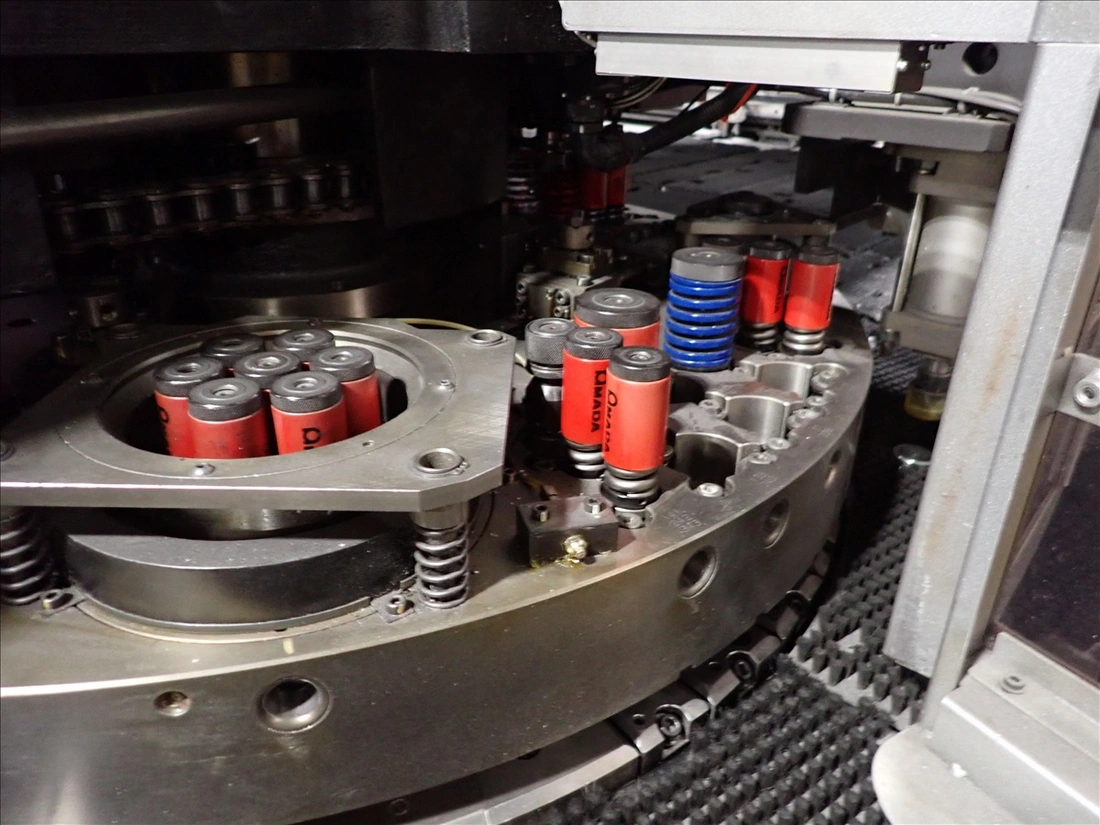

Turret Configuration 58-Station 4A/I King Turret |
Z Axis Sensor HS - 2003 |
