Year |
2014 |
|---|---|
Make |
Amada |
Model |
FOL-3015AJ |
Description |
5' x 10' 4kW CNC Fiber Laser |
Reference # |
8076513 |
Price |
Activate Pricing |

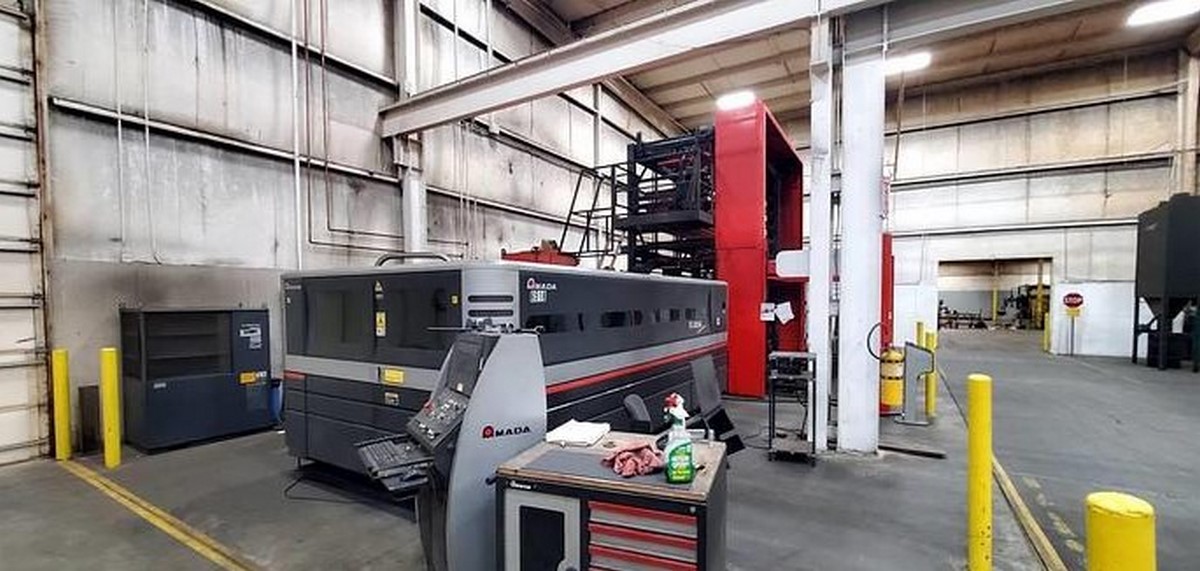

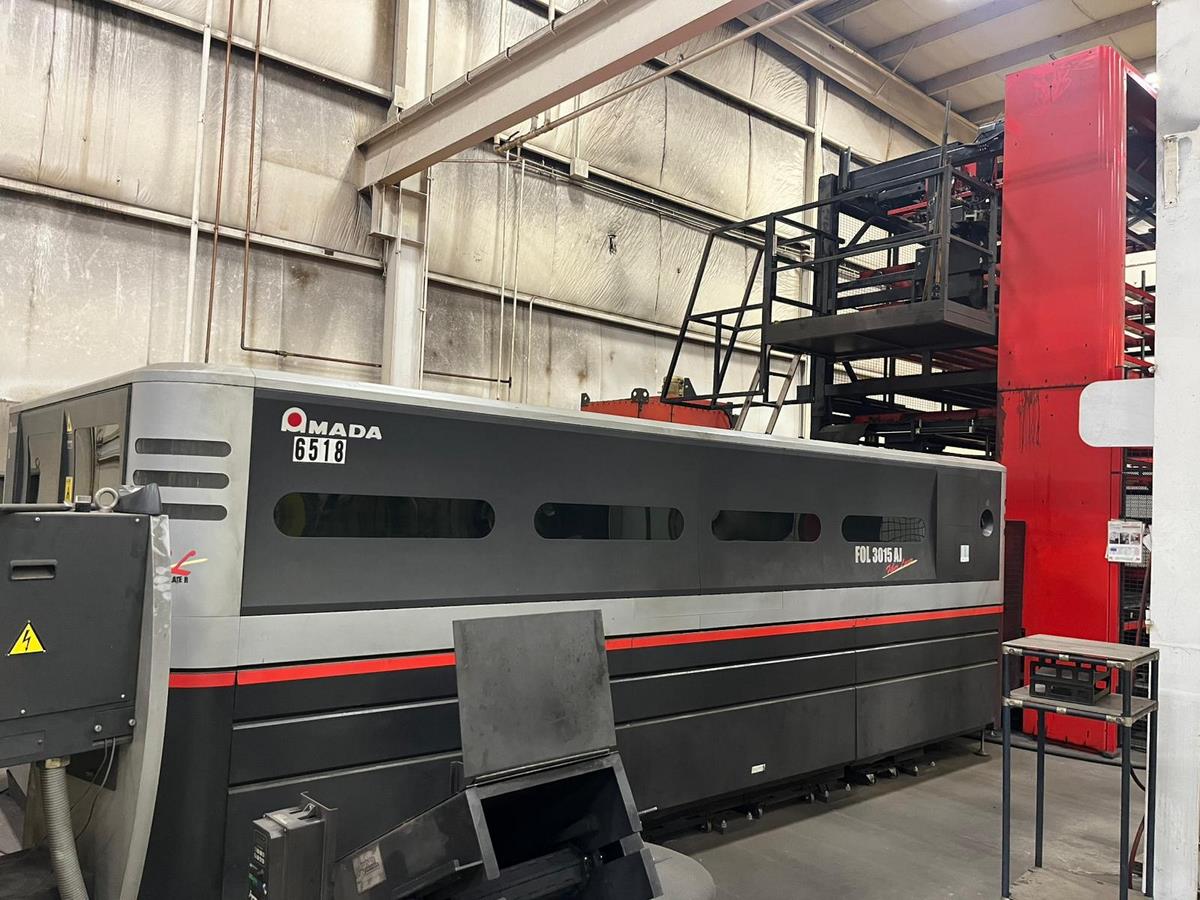

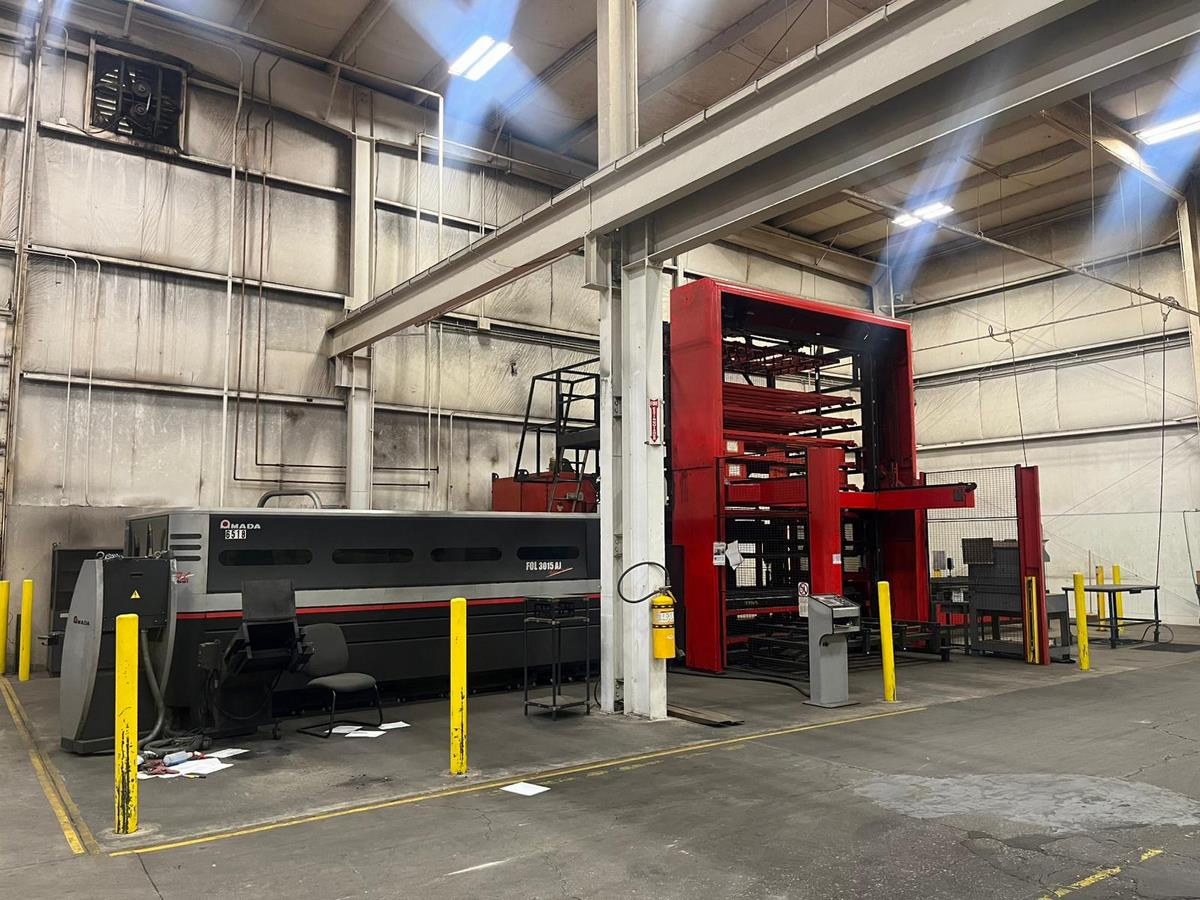

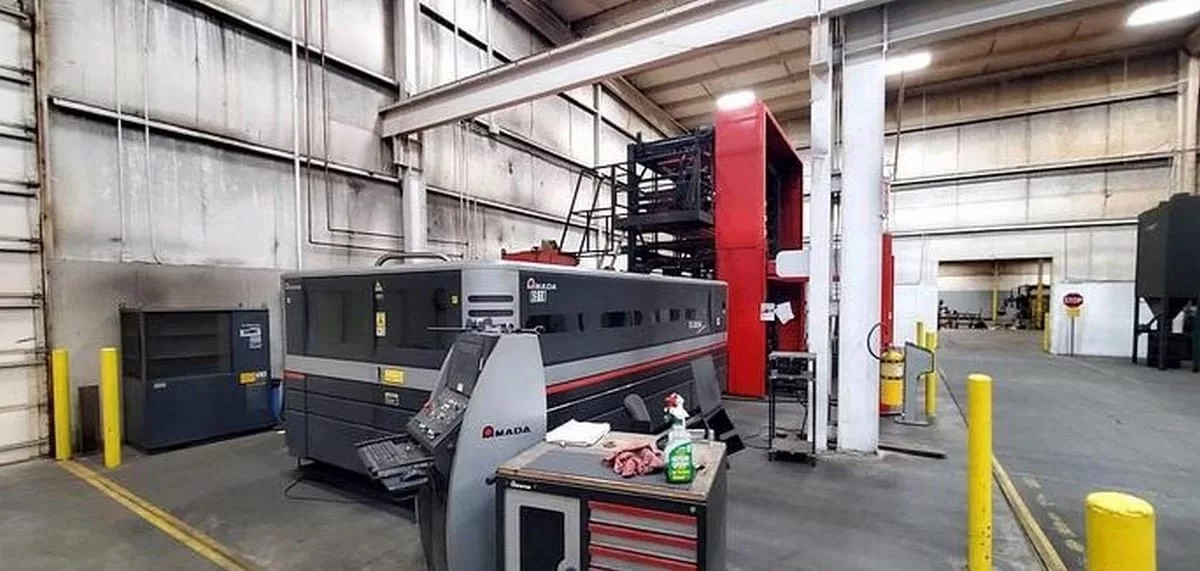

Used Amada FOL-3015AJ (2014) Laser for Sale. This fiber laser is rated at 4,000 max wattage and runs on an Amada AMNC-F CNC control. Table size is 5′ x 10′, with X-axis travel of 122″, Y-axis travel of 62″ and Z-axis travel of 3.93″. Maximum material thickness is .875″ mild steel, .709″ stainless, .0315″ aluminum and .315″ brass. Equipped with a chiller unit and dust collector; the AS-LUL 6-shelf tower load/unload system is not included. The machine weighs 31,500 lbs and measures 400″ x 118″ x 79″ H. It can be seen under power for an inspection. See more used laser cutting machines or browse our Amada inventory, click Activate Pricing, and Request a Quote.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
4,000 |
| X-Axis Travel |
122" |
| Y-Axis Travel |
62" |
| Z-Axis Travel |
3.93" |
| Control |

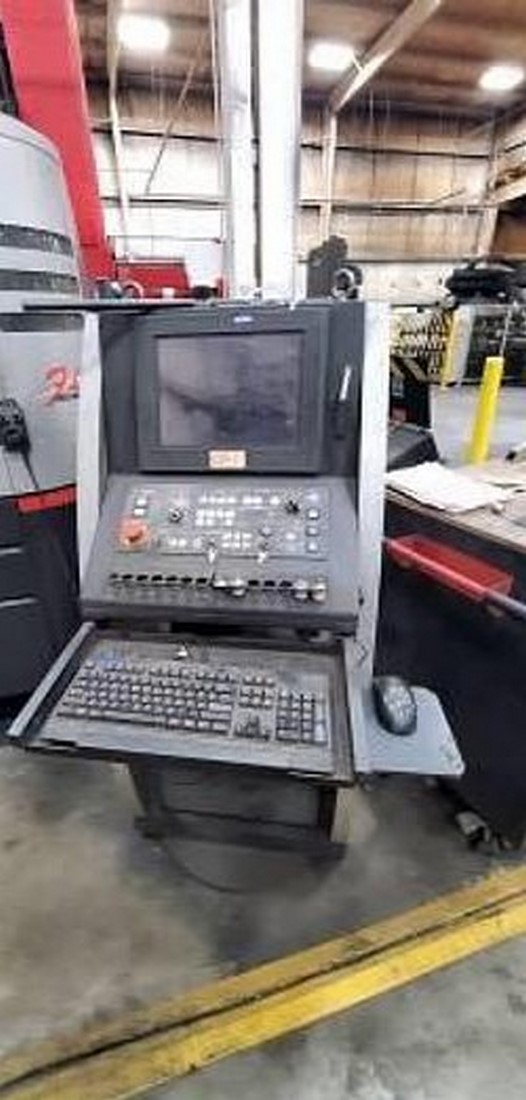

Amada AMNC-F CNC Control |
| Max. Material Thickness |
MS - .875", SS - .709", Aluminum - .0315", Brass - .315" |
| Weight |
31,500 Lbs |
| Dimensions |
400" x 118" x 79" H |
Features
|
AS-LUL 6-Shelf Tower Load/Unload System Not Included |

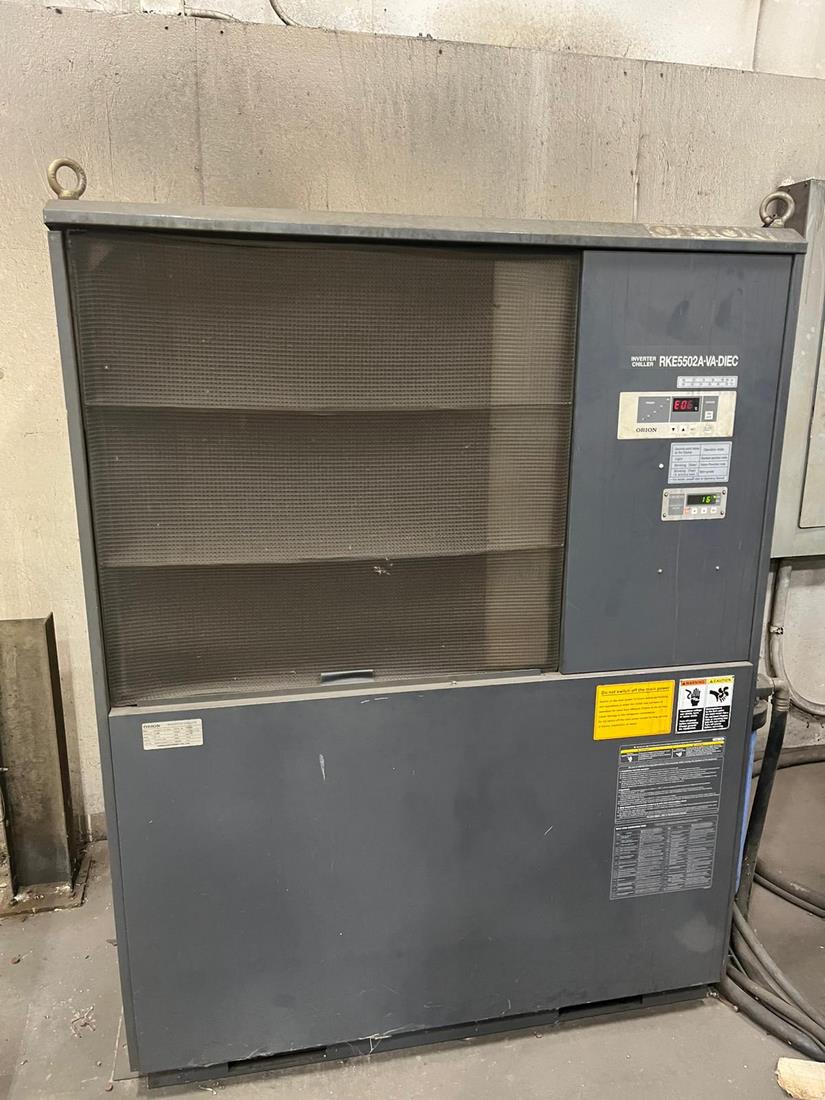

Chiller Unit |
|

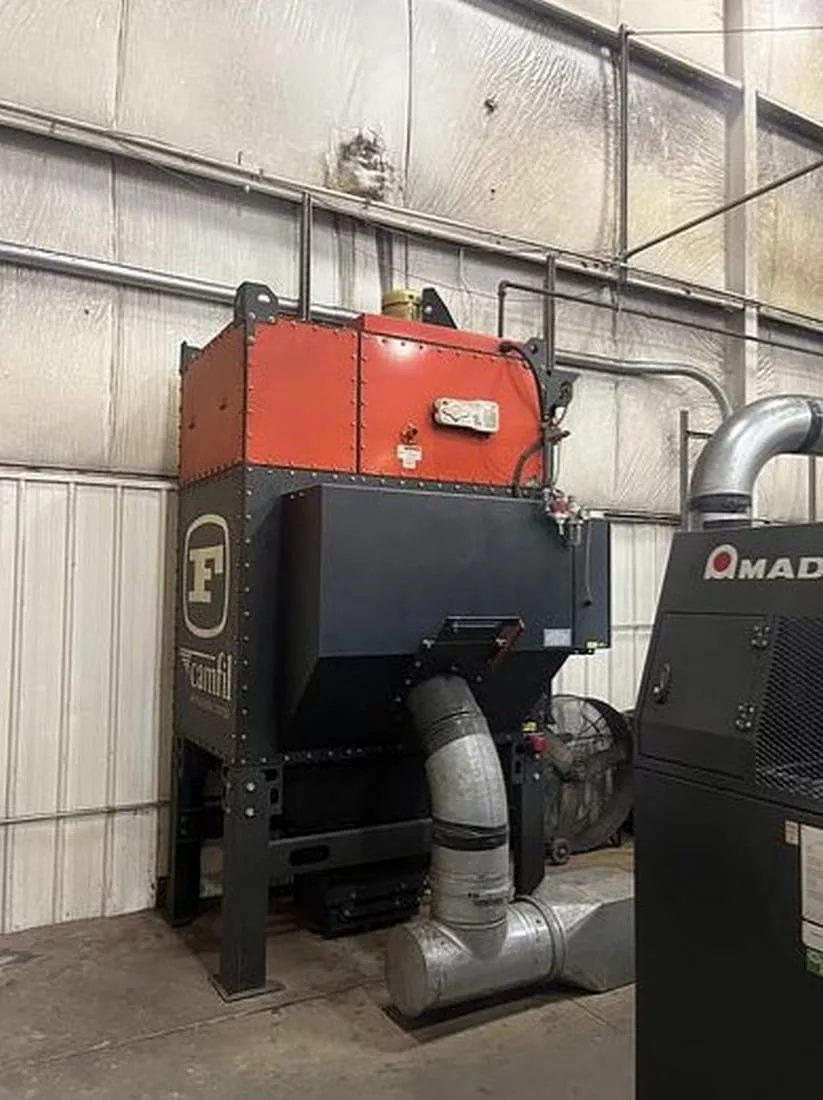

Dust Collector |
