Year |
2007 |
|---|---|
Make |
Amada |
Model |
Togu III |
Description |
CNC Grinder |
Reference # |
8078921 |
Price |
Activate Pricing |

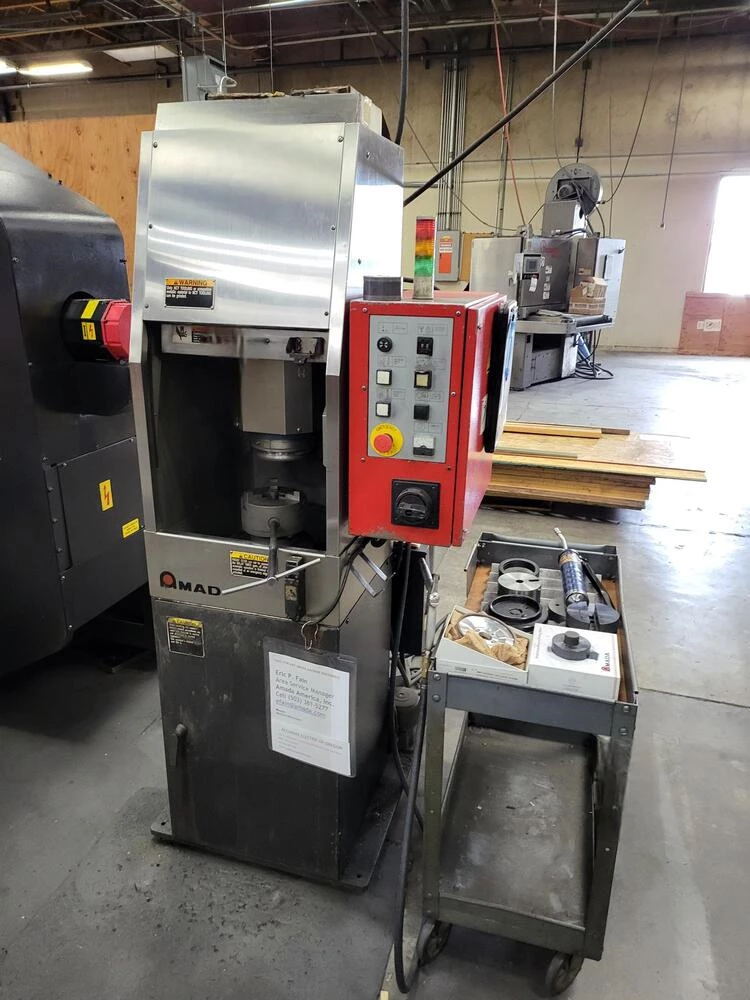

Amada Togu III
Specifications
| Grinding Wheel |
CBN 5.31 |
|---|---|
| Diameter Tool Size (Max) |
6.30 |
| Grinding (Max) |
0.039 |
| Main Axis Motor |
2 HP 2 P |
| Main Axis Rotation Speed |
3000 RPM (60Hz) |
| Main Axis Travel |
9.45" |
| Main Axis Feed Motor |
DC Servo 0.05 HP |
| Main Axis Feed Speed-High |
23.6 IPM |
| Main Axis Feed Speed-Middle |
2.36 IPM |
| Main Axis Feed Speed-Low |
0.002 IPM |
| Table Motor |
0.134 HP 4P |
| Table Rotation Speed |
72 RPM (60Hz) |
| Cooling Water Pump Motor |
0.08 HP 2P |
| Cooling Water Pump Motor Flow |
0.9 CFM (60HZ) |
| Power Supply |
AC 220 V 3Phase 2.5kVA |
| Air Supply |
60 CFM |
| Approx Dimensions (L x W x H) |
32.7″ x 25.6″ x 73.3″ |
| Machine Weight |
1058 Lbs |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
