Year |
1992 |
|---|---|
Make |
LVD Strippit |
Model |
1250H/20 |
Description |
33 Ton Turret Punch |
Reference # |
8077616 |
Price |
Activate Pricing |

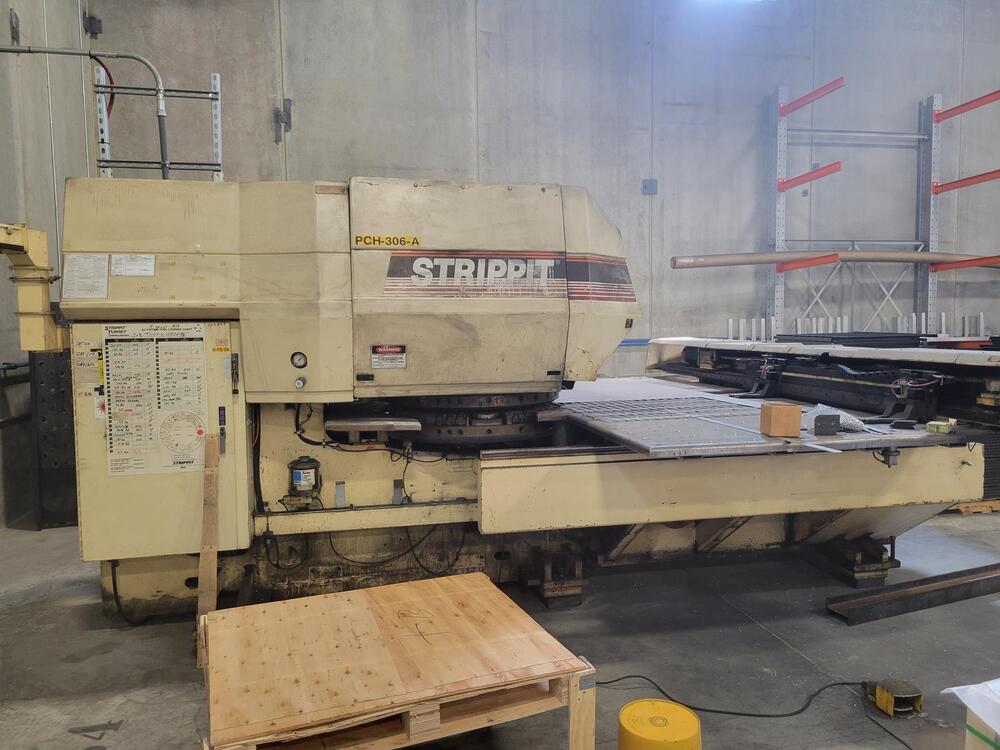

Used LVD Strippit 1250H/20 (1992) Turret Punch for Sale. This machine carries a 33 ton capacity and handles a maximum sheet size of 60.5″ x 160″, with 53″ of X-axis travel, 82″ of Y-axis travel and a 50″ throat depth. Control is Fanuc O-P. The 42-station turret uses thick style tooling. Material thickness is rated to .375″ mild steel, with maximum hole sizes of 1 1/8″ at .375″, 1 5/8″ diameter at .250″, 3 1/2″ diameter at .135″ and 4 1/2″ diameter at .090″. Accuracy is +/- .004″ and axis speed runs up to 2500 IPM. Performance is listed at 250 S.P.M. for a 1″ move in .062″ material and 415 S.P.M. for a .062″ move in .030″ material. The machine can be seen under power for an inspection. See more used turret punches or Request a Quote.
Specifications
| Capacity |
33 Ton |
|---|---|
| Max Sheet Size |
60.5" x 160" |

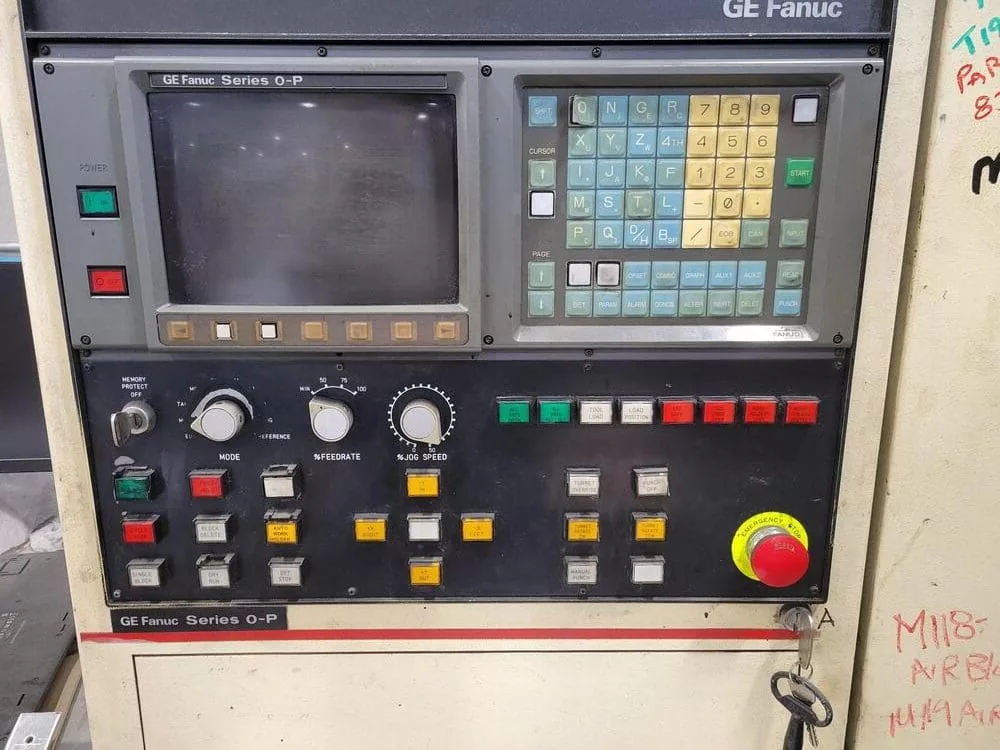

| Control |
Fanuc O-P |
| Turret Stations |
42 |
| X-Axis Travel |
53" |
| Y-Axis Travel |
82" |
| Throat Depth |
50" |
| Type of Turret Tooling |
Thick Style |
| Material Thickness |
.375" Mild Steel |
| Capacity @ .375" Max Hole Size |
1 1/8" |
| Capacity @ .250" Max Hole Size |
1 5/8" Dia |
| Capacity @ .135" Max Hole Size |
3 1/2" Dia |
| Capacity @ .090" Max Hole Size |
4 1/2" Dia |
| Accuracy |
+/- .004" |
| Axis Travel |
0.82" x 53" |
| Performance |
1" Move - .062 Material - 250 S.P.M. / .062" Move - .030" Material - 415 S.P.M. |
| Axis Speed |
Up To 2500 IPM |
