Year |
1998 |
|---|---|
Make |
Trumpf |
Model |
Trumatic 200 |
Description |
20 Ton Turret Punch |
Reference # |
8078947 |
Price |
Activate Pricing |

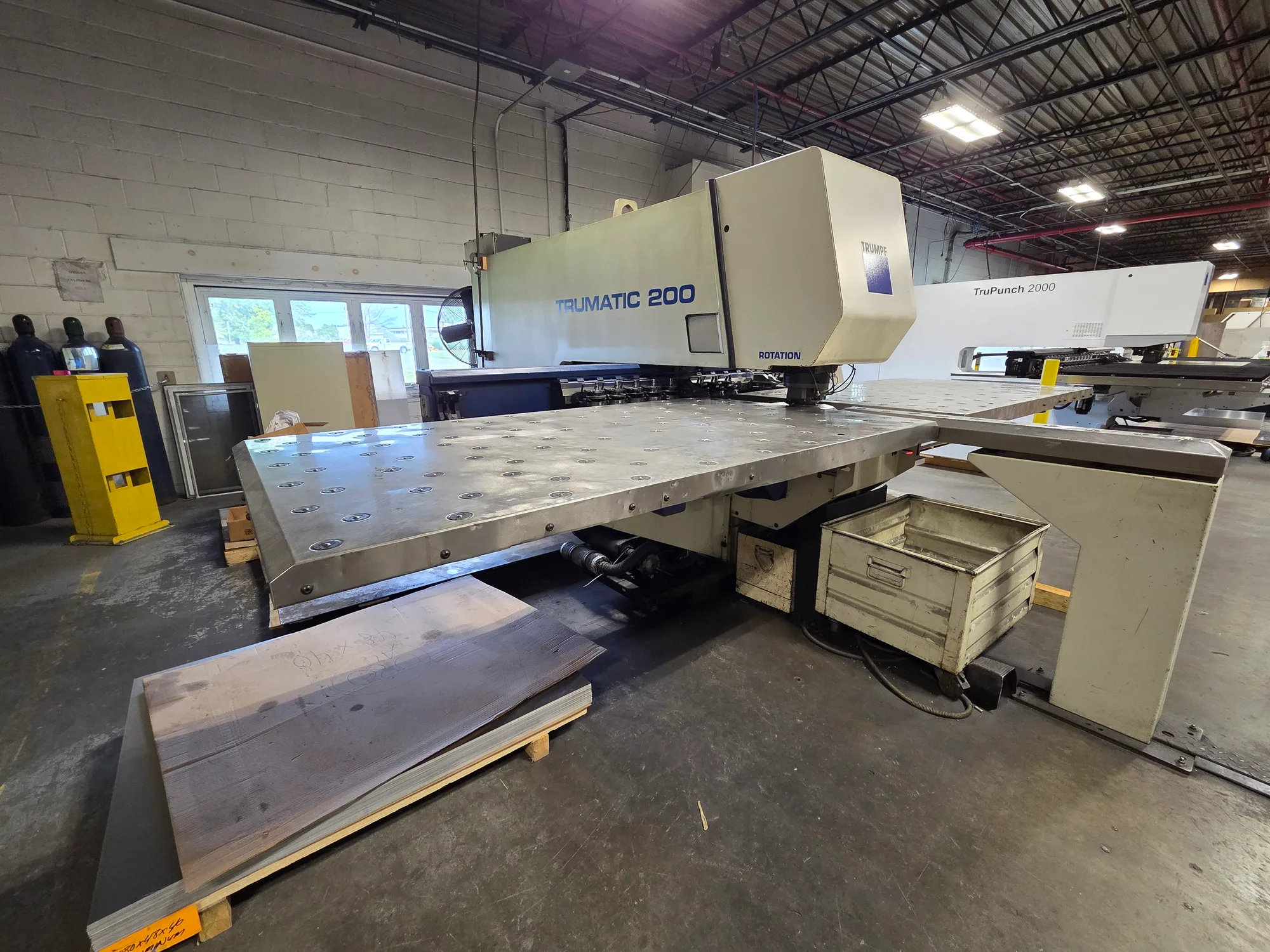

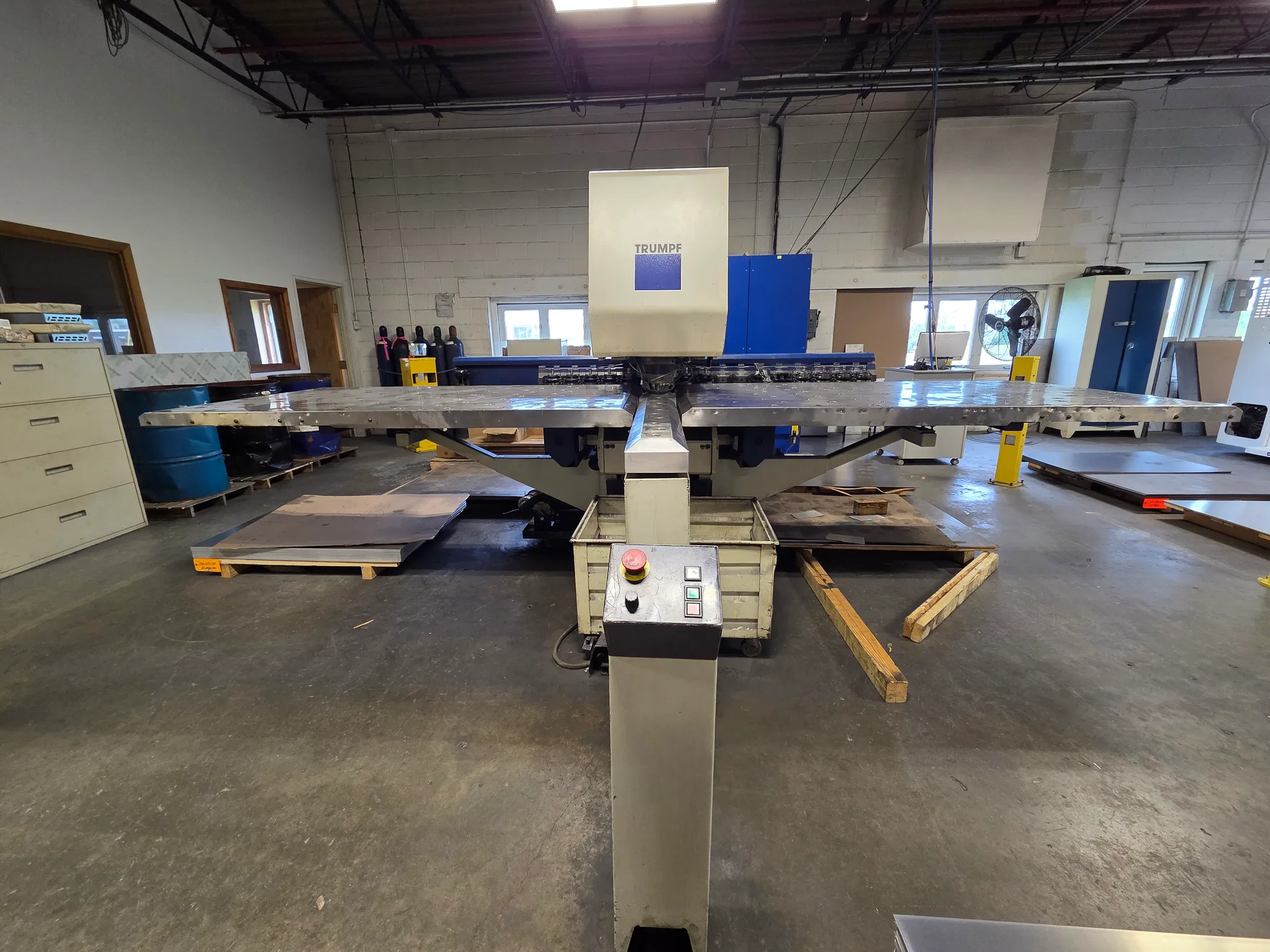

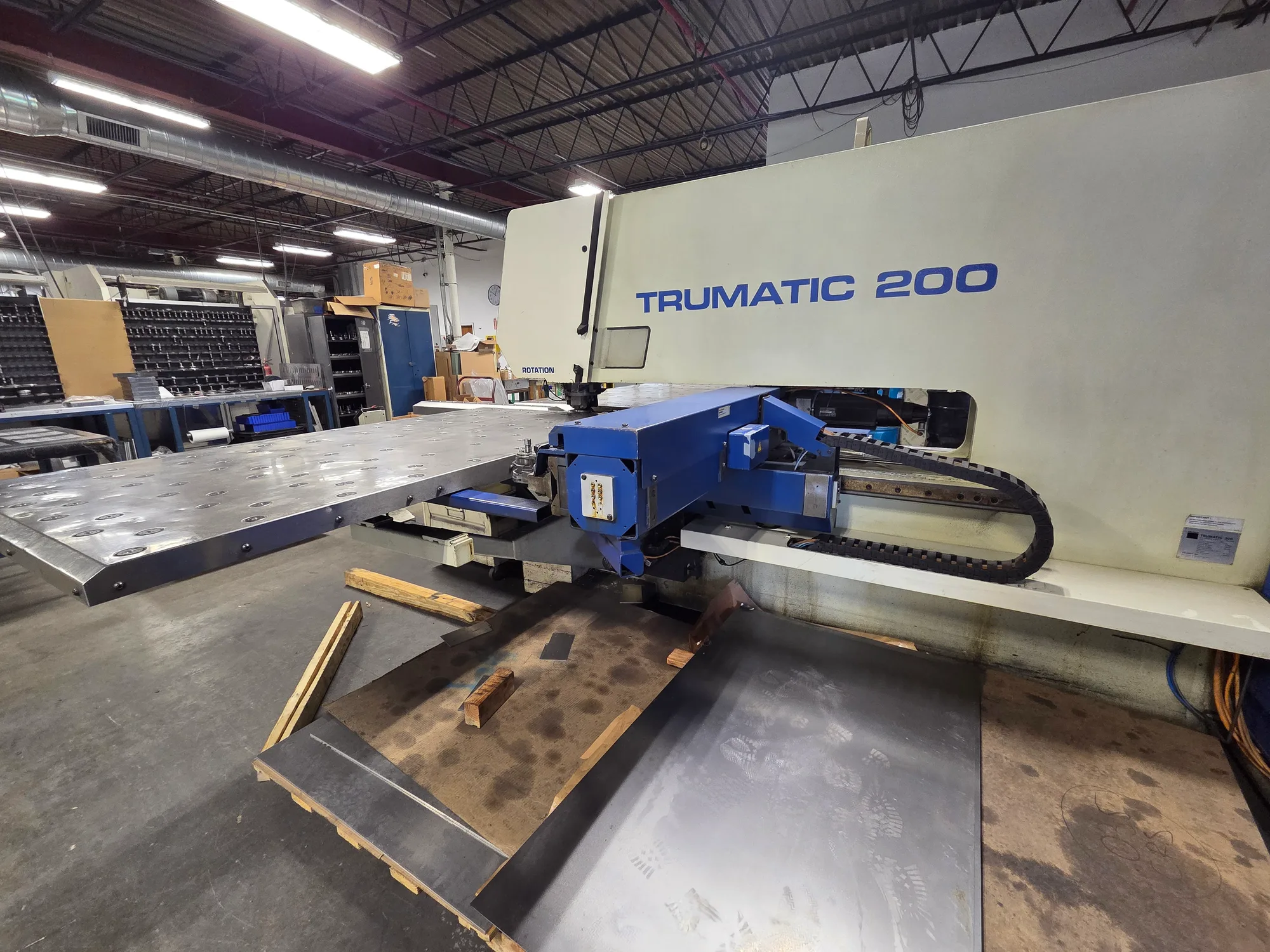

Used Trumpf Trumatic 200 (1998) Turret Punch for Sale. This machine offers 20 ton punching capacity with a maximum sheet thickness of .250″ and a maximum punch diameter of 3″. Sheet size is 4.2′ x 6.8′, with X-axis travel of 81.5″, Y-axis travel of 50.4″, a 9.45″ throat depth and 50.4″ sheet width. Control is a Bosch Trumagraph CC220 CNC, and the machine is equipped with a 15-station automatic tool-change turret, programmable punch-head rotation, and a support table with programmable shoot. Power requirement is 460V/60Hz, approximate machine weight is 17,600 lbs., and maximum workpiece weight is 330 lbs. The machine can be seen under power for an inspection. Compare it against our other used turret punches and used Trumpf machines, then Activate Pricing or use the Inquire Now button.
Specifications
| Capacity |
20 Ton |
|---|---|
| Sheet Size |
4.2' x 6.8' |

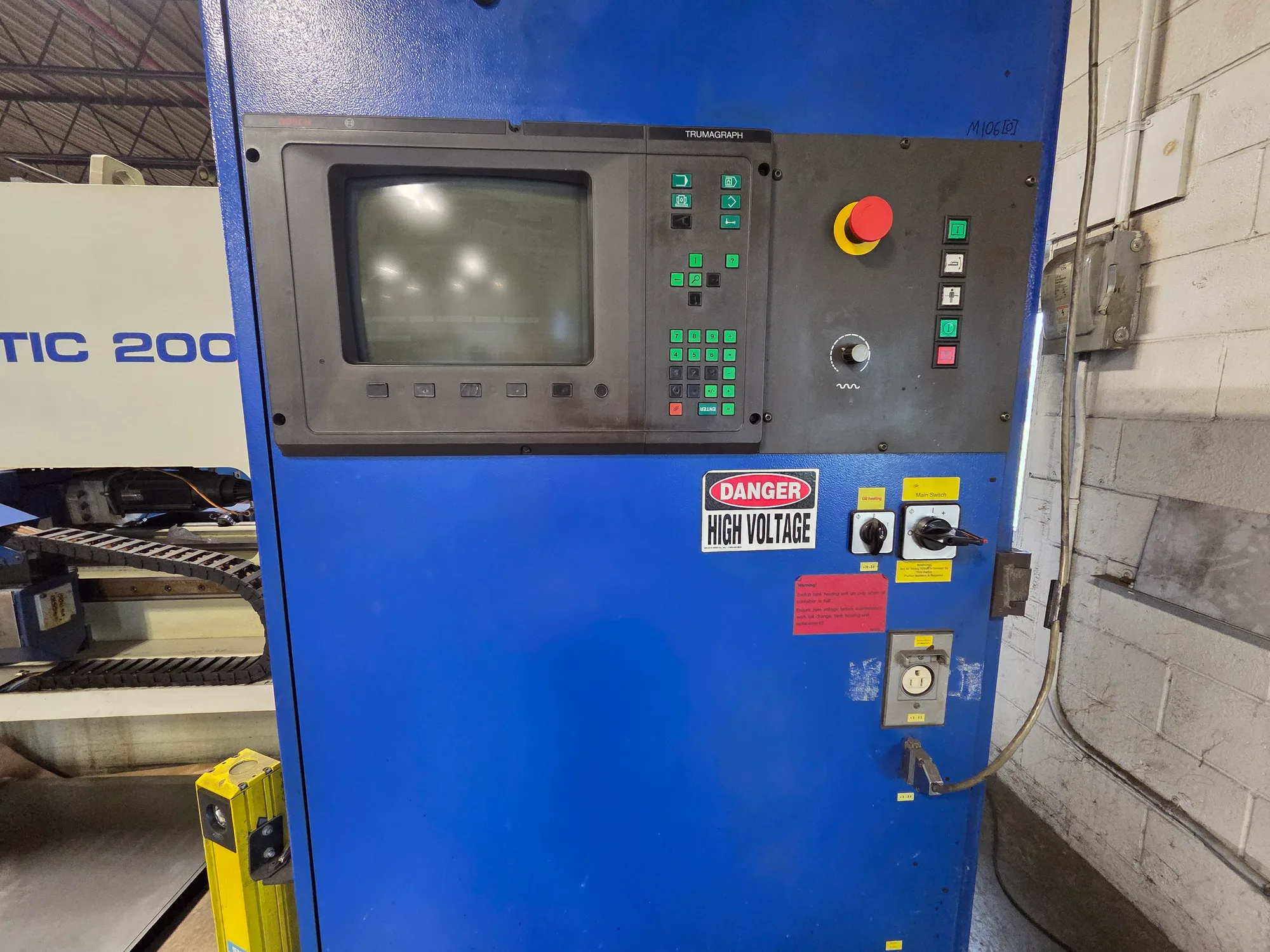

| Control |
Bosch Trumagraph CC220 CNC |
| Turret Stations |
15 stations |
| Travels |
X-Axis: 81.5" Y-Axis: 50.4" |
| Throat Depth |
9.45" |
| Sheet Width |
50.4" |
| Punching Capacity |
20 TONS |
| Power Requirement |
460V/60Hz |
| Approx Machine Weight |
17600 lbs. |
| Max Workpiece Weight |
330 lbs. |
| Max Sheet Thickness |
.250" |
| Max Punch Diameter |
3" |
Features
|
15-Station Automatic Tool-Change Turret |
Bosch Trumagraph CC220 CNC control |
|
Programmable Punch-Head Rotation |
Support Table with Programmable Shoot |
