Year |
2019 |
|---|---|
Make |
Amada |
Model |
EMK 3612M2 |
Description |
33 Ton Turret Punch |
Reference # |
8078174 |
Price |
Activate Pricing |

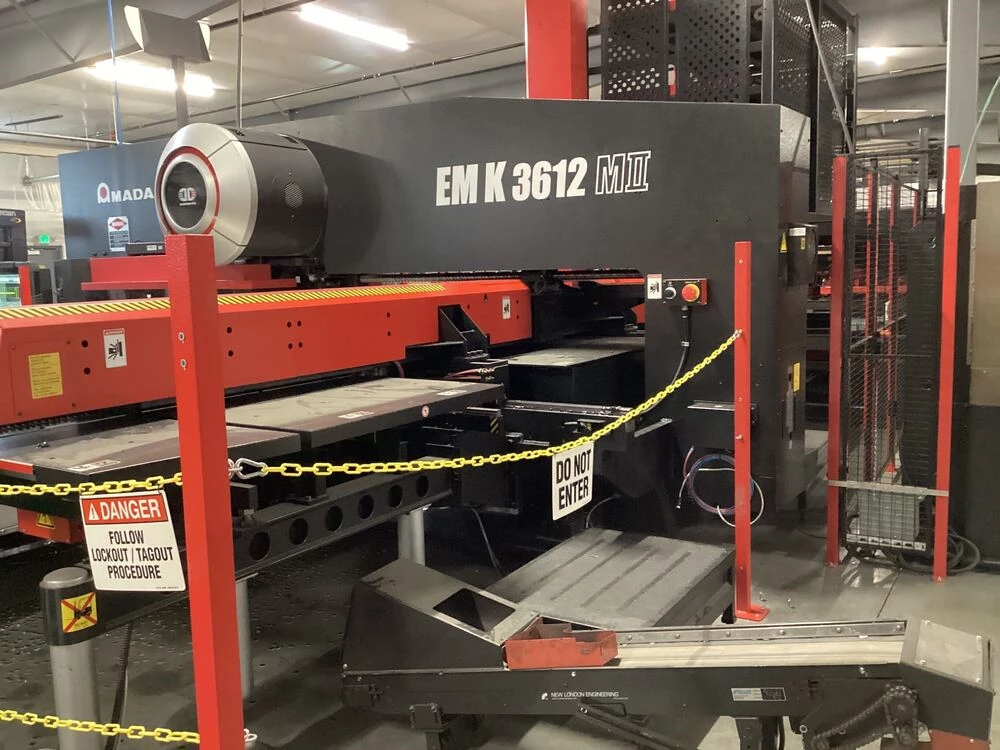

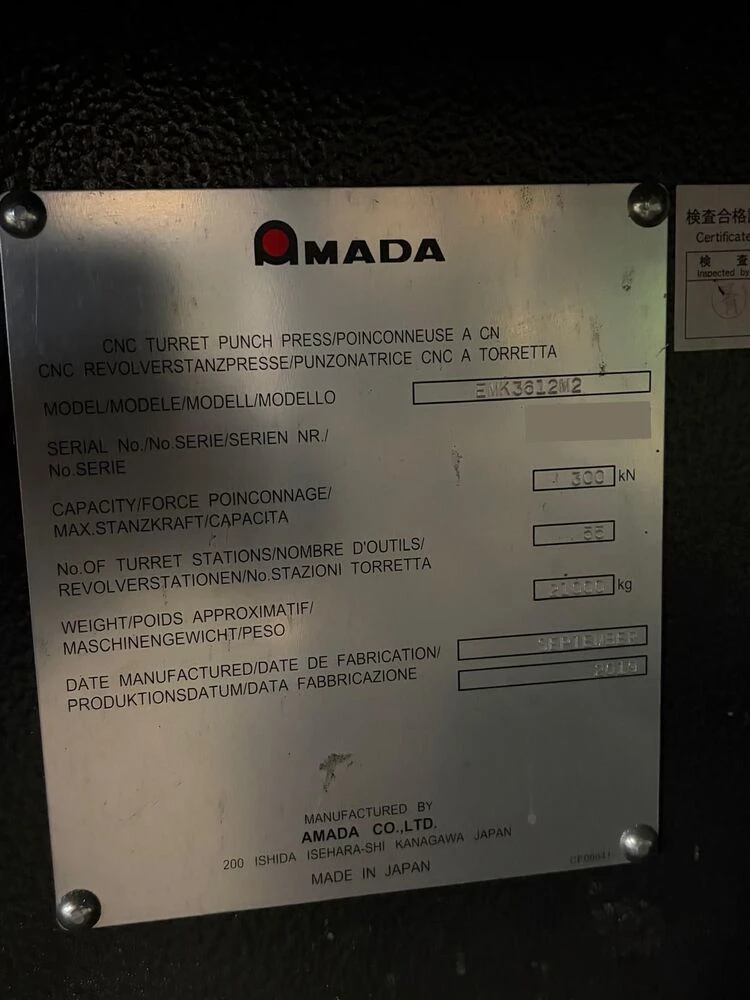

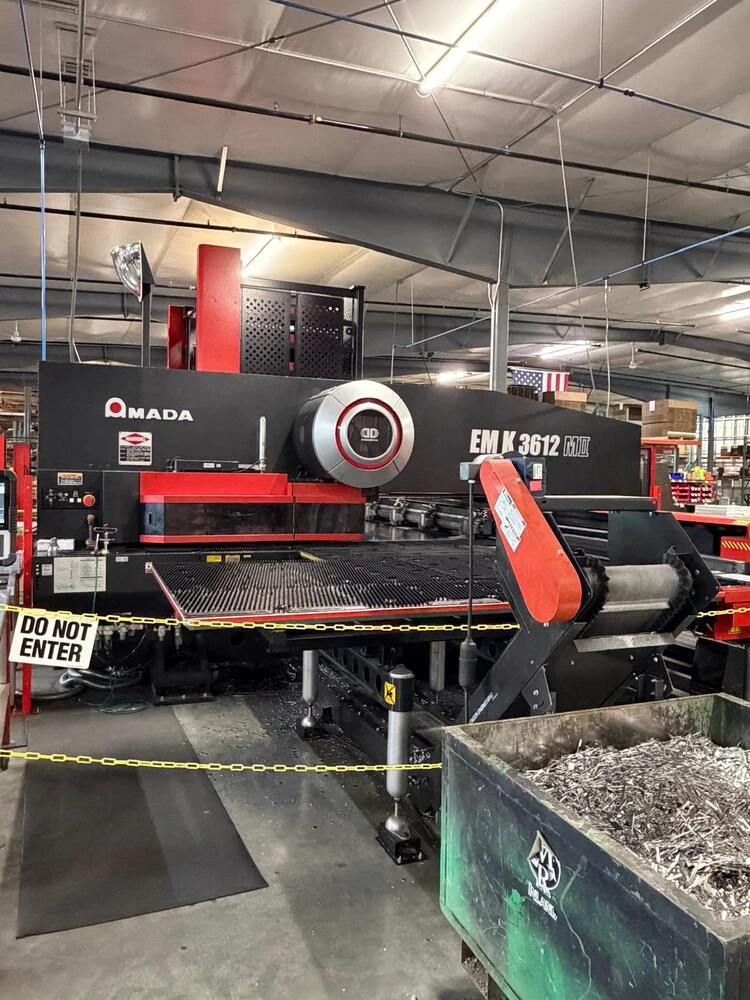

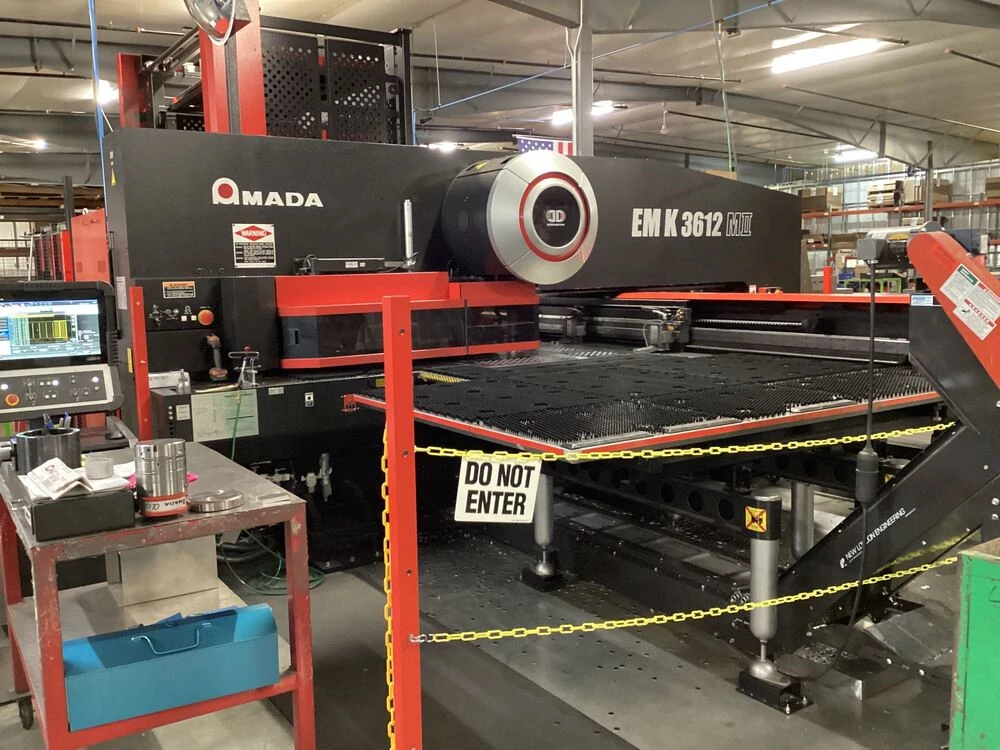

Used Amada EMK 3612M2 (2019) Turret Punch for Sale. This machine offers 33 ton capacity, 60″ sheet width and 240″ sheet length with one reposition, with 120″ of X-axis travel and 60″ of Y-axis travel. The 55 station turret rotates at 30 RPM, with .984″ feed clearance, 1.45″ stroke length and a maximum sheet thickness of .187″. Punching hit rates run 500 HPM on X and 300 HPM on Y, nibbling 745 HPM on X and 410 HPM on Y, and marking 1,800 HPM. Control is the Amada AMNC/PC. Equipped with an ASR3015N-6 Amada 6-shelf material storage load/unload system, power vacuum slug system, twin servo drives and brush table. Machine weight is 46,200 lbs. Available to be seen under power for inspection. See more Amada equipment and used turret punches, then Activate Pricing or Request a Quote.
Specifications
| Capacity |
33 Ton |
|---|---|
| Sheet Width |
60" |
| Sheet Length |
240 (With One Reposition) |
| X-Axis Travel |
120" |
| Y-Axis Travel |
60" |

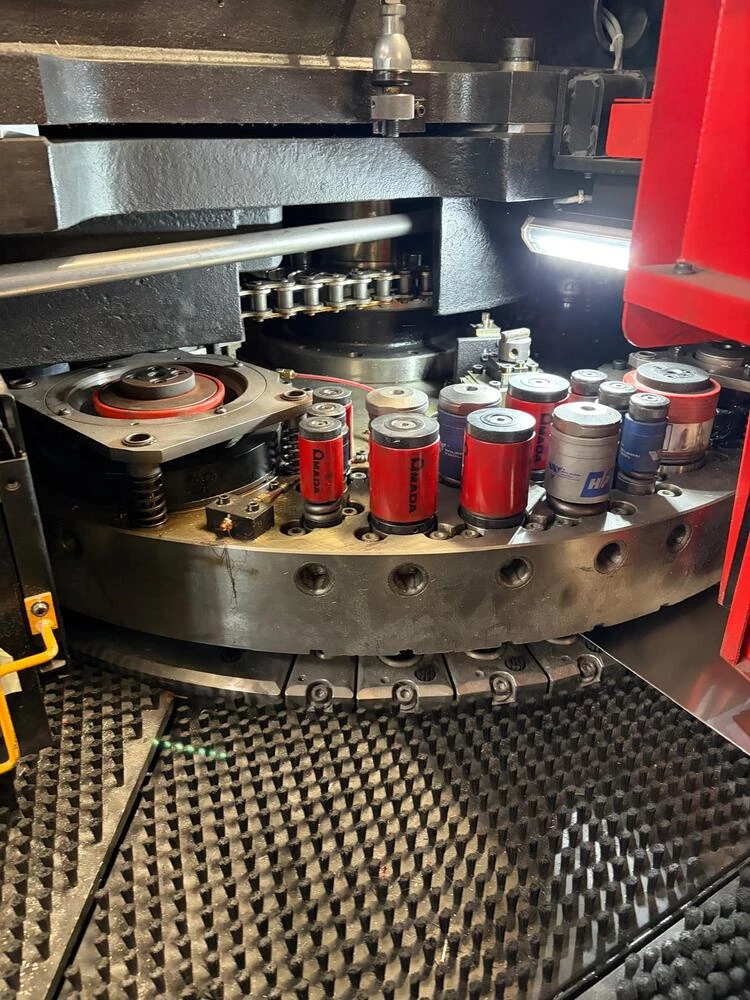

| Turret Stations |
55 Station |
| Feed Clearance |
.984" |
| Stroke Length |
1.45" |
| Max Sheet Thickness |
.187" |
| Punching Hit Rate (1" Pitch, 0.2" Stroke) |
X - 500 HPM / Y - 300 HPM |
| Nibbling Hit Rate (.080" Pitch, 0.2" Stroke) |
X - 745 HPM / Y - 410 HPM |
| Hit Rate Marking (0.197" Pitch, 0.55" Stroke) |
1,800 HPM |
| Turret Rotation Speed |
30 RPM |

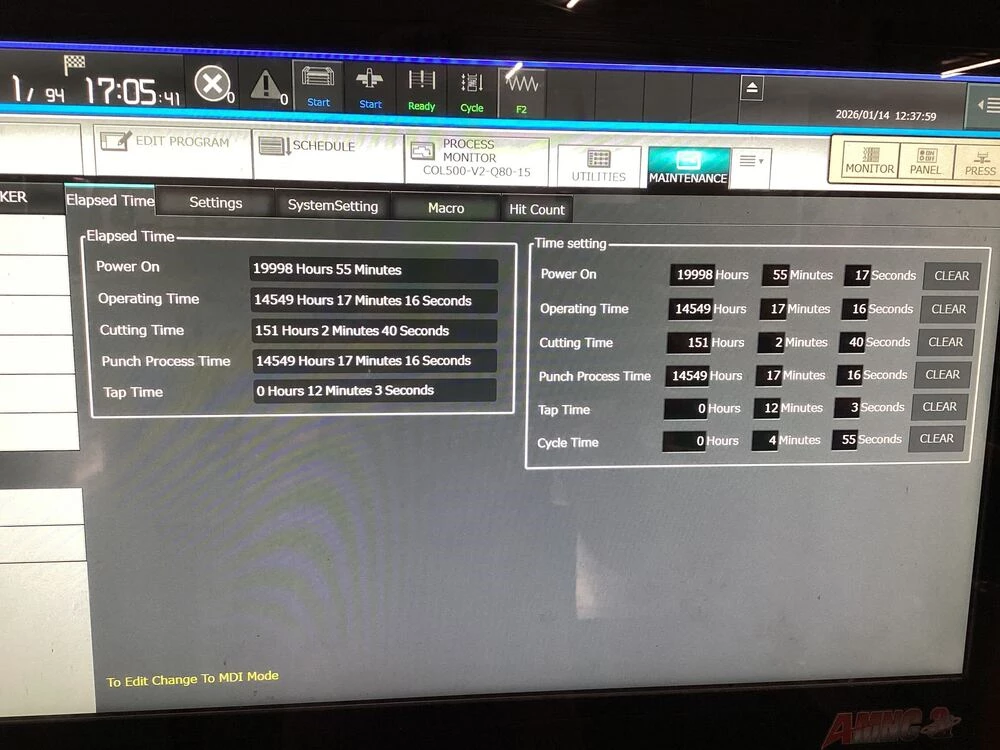

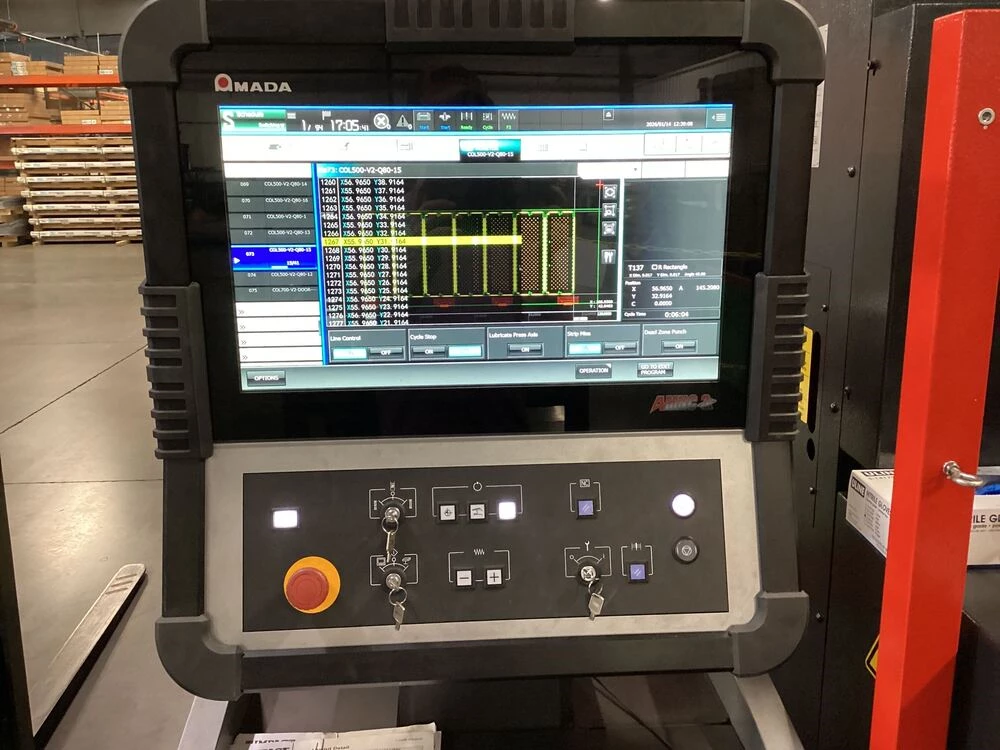

| Control |
Amada AMNC/PC |
| Machine Weight |
46,200 Lbs |
Features
|

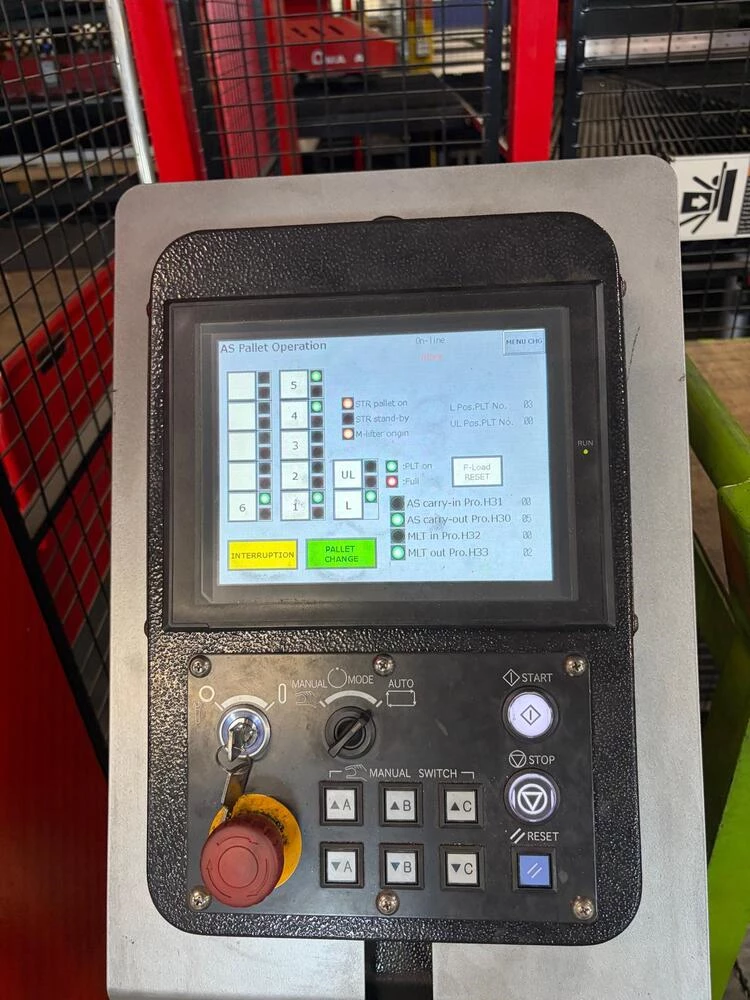

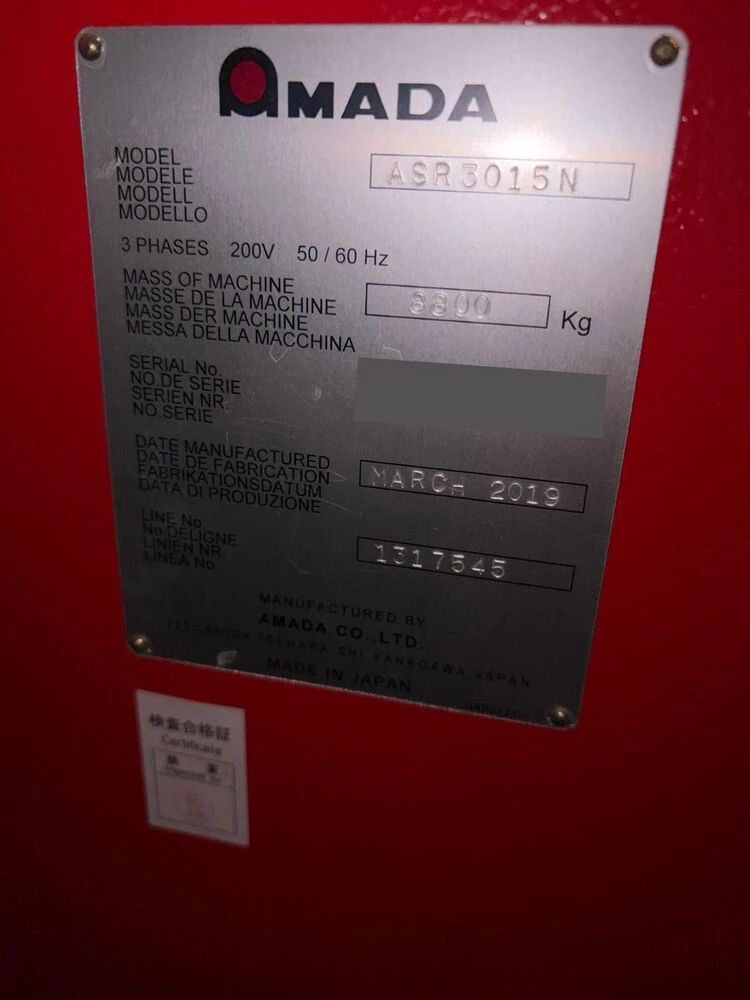

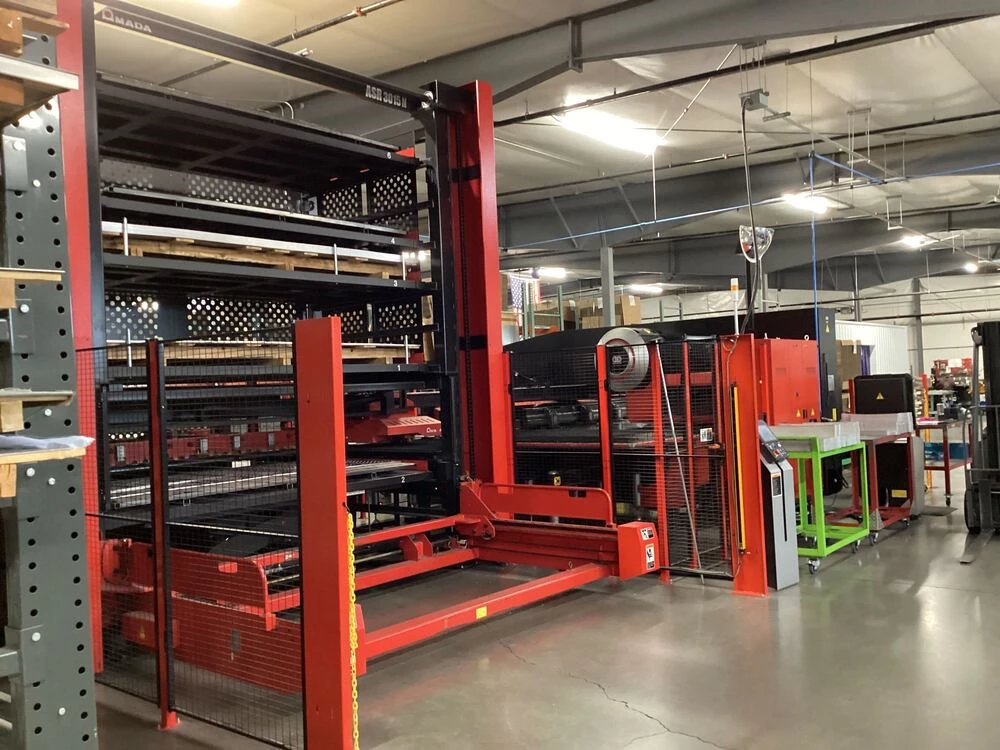

ASR3015N-6 Amada 6-Shelf Material Storage |
Load/Unload System |
|
Power Vacuum Slug System |

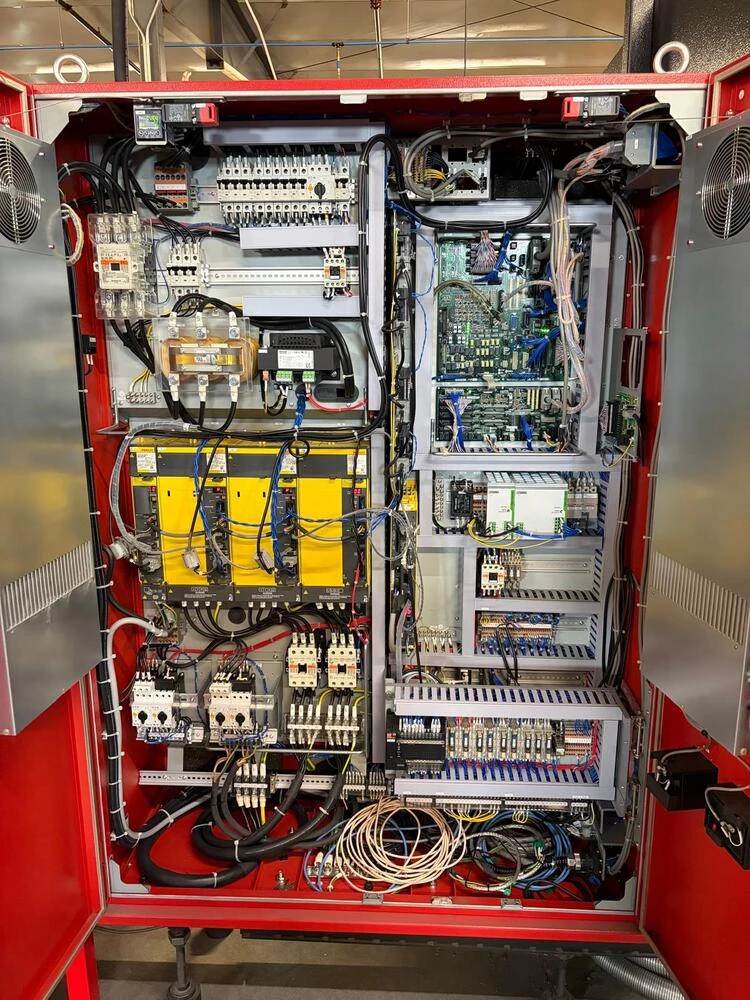

Twin Servo Drives |
|
Brush Table |
