Year |
2002 |
|---|---|
Make |
Murata |
Model |
Motorum-2044 |
Description |
22 Ton Turret Punch |
Reference # |
8072535 |
Price |
Activate Pricing |

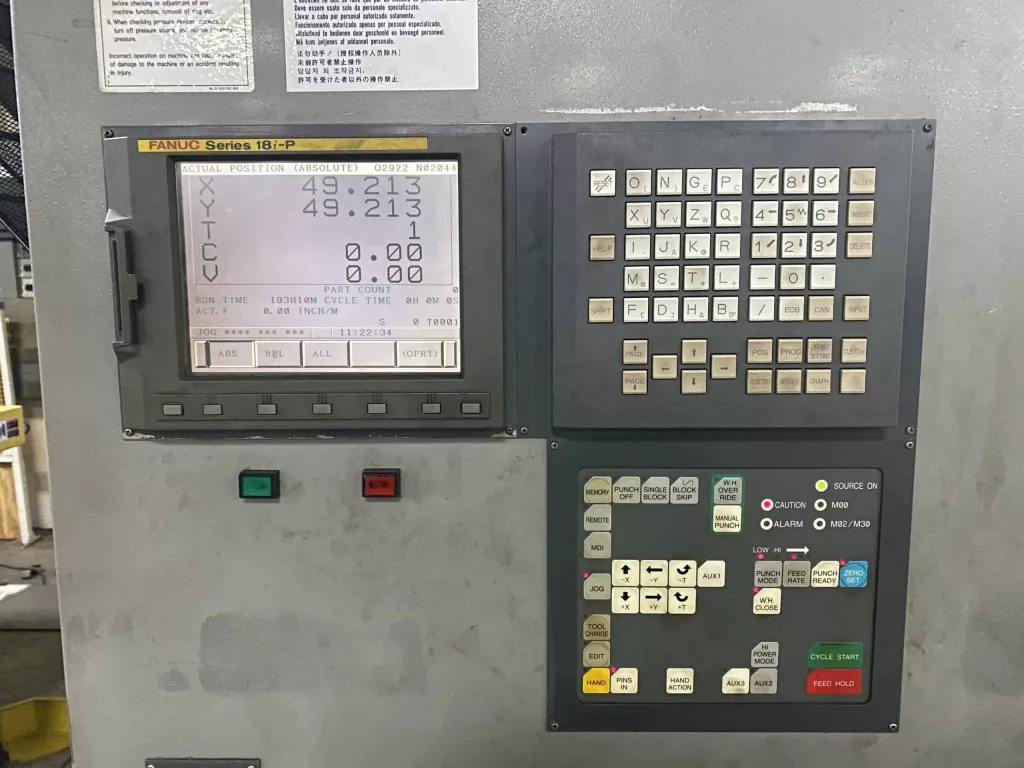

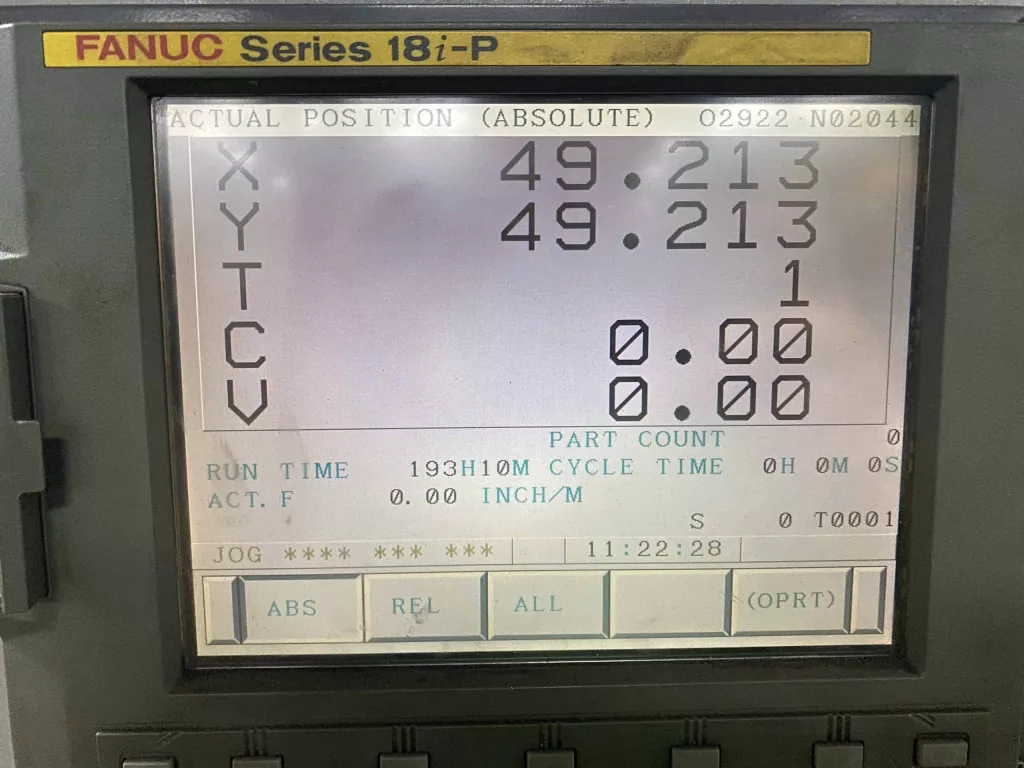

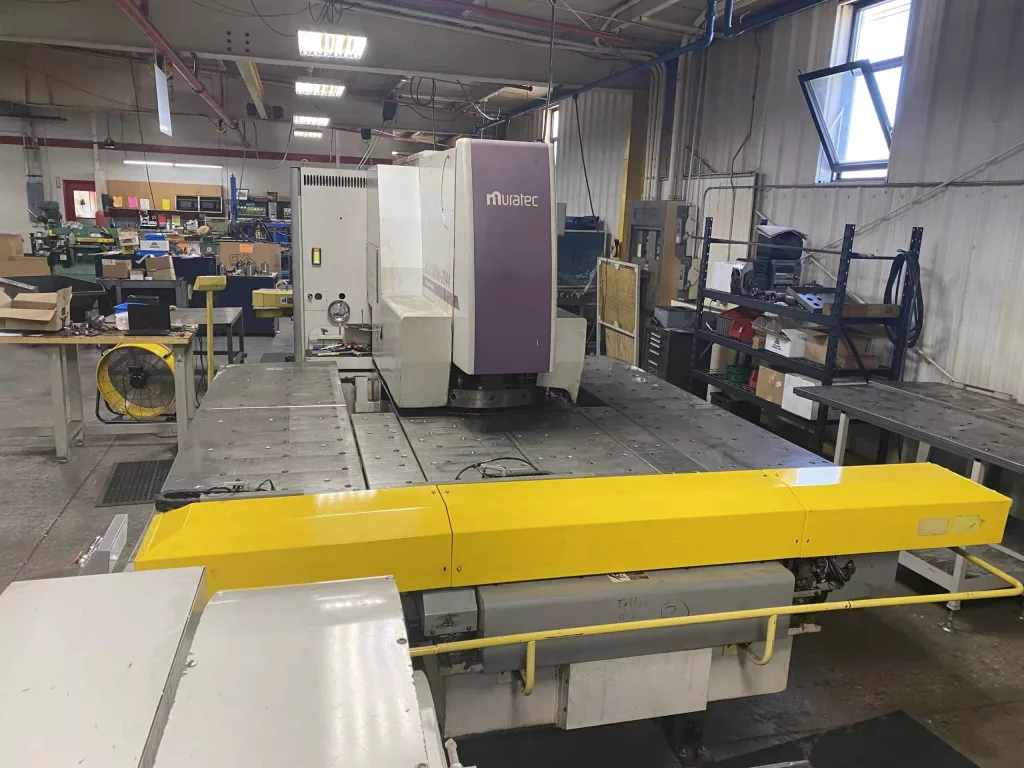

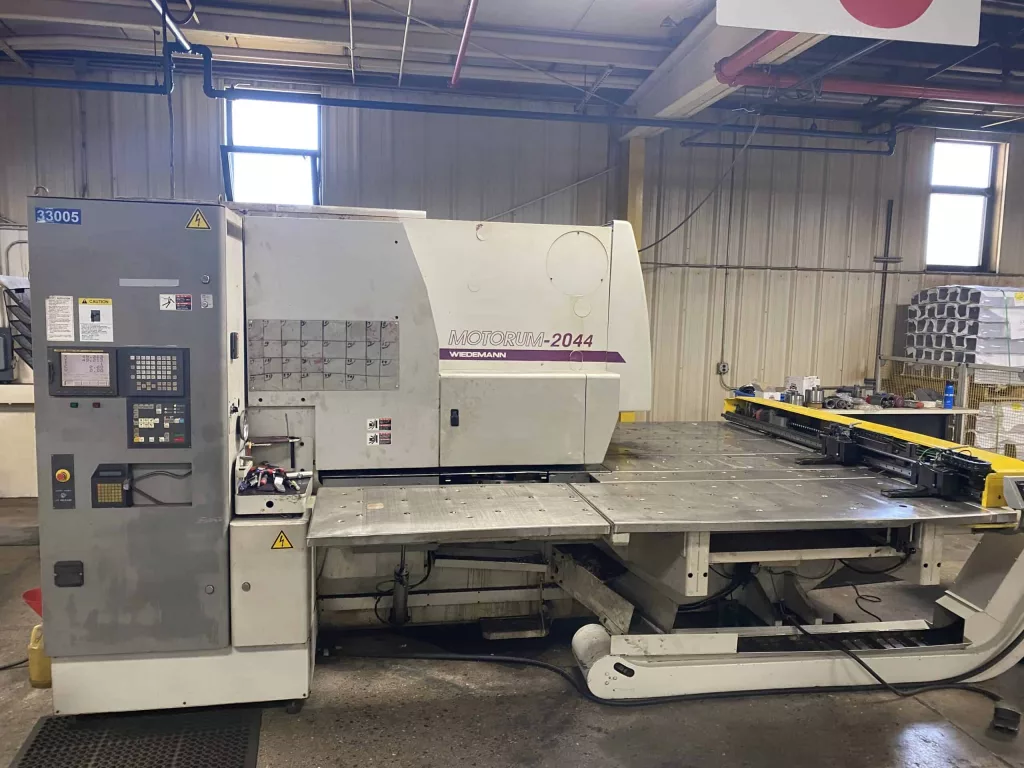

Used Murata Motorum-2044 (2002) Turret Punch for Sale. This 22 ton CNC turret punch is controlled by a Fanuc 18i-PB and carries 22 turret stations using 114 style tooling. Throat depth is 51.18″, with a maximum sheet size of 49.21″ x 49.21″ without repositioning and a sheet capacity of 49″ x 49″. Maximum sheet thickness is 1/4″, maximum sheet weight 231 lbs, and maximum hole diameter 3.5″. Hit rates are 220 HPM at .984″ pitch and 600 HPM at .39″ pitch, with X-axis speed of 2,953 IPM and Y-axis speed of 3,543 IPM. Equipped with (2) A/I stations and automatic sheet repositioning. Approximate machine weight is 21,000 lbs. Available for inspection under power. See more used turret punches, then Activate Pricing and Request a Quote.
Specifications
| Capacity |
22 Ton |
|---|---|
| Sheet Width |
49" |
| Sheet Length |
49" |
| Turret Stations |
22 |
| Throat Depth |
51.18" |
| Tooling Style |
114 |
| Control |
Fanuc 18i-PB |
| Max Sheet Size (Without Repositioning) |
49.21" x 49.21" |
| Max Sheet Thickness |
1/4" |
| Max Sheet Weight |
231 Lbs |
| Hits Rate @ .984" Pitch |
220 HPM |
| Hits Rate @ .39" Pitch |
600 HPM |
| Max Hole Diameter |
3.5" |
| X-Axis Speed |
2,953 IPM |
| Y-Axis Speed |
3,543 IPM |
| Approx. Machine Weight |
21,000 Lbs |
Features
|
(2) A/I Stations |
Automatic Sheet Repositioning |
