Year |
2003 |
|---|---|
Make |
Toyo |
Model |
Si-300-II |
Description |
300 Ton 32.8 oz Shot Size Electric Injection Molding Machine |
Reference # |
8079241 |
Price |
Activate Pricing |

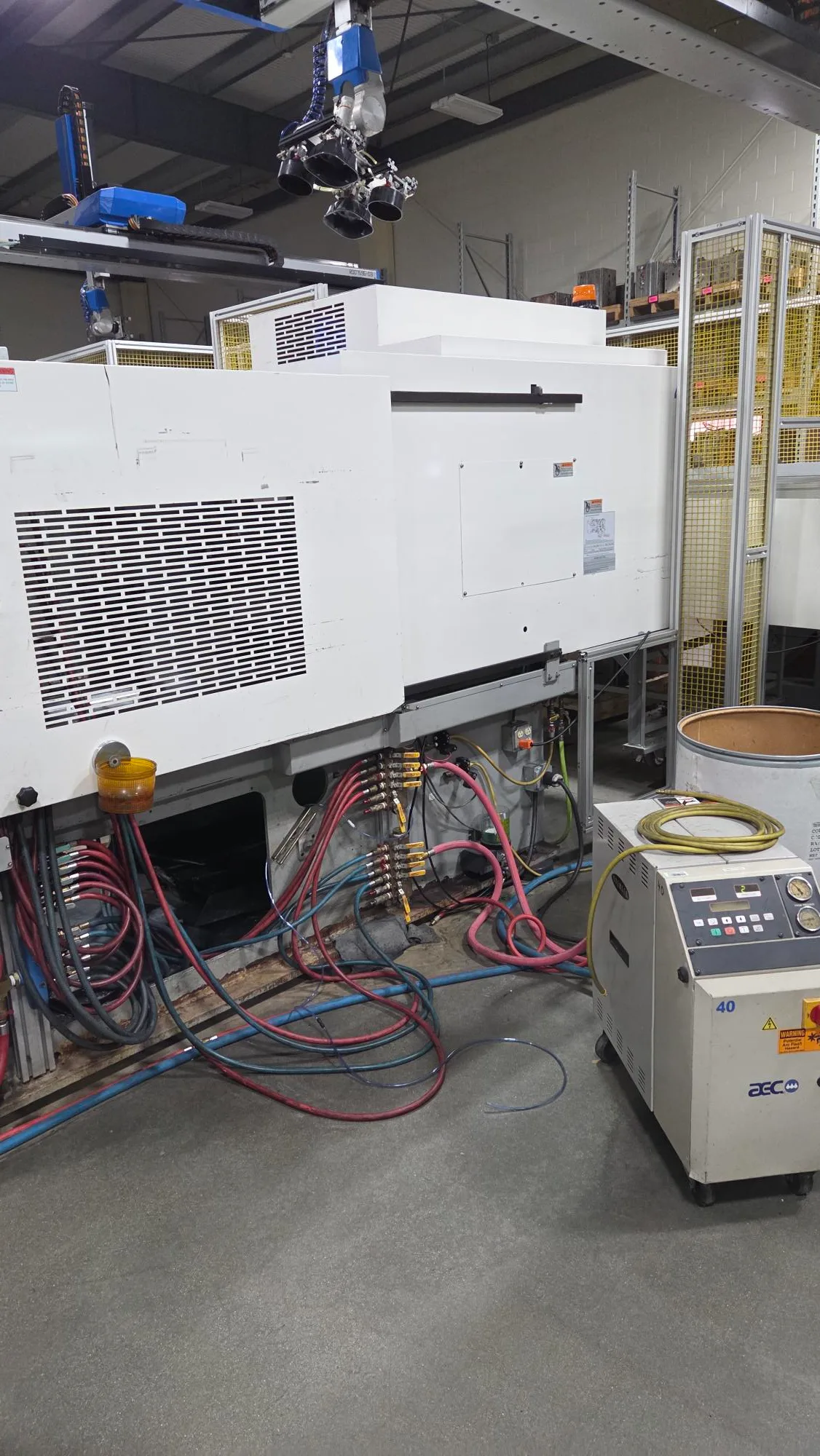

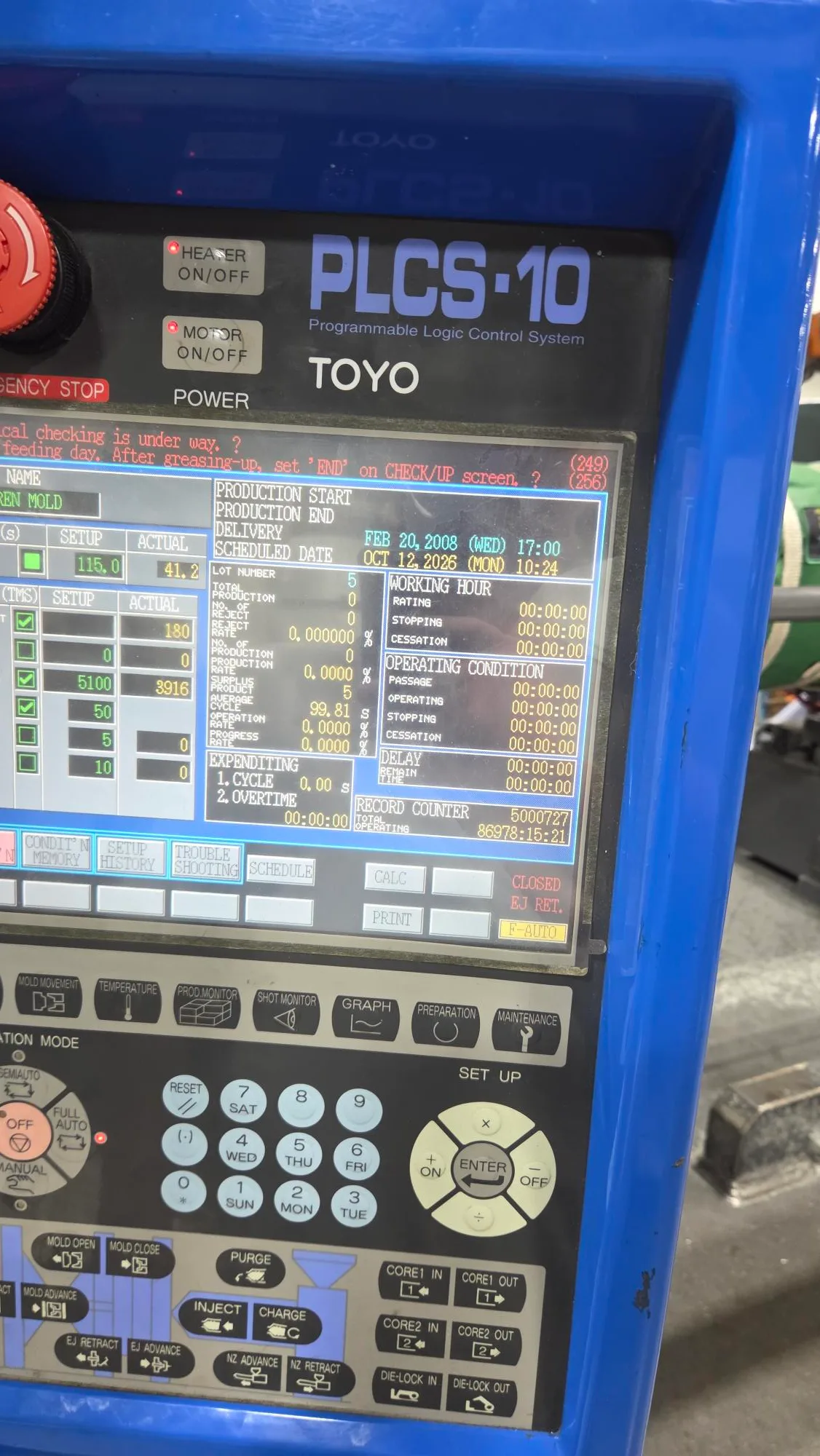

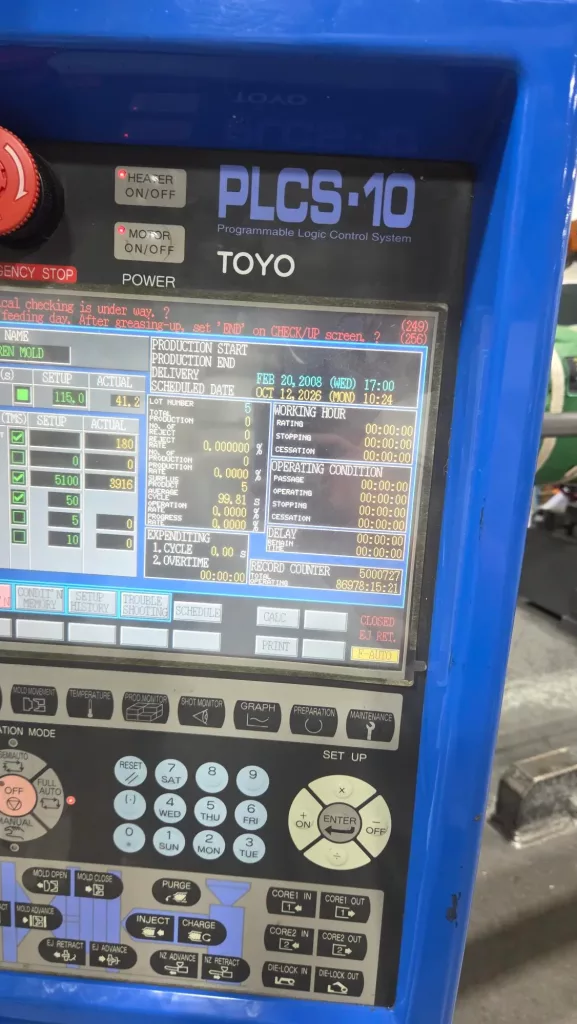

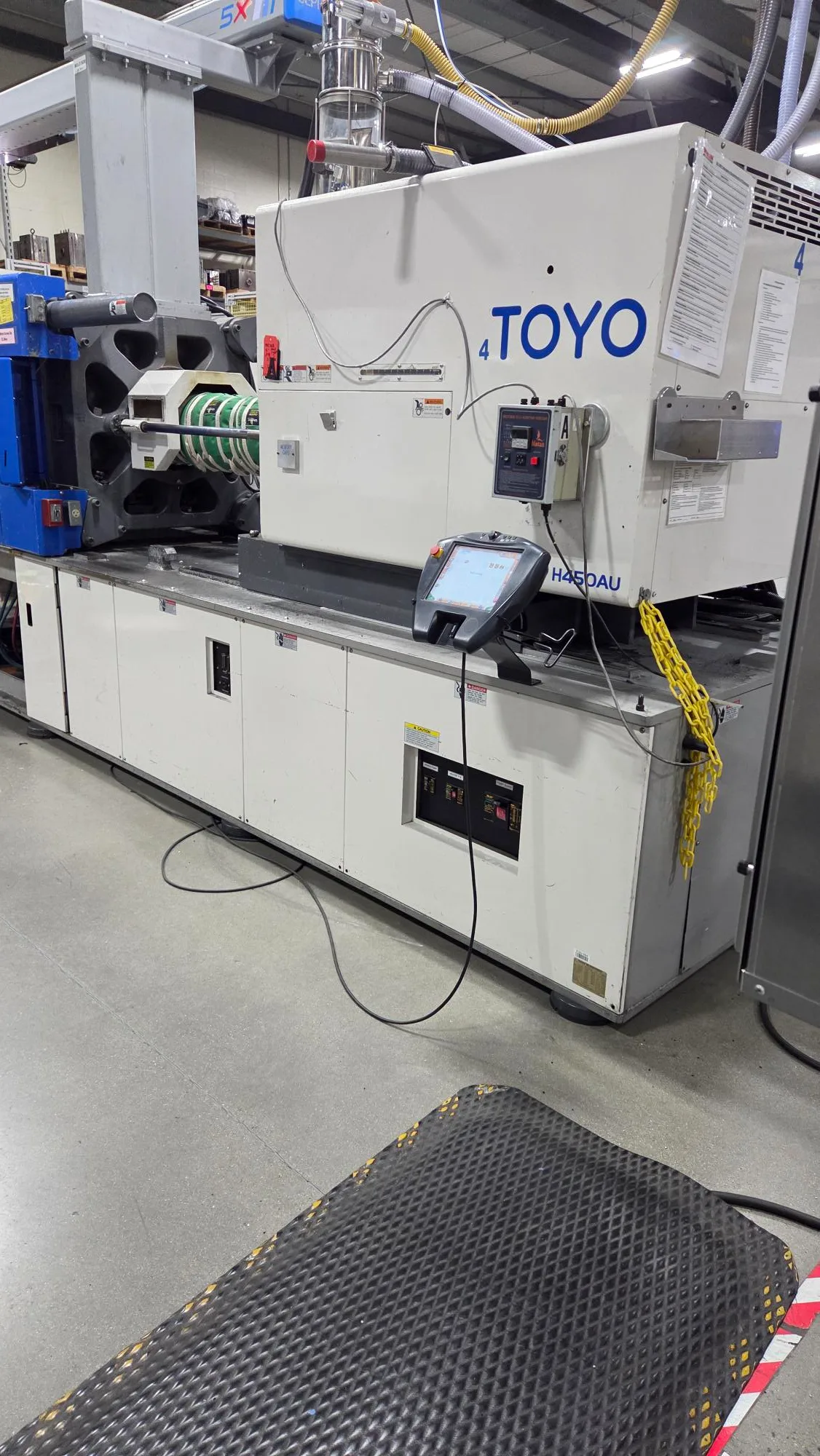

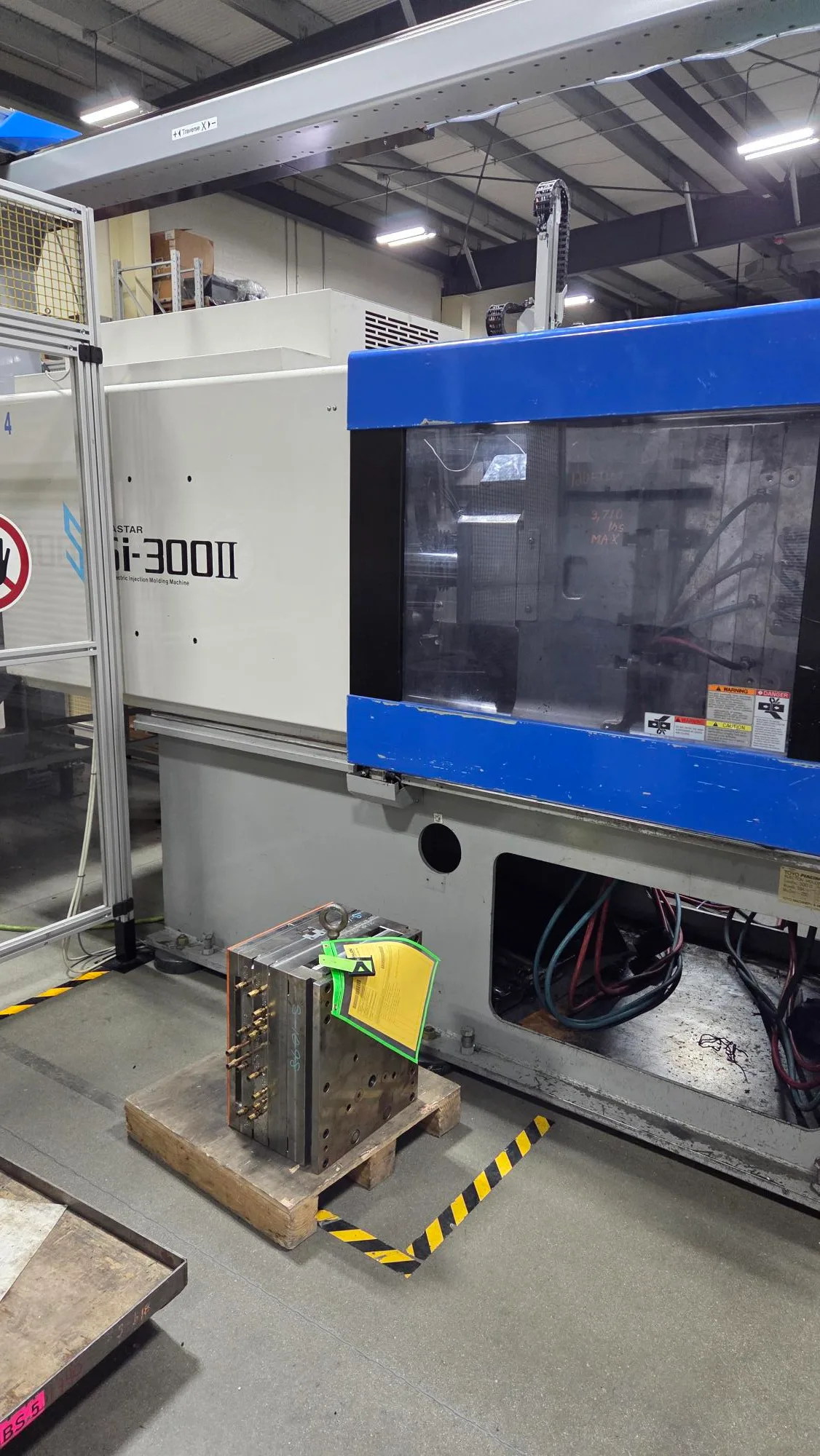

Used Toyo Si-300-II (2003) Injection Molding Machine for Sale. This all-electric press is rated at 300 ton clamp force with a 32.8 oz shot size and a Plcs-10 control. Tie bar spacing is 28.74″ x 28.74″, with platens measuring 37″ x 37″ and a clamp stroke of 22.5″. Minimum mold height is 11.54″ and maximum mold height is 27.56″. Machine weight is 33,000 lbs. Equipped with robot interface and air blast. The machine is under power and can be seen running for an inspection prior to purchase. Browse more used plastic injection molding machines or additional used Toyo machines in our inventory. Activate Pricing to view our price, or use the Inquire Now button with any questions.
Specifications
| Capacity |
300 Ton |
|---|---|
| Shot Size |
32.8 oz |
| Tie Bar Spacing |
28.74" x 28.74" |
| Platen Size |
37" x 37" |
| Clamp Stroke |
22.5" |
| Control |
Plcs-10 |
| Min /Max Mold Height |
11.54"/27.56" |
| Weight |
33,000 Lbs |
Features
|
Air Blast |
Robot Interface |
|
Under Power |
