Year |
2023 |
|---|---|
Make |
Calypso |
Model |
AX155 |
Description |
155 Ton 10.12 oz Shot Size Injection Molding Machine |
Reference # |
8072982 |
Price |
Activate Pricing |

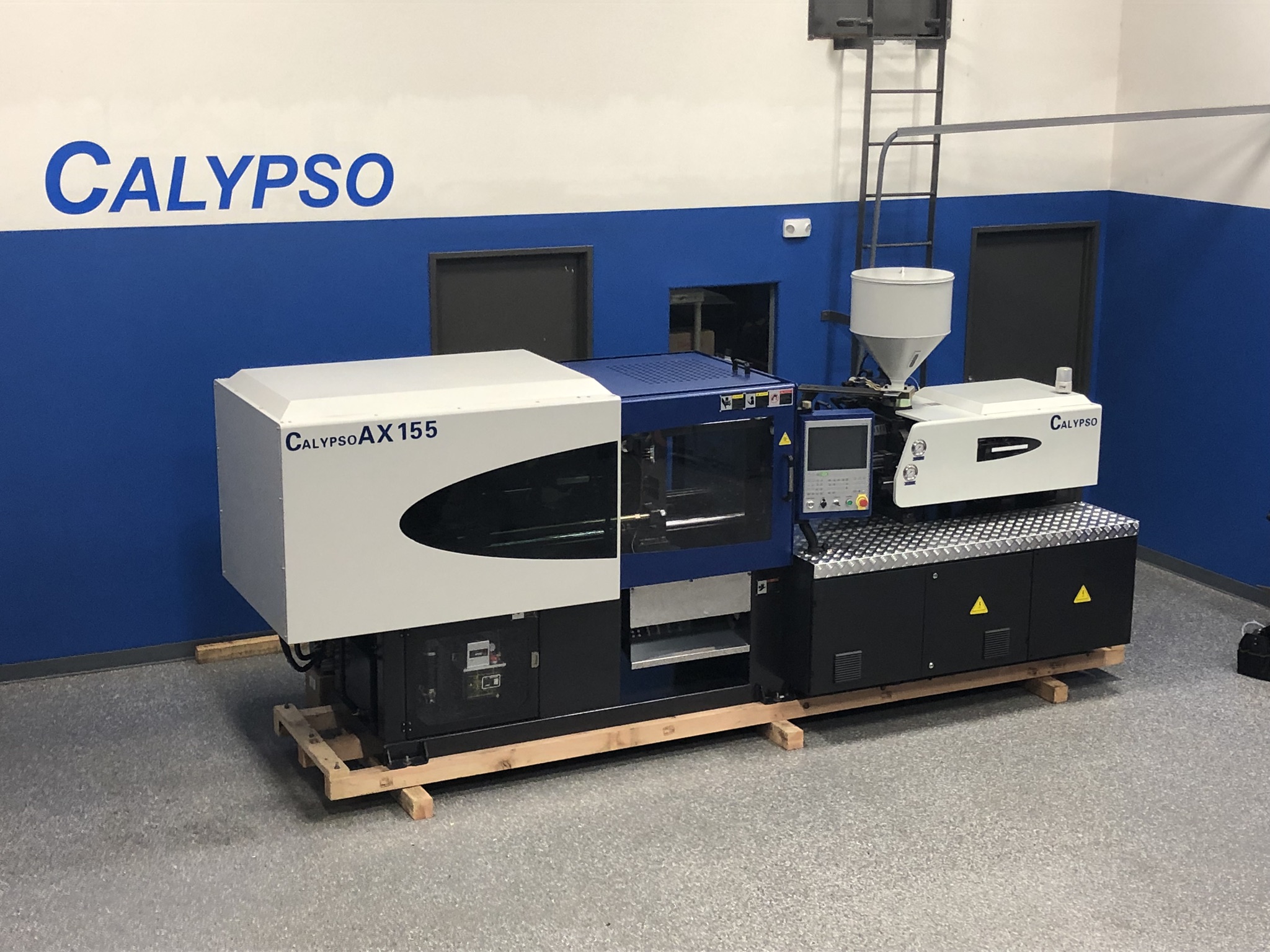

Used Calypso AX155 (2023) Injection Molding Machine for Sale. This machine is rated at 155 Ton clamp force with a 10.12 oz shot size. Tie bar spacing measures 14.96″ x 14.96″, with 25″ x 25″ platens, a 14.96″ opening stroke and a 4.72″ ejection stroke. Control is a Keba i2880 touch screen. Equipped with (2) air circuits, (2) core pulls, a servo driven pump system, robot interface, SPI platens and PKO’s, and auto-lube. It carries a full factory warranty. The machine can be seen under power for an inspection. Additional plastic injection molding machines are available. Use Activate Pricing to view the price, or Request a Quote and we will follow up with details and availability.
Specifications
| Capacity |
155 Ton |
|---|---|
| Shot Size |
10.12 oz |
| Tie Bar Spacing |
14.96" x 14.96" |
| Platen Size |
25" x 25" |
| Opening Stroke |
14.96" |
| Ejection Stroke |
4.72" |
| Control |
Keba i2880 Touch Screen Control |
Features
|
(2) Air Circiuts |
(2) Core Pulls |
|
Servo Driven Pump System |
Robot Interface |
|
SPI Platens and PKO's |
Auto-Lube |
|
Full Factory Warranty |
