Year |
2007 |
|---|---|
Make |
Toyo |
Model |
Si-300-III |
Description |
300 Ton 17.6 oz Shot Size Electric Injection Molding Machine |
Reference # |
8079187 |
Price |
Activate Pricing |

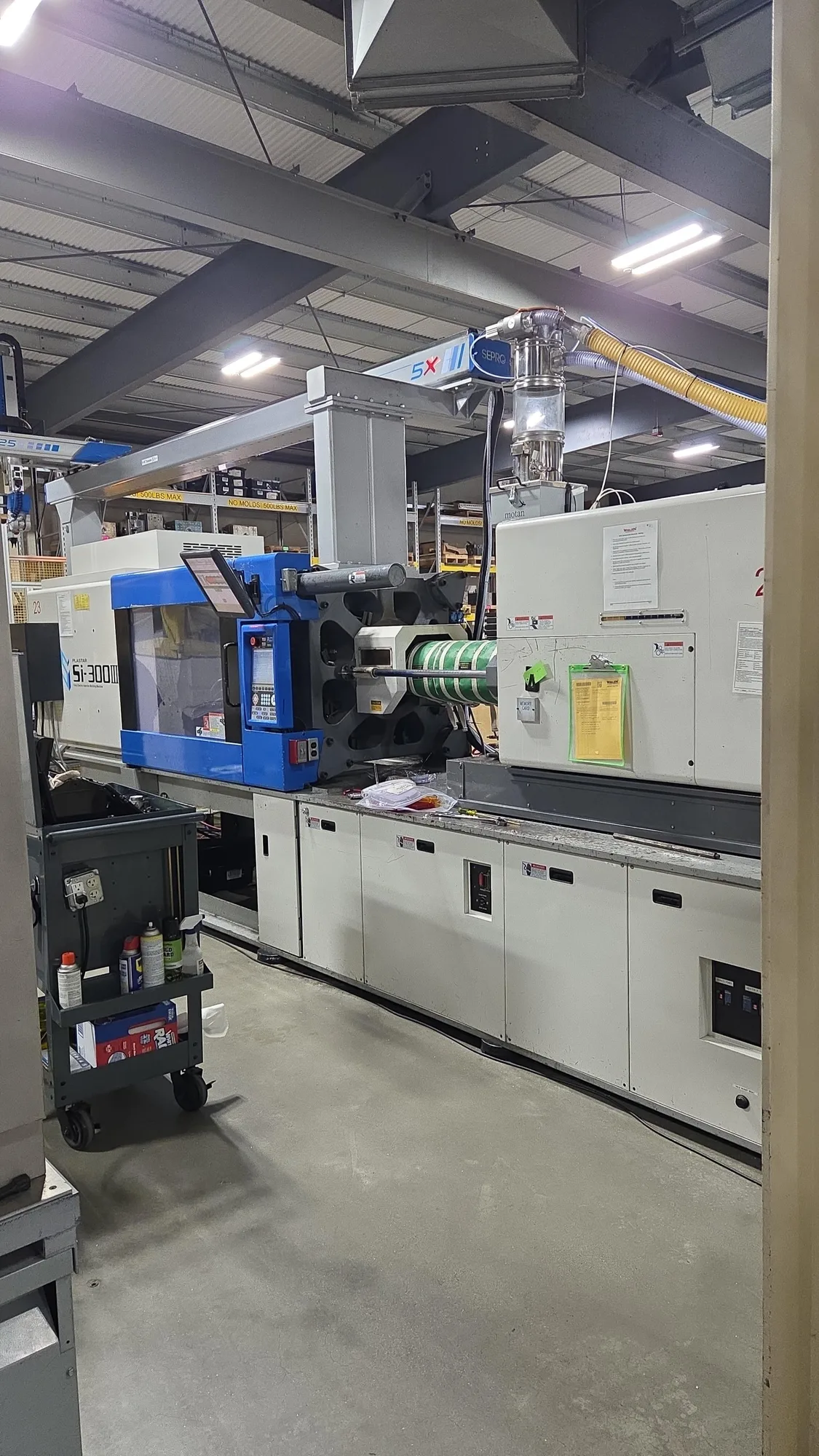

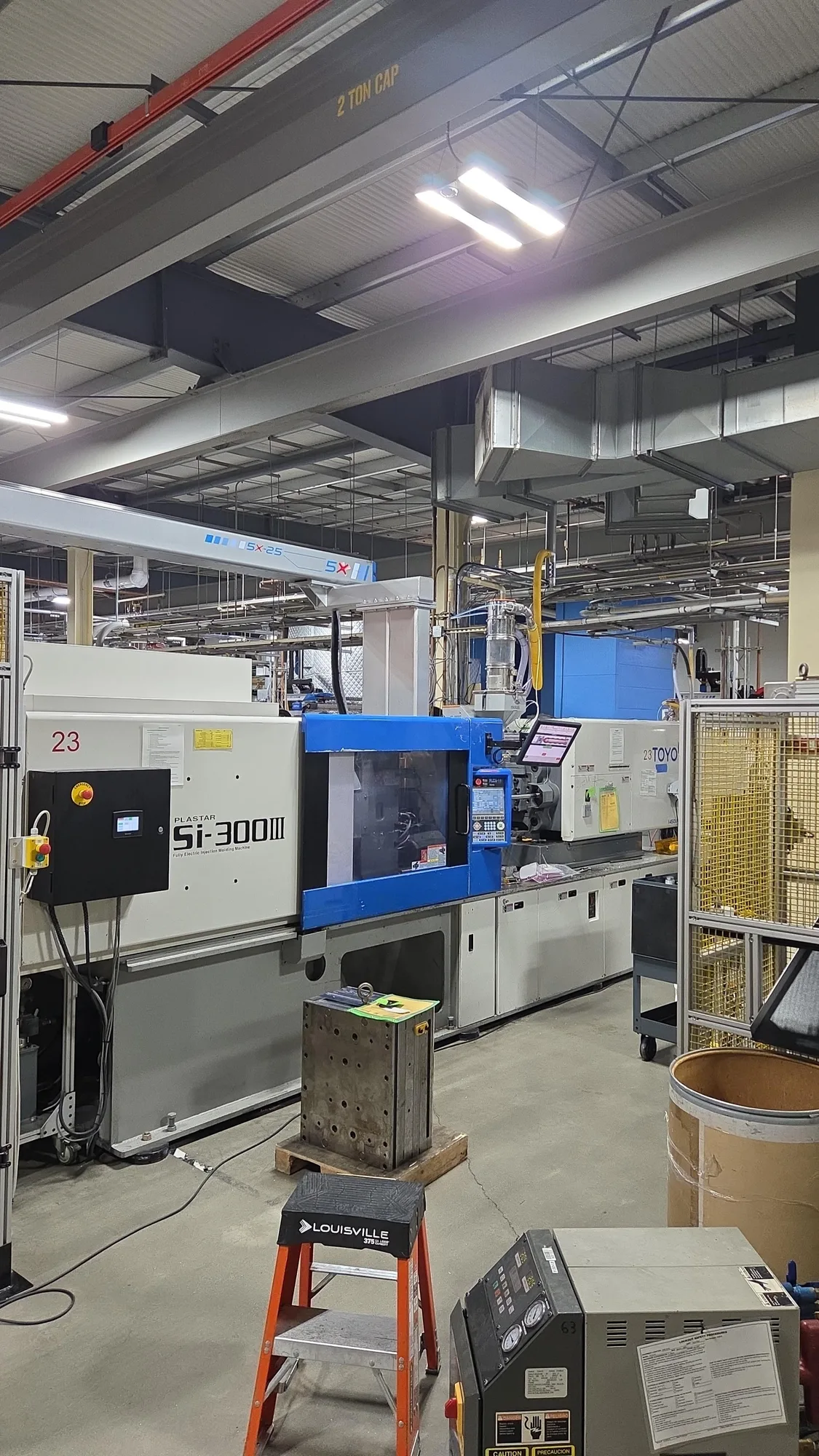

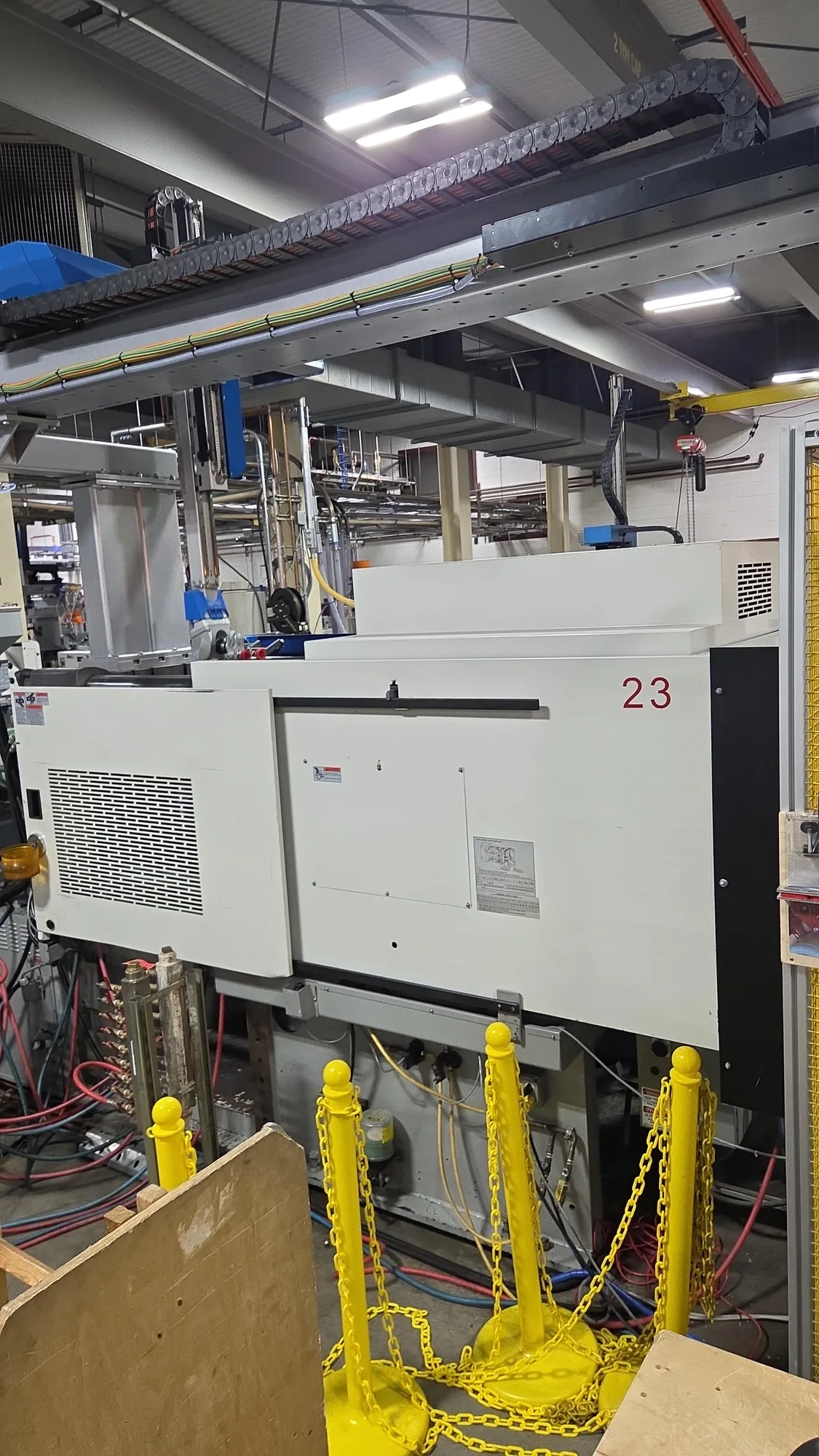

Used Toyo Si-300-III (2007) Injection Molding Machine for Sale. This all-electric press is rated at 300 ton clamp capacity with a 17.6 oz shot size and a PLCS-11 control. Tie bar spacing measures 28.74″ x 28.74″ with platens of 37″ x 37″, a 22.5″ clamp stroke, and a minimum/maximum mold height of 11.54″ to 27.56″. Machine weight is 33,000 lbs. Equipped with air blow and a robot interface. The Si-300-III is under power and can be inspected running before purchase. See it alongside our other used plastic injection molding machines and the rest of our used Toyo machines. Activate Pricing to view the figure, or use the Inquire Now button to reach us with questions or to arrange an inspection.
Specifications
| Capacity |
300 Ton |
|---|---|
| Shot Size |
17.6 oz |
| Tie Bar Spacing |
28.74" x 28.74" |
| Platen Size |
37" x 37" |
| Clamp Stroke |
22.5" |
| Control |
PLCS-11 |
| Min /Max Mold Height |
11.54"/27.56" |
| Weight |
33,000 Lbs |
Features
|
Air Blow |
Robot Interface |
|
Under Power |
