Year |
2002 |
|---|---|
Make |
Amada |
Model |
Vipros 368 King II |
Description |
33 Ton Turret Punch |
Reference # |
8070263 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

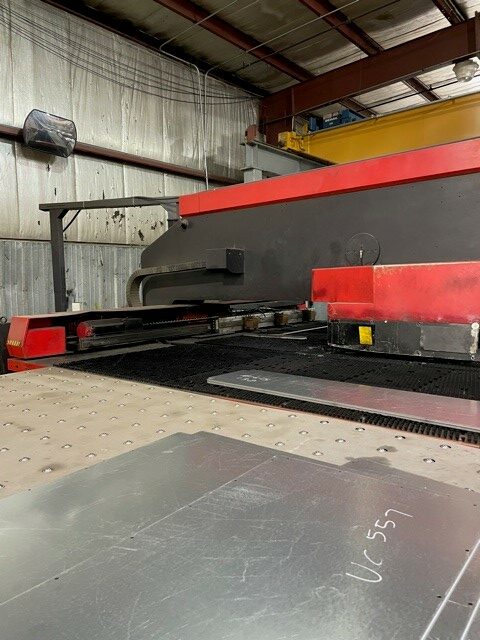

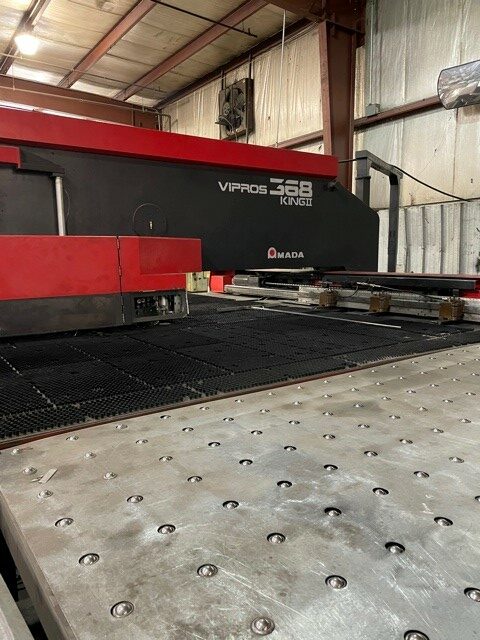

Amada Vipros 368 King II
Specifications
| Capacity |
33 Ton |
|---|---|
| Sheet Width |
5' |
| Sheet Length |
6.5' |

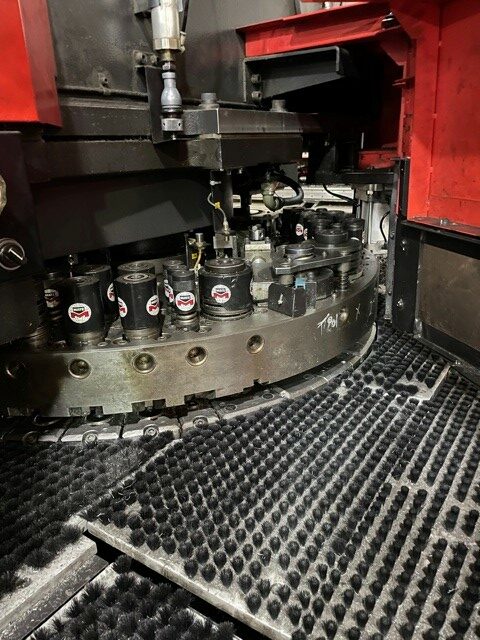

| Turret Stations |
58 with 4 Auto Indexers |
| Control |

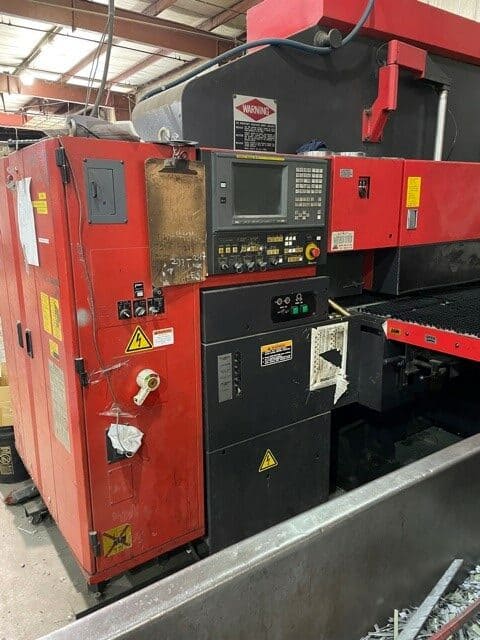

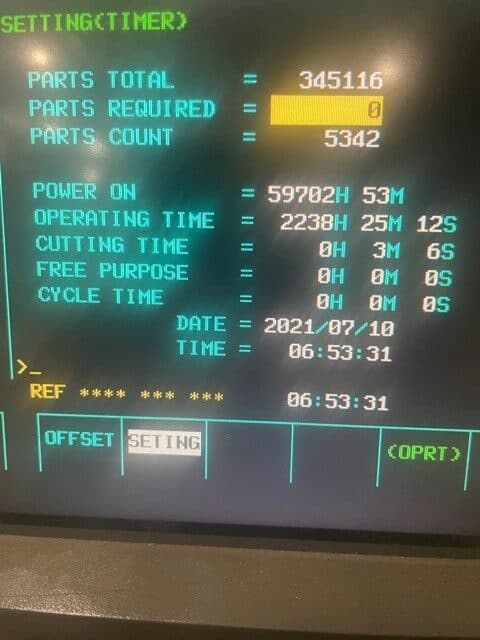

Fanuc 18P |
| X-Axis Travel |
60" |
| Y-Axis Travel |
78.74" |
| Throat Depth |
60" |
| Power Requirement |
220/440/3/60 |
| Tooling Style |
Thick |
| Sheet Size: |
60" x 78.74" |
| Thickest Material |
0.125" |
| Max. Hole Diameter |
4" |
| Auto Indexing Stations |
(2) 1.25"/(2) 4 .5" |
| Max. Ram Stroke |
1.57" |
| Max. Hit Rate |
(.039" Pitch/ .078" Stroke), 1,200 HPM |
| X/Y Hit Rate |
1" Centers (.315" Stroke), 340/290 HPM |
| Linear Positioning Speed |
(45 Degrees), 3,150 IPM (4450 IPM) |
| Max. Forming |
1/2" Flange |
| Smallest Programmable Increment |
001" |
| Max. Sheer Weight |
132 lbs |
| Machine Weight |
43,560 Lbs. |
| Tape Format |
E.I.A. or A.S.C.I.I. |
| Programming Mode |
Absolute/Incremental |
Features
|

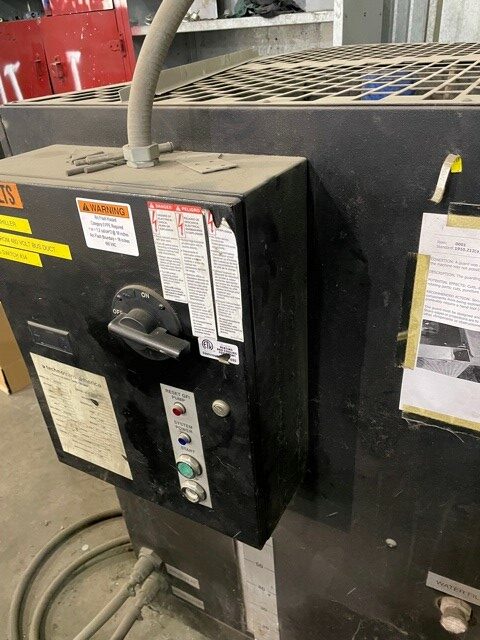

Chiller |
Chip Conveyor |
|
Step Down Transformer |

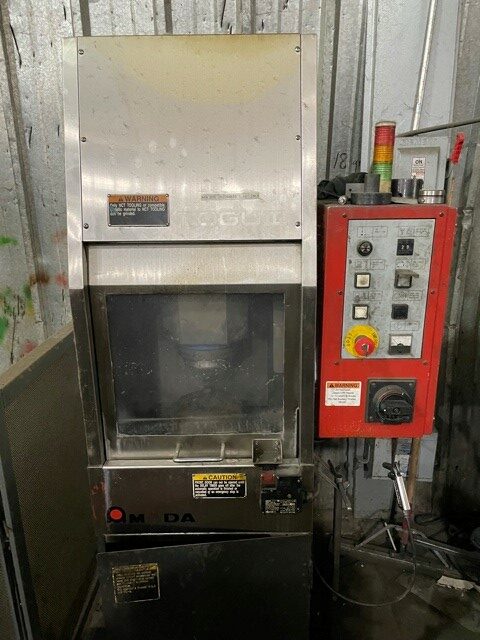

Togu Grinder |
|
Approximately $40K of Tooling |

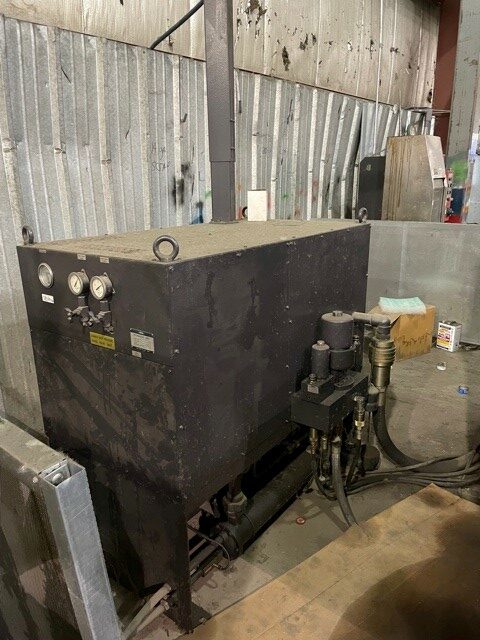

Hydraulic Pump |
|
Work Tables |
