Make |
Rocheleau |
|---|---|
Model |
CS-1 |
Description |
Blow Molder |
Reference # |
8078299 |
Price |
Activate Pricing |

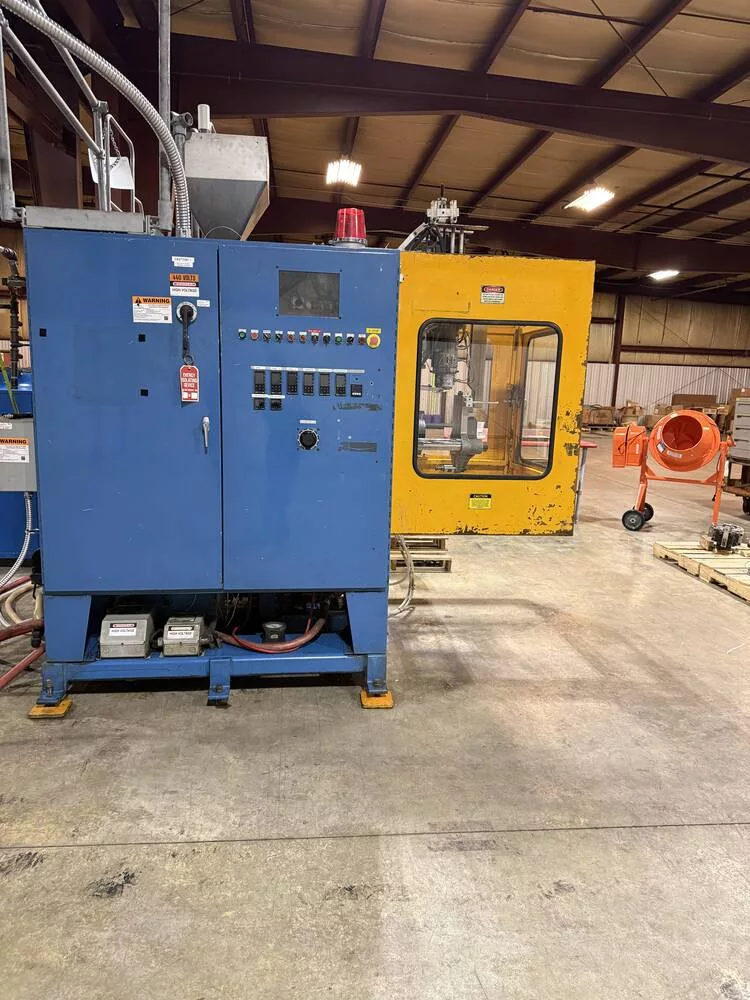

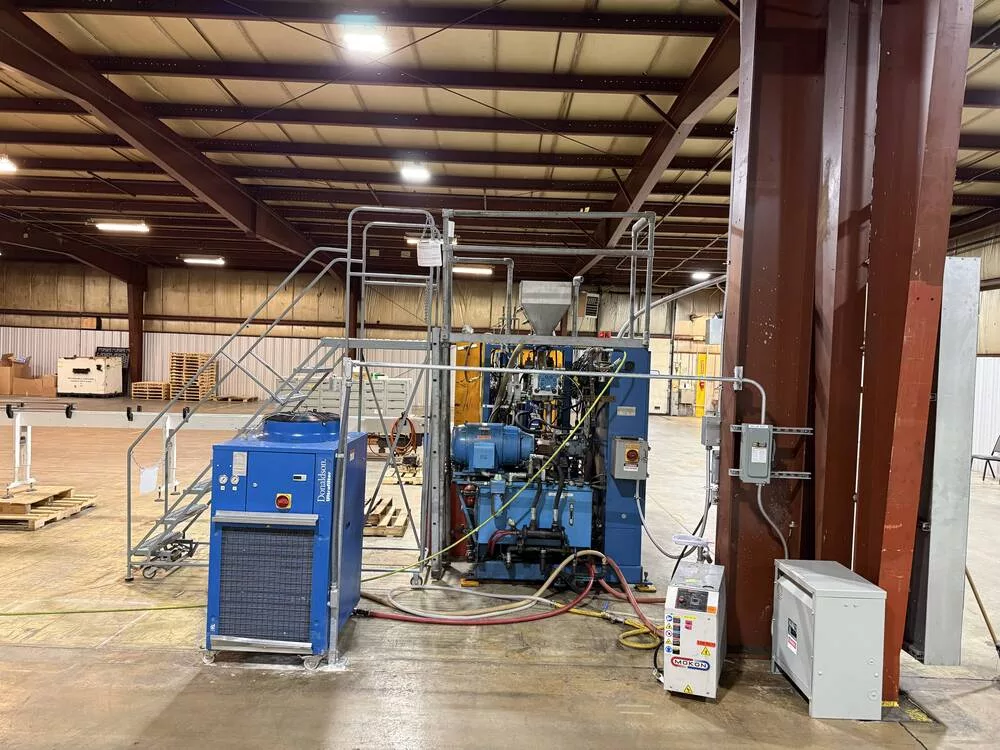

Used Rocheleau CS-1 Blow Molder for Sale. This twin-head machine has a head center spacing of 5.5″, a useable platen area of 11″ x 9″, 5 tons of clamp tonnage and 7″ max daylight. The extruder uses a 50mm screw driven by a 40 HP motor, with control by a Mitsubishi PLC. Equipped with 30kv and 50kv transformers, a conveyor, an accumulation table, a new 14″ ladder, an additional screw/extruder assembly, hot knife assemblies on both machines, new windows, a Mokon tool heater and a Donaldson chiller, three brand new Vickers valves, a new encoder and new thermocouples. Included is a spare second Rocheleau CS-1 (non-operational) with dual heads, 4″ center spacing and PLC, plus a spare single head. Available for inspection under power. See more used blow molding machines or Activate Pricing, then Request a Quote.
Specifications
| Number of Heads |
Dual Heads |
|---|---|
| Head Center Spacing |
5.5" |
| Useable Platen Area |
11" x 9" |
| Clamp Tonnage |
5 Tons |
| Max Daylight |
7" |
| Extruder Screw Size |
50mm |
| Extruder Horsepower |
40 HP motor |
| Control |
Mitsubishi PLC |
Features
|
30kv and 50kv Transformers / A Conveyor / An Accumulation Table / A New 14" Ladder |
Additional Screw/Extruder Assembly |
|
Hot Knife Assemblies (On Both Machines) |
New Windows and a Twin-Head Configuration |
|

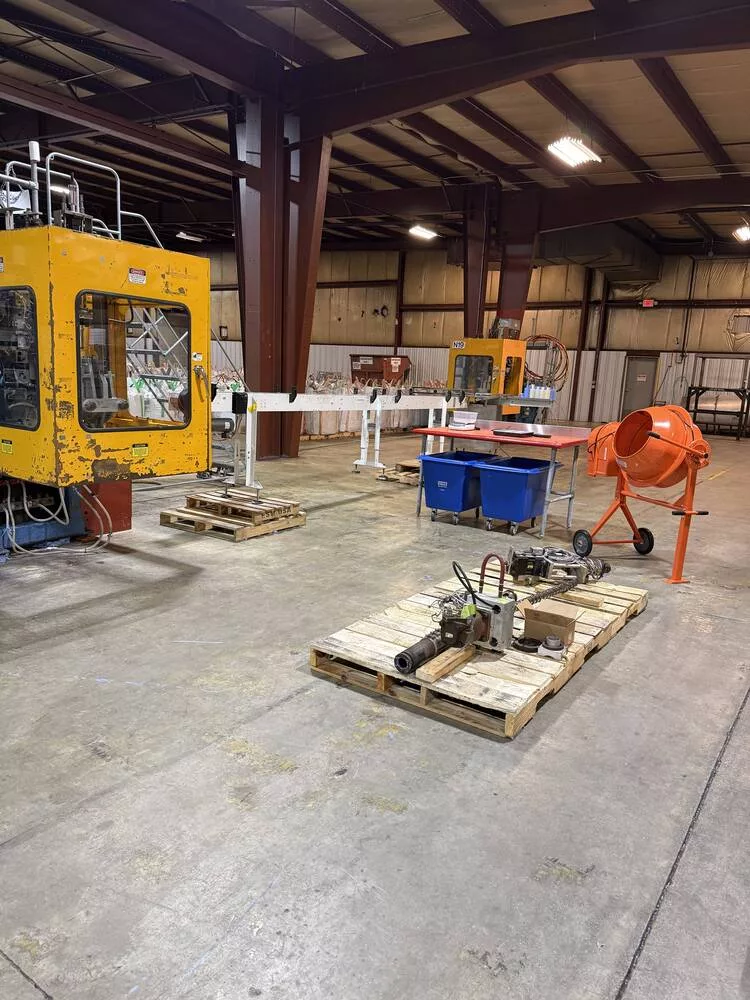

Second Machine (Non-Operational) |
Spare 2nd Rocheleaul CS1 with Dual Heads / 4"Center Spacing w/ PLC |
|
Spare Single Head that was Included with the Low Hour Screw |
Temperature Control: A Mokon Tool Heater and a Donaldson Chiller |
|
Three (3) Brand New Vickers Valves / A New Encoder / New Thermocouples |
