Year |
1993 |
|---|---|
Make |
Improved |
Model |
B-37-R250-DDH |
Description |
Blow Molder |
Reference # |
8073118 |
Price |
Activate Pricing |

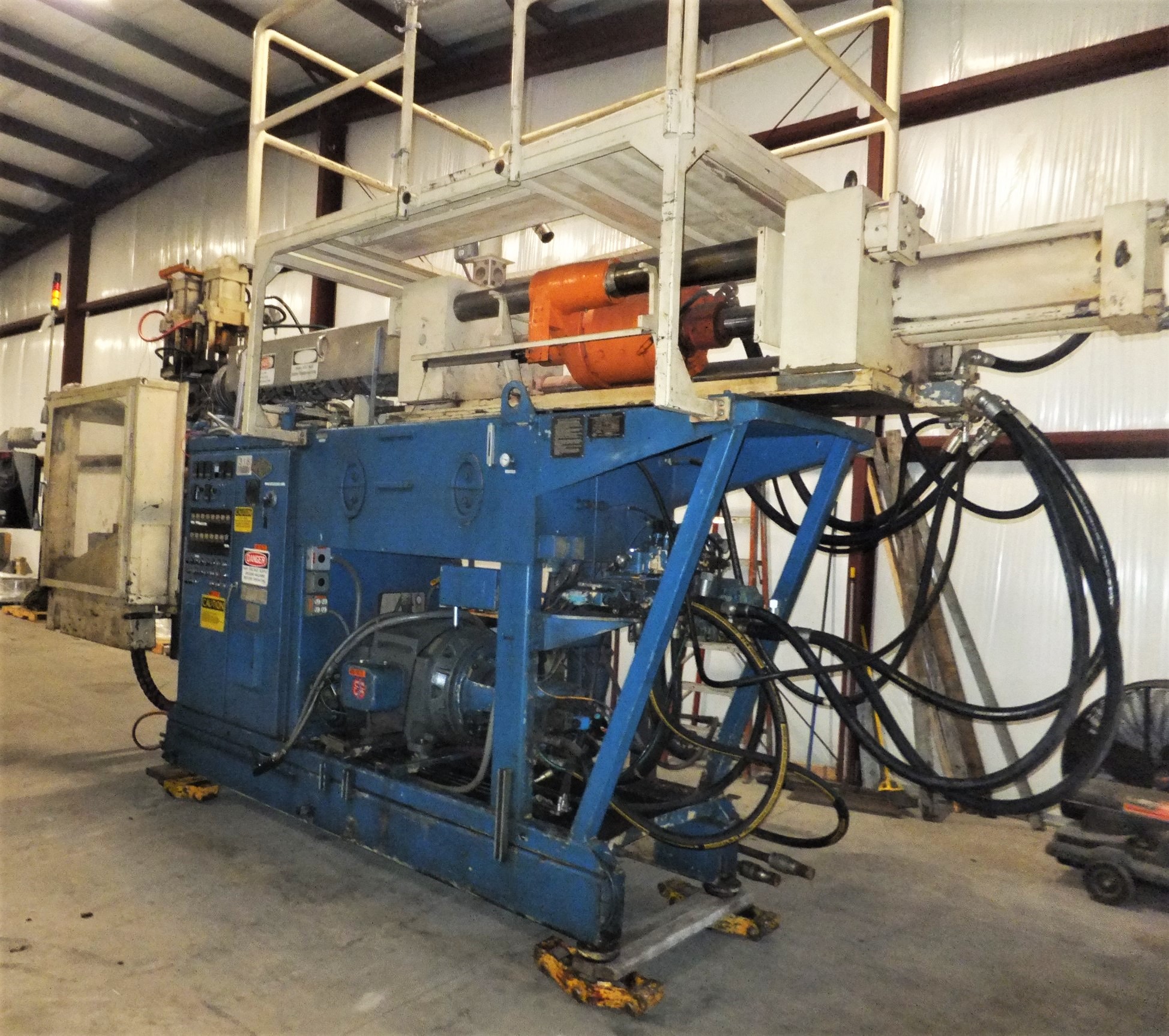

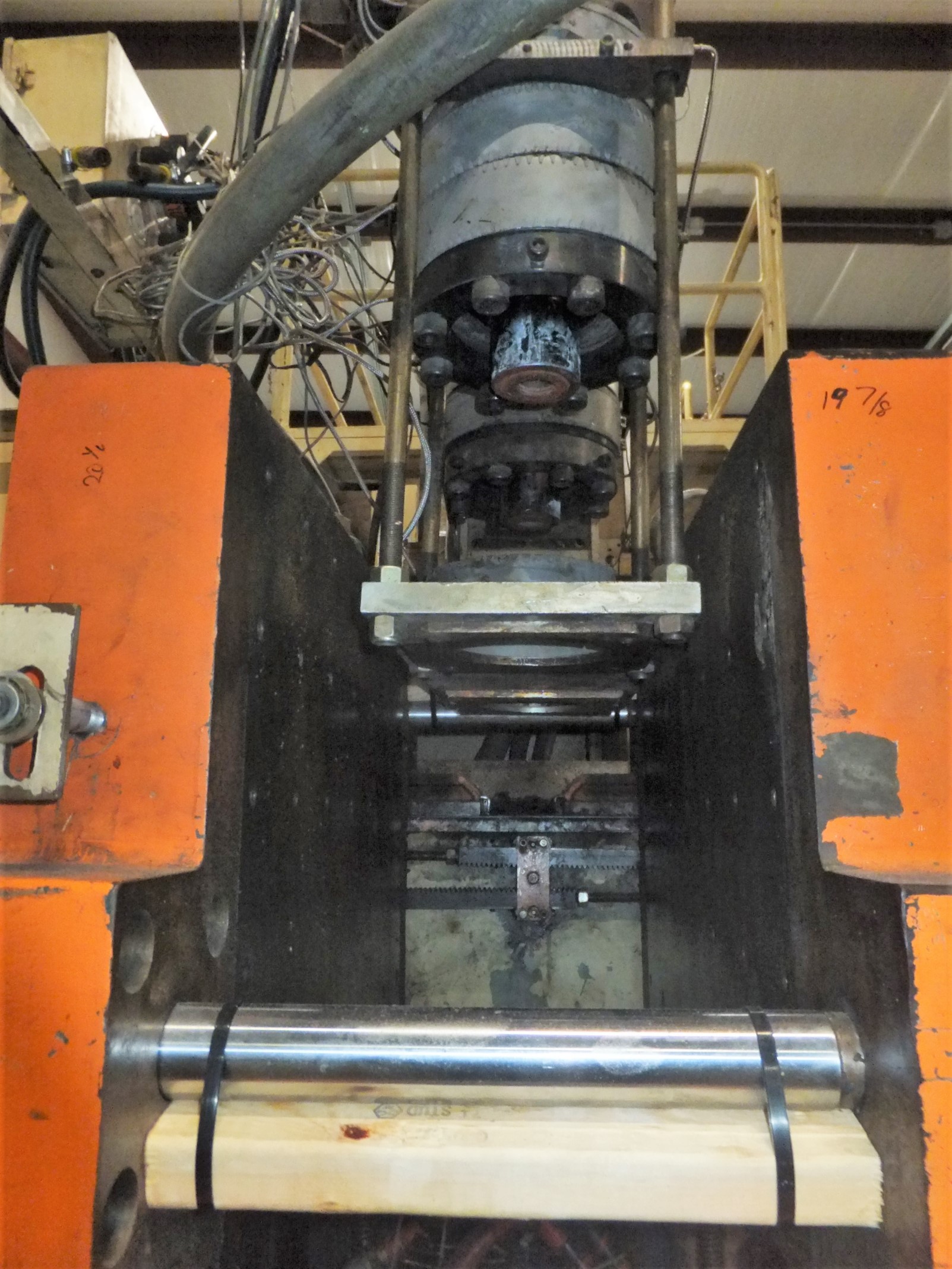

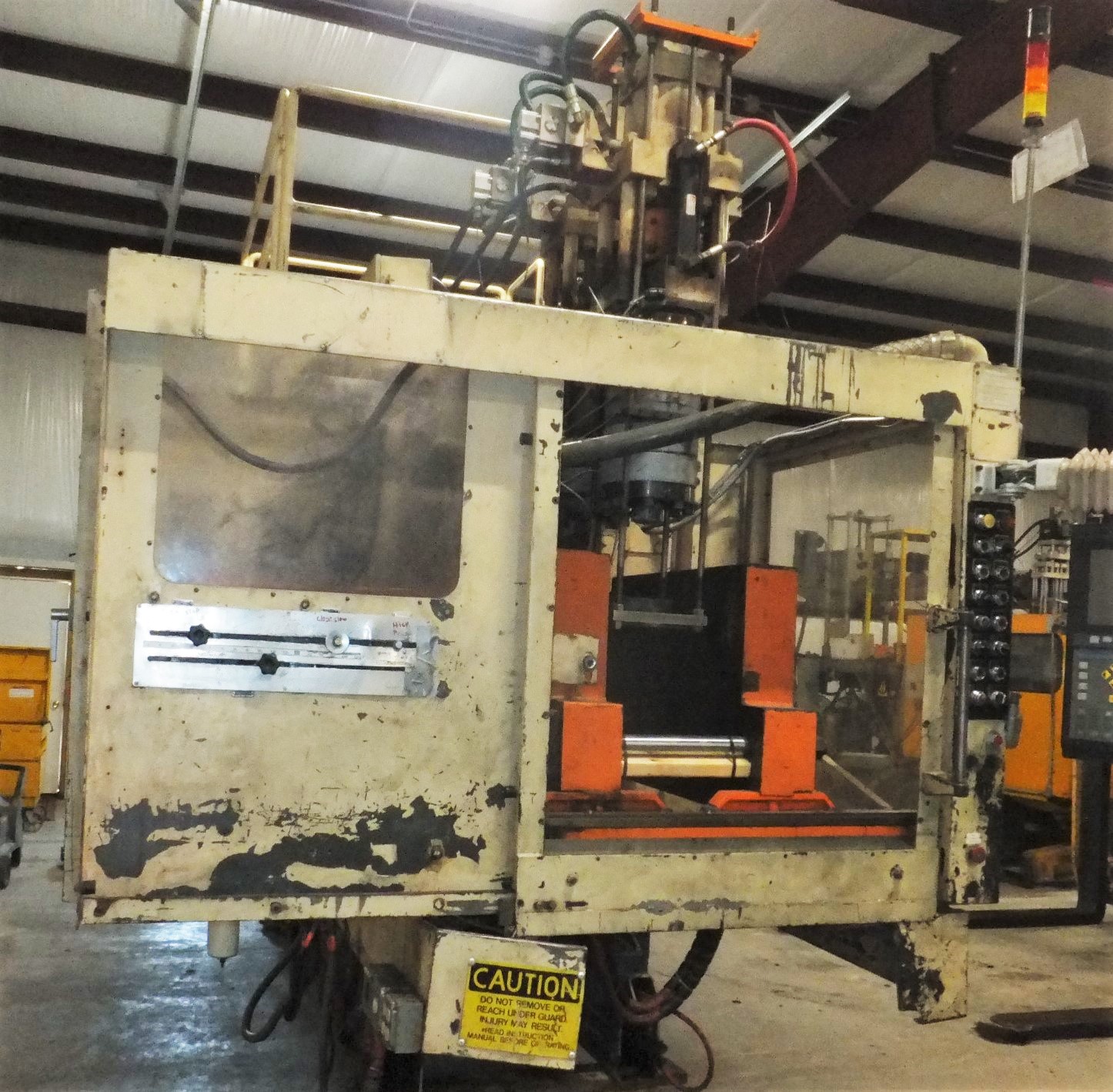

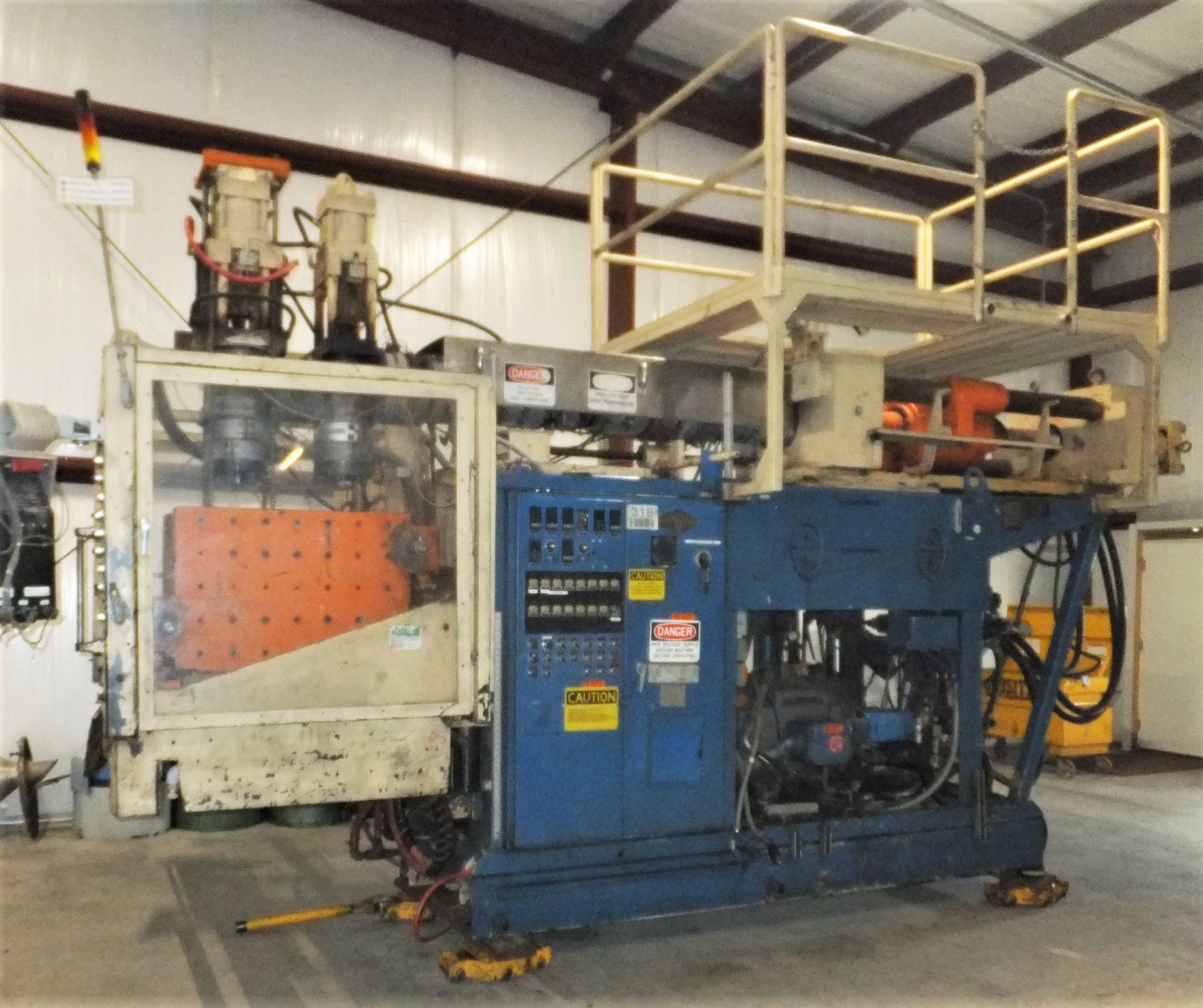

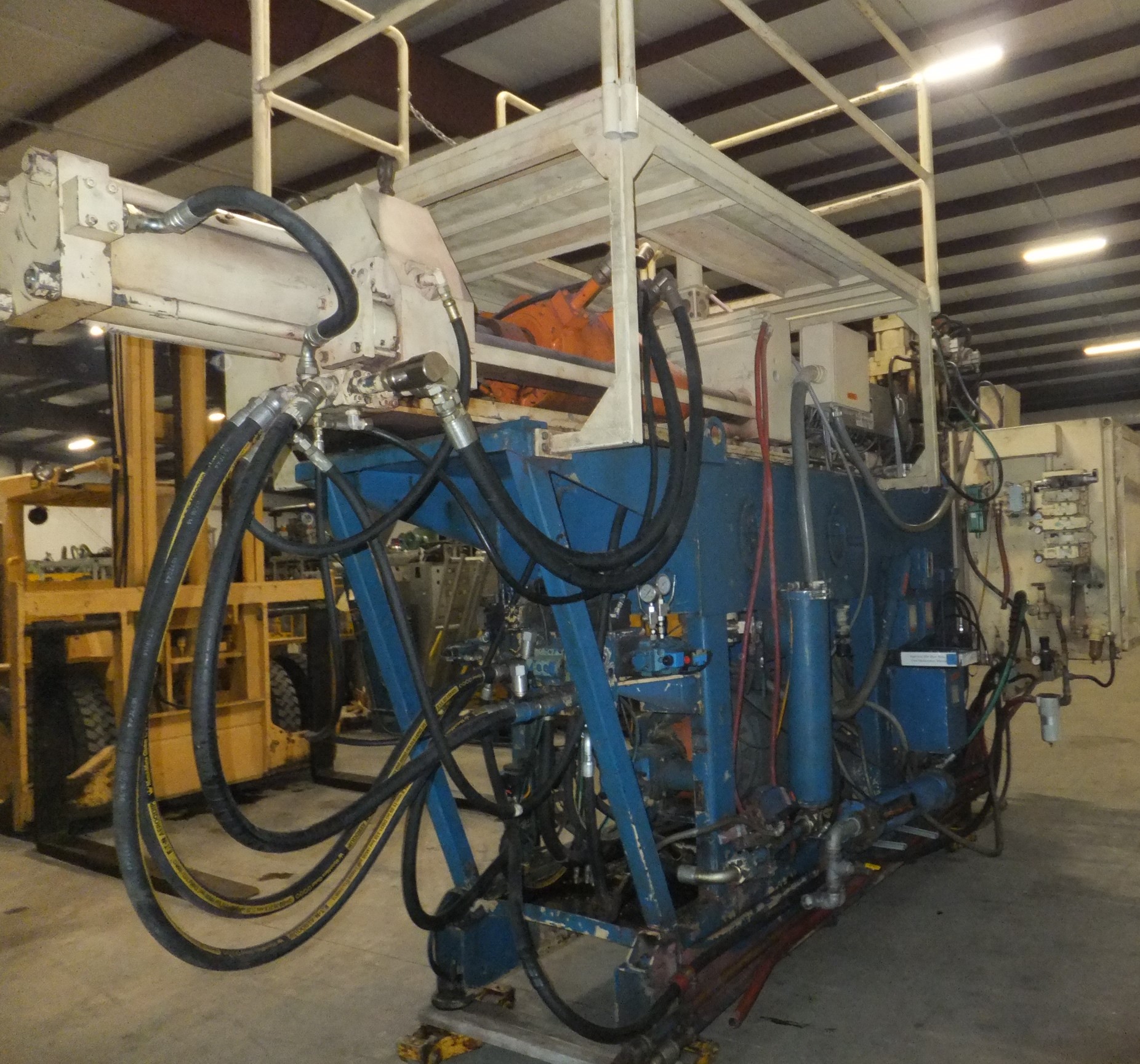

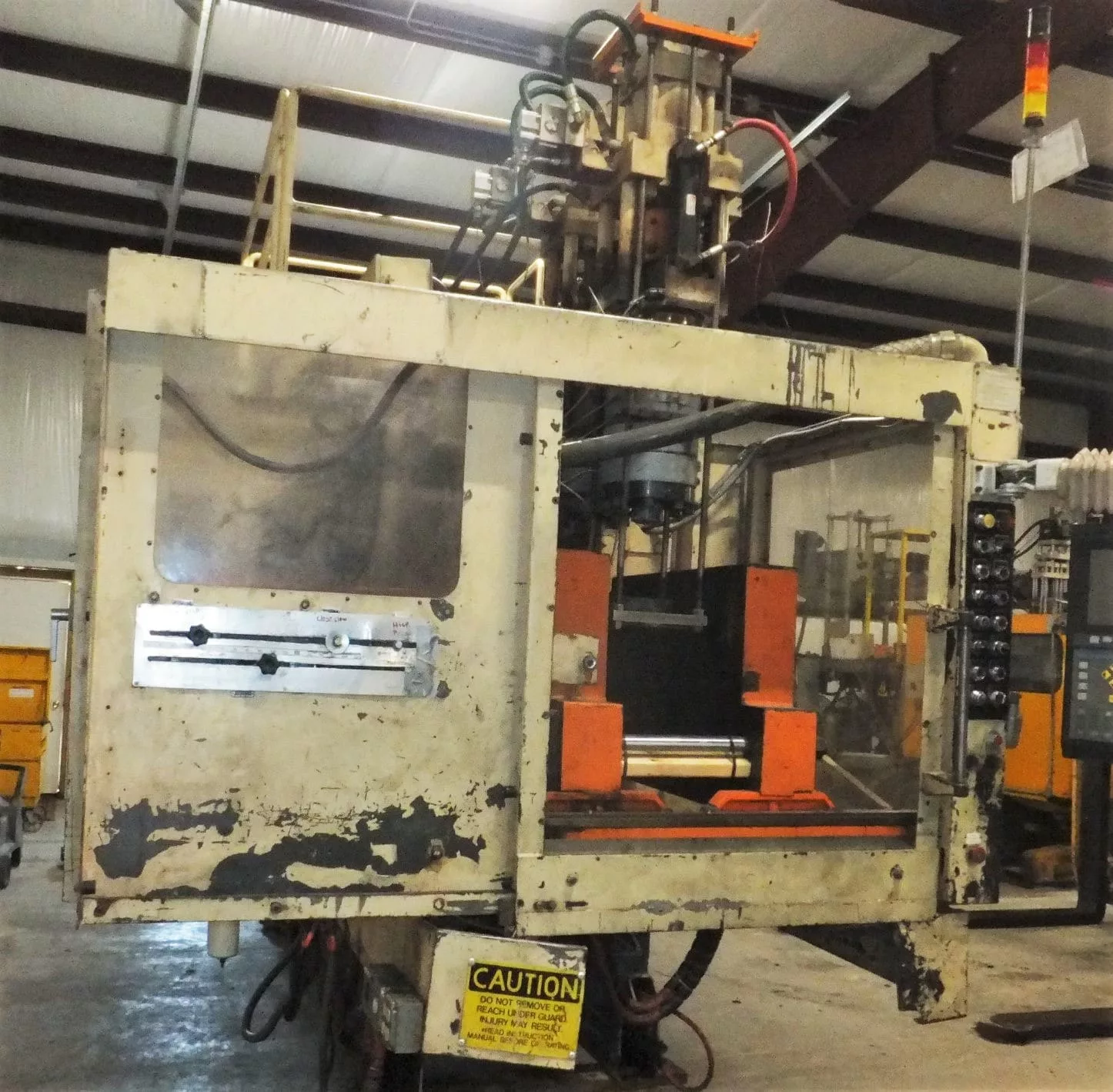

Used Improved B-37-R250-DDH (1993) Blow Molder for Sale. This is a reciprocating screw machine with dual inline heads on 18″ head center spacing, rated for a 7.5 lb. maximum shot size, or 3.75 lbs. per head. Platen size is 37″ front to back by 24″ high. It runs a hydraulic extruder drive with a 100 HP AC motor, Barber Coleman Maco control, Parson programming, and requires 460v, 3 phase AC. Equipped with a ladder, platform with safety rails, material hopper with drawer magnet, lots of spare head tooling, and manuals. The machine can be seen under power for an inspection. See more in our used blow molding machines inventory, use Activate Pricing, or Request a Quote for details.
Specifications
| Type of Blow Molder |
Reciprocating Screw |
|---|---|
| Number of Heads |
Dual Inline Heads |
| Max Shot Size Capacity |
7.5 lbs. (3.75 lbs. /head) |
| Head Center Spacing |
18" |
| Platen Size |
37" (front to back) x 24" High |
| Parson Programming |
Yes |
| Drive |
Hydraulic Extruder Drive |
| Horsepower |
100 HP AC Motor |
| Control |
Barber Coleman Maco |
| Electrical Requirements |
460v - 3 ph. (AC) |
Features
|
Ladder |
Lots Of Spare Head Tooling |
|
Material Hopper with Drawer Magnet |
Platform W/Safety Rails |
|
Manuals |
