Year |
2022 |
|---|---|
Make |
Fong Kee |
Model |
EHB 65T03SS |
Description |
Blow Molder |
Reference # |
8078397 |
Price |
Activate Pricing |

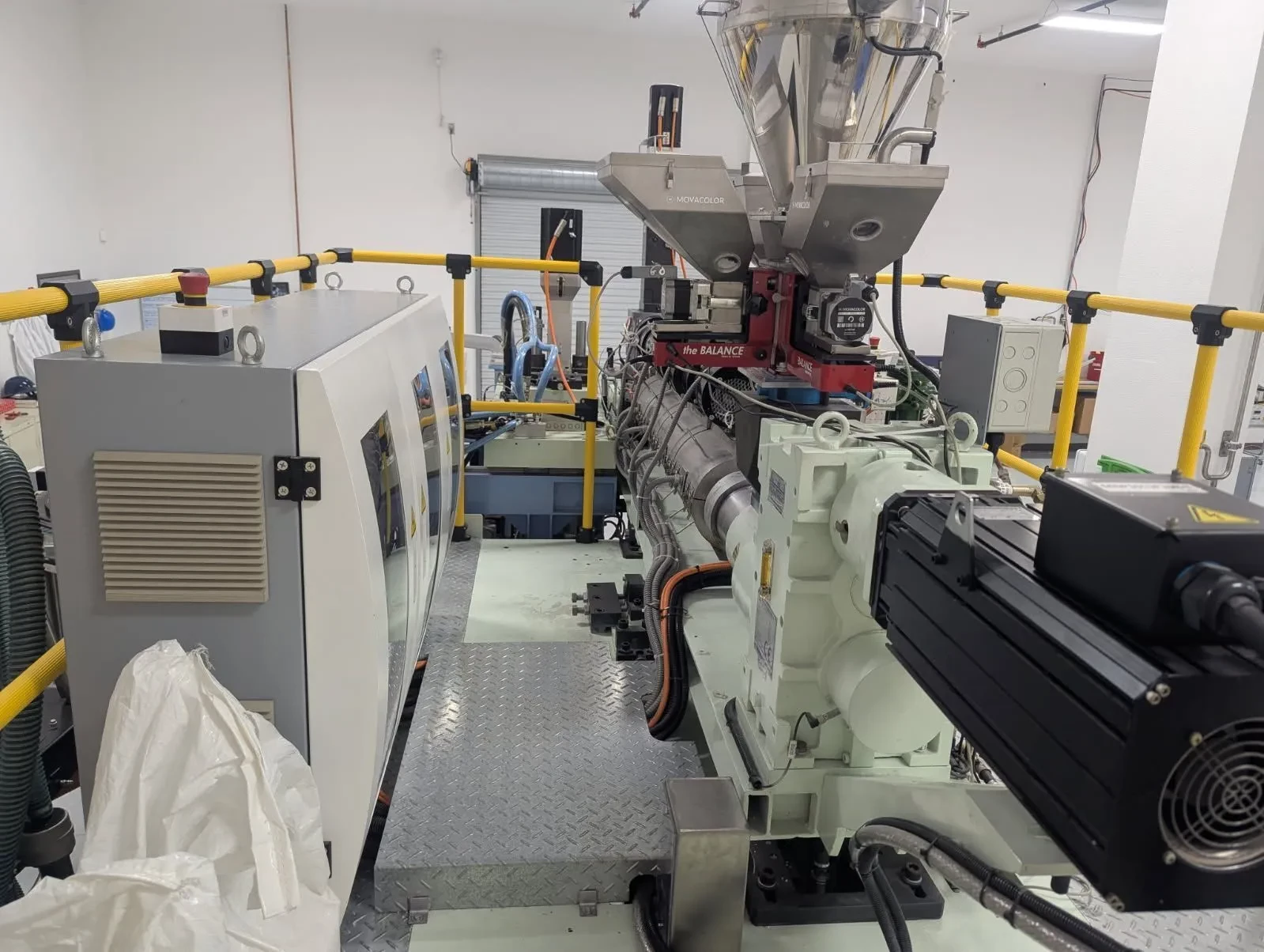

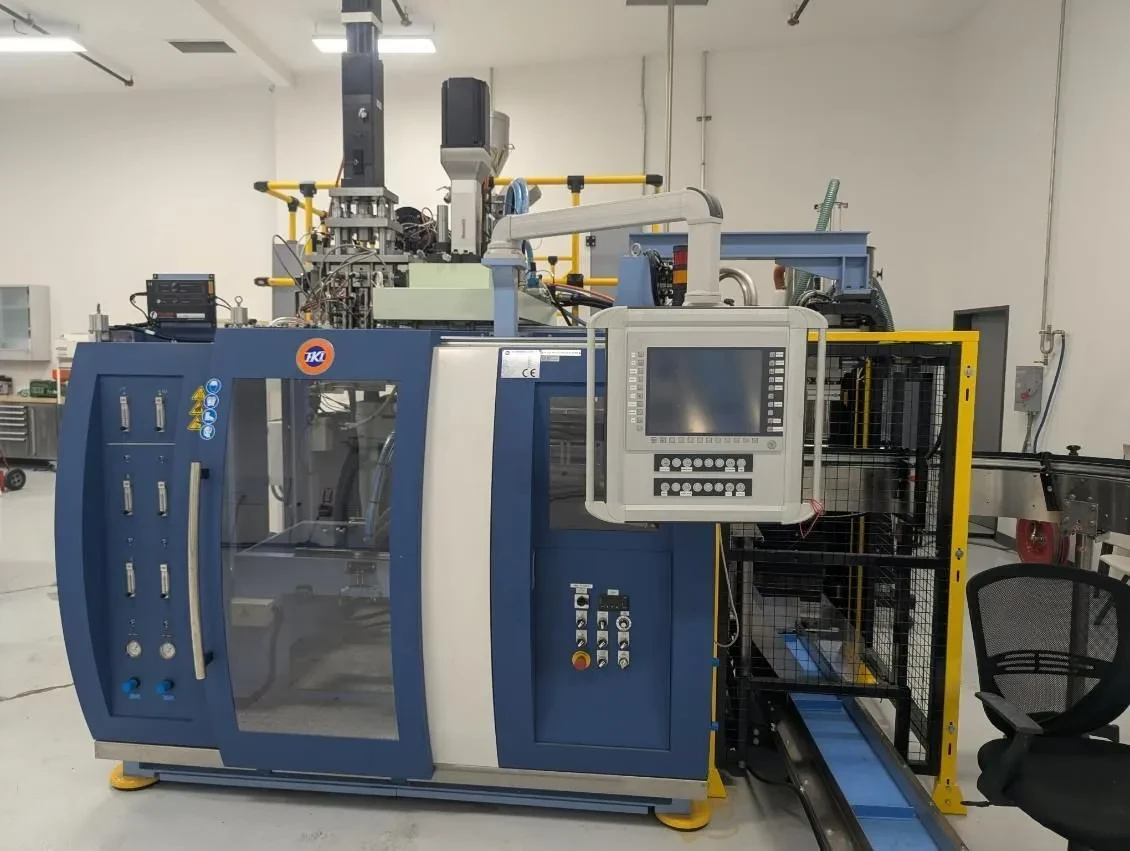

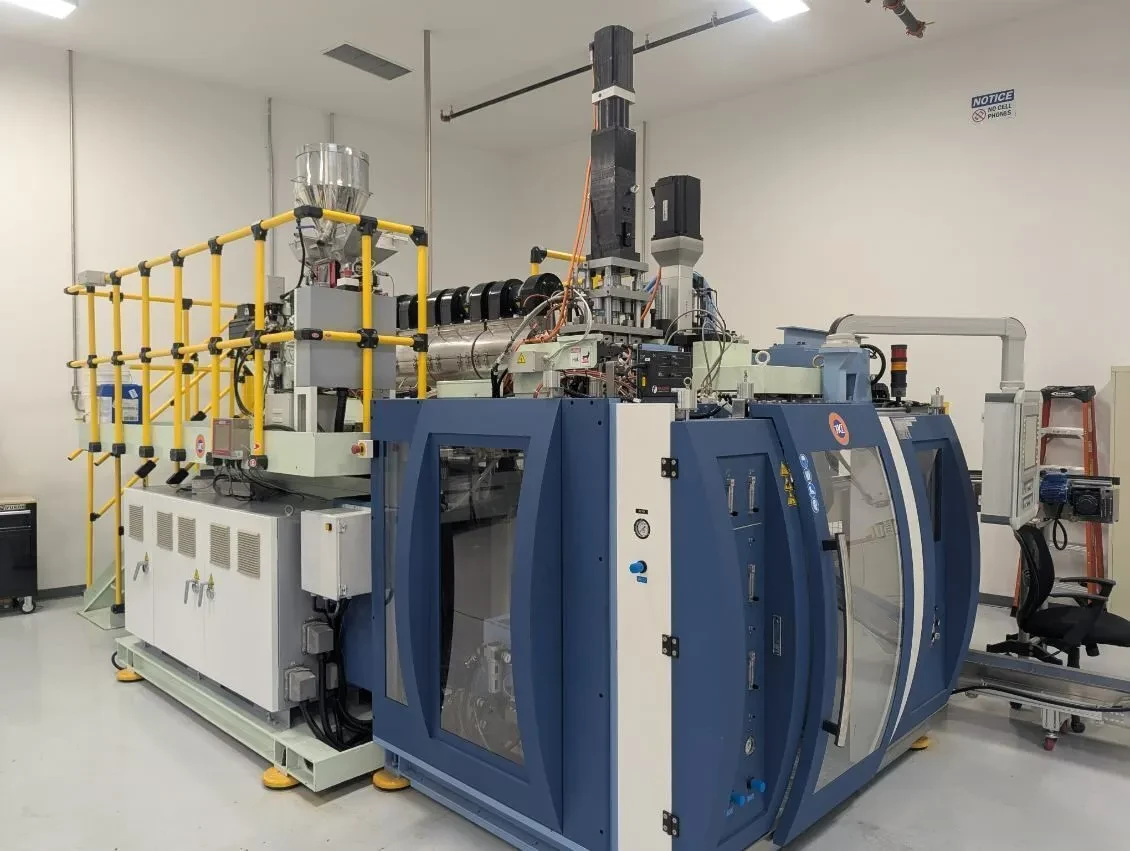

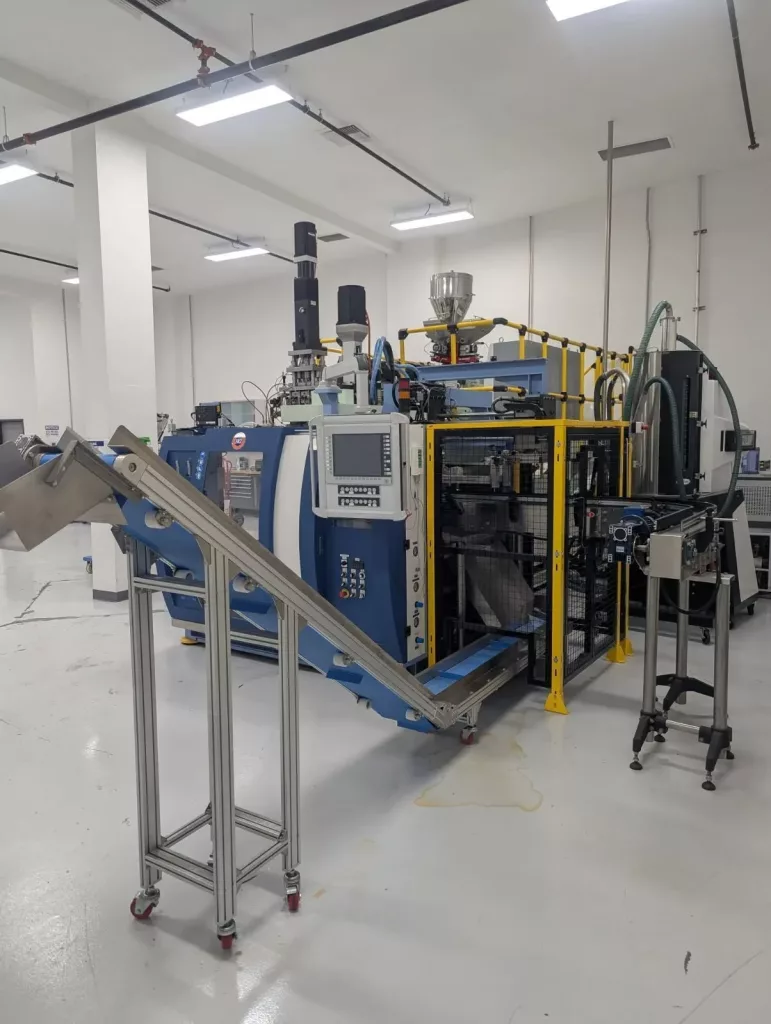

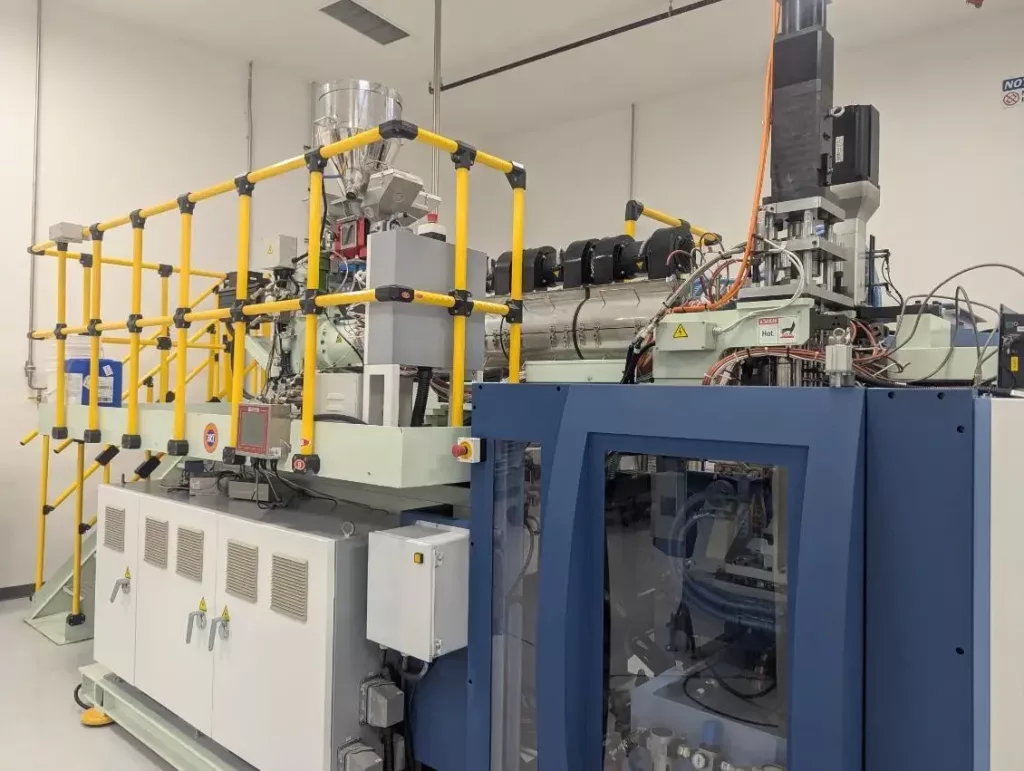

Used Fong Kee EHB 65T03SS (2022) Blow Molder for Sale. This single-sided fully electric extrusion blow molding machine runs a 65mm 30/1 extruder rated at 150 kg/hr output, with a 300mm x 600mm platen and long stroke design for deeper molds and larger parts. It handles products from 500ml down to 70ml, 38g to 5g gross weight, and suits containers, technical parts and precision molded components. The triple head system has 100mm center distance with independent programmer and servo motor control, extra blow pins and a support air system. Downstream includes straight and inclined conveyors plus a dedicated bottle conveyor. Additional details list electric, horizontal, T03 platen 400 x 320mm (HxW), single head, continuous type, single station. Available to see under power for inspection. Activate Pricing or Request a Quote.
Specifications
| Type |
Single-Sided Fully Electric Extrusion Blow Molding Machine |
|---|---|
| Products |
500ml-70 ml 38g-5g (Gross Weight) / 65mm 30/1 Extruder 150 kg/hr (Output) / 300mm X 600mm (Platen) |
| Configuration |
Long Stroke Design |
| Application |
Suitable for Containers / Technical Parts / Precision Molded Components |
| Benefits |
Fully Electric Operation (Energy Efficient/High Repeatability) Long Stroke Capability for Deeper Molds / Larger Parts Stable and Consistent Processing Performance |

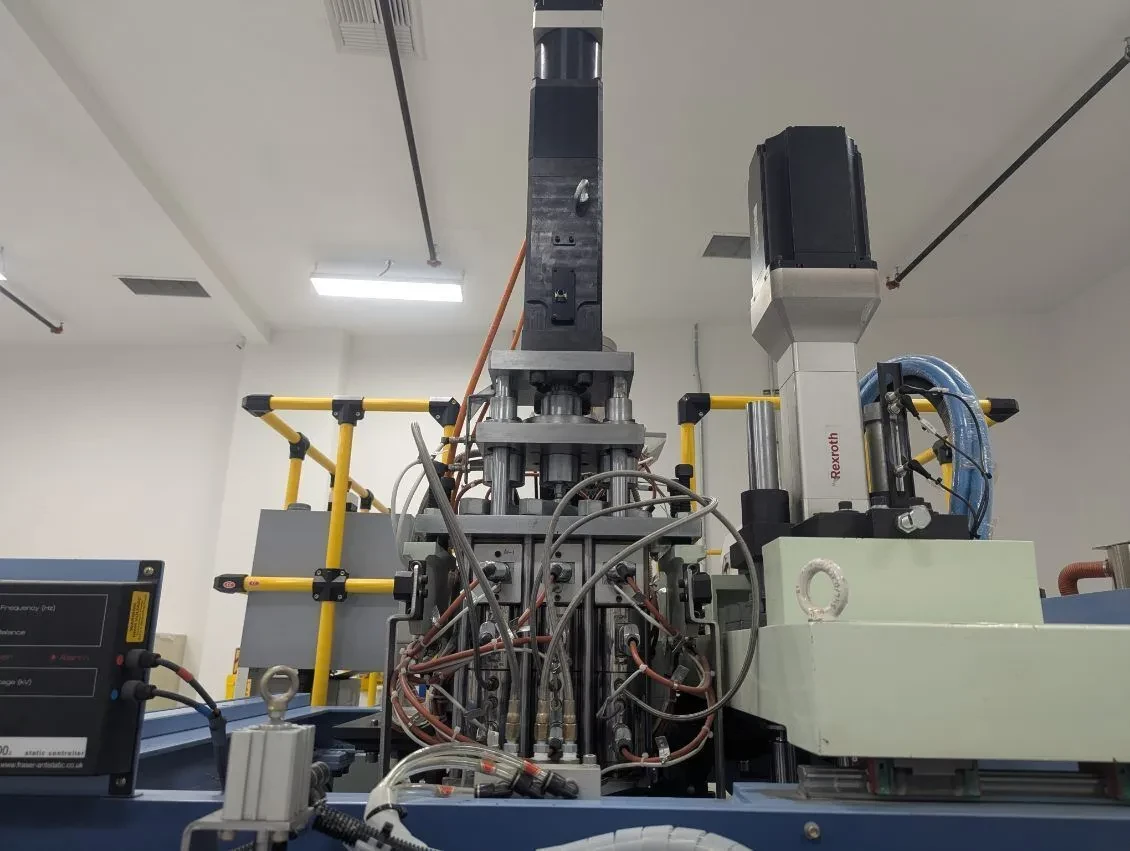

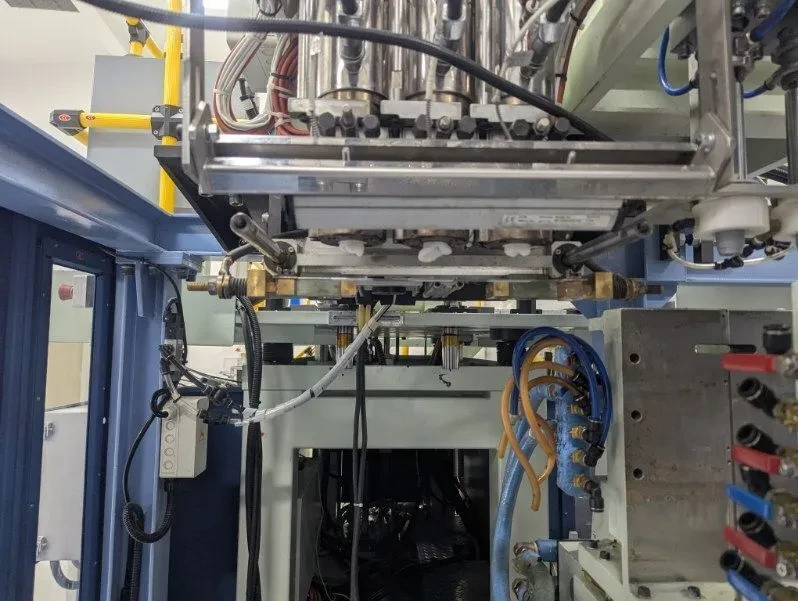

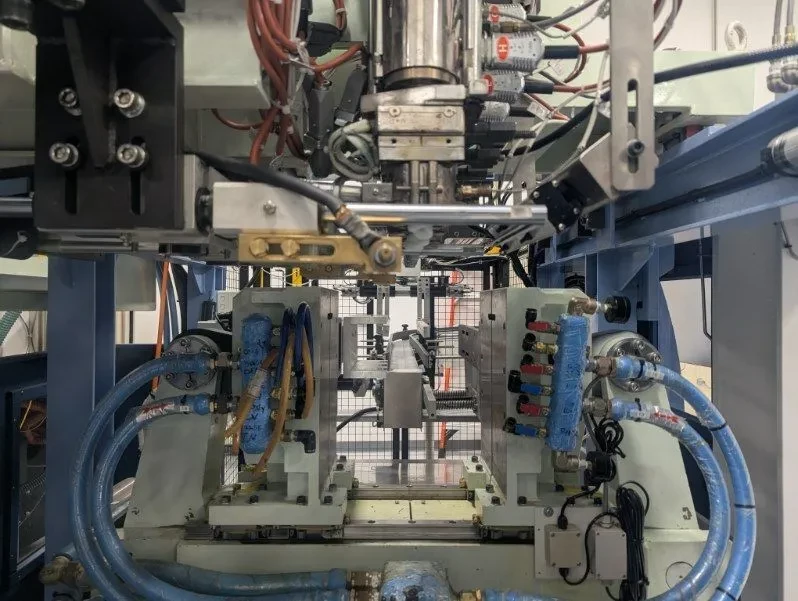

| Triple Head System |
100mm Center Distance Ondependent Programmer with Servo Motor Control |
| Triple Head System - Inclusions |
Extra Blow Pins / Support Air System |
| Triple Head System - Advantage |
Multi-Cavity/Multi-Parison Capability for Increased Output / Greater Process Control via Servo Programming |

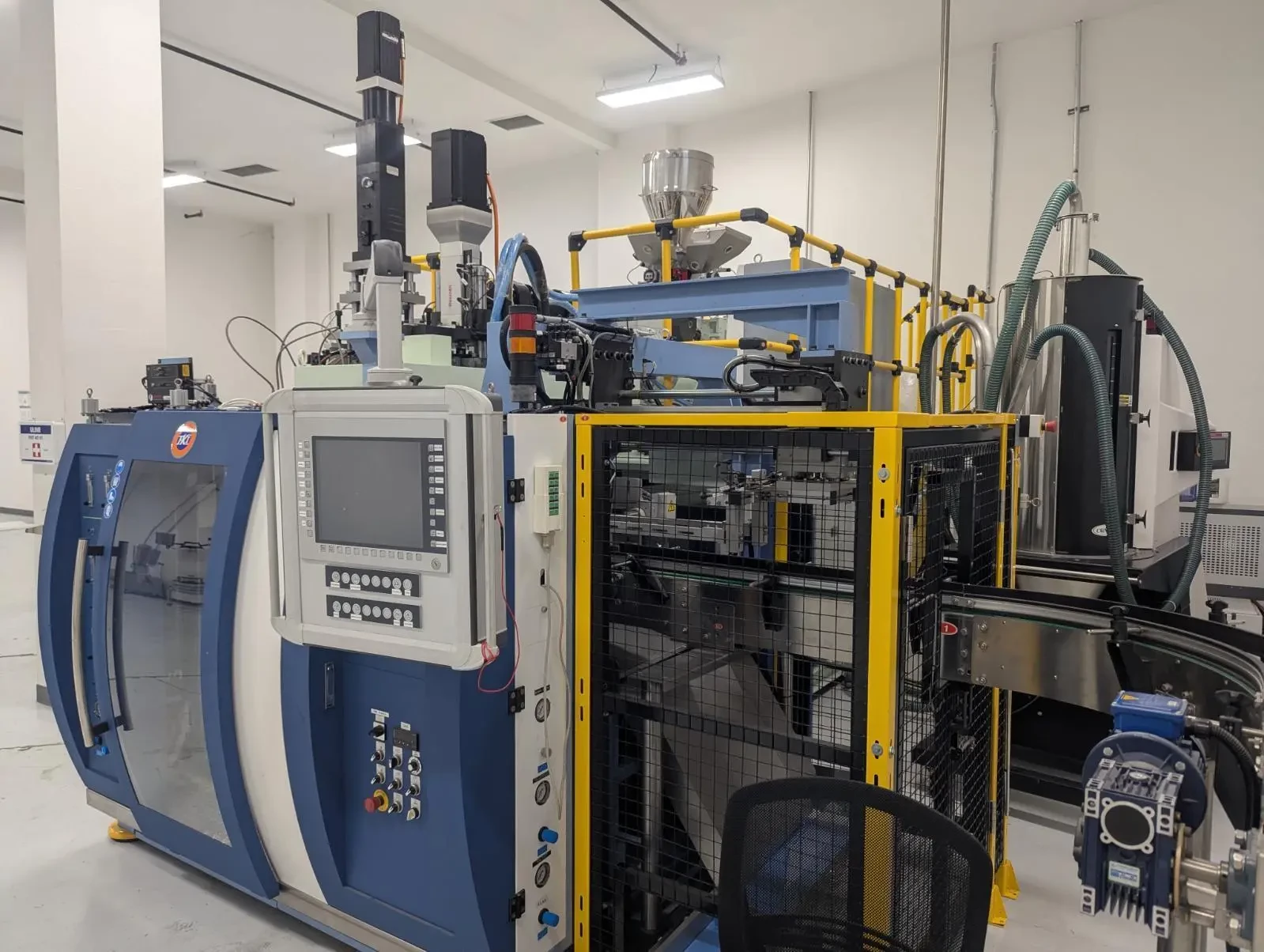

| Conveying System - Inclusions |
Straight & Inclined Conveyor (Part Handling and Transfer) / Dedicated Bottle Conveyor for Finished Product Takeaway / Fully Integrated Downstream Flow from Molding to Collection |
| Additional Notes |
Originally Supplied as a Complete Production System (Not Pieced Together) / Designed for Continuous Operation with Efficient Part Handling / Ideal for Bottle/Container Production |
| Technical Molded Components |
Pilot or Mid-Volume Production Lines |
| Additional machine Details Include: |
Electric, Horizontal, Blow , 65 mm extruder, T03 platen size 400 x 320mm (HxW), Single Head, Continuous type, Single Station |
