Year |
1998 |
|---|---|
Make |
Krupp Kautex |
Model |
CP 241/144 |
Description |
Accumulator Head Blow Molder |
Reference # |
8076742 |
Price |
Activate Pricing |
Used Krupp Kautex CP 241/144 (1998) Blow Molder for Sale. This single-head accumulator machine offers a 90 L shot capacity (150.8 lbs. / 68.4 kg), die ranges from 200mm (7.87″) to 600mm (23.62″), a max die gap of 50mm (1.968″), and divergent head tooling in 220mm, 300mm and 325mm sizes with eight heating zones. Clamp force is 144 ton with 59″ x 71″ platens, platen magnetics, 43″ stroke, 106″ max and 23.62″ min daylight, 975 in/min closing speed, and mold capacity to 11,000 lbs. (2 x 5,500 lbs.). The 150mm (5.9″) modified VBET screw is rated at an estimated 1300 lbs/hr HDPE and processes liquid color and strand pellet masterbatch colorants. Beckhoff control with Kautex BlowCommand 4 software (upgraded 2015), Windows XP based, plus a custom head tool change cart with small scissor lift. The last day to see this 90L Kautex running is Friday August 14 2026, and it can be seen under power for an inspection. See more used blow molding machines, use Activate Pricing, and Request a Quote.
Specifications
| Number of Heads |
(1) One Head |
|---|---|
| Shot Size Capacity Ltr/Lbs/Kg |
90 L / 150.8 lbs. / 68.4 kg |
| Die Ranges (mm/in) |
200 (7.87") to 600mm (23.62") |
| Max Die Gap (mm/in) |
50mm/1.968" |
| Head Tooling Sizes (mm/in) |
220 (8.66") / 300 (11.81") / 325 (12.79") - All Divergent |
| Heating Zones |
(8) Eight |
| Platen Size (W x L) |
59" x 71" |
| Max Daylight |
106" |
| Min. Daylight |
23.62" |
| Stroke |
43" |
| Clamp Force |
144 Ton |
| Max Mold Weight(s) (lbs.) |
11,000 lbs. (2 x 5,500 lbs.) |
| Closing Speed (in/min) |
975 in/min |
| Platen Feature(s) |
Platen Magnetics |

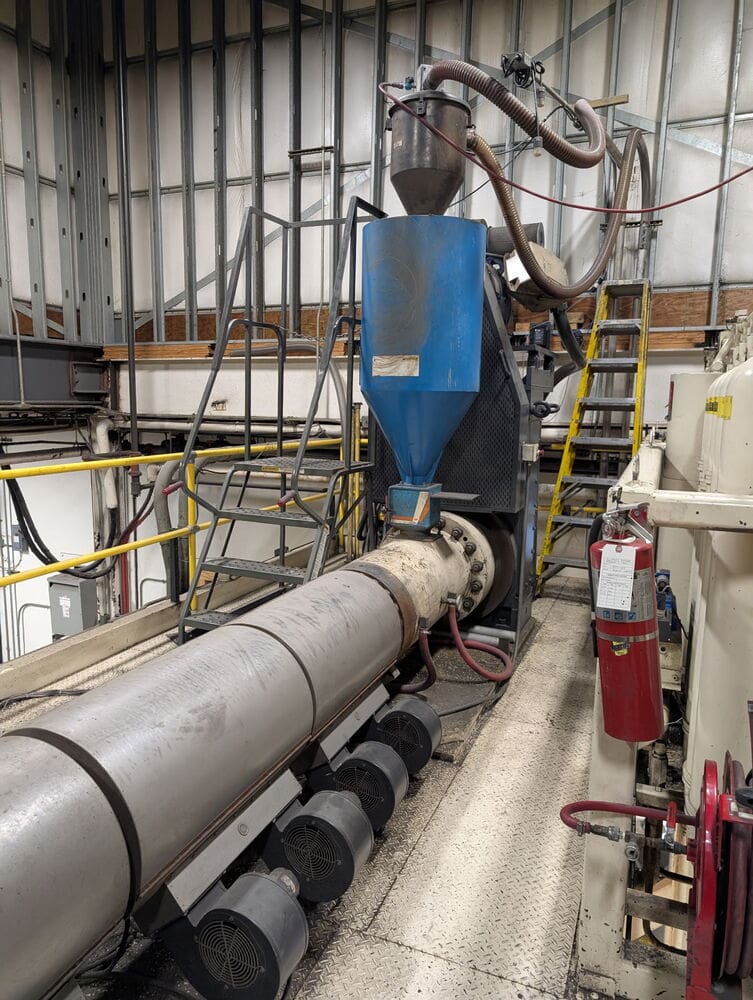

| Extruder Screw Size |
150mm (5.9") |
| Screw Type |
Modified VBET Screw |
| Est. Output (HDPE) |
1300 lbs/hr |
| Extruder Capabilities |
Processing Liqid Color & Strand Pellet Masterbatch Colorants |
| Controller |

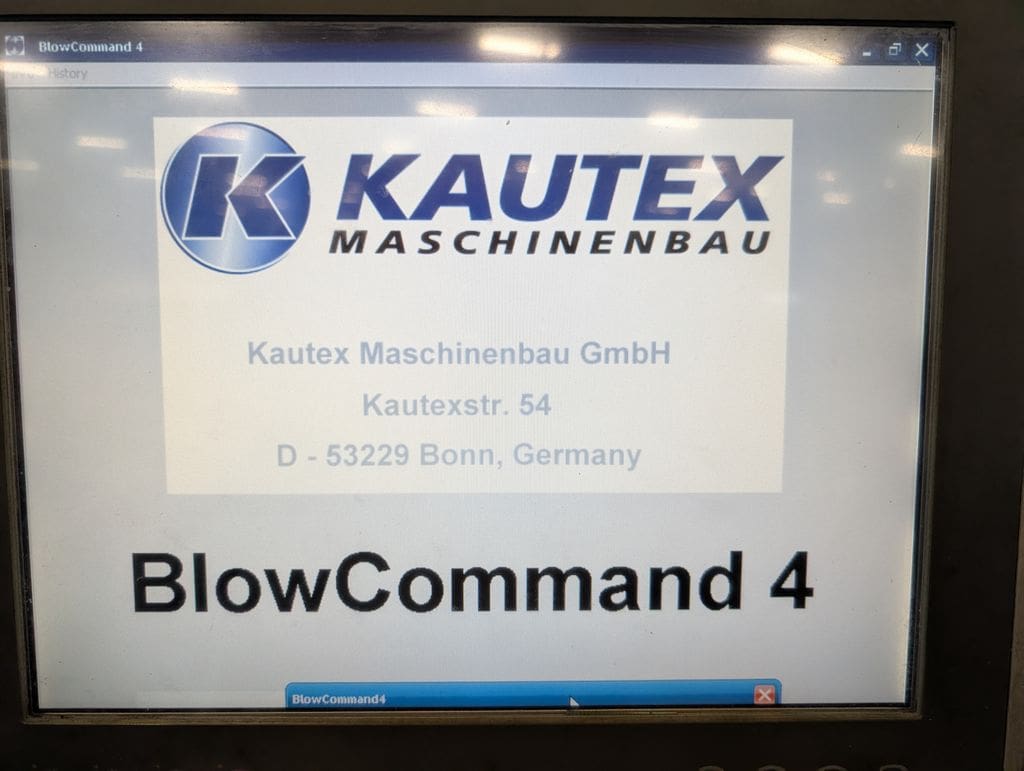

Beckhoff W/Kautex BlowCommand 4 Software (Upgraded 2015) |
| Operating System |
Windows XP Based Operating System |
| Note |
The last day for anyone to see the current 90L Kautex running will be Friday August 14 2026 |
Features
|
"Custom Head Tool Change Cart" with Small Scissor Lift for Tool Changing |
