Year |
2011 |
|---|---|
Make |
ST |
Model |
TA150 ASPI |
Description |
Blow Molder |
Reference # |
8076914 |
Price |
Activate Pricing |

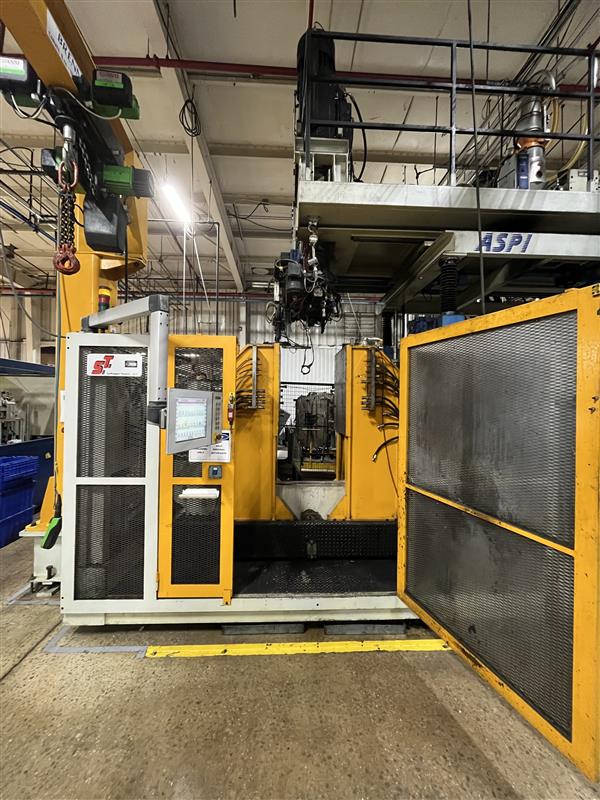

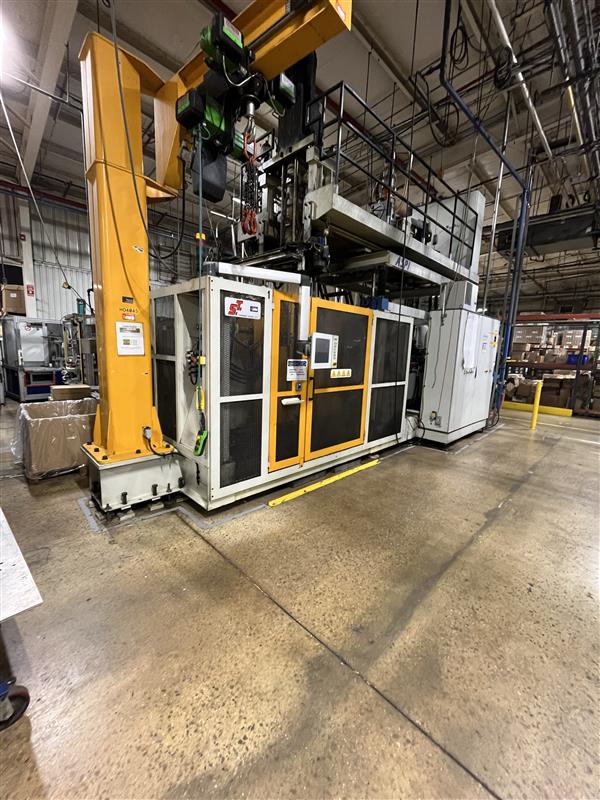

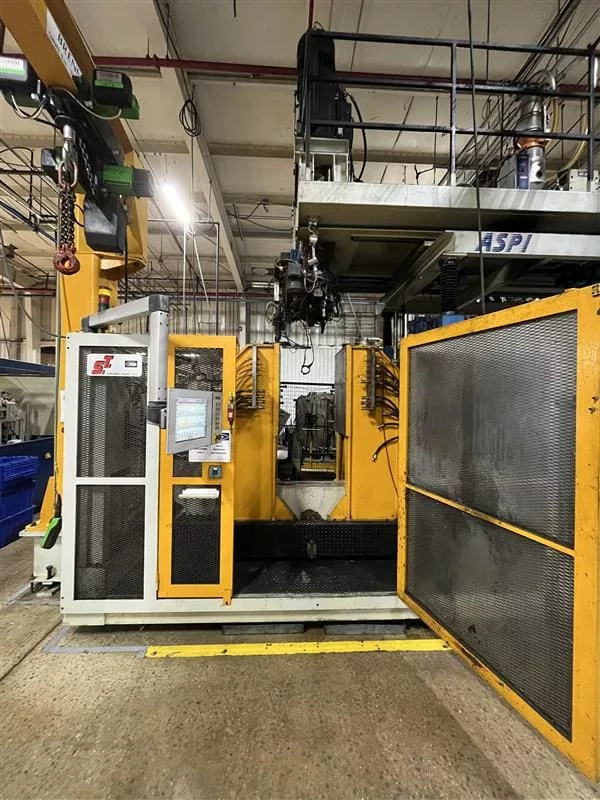

Used ST TA150 ASPI (2011) Blow Molder for Sale. This is an all electric 3-D suction blow molder with a shot size capacity of 3.5 Lbs. and 22 tons of clamp force. Minimum mold thickness is 12.20″ with a max daylight of 39.3″. Platen size measures 27.5″ X 31.4″ and mold size is 31.4″ X 47.2″. The extruder uses a 70 mm screw with a capacity of 170 Kg/Hr. Please note that one head is on the machine. The machine can be seen under power for an inspection, and additional details are available on request. See more listings in our used blow molding machines category, use Activate Pricing to view pricing, or Request a Quote and we will follow up with you directly.
Specifications
| Type of Blow Molder |
All Electric 3-D Suction |
|---|---|
| Shot Size Capacity |
3.5 Lbs. |
| Clamp Force |
22 Tons |
| Minimum Mold Thickness |
12.20" |
| Max Daylight |
39.3" |
| Platen Size |
27.5" X 31.4" |
| Mold Size |
31.4" X 47.2" |
| Extruder Screw Diameter |
70 mm |
| Extruder Capacity |
170 Kg/Hr. |
| Note |
(1) Head is on the Machine |
