Year |
1993 |
|---|---|
Make |
Magic |
Model |
MGL-5D |
Description |
Blow Molder |
Reference # |
8071070 |
Price |
Activate Pricing |

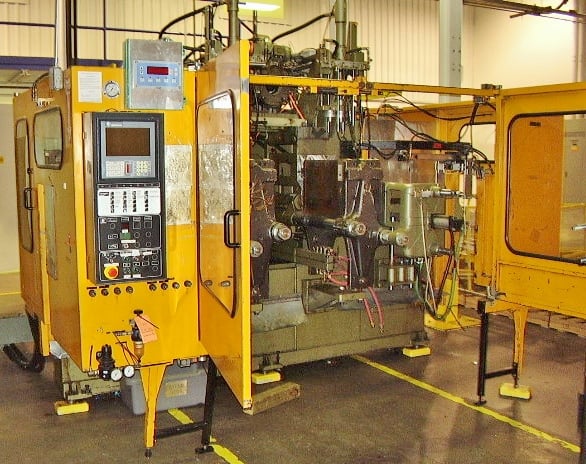

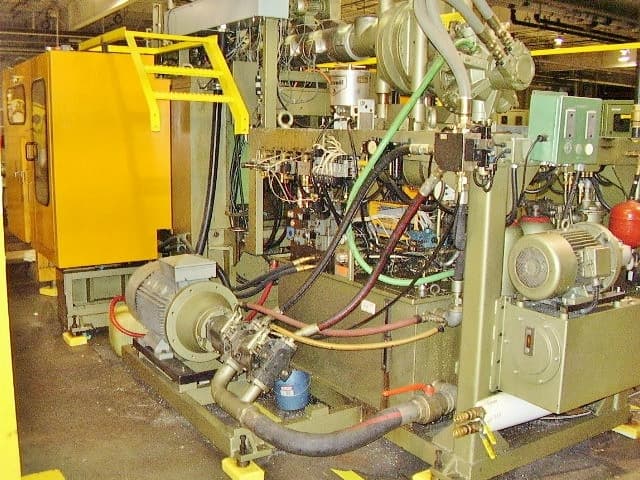

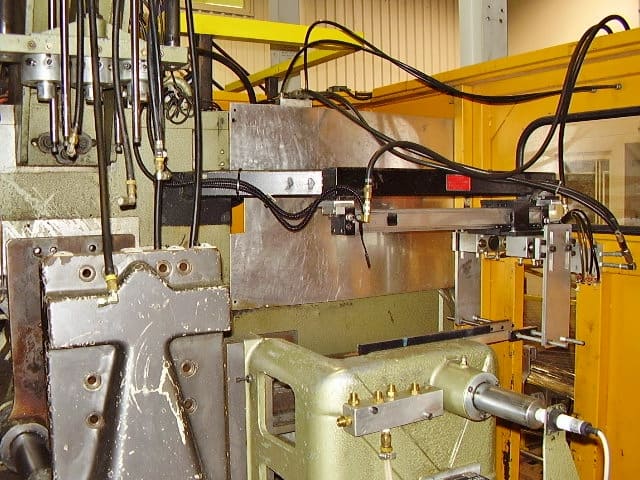

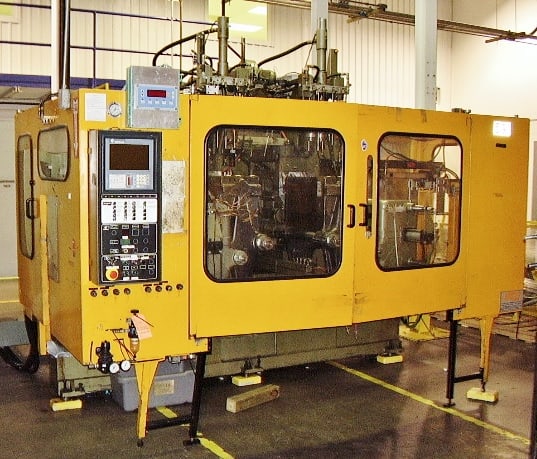

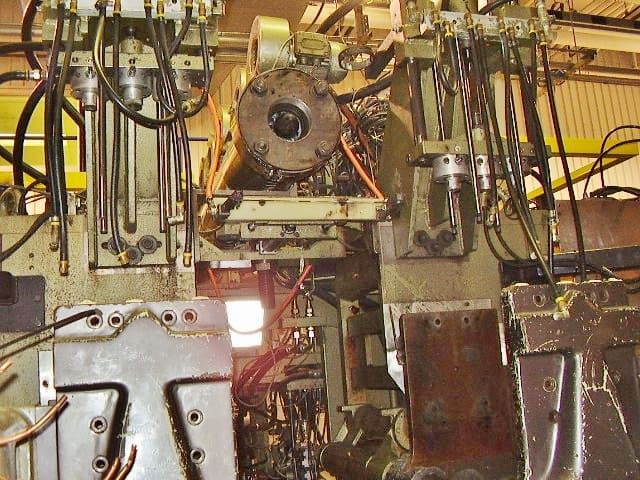

Used Magic MGL-5D (1993) Blow Molder for Sale. This continuous extrusion machine has 2 stations and is set up for 4 x 85mm PE heads or 3 x 115mm heads, fed by a 90mm extruder with a 24:1 L/D ratio driven by a 60 HP hydraulic motor. Maximum mold size is 360 mm wide x 400 mm high with a 2 x 100mm stack height, with 420mm max daylight, a 210mm opening stroke, 60 KN clamping force and a 40 HP clamp hydraulic drive. Dry cycling is 1.8 seconds. Machine weight is 27,000 lbs and the sale includes loading onto the buyer’s truck. Equipped with manuals, ladder and platform. The machine can be seen under power for an inspection. See more used blow molding machines, use Activate Pricing, or Request a Quote.
Specifications
| Number Of Stations |
2 |
|---|---|
| Number of Heads |

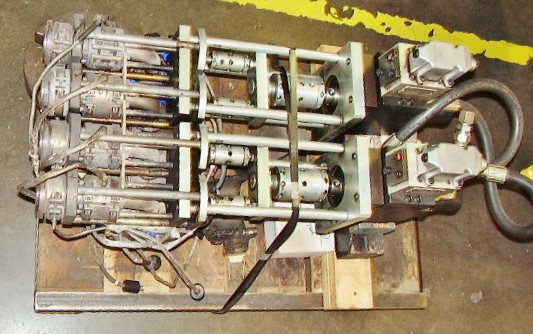

4 x 85mm PE (or) 3 x 115mm |
| Extruder |
90mm |
| L/D Ratio |
24:1 |
| Extruder Horsepower |
60 HP Hydraulic Motor |
| Max Mold Size |
360 mm (w) x (2 x 100mm) Stack Height x 400 mm (h) |
| Max Daylight |
420mm |
| Opening Stroke |
210mm |
| Clamping Force |
60 KN |
| Clamp Hydraulic Drive |
40 HP |
| Dry Cycling |
1.8 sec |
| Machine Weight |
27,000 lbs |
| Note |
Includes Loading onto Buyer's Truck |
Features
|
Manuals |
Ladder & Platform |
