Year |
2008 |
|---|---|
Make |
ST |
Model |
TA150 ASPI COEX SECO |
Description |
Blow Molder |
Reference # |
8074414 |
Price |
Activate Pricing |

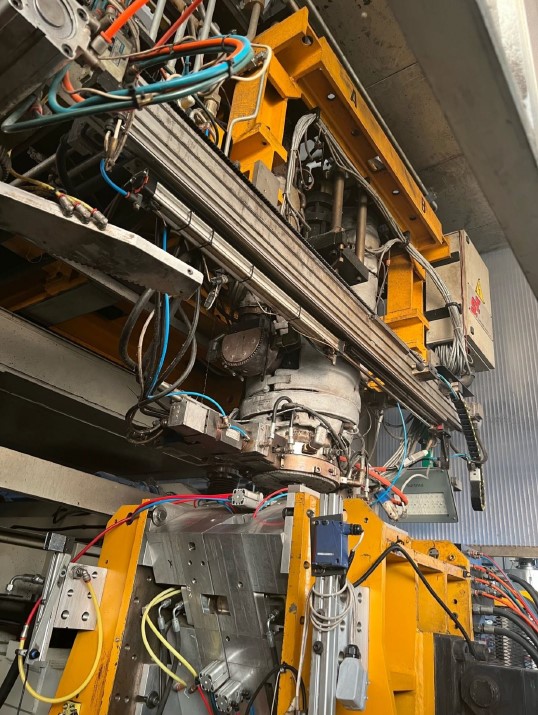

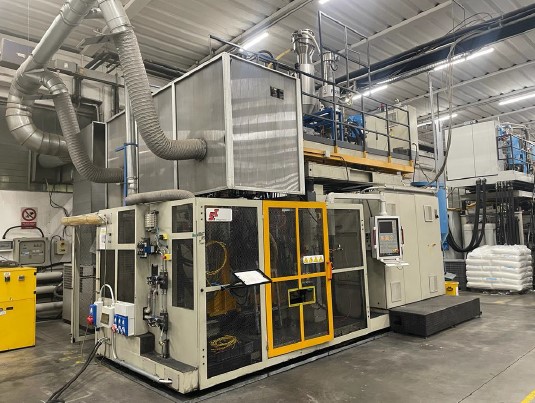

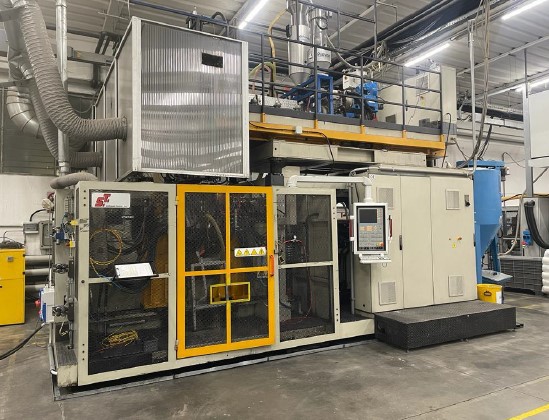

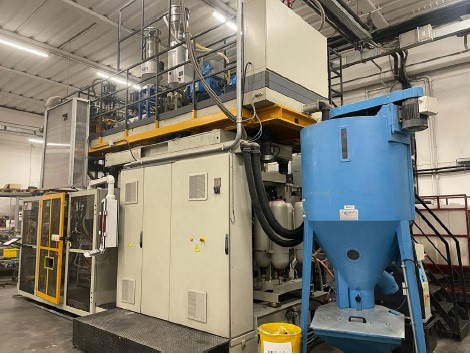

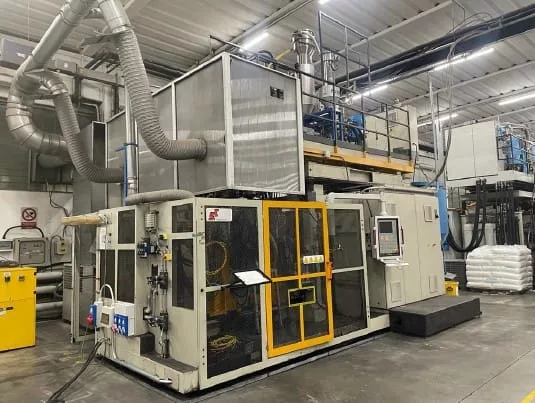

Used ST TA150 ASPI COEX SECO (2008) Blow Molder for Sale. This co-extrusion accumulator head machine offers 15 metric tons (16.5 US tons) of closing force, a minimum mold thickness of 12.20″, and a max opening of 39.37″, with floor opening space of 13.78″ x 2 and platen floor dimensions of 27.55″ x 31.49″. It runs two extruders with 60mm screws at a 24:1 L/D ratio, with estimated HDPE output of 180 lbs/hour (60mm) and 340 lbs/hour (70mm). Shot size capacity is 1.5 Ltr. (3.30 lbs) HDPE, maximum HDPE extrusion weight 1.2 kg x 2, die diameter .19″ (5mm) to 2.95″ (75mm). Overall 342″ L, 173.22″ B, 196.85″ high; 21 min. and 23 max tonnage. 13,519 running hours. Equipped with anthropomorphic robot, parison marker, and spare parts for resistors, pins and dies. Currently in operation and can be seen under power for inspection. See our other used blow molding machines, use Activate Pricing, and Request a Quote.
Specifications
| Type of Blow Molder |
Co-Extrusion Accumulator Head |
|---|---|
| Closing Force |
15 Metric Tons, 16.5 US Tons |
| Minimum Mold Thickness |
12.20" |
| Max Opening |
39.37" |
| Floor Opening Space |
13.78" x 2 |
| Dimensions of Floor B x H |
27.55" x 31.49" |

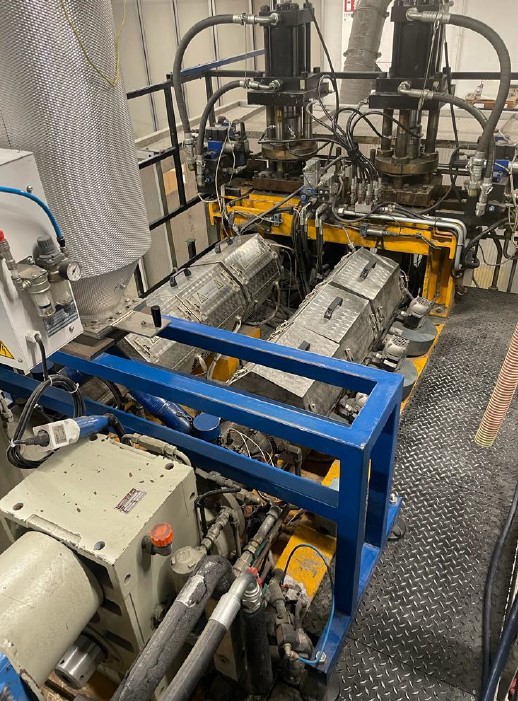

| (2) Extruders |
. |
| Screw Size |
60mm |
| L/D Ratio |
24:1 |
| Estimate Output (HDPE) |
180 lbs/hour (60mm) & 340 lbs/hour (70mm) |
| Heads |
. |
| Shot Size Capacity |
1.5 Ltr. (3.30 lbs) HDPE |
| Maximum HDPE Extrusion Weight (kg x 2) |
1.2 |
| Min/ Max Die Diameter |
.19" (5 mm) - 2.95" (75mm) |
| Weights |
21 Min. & 23 Max Tonnage |
| Length |
342" Length (L) and 173.22" Length (B) |
| Height |
196.85" |
| Note |
13,519 Running Hours Currently In Operation for Inspections |
Features
|

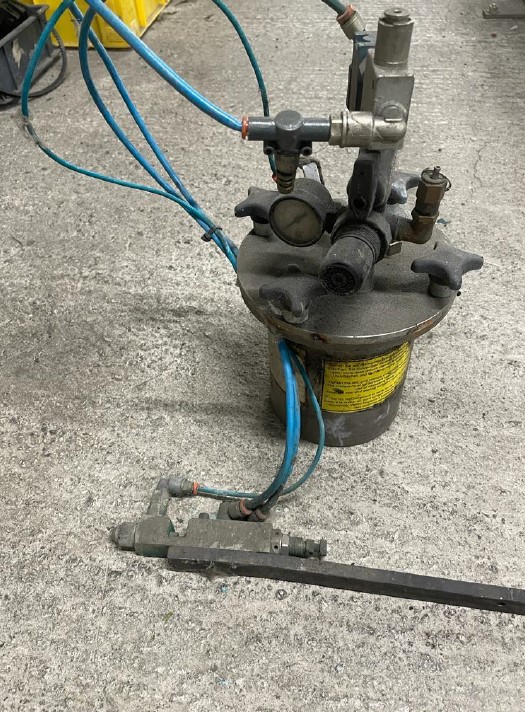

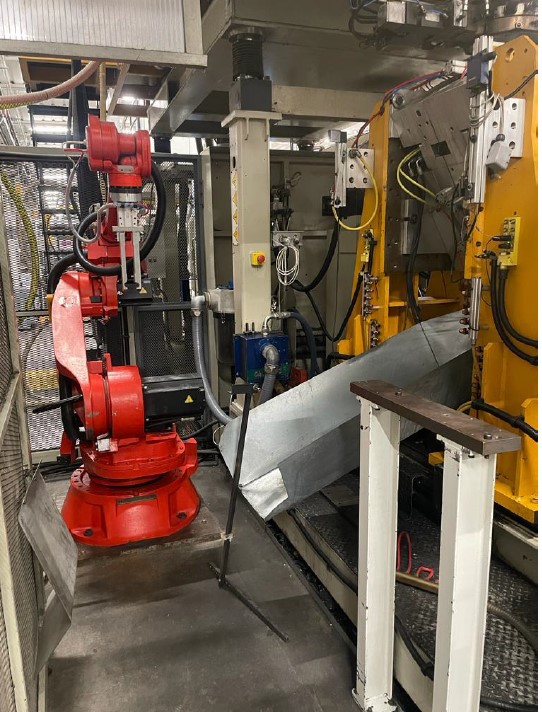

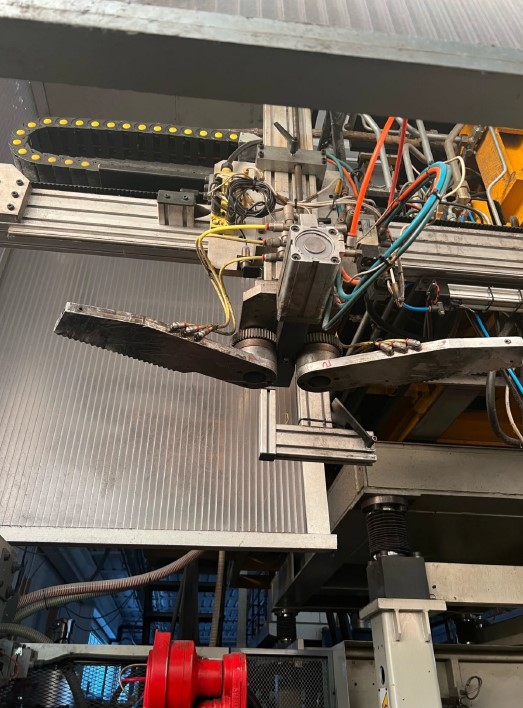

Anthropomorphic Robot and Parison Marker |

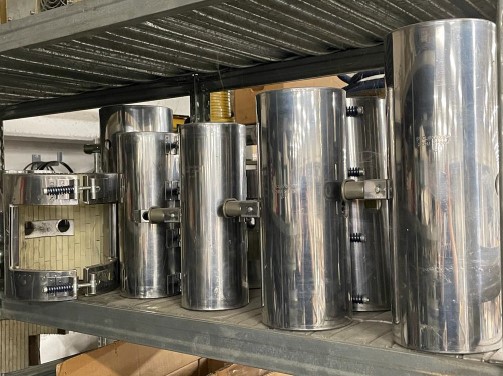

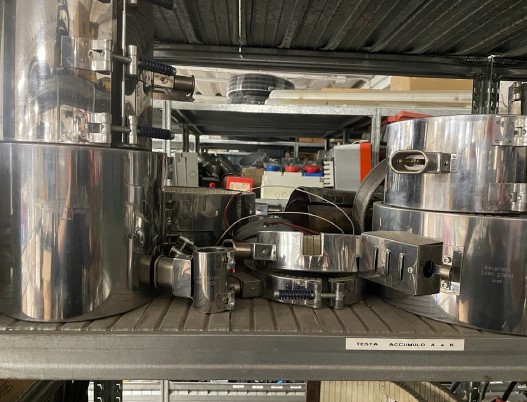

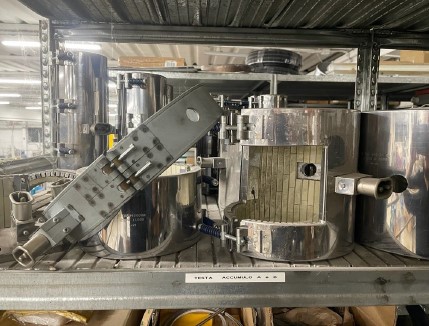

Spare Parts for Resistors/ Pin / Dies |
