Year |
1999 |
|---|---|
Make |
Nissei |
Model |
FN4000-36A |
Description |
200 Ton 11 oz Shot Size Injection Molding Machine |
Reference # |
8070106 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
200 Ton |
|---|---|
| Shot Size |
11 oz |
| Tie Bar Spacing |
20.9" x 20.9" |
| Platen Size |
30.3" x 30.3" |
| Clamp Stroke |
27.6" |
| Min / Max Daylight |
9.8" / 37.4" |
| Ejector Stroke |
4.3" |
| Horsepower |
40 |
| Approx Dimensions (LxWxH) |
224.6" x 52.8" x 76.8" |
| Approx Machine Weight |
15,500 lbs |

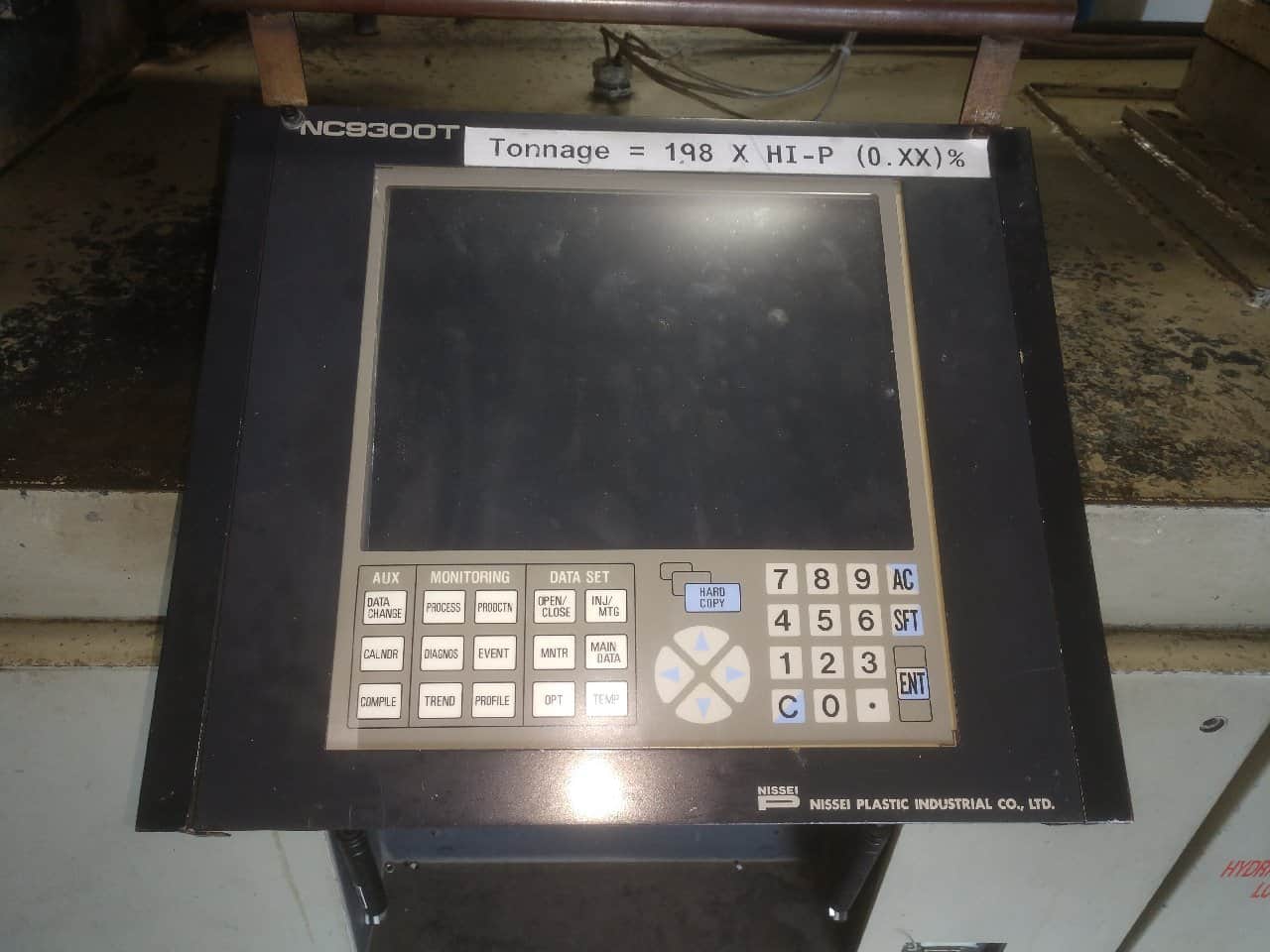

| Control |
NC-9300T |
Features
|
Core Pull |
Hydraulic Knockout |
|
Robot Interface |
Under Power |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
