Year |
2012 |
|---|---|
Make |
Nissei |
Model |
DCE60-2E |
Description |
60 Ton 0.43 oz /0.6 oz Shot Size 2 Shot/2 Color Electric Injection Molding Machine |
Reference # |
8069930 |
Price |
Activate Pricing |

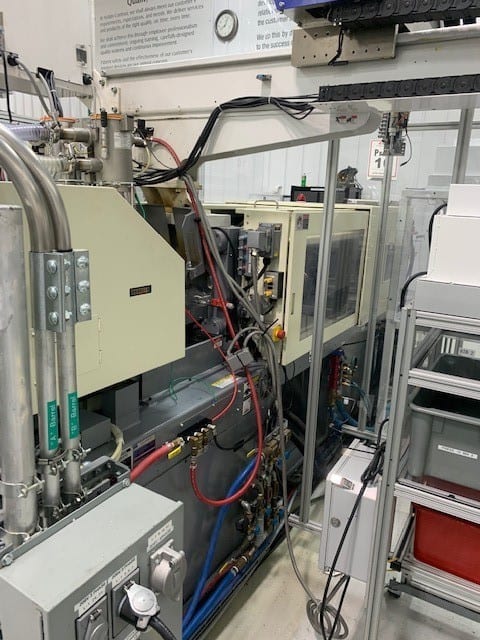

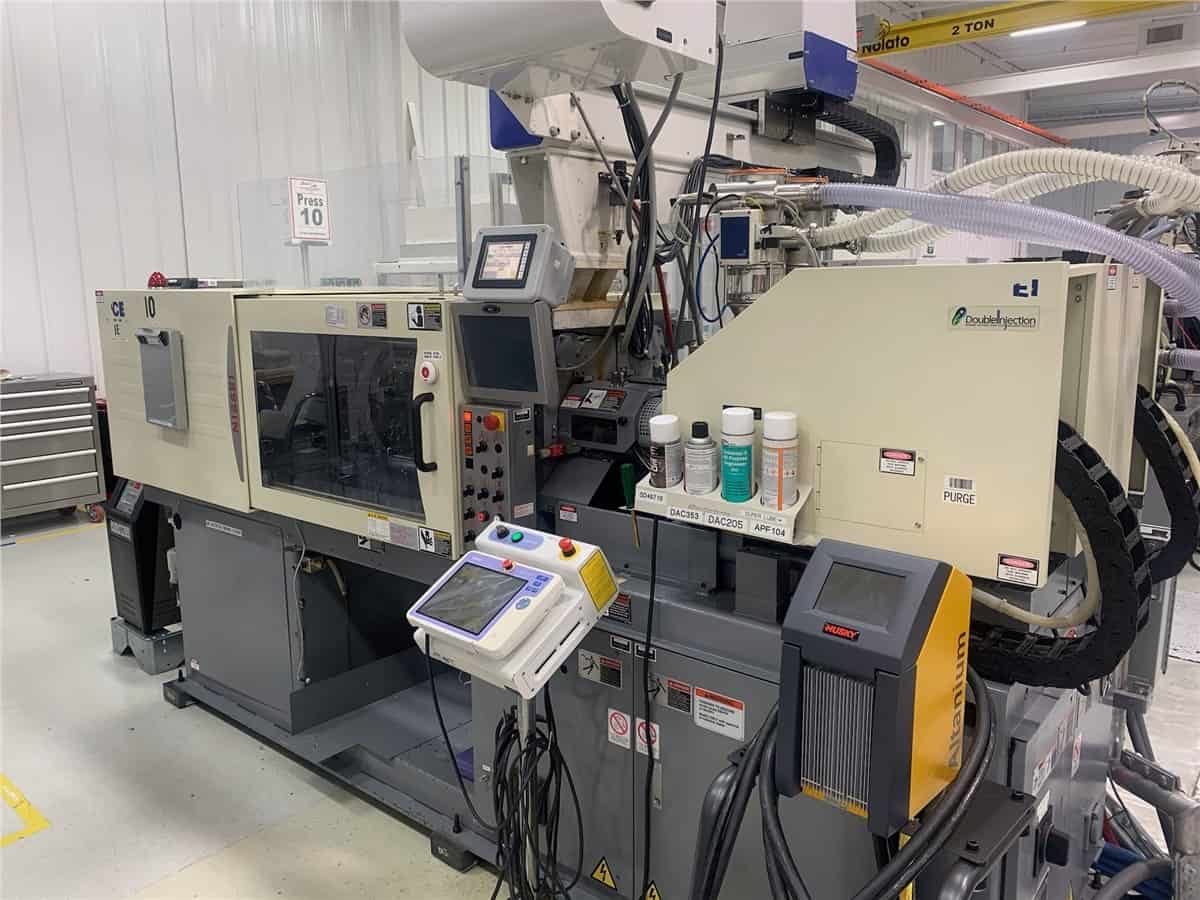

Used Nissei DCE60-2E (2012) Injection Molding Machine for Sale. This two-shot machine is rated at 60 Ton clamp capacity with shot sizes of 0.43 oz (main) and 0.60 oz (secondary). It carries a 19.5″ diameter rotary platen, 20.5″ x 20.5″ platens, and Tact Control. Power requirement is 230V, and the machine measures 141″ x 47″ x 66″. Equipped with a robot interface and rotary platen. The machine can be seen under power for an inspection, so you can verify operation and controls before committing. Additional plastic injection molding machines are available, along with other Nissei equipment. Activate Pricing to see the figure on this listing, or Request a Quote and we will follow up with details and freight options.
Specifications
| Capacity |
60 Ton |
|---|---|
| Shot Size |
0.6 oz |
| Second Shot Size |
0.43 oz |

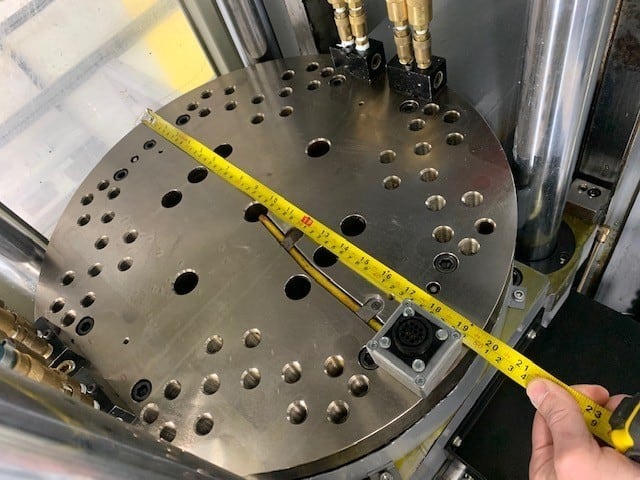

| Rotary Platen Size |
19.5" (D) |

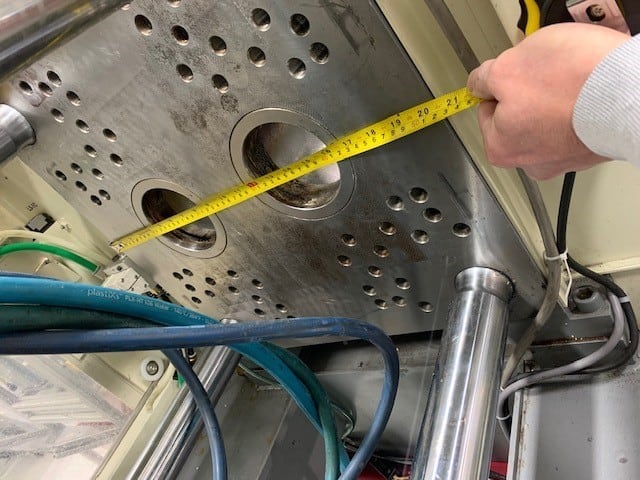

| Platen Size |
20.5" x 20.5" |
| Control |
Tact Control |
| Power Requirement |
230V |
| Machine Dimensions |
141" x 47" x 66" |
| Note |
Shot Sizes - 0.43 oz (Main) x 0.60 oz (Secondary) |
Features
|
Robot Interface |
Rotary Platen |
