Year |
2001 |
|---|---|
Make |
Nissei |
Model |
ES600 |
Description |
66 Ton 2.3 oz Electric Injection Molding Machine |
Reference # |
8078606 |
Price |
Activate Pricing |

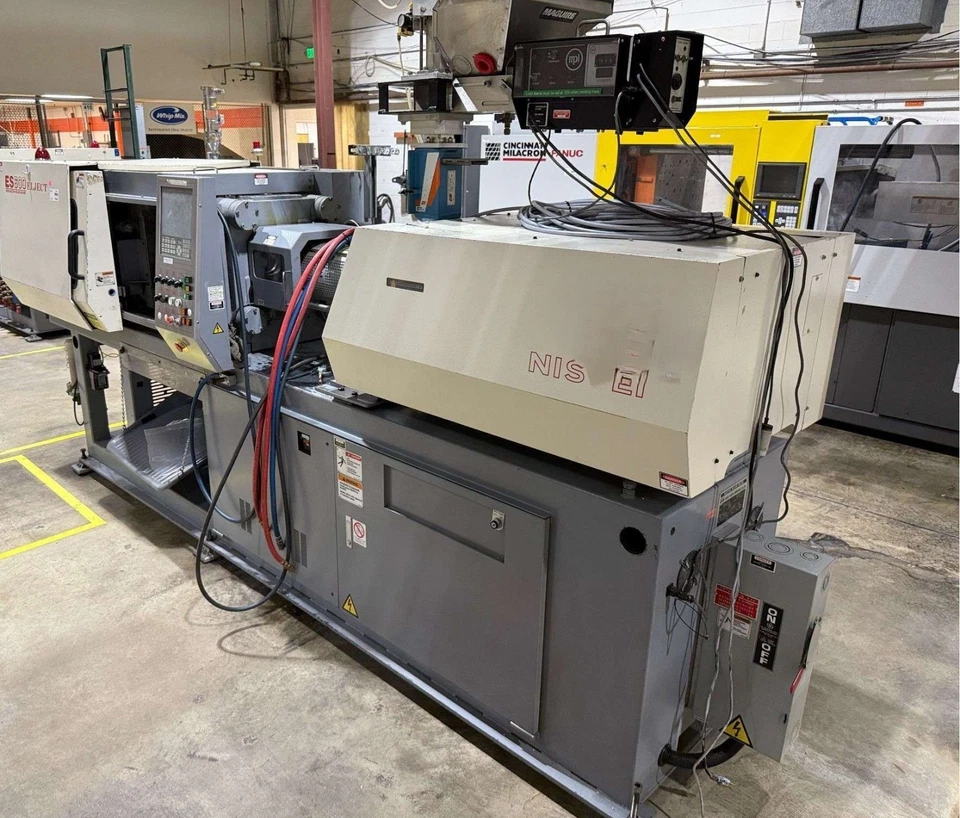

Used Nissei ES600 (2001) Injection Molding Machine for Sale. This toggle clamp machine offers 66 ton clamping capacity with a 2.3 oz shot size, making it suited to small part production. Tie bar spacing measures 16″ x 13.6″, with a clamp stroke of 10.2″, minimum daylight of 6.7″ and maximum daylight of 24″. Machine operation is handled through a Nissei NC9300T control, and the unit is equipped with air blow. It is under power and can be demonstrated for inspection before purchase. Additional machines are listed in our used plastic injection molding machines category, along with other equipment from Nissei. Activate Pricing to view the figure, or Request a Quote and we will follow up with details.
Specifications
| Capacity |
66 Ton |
|---|---|
| Shot Size |
2.3 oz |
| Tie Bar Spacing |
16" x 13.6" |
| Clamp |
Toggle |
| Clamp Stroke |
10.2" |
| Min Daylight |
6.7" |
| Max Daylight |
24" |

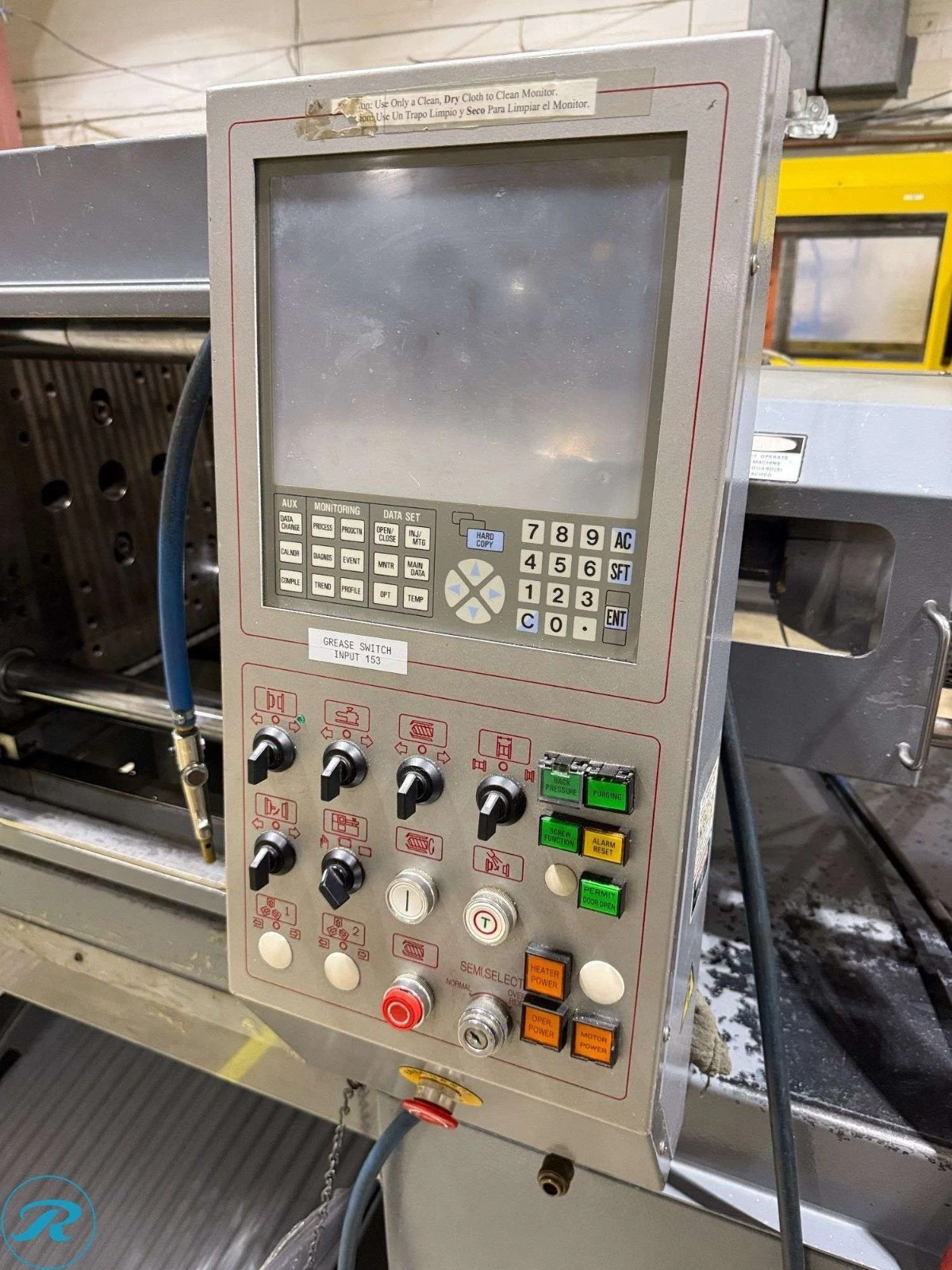

| Control |
NC9300T |
Features
|
Air Blow |
Under Power |
