Year |
1996 |
|---|---|
Make |
Van Dorn |
Model |
85HT5 |
Description |
85 Ton 5 oz Shot Size Injection Molding Machine |
Reference # |
8079190 |
Price |
Activate Pricing |

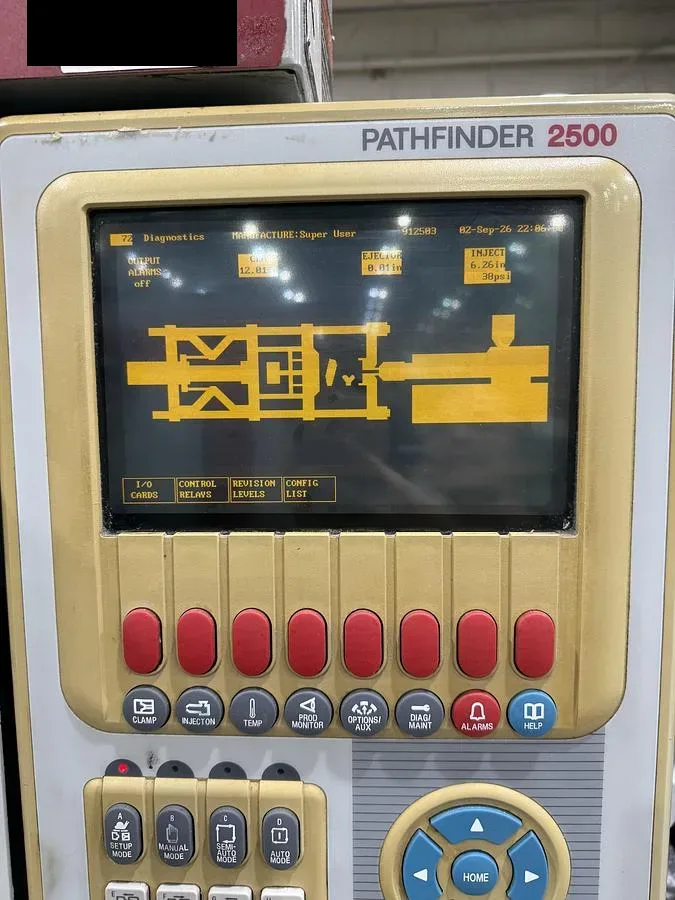

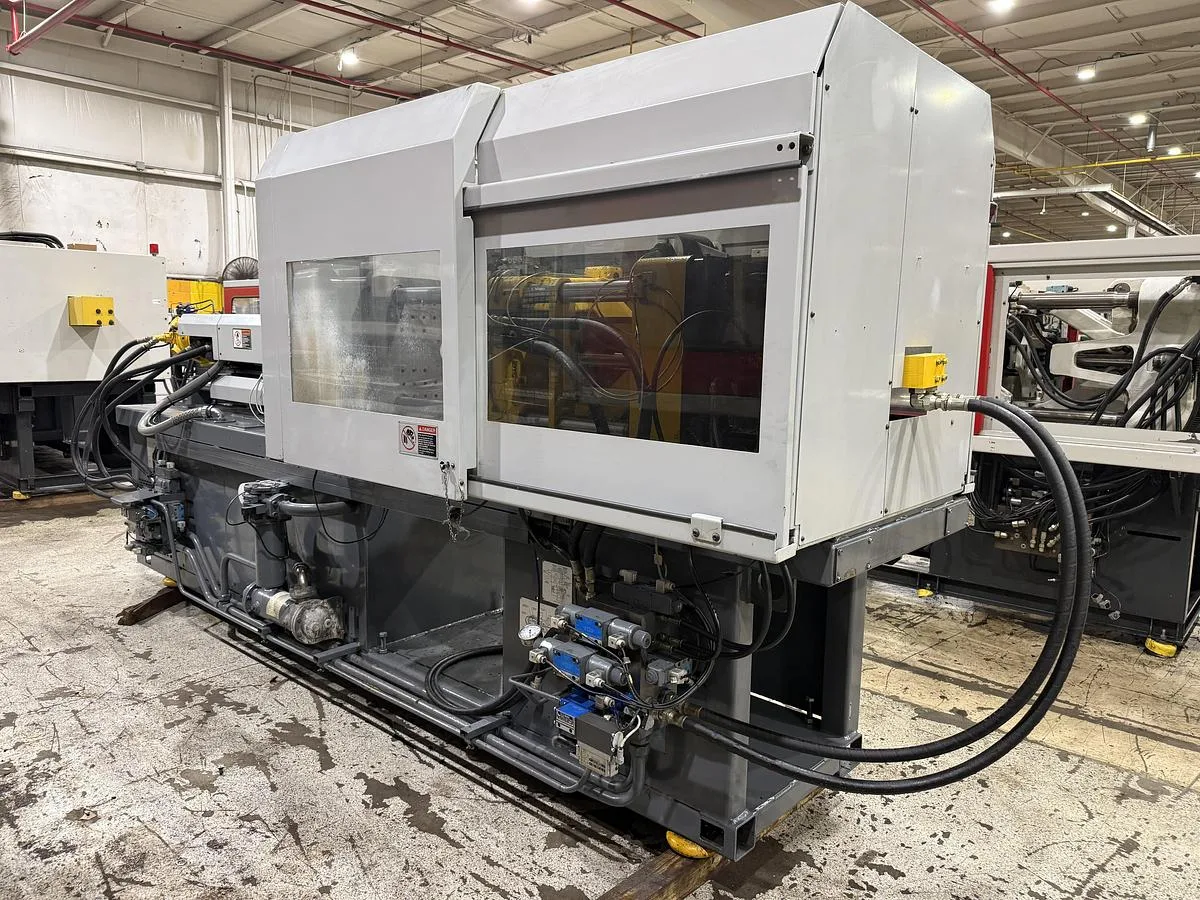

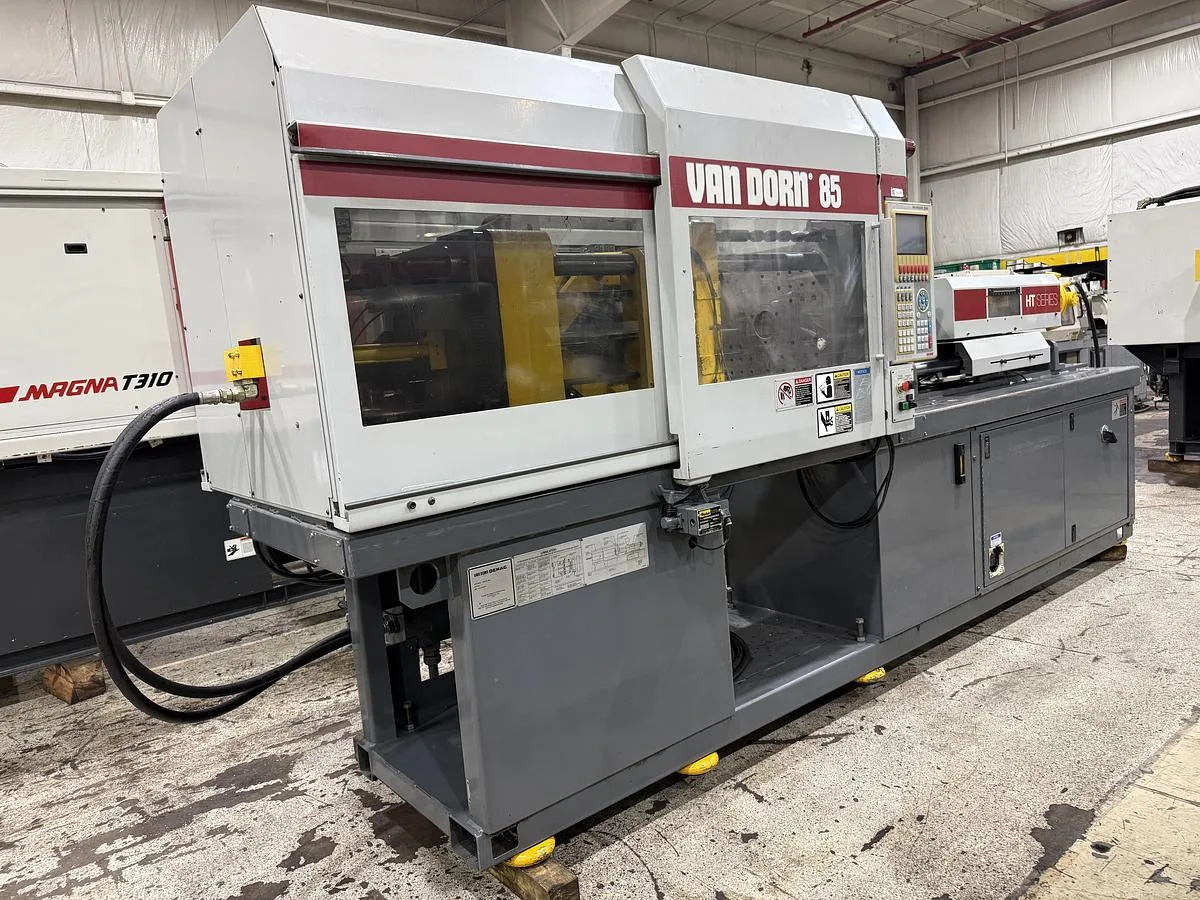

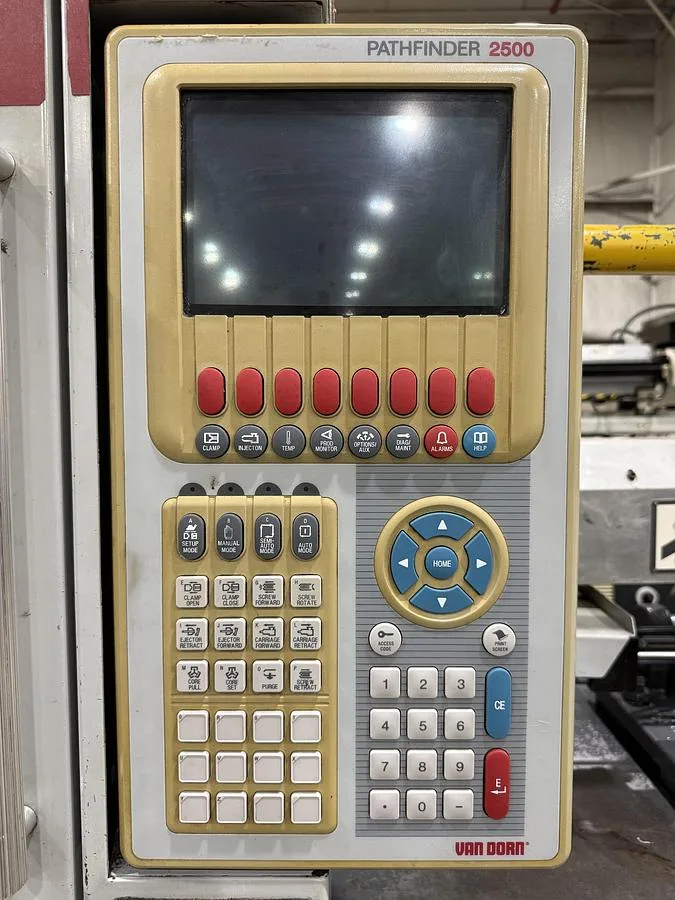

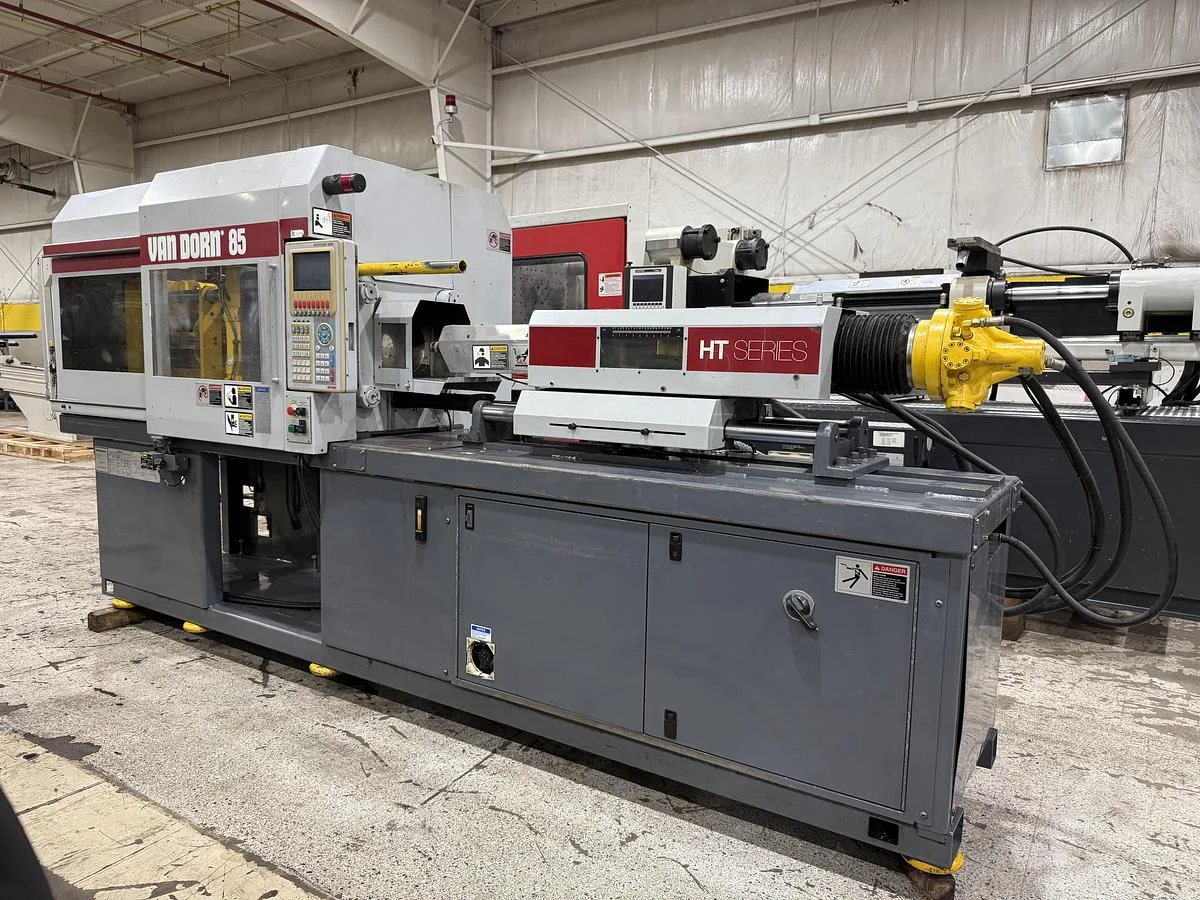

Used Van Dorn 85HT5 (1996) Injection Molding Machine for Sale. This toggle clamp press is rated at 85 ton with a 5 oz shot size. Platen size measures 22.8″ x 20.4″ with tie bar spacing of 16″ x 13.6″. Clamp stroke is 12″, maximum daylight is 28″, and minimum/maximum mold height runs 4″ to 16″. Ejector stroke is 3″. The machine runs on a Pathfinder 2500 control and is equipped with core pull and hydraulic knockout. This Van Dorn be seen under power for an inspection, and it is listed alongside our other used plastic injection molding machines. To see the number on this press, Activate Pricing, or send us details of your application using the Inquire Now button.
Specifications
| Capacity |
85 Ton |
|---|---|
| Shot Size |
5 oz |
| Platen Size |
22.8" x 20.4" |
| Tie Bar Spacing |
16" x 13.6" |
| Clamp Stroke |
12" |
| Max Daylight |
28" |
| Min /Max Mold Height |
4"/16" |
| Ejector Stroke |
3" |
| Control |
Pathfinder 2500 |
Features
|
Core Pull |
Hydraulic Knockout |
|
Toggle Clamp |
