Year |
2015 |
|---|---|
Make |
Haitian |
Model |
Zhafir VE400II |
Description |
45 Ton 1.6 oz Shot Size Electric Injection Molding Machine |
Reference # |
8074089 |
Price |
Activate Pricing |

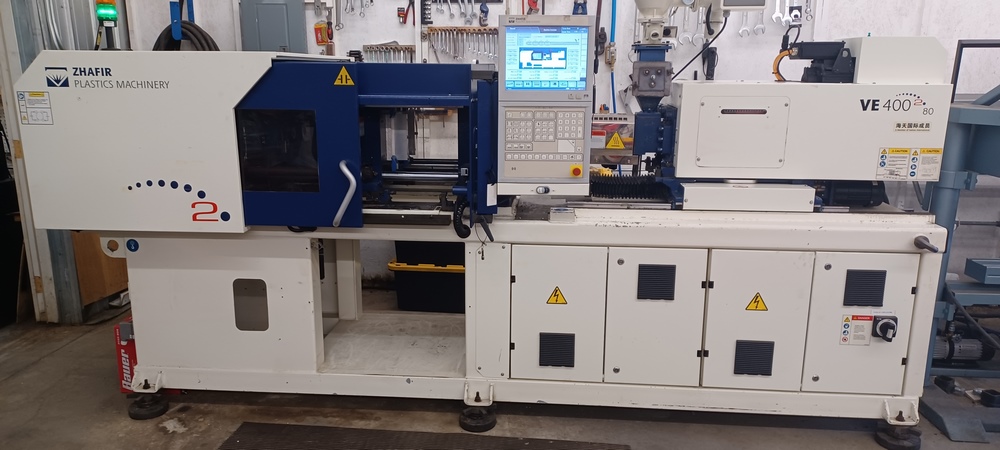

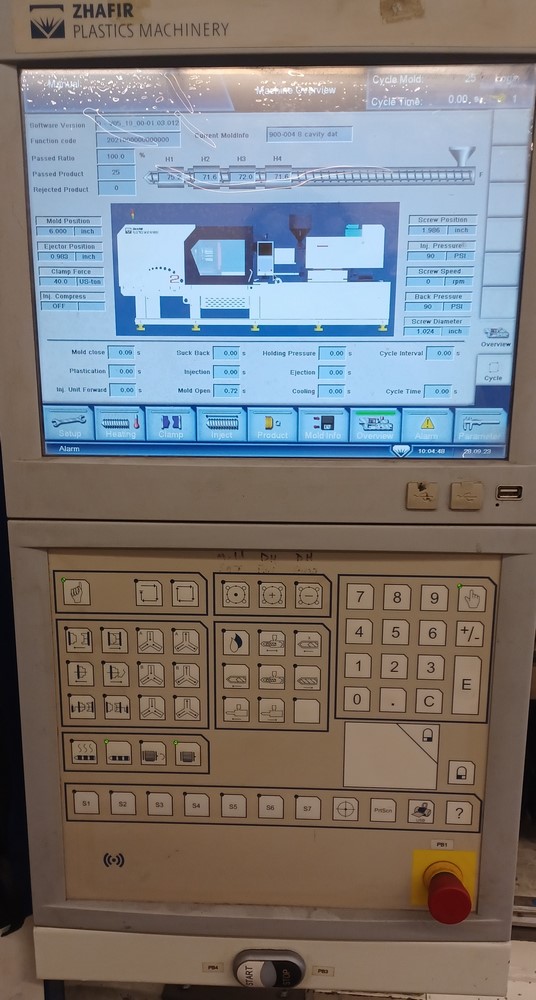

Used Haitian Zhafir VE400II (2015) Injection Molding Machine for Sale. This all-electric press is rated at 45 ton clamping capacity with a 1.6 oz shot size. Tie bar spacing measures 12.6″ x 11.02″ with a platen size of 18.11″ x 17.32″, and minimum/maximum mold height is 5.91″ to 12.60″. Clamp stroke is 21.85″ and ejector stroke is 2.36″. The machine uses a Keba control and requires 460/3/60 power. It is currently under power and can be demonstrated for an inspection prior to purchase. Additional presses are listed under our used plastic injection molding machines category. Use [Activate Pricing](#activate-pricing) to view the price, or Request a Quote and a representative will follow up with details on this Zhafir VE400II.
Specifications
| Capacity |
45 Ton |
|---|---|
| Shot Size |
1.6 oz |
| Tie Bar Spacing |
12.6" x 11.02" |
| Platen Size |
18.11" x 17.32" |
| Min /Max Mold Height |
5.91" x 12.60" |
| Clamp Stroke |
21.85" |
| Ejector Stroke |
2.36" |
| Control |
Keba |
| Power Requirement |
460/3/60 |
Features
|
Under Power |
