Make |
GS Machinery |
|---|---|
Model |
3D Printing Filament Line |
Description |
Single Screw Extruder |
Reference # |
8068932 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

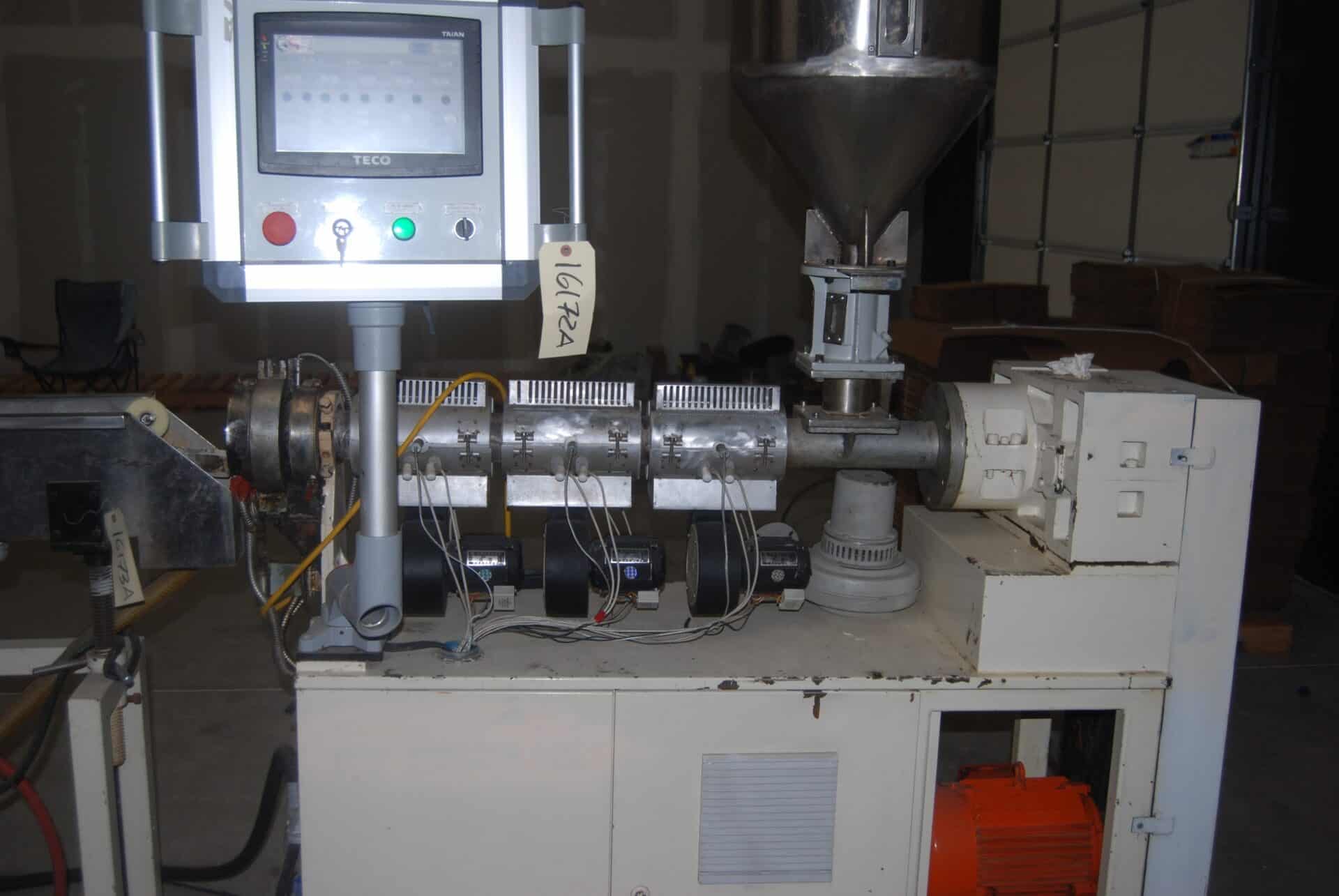

GS Machinery 3D Printing Filament Line
Specifications
| Extruder Model |
GS 45 |
|---|---|
| Screw Size |
45mm (1.77") |
| L/D Ratio |
25:1 |
| Air Cooled |
Yes |
| Die Zones |
3 |
| Horsepower |
10 HP (AC Motor) |

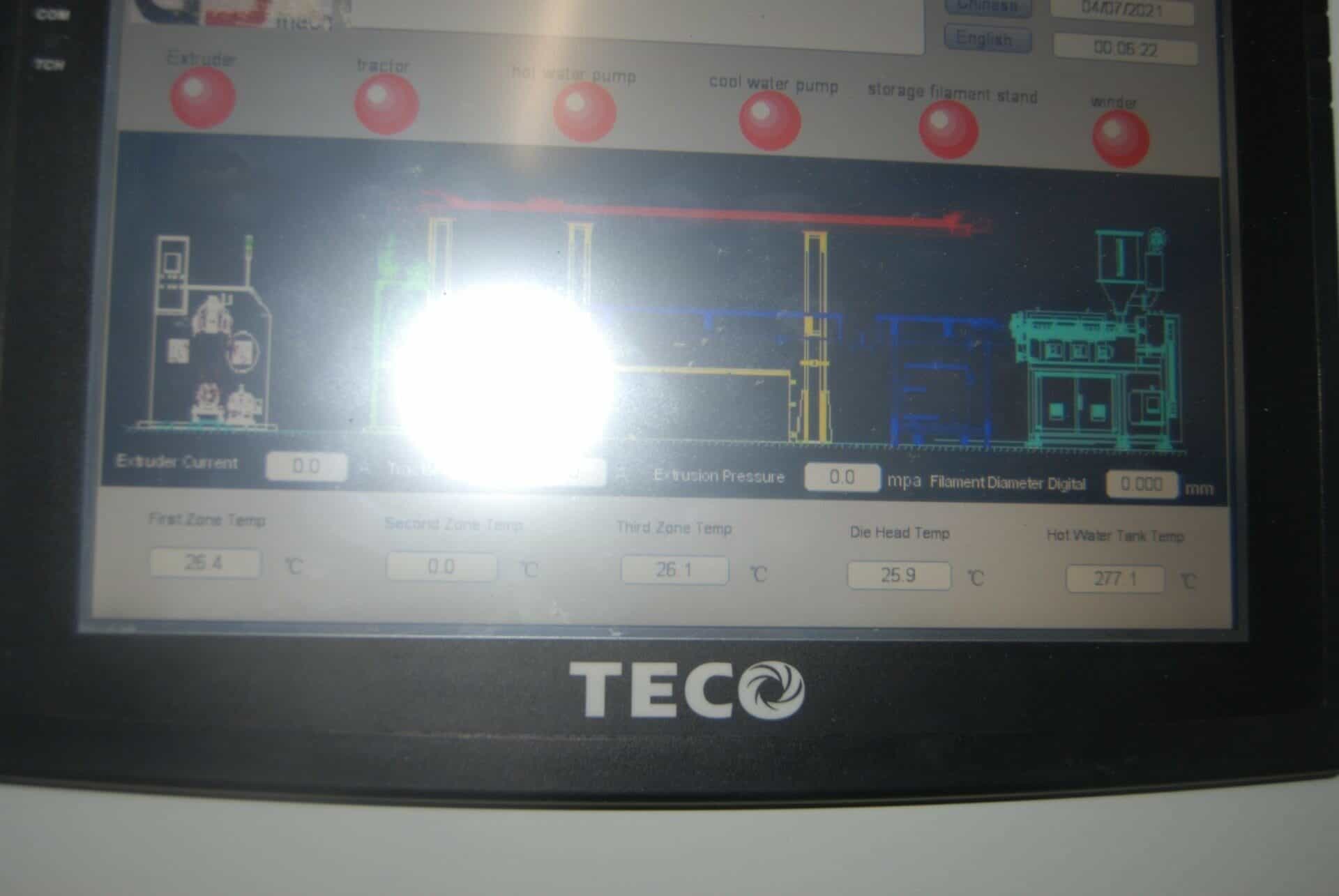

| Control |
Siemens SIMATIC ET200 SP PLC |

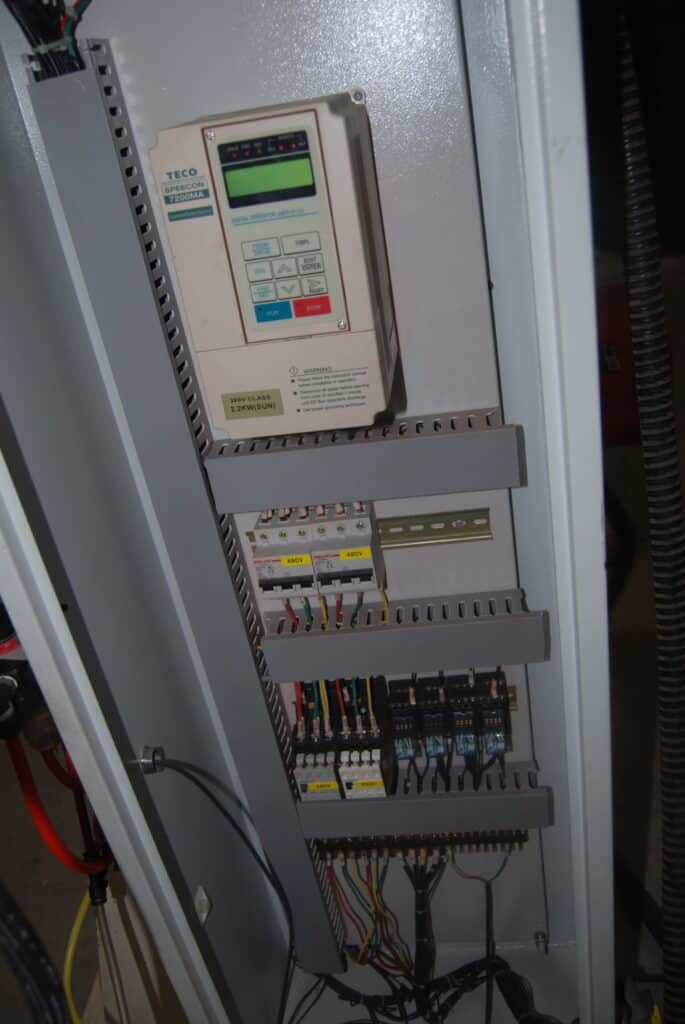

| Drive |
Siemens Inverter Drive |

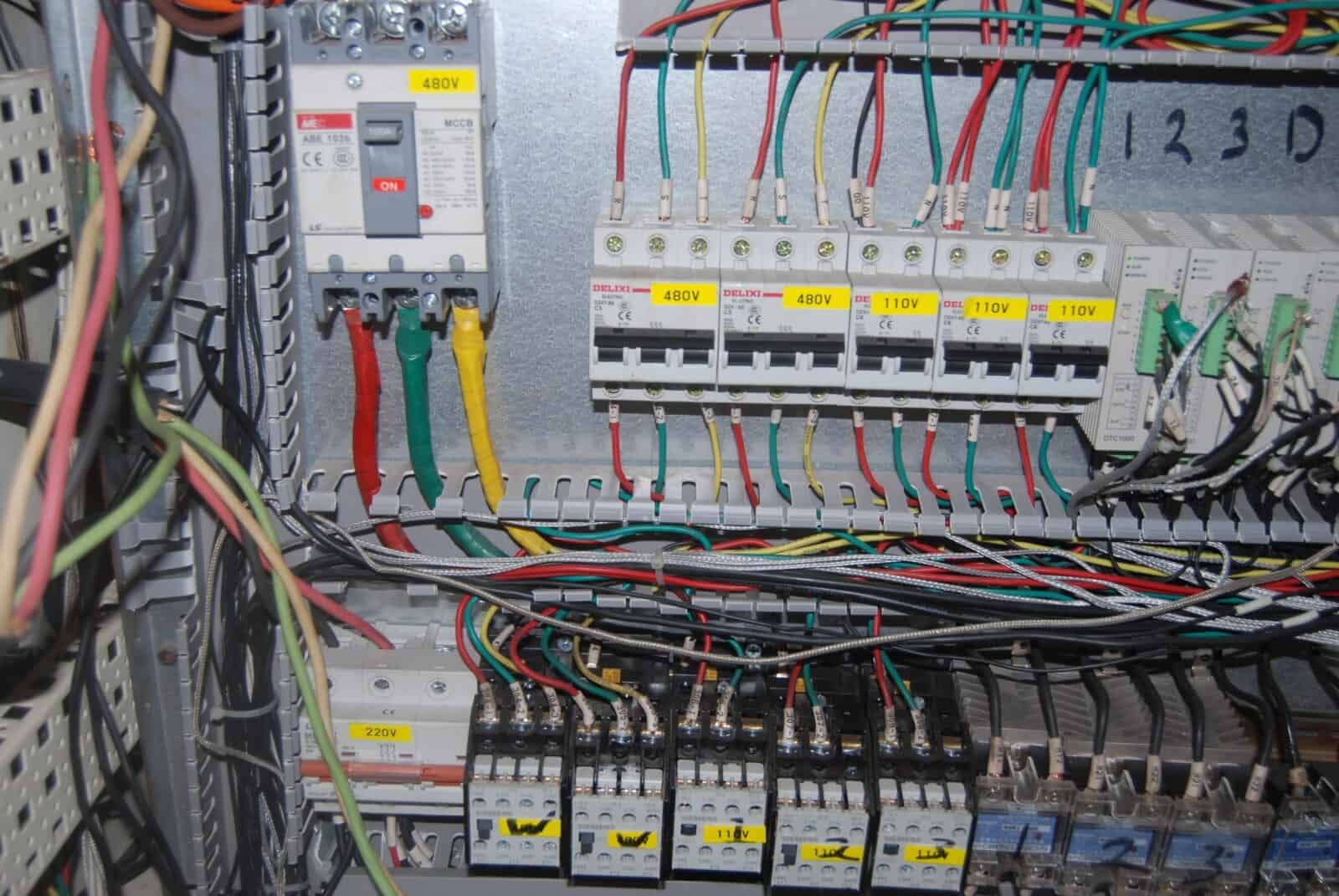

| Power Requirement |
240/3/60 |
| Approximate Output per Manufacture |
60-100 LBS/HR |
| Approximate Total Accumulation |
300' (Controlled Through Extruder PLC ) |
Features
|
1.75 MM and 3 MM 3D Filament Die |
10 Sheaves |
|
18' Long Accumulator |
Spare Dual Wave Screw/Barrel/Feed Throat |
|

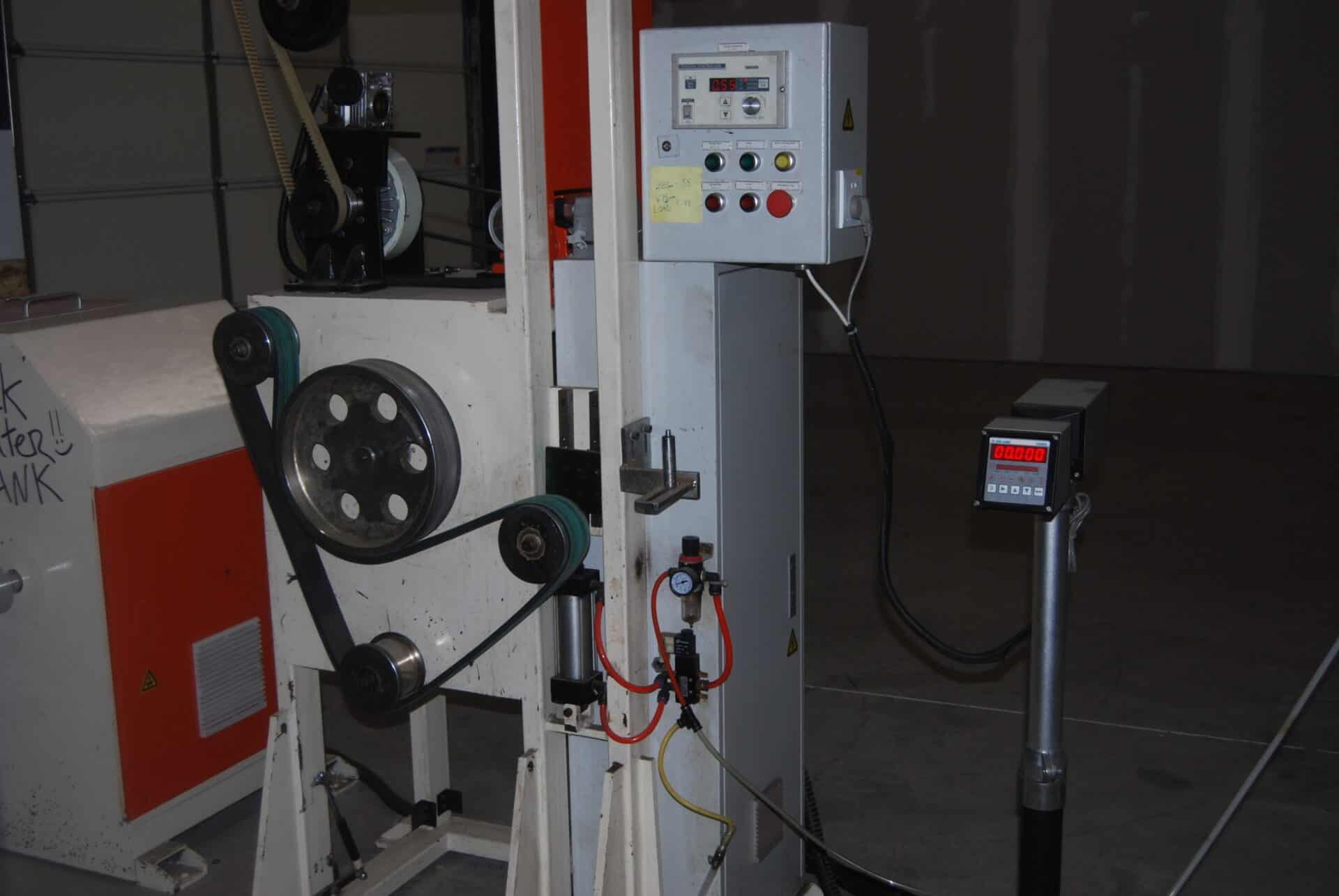

Belt Puller |

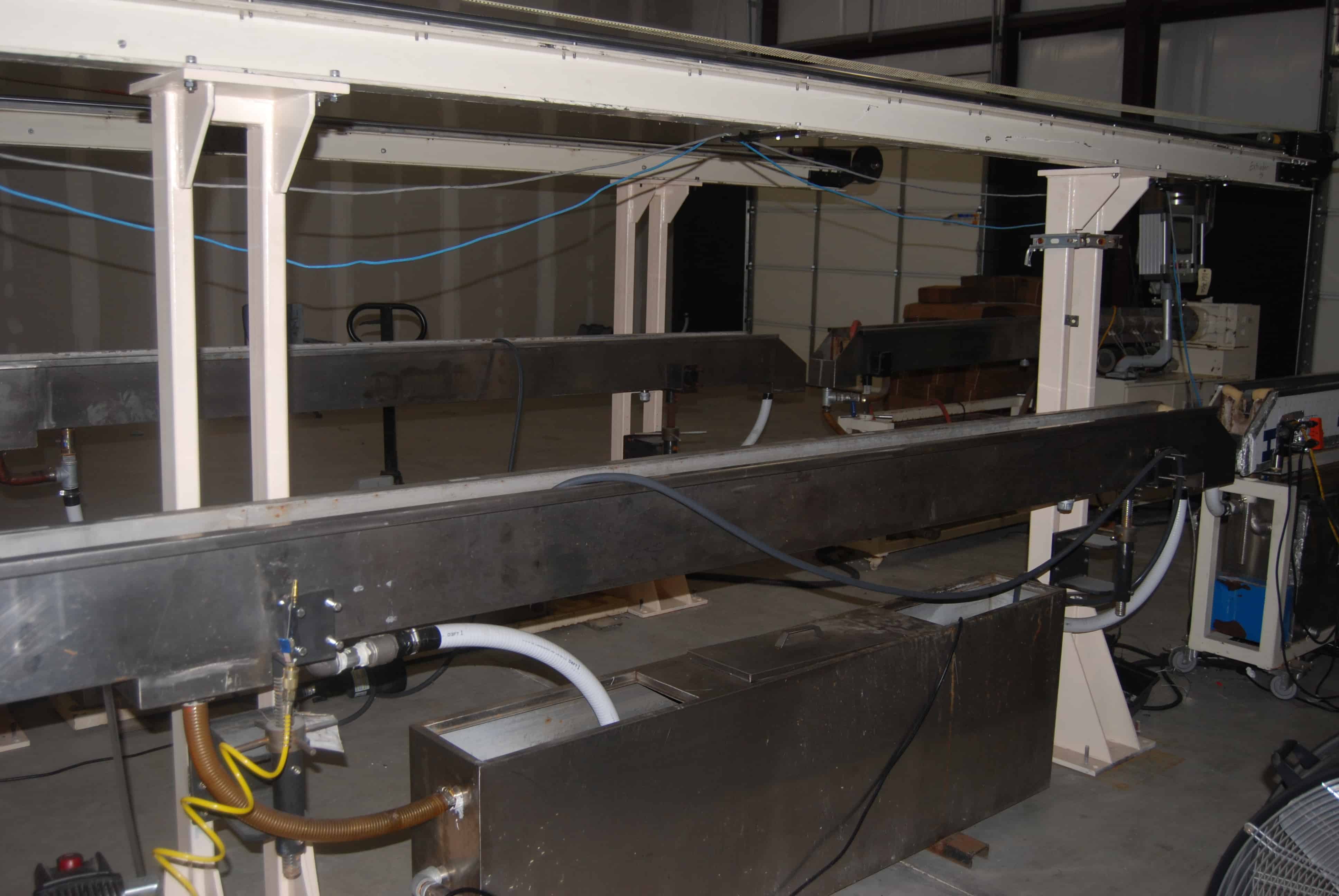

Cold Water Trough with Stainless Steel Holding Tank |
|

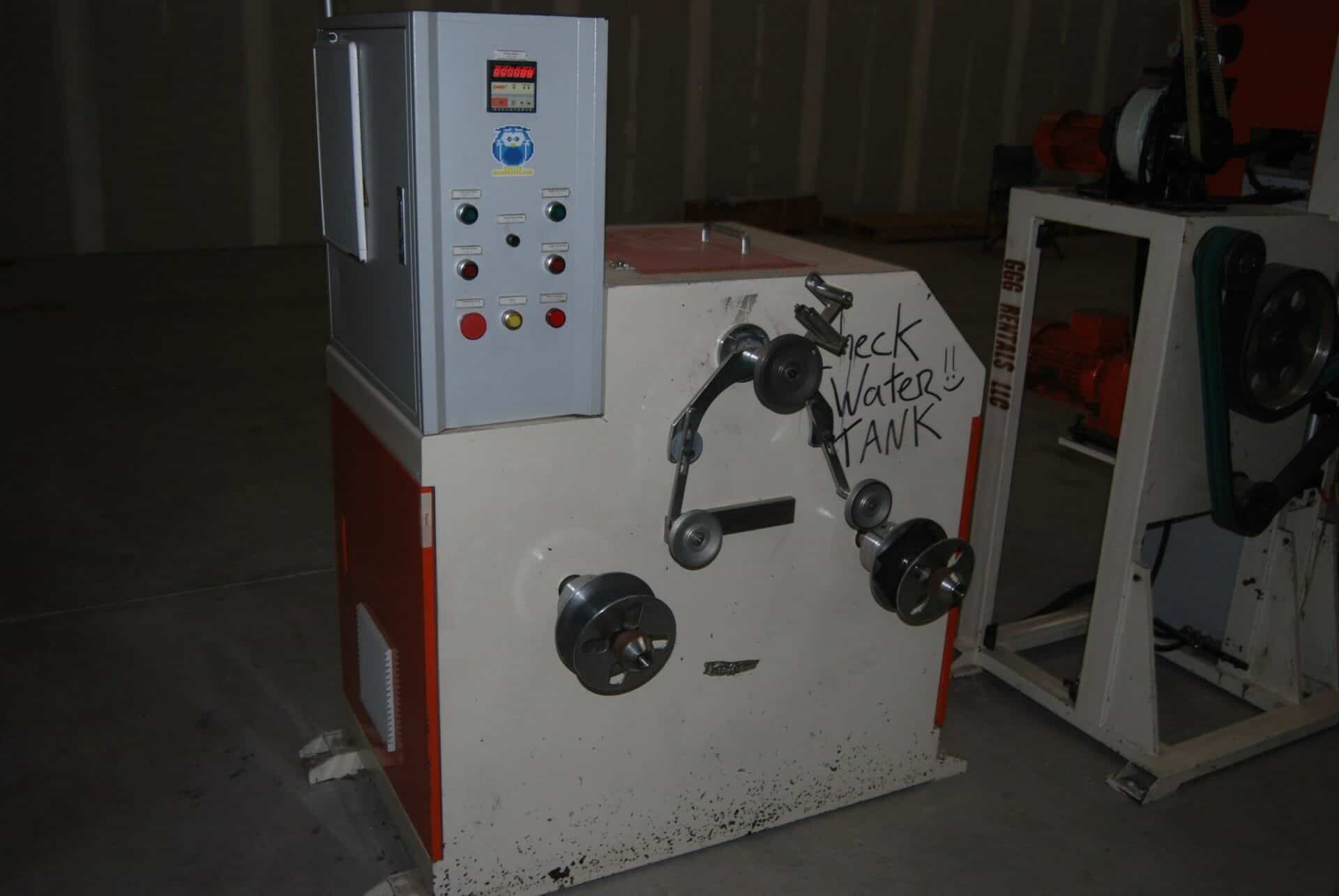

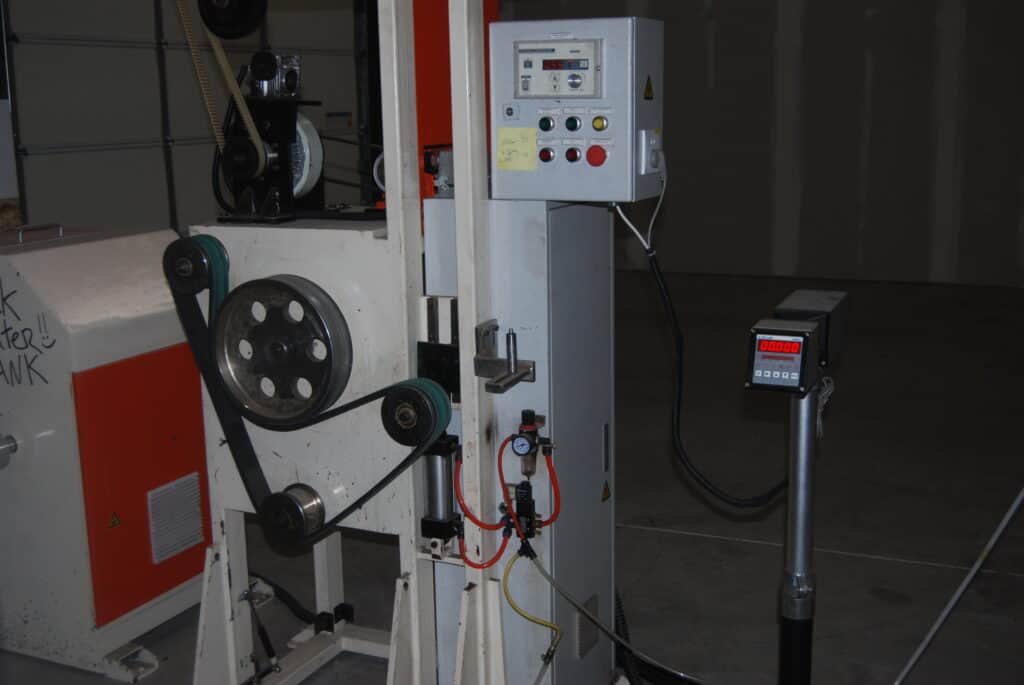

Dual Take-Up Winder |
Hot Water Trough with Stainless Steel Holding Tank with Pump |
