Year |
2003 |
|---|---|
Make |
Davis Standard |
Model |
35IN35-MV |
Description |
Extruder |
Reference # |
8079270 |
Price |
$58,500.00 |

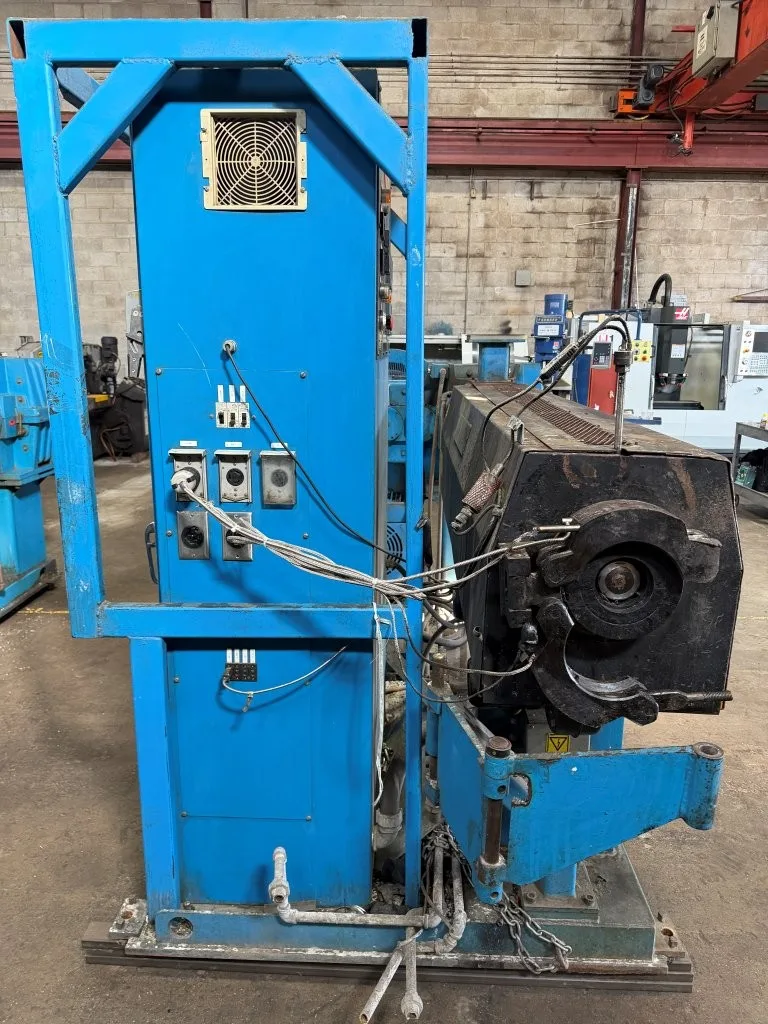

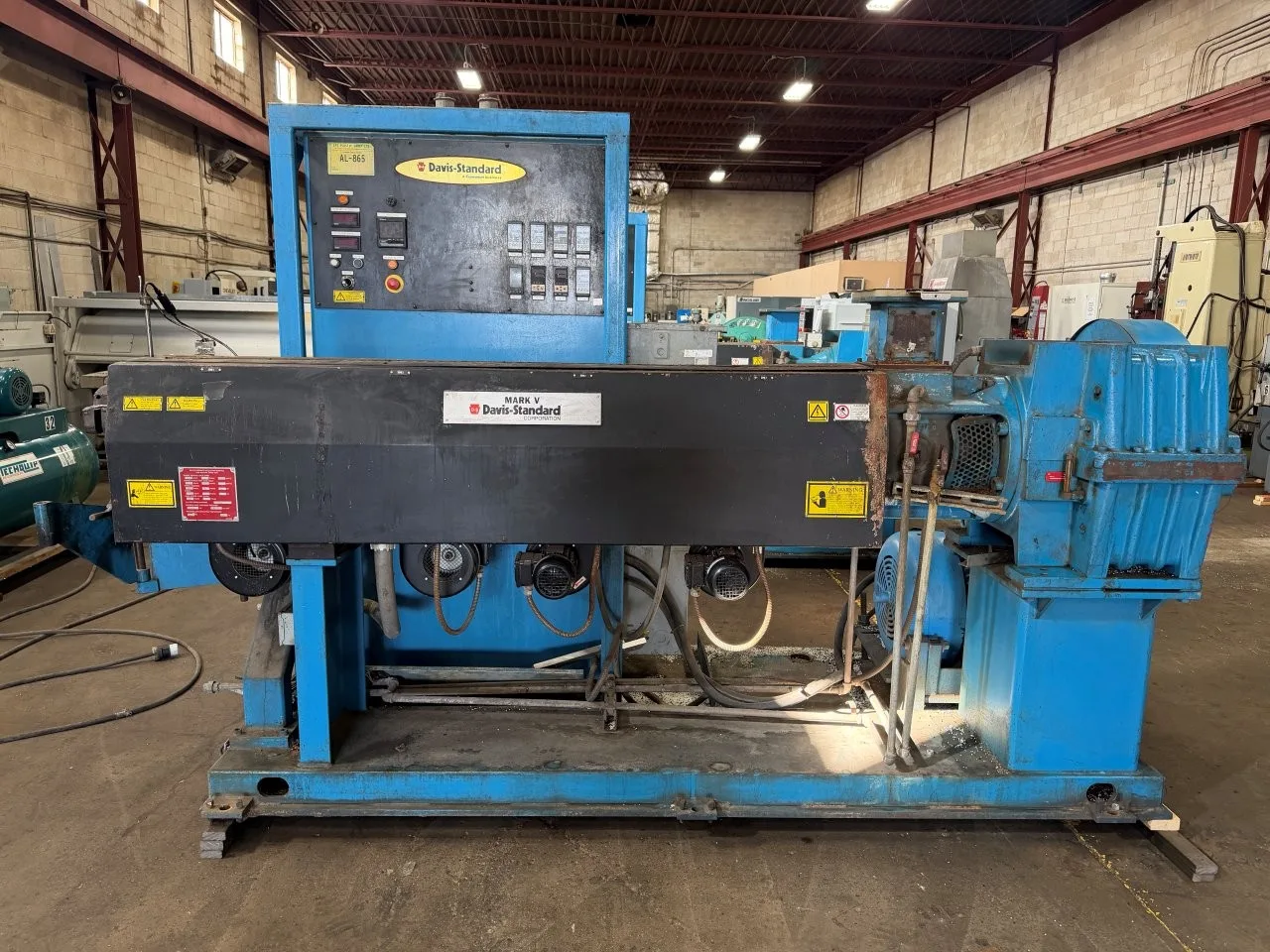

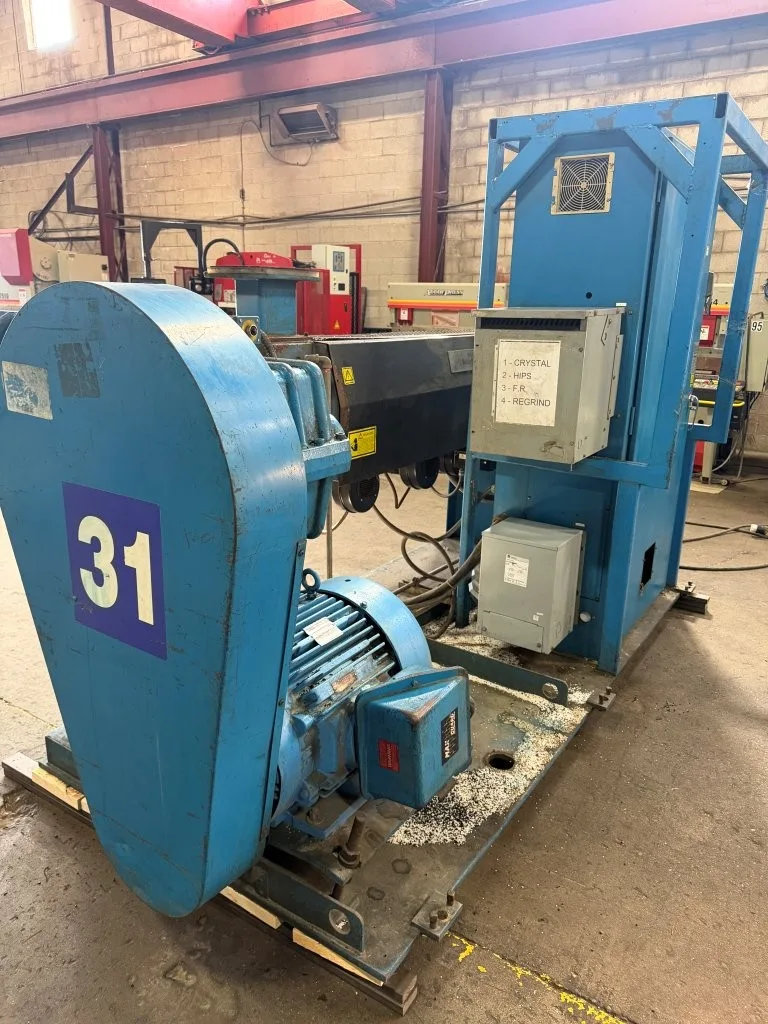

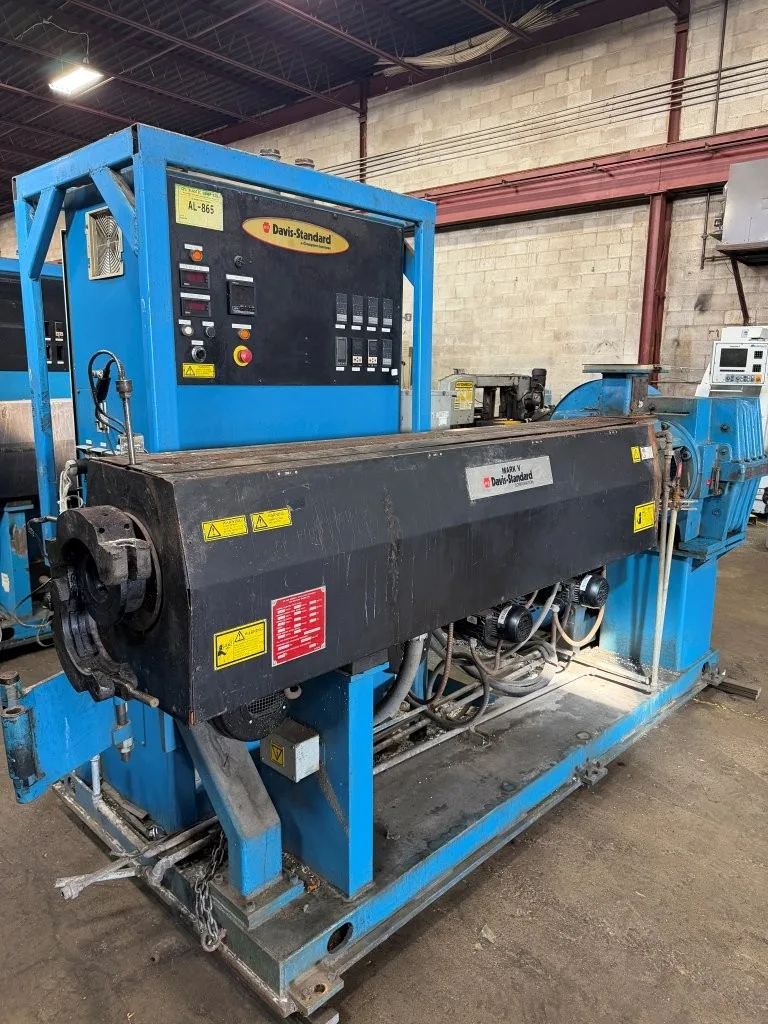

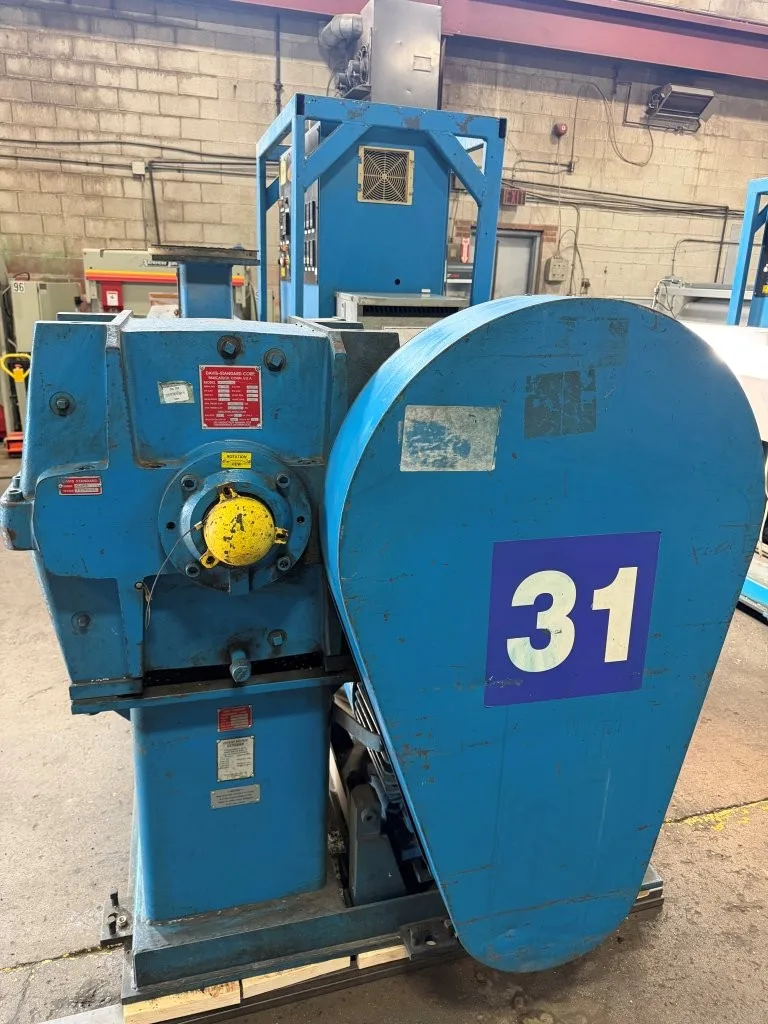

Used Davis Standard 35IN35-MV (2003) Extruder for Sale. This single screw extruder has a 3.5″ screw with a 24:1 L/D ratio, non-vented and air cooled, with (4) barrel zones controlled by digital touch pad temperature controls. Drive is rated at 100 HP through a 17.39:1 gearbox with a 158 HP gearbox capacity, and electrical requirements are 575v – 3 Ph. Equipped with a C-clamp, Maguire multi-compartment loader, water cooled feed throat and transformer. The machine can be seen under power for an inspection, so you can confirm operation before you buy. It is listed alongside our other used plastic extruders. Activate Pricing to see the current number, or use the Inquire Now button to reach us with questions about this unit.
Specifications
| Screw Size |
3.5" |
|---|---|
| L/D Ratio |
24 :1 |
| Vented Or Non |
Non-Vented |
| Cooled |
Air Cooled |
| Barrel Zones |
(4) Zones |

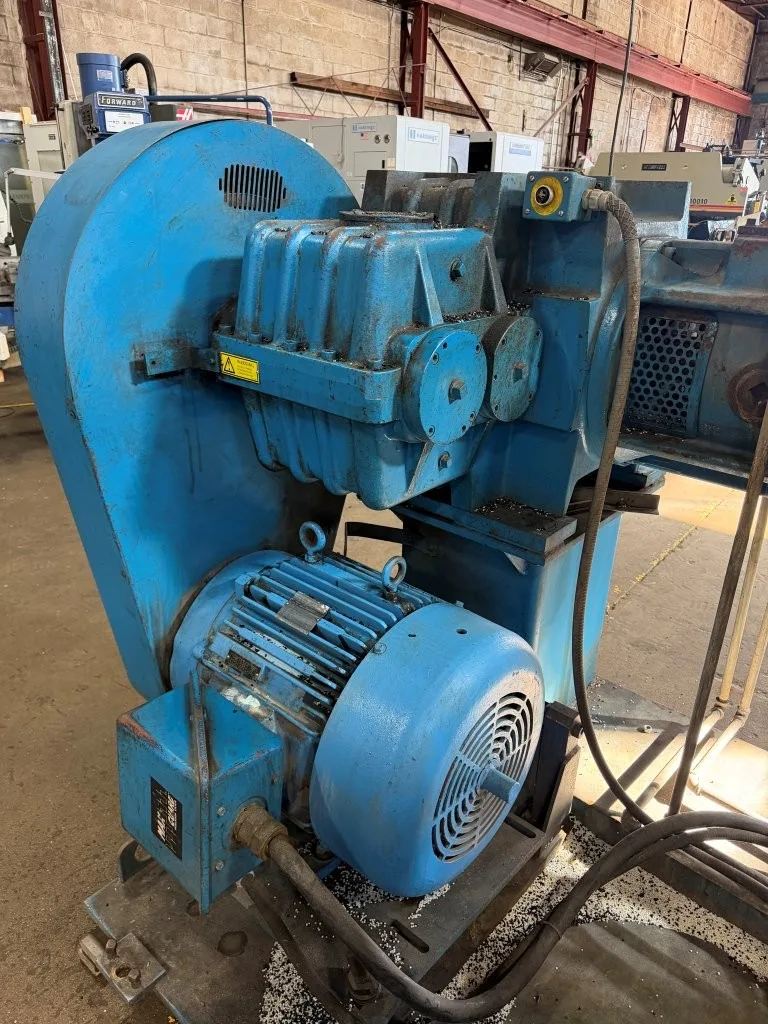

| Horsepower |
100 HP |

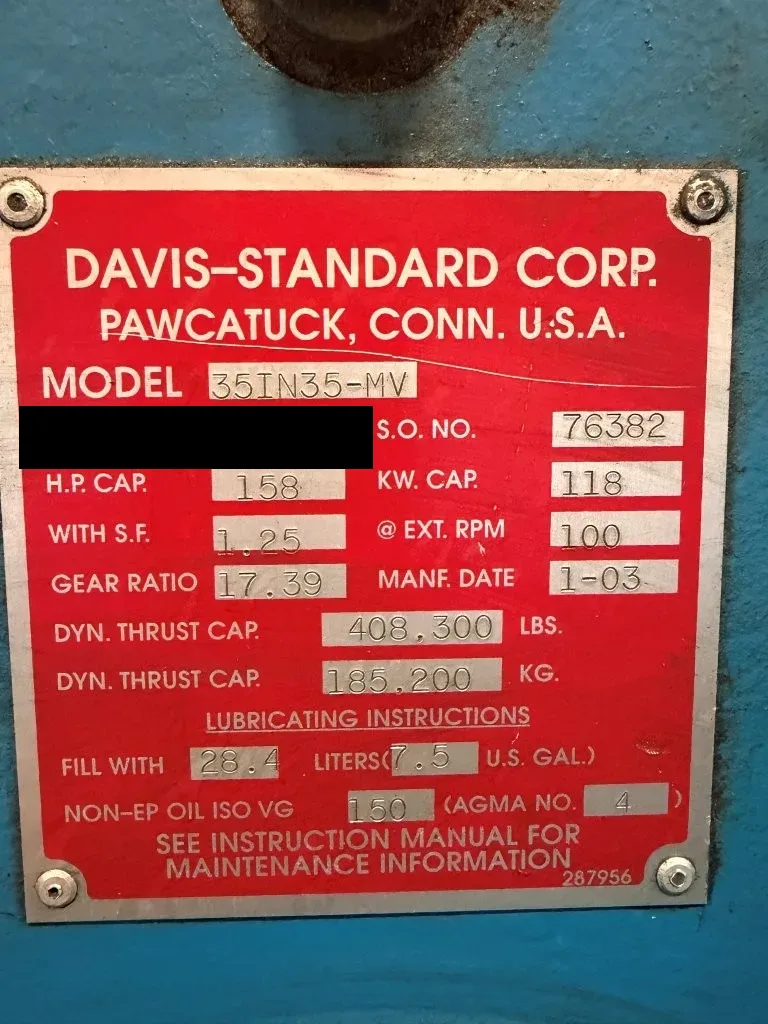

| Gearbox Ratio |
17.39:1 |
| Gearbox HP Cap |
158 |

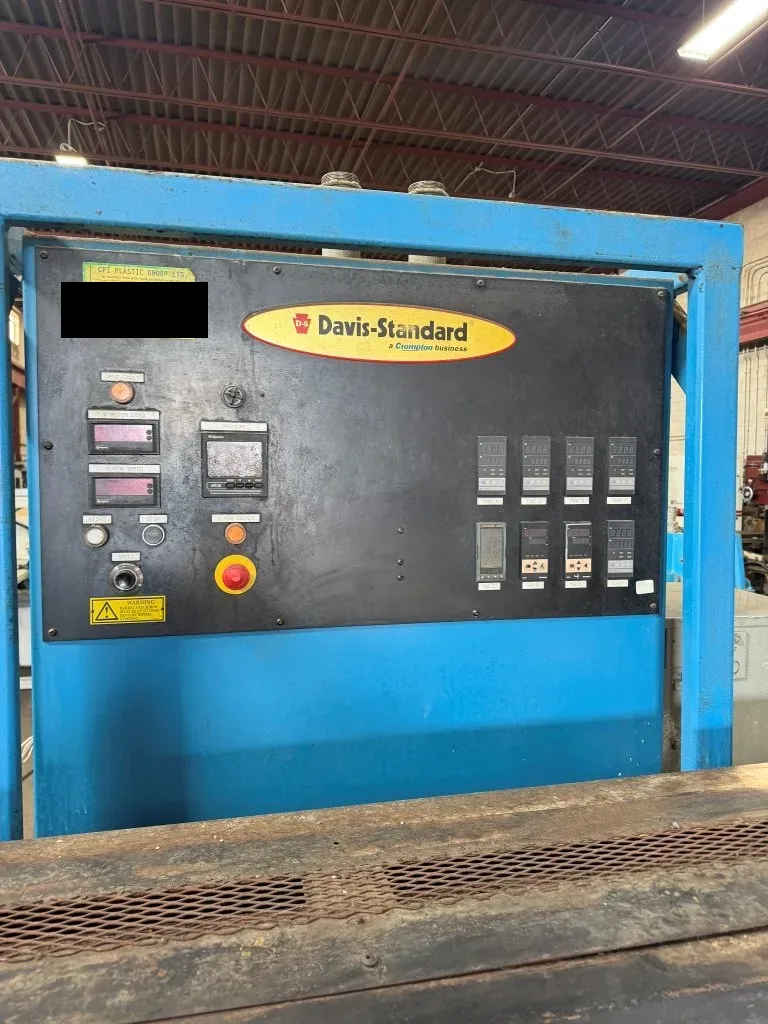

| Temp. Controls |
Digital Touch Pad Temp Controls |

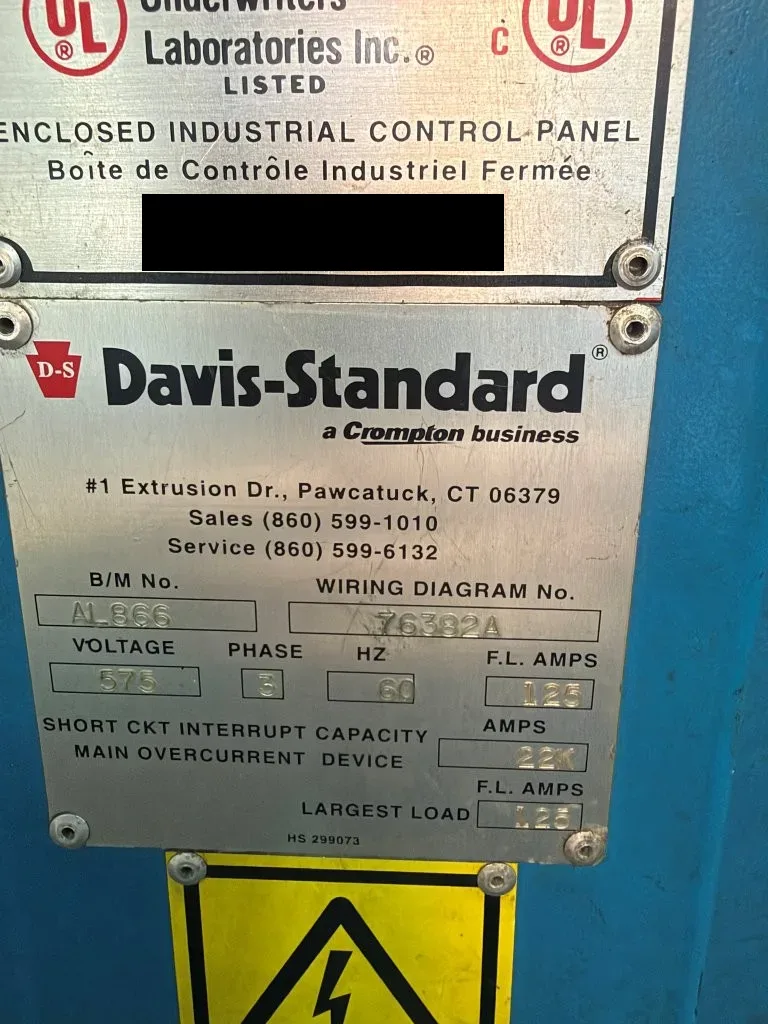

| Electrical Requirements |
575v - 3 Ph |
Features
|
C-Clamp |

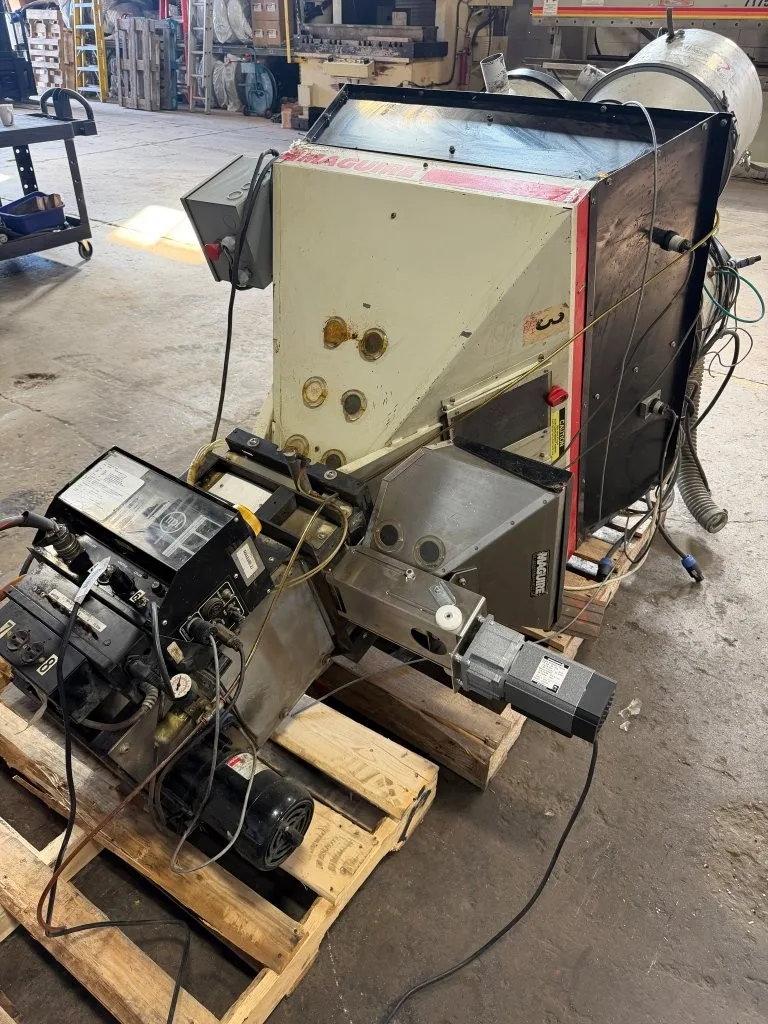

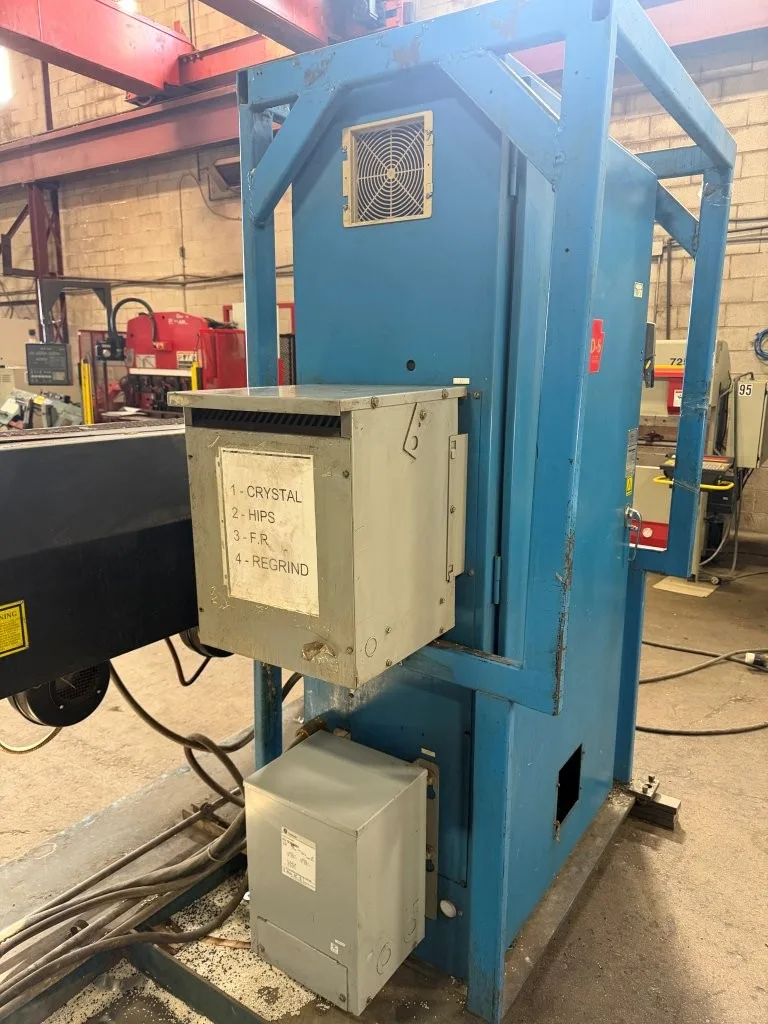

Maguire Multi-Compartment Loader |
|
Transformer |
Water Cooled Feed Throat |
