Make |
Brown |
|---|---|
Model |
Brown CS-5500 Quad Series |
Description |
Thermoformer w/ Brown T-345V V-Series Trim Press |
Reference # |
8078332 |
Price |
Activate Pricing |

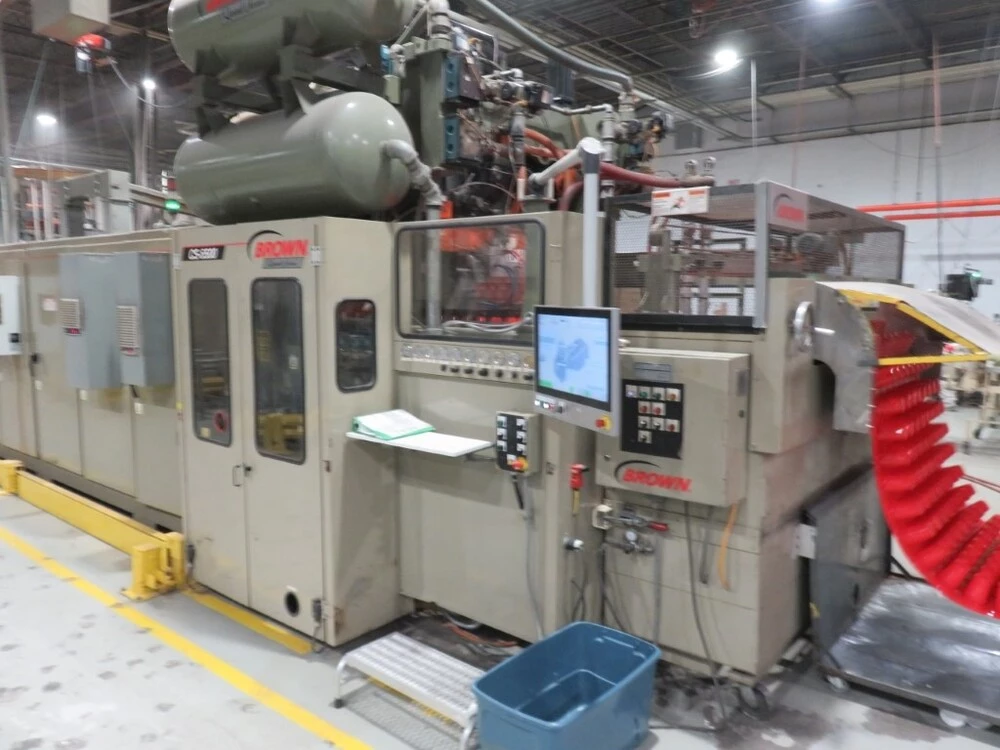

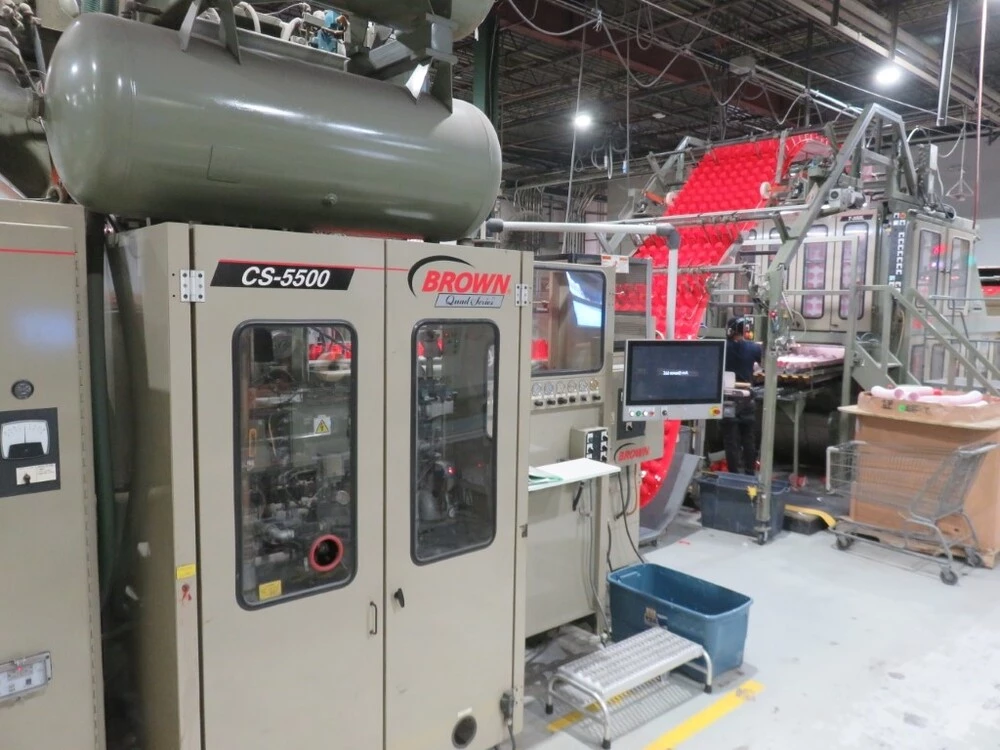

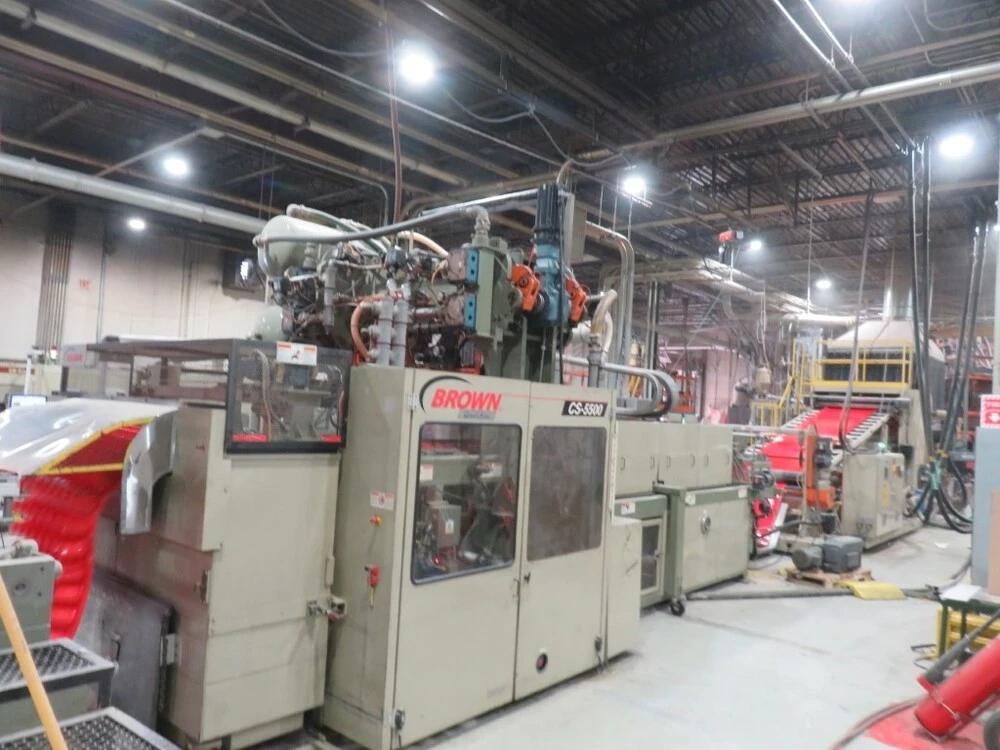

Used Brown CS-5500 Quad Series Thermoformer for Sale. This Brown Match Metal Continuous Former (2011, upgraded 2023) handles molds up to 50″ x 50″ with a 150″ oven length, ceramic top oven and ceramic bottom oven rebuilt in 2023. Servo indexing runs on an upgraded Kinetix 7000 drive system, with servo platen drives, 9.0″ platen stroke, 155 tons form station tonnage, 260 ton holding force, 180 ton coining force and 7.0″ draw, controlled through an upgraded programmable touch screen. Included are a 2008 Brown sheet slitter and a 2021 Brown T-345V V-Series high speed vertical trim press: 30 ton, 57″ x 30″ max die, 53″ max sheet width, 145 strokes per minute, 30 HP SEW AC servo motor, PowerFlex 755 drive, PanelView Plus control, servo part ejection, 480v/3ph/60hz/117 amps, plus two plate line loading and unloading carts. This machine can be seen under power for an inspection. See more used thermoforming equipment, Activate Pricing, and Request a Quote.
Specifications
| Brown Former (2011-Upgraded 2023) |

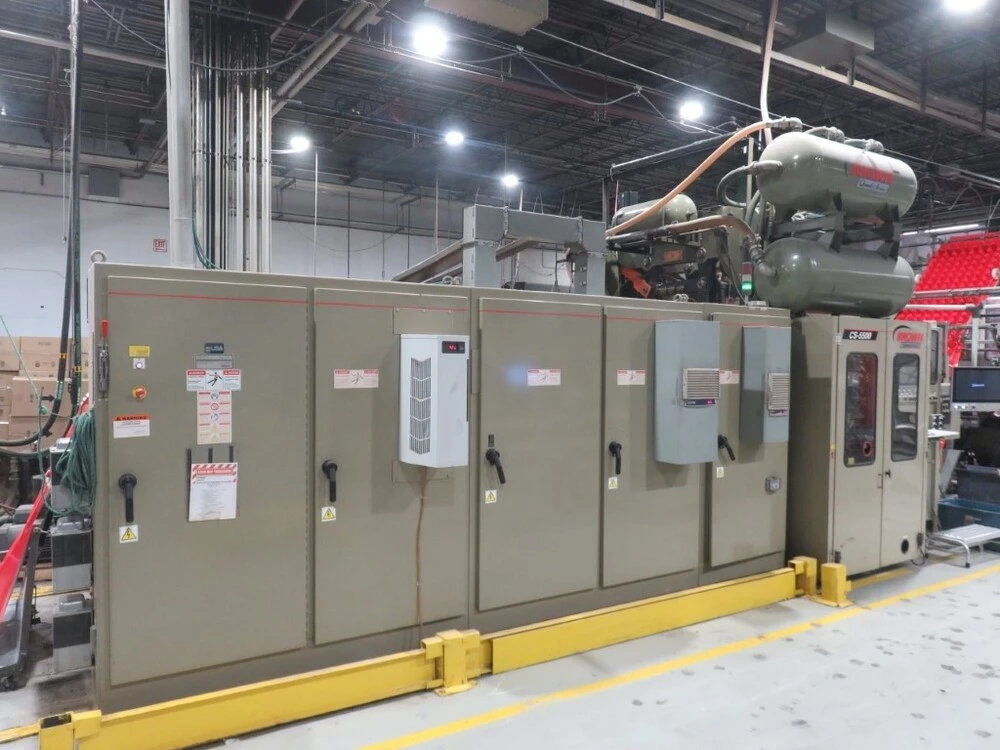

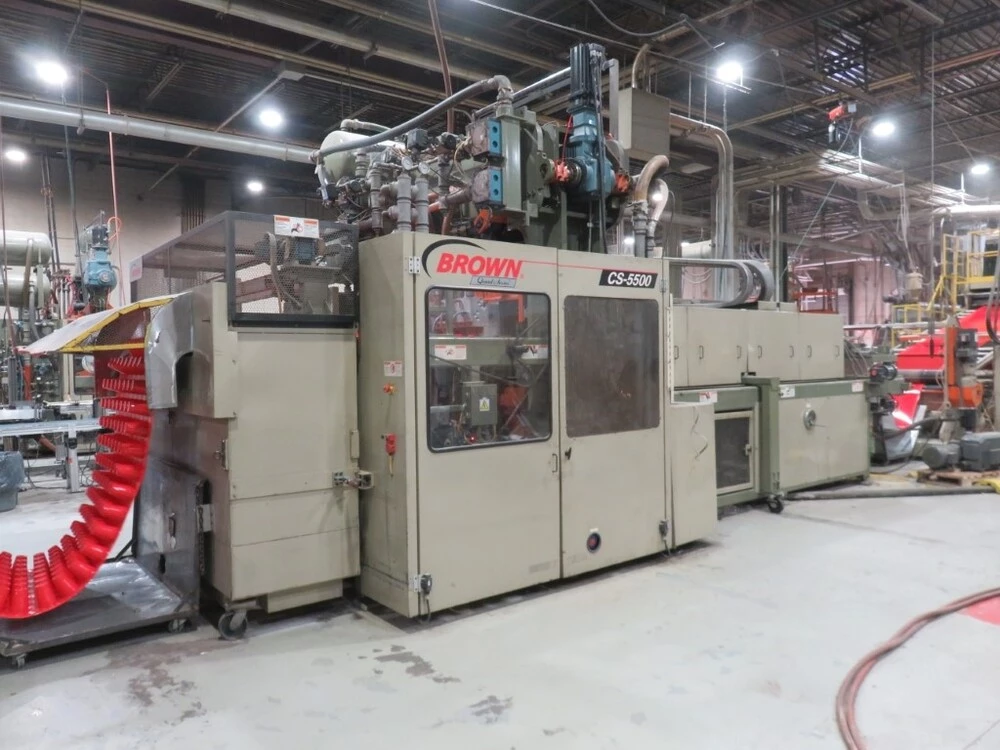

CS-5500 Quad Series Match Metal Continuous Former |
|---|---|
| Max Mold Capacity |
50" x 50" |
| Top Oven |
Ceramic |
| Bottom Oven |
Ceramic (Rblt. 2023) |
| Oven Length |
150" |
| Indexing |
Servo (Upgraded Kinetix 7000 Drive System) |
| Platen Stroke |
9.0" |
| Form Station Platen Drives |
Servo Platen Drives |
| Form Station Tonnage |
155 Tons |
| Form Station Holding Force |
260 Ton Holding Force |
| Coining Force Tonnage |
180 Ton |
| Draw Depth |
7.0" Draw |
| Control |

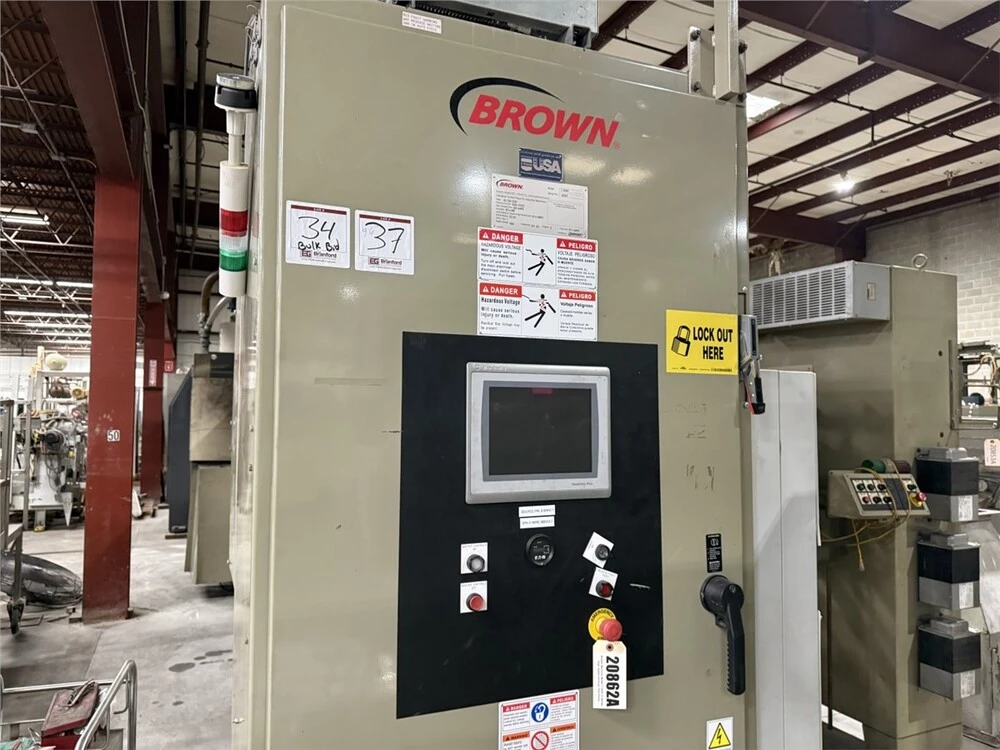

Programmable Touch Screen (Upgraded) |
| Sheet Cutter |
Brown Sheet Slitter (2008) |
| Shipping Dimensions |
28' L x 9' W x 12' H at Approx. 44000 Lbs. |

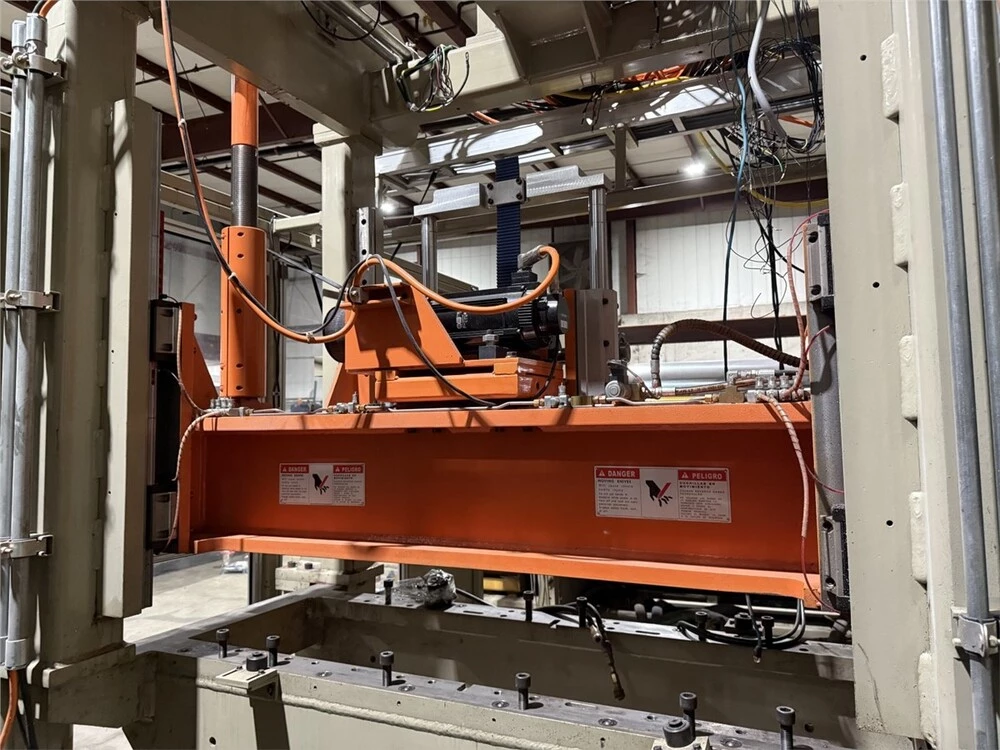

| Brown Trim Station (2021) |

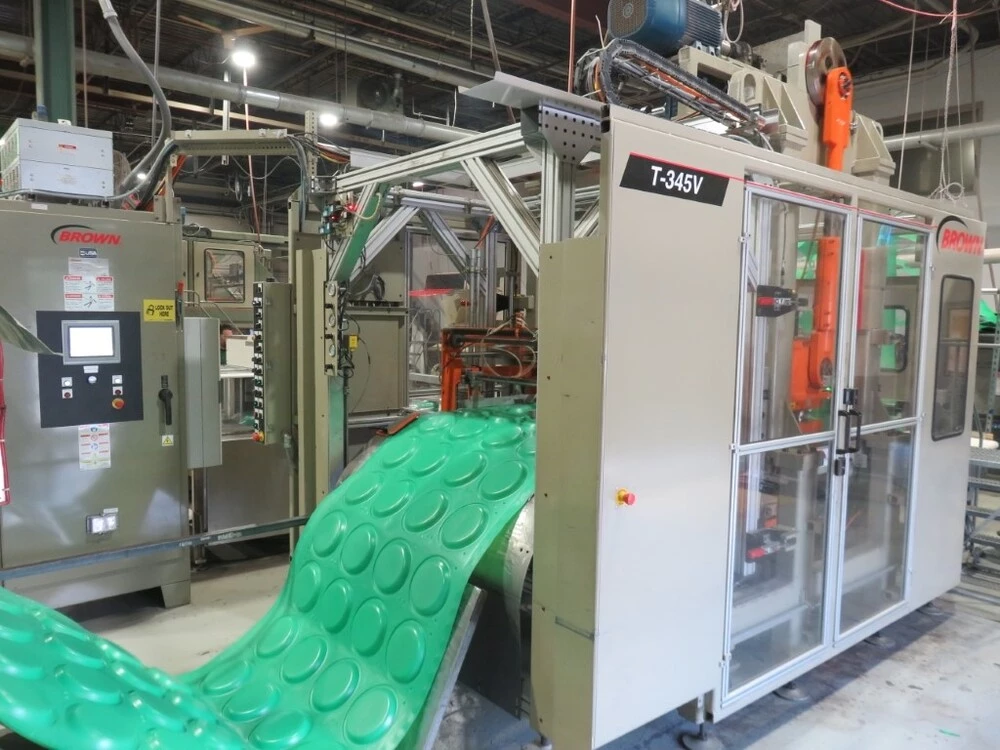

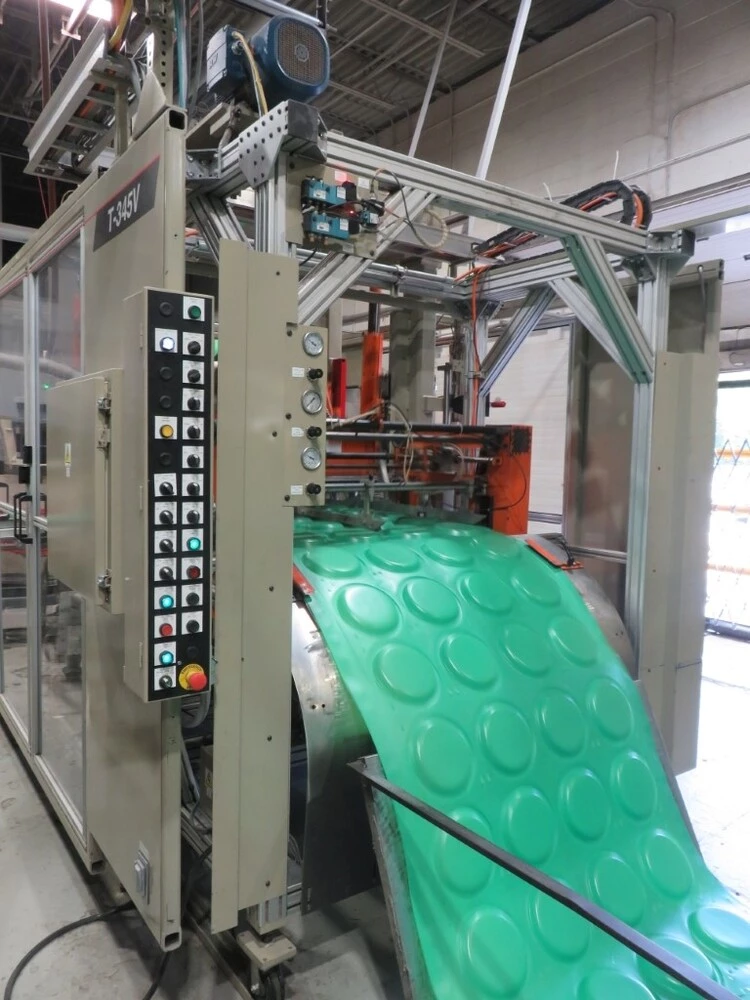

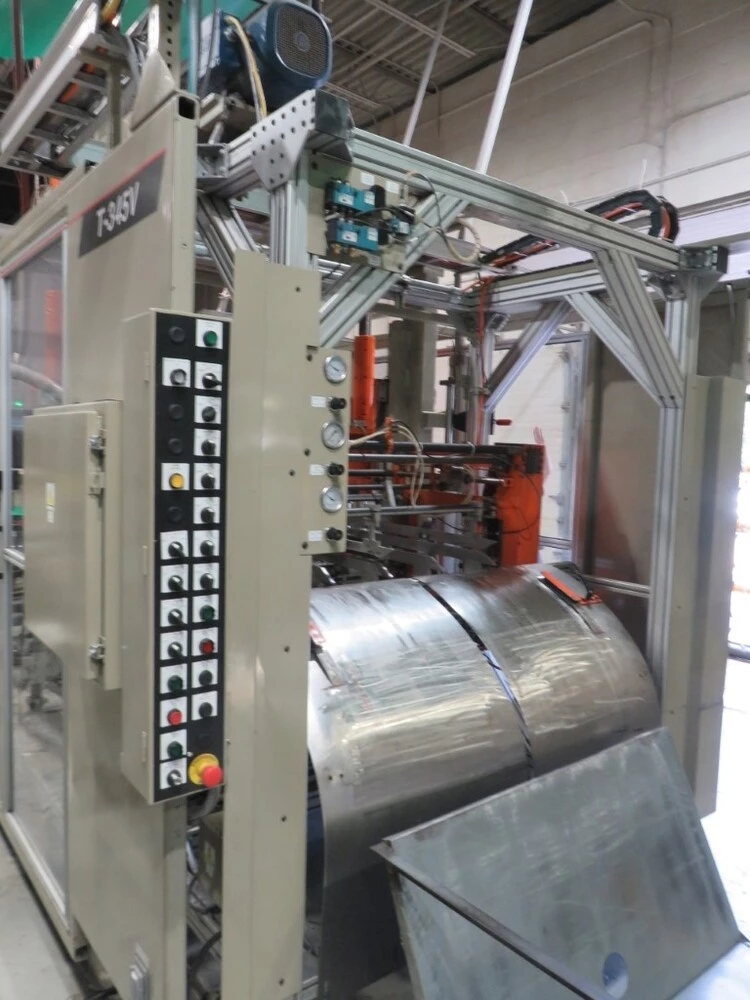

Model T-345V / V-Series High Speed Vert. Trim Press |
| Trim Station Tonnage |
30 Ton |
| Max Die Size |
57" x 30" |
| Max Strokes Per Min |
145 |
| Max Sheet Width |
53" |
| Platen Drives |

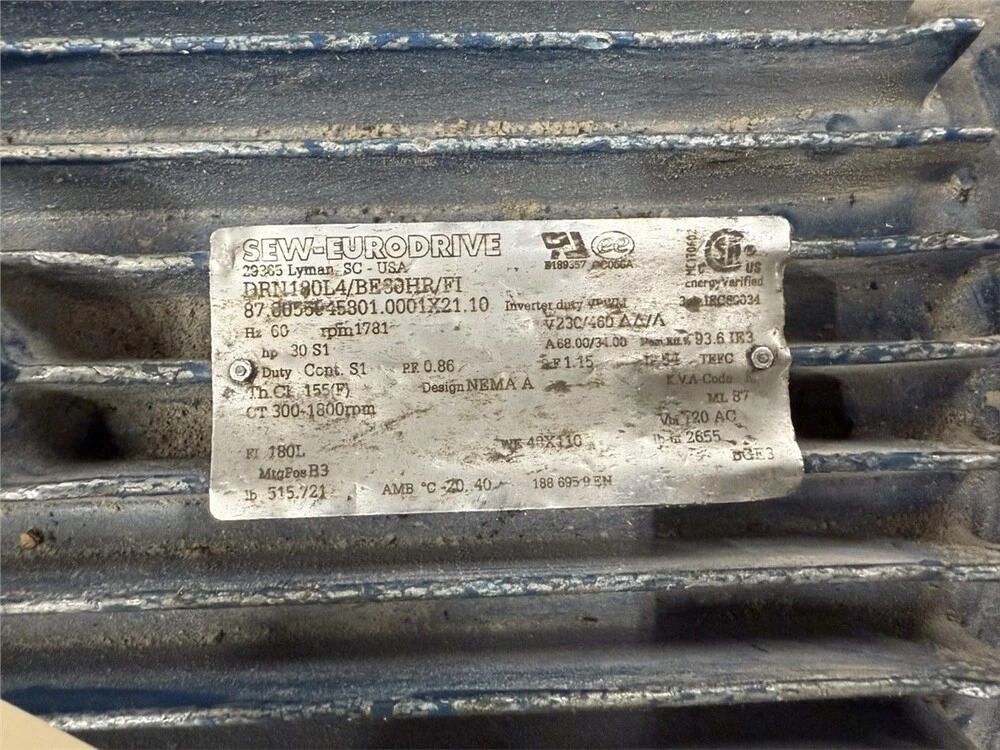

30 HP SEW AC Servo Motor |
| Drive Controller |

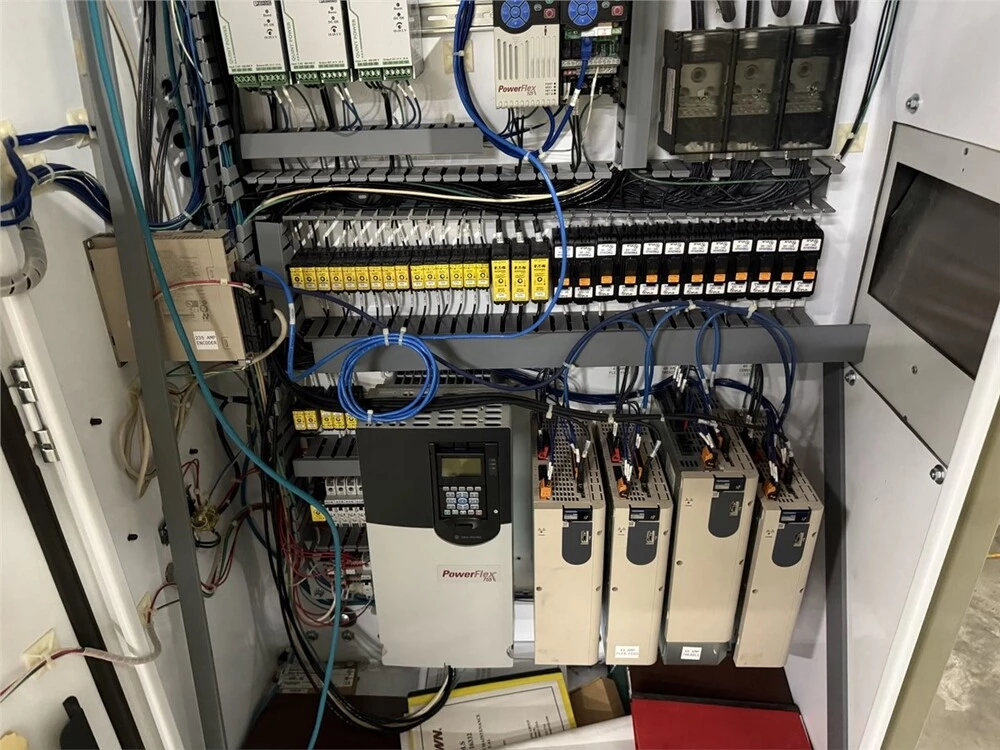

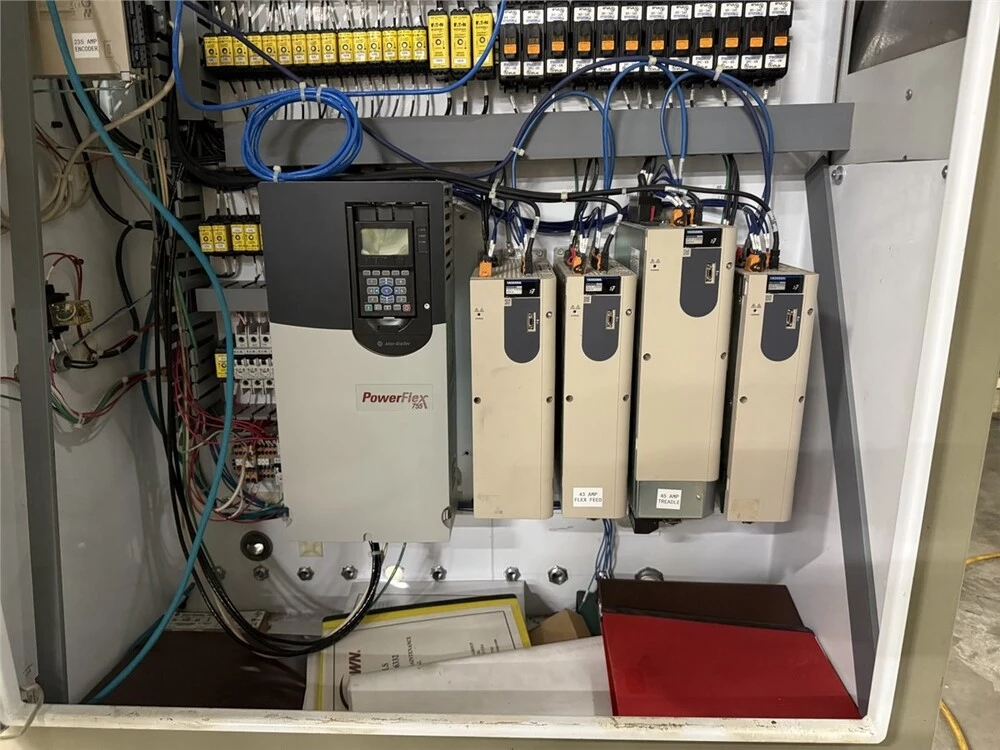

Allen Bradley PowerFlex 755 |
| Controller |
Allen Bradley PanelView Plus |
| Part Ejection |
Servo Part Ejection |
| Power Requirement |
480v / 3 ph / 60hz / 117 amps |
| Footprint |
270" L x 195" x 170" |
| Weight |
Approx. 24000 Lbs |
Features
|
(2) Plate Line Loading & Unloading Carts |
