Make

Modern Machinery

Model

6x9 223RP

Description

Thick Gauge 3-Station Rotary Pressure Former

Reference #

8077968

Price

Activate Pricing

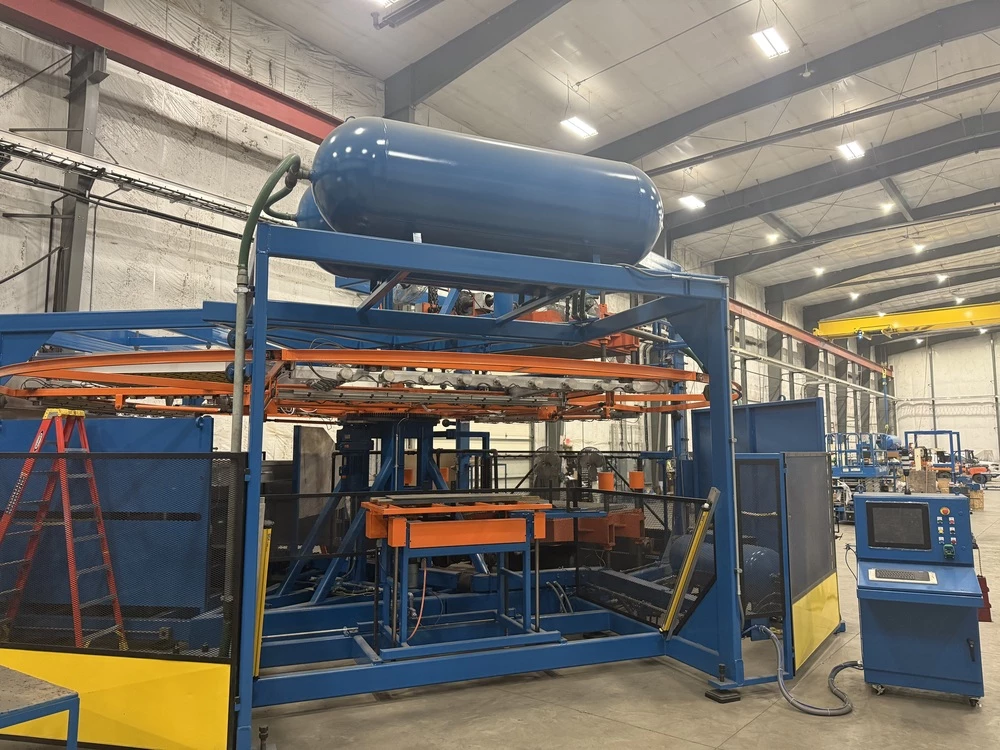

Used Modern Machinery 6×9 223RP Thermoformer for Sale. This rotary-style sheet-fed machine handles a maximum mold capacity of 9′ x 6′, with a 72″ top platen stroke and 50″ bottom platen stroke, both driven by electric motors, and a 100″ sheetline height. Indexing is handled by a new electric SEW rotate, with new four-way adjustable clamp frames. Top and bottom ovens carry new ceramic elements with 77 zones each using 3″ x 9″ 650 Watt heaters, plus a new oven air jet safety system, SSR heat controls, IR sensor and sag eye. Also equipped with eight reconditioned cooling fans, reconditioned electric 4-post load table, full perimeter guarding with new light curtains, dual loop vacuum and blow circuit, two 500 gallon tanks and a reconditioned 10 HP Busch vacuum pump. Completion date eight weeks. The machine can be seen under power for an inspection. See more used thermoforming equipment, Activate Pricing, or Request a Quote.

Specifications

Max Mold Capacity

9' x 6'

Top Platen Stroke

72"

Bottom Platen Stroke

50"

Platen Drives

Electric Motors (Top & Bottom)

Sheetline Height

100"

Indexing/Shuttling

New Electric SEW Rotate

Clamp Frames

New (4) Way Adjustable

Top Oven

New Ceramic Elements

Top Oven Zones

(77) Top Oven Zones (3" x 9" 650 Watt Heaters)

Bottom Oven

New Ceramic Elements

Bottom Oven Zones

(77) Bottom Oven Zones (3" x 9" 650 Watt Heaters)

New Oven Safety System

New Oven Air Jet Safety System

Oven Heat Detectors

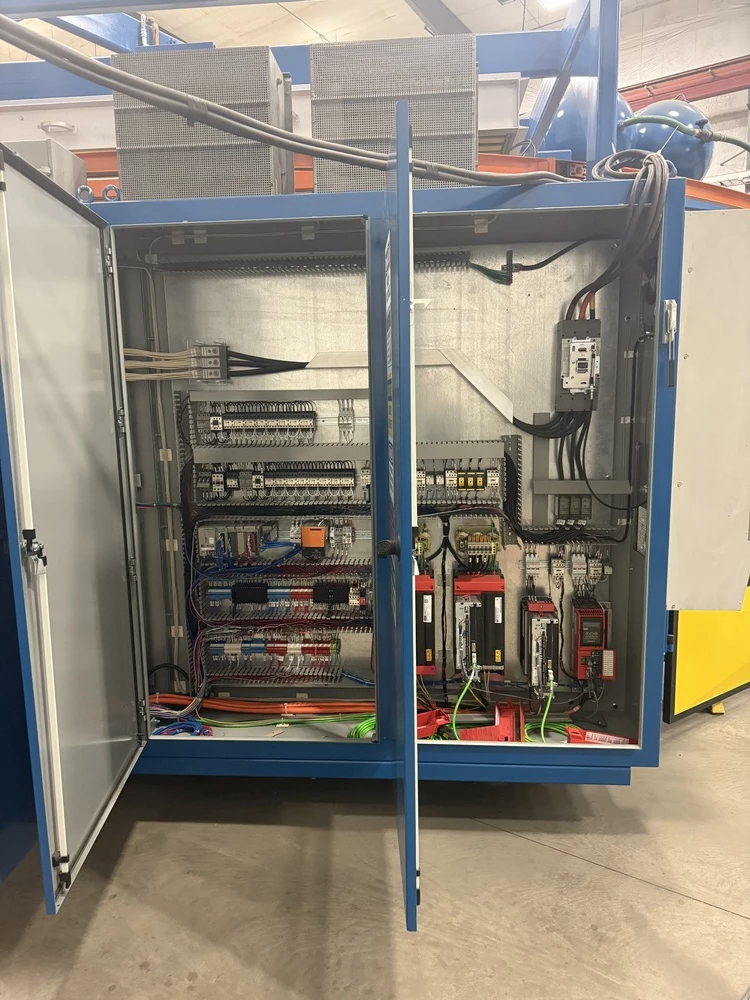

SSR Heat Controls / IR Sensor / Sag Eye

Control

SSR Heat Controls / IR Sensor / Sag to SSR Heat Controls

Features

Completion Date - 8 Weeks

Eight (8) Reconditioned Cooling Fans

Reconditioned Electric 4-Post Load Table

Reconditioned Full Perimeter Safety Guarding and Gate Switches along with a Load Area guarded with New Light Curtains

Reconditioned Valving / Dual Loop Upper and Lower Vacuum and Blow Circuit

Two (2) 500 Gallon Tanks / Reconditioned 10 HP Busch Vacuum Pump

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
