Year |
2021 |
|---|---|
Make |
Modern Machinery |
Model |
0606CFT |
Description |
Lab Size Inline Style Thermoformer |
Reference # |
8077380 |
Price |
Activate Pricing |

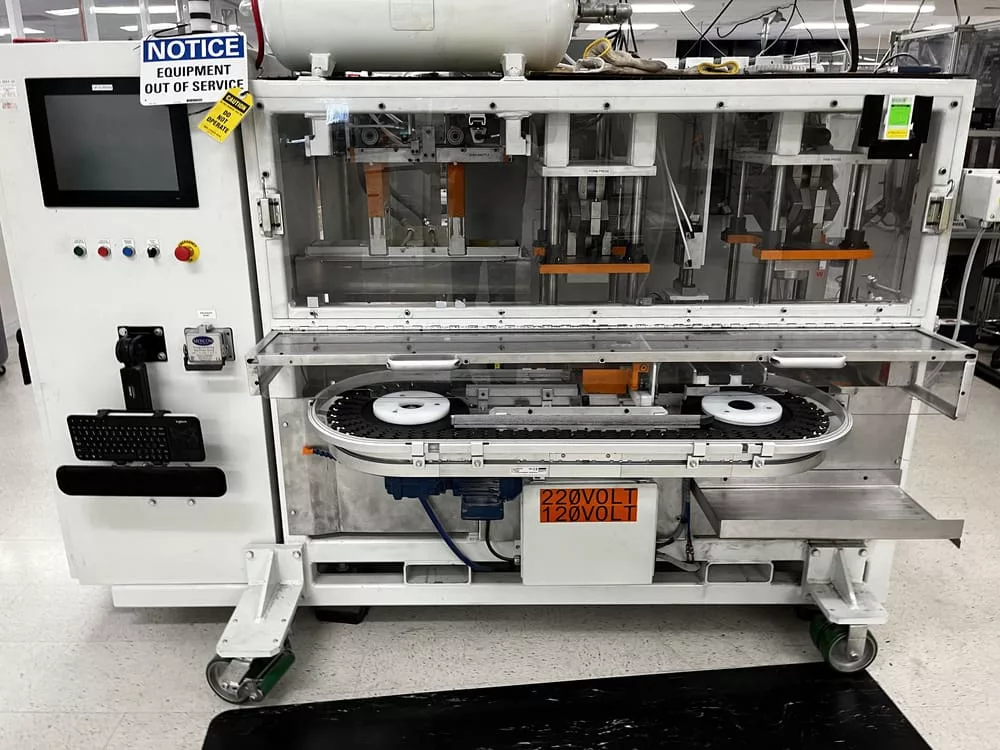

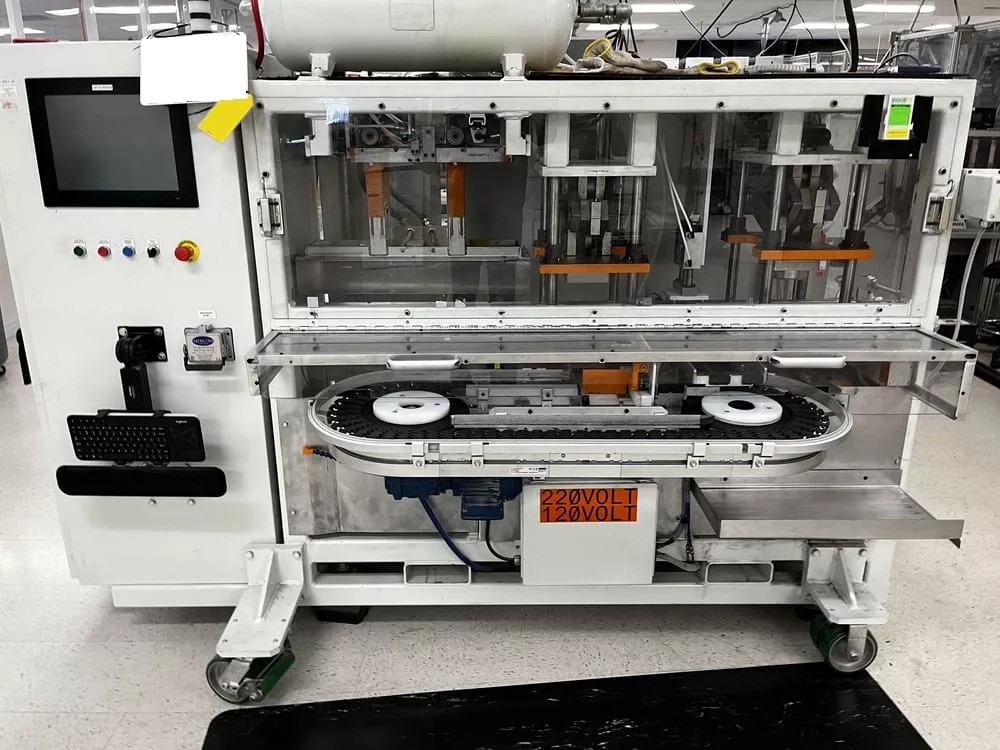

Used Modern Machinery 0606CFT (2021) Thermoformer for Sale. This inline thermoformer handles a maximum tool size of 6″ x 6″ with a 4″ maximum draw depth above and below the sheetline, and runs sheet widths from 4″ to 8″ off a free-standing unwind stand (18″ diameter roll x 3″ cores). Servo indexing is digitally controlled at a 6″ index length, with #40 pin chain sheet conveying on 1″ centers in a sprocketless design. The 30″ long, 5-stop top-only oven uses Solar “F” Series panel IR heaters across five zones with a Hetronik PID control system, photo sag eye, and bottom mounted IR sensor for sheet temperature. Platens are 4-post servo toggle at 80 PSI with digital encoders, 7″ open / 3″ closed / 4″ stroke top and bottom, 100 lb max tool weight. The 4-post trim station is servo driven with encoders at 10 ton. Allen Bradley controller. Equipped with a motorized scrap winder, semi-auto tool loading mechanism, vacuum pump and tank reservoir. This machine can be seen under power for an inspection. See more used thermoforming equipment, Activate Pricing, or Request a Quote.
Specifications
| Max Tool Size |
6" x 6" |
|---|---|
| Max Draw Depth |
4" (Above & Below Sheeline) |
| Sheet Width (Max & Min) |
8" & 4" |
| Unwind Stand |
Free Standing (18" Dia Roll x 3" Cores) |
| Indexing |
Servo Indexing (Digitally Controlled) |
| Sheet Conveying |
#40 Pin Chain - 1" Centers on Points (Sprocketless Design) |
| Oven (Panel IR Heaters - Top Only) |
30" Long / 5-Stop |
| Oven Elements |
Solar "F" Series Panel |
| Number of Zones |
(5) Zone |
| Oven Contol System |
Hetronik PID Oven Control System (Elec. Photo Sag Eye) |
| Bottom Mounted IR Sensor |
Monitors Sheet Temperature |

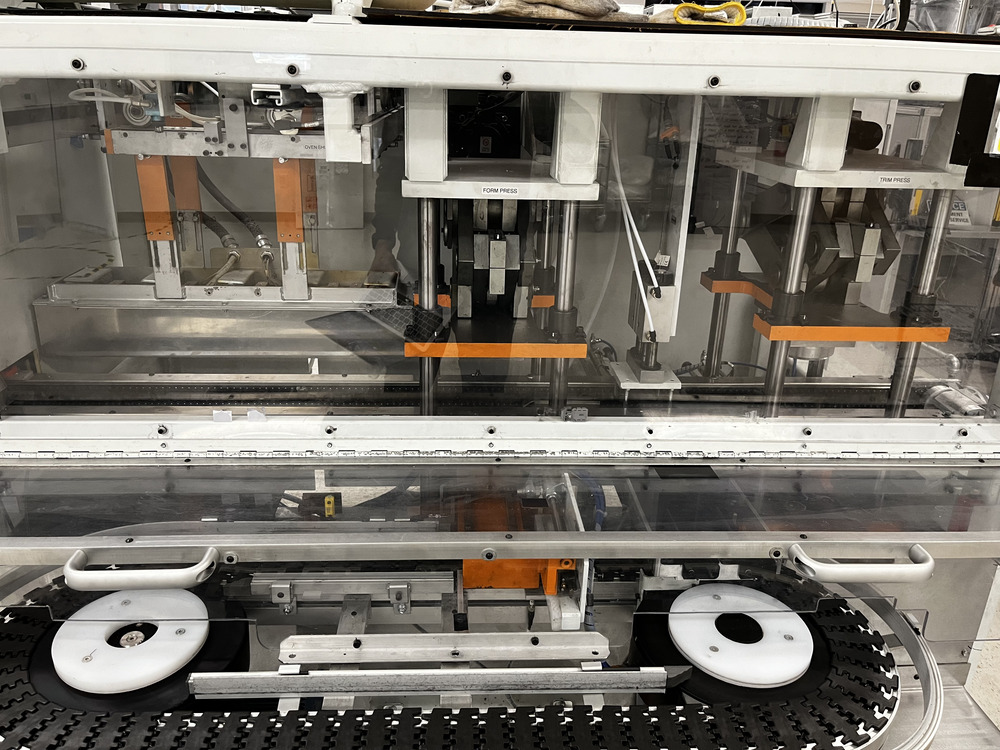

| Platens |
(4) Post Guiding |
| Platen Drives |
Servo Toggle Design (80 PSI) w/ Digital Encoder (For Positioning) |
| Top - Open/Closed (Daylight)/Stroke |
7" / 3" / 4" |
| Bottom - Open/Closed (Daylight)/Stroke |
7" / 3" / 4" |
| Trim Station |
(4) Post Trim Station (Servo w/ Encoders) |
| Trim Station Tonnage |
10 Ton |
| Max Tool Weight |
100 Lbs (Top & Bottom) |
| Index Length |
6" |
| Trim Tool Stroke Dimensions |
Refer to Platen Top & Bottom Daylights Details |

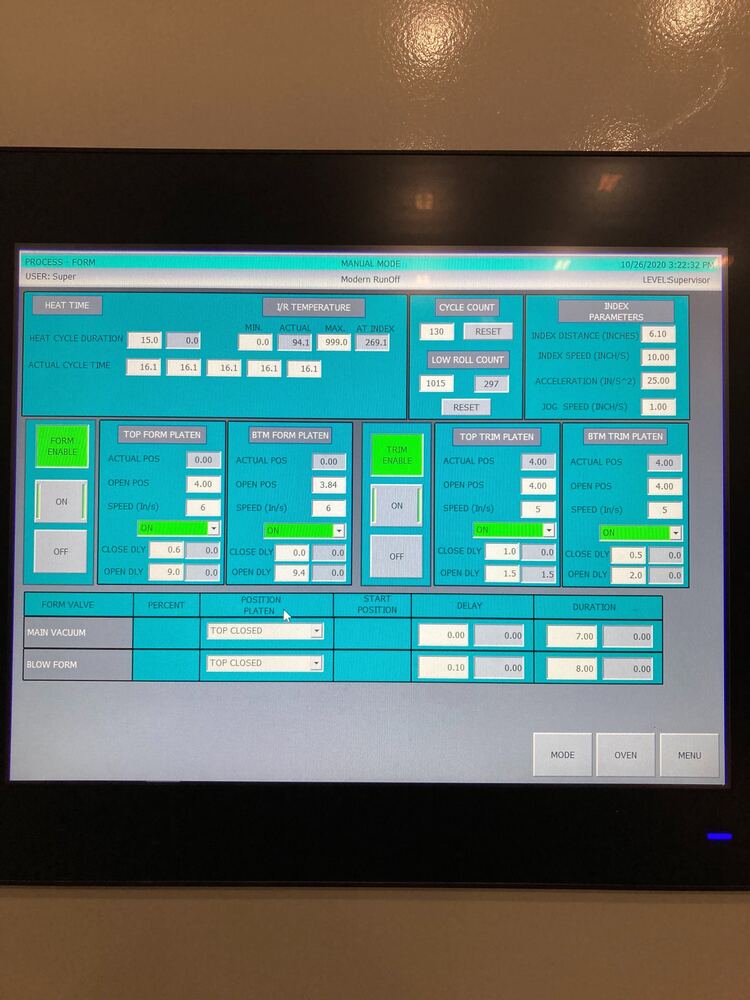

| Control |
Allen Bradley Controller |
Features
|
A Motorized Scrap Winder |
Semi-Auto Tool Loading Mechanism |
|

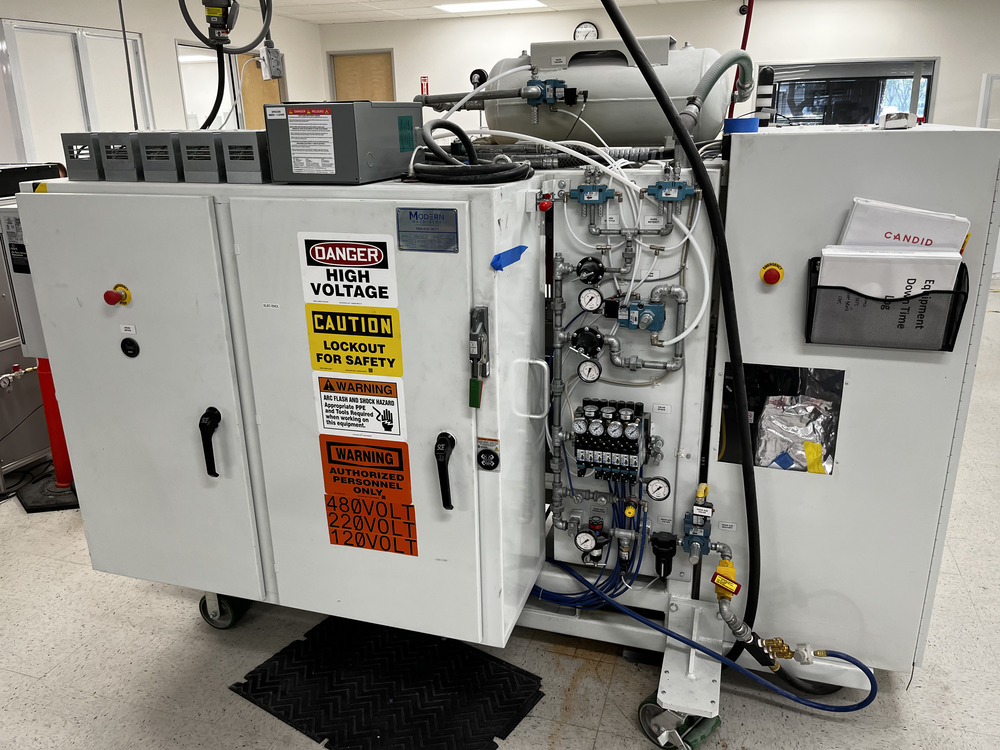

Vacuum Pump & Tank Reservoir |
